Product: DrumBass TM Xtreme Bluetooth Speaker Model: FG-8018N User Guide Thank you for purchasing a Lifetrons® DrumBass Xtreme Bluetooth Speaker. This pocket-sized speaker features revolutionary portable audio technology with built-in bass support and Bluetooth for wireless music. The DrumBass Xtreme Bluetooth Speaker is equipped with a high-fidelity speaker to ensure smooth delivery of mid and high-range tones. It comes with a built-in rechargeable battery for easy use. This guide outlines the operating procedures and safety precautions. Please read it carefully to make sure you are using your product properly and retain it for future reference. What’s Included • DrumBass Xtreme Bluetooth Speaker • Audio cable • Micro-USB charging cable • Storage pouch • User guide Compatibility • Any portable audio device with Bluetooth capability • Any device with a 3.5mm input for audio playback • Any USB port for charging Please note: The USB port only supports the charging function; it is not able to function as a USB audio speaker. Features • Swiss-designed with an elegant aluminum alloy finish • Built-in wireless Bluetooth technology allows transmission up to 8m • 10 hours of audio playback time • DrumBass™ technology reveals a stunningly powerful bass • Advanced technology provides an excellent playback of the mid and high-range tones • Dual color LED indicates charging or playback status • Protective grille optimizes sound quality while protecting the interior of the speaker • Compatible with most mobile devices, such as: iPad, iPhone, iPod, PC, Mac and other mobile devices using Bluetooth wireless or an audio cable Specifications • Dimensions: 113mm x 57mm x 53mm • Wireless Range: 10m • Output: 3W • Charging time: 4 hours • Music playing time: 10 hours • Rechargeable via standard USB output • Weight: 297g How to Use Insert Drawing 1 A. How to Recharge 1. Connect part ① (micro-USB jack) to ② (micro-USB port). 2. Connect ④ (USB plug) to a USB port with a power supply (i.e. computer USB port or AC adapter with USB power supply). B. How to Connect to a Music Player using an Audio Cable 1. Connect part ③ (3.5mm audio jack) directly to any music player with a 3.5mm audio jack or mobile phone via the audio connector (not included). 2. Connect the other end of the audio cable to part ⑤ (3.5mm audio input) of the speaker. 3. Turn the power switch to (located Back of the speaker) to experience the stunning sound. C. How to Connect to a Music Player using Bluetooth 1. Turn on the connecting device (music player/computer) you want to pair the speaker with. 2. Turn on the Bluetooth function on the connecting device (music player/computer). 3. Turn the power switch to (located back of the speaker), it will start searching for a connecting device and the LED indicator will quickly flash the color blue. 4. Once the speakers and the device are paired, the connecting device will prompt you to select the paired component. Select “FG8018 Lifetrons” from the list of Bluetooth-enabled devices shown on your device. 5. If asked for an input passkey, input the number "0000" (This is the default passkey for the majority of Bluetooth devices). Press “OK” to complete the pairing process. 6. Once pairing is complete there will be a prompt tone and the LED indicator on the speaker will keep flashing slowly. LED Battery Indicator When Charging: Red flickering light – Charging Blue light on – Fully charged When in Use: Blue light on – On Red light on – Low battery External View of Speaker Insert drawing 2 FAQ’s 1. Why isn’t there any sound even though the speaker is turned on? Please make sure that the battery has been charged for at least 4 hours. The red LED will be flashing when charging. For optimal performance, please set the volume level of your MP3 to 60-70%. 2. Why isn’t there any sound when I connect the speaker to my music player? Case 1: When you connect the 3.5mm audio cable to your speaker, make sure that the speaker is switched to the function and that music is playing on your music player. Check if the volume is adjusted too low. See if the 3.5mm audio jack is properly connected. Keep in mind that the speaker is not a USB audio device; it does not play music via USB connection. The USB plug is for charging only. Case 2: When you connect your speaker using Bluetooth, make sure your music player’s Bluetooth is turned on, the speaker is switched to thefunction and that music is playing on your music player. Check if the volume is adjusted too low. Check if the speaker and your device are paired properly, once pairing is complete there will be a prompt tone and the LED indicator on the speaker will keep flashing slowly. 3. Is this a USB audio device? No, this is not a USB audio device. The USB plug is for charging purposes only. To play music, connect the 3.5mm audio jack to any music player. 4. How can I tell if the speaker has been fully charged? When the indicator LED changes from flashing red to solid blue, the speaker has been fully charged. Safety Precautions Please follow the rules outlined in this guide closely to ensure your safety and flawless operation: • Be cautious of any edges, uneven surfaces, metal parts, accessories or packaging to prevent possible injury or damage. Take note that this product should not be placed in your mouth. • Do not modify, repair or dismantle the product. Doing so may result in fire, electric shock, complete breakdown of the product, etc. and will void the warranty. • Do not use any kind of liquid to clean the product. Keep in mind that the surface of the product should only be wiped with a clean dry cloth. • Do not use this product in locations with high temperatures or high humidity levels (i.e.: bathrooms); ideally, the product should be used in a location free of excessive dust and not exposed to direct sunlight. • Do not insert foreign objects or liquids into the product; this could damage the product. • Do not touch this product when your hands are wet; this could resu…

Text truncated - open the document above for the full version.

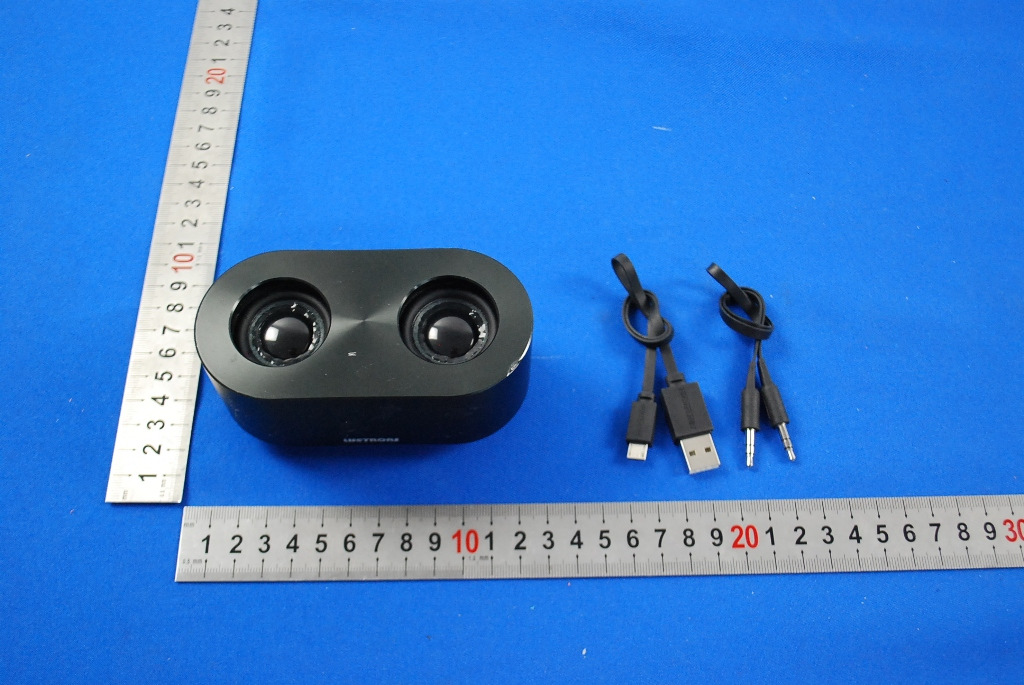

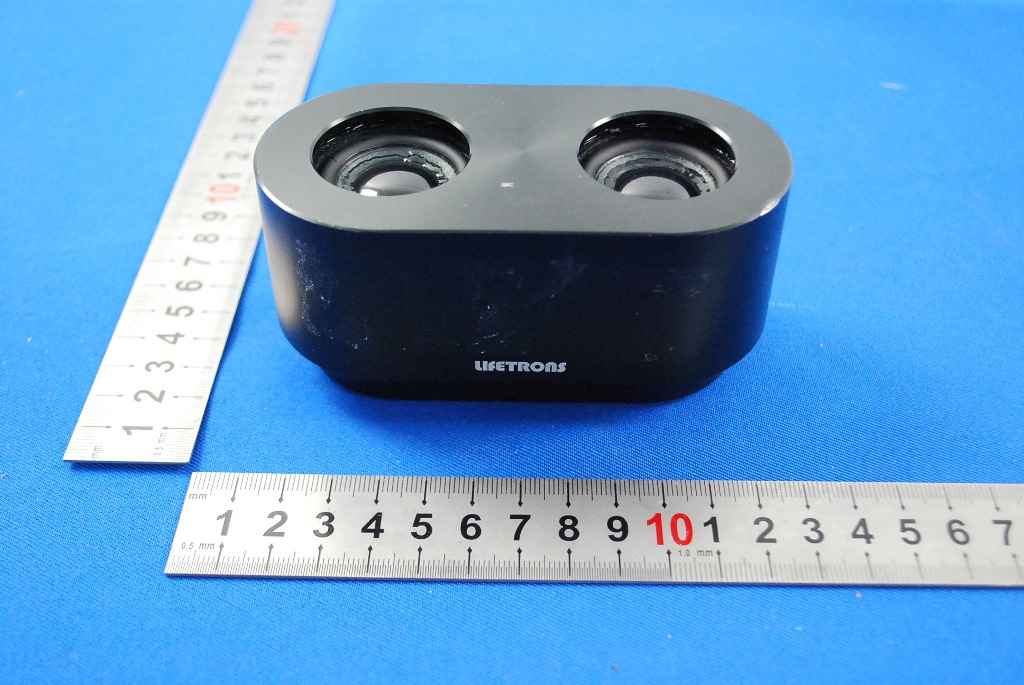

1 Photographs - EUT Constructional Details Test model No.: FG-8018N

( Laser Engraving logo ) Bottom FrontBackRightLeft 17.3017.30 0.50 5.78 52.50 40.50 R28.50 113.00 56.00 R16.50 19.50 To p Confidential and proprietary information of Lifetrons Switzerland GmbH and Lifetrons International Limited Packing item no: - Nature: Silkscreen Product item no: FG-8018N-BK-I Job request no: PD1304024 Designed by: Mandy Print Requirement Dimension : - Open size : - Material : - Color : - Coating : Silkscreen Others : - Date : 19 April 2013 FG-8018N-BK-I Printing Artwork DrumBass TM Xtreme Bluetooth Speaker FCC ID: N9VFG-8018N Model no: FG-8018N Input: 5V 500mA Designed by Lifetrons in Switzerland Assembled in China 31mm(W) 14mm(H)

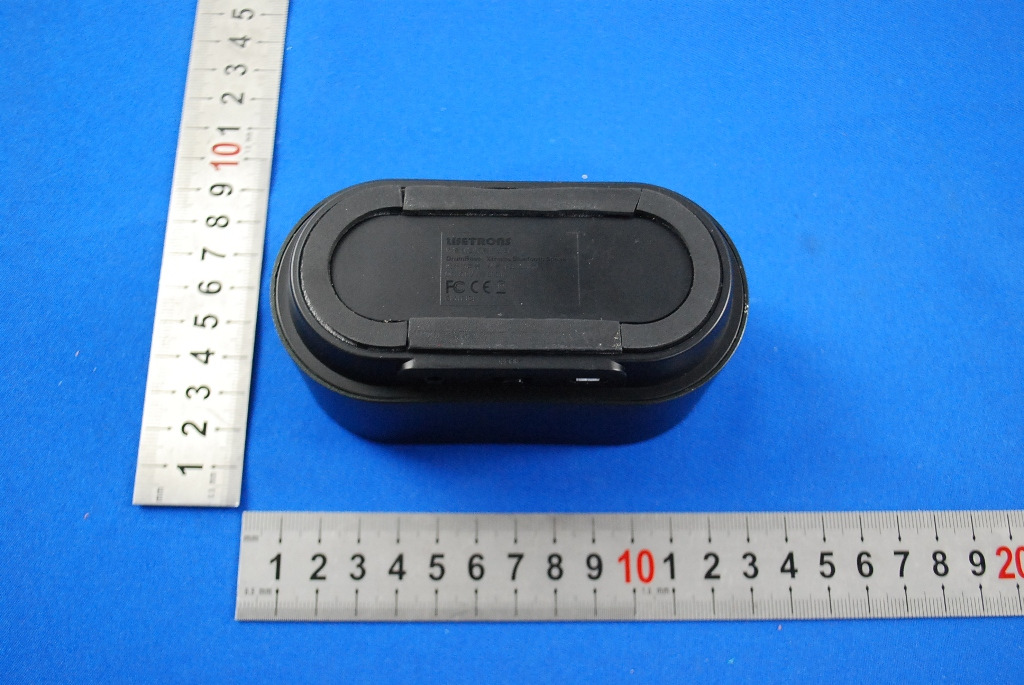

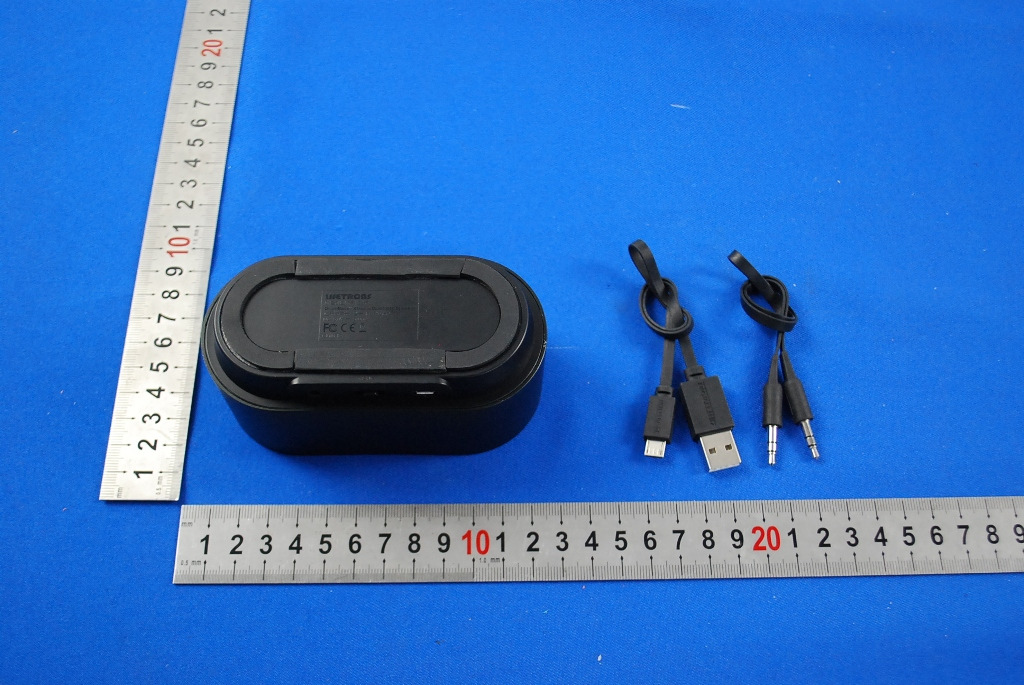

1 Photographs - EUT Constructional Details Test model No.: FG-8018N

SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130300129801 Page: 1 of 75 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1303001298RF Applicant: Lifetrons International Limited Manufacturer: Lifetrons International Limited Factory: Universal communication Limited Product Name: DrumBass TM Xtreme Bluetooth Speaker Model No.(EUT): FG-8018N FCC ID: N9VFG-8018N Standards: 47 CFR Part 15, Subpart C (2012) Date of Receipt: 2013-03-21 Date of Test: 2013-04-03 to 2013-04-12 Date of Issue: 2013-05-20 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130300129801 Page: 2 of 75 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130300129801 Page: 3 of 75 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and …

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup(Test Model No.: FG-8018N) 1.1 Conducted Emission 1.2 Radiated Emission
