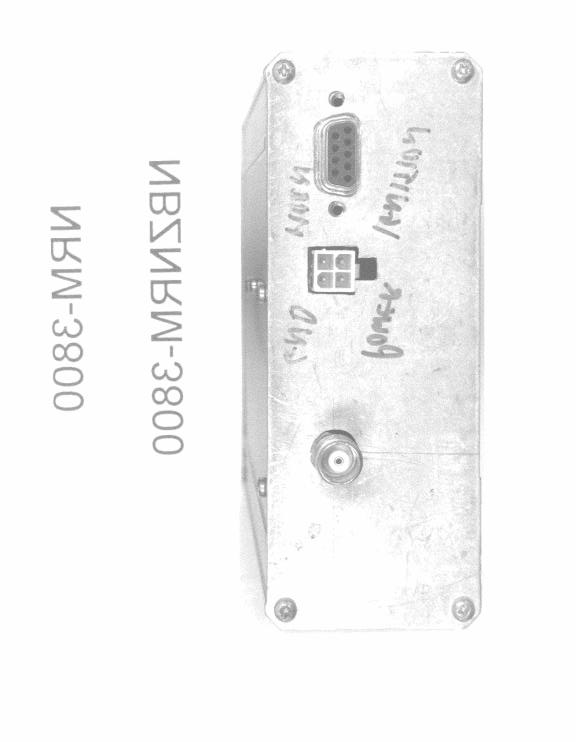

NBZNRM-3800CDPD Data Transceiver

1 3 Watt Installation Guide DRAFT 2 3 WATT INSTALLATION GUIDE1 Introduction4 Configuration4 Contents4 Accessories4 SAFETY NOTICES AND LIABILITIES5 Warning:5 Liability5 INTERFERENCE STATEMENTS6 Federal Communications Commission Radio Frequency Interference Statement6 Caution:6 ICES-003 Statement6 INSTALLATION7 POWER CABLE INSTALLATION8 ANTENNA INSTALLATION9 LED'S AND CONNECTORS10 HOW TO START AND LAUNCH APPLICATIONS11 SPECIFICATIONS12 TECHNICAL SUPPORT14 How to Contact Novatel Wireless Technical Support14 What Customer Support Can Do For You14 POWER ISSUES15 3 Transmitting15 Sleep Mode15 COVERAGE ISSUES16 4 Introduction The purpose of this on-line help system is to describe the procedures required to install 3 Watt Modem in a vehicle environment. If you require information on alternate installations please contact our technical support department at 1-888-888-9231 or email at: [email protected] Configuration The 3 Watt Modem can be purchased in the following configurations: • Base Model (available in bulk or individual packaging) • GPS Modem (available in bulk or individual packaging) Contents The 3 Watt Modem is shipped with the following contents: • 3 Watt Modem • Power Cable • Mounting Hardware • CD-ROM with Modem Manager software • Installation Guide • Trouble Shooting Guide • Warranty Card Accessories The following accessories are available to be added to your 3 Watt Modem. • GPS add on card (Trimble) • GPS add on card (Rockwell) • Panel mount face plate 5 Safety Notices and Liabilities Warning: This product is not to be used in any environment where radio frequency equipment is prohibited or restricted in its use. This includes aircraft/airports, hospitals, and other sensitive electronic areas. Liability Novatel Wireless Inc. assumes no responsibility for any damage or loss resulting from the use of its products. Novatel Wireless assumes no responsibility for any loss or claims by third parties, which may arise through the use of its products. Novatel Wireless assumes no responsibility for any damage or loss caused by the deletion or loss of data as a result of malfunctions or repairs. Be sure to make backup copies of all-important data on other media to protect against data loss. The information disclosed herein is the exclusive property of Novatel Wireless and no part of this publication may be reproduced or transmitted in any form or by any means including electronic storage, reproduction, execution or transmission without the prior written consent of Novatel Wireless. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless unless such commitment is expressly given in a covering document. 6 Interference Statements Federal Communications Commission Radio Frequency Interference Statement This equipment has been certified to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential situations. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off. You are encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna of the selected television, radio, or cordless telephone. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/television technician for additional suggestions. Caution: Changes or modifications to this equipment not expressly approved by Novatel Wireless could void the user’s authority to operate the equipment. ICES-003 Statement This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. 7 Installation It is recommended that your 3 Watt modem be installed in one of the following locations to facilitate ease of installation and monitoring of modem performance: • Under the dash/console • On the center console • In the trunk (preferably off the floor) • Any other location with ease of access and visibility of the unit's LED's Use the following guidelines when choosing an installation location for the modem: • Ensure there is no hazard when drilling the mounting holes. (wiring, fuel, etc) • Select a location that does not interfere with the seat travel or door movement. • Select a location that is not a source of heat. • Ensure the modem has at least 1 inch of clearance on all sides for cooling. • Locate the modem away from any electronic control systems in the vehicle to prevent possible RF interference from the modem. (Although the 3 Watt modem passes all FCC requirements, we cannot ensure that the automobile electronics are not susceptible to the modem transmitted power) • If possible place the modem on the same side of the vehicle as the battery. This will simplify the routing of the power cable. Drill holes into the vehicle appropriate to the chosen location and install the modem using the provided mounting hardware. 8 Power Cable Installation Connect the provided power cable as shown in the pinout diagram shown below. The modem will not work if the vehicle does not have a negative ground. There are no fuses on the power cable, because an internal resettable fuse is included with the modem. The function of the power pins and color of wires are as follows: 9 Antenna Installation When choosing an antenna for your modem installation you should select one that meets the following specifications: • Cellular frequency band • TNC connector • 50 ohm cable • 3 dBi gain (+/- 2 dBi) Please follow these recommendations when installing your antenna: • Install th…

Text truncated - open the document above for the full version.

AT Command Set Reference Guide for Expedite and Merlin Wireless IP Modems PS-01016529 UNRELEASED Release 2.1 Friday, May 7, 1999 The information disclosed herein is the exclusive property of NOVATEL WIRELESS TECHNOLOGIES LTD. and is not to be disclosed without the written consent of NOVATEL WIRELESS TECHNOLOGIES LTD. No part of this publication may be reproduced or transmitted in any form or by any means including electronic storage, reproduction, execution or transmission without the prior written consent of NOVATEL WIRELESS TECHNOLOGIES LTD. The recipient of this document, by its retention and use, agrees to respect the security status of the information contained herein. This document is intended for limited circulation. The information contained in this document is subject to change without notice and should not be construed as a commitment by NOVATEL WIRELESS TECHNOLOGIES LTD. unless such commitment is expressly given in a covering document. © Copyright NOVATEL WIRELESS TECHNOLOGIES LTD. (1999) REVISION HISTORY REV# ECO#EFF. DATEDESCRIPTIONPREPAREDAPPROVED 199010990505Initial release. D. BarberS. Smilar 2.0 99024990705Updated to include new features for TV01-02, including Friends Mode, Quiet mode and Stack Check features. D. BarberS, Smilar 2.1 Added registration mode and out-of- service sleep commands. Added index of AT commands. NOVATEL WIRELESS TECHNOLOGIES LTD. 4 AT Command Specification-Expedite and Merlin Wireless IP Modems Table of Contents INTRODUCTION.................................................................................................................................................... 6 Scope....................................................................................................................................................................... 6 PHYSICAL INTERFACE....................................................................................................................................... 7 Protocol................................................................................................................................................................ 7 Software Interface.................................................................................................................................................. 8 AT Command Mode........................................................................................................................................... 8 Command format................................................................................................................................................ 8 Result format....................................................................................................................................................... 8 Data Mode Description...................................................................................................................................... 9 Internal Stack Description...............................................................................................................................10 UDP Mode Description.................................................................................................................................... 11 TCP Mode Description..................................................................................................................................... 12 DTR Control Description.................................................................................................................................. 14 Push Technology.............................................................................................................................................. 15 Slip Mode........................................................................................................................................................... 16 Point to Point Protocol (PPP).......................................................................................................................... 17 Data Transmission Mode................................................................................................................................18 Data Reception Mode...................................................................................................................................... 19 Sleep Mode Description................................................................................................................................... 20 Sleep Mode Feature Enable/Disable............................................................................................................. 21 Out-of-service Sleep Mode............................................................................................................................. 22 Power-up Default Mode................................................................................................................................... 25 Set Hardware Configuration............................................................................................................................ 26 Profile Configuration Commands................................................................................................................... 27 Program Mode.................................................................................................................................................. 28 Local Echo......................................................................................................................................................... 29 Response Format............................................................................................................................................. 30 Programmable I/O............................................................................................................................................ 31 Soft Reset.....................................................…

Text truncated - open the document above for the full version.

1 Warning The antenna must be installed to provide a minimum separation distance of 30 cm from all persons (including users and bystanders) to satisfy FCC RF Exposure requirements. This device is approved for vehicle mount operations only. This product is not to be used in any environment where radio frequency equipment is prohibited or restricted in its use. This includes aircraft/airports, hospitals, and other sensitive electronic areas. 2 1 Antenna Installation Instructions / Requirements When choosing an antenna for your modem installation you should select one that meets the following specifications: • Amps cellular frequency band (824 – 896 MHz) • TNC female, 50 ohm connector • 2.0 dBi (+/- 0.5 dB) (Antenna gain may not exceed 2.5 dBi) Caution: Use only with an approved antenna Note: In order to meet the FCC’s requirements for Maximum Permissible Exposure (MPE) the antenna must be mounted such that no persons (users or bystanders) may come within 30 cm (1 ft) of the antenna while radiating. Please follow these recommendations when installing your antenna: • Install the antenna only according to its manufacturer instructions. • Connect the antenna's TNC connector to the modem's antenna connector. • Only mount the antenna where designed to be mounted. • Do not install a glass mount antenna on metallic glass or with the antenna conductor placed over the rear window heating wires. • Do not mount a roof mount antenna on a fiberglass or plastic surface. Care should be taken when choosing the location on the vehicle for the antenna installation: • Select the highest possible point on the vehicle to install the antenna. • Select a location that has easy access to a cable run to simplify connecting the antenna to the modem. • Select a cable run that is free of hazards such as excessive heat, possible screw punctures or that requires pinching of the cable when installing it. • Select a cable run that allows the cable to remain fixed in place. A cable that has to move in hoods/doors or other moveable locations on the vehicle will eventually fray and break. • Select a cable route that is at least 8 inches (20.3 centimeters) away from any microprocessor controlled electronic equipment.

Novatel Wireless Technologies Ltd. Novatel Wireless Technologies Ltd. Novatel Wireless Technologies Ltd.

Novatel Wireless Technologies Ltd. Novatel Wireless Technologies Ltd. Novatel Wireless Technologies Ltd. Novatel Wireless Technologies Ltd.

FCC ID: NBZNRM-3800 MFA p0010002, d0010023 Date:January 11, 2000 Mailing:Novatel Wireless Technologies Ltd. 6715 - 8th St., N.E., Suite 200 Calgary, AB T2E 7H7 Canada Attention of:(403) 295-4813; FAX: -4801, -4888 Sherry Smilar, Engineering Manager [email protected] Equipment:VIKING NRM-3800 FCC ID:NBZNRM-3800 P.O. Number:NWC 00486 FCC Rules:22.901(d), Confidentiality Gentlemen: Enclosed please find your copy of the Supplemental Test Data Report, the whole for Environmental Assessment (MPE) of the referenced equipment as shown. Please allow from 6-8 weeks to hear from the Commission, who may request additional data or information, and even a sample for pre-grant audit testing. Should you need any clarification, just fax or phone. Thank you again for this order - it has been a pleasure to be of service. Sincerely yours, William H. Graff, Director of Engineering enclosure(s) WHG/cvr FCC ID: NBZNRM-3800 MFA p0010002, d0010023 Date:January 11, 2000 Federal Communications Commission Via: Electronic Filing Attention:Authorization & Evaluation Division Applicant:Novatel Wireless Technologies Ltd. Equipment:VIKING NRM-3800 FCC ID:NBZNRM-3800 FCC Rules:22.901(d), Confidentiality and 47 CFR 1.1307, Environmental Assesment Gentlemen: On behalf of the Applicant, enclosed please find the Supplemental Test Data Report, the whole for Environmental Assessment (MPE) of the referenced equipment as shown. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, William H. Graff, Director of Engineering enclosure(s) cc: Applicant WHG/cvr FCC ID: NBZNRM-3800 MFA p0010002, d0010023 Sub-part 1.1307: SUPPLEMENTAL REPORT ENVIRONMENTAL ASSESSMENT General Population / Uncontrolled Exposure, Maximum Permissible Exposure and Specific Absorption Rate EQUIPMENT IDENTIFICATION Novatel Wireless Technologies Ltd. FCC ID: NBZNRM-3800 DATE OF REPORT January 11, 2000 SUPERVISED BY:William H. Graff, Director of Engineering FCC ID: NBZNRM-3800 MFA p0010002, d0010023 TABLE OF CONTENTS RULEDESCRIPTIONPAGE .Test Report1 .Identification of the Equipment Under Test2 .Standard Test Conditions and Engineering Practices4 1.1310Environmental Assessment5 FCC ID: NBZNRM-3800 MFA p0010002, d0010023 PAGE NO.1 of 8. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a)TEST REPORT (SUPPLEMENTAL) b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number:d0010023 d) Client:Novatel Wireless Technologies Ltd. 6715 - 8th St., N.E., Suite 200 Calgary, AB T2E 7H7 Canada e) Identification:VIKING NRM-3800 FCC ID: NBZNRM-3800 Description:UHF-FM Mobile CDPD Data Transceiver f) EUT Condition:Not required unless specified in individual tests. g) Report Date:January 11, 2000 EUT Received:January 3, 2000 h, j, k):As indicated in individual tests. i) Sampling method:No sampling procedure used. l) Uncertainty:In accordance with MFA internal quality manual. m) Supervised by: William H. Graff, Director of Engineering n) Results:The results presented in this report relate only to the item tested. o) Reproduction:This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: NBZNRM-3800 MFA p0010002, d0010023 PAGE NO.2 of 8. IDENTIFICATION OF THE EQUIPMENT UNDER TEST (EUT) NAME AND ADDRESS OF APPLICANT: Novatel Wireless Technologies Ltd. 6715 - 8th St., N.E., Suite 200 Calgary, AB T2E 7H7 Canada MANUFACTURER: Applicant FCC ID:NBZNRM-3800 MODEL NO: VIKING NRM-3800 DESCRIPTION:UHF-FM Mobile CDPD Data Transceiver TYPE OF EMISSION:30K0DXW FREQUENCY RANGE, MHz:824 to 849 POWER RATING, Watts:3 SwitchablexVariableN/A MODULATION:AMPS TDMA CDMA xOTHER ANTENNA:HELICAL xMONOPOLE OTHER FCC ID: NBZNRM-3800 MFA p0010002, d0010023 PAGE NO.3 of 8. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this report have been determined in accordance with the laboratory's terms of accreditation unless stated otherwise in the report." Should this report contain any data for tests for which we are not accredited, or which have been undertaken by a subcontractor that is not A2LA accredited, such data would not covered by this laboratory's A2LA accreditation. FCC ID: NBZNRM-3800 MFA p0010002, d0010023 PAGE NO.4 of 8. STANDARD TEST CONDITIONS and ENGINEERING PRACTICES Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.4-1992, section 6.1.9, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104 °F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Prior to testing, the EUT was tuned up in accordance with the manufacturer's alignment procedures. All external gain controls were maintained at the position of maximum and/or optimum gain throughout the testing. Measurement results, unless otherwise noted, are worst case measurements. FCC ID: NBZNRM-3800 MFA p0010002, d0010023 PAGE NO.5 of 8. Name of test:Environmental Assessment Specification:FCC:47 CFR 1.1310 Measurement Guide:ANSI/IEEE C95.1 1992 Test Equipment:Maximum Permissible Exposure (MPE) measurement system, consisting of: Narda 8717-1174R, Radiation meter Narda 8761D, E-field probe (300 kHz – 3 GHz) (Calibrated Nov-98) Measurement Procedure: 1. The following measurements were performed with a Narda probe using ANSI/IEEE C95.1 as a guide. 2. Prior to making any measurements, the measurements system was calibrated in accordance with the manufacturer’s procedur…

Text truncated - open the document above for the full version.

FCC ID: NBZNRM-3800 MFA p0010002, d0010023 PAGE NO.6 of 8. AMENDED April 3, 2000 Name of test:Environmental Assessment Tested Distance:= 0.3 m (11.8 in.) Rated Probe Power Density: Narda 8761D Probe = 10μW/cm 2 to 20 mW/cm 2 Error Margin: Narda 8717 Meter = 1% EUT Description: See Page 2. Power[W]=3 Test Frequency, MHz = 824.04 Ant. Model As shipped Ant. Gain[dBi]= 2.5 Power[W EIRP]P[W]x G = 5.3 Watts EIRP MPE Limit[mW/cm 2 ]= f/1500 (formula for test frequency) MPE Limit[mW/cm 2 ]= 0.549 (calculated result) MPE Limit[W/m 2 ]= 5.49 (final units) Theoretical safe distance: R[m]= [(P[W EIRP])/(4πx Limit[W/m 2 ])] 1/2 R[m]= 0.277 R[inches]= 10.9 Probe Height, m Power Density, mW/cm 2 2.0 0.32 1.8 0.23 1.6 0.19 1.4 0.42 1.2 0.52 1.0 0.70 0.8 0.45 0.6 0.30 0.4 0.21 Results: at tested distance 0.2 0.16 Calculations: The measured power density readings were summed and the results divided by the number of readings to calculate the average. For whole body: Average of 0.2 to 2.0 m, mW/cm 2 = 0.350 For lower body: Average of 0.2 to 0.8 m, mW/cm 2 = 0.280 For upper body: Average of 1.0 to 2.0 m, mW/cm 2 = 0.397 SUPERVISED BY: William H. Graff, Director of Engineering FCC ID: NBZNRM-3800 MFA p0010002, d0010023 PAGE NO.7 of 8. AMENDED April 3, 2000 Name of test:Environmental Assessment Tested Distance:= 0.267 m (10.5 in.) Rated Probe Power Density: Narda 8761D Probe = 10μW/cm 2 to 20 mW/cm 2 Error Margin: Narda 8717 Meter = 1% EUT Description: See Page 2. Power[W]=3 Test Frequency, MHz = 836.4 Ant. Model As shipped Ant. Gain[dBi]= 2.5 Power[W EIRP]P[W]x G = 5.3 Watts EIRP MPE Limit[mW/cm 2 ]= f/1500 (formula for test frequency) MPE Limit[mW/cm 2 ]= 0.558 (calculated result) MPE Limit[W/m 2 ]= 5.58 (final units) Theoretical safe distance: R[m]= [(P[W EIRP])/(4πx Limit[W/m 2 ])] 1/2 R[m]= 0.275 R[inches]= 10.8 Probe Height, m Power Density, mW/cm 2 2.0 0.30 1.8 0.19 1.6 0.27 1.4 0.38 1.2 0.48 1.0 0.68 0.8 0.29 0.6 0.17 0.4 0.24 Results: at tested distance 0.2 0.20 Calculations: The measured power density readings were summed and the results divided by the number of readings to calculate the average. For whole body: Average of 0.2 to 2.0 m, mW/cm 2 = 0.321 For lower body: Average of 0.2 to 0.8 m, mW/cm 2 = 0.225 For upper body: Average of 1.0 to 2.0 m, mW/cm 2 = 0.385 SUPERVISED BY: William H. Graff, Director of Engineering FCC ID: NBZNRM-3800 MFA p0010002, d0010023 PAGE NO.8 of 8. AMENDED April 3, 2000 Name of test:Environmental Assessment Tested Distance:= 0.298 m (11.7 in.) Rated Probe Power Density: Narda 8761D Probe = 10μW/cm 2 to 20 mW/cm 2 Error Margin: Narda 8717 Meter = 1% EUT Description: See Page 2. Power[W]=3 Test Frequency, MHz = 848.97 Ant. Model As shipped Ant. Gain[dBi]= 2.5 Power[W EIRP]P[W]x G = 5.3 Watts EIRP MPE Limit[mW/cm 2 ]= f/1500 (formula for test frequency) MPE Limit[mW/cm 2 ]= 0.566 (calculated result) MPE Limit[W/m 2 ]= 5.66 (final units) Theoretical safe distance: R[m]= [(P[W EIRP])/(4πx Limit[W/m 2 ])] 1/2 R[m]= 0.272 R[inches]= 10.7 Probe Height, m Power Density, mW/cm 2 2.0 0.15 1.8 0.19 1.6 0.26 1.4 0.21 1.2 0.44 1.0 0.57 0.8 0.48 0.6 0.37 0.4 0.28 Results: at tested distance 0.2 0.13 Calculations: The measured power density readings were summed and the results divided by the number of readings to calculate the average. For whole body: Average of 0.2 to 2.0 m, mW/cm 2 = 0.308 For lower body: Average of 0.2 to 0.8 m, mW/cm 2 = 0.315 For upper body: Average of 1.0 to 2.0 m, mW/cm 2 = 0.303 SUPERVISED BY: William H. Graff, Director of Engineering

D C B A 4321 D C B A 4321 Novatel Wireless Technologies Ltd. Calgary, AB DWN: SS CHK: KF NOTES: LABEL FCC ANTENNA WARNING (3 WATT) SIZEFSCM NODWG NOREV DA-010168281 SCALE 1 : 1 SHEET 1 OF 2 ECOAPV.DESCRIPTIONDATEREVDWN 99032NWInitial Release99-07-211SS Notes: 1) Built with process drawing DP-01016828 Warning: The antenna must be installed to provide a minimum separation distance of 30 cm from all persons (including users and bystanders) to satisfy FCC RF Exposure requirements. Novatel Wireless Technologies Ltd. Calgary, AB DWN: SS CHK: KF NOTES: Label Location - 3 Watt Mobile SIZEFSCM NODWG NOREV DA-01011 SCALE 1 : 1 SHEET 2 of 2 te xt te xt te xt te xt top 1.5 inch 1.74 D C B A 4321 D C B A 4321 warning label here

FCC ID: NBZNRM-3800 MFA p0010002, d0010025 Date:January 11, 2000 Federal Communications Commission Via: Electronic Filing Attention:Authorization & Evaluation Division Applicant:Novatel Wireless Technologies Ltd. Equipment:VIKING NRM-3800 FCC ID:NBZNRM-3800 FCC Rules:22.901(d), Confidentiality Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, William H. Graff, Director of Engineering enclosure(s) cc: Applicant WHG/cvr FCC ID: NBZNRM-3800 MFA p0010002, d0010025 LIST OF EXHIBITS (FCC CERTIFICATION (TRANSMITTERS) - REVISED 9/28/98) APPLICANT:Novatel Wireless Technologies Ltd. FCC ID:NBZNRM-3800 BY APPLICANT: 1. LETTER OF AUTHORIZATION 2. IDENTIFICATION DRAWINGS, 2.1033(c)(11) LABEL LOCATION OF LABEL COMPLIANCE STATEMENT LOCATION OF COMPLIANCE STATEMENT 3. PHOTOGRAPHS, 2.1033(c)(12) 4. DOCUMENTATION: 2.1033(c) (3)USER MANUAL (9)TUNE UP INFO (10)SCHEMATIC DIAGRAM (10) CIRCUIT DESCRIPTION 5. PART 90.203(e) & (g) ATTESTATION BY M.F.A. INC. A.TESTIMONIAL & STATEMENT OF CERTIFICATION B.STATEMENT OF QUALIFICATIONS FCC ID: NBZNRM-3800 MFA p0010002, d0010025 Sub-part 2.1033(c): EQUIPMENT IDENTIFICATION FCC ID: NBZNRM-3800 NAMEPLATE DRAWING ATTACHED, EXHIBIT 1. LOCATION AS PER LABEL DRAWING(S) DATE OF REPORT January 11, 2000 SUPERVISED BY:William H. Graff, Director of Engineering FCC ID: NBZNRM-3800 MFA p0010002, d0010025 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a)SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: NBZNRM-3800 MFA p0010002, d0010025 TABLE OF CONTENTS RULEDESCRIPTIONPAGE .Test Report1 2.1033(c)General Information Required2 2.1033(c)(14) Rule Summary5 .Standard Test Conditions and Engineering Practices6 2.1046(a) Carrier Output Power (Conducted)7 2.1051 Unwanted Emissions (Transmitter Conducted)9 2.1053(a) Field Strength of Spurious Radiation13 2.1049(c)(1) Emission Masks (Occupied Bandwidth)16 2.1055(a)(1) Frequency Stability (Temperature Variation)21 2.1055(b)(1)Frequency Stability (Voltage Variation)24 2.202(g) Necessary Bandwidth and Emission Bandwidth25 FCC ID: NBZNRM-3800 MFA p0010002, d0010025 PAGE NO.1 of 25. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a)TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85224 c) Report Number:d0010025 d) Client:Novatel Wireless Technologies Ltd. 6715 - 8th St., N.E., Suite 200 Calgary, AB T2E 7H7 Canada e) Identification:VIKING NRM-3800 FCC ID: NBZNRM-3800 Description:UHF-FM Mobile CDPD Data Transceiver f) EUT Condition:Not required unless specified in individual tests. g) Report Date:January 11, 2000 EUT Received:January 3, 2000 h, j, k):As indicated in individual tests. i) Sampling method:No sampling procedure used. l) Uncertainty:In accordance with MFA internal quality manual. m) Supervised by: William H. Graff, Director of Engineering n) Results:The results presented in this report relate only to the item tested. o) Reproduction:This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: NBZNRM-3800 MFA p0010002, d0010025 PAGE NO.2 of 25. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 22.901(d), Confidentiality Sub-part 2.1033 (c)(1):NAME AND ADDRESS OF APPLICANT: Novatel Wireless Technologies Ltd. 6715 - 8th St., N.E., …

Text truncated - open the document above for the full version.
