NBZNRM-EG301PCS OEM Module

NOVATEL WIRELESS LIMITED WARRANTY AND LIABILITY Warranty Period: Products & Accessories - 1 Year; Batteries - 90 days (in each case from the date of invoice). Novatel Wireless warrants that during the Warranty Period the Product will be free from defects in material and workmanship under normal use. THESE WARRANTIES ARE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. NOVATEL WIRELESS’ LIABILITY HERE UNDER IS EXPRESSLY LIMITED TO REFUND OF ALL AMOUNTS PAID TO NOVATEL WIRELESS FOR ANY DEFECTIVE UNITS OF PRODUCT, WHETHER NOVATEL WIRELESS’ LIABILITY ARISES FROM ANY BREACH OF EXPRESS WARRANTY, REACH OF ANY OBLIGATION ARISING FROM BREACH OF WARRANTY, OR OTHERWISE WITH RESPECT TO THE MANUFACTURE AND SALE OF ANY UNITS OF THE PRODUCT, WHETHER LIABILITY IS ASSERTED IN CONTRACT OR TORT, INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY. NOVATEL WIRELESS SHALL IN NO EVENT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE DUE TO ANY CAUSE. Purchaser's exclusive remedy for a claim under this warranty shall be limited to the repair or replacement, at Novatel Wireless' option, of defective or nonconforming materials, parts or components. The foregoing warranties do not extend to: (I) non-conformities, defects or errors in the Products due to accident, abuse, misuse or negligent use of the Products or use in other than a normal and customary manner, environmental conditions not conforming to Novatel Wireless' specification, of failure to follow prescribed installation, operating and maintenance procedures, (II) defects, errors or nonconformities in the Product due to modifications, alterations, additions or changes not made in accordance with Novatel Wireless' specifications or authorized by Novatel Wireless, (III) normal wear and tear, (IV) damage caused by force of nature or act of any third person, (V) shipping damage, (VI) service or repair of Product by the Purchaser without prior written consent from Novatel Wireless, (VII) Products designated by Novatel Wireless as beta site test samples, experimental, developmental, reproduction, sample, incomplete or out of specification Products, or (VIII) returned Products if the original identification marks have been removed or altered. Part Number: 90023348 Revision 1.1 Novatel Wireless Expedite G301™ Development Kit Thank you for your interest in Novatel Wireless Technologies for wireless GPRS connectivity. When it comes to mobile connectivity, Novatel Wireless offers more freedom than ever before. Available with a 70-pin interface connector, the G301 GPRS Tri-Band OEM modem offers ease of integration of GPRS Wireless data and voice. In order to use your G301, you will require the following items and information: • A computer with a Windows® 98 SE, ME, NT4 SP6, 2000, or XP operating system, and a standard RS-232 Communications Port. • A SIM card activated with GPRS service • Your GPRS service provider's Access Point Name (APN) Please record for future reference: IMEI number (found on the back of the modem)______________________ SIM card number______________________________________________ APN________________________________________________________ What is a SIM Card? A SIM card is a component of the GSM™/GPRS network that contains your subscription information, and provides storage capacity for text messages and an address book. Your SIM card must be connected to the G301, with use of the Interface board, in order for it to operate on the network. The GSM/GPRS network uses your SIM card to authenticate and register your device. If you lose your SIM card, contact your carrier immediately. Integration Kit Includes: • Expedite G301 • Interface PCB • Power Supply • Communications Cable • Antennas Getting Started with the Expedite G301 GPRS Tri-Band Modem 1. Insert SIM Card ‰ Insert with contacts down in accordance with the Orientation Notch on the back of the modem. 2. Attach Appropriate Antenna ‰ In North America, you will use the short PCS antenna. In Europe, use the longer GSM/DCS antenna. 3. Attach the Expedite G301 to the Interface Board 4. Check Jumper Settings ‰ Jumpers should be installed only on the following locations: JP5, JP8, J15, and JP2 (see Figure 2 below) Figure 2 RTS CTS DTM DFM DTR DSR JP5 J15 JP8 JP2 SIM CARD J106 OEM TRIBAND MODEM 5. Connect Communications Cable ‰ A straight serial cable should be connected to J106 PRIMARY. Do not use a null cable. Connect the cable to COM 1(or 2) on your PC. 6. Insert Power Supply ‰ Power Supply is 5V rated at 2.0 Amps. Connect to J3. 7. Check Installation with Terminal Application ‰ Using a Terminal application such as HyperTerminal, create a session on the designated communications port COM 1(or 2) with the following settings: • Max. speed = 115,200 • Data bit = 8 • Parity = N • Stop bit = 1 ‰ From the terminal window, the modem should respond to ‘AT’ with OK . Additional AT Commands are available in the Novatel Wireless Technologies document entitled GPRS Technical Manual . 8. Install the Modem Manager Software ‰ Insert the Expedite G301 CD into your computer. If the installation program does not launch automatically, open the CD in My Computer and select Autorun.exe from the ‘Modem Manager CD Image’ folder ‰ Select the operating system you will use. ‰ Select Software and follow the steps to install the software. ‰ The Installation Complete window will appear. Ignore the PC Card insertion instructions and click Finish . 9. Install the Modem Driver ‰ From the Windows Control Panel, select Phone and Modem Options . ‰ Select the Modems tab and click Add . ‰ Select Do not detect my modem; I will select it from a list . ‰ Click Have Disk . ‰ Click Browse to look for the modem file named NwtGprs.INF. The file is located on the CD in the ‘Drivers\ Expedite’ folder under the appropriate operating system. Click the file to select it. Click OK . ‰…

Text truncated - open the document above for the full version.

Technical Manual with Specifications Merlin and Expedite GPRS Products P/N 90023363 Rev. 1.8 Notice: Restricted Proprietary Information © Copyright Novatel Wireless Technologies Ltd. (2002) The information contained in this document is the exclusive property of Novatel Wireless Technologies Ltd. All rights reserved. Unauthorized reproduction of this manual in any form without the expressed written approval of Novatel Wireless Technologies Ltd is strictly prohibited. This manual may not, in whole or in part, be copied, reproduced, translated, or reduced to any electronic or magnetic storage medium without the written consent of a duly authorized officer of Novatel Wireless Technologies Ltd. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless Technologies Ltd. unless such commitment is expressly given in a covering document. Novatel Wireless Technologies Ltd makes no warranties, either expressed or implied, regarding this document, its merchantability, or its fitness, for any particular purpose. Printed and produced in Canada. i P/N 90023363 Revision 1.8 Table of Contents Chapter 1: Product Overview Introduction to GSM and GPRS ....................................................................................2 GSM Technology............................................................................................................................. 2 Advantages of GPRS ...................................................................................................................... 3 GPRS Network Architecture ............................................................................................................ 4 Data Rates ...................................................................................................................................... 6 SIM .................................................................................................................................................. 6 Operational Features......................................................................................................7 Notices.............................................................................................................................8 Safety Warning ...................................................................................................................................... 8 FCC RF Interference Statement ............................................................................................................ 9 Regulatory Requirements ...................................................................................................................... 9 Technical Support Contacts................................................................................................................. 11 Limited Warranty and Liability.............................................................................................................. 11 Icon Usage .................................................................................................................................... 14 Chapter 2: Specifications Merlin GPRS PC Card Specifications .........................................................................15 Merlin General Specifications .............................................................................................................. 16 Merlin Physical Appearance ................................................................................................................ 18 PC Card Connector Pin Assignment.................................................................................................... 20 Interfaces ............................................................................................................................................. 22 Modes .................................................................................................................................................. 23 Expedite G301 OEM Module Specifications...............................................................24 Expedite General Specifications ................................................................................................... 24 Expedite Physical Appearance...................................................................................................... 25 Interfaces ............................................................................................................................................. 26 Modem Power-On and Wake up Strategy..................................................................................... 27 Serial Ports .................................................................................................................................... 28 GPIO ............................................................................................................................................. 28 Analog to Digital Converter (ADC) ................................................................................................ 29 Audio Port...................................................................................................................................... 29 Subscriber Identity Module Support ..............................................................................................29 Electrostatic Discharge and Electromagnetic Interference............................................................ 29 Expedite Electrical Specifications ........................................................................................................ 30 Power Supply ................................................................................................................................ 30 Interface Signals............................................................................................................................ 31 Power-on and Wake-up Timing Character…

Text truncated - open the document above for the full version.

92AT Commands Revision 1.8 P/N 90023363 Test AT+CGEREP=? SetAT+CGEREP=0 AT+CGMI Description:MANUFACTURERS IDENTITY REQUEST Returns manufacturer identification text. Identical to the command AT+GM I. Syntax:AT+CGMI Parameters:NONE Response:Manufacturer’s ID Example:Input Output Query AT+CGMINovatel Wireless, Inc. OK Te s t AT+CGMI=?OK AT+CGMM Description:MODEL IDENTITY REQUEST Returns product model identification text. Identical to the command AT+GM M. Syntax:AT+CGMM Parameters:None Response:<model identity> Example:Input Output Query AT+CGMMGPRS PC Card 1900 OK Te s t AT+CGMM=?OK AT+CGMR Description:REVISION IDENTITY REQUEST Returns product software version identification text. Identical to the command AT+GM R. Syntax:AT+CGMR Parameters:None Response:<software revision text> Example:Input Output AT Commands 93 P/N 90023363 Revision 1.8 Query A T + C G M R ?S o f t w a r e V e r s i o n : P N 1 6 0 - 0 3 0 0 Date: May 23 2001, Time: 14:17:39. OK Te s t AT+CGMR=?OK AT +CGO I Description:GLOBAL IDENTITY REQUEST Reports one or more lines of information text which permit the user to identify the device, based on the ISO system for registering unique object identifiers. Identical to the command AT+GOI. Syntax:AT+CGOI Parameters:None Response:Identifier of device type. AT+CGPADDR Description:SHOW PDP ADDRESS This command dictates the behavior of PPP in the ME but not the behavior of any other GPRS-enabled foreground layer, e.g. browser. Syntax:AT+CGPADDR=[<cid>[,<cid>[,...]]] Parameters: <cid>a numeric parameter which specifies a particular PDP context definition (see +CGDCONT command). If no <cid> is specified, the addresses for all defined contexts are returned. <PDP_addr> a string that identifies the MT in the address space applicable to the PDP. The address may be static or dynamic. For a static address, it will be the one set by the +CGDCONT command when the context was defined. For a dynamic address it will be the one assigned during the last PDP context activation that used the context definition referred to by <cid>. <PDP_address> is omitted if none is available. Response:+CGPADDR: <cid>,<PDP_addr>[<cr><LF>+CGPADDR: <cid>,<PDP_addr> AT +CGQ MIN Description:QUALITY OF SERVICE PROFILE (MINIMUM ACCEPTABLE) 94AT Commands Revision 1.8 P/N 90023363 Get current quality of service profile. This reports the minimum quality standard that will be used by the device / network. Syntax:AT+CGQMIN=[<cid>[,<precedence>[,<delay>[,<reliability>[,<peak>[,<mean> ]] <cid>a numeric parameter which specifies a particular PDP context definition (see +CGDCONT command). The following parameters are defined in GSM 03.60 <precedence>a numeric parameter which specifies the precedence class <delay>a numeric parameter which specifies the delay class <reliability>a numeric parameter which specifies the reliability class <peak>a numeric parameter which specifies the peak throughput class <mean>a numeric parameter which specifies the mean throughput class Response: AT+CGQMIN?+CGQMIN: <cid>,<precedence>,<delay>,<reliability>,<peak>,<mean>[<cr><LF> +CGQMIN: <cid>,<precedence>,<delay>,<reliability>,<peak>,<mean>[...]] QueryAT+CGQMIN?Current selection OK Test AT+CGQMIN=?List of possible selections SetAT+CGQMIN=<n>OK AT+CGQREQ Description:REQUEST QUALITY OF SERVICE PROFILE Request quality of service from carrier. Syntax:AT+CGQREQ=[<cid>[,<precedence>[,<delay>[,<reliability.>[,<peak>[,<mean >]]]]]] Parameters: <cid>a numeric parameter which specifies a particular PDP context definition (see +CGDCONT command). The following parameters are defined in GSM 03.60 - <precedence>a numeric parameter which specifies the precedence class <delay>a numeric parameter which specifies the delay class <reliability>a numeric parameter which specifies the reliability class <peak>a numeric parameter which specifies the peak throughput class AT Commands 95 P/N 90023363 Revision 1.8 <mean>a numeric parameter which specifies the mean throughput class Response:+CGQREQ:<cid>,<precedence>,<delay>,<reliability>,<peak>,<mean>[<cr ><LF>+CGQREQ: <cid>,<precedence>,<delay>,<reliability>,<peak>,<mean>[...]] AT +CGREG Description:GPRS NETWORK REGISTRATION STATUS This set command returns the status of an unsolicited result code. Syntax:AT+CGREG=[<n>] Parameters: <n>0disable network registration unsolicited result code 1enable network registration unsolicited result code +CGREG: <stat> 2enable network registration and location information unsolicited result code +CGREG: <stat>[,<lac>,<ci>] Response:(Read Response) +CGREG: <n>,<stat>[,<lac>,<ci>] +CME ERROR: <err> <n>0disable network registration unsolicited result code 1enable network registration unsolicited result code +CGREG: <stat> 2enable network registration and location information unsolicited result code +CGREG: <stat>[,<lac>,<ci>] <stat>0device is not registered, ME is not currently searching a new operator to register to 1device is registered <lac>string type; two byte location area code in hexadecimal format (e.g. "00C3" equals 195 in decimal) <ci>string type; two byte cell ID in hexadecimal format QueryAT+CGREG?Current selection OK Test AT+CGREG=?List of possible selections SetAT+CGREG=<n>OK AT +CGSMS Description:SERVICE SELECTION FOR MO SMS MESSAGES 96AT Commands Revision 1.8 P/N 90023363 This set command is used to specify the service or service preference that the MT will use to send MO SMS messages. Syntax:AT+CGSMS=[<service>] Parameters: <service>a numeric parameter which indicates the service or service preference to be used. The circuit switched service route is the default method. 0GPRS 1circuit switched 2GPRS preferred (use CSD if GPRS not available) 2CSD preferred (use GPRS if CSD not available) Response:(Read Response) +CGSMS: [<service>]<cr> +CME ERROR: <err> <service> see above. <n>0disable network registration unsolicited result code 1enable network registration unsolicited result code +CGREG: <stat> 2enable network registration and location information unsolicited result code +CGREG:…

Text truncated - open the document above for the full version.

Technical Manual with Specifications Merlin and Expedite GPRS Products P/N 90023363 Rev. 1.8 Notice: Restricted Proprietary Information © Copyright Novatel Wireless Technologies Ltd. (2002) The information contained in this document is the exclusive property of Novatel Wireless Technologies Ltd. All rights reserved. Unauthorized reproduction of this manual in any form without the expressed written approval of Novatel Wireless Technologies Ltd is strictly prohibited. This manual may not, in whole or in part, be copied, reproduced, translated, or reduced to any electronic or magnetic storage medium without the written consent of a duly authorized officer of Novatel Wireless Technologies Ltd. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless Technologies Ltd. unless such commitment is expressly given in a covering document. Novatel Wireless Technologies Ltd makes no warranties, either expressed or implied, regarding this document, its merchantability, or its fitness, for any particular purpose. Printed and produced in Canada. i P/N 90023363 Revision 1.9 Table of Contents Chapter 1: Product Overview Introduction to GSM and GPRS ....................................................................................2 GSM Technology............................................................................................................................. 2 Advantages of GPRS ...................................................................................................................... 3 GPRS Network Architecture ............................................................................................................ 4 Data Rates ...................................................................................................................................... 6 SIM .................................................................................................................................................. 6 Operational Features......................................................................................................7 Notices.............................................................................................................................8 Safety Warning ...................................................................................................................................... 8 FCC RF Interference Statement ............................................................................................................ 9 Regulatory Requirements ...................................................................................................................... 9 Technical Support Contacts................................................................................................................. 11 Limited Warranty and Liability.............................................................................................................. 11 Icon Usage .................................................................................................................................... 14 Chapter 2: Specifications Merlin GPRS PC Card Specifications .........................................................................15 Merlin General Specifications .............................................................................................................. 16 Merlin Physical Appearance ................................................................................................................ 18 PC Card Connector Pin Assignment.................................................................................................... 20 Interfaces ............................................................................................................................................. 22 Modes .................................................................................................................................................. 23 Expedite G301 OEM Module Specifications...............................................................24 Expedite General Specifications ................................................................................................... 24 Expedite Physical Appearance...................................................................................................... 25 Interfaces ............................................................................................................................................. 26 Modem Power-On and Wake up Strategy..................................................................................... 27 Serial Ports .................................................................................................................................... 28 GPIO ............................................................................................................................................. 28 Analog to Digital Converter (ADC) ................................................................................................ 29 Audio Port...................................................................................................................................... 29 Subscriber Identity Module Support ..............................................................................................29 Electrostatic Discharge and Electromagnetic Interference............................................................ 29 Expedite Electrical Specifications ........................................................................................................ 30 Power Supply ................................................................................................................................ 30 Interface Signals............................................................................................................................ 31 Power-on and Wake-up Timing Character…

Text truncated - open the document above for the full version.

Novatel Wireless, Inc. Suite 200, 6715-8 th Street NE Calgary, Alberta Canada, T2E 7H7 (Tel) 403-295-4800 (Fax) 403-295-4801 18 th November 2002 Attn: Reviewing Engineer Federal Communication Commission Applications Processing Branch 7435 Oakland Mills Road Columbia, MD, 21046 Reference: LETTER OF AGENT AUTHORIZATION Dear Sir / Madam, We the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization FCC ID: NBZNRM-EG301, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853 (a). This agreement expires one year from the current date. Sincerely, ___________________ Kevin Goodfellow Engineering Technologist Specialist

Novatel Wireless Technologies, LTD. Suite 200, 6715-8 th Street NE Calgary, Alberta Canada, T2E 7H7 (Tel) 403-295-4800 (Fax) 403-295-4801 18 November 2002 Att: Reviewing Engineer Federal Communication Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD, 21046 Reference: FCC ID: NBZNRM-EG301 Dear Sir / Madam, Pursuant to 47 CFR Chapter 1 Section 0.457(d), Novatel Wireless Inc. requests that the following material submitted with the Certification Application be withheld from public disclosure. This material contains trade secrets and technical details are that are customarily guarded from competitors and not released to the general public by Novatel Wireless Technologies Inc. Expedite G301 Wireless Modem 1. Schematic Diagrams 2. Block Diagrams, RF and Digital 3. Theory of Operation 4. Bill of Materials Sincerely, Kevin Goodfellow Engineering Technologist Specialist

A05-Nov-02FIRST ISSUEDRK R KUBIK G MAY 05-Nov-02 05-Nov-02 LABEL TOP EXPEDITE G301 DM-25015605 A 12 NOTES: 1. THIS DRAWING IS USED FOR PART DETAILING AND VISUAL PURPOSES ONLY. USE ELECTRONIC .EPS FILE AS MASTER TO CREATE ARTWORK. 2. MATERIAL REQUIREMENTS: 0.09 MM THICK (0.0035") LAMINATION: 0.025 MM (0.001") GLOSS CLEAR POLYESTER ADHESIVE (LAMINATION): 0.02 MM (0.0008") ACRYLIC BASE: 0.025 MM (0.001") GLOSS WHITE POLYESTER ADHESIVE (BASE): 0.02 MM (0.0008") #400 ACRYLIC 3. COLOUR: REFER TO EPS FOR COLOUR REQUIREMENTS 4. QUALITY OF ARTWORK AND PART AESTHETICS TO BE APPROVED BY NOVATEL WIRELESS. 5. LABEL TO BE SUPPLIED ON ROLL WITH LINER: LINER: 0.081MM (0.0032") #55 DENSIFIED KRAFT 5. PARTS TO BE PACKAGED TO PREVENT DAMAGE DURING SHIPPING & HANDLING. EACH PACKAGE WILL INCLUDE THE FOLLOWING INFORMATION: A) VENDOR NAME B) MATERIAL C) PURCHASE ORDER NO. D) QUANTITY E) PART NO. & REVISION F) PRODUCTION DATE 2:1 Model: NRM-EG301 Canada ID: 3229A-EG301 FCC ID: NBZNRM-EG301 EXPEDITE G301TM DM-25015605A 2:1

A05-Nov-02FIRST ISSUEDRK R KUBIK G MAY 05-Nov-02 05-Nov-02 MODULE ASSY EXPEDITE G301 DA-01017357 A 13 2.5:1 DA-01017357A 2.5:1 3 2 DA-01017357A 2:1 Model: NRM-EG301 Canada ID: 3229A-EG301 FCC ID: NBZNRM-EG301 EXPEDITE G301TM 3 3 XXXXXX-XX-XXXXXX-X Assembled in HW :

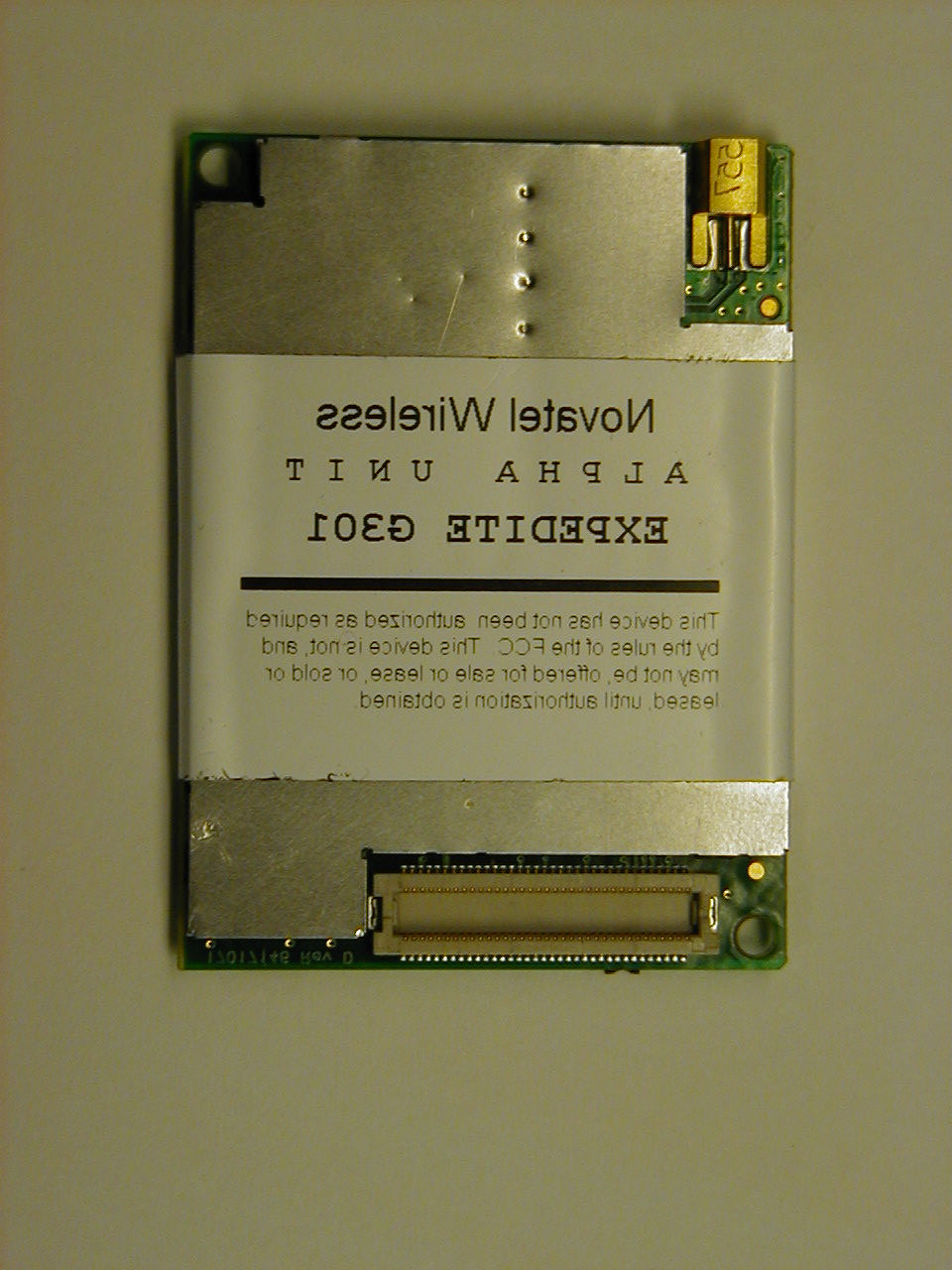

Wireless Embedded Modem for GSM/GPRS Networks The speed of GPRS and the versatility of a global solution, combined into the miniature size of the Expedite™ G301, makes it the ideal solution for embedded wireless data and voice access. GPRS wireless data is the state of the art in cellular data access. Depending on the GPRS network, the Expedite G301 can achieve download data rates of up to 53.6 kbps, and upload rates of up to 26.8 kbps. Standard GSM functionality provides additional versatility; GSM circuit switched data communication up to 14.4 kpbs, SMS text messaging, fax, and voice communication are all provided. Expedite works in both fixed and mobile environments to give devices real-time access to critical information. The Expedite G301 is a tri-band GSM/GPRS radio module. By operating on three radio frequency bands, the Expedite provides access to GSM and GPRS networks around the world. Roaming agreements between GSM cellular operators allow Expedite to be used worldwide with one account. No reconfiguration of the product is required for the user to move between regions with different systems. A product incorporating Expedite is a global product. Expedite was engineered to integrate. With dimensions of 37 mm by 50 mm and only 5 mm thick, the Expedite G301 will fit into the smallest of spaces. Expedite mates to the host device with a single 70 pin header connector for easy assembly. To maximize flexibility the antenna connects to an industry standard 50 Ohm MMCX jack. The efficient sleep mode, and power monitor ensure the conservation of power for portable applications. The Expedite G301 is a fast route to an integrated wireless data solution. The Expedite Family of Embedded Modems are used in many wireless applications including telemetry, inventory monitoring, automated banking, vending machines, vehicle tracking, and more. The Expedite product line with it’s proven quality, performance and reliability is the best value on the market. The Expedite G301 will give many products the wireless edge that will set them above the competition. Contact Novatel Wireless and learn more about incorporating Expedite G301 into your products. EXPEDITE G301 ™ * Shown without shields. GSM/GPRS NETWORK: 900/1800/1900 MHz BANDS

December 2, 2002 Expedite EG301 Tune up information To whom it may concern, The Novatel Wireless GPRS Expedite OEM module is factory tuned. No customer calibration or tuning is required. Sincerely, Kevin Goodfellow Engineering Technology Specialist Suite 200 6715, 8 th Street N.E. Calgary, Alberta, 2E 7H7 Canada,

Projected use of the Novatel Wireless Expedite G301, FCC ID: NBZNRM-EG301 Applications intended to use the Novatel Wireless Expedite G301 module, FCC ID NBZNRM- EG301, are those designed to provide machine-to-machine communications for fixed and mobile environments. Original Equipment Manufacturers will integrate the Ex…

Text truncated - open the document above for the full version.
