NBZNRM-EU730Quad Band GPRS/EDGE & UMTS

Novatel Wireless, Proprietary & Confidential Page1 Novatel Wireless, Inc. PCI Express Mini-card Integration & Design Guidelines Version 1. A Novatel Wireless, Proprietary & Confidential Page2 Notice: Restricted Proprietary Information © Copyright Novatel Wireless, Inc. (2005) The information contained in this document is the exclusive property of Novatel Wireless, Inc. All rights reserved. Unauthorized reproduction of this manual in any form without the expressed written approval of Novatel Wireless, Inc. is strictly prohibited. This manual may not, in whole or in part, be copied, reproduced, translated, or reduced to any electronic or magnetic storage medium without the written consent of a duly authorized officer of Novatel Wireless Inc. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless Inc. unless such commitment is expressly given in a covering document. Novatel Wireless Inc. makes no warranties, either expressed or implied, regarding this document, its merchantability, or its fitness, for any particular purpose. Printed and produced in United States of America. Document Revision History Rev. Date Brief Description of Change Originator Approved by 1.0 March 28, 2005 Initial Draft John Ross 1.1 August 1,2005 Added SDK and AT Commands Matt Golden 1. A September 30,2005 Second Draft Sharon Lee Novatel Wireless, Proprietary & Confidential Page3 Table of Contents Introduction.................................................................................................................................. 14 PCI Express Mini Card..........................................................................................................14 www.pcisig.com/home .......................................................................................................... 14 Getting Started............................................................................................................................. 15 Introduction ........................................................................................................................... 15 Windows Platforms ...............................................................................................................15 Safe ty War ning .................................................................................................................15 FCC RF In t erference S tatem ent ................................................................................... 16 Radio Frequency Exposure Evaluation Requirements ......................................................... 16 Technical Support Contacts.................................................................................................. 16 Device Specifications.................................................................................................................. 17 Introduction ........................................................................................................................... 17 Product Overview............................................................................................................. 17 Hardware................................................................................................................................... 17 Card Specifications ............................................................................................................... 17 Mechanical Specification ...................................................................................................... 18 Shielding / Mechanical enclosure ......................................................................................... 20 Host Interface connector.......................................................................................................20 Interface Specification ............................................................................................................... 21 Host Interface........................................................................................................................ 21 USB Interface........................................................................................................................ 22 RF Interface .......................................................................................................................... 22 Subscriber Identification Module (SIM) Interface.................................................................. 22 USIM Interface ...................................................................................................................... 22 LED Interface ........................................................................................................................ 22 Power Supply ........................................................................................................................ 23 Power Class .......................................................................................................................... 25 WDISABLE............................................................................................................................ 26 Electrostatic Discharge and Electro-Magnetic Interference.................................................. 27 Firmware ................................................................................................................................... 27 Overview ............................................................................................................................... 27 Memory ................................................................................................................................. 27 EU730/740 Firmware Features............................................................................................. 27 EV620 Firmware Features ...............................................................................................…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification - FCC ID: NBZNRM-EU730 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Integration Guide Technical Specification Schematics Bill of Materials / Part List Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kevin Goodfellow Technical Specialist December 10, 2005

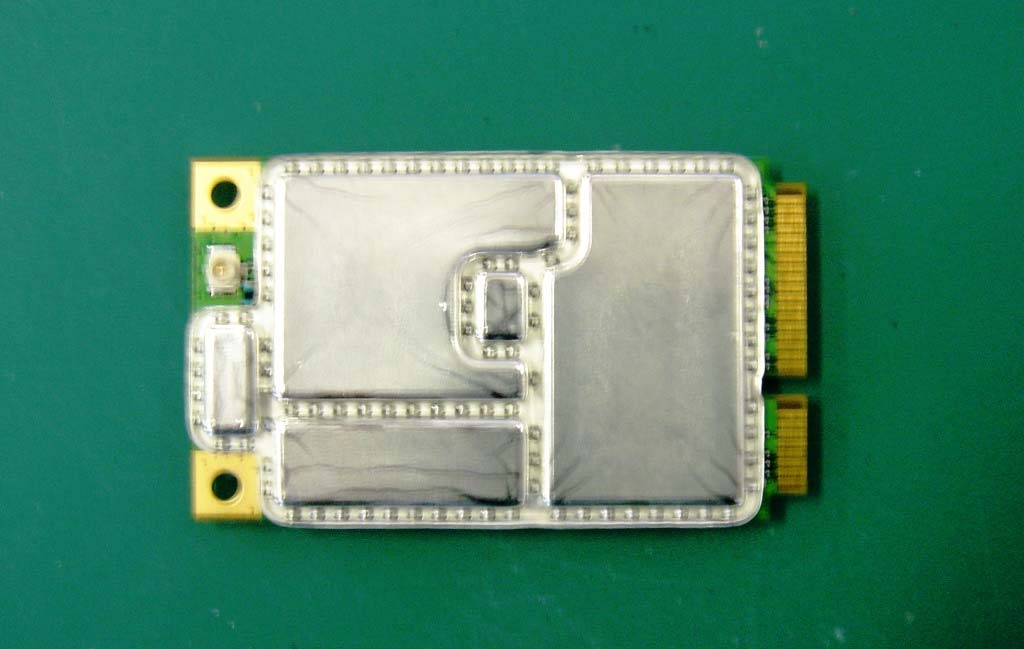

Board Front View Board Back View

Novatel Wireless EU730 Label

Board Front View Board Back View

December 10, 2005 Novatel Wireless EU730 Tune up information To whom it may concern, The Novatel Wireless EU730 GPRS/UMTS/HSDPA wireless module is factory calibrated. No Customer calibration or tuning is required. Sincerely, Kevin Goodfellow Technical Specialist

Page 1 of 5 Novatel Wireless Expedite EU730 module MPE Calculations Calculated at 20cm distance Page 2 of 5 GSM 850 (GPRS) – Bottom Channel – 824MHz, Top Channel – 849MHz Calculation of Far Field Distance The far field is calculated as > λ /2 π , where λ is the wavelength at the transmission frequency. at 824MHz the far field is beyond a distance from the antenna 5.80cm. 849MHz the far field is beyond a distance from the antenna 5.63cm Calculation of power density at 20cm: The RF power density at an operational distance R from the antenna is calculated by the following expression S = (P.G)/4π.R 2 where S = power density in mW/cm 2 P = power output in mW = 2000mW (33dBm) G = antenna gain (numeric gain value) = 2 (3dB) R = operating distance from antenna in cm. (20) S = 2000 x 2 4π x 400 S = 0.796 mW/cm 2 The Power Density Limit is 1.0mW/cm 2 Page 3 of 5 PCS 1900 (GPRS) – Bottom Channel – 1850MHz, Top Channel – 1910MHz Calculation of Far Field Distance The far field is calculated as > λ /2 π , where λ is the wavelength at the transmission frequency. at 1850MHz the far field is beyond a distance from the antenna 2.50cm. 1910MHz the far field is beyond a distance from the antenna 2.58cm Calculation of power density at 20cm: The RF power density at an operational distance R from the antenna is calculated by the following expression S = (P.G)/4π.R 2 where S = power density in mW/cm 2 P = power output in mW = 1000mW (30dBm) G = antenna gain (numeric gain value) = 2 (3dB) R = operating distance from antenna in cm. (20) S = 1000 x 2 4π x 400 S = 0.398 mW/cm 2 The Power Density Limit is 1.0mW/cm 2 Page 4 of 5 UMTS Band II – Bottom Channel – 1850MHz, Top Channel – 1910MHz Calculation of Far Field Distance The far field is calculated as > λ /2 π , where λ is the wavelength at the transmission frequency. at 1850MHz the far field is beyond a distance from the antenna 2.50cm. 1910MHz the far field is beyond a distance from the antenna 2.58cm Calculation of power density at 20cm: The RF power density at an operational distance R from the antenna is calculated by the following expression S = (P.G)/4π.R 2 where S = power density in mW/cm 2 P = power output in mW = 126mW (21dBm) G = antenna gain (numeric gain value) = 2 (3dB) R = operating distance from antenna in cm. (20) S = 125 x 2 4π x 400 S = 0.05 mW/cm 2 The Power Density Limit is 1.0mW/cm 2 Page 5 of 5 UMTS Band V – Bottom Channel – 824MHz, Top Channel – 849MHz Calculation of Far Field Distance The far field is calculated as > λ /2 π , where λ is the wavelength at the transmission frequency. at 824MHz the far field is beyond a distance from the antenna 5.80cm. 849MHz the far field is beyond a distance from the antenna 5.63cm Calculation of power density at 20cm: The RF power density at an operational distance R from the antenna is calculated by the following expression S = (P.G)/4π.R 2 where S = power density in mW/cm 2 P = power output in mW = 126mW (21dBm) G = antenna gain (numeric gain value) = 2 (3dB) R = operating distance from antenna in cm. (20) S = 125 x 2 4π x 400 S = 0.05 mW/cm 2 The Power Density Limit is 1.0mW/cm 2

REPORT ON Limited FCC CFR 47: Parts 22 and 24 and Industry Canada RSS-132 and 133 Testing of a Novatel Wireless Inc EU730 Quad-Band GPRS/EGPRS/UMTS/HSDPA Wireless Embedded Modem COMMERCIAL-IN-CONFIDENCE FCC ID: NBZNRM-EU730 Report No OR614823/01 Issue 1 December 2005 Competence. Certainty. Quality COMMERCIAL-IN-CONFIDENCE TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk ; www.babt.com Report No OR614823/01 Issue 1 Page 1 of 25 COMMERCIAL-IN-CONFIDENCE REPORT ON Limited FCC CFR 47: Parts 22 and 24 and Industry Canada RSS-132 and 133 Testing of a Novatel Wireless Inc EU730 Quad-Band GPRS/EGPRS/UMTS/HSDPA Wireless Embedded Modem FCC ID: NBZMRM-EU730 Report No OR614823/01 Issue 1 December 2005 PREPARED FOR Novatel Wireless Inc Suite 200, 6715 – 8 th Street N.E. Calgary Alberta T2E 7H7 Canada PREPARED BY J Plummer Technical Author APPROVED BY K Adsetts Authorised Signatory DATED 8 th December 2005 ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Parts 15, 22 and 24. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineers; P Harrison A Hubbard FCC ID: NBZNRM-EU730 COMMERCIAL-IN-CONFIDENCE Report No OR614823/01 Issue 1 Page 2 of 25 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY 1.1 Status .................................................................................................................................. 4 1.2 Introduction.......................................................................................................................... 5 1.3 Brief Summary of Results ................................................................................................... 7 1.4 Product Information............................................................................................................. 9 1.5 Test Conditions ................................................................................................................... 11 1.6 Deviations from the Standard............................................................................................. 11 1.7 Modification Record ............................................................................................................ 11 1.8 Alternative Test Site ............................................................................................................ 11 2 TEST DETAILS FCC Part 22 and Industry Canada RSS-132 2.1 Maximum Peak Output Power (Radiated) .......................................................................... 13 2.2 Radiated Emissions ............................................................................................................ 15 FCC Part 24 and Industry Canada RSS-133 2.3 Maximum Peak Output Power (Radiated) .......................................................................... 17 2.4 Radiated Emissions ............................................................................................................ 19 3 TEST EQUIPMENT 3.1 Test Equipment ................................................................................................................... 22 3.2 Measurement Uncertainty ................................................................................................... 23 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT 4.1 Accreditation, Disclaimers and Copyright ........................................................................... 25 Annex A Test Report OR614891/01.................................................................................................. A.2 FCC ID: NBZNRM-EU730 COMMERCIAL-IN-CONFIDENCE Report No OR614823/01 Issue 1 Page 3 of 25 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY Limited FCC CFR 47: Parts 22 and 24 and Industry Canada RSS-132 and 133 Testing of a Novatel Wireless Inc EU730 Quad-Band GPRS/EDGE/UMTS/HSDPA Wireless Embedded Modem FCC ID: NBZNRM-EU730 COMMERCIAL-IN-CONFIDENCE Report No OR614823/01 Issue 1 Page 4 of 25 COMMERCIAL-IN-CONFIDENCE 1.1 STATUS Equipment Under Test Wireless Embedded Modem - EU730 Objective To undertake measurements to determine the Equipment Under Test's (EUT's) compliance with the specification. Name and Address of Client Novatel Wireless Inc Suite 200, 6715 - 8th Street N.E. Calgary Alberta T2E 7H7 Canada Type Quad Band GPRS/EDGE Band II & V UMTS/HSDPA Part Number 01017559 Serial Numbers See Test Result Pages Hardware Version Rev 1 Software Version Version 18 Declared Variants None Test Specification / Issue / Date FCC CFR 47: Part 22, Subpart H, October 2004 FCC CFR 47: Part 24, Subpart D, October 2004 RSS-132: Issue 1: August 2002 RSS-133: Issue 3: June 2005 Number of Items Tested One Security Classification of EUT Commercial-in-Confidence Incoming Release Declaration of Build Status Date 1 st December 2005 Disposal Held pending disposal Reference Number Not Applicable Date Not Applicable Start of Test 10 th November 2005 Finish of Test 18 th November 2005 Related Documents ANSI C63.4: 2001 RSS-212, Issue 1: 1999 SRSP-503, Issue 6: 2003 SRSP-510, Issue 3: 2001 FCC ID: NBZNRM-EU730 COMMERCIAL-IN-CONFIDENCE Report No OR614823/01 Issue 1 Page 5 of 25 COMMERCIAL-IN-CONFIDENCE 1.2 INTRODUCTION The information contained within this report is intended to show limited verification of compliance of the Novatel Wireless Inc EU730 Quad-Band GPRS/EGPRS/UMTS/HSDPA Wireless Embedded Modem to the requirements of FCC Specification Parts 22 and 24 and Industry Canada Radio Specifications RSS-132 and RSS-133. The applicable GSM transmitter including operation; circuitry; frequency bands; hardware and software for US operation for the Novatel Wireless Inc Wireless Embedded Modem - EU730 are identical as for the Novatel Wireles…
