NBZNRM-EU860DDual Band Licensed Modular Transmitter

Novatel Wireless Doc No. OM-01017857 Rev 1 PCI Express Mini-card Integration & Design Guide Version 2.1 Proprietary & Confidential 2 Novatel Wireless Doc No. OM-01017857 Rev 1 Document Revision History Rev. ECO # Date Brief Description of Change Originator Approved by Draft July 21 st 2006 Initial release of Draft Version for Customer Review and Feedback John Whittier 2.0D July 24 th 2006 Initial release of Version 2.0 for Customer Review John Whittier 2.1D Aug 10 th 2006 Updates, TRP, design spec’s etc. Official Release of Version 2.1 John Whittier 2.1 06305 Sept 8 th 2006 ECO sign off updates John Whittier Notice: Restricted Proprietary Information and subject to the confidentiality restrictions contained in any applicable non-disclosure agreement. © Copyright Novatel Wireless, Inc. (2006) The information contained in this document is the exclusive property of Novatel Wireless, Inc. All rights reserved. Unauthorized reproduction of this manual in any form without the expressed written approval of Novatel Wireless, Inc. is strictly prohibited. This manual may not, in whole or in part, be copied, reproduced, translated, or reduced to any electronic or magnetic storage medium without the written consent of a duly authorized officer of Novatel Wireless, Inc. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless, Inc. unless such commitment is expressly given in a covering document. Proprietary & Confidential 3 Novatel Wireless Doc No. OM-01017857 Rev 1 Novatel Wireless, Inc. makes no warranties, either expressed or implied, regarding this document, its merchantability, or its fitness, for any particular purpose. Legal Disclaimer This document and the information contained in the PCI Express Mini-card Integration & Design Guide (together, the “Information”) is provided to you by Novatel Wireless for informational purposes only . Novatel Wireless is providing the Information because Novatel Wireless believes the Integration and Design Guidelines may be useful. The Information is provided on the condition that you will be responsible for making your own assessments of the information and are advised to verify all representations, statements and information before using or relying upon any of the Information. Although Novatel Wireless believes it has exercised reasonable care in providing the Information, Novatel Wireless does not warrant the accuracy of the Information and is not responsible for any damages arising from its use or reliance upon the Information. You further understand and agree that Novatel Wireless in no way represents, and you in no way rely on a belief, that Novatel Wireless is providing the information in accordance with any standard or service (routine, customary or otherwise) related to the consulting, services, hardware or software industries. NOVATEL WIRELESS DOES NOT WARRANT THAT THE INFORMATION IS ERROR-FREE. NOVATEL WIRELESS IS PROVIDING THE INFORMATION TO YOU "AS IS" AND "WITH ALL FAULTS." NOVATEL WIRELESS DOES NOT WARRANT, BY VIRTUE OF THIS DOCUMENT, OR BY ANY COURSE OF PERFORMANCE, COURSE OF DEALING, USAGE OF TRADE OR ANY COLLATERAL DOCUMENT HEREUNDER OR OTHERWISE, AND HEREBY EXPRESSLY DISCLAIMS, ANY REPRESENTATION OR WARRANTY OF ANY KIND WITH RESPECT TO THE INFORMATION, INCLUDING, WITHOUT LIMITATION, ANY REPRESENTATION OR WARRANTY OF DESIGN, PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT, OR ANY REPRESENTATION OR WARRANTY THAT THE INFORMATION IS APPLICABLE TO OR INTEROPERABLE WITH ANY SYSTEM, DATA, HARDWARE OR SOFTWARE OF ANY KIND. NOVATEL WIRELESS DISCLAIMS AND IN NO EVENT SHALL BE LIABLE FOR ANY LOSSES OR DAMAGES OF ANY KIND, WHETHER DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, PUNITIVE, SPECIAL OR EXEMPLARY, INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, LOSS OF GOODWILL, COVER, TORTIOUS CONDUCT OR OTHER PECUNIARY LOSS, ARISING OUT OF OR IN ANY WAY RELATED TO THE PROVISION, NON-PROVISION, USE OR NON-USE OF THE INFORMATION, EVEN IF YOU HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSSES OR DAMAGES. Proprietary & Confidential 4 Novatel Wireless Doc No. OM-01017857 Rev 1 Table of Contents Reference Documents................................................................................................................... 8 PCI Express Mini Card References ................................................................................ 8 3GPP References ........................................................................................................... 8 Notices.......................................................................................................................................... 10 Safety Warning .............................................................................................................. 10 Federal Communications Commission Notice (FCC—United States) .......................... 11 Radio Frequency Exposure Evaluation Requirements ................................................. 11 Compliance & Certification Requirements .................................................................... 13 Windows Platforms........................................................................................................ 14 Technical Support Contacts .......................................................................................... 14 Getting Started............................................................................................................................. 15 General.......................................................................................................................... 15 Setting Up......................................................................................................................15 Hardware Development Kit (HDK)................................................................…

Text truncated - open the document above for the full version.

Proprietary & Confidential 121 Novatel Wireless Doc No. OM-01017857 Rev 1 Reject Cause 15 This feature, when enabled, will search ALL available RAT’s if a Reject Cause 15 is sent by the network as the result of a cell selection. In the disabled state, the modem searches the same RAT from which it received the Reject Cause 15 message. Disabled is the normal search used by carriers other than CarrierX. Name SearchAllRatsAfterRejectCause15Enable States Enable, Disable Devices U630, xU7x0, xU860/U870 FW Version U630 – Build 21 and above xU7x0 – Build 30 and above xU860/U870 – Build 7 and above AT Command N/A NV Item NW_NV_SRCH_RATS_REJECT_15_I Proprietary & Confidential 122 Novatel Wireless Doc No. OM-01017857 Rev 1 N.A. CarrierZ N.A. CarrierZ has mandated that Enhanced Network Selection (ENS) be enabled on all modems delivered to N.A. CarrierZ. This feature should also be enabled for all OEM customers launching on the N.A. CarrierZ network. Enhanced Network Selection (ENS) The N.A. CarrierZ network consists of different MNCs deployed in the various N.A. CarrierZ markets and the Empire and Triton markets having a non-N.A. CarrierZ MNC. GSM network selection procedures are an issue in that terminals perform their periodic higher priority PLMN scans even when on a N.A. CarrierZ network in spite of the display indicating a N.A. CarrierZ network. This causes customer issues when they travel from one N.A. CarrierZ market that uses one MNC to another N.A. CarrierZ market, which uses a different MNC. Additionally, Empire and Triton based customers are impacted more in that they are continuously in a roaming scenario on the T-Mobile/Triton network and yet from a billing, service and customer care perspective they are considered to be on the home N.A. CarrierZ network. Name EnsEnable States Enable, Disable Devices xU7x0, xU860/U870 FW Version All AT Command N/A NV Item NV_ENS_ENABLED_I Proprietary & Confidential 123 Novatel Wireless Doc No. OM-01017857 Rev 1 Factory Fulfillment The following section details the features which relate to fulfillment of modems. International Mobile Equipment Identity (IMEI) The IMEI is a number unique to every GSM and UMTS mobile. It is found printed on the IMEI label located on the modem. The IMEI number can be used by the GSM network to identify valid or network approved devices and is independent of the SIM. The IMEI is a 15-digit number which includes information on the origin, model, and serial number of the device. The model and origin comprise the initial 8-digit portion of the IMEI, known as the Type Allocation Code (TAC). The remainder of the IMEI is manufacturer-defined, with a Luhn check digit at the end (which is never transmitted). As of 2004, the format of the IMEI is as follows: AA-BBBBBB-CCCCCC-D where: AA – Reporting Body Identifier, indicating the GSMA – approved group that allocated the modem TAC code BBBBB, BBBBBB – TAC CCCCCC – serial number of the modem model D – Luhn check digit for the entire number Name IMEI States OEM customers will supply range corresponding to their GCF or PTCRB grant. NVTL has its own IMEI for generic cards. Devices U630, xU7x0, xU860/U870 FW Version All AT Command AT+CGSN NV Item NV_UE_IMEI_I Proprietary & Confidential 124 Novatel Wireless Doc No. OM-01017857 Rev 1 E725 Provisioning with IOTA This applies only to the E725. The EU860D & EU870D use SIM cards and don’t require any type of IOTA. Sprint PCS uses IOTA to perform their provisioning before a wireless device is allowed on the data network. This process is operator specific so there maybe variations as to how provisioning is done. In all cases, please contact the network operator if you have questions concerning activation and subscriber related questions. When using the PCI Express Mini Card, the activation is done by MobiLink™. MobiLink™ will automatically detect if the E725 module needs to perform any provisioning on Sprint’s network. If an E725 module does not use MobiLink, you must run IOTA from the primary port of the E725 module. Novatel Wireless has developed an embedded IOTA Client called, eIOTA that interfaces through AT commands. This Client will allow the subscriber to execute an IOTA session to provision the E725. Once this is done, the E725 can access the operator’s 1xRTT and 1xEVDO networks. For use with Sprint PCS, the subscriber first needs to contact a sales representative to activate the E725. The Sprint PCS representative will present to the subscriber the MDN or MIN numbers with the SPC. These parameters need to be entered into the E725 if it does not already exist. Upon the time of receiving these parameters, Sprint PCS has a time provisioning requirement of 1.5 days to 2 days for the E725 to perform and complete an IOTA session. If the subscriber does not complete the IOTA provisioning within this time, the subscriber will have to call Sprint PCS again to reset the provisioning timer. eIOTA eIOTA is a subscriber unit provisioning Client, or Provisioning Service Agent. Embedded in the CDMA wireless modem, the Client communicates with Handset Configuration Manager, the operator’s IOTA server, to download provisioning data to the subscriber unit or upload settings per server's request. It allows the operator to remotely perform provisioning without having to bring the wireless device into a sales location. eIOTA is disabled by default from the factory. This is done because if eIOTA was active, it would automatically attempt an eIOTA session if the E725 has not already completed provisioning. When the subscriber finishes entering the MDN or MIN, they could either enable eIOTA and have the E725 automatically attempt an IOTA session after a power cycle or initiate a manual IOTA session. Enabling, disabling, and starting eIOTA eIOTA Client can be enabled or disabled by issuing the AT commands: To enable: AT+IOTA=1 To disable: AT+IOTA=0 To force start: AT+IOTA=2 There are two ways to start eIOTA, NIIP(Network Initiated Initial Provisioning) or CIIP(Cli…

Text truncated - open the document above for the full version.

FCC TEST REPORT REPORT NO. : FG710513 SPORTON International Inc. Page Number : A1 OF A3 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D APPENDIX A. External Photographs of EUT 710513 FCC TEST REPORT REPORT NO. : FG710513 SPORTON International Inc. Page Number : A2 OF A3 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D 710513 FCC TEST REPORT REPORT NO. : FG710513 SPORTON International Inc. Page Number : A3 OF A3 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D 710513 710513

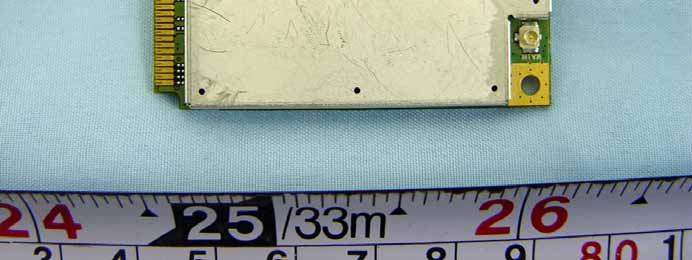

FCC TEST REPORT REPORT NO. : FG710513 SPORTON International Inc. Page Number : A1 OF A3 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D APPENDIX A. External Photographs of EUT 710513

FCC TEST REPORT REPORT NO. : FG710513 SPORTON International Inc. Page Number : B1 OF B4 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D APPENDIX B. Internal Photographs of EUT 710513 710513 710513 710513 FCC TEST REPORT REPORT NO. : FG710513 SPORTON International Inc. Page Number : B2 OF B4 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D 710513 FCC TEST REPORT REPORT NO. : FG710513 SPORTON International Inc. Page Number : B3 OF B4 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D 710513 FCC TEST REPORT REPORT NO. : FG710513 SPORTON International Inc. Page Number : B4 OF B4 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D 710513

Document No.: 710513 RF Exposure Test Report Date: Feb. 01, 2007 FCC ID: NBZNRM-EU860D Sporton International Inc. RF Exposure Test Report for Novatel Wireless Expedite EU860D EU860D Equipment : Expedite module Trade Name : Novatel Wireless Expedite EU860D Model No. : EU860D FCC ID : NBZNRM-EU860D Filing Type : Certification Applicant : Novatel Wireless, Inc. 9645 Scranton Road, Suite 205, San Diego, CA 92121, U.S.A. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 710513 RF Exposure Test Report Date: Feb. 01, 2007 FCC ID: NBZNRM-EU860D Sporton International Inc. Maximum Permissible Exposure Test Report for EU860D 1.0 Introduction The report has been prepared on behalf of Novatel Wireless Expedite EU860D EU860D to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Novatel Wireless Expedite EU860D EU860D is being done as a handheld device and it can be approved by MPE calculation. The MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Document No.: 710513 RF Exposure Test Report Date: Feb. 01, 2007 FCC ID: NBZNRM-EU860D Sporton International Inc. Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Novatel Wireless Expedite EU860D EU860D is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation According to 1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . As this is a handheld application, the MPE shall be calculated at 20cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: S=EIRP/4R 2 Where: S = Power Density Document No.: 710513 RF Exposure Test Report Date: Feb. 01, 2007 FCC ID: NBZNRM-EU860D Sporton International Inc. EIRP = Effective Isotropic Radiated Power R = Distance from Transmitting Antenna For this device, the calculation is as follows: Because the EUT belongs to General Population/ Uncontrolled Exposure, the limit of power density is 1.0 mW/cm². GSM850 Transimitter: Maximum ERP (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm²) 760 0.241 1.00 PCS1900 Transimitter: Maximum EIRP (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm²) 790 0.248 1.00 WCDMA Band V Transmitter: Maximum ERP (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm²) 130 0.040 1.00 Document No.: 710513 RF Exposure Test Report Date: Feb. 01, 2007 FCC ID: NBZNRM-EU860D Sporton International Inc. WCDMA Band II Transmitter: Maximum EIRP (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm²) 260 0.083 1.00 Remark: The ERP and EIRP were gotten from part 22H/24E test report. The antenna gain for this device is 2 dBi. Based on the above calculation at 20cm, the EU860D is bel…

Text truncated - open the document above for the full version.

SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report Version: Rev. 01 FCC/IC TEST REPORT Report No. : FG710513 FCC/IC TEST REPORT for 47 CFR Part 22H, 24E, IC RSS-132, and IC RSS-133 Equipment : Expedite module Trade Name : Novatel Wireless Expedite EU860D Model No. : Expedite EU860D FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D Tx Frequency Range : GSM850 : 824~849 MHz PCS1900 : 1850~1910 MHz WCDMA Band V : 824~849 MHz WCDMA Band II : 1850~1910 MHz Max. ERP/EIRP Power : GSM850(GSM) : 0.76 W GSM850(EDGE) : 0.24 W PCS1900(GSM) : 0.79 W PCS1900(EDGE) : 0.38 W WCDMA Band V : 0.13 W WCDMA Band V (HSDPA) : 0.12 W WCDMA Band II : 0.25 W WCDMA Band II (HSDPA) : 0.26 W Emission Designator : GSM : 300KGXW EDGE : 300KG7W WCDMA : 4M20F9W Applicant : Novatel Wireless, Inc. 9645 Scranton Road, Suite 205, San Diego, CA 92121, U.S.A. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Jan. 12, 2007 at Sporton International Inc. LAB. ‚ Report No.: FG710513, Report Version: Rev. 01. Roy Wu Deputy Manager SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 Table of Contents History of this test report....................................................................................................................................ii 1. General Information ........................................................................................................................................1 1.1. Applicant ........................................................................................................................................................................................1 1.2 Manufacturer ..................................................................................................................................................................................1 1.3 Basic Description of Equipment under Test ...................................................................................................................................1 1.4 Feature of Equipment under Test ..................................................................................................................................................2 1.5 Report Date ....................................................................................................................................................................................3 2 Test Configuration of Equipment under Test ...............................................................................................4 2.1 Test Manner ...................................................................................................................................................................................4 2.2 Test Mode ......................................................................................................................................................................................4 2.3 Connection Diagram of Test System .............................................................................................................................................4 2.4 Ancillary Equipment List.................................................................................................................................................................4 3. General Information of Test Site ....................................................................................................................5 3.1 Test Voltage ...................................................................................................................................................................................5 3.2 Test in Compliance with .................................................................................................................................................................5 3.3 Frequency Range Investigated ......................................................................................................................................................5 3.4 Test Distance .................................................................................................................................................................................5 4. Test Data and Test Result...............................................................................................................................6 4.1 List of Measurements and Examinations .......................................................................................................................................6 4.2 RF Output Power ...........................................................................................................................................................................7 4.3 ERP / EIRP Measurement .............................................................................................................................................................9 4.4 Occupied Bandwidth and Band Edge Measurement ...................................................................................................................15 4.4 Conducted Emission ....................................................................................................................................................................44 4.6 Field Strength of Spurious Radiation .....................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. Page No. : 98 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 RemarkThere is no more obvious emission except the listings above. SPORTON International Inc. Page No. : 99 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 Vertical Polarization SPORTON International Inc. Page No. : 100 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 Remark: 1. #1: MS Signal 2. #2: BS Signal SPORTON International Inc. Page No. : 101 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 SPORTON International Inc. Page No. : 102 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 SPORTON International Inc. Page No. : 103 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 Remark: There is no more obvious emission except the listings above. SPORTON International Inc. Page No. : 104 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 4.6.5.4 Mode 4 Horizontal Polarization SPORTON International Inc. Page No. : 105 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 Remark: 1. #1: MS Signal 2. #2: BS Signal SPORTON International Inc. Page No. : 106 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 SPORTON International Inc. Page No. : 107 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 SPORTON International Inc. Page No. : 108 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 RemarkThere is no more obvious emission except the listings above. SPORTON International Inc. Page No. : 109 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 Vertical Polarization SPORTON International Inc. Page No. : 110 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 Remark: 1. #1: MS Signal 2. #2: BS Signal SPORTON International Inc. Page No. : 111 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-EU860D IC ID : 3229A-EU860D FCC/IC TEST REPORT Report No. : FG710513 SPORTON International Inc. Page No. : 112 of 146 TEL : 886-2-2696-2468 Report Issued Date : Jan. 17, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : NBZNRM-…

Text truncated - open the document above for the full version.
