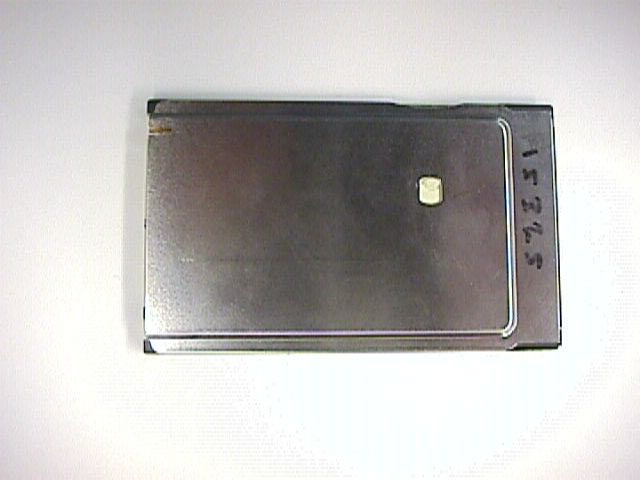

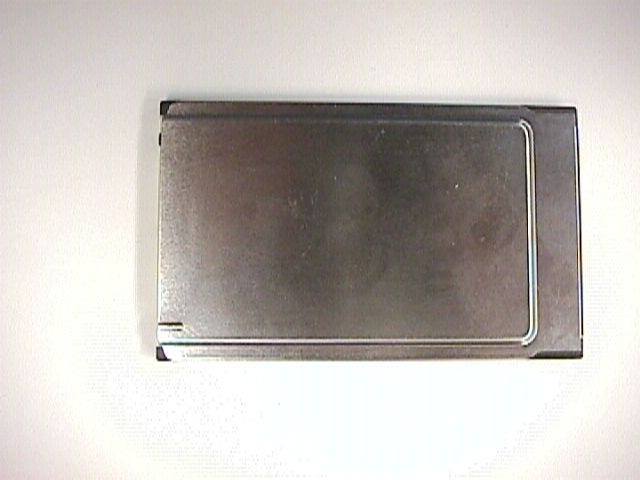

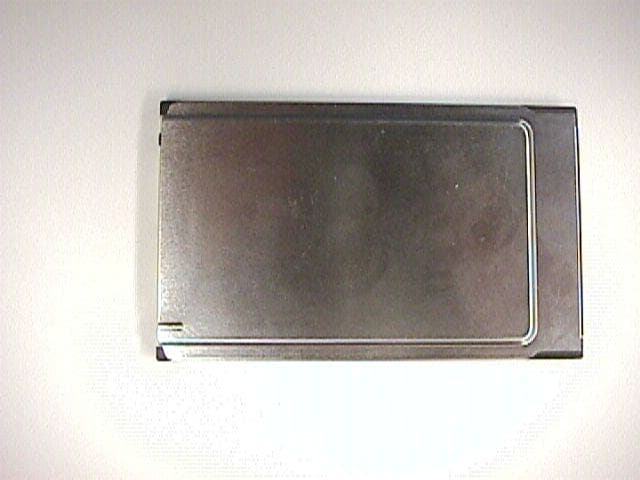

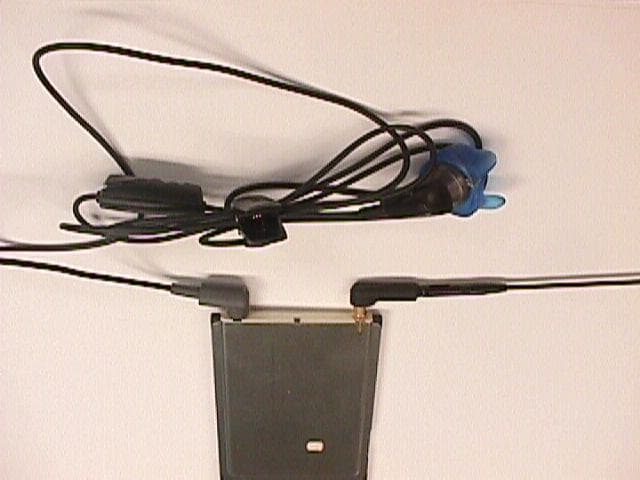

NBZNRM-MG301Merlin G301 PCMCIA card for GSM/GPRS PCS

Novatel Wireless, Inc.

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jul 23, 2002
Application Purpose: Original Equipment
Date of Application: Jul 23, 2002
Equipment Note: Merlin G301 PCMCIA card for GSM/GPRS PCS
Frequency Range: 1850.20000000 - 1908.80000000
Company: Novatel Wireless, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Merlin for GPRS Tri-band User Manual Revision 1.0 For: Windows 98, 2000, ME, NT and XP Notice: Restricted Proprietary Information © Copyright Novatel Wireless Technologies Ltd. (2001-2002) The information contained in this document is the exclusive property of Novatel Wireless Technologies Ltd. All rights reserved. Unauthorized reproduction of this manual in any form without the expressed written approval of Novatel Wireless Technologies Ltd is strictly prohibited. This manual may not, in whole or in part, be copied, reproduced, translated, or reduced to any electronic or magnetic storage medium without the written consent of a duly authorized officer of Novatel Wireless Technologies Ltd. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless Technologies Ltd. unless such commitment is expressly given in a covering document. Novatel Wireless Technologies Ltd makes no warranties, either expressed or implied, regarding this document, its merchantability, or its fitness, for any particular purpose. Microsoft ® , Windows ® , Microsoft ® Pocket Internet Explorer, Microsoft ® Pocket Outlook, and Microsoft ® ActiveSync ® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other brand names and product names used in this document are trade names, service marks, trademarks, or registered trademarks of their respective owners. Printed and produced in Canada. M M M M e e e e r r r r l l l l i i i i n n n n G G G G P P P P R R R R S S S S T T T T r r r r i i i i - - - - b b b b a a a a n n n n d d d d Table of Contents Table of Contents ....................................................................1 Getting Started ........................................................................1 Merlin for GPRS Modem Components...................................................... 1 The PC Card ............................................................................................................... 1 The SIM Card Slot ...................................................................................................... 2 The Antenna ............................................................................................................... 2 Using the SIM Card .................................................................................................... 2 Inserting the SIM Card ................................................................................................ 3 Removing the SIM Card ............................................................................................. 3 Inserting the Modem into Your Computer ................................................................... 4 Removing the Modem from Your Computer ............................................................... 4 Installing the Modem Software ..............................................5 Installing the GPRS Modem Manager Software on Windows 98, 2000, ME, or XP ......................................................................................................... 5 Installing the GPRS Modem Manager Software on Windows NT 4.0 ....... 9 Verifying the PC Card COM port ........................................................................10 Installing the Modem Drivers ..............................................................................12 Configuring the Modem’s Properties and Dial-up Networking on Windows NT 4.0 17 Installing Modem Manager Software on Windows NT 4.0 .................................21 Using Connection Profiles ...................................................25 Using a Single Pre-Defined Connection Profile ........................................................25 Using Multiple Pre-Defined Connection Profiles .......................................................25 Creating a User-defined Connection Profile .............................................................26 Creating a GPRS Connection Profile........................................................................27 Creating a GSM Connection Profile..........................................................................30 Using the Modem Manager ..................................................33 Launching the Modem Manager.............................................................. 33 Entering Your Account PIN ..................................................................... 34 Entering a PUK........................................................................................ 36 Enabling or Disabling the PIN ................................................................. 37 Changing Your PIN ................................................................................. 38 2 Table of Contents Manual Revision 1.0 P/N 90023333 Connecting to the Network ............................................................................................. 39 Using Multiple Connection Profiles ................................................................................ 40 Disconnecting from the Network .................................................................................... 41 Quitting the Modem Manager......................................................................................... 42 Creating a New Connection Profile ................................................................................ 42 Editing a Connection Profile ........................................................................................... 43 Deleting a Connection Profile......................................................................................... 44 Setting a Connection Profile as Default ......................................................................... 45 Viewing a Connection Profile’s Properties ..................................................................... 45 Using the Automatic Network Search Feature ..............…

Text truncated - open the document above for the full version.

Users Manual

Merlin for GPRS Setup Guide Revision 1.1 PN 90023376 For Merlin for GPRS™ G301 and mobile PhoneTools™ Notice: Restricted Proprietary Information © Copyright Novatel Wireless Technologies Ltd. (2002) The information contained in this document is the exclusive property of Novatel Wireless Technologies Ltd. All rights reserved. Unauthorized reproduction of this manual in any form without the expressed written approval of Novatel Wireless Technologies Ltd is strictly prohibited. This manual may not, in whole or in part, be copied, reproduced, translated, or reduced to any electronic or magnetic storage medium without the written consent of a duly authorized officer of Novatel Wireless Technologies Ltd. The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless Technologies Ltd. unless such commitment is expressly given in a covering document. Novatel Wireless Technologies Ltd makes no warranties, either expressed or implied, regarding this document, its merchantability, or its fitness, for any particular purpose. Microsoft ® , Windows ® , Microsoft ® Pocket Internet Explorer, Microsoft ® Pocket Outlook, and Microsoft ® ActiveSync ® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other brand names and product names used in this document are trade names, service marks, trademarks, or registered trademarks of their respective owners. Printed and produced in Canada. Contents Contact Information Reference Information Please record for future reference: IMEI (found on back of Merlin modem) ____________________________________ SIM card number______________________________________________________ APN_________________________________________________________________ Contents .................................................................................................................. 1 Contact Information ................................................................................................. 1 Reference Information............................................................................................. 1 Getting Started ........................................................................................................ 2 About Your Modem ................................................................................................. 4 About Connection Profiles....................................................................................... 8 Startup Procedure ................................................................................................... 9 Installing mobile PhoneTools .................................................................................. 10 Using mobile PhoneTools ....................................................................................... 11 Connecting to the Internet ....................................................................................... 22 Sending a Short Message ....................................................................................... 23 Making a Phone Call ............................................................................................... 25 Sending a Fax ......................................................................................................... 26 Sending Email ......................................................................................................... 27 Troubleshooting....................................................................................................... 29 Notices .................................................................................................................... 30 Glossary .................................................................................................................. 32 2 Getting Started Revision 1.1 900023376 Getting Started This guide explains how to install your Merlin for GPRS™ G301 wireless modem in a PC, so you can use mobile PhoneTools™ software to connect to the Internet, send short (SMS) messages, make phone calls, send faxes and use email. Before you install your modem, you need to know some basic information about it. Please read the following sections on Getting Started, About Your Modem, and About Configuration Profiles. Once you understand this information, you will be ready to perform the Startup Procedure on page 9. The Startup Procedure briefly describes how to make a basic GPRS connection. Safety Your Merlin for GPRS G301 wireless modem is a low-power radio transmitter and receiver. It has been carefully designed and tested to comply with national and international safety standards regarding radio frequency (RF) exposure limits. These limits are part of the comprehensive guidelines that establish allowable levels of RF energy exposure for the general population and take into account wide safety margins. In order to ensure optimum performance of the modem and to minimize exposure to RF energy, always follow the simple guidelines described below. 1.When using your wireless modem, position the antenna so that it does not come into direct contact with yourself or others. Yes No Getting Started3 Revision 1.1 900023376 2.Do not use the modem if the antenna is damaged. Operate the modem with only the supplied antenna or an approved replacement antenna. 3.Unauthorized modifications, attachments or antennas not expressly approved by Novatel Wireless can void the user’s authority to operate this equipment and violate FCC regulations. 4.If you use medical devices such as a pacemaker or hearing aid, consult the manufacturer of the device to determine if it is adequately shielded from RF energy. Persons with pacemakers should always maintain a separation distance of at least 6 inches (15 cm) from the modem when the modem is powered on. Wireless products can interfere with some hearing aids. Consult with your hearing aid manufacturer to discuss…

Text truncated - open the document above for the full version.

Users Manual

Text truncated - open the document above for the full version.

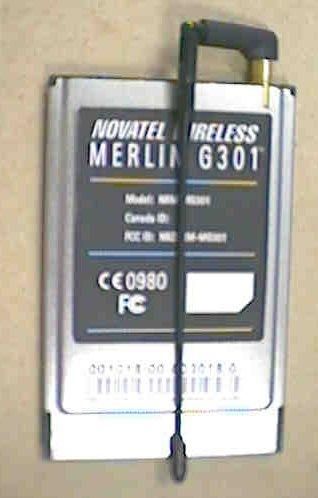

ID Label/Location Info

PART NUMBER REVISION DATE DESCRIPTION DATE CREATED PMS COLORS DO NOT SCALE ARTWORK © 2002 Novatel Wireless, Inc. All Rights Reserved. AW-25023064 07/08/01 This labels fit precisely onto the bottom of the Merlin Product. 07/08/01 WHITE ON BLACK Merlin G301 Bottom Label FCC LABEL ME R L I N G3 0 1 1.715" 2.125" Model: NRM-MG301 Canada ID: FCC ID: NBZNRM-MG301 SIM 0980 TM

Operational Description

Wireless PC Card Modem for Windows® Laptops and Pocket PCs In today’s fast paced business environment, mobile professionals need to be connected to be efficient and effective. Wherever you are, you need to have real time access to e-mail and corporate information in order to contribute and make the decisions expected of you. Business will not wait, nor will your competitors. The Merlin G301 redefines the way the mobile professional stays connected by offering wireless access to the Internet, e-mail and corporate networks. The speed of GPRS, the versatility of a global solution, and the compact size of the Merlin G301 make it the ideal solution for you to stay connected. Just slide the Merlin G301 into the PC Card slot of your laptop or PDA and experience business without boundaries: no wires, no cables, always connected. The GPRS (General Packet Radio Services) network delivers wireless data. Using the Merlin G301 to access the GPRS network, you can download data at up to 53.6 kbps.* Additional features of the Merlin G301 include support for GSM circuit switched data, SMS text messaging, fax, and voice communication. The Merlin G301 is a global solution. By operating on all three radio frequency bands, the Merlin G301 provides access to GPRS networks around the world. Roaming agreements between GSM cellular operators allow the Merlin G301 to be used worldwide with one account. The Merlin G301 was engineered with simplicity in mind. It comes with an easy to use configuration and monitoring utility to get you connected quickly. It works seamlessly with your existing software, just like a regular modem. As a standard Type II PC Card, the Merlin G301 can be stored in the PC Card slot of your laptop or PDA and will conveniently be there when you need to be connected. Experience the freedom of true mobility! Give yourself the wireless edge to stay ahead of your competition. Contact Novatel Wireless to learn more about the Merlin G301. * Subject to network conditions. M E R L I N G301 ™ GSM/GPRS NETWORK: 900/1800/ 1900 MHz BANDS Copyright 2002. Novatel Wireless Inc. All rights reserved. Merlin and Merlin G301 are trademarks of Novatel Wireless, Inc. All other brands and product names are trademarks of their respective holders. Product specifications are subject to change without notice. www.novatelwireless.com Modem Features • GPRS multi-slot class 10 • Transparent and non-transparent GSM Circuit Switched Data up to 14.4 kbps • Mobile originated and terminated SMS messages • Robust removable antenna • Advanced sleep mode to conserve battery power • Audio jack for GSM voice communication Dimensions • 5 mm x 54 mm x 86 mm Temperature • Operating: 0 Celsius to +60 Celsius • Storage: -30 Celsius to +65 Celsius Technical Specifications • Air interface data encryption: A5 • Compression: V.42bis • TCP/IP header compression • Standard GSM error correction algorithms • Extended ETSI AT command interface • Standard radio frequency bands for EGSM 900, DCS 1800, and PCS 1900 • RF Output Power: EGSM 900-2 W max. (Power Class 4) DCS 1800 and PCS 1900-1 W max. (Power Class 1) • Merlin is compliant with Type II PC Card standards. Approvals • Full Type Approval to GSM Phase 2+ standard • FCC and Industry Canada • CE, UL, and GCF System Requirements • Windows 98/ME/2000/XP or Pocket PC 3.0, 2002 operating systems • 32M RAM for Windows 98/ME, 64M RAM for Windows 2000/XP • 16M hard disk space • Pentium 90 processor • CD drive specifications features & benefits The GSM cellular network upon which GPRS is built has more coverage than any other cellular technology. The Merlin G301 is a tri-band modem allowing access to GPRS networks around the world. On today’s GPRS networks the Merlin G301 can achieve download data rates of up to 53.6 kbps, and upload data rates up to 26.8 kbps. GPRS wireless technology employs extensive auth- entication and encryption algorithms. The SIM card stores the authentication information making it one of the most secure public wireless systems in the world. In addition to GPRS data, the Expedite G301 provides standard GSM functionality including voice, fax, SMS, and circuit switched data. Global Secure Versatile Fast P/N 14915006 Rev 1 M E R L I N G301 ™

Parts List/Tune Up Info

PNDESCRIPTIONQTY 15423001CAP FEEDTHROUGH FILTER NFM41P 0.2 UF SMD1 FL400 15723098CAP TANT 1000 UF 20% 6.3V X CASE2 C131C132 15723109CAP TANT 68UF 20% 10V R CASE1 C133 15923187CAP CHIP 4.7UF 10% 6.3V X5R 0805 0.85MM6 C122C302 15C2R2C0CAP CHIP 2.2PF .25PF 50V COG 04022 C591C592 15R105K4CAP CHIP 1UF 10% 6.3V X5R 060314 C102C103 15S104K4CAP CHIP .1UF 10% 10V X5R 040242 C114C127 18523225INDUCTOR CHIP 220NH 5%0603 (COIL CRAFT)1 L504 18523262INDUCTOR CHIP 120 NH 5% 0603 0603CS1 L500 18523263INDUCTOR CHIP 100 NH 5% 0603 0603CS1 L503 18523270INDUCTOR CHIP 82NH 5% 0603 0603CS2 L517L518 18523344INDUCTOR CHIP 1.8NH +/-0.3NH 0402 MLCQ=83 L509L512 18523345INDUCTOR CHIP 2.2NH +/-0.3NH 0402 MLCQ=82 L505L520 18523347INDUCTOR CHIP 3.3NH +/-0.3NH 0402 MLCQ=83 L502L506 18523349INDUCTOR CHIP 4.7NH +/-0.3NH 0402 MLCQ=81 L508 18523352INDUCTOR CHIP 8.2NH 5% 0402 MLC Q=83 L511L515 18523353INDUCTOR CHIP 10NH 5% 0402 MLC Q=83 L100L507 18523354INDUCTOR CHIP 12NH 5% 0402 MLC Q=82 L513L514 1AD120J0CAP CHIP 12PF +/-5% 25V COG 020112 C303C506 1AD150J0CAP CHIP 15PF +/-5% 25V COG 02011 C559 1AD180J0CAP CHIP 18PF +/-5% 25V COG 02011 C555 1AD1R0C0CAP CHIP 1.0PF +/-.25PF 25V COG 02013 C517C518 1AD1R2C0CAP CHIP 1.2PF +/-.25PF 25V COG 02011 C565 1AD1R5C0CAP CHIP 1.5PF +/-.25PF 25V COG 02012 C547C603 1AD1R8C0CAP CHIP 1.8PF +/-.25PF 25V COG 02013 C519C521 1AD270J0CAP CHIP 27PF +/-5% 25V COG 02019 C536C542 1AD2R2C0CAP CHIP 2.2PF +/-.25PF 25V COG 02011 C605 1AD2R7C0CAP CHIP 2.7PF +/-.25PF 25V COG 02011 C602 1AD330J0CAP CHIP 33PF +/-5% 25V COG 02011 C556 1AD3R3C0CAP CHIP 3.3PF +/-.25PF 25V COG 02013 C522C523 1AD5R6D0CAP CHIP 5.6PF +/-.5PF 25V COG 02012 C524C525 1AE101J0CAP CHIP 100PF +/-5% 16V COG 020116 C229C231 1AE102K1CAP CHIP 1000PF +/-10% 16V X7R 02013 C570C572 1AE151K1CAP CHIP 150PF +/-10% 16V X7R 02011 C569 1AE181K1CAP CHIP 180PF +/- 10% 16V X7R 02011 C567 1AE390J0CAP CHIP 39PF +/-5% 16V COG 02013 C541C546 1AE470J0CAP CHIP 47PF +/-5% 16V COG 02015 C124C126 1AG103K4CAP CHIP 10000PF +/-10% 6.3V X5R 020118 C121C123 1AG682K4CAP CHIP 6800PF +/-10% 6.3V X5R 02011 C574 20223080VCTCXO 13 MHZ +/-2.5PPM 2.85V1 U504 20223081VCO VOF1880T28USB1 U501 21323136CONNECTOR PC CARD 68 PIN 0 0FF BOSS1 J401 21623254CONN 6 CONTACT SIM CARD 0.5MM1 P3 21723120CONN SSMB NANO PLUG EDGE MT 0.1 OFFSET1 J500 21823066CONN FPC/FFC ZIF 5 CONDUCTOR1 J105 23023063CRYSTAL 32.768 KHZ1 U203 27023137FILTER SAW 1842.5MHZ BALANCED 2X2.5MM1 FL505 27023138FILTER SAW 1960MHZ BALANCED O/P 2X2.5MM1 FL502 27023139FILTER SAW 282MHZ BALANCED O/P 3X3MM1 FL504 27023140FILTER SAW 942.5MHZ BALANCED O/P 2X2.5MM1 FL503 27023152FILTER SAW 1960 UNBAL 3X3 MM1 FL501 27023154FILTER SAW 942.5/1842.5 UNBAL 2.5X3MM1 FL500 31323948IC TRF6053 E-GSM/PCS TRANSCEIVER1 U505 31323955IC 16M FLASH AND 4M SRAM 3.6V BGA1 U300 31323979IC ABB GSM CODEC FBGA1 U200 31324011IC LDO 1.8V 150MA SOT-23-51 U120 31324026IC SYNTHESIZER/VCO TRF 2253 MLF1 U503 31324046IC 6315 SUPERVISOR 2.93V (SOT-143)1 U301 31324085IC 1.5A ADJUSTABLE LOW DROPOUT REGULATOR1 U122 31324126IC MIC2548 CURRENT LIMITER (MSOP-8)1 U123 31324169IC MAX2653 PCS LNA W BYPASS SWITCH1 U507 31324170IC AND GATE DUAL TINYLOGIC US8 PACKAGE1 U202 31324177IC NC7S04L6X SINGLE INVERTER-MICRO PAK1 U510 31324184IC XC2S30 SPARTAN II FPGA (VQ100)1 U303 31324186IC AS205-322 SPDT SWITCH GAAS MLF 2X12 U508U509 31324187ANTENNA SWITCH W/LPF GSM TRIBAND H=1.8MM1 U506 31324196IC GSM uP 65 MHZ DATE CODE 0130 OR LATER1 U201 31324204IC LDO REGULATOR 2.5V SC-70 ZETEX2 U100U101 31324207IC LDO REGULATOR 2.8V SC-70 ZETEX4 U102U104 31324209IC TRIBAND GSM PA RF3110 10X10X1.55 MM1 U502 31324212IC AND GATE SINGLE 2 INPUT SC-70 HOT Pl1 U304 47AJ0106RES CHIP 10M 5% 1/10W 08051 R200 47CF0243RES CHIP 24K 1% 1/16W 04021 R502 47CF1211RES CHIP 1.21KOHM 1% 1/16W 04021 R313 47CF3012RES CHIP 30.1KOHM 1% 1/16W 04021 R135 47CF6652RES CHIP 66.5KOHM 1% 1/16W 04021 R134 47CF7501RES CHIP 7.50 KOHM 1% 1/16W 04021 R314 47CJ0000RES,CHP 0 OHM 5% 1/16W 04026 R121R122 47CJ0222RES CHP 2.2K OHM 5% 1/16W 04021 R120 47CJ0331RES CHP 330 OHM 5% 1/16W 04021 R132 47GJ0000RES CHIP 0.0 5% 1/20 W 020136 R431R432 47GJ0100RES CHIP 10 5% 1/20 W 02011 R523 47GJ0101RES CHIP 100 5% 1/20 W 02015 R524R525 47GJ0102RES CHIP 1K 5% 1/20 W 020110 R114R116 47GJ0103RES CHIP 10K 5% 1/20 W 020126 R117R118 47GJ0104RES CHIP 100K 5% 1/20 W 02016 R222R301 47GJ0121RES CHIP 120 5% 1/20 W 02011 R531 47GJ0150RES CHIP 15 5% 1/20 W 02011 R522 47GJ0181RES CHIP 180 5% 1/20 W 02012 R532R533 47GJ0203RES CHIP 20K 5% 1/20 W 02011 R220 47GJ0241RES CHIP 240 5% 1/20 W 02012 R206R535 47GJ0270RES CHIP 27 5% 1/20 W 02012 R208R209 47GJ0331RES CHIP 330 5% 1/20 W 02016 R513R514 47GJ0471RES CHIP 470 5% 1/20 W 02012 R515R516 47GJ0472RES CHIP 4.7k 5% 1/20 W 02014 R210R211 47GJ0680RES CHIP 68 5% 1/20 W 02012 R520R521 47GJ0822RES CHIP 8.2K 5% 1/20 W 02011 R218 48023224TRANSISTOR NPN VMT3 2SC5663 ROHM3 Q110Q111 48290012DIODE BARRIER SHOTTKY1 CR101 48323090LED RIGHT ANGLE SMT RED/GREEN1 DS101 72015138SHIELD EMI FRAME LS TINY GPRS1 SH1 72015139SHIELD EMI FRAME HS TINY GPRS1 SH2 C504C505C507C538 C104C105C108C109C110C117C120C220C501 C128C130C200C201C202C203C204C205C206 L516 L519 L5xx L510 C516C528C529C530C531C532C533C534C537 C5xx C604 C543C544C545C593C594C595C596 C527 C232C304C500C526C549C552C557C560C561 C573 C571 C227C228C548 C125C233C509C576C577C578C579C580C581 U511U512 R306R307R309L521 R433R434R435R436R441R442R443R444R445 R529R530R534 R503R510R511R537R538R539R542R550 R130R133R214R215R216R217R219R302R303 R404R405R548R549 R527R528R540R541 R212R213 Q500 C502C503C508 C207C208C209C210C211C212C213C214C215 C554 C563C597C598C600C601 C582C583C584C585C586C587C589 R451R452R453R454R456R457R461R462R463 R304R305R308R312R315R401R402R403R500 C216C217C218C219C300C301C305C306C307 R464R465R466R471R472R473R474R475R476 R543R544R545R546R547R551 C308C309C310C311C312C313C314C315C316 R504R505R506R507R508R509C558 C317C318C319C320

RF Exposure Info

Conceil canadien des nomes Organisme de certification accedite Standards Council of Canada Accredited Certification Organization TM MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE !! BALTIMORE, MARYLAND 21230-3432 !! PHONE (410) 354-3300 !! FAX (410) 354-3313 July 29, 2002 Novatel Wireless Technologies Suite 200, 6715 - 8th Street NE Calgary, AB T2E-7H7 Reference:Merlin G301 PCMCIA Card FCC ID: NBZNRM-MG301 Dear Mr. Owen Thistle: Enclosed is the EMC SAR Evaluation Report for the Novatel Wireless Technologies Merlin G301 PCMCIA Card. The Merlin G301 PCMCIA Card was tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C:01-01 and shown to be capable to be in compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992. Thank you for using the testing services of MET Laboratories. If you have any questions regarding these results or if MET can be of further assistance to you, please feel free to contact me. We appreciate your business and look forward to working with you again soon. Kindest Regards, MET LABORATORIES, INC. Marianne Bosley Documentation Department Enclosures: (\Novatel Wireless\EMC12352-FCCSAR.rpt) DOCTEM-23 Jan 02 Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Novatel WirelessTechnologiesMerlin G301 PCMCIA CardFCC ID: NBZNRM-MG301 July 29, 2002…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Bill Babbitt(Manager- Regulatory Engineering)

[email protected]858-812-3400Fax: 858-812-3402

Technical Contact

MET Laboratories, Inc.Chris R Harvey

[email protected]410-354-3300

914 West Patapsco Ave. · Baltimore, Maryland · United States

Non-Technical Contact

MET Laboratories, Inc.Marianne Bosley

[email protected]410-354-3300

Test Firm

MET Laboratories, Inc.John Mason

[email protected]410-354-3300Fax: 410-354-3313

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	923.00 mW	253KGXW	50.0000000000 Hz

Confidentiality

Long Term

Grant Notes

Output is Conducted Power. SAR compliance has been established in the laptop computer(s) configurations with PCMCIA slot configurations as tested in this filing, and can be used in laptop computers with substantially similar physical dimensions, construction, and electrical and RF characteristics. Compliance of this device in all final host configurations is the responsibility of the Grantee. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. The highest reported SAR value is 1.256 W/kg at 25% duty cycle (factored for 2 time-slots). The antenna(s) used for this transmitter not be co-located or operating in conjunction with any other antenna or transmitter. This device contains 900 MHz GSM, and 1800 MHz DCS functions that are not operational in U.S. Territories. This filing is only applicable for 1900 MHz PCS operations.
