NBZNRM-U630Wireless PC Card Modem

GU-900 REVISION 1 MERLIN U630 USER MANUAL The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless Inc. unless such commitment is expressly given in a covering document. M M E E R R L L I I N N U U 6 6 3 3 0 0 U U S S E E R R G G U U I I D D E E P P A A G G E E 2 2 GU-90023 Revision 1 1 Getting started................................................................................................................................................3 1.1 Your UMts account..........................................................................................................................................3 1.2 Your umts merlin............................................................................................................................................3 1.3 the Umts package...........................................................................................................................................3 1.4 getting started................................................................................................................................................4 1.5 system requirements.......................................................................................................................................4 1.6 care of your merlin..........................................................................................................................................4 1.7 Installing mobilink...........................................................................................................................................6 1.7.1 Windows 2000 Installation.......................................................................................................................6 1.7.2 Windows 2000 detects your UMTS Merlin.................................................................................................9 1.7.3 Windows XP Installation........................................................................................................................11 1.7.4 Windows XP detects your UMTS Merlin...................................................................................................14 2 Mobilink..........................................................................................................................................................16 2.1 Starting Mobilink...........................................................................................................................................16 2.1.1 Main Display Window............................................................................................................................16 2.1.2 Icon Display Window.............................................................................................................................17 2.1.3 Features...............................................................................................................................................18 2.1.4 Creating a data session.........................................................................................................................19 3 sending and receiving sms messages..........................................................................................................24 3.1 What is sms..................................................................................................................................................24 3.1.1 MobiLink’s SMS Window........................................................................................................................24 3.1.2 Sending SMS Messages.........................................................................................................................25 3.1.3 Receiving and Reading SMS Messages....................................................................................................26 4 determine merlin states................................................................................................................................28 5 troubleshooting.............................................................................................................................................30 1.1 Cannot install mobiLInk.................................................................................................................................31 1.2 Problem: When I run the MobiLink software, I get the message “No Card Detected”.........................................31 1.3 Problem: When I insert the modem, I get Unknown_PCMCIA_Manufacturer” instead of “Novatel_ Wireless Merlin_UMTS_Modem............................................................................................................................................33 1.4 Problem: When I run the MobiLink software, I get the message “SIM not Found – Check Orientation...............33 1.5 Problem: Modem cannot read SIM. LED flashing RED....................................................................................33 1.6 Problem: When I run MobiLink software, the Window “searching for network” will be displayed continuously....34 1.7 Problem: Cannot browse the Web.................................................................................................................34 6 product specification.....................................................................................................................................38 6.1 technical specification....................................................................................................................................38 6.1.1 Environmental Specifications..................................................................................................................39 7 Safety and regulations..................................................................................................................................40 7.1 Wireless Communicati…

Text truncated - open the document above for the full version.

Novatel Wireless Technologies, LTD. Suite 200, 6715-8 th Street NE Calgary, Alberta Canada, T2E 7H7 (Tel) 403-295-4800 (Fax) 403-295-4801 20 September 2004 Att: Reviewing Engineer Federal Communication Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD, 21046 Reference: FCC ID: NBZNRM-U630 Merlin U630 Wireless Modem Dear Sir / Madam, Pursuant to 47 CFR Chapter 1 Section 0.457(d), Novatel Wireless Inc. requests that the following material submitted with the Certification Application be withheld from public disclosure. This material contains trade secrets and technical details are that are customarily guarded from competitors and not released to the general public by Novatel Wireless Technologies Inc. 1. Schematic Diagrams 2. Block Diagrams, RF and Digital 3. Bill of Materials 4. U630v Product Definition Ver 1.pdf Sincerely, Kevin Goodfellow Technical Specialist Novatel Wireless Technologies Ltd.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To who it may concern: November 15, 2004 Due to faulty GPRS waveform from a communication analyzer, Novatel Wireless would request Bay Area Compliance Lab to replace GPRSGSM SAR data for FCC ID: NBZNRM-U630 with corrected result. John Whittier, P. Eng Novatel Wireless Technologies Ltd. 6715 8 th Street Calgary, Alberta, Canada, T2E 7H7

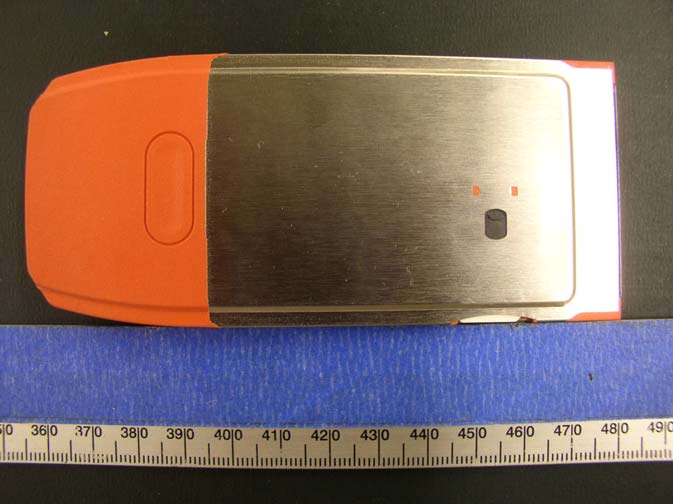

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Back View

MERLIN U630 TM Model: U630 MANUFACTURED UNDER US PATENT 5129098 FCC ID: NBZNRM-U630 1313 Novatel Wireless Technologies Ltd. Suite 200, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 TITLE: LABEL BOTTOM MERLIN U6300 - NW BRANDED P/N: 2501xxxx NOTES: 1. YELLOW AREA DENOTES CUTOUT FOR SIM EJECT BUTTON. YELLOW DOES NOT PRINT, LABEL IS BLACK AND WHITE ONLY 2. MECHANICAL DRAWING ON HIDDEN LAYER CONTAINS DIECUT, MATERIAL AND LAMINATION INFO Rev.A 09/01/04 - Lawrence Zalasky - Initial draft based on U530 bottom label. Removed A-Tick, added FCC logo and FCC ID. Rev.A 09/03/04 - Lawrence Zalasky - Removed 'NRM'. Model number now just 'U630'. HISTORY: (indicate: REV / DATE / ARTIST / REV. CHANGES)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Component View Antenna EUT – Solder View Antenna EUT – Component View without Shielding EUT – Solder View without Shielding

September 21, 2004 Merlin U630 Tune up information To whom it may concern, The Novatel Wireless UMTS Merlin PC card modem OEM is factory calibrated. During the production phase, the modem is exposed to a U2 test station which uses a PC, a vector signal analyzer and a signal generator to execute an automated script in order to calibrate the RF circuitry and determine the required Non-Volatile (NV) table values for WCDMA and GPRS. The modem diagnostic serial port is connected to the PC using a Novatel sparrow interface board with an external DC power supply. The modem base band Non Volatile memory transmitter tables are then populated with calibration factors which will remain unchanged for the life of the modem. Once calibrated, there is no methodology for further calibration or tuning. The calibration tables applicable to this certification are as follows: PCS PA Start Offset. PCS PA Stop Offset. PCS Tx frequency compensation. PCS Tx ramp up tables (15 different tables). PCS Tx ramp down tables (15 different tables). Sincerely, Kevin Goodfellow Technical Specialist Suite 200 6715, 8 th Street N.E. Calgary, Alberta, 2E 7H7 Canada.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. SAR EVALUATION REPORT For Novatel Wireless Technologies Ltd. Suite 200, 6715 – 8th Street N.E. Calgary, Alberta Canada, T2E 7H7 FCC ID: NBZNRM-U630 2004-11-15 This Report Concerns: Original Report Equipment Type: Transmitter, Portable Test Engineer: Eric Honge / Report No.: R0411083S Test Date: 2004-11-10 Reviewed By: Daniel Deng / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Novatel Wireless Technologies Ltd. FCC ID: NBZNRM-U630 Report #R0411083S.doc SAR Evaluation Report Page 2 of 57 TABLE OF CONTENTS SUMMARY .............................................................................................................................................................. 3 1 - REFERENCE ..................................................................................................................................................... 4 2 - TESTING EQUIPMENT................................................................................................................................... 5 2.1 EQUIPMENTS LIST & CALIBRATION INFO...............................................................................................................5 2.2 EQUIPMENT CALIBRATION CERTIFICATE...............................................................................................................5 3 - EUT DESCRIPTION ......................................................................................................................................... 28 4 - SYSTEM TEST CONFIGURATION............................................................................................................... 29 4.1 JUSTIFICATION.....................................................................................................................................................29 4.2 EUT EXERCISE PROCEDURE................................................................................................................................29 4.3 EQUIPMENT MODIFICATIONS...............................................................................................................................29 5 – CONDUCTED OUTPUT POWER MEASUREMENTS............................................................................... 30 5.1 PROVISION APPLICABLE.......................................................................................................................................30 5.2 TEST PROCEDURE................................................................................................................................................30 5.3 TEST EQUIPMENT.................................................................................................................................................30 5.4 TEST RESULTS, CONDUCTED POWER MEASUREMENTS........................................................................................30 6 - DOSIMETRIC ASSESSMENT SETUP........................................................................................................... 32 6.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................................................33 6.2. SYSTEM COMPONENTS........................................................................................................................................34 6.3 MEASUREMENT UNCERTAINTY............................................................................................................................38 7 - EVALUATION PROCEDURE......................................................................................................................... 39 7.1 SAR EVALUATION PROCEDURE...........................................................................................................................39 7.2 EXPOSURE LIMITS................................................................................................................................................40 7.3 SIMULATED TISSUE LIQUID PARAMETER CONFIRMATION...................................................................................40 7.4 SAR MEASUREMENT...........................................................................................................................................40 7.5 SYSTEM ACCURACY VERIFICATION.....................................................................................................................41 7.6 LIQUID MEASUREMENT RESULT..........................................................................................................................42 7.7 SYSTEM VALIDATION SETUP PHOTOS.................................................................................................................42 8 - SAR TEST RESULTS........................................................................................................................................ 45 8.1 SAR BODY AND HEAD WORST-CASE TEST DATA...............................................................................................45 8.2 PLOTS OF TEST RESULT.......................................................................................................................................45 EXHIBIT A - SAR SETUP PHOTOGRAPHS ..................................................................................................... 52 BODY WORN, DELL (MODEL: LATITUDE) HOST PC, EUT BOTTOM SIDE FACING PHANTOM BOTTOM AND NOTEBOOK BOTTOM SIDE IN TOUCH WITH FLAT PHANTOM......................................................................................52 BODY WORN, DELL (MODEL: PP01X) HOST PC, EUT BOTTOM SIDE FACING PHANTOM BOTTOM AND NOTEBO…

Text truncated - open the document above for the full version.

Novatel Wireless Technologies Ltd. FCC ID: NBZNRM-U630 Report #R0411083S.doc SAR Evaluation Report Page 32 of 57 6 - DOSIMETRIC ASSESSMENT SETUP These measurements were performed with the automated near-field scanning system DASY3 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9m) which positions the probes with a positional repeatability of better than ±0.02mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The system is described in detail in [3]. The SAR measurements were conducted with the dosimetric probe ET3DV6 SN: 1577 (manufactured by SPEAG), designed in the classical triangular configuration [3] and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure described in [7] with accuracy of better than ±10%. The spherical isotropy was evaluated with the procedure described in [8] and found to be better than ±0.25dB. The phantom used was the \Generic Twin Phantom” described in [4]. The ear was simulated as a spacer of 4 mm thickness between the earpiece of the phone and the tissue simulating liquid. The Tissue simulation liquid used for each test is in according with the FCC OET65 supplement C as listed below. Frequency (MHz) Ingredients (% by weight) 450 835 915 1900 2450 Tissue Type Head Body Head Body Head Body Head Body Head Body Water 38.56 51.16 41.45 52.4 41.05 56.0 54.9 40.4 62.7 73.2 Salt (Nacl) 3.95 1.49 1.45 1.4 1.35 0.76 0.18 0.5 0.5 0.04 Sugar 56.32 46.78 56.0 45.0 56.5 41.76 0.0 58.0 0.0 0.0 HEC 0.98 0.52 1.0 1.0 1.0 1.21 0.0 1.0 0.0 0.0 Bactericide 0.19 0.05 0.1 0.1 0.1 0.27 0.0 0.1 0.0 0.0 Triton x-100 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 36.8 0.0 DGBE 0.0 0.0 0.0 0.0 0.0 0.0 44.92 0.0 0.0 26.7 Dielectric Constant 43.42 58.0 42.54 56.1 42.0 56.8 39.9 54.0 39.8 52.5 Conductivity (s/m) 0.85 0.83 0.91 0.95 1.0 1.07 1.42 1.45 1.88 1.78 Novatel Wireless Technologies Ltd. FCC ID: NBZNRM-U630 Report #R0411083S.doc SAR Evaluation Report Page 33 of 57 6.1 Measurement System Diagram The DASY3 system for performing compliance tests consist of the following items: 1. A standard high precision 6-axis robot (Stäubli RX family) with controller and software. 2. An arm extension for accommodating the data acquisition electronics (DAE). 3. A dosimetric probe, i.e., an isotropic E-field probe optimized and calibrated for usage in tissue simulating liquid. The probe is equipped with an optical surface detector system. 4. A data acquisition electronic (DAE), which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC. 5. A unit to operate the optical surface detector, which is connected to the EOC. The Electro-optical coupler (EOC) performs the conversion from the optical into a digital electric signal of the DAE. The EOC is connected to the PC plug-in card. The functions of the PC plug-in card based on a DSP is to perform the time critical task such as signal filtering, surveillance of the robot operation fast movement interrupts. 6. A computer operating Windows 95 or larger 7. DASY3 software 8. Remote control with teaches pendant and additional circuitry for robot safety such as warning lamps, etc. 9. The generic twin phantom enabling testing left-hand and right-hand usage. 10. The device holder for handheld EUT. 11. Tissue simulating liquid mixed according to the given recipes (see Application Note). 12. System validation dipoles to validate the proper functioning of the system. Novatel Wireless Technologies Ltd. FCC ID: NBZNRM-U630 Report #R0411083S.doc SAR Evaluation Report Page 34 of 57 6.2. System Components ES3DV2 Probe Specification Construction Symmetrical design with triangular core Interleafed sensors Built-in shielding against static charges PEEK enclosure material (resistant to organic solvents, e.g., glycol) Calibration In air from 10 MHz to 3 GHz In brain and muscle simulating tissue at frequencies of 450 MHz, 900 MHz and 1.8 GHz (accuracy ± 8%) Calibratin for other liquids and frequencies upon request Frequency 10 MHz to > 6GHz; Linearity: ± 0.2 dB (30 MHz to 3 GHz) Directivity ± 0.2 dB in brain tissue (rotation around probe axis) ± 0.3 dB in brain tissue (rotation normal to probe axis) Photograph of the probe Dynamic Range 5 μW/g to > 100 mW/g; Linearity: ± 0.2 dB Dimensions Overall length: 330 mm Tip length: 20 mm Body diameter: 12 mm Tip diameter: 3.9 mm Distance from probe tip to dipole centers: 2.7 mm Application: General dosimetry up to 5 GHz Dosimetry in strong gradient fields Compliance tests of mobile phones The SAR measurements were conducted with the dosimetric probe ET3DV2 designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe is constructed using the thick film technique; with printed resistive lines on ceramic substrates. The probe is equipped with an optical multi-fiber line ending at the front of the probe tip. It is connected to the EOC box on the robot arm and provides an automatic detection of the phantom surface. Half of the fibers are connected to a pulsed infrared transmitter, the other half to a synchronized receiver. As the probe approaches the surface, the reflection from the surface produces a coupling from the transmitting to the receiving fibers. This reflection increases first during the approach, reaches maximum and then decreases. If the probe is flatly touching the surface, the coupling is zero. The distance of the coupling maximum to the surface is independent of the surface reflectivity and largely independent of the surface to probe angle. The DASY3 software reads the reflection during a softwar…
