NBZNRM-U7302G and 3G Radio Module

GU-90023 REVISION A MERLIN U730 USER MANUAL The information contained in this document is subject to change without notice and should not be construed as a commitment by Novatel Wireless Inc. unless such commitment is expressly given in a covering document. DRAFT DRAFT DRAFT DRAFT MERLIN U730 USER GUIDE 2 GU-90023 Revision A 1 Getting Started........................................................................................................................................... 3 1.1 Your UMTS account......................................................................................................................................3 1.2 Your U730 Merlin .........................................................................................................................................3 1.3 The UMTS package ......................................................................................................................................3 1.4 Getting Started ............................................................................................................................................4 1.5 System Requirements...................................................................................................................................4 1.6 Care of your Merlin ......................................................................................................................................4 1.7 Installing MobiLink .......................................................................................................................................6 1.7.1 Windows 2000 Installation ....................................................................................................................6 1.7.2 Windows 2000 detects your U730 Merlin ................................................................................................9 1.7.3 Windows XP Installation ..................................................................................................................... 11 1.7.4 Windows XP detects your U730 Merlin ................................................................................................. 14 2 MobiLink ................................................................................................................................................... 17 2.1 MobiLink Overview ..................................................................................................................................... 17 2.2 Starting MobiLink ....................................................................................................................................... 17 2.2.1 Main Display Window ......................................................................................................................... 18 2.2.2 Main Display Window Description ........................................................................................................ 18 2.2.3 Main Display Window ......................................................................................................................... 19 2.2.4 Icon Display Window .......................................................................................................................... 19 2.2.5 Creating a data session....................................................................................................................... 20 3 Sending and Receiving SMS messages .................................................................................................... 25 3.1 What is SMS .............................................................................................................................................. 25 3.2 MobiLink’s SMS window .............................................................................................................................. 25 3.2.1 Sending SMS Messages....................................................................................................................... 26 3.2.2 Sending SMS Messages....................................................................................................................... 27 4 Determine Merlin States .......................................................................................................................... 28 5 Troubleshooting ....................................................................................................................................... 30 1.1 Cannot install mobiLink............................................................................................................................... 31 1.2 Problem: When I run the MobiLink software, I get the message “No Card Detected”........................................ 31 1.3 Problem: When I insert the modem, I get Unknown_PCMCIA_Manufacturer” instead of “Novatel_ Wireless Merlin_UMTS_Modem ......................................................................................................................................... 33 1.4 Problem: When I run the MobiLink software, I get the message “SIM not Found – Check Orientation............... 33 1.5 Problem: Modem cannot read SIM. LED flashing RED.................................................................................. 33 1.6 Problem: When I run MobiLink software, the Window “searching for network” will be displayed continuously ... 34 1.7 Problem: Cannot connect to network .......................................................................................................... 34 1.8 problem: cannot browse the web ............................................................................................................... 34 6 Product Specification ............................................................................................................................... 37 6.1 Technical specification...................................................................................................................…

Text truncated - open the document above for the full version.

1 Confidentiality Request Letter 25 th October 2005 Att: Reviewing Engineer BABT Balfour House, Churchfield Road Walton-on-Thames Surrey - KT12 2TD – UK Reference: FCC ID: NBZNRM-U730 Merlin U730 Wireless Modem Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Novatel Wireless Inc. hereby requests confidential treatment of information accompanying as outlined below: Block diagram, Schematics, Bill of Materials and Technical description. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Sincerely, Kevin Goodfellow Technical Specialist Novatel Wireless Technologies Ltd. Tel. +1 403 295 4875 Fax. +1 403 295 4801

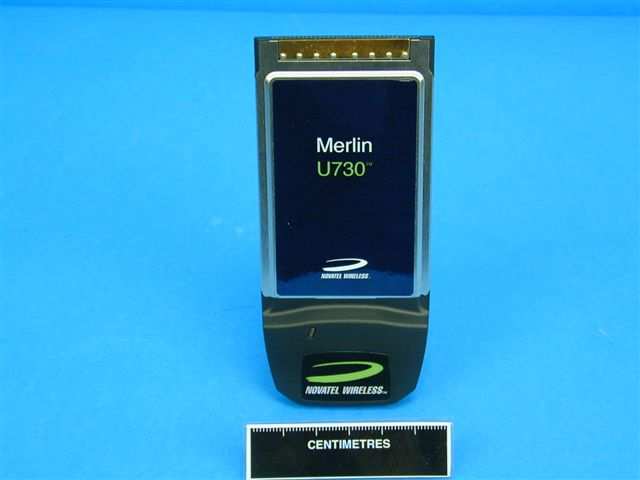

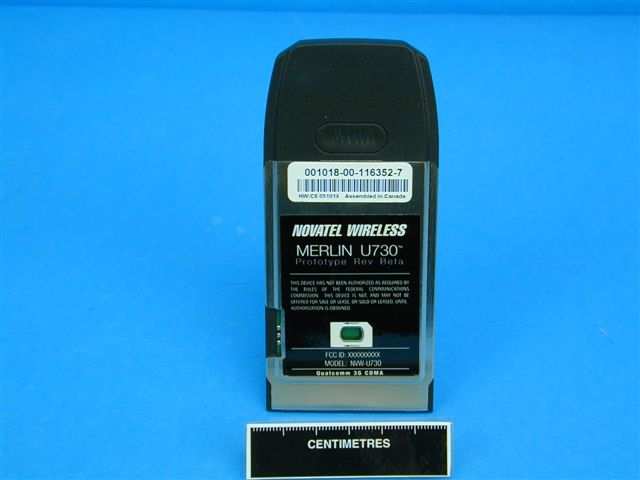

FCC ID: NBZNRM-U730 Page 1 of 3 PHOTOGRAPHS OF EQUIPMENT FOR NOVATEL MERLIN U730 PHOTOGRAPHS OF EQUIPMENT Merlin U730 – Top View FCC ID: NBZNRM-U730 Page 2 of 3 PHOTOGRAPHS OF EQUIPMENT Merlin U730 – Bottom View FCC ID: NBZNRM-U730 Page 3 of 3 PHOTOGRAPHS OF EQUIPMENT Merlin U730 – Side View

Q u a l c o m m 3 G C D M A FCC ID: NBZNRM-U730 MODEL: NRM-U 730 0168 THIS PRODUCT COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERENCE. MERLIN U730 TM

FCC ID: NBZNRM-U730 Page 1 of 1 PHOTOGRAPHS OF EQUIPMENT FOR NOVATEL MERLIN U730 PHOTOGRAPHS OF EQUIPMENT Merlin U730 – Label Placement

1 10 th October 2005 BABT Balfour House, Churchfield Road Walton-on-Thames Surrey - KT12 2TD – UK Reference: FCC ID: NBZNRM-U730 Merlin U730 Wireless Modem Dear Sir: Novatel Wireless will append the Merlin U730 user manual to include the following statement in section 7 ‘Safety and Regulations’. “Host Labeling Requirements” In order to be in compliance with FCC regulations; if this product is integrated in to a host device, the integrator must ensure that a label is affixed to the outside of the host device order to signify this product is installed. A Sample label is shown below.” Sincerely, Kevin Goodfellow Technical Specialist Novatel Wireless Technologies Ltd. Tel. +1 403 295 4875 Fax. +1 403 295 4801 Contains FCC ID: NBZNRM-U730

FCC ID: NBZNRM-U730 Page 1 of 4 PHOTOGRAPHS OF EQUIPMENT FOR NOVATEL MERLIN U730 PHOTOGRAPHS OF EQUIPMENT Merlin U703 Card – Top View with Shielding FCC ID: NBZNRM-U730 Page 2 of 4 PHOTOGRAPHS OF EQUIPMENT Merlin U703 Card – Bottom View with Shielding FCC ID: NBZNRM-U730 Page 3 of 4 PHOTOGRAPHS OF EQUIPMENT Merlin U703 Card – Top View without Shielding FCC ID: NBZNRM-U730 Page 4 of 4 PHOTOGRAPHS OF EQUIPMENT Merlin U703 Card – Bottom View without Shielding

Novatel Wireless Merlin U730 Internal Antenna Manufacturer Novatel Wireless Type Wide Band Part Number 12015050 Dimensions Overall Length 42 mm Overall Width 30mm Overall Depth 8mm 8mm 42 mm 30mm

©2001 SkyCross. All Rights Reserved. Performance Summary of the Novatel Antenna in Free SpacePC Card leading wireless innovation™ COMPANY CONFIDENTIAL Overview • Orientation of antenna in range • Swept gain • Swept Efficiency • Contour plots leading wireless innovation™ COMPANY CONFIDENTIAL Antenna Range Axis Definition leading wireless innovation™ COMPANY CONFIDENTIAL Orientation of Antenna in the Range leading wireless innovation™ COMPANY CONFIDENTIAL Gain – Low Band -5-4-3-2-1 012345 0.82 0.83 0.84 0.85 0.86 0.87 0.88 0.89 0.9 0.91 0.92 0.93 0.94 0.95 0.96 Frequency (GHz) Gain (dBi) leading wireless innovation™ COMPANY CONFIDENTIAL Gain – High Band -5-4-3-2-1 012345 1.71 1.73 1.75 1.77 1.79 1.81 1.83 1.85 1.87 1.89 1.91 1.93 1.95 1.97 1.99 2.01 2.03 2.05 2.07 2.09 2.11 2.13 2.15 2.17 Frequency (GHz) Gain (dBi) leading wireless innovation™ COMPANY CONFIDENTIAL Efficiency – Low Band 0 102030405060708090 100 0.82 0.83 0.84 0.85 0.86 0.87 0.88 0.89 0.9 0.91 0.92 0.93 0.94 0.95 0.96 Frequency (GHz) Gain (dBi) leading wireless innovation™ COMPANY CONFIDENTIAL Efficiency – High Band 0 102030405060708090 100 1.71 1.73 1.75 1.77 1.79 1.81 1.83 1.85 1.87 1.89 1.91 1.93 1.95 1.97 1.99 2.01 2.03 2.05 2.07 2.09 2.11 2.13 2.15 2.17 Frequency (GHz) Gain (dBi) leading wireless innovation™ COMPANY CONFIDENTIAL 1920 MHz leading wireless innovation™ COMPANY CONFIDENTIAL 1990 MHz leading wireless innovation™ COMPANY CONFIDENTIAL 2100 MHz leading wireless innovation™ COMPANY CONFIDENTIAL 2170 MHz

October 30, 2005 Merlin U730 Tune up information To whom it may concern, The Novatel Wireless GPRS/UMTS/HSDPA Merlin U730 PC card modem is factory calibrated. No Customer calibration or tuning is required. Sincerely, Kevin Goodfellow Technical Specialist Suite 325 6715, 8 th Street N.E. Calgary, Alberta, T2E 7H7 Canada.

REPORT ON Specific Absorption Rate Testing of the Novatel Wireless Limited U730 Wireless PCMCIA Card FCC ID: NBZNRMU-730 Report No WS614714/01 Issue 1 November 2005 Competence. Certainty. Quality. TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk ; www.babt.com Report Number WS614714/01 Issue 1 Page 1 of 43 REPORT ON Specific Absorption Rate Testing of the Novatel Wireless Limited U730 Wireless PCMCIA Card Report No: WS614714/01 Issue 1 FCC ID NBZNRM-U730 PREPARED FOR Novatel Wireless Limited Suite 200, 6715 - 8th Street N.E. Calgary Alberta, T2E 7H7 Canada ATTESTATION The wireless portable device described within this report has been shown to be capable of compliance for localised specific absorption rate (SAR) for FCC standard Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01) and RSS-102 Issue 1 (Provisional) September 25, 1999 of 1.6 W/kg. The measurements shown in this report were made in accordance with the procedures specified in Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01). All reported testing was carried out on a sample of equipment to demonstrate compliance with the above standards. The sample tested was found to comply with the requirements in the applied rules. V Kerai SAR Test Engineer APPROVED BY M Jenkins Authorised Signatory DATED 4 th November 2005 Note: The test results reported herein relate only to the item tested as identified above and on the Status Page. FCC ID: NBZNRM-U730 Report Number WS614714/01 Issue 1 Page 2 of 71 CONTENTS Section Page No 1 REPORT SUMMARY 1.1 Status .............................................................................................................................. 4 1.2 Summary .......................................................................................................................... 5 1.3 Test Results Summary ..................................................................................................... 6 1.4 Output Power Measurements – Conducted ................................................................... 10 2 TEST DETAILS 2.1 SAR Measurement System ............................................................................................ 12 2.1.1 Robot System Specification 2.1.2 Probe and Amplifier Specification 2.1.3 SAR Measurement Procedure 2.2 SAR Distributions (Area Scans – 2D)............................................................................. 17 3 TEST EQUIPMENT 3.1 Test Equipment .............................................................................................................. 58 3.2 Test Software ................................................................................................................. 58 3.3 Dielectric Properties of Simulant Liquids........................................................................ 59 3.4 Test Conditions............................................................................................................... 60 3.5 Measurement Uncertainty .............................................................................................. 61 4 PHOTOGRAPHS 4.1 Test Positional Photographs .......................................................................................... 63 4.2 Photographs of Equipment Under Test (EUT)... ............................................................ 66 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT 5.1 Accreditation, Disclaimers and Copyright....................................................................... 71 ANNEX A Probe Calibration Procedure ......................................................................................... A.2 FCC ID: NBZNRM-U730 Report Number WS614714/01 Issue 1 Page 3 of 71 SECTION 1 REPORT SUMMARY Specific Absorption Rate Testing of the Novatel Wireless Limited U730 Wireless PCMCIA Card Max 1g SAR (W/kg) 1.366 The maximum 1g volume averaged SAR level measured for all the tests performed did not exceed the limits for General Population/Uncontrolled Exposure (W/kg) Partial Body of 1.6 W/kg level defined in Supplement C (Edition 01-01) to OET Bulletin 65 (97-01). FCC ID: NBZNRM-U730 Report Number WS614714/01 Issue 1 Page 4 of 71 1.1 STATUS MANUFACTURING DESCRIPTION PCMCIA Wireless Card STATUS OF TEST Specific Absorption Rate Testing APPLICANT Novatel Wireless Limited POWER CLASS GSM 850/900 Class 4 GSM DCS 1800 / PCS 1900 Class 1 EGPRS GSM 850 / EGSM 900 Class E2 W-CDMA Class 3 GPRS CLASS Class B MULTI-SLOT CLASS 10 (4Dn;2Up;Sum5) MANUFACTURER Novatel Wireless Limited TYPE OR MODEL NUMBER Novatel U730 HARDWARE VERSION Version 1 SOFTWARE VERSION Revision 18 FCC ID NBZNRMU-730 IMEI NUMBER 001018-00-036344-1 HOST 1 MANUFACTURER & MODEL Averatec 6200 Series COUNTRY OF MANUFACTURE China IC ID 3715A-MS6833 HOST 2 MANUFACTURER & MODEL Dell Inspiron 9300 COUNTRY OF MANUFACTURE Ireland FCC ID E2K24GBRL IC ID 1514B-24GBRL HOST 3 MANUFACTURER & MODEL Dell Latitude D600 COUNTRY OF MANUFACTURE Ireland FCC ID E2K24CLNS IC ID 1614B-24GLNS TEST SPECIFICATIONS: 1. FCC Publication Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01): Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields – Additional Information for evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions REFERENCES: 2. IEEE 1528 – 2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques BABT REGISTRATION NUMBER: WS614714 RECEIPT OF TEST SAMPLES: 11 th October 2005 START OF TEST: 27 th October 2005 FINISH OF TEST: 29 th October 2005 FCC ID: NBZNRM-U730 Report Number WS614714/01 Issue 1 Page 5 of 71 1.2 SUMMARY The device supplied for Specific Absorption Rate (SAR) testing was a Novatel Wireless Inc U730 CDMA/GPRS/EGPRS/HSDPA (E…

Text truncated - open the document above for the full version.

FCC ID: NBZNRM-U730 Report Number WS614714/01 Issue 1 Page 46 of 71 2.2 MAXIMUM 850 GPRS SAR TEST RESULT INCLUDING COURSE AREA SCAN – 2D Figure 33: SAR Body Testing Results for the Novatel U730 Wireless PCMCIA Card in Rear Facing Phantom Position; Tested at 848.8MHz (850 GPRS Top Channel) with 14mm Separation – Host 3 used SYSTEM / SOFTWARE: SARA2 / 2.39 VPM INPUT POWER DRIFT: 0.0dB DATE / TIME: 27/10/2005 17:33:31 DUT BATTERY MODEL/NO: N/A FILENAME: WS614714_0030.txt PROBE SERIAL NUMBER: 170 AMBIENT TEMPERATURE: 23.1°C LIQUID SIMULANT: 835 Body DEVICE UNDER TEST: Novatel U730 Card RELATIVE PERMITTIVITY: 54.85 RELATIVE HUMIDITY: 49.7% CONDUCTIVITY: 0.986 PHANTOM S/NO: CubePhantom.csv LIQUID TEMPERATURE: 22.5°C PHANTOM ROTATION: 0° MAX SAR X-AXIS LOCATION: -3.00 mm DUT POSITION: Rear Facing Phantom MAX SAR Y-AXIS LOCATION: -14.00 mm ANTENNA CONFIGURATION: Integral MAX E FIELD: 32.29 V/m TEST FREQUENCY: 848.8MHz SAR 1g: 1.195 W/kg AIR FACTORS: 406 / 385 / 409 SAR 10g: 0.831 W/kg CONVERSION FACTORS: 0.273 / 0.273 / 0.273 SAR START: 0.351 W/kg TYPE OF MODULATION: GMSK SAR END: 0.343 W/kg MODN. DUTY CYCLE: 25% SAR DRIFT DURING SCAN: -2.28 % DIODE COMPRESSION FACTORS (V*200): 20 / 20 / 20 PROBE BATTERY LAST CHANGED: 14/10/05 INPUT POWER LEVEL: Max EXTRAPOLATION: poly4 FCC ID: NBZNRM-U730 Report Number WS614714/01 Issue 1 Page 47 of 71 2.2 MAXIMUM 1900 EDGE SAR TEST RESULT INCLUDING COURSE AREA SCAN – 2D Figure 34: SAR Body Testing Results for the Novatel U730 Wireless PCMCIA Card in Rear Facing Phantom Position; Tested at 1880.0MHz (1900 GSM EDGE Middle Channel) with 10mm Separation – Host 1 used SYSTEM / SOFTWARE: SARA2 / 2.39 VPM INPUT POWER DRIFT: 0.0dB DATE / TIME: 27/10/2005 19:33:20 DUT BATTERY MODEL/NO: N/A FILENAME: WS614714_0031.txt PROBE SERIAL NUMBER: 170 AMBIENT TEMPERATURE: 22.0°C LIQUID SIMULANT: 1900 Body DEVICE UNDER TEST: Novatel U730 Card RELATIVE PERMITTIVITY: 53.98 RELATIVE HUMIDITY: 66.7% CONDUCTIVITY: 1.506 PHANTOM S/NO: CubePhantom.csv LIQUID TEMPERATURE: 22.2°C PHANTOM ROTATION: 0° MAX SAR X-AXIS LOCATION: 8.00 mm DUT POSITION: Rear Facing Phantom MAX SAR Y-AXIS LOCATION: -13.00 mm ANTENNA CONFIGURATION: Integral MAX E FIELD: 18.13 V/m TEST FREQUENCY: 1880.0MHz SAR 1g: 0.613 W/kg AIR FACTORS: 406 / 385 / 409 SAR 10g: 0.377 W/kg CONVERSION FACTORS: 0.346 / 0.346 / 0.346 SAR START: 0.109 W/kg TYPE OF MODULATION: 8PSK SAR END: 0.108 W/kg MODN. DUTY CYCLE: 25% SAR DRIFT DURING SCAN: -1.03 % DIODE COMPRESSION FACTORS (V*200): 20 / 20 / 20 PROBE BATTERY LAST CHANGED: 14/10/05 INPUT POWER LEVEL: Max EXTRAPOLATION: poly4 FCC ID: NBZNRM-U730 Report Number WS614714/01 Issue 1 Page 48 of 71 2.2 MAXIMUM 1900 EDGE SAR TEST RESULT INCLUDING COURSE AREA SCAN – 2D Figure 35: SAR Body Testing Results for the Novatel U730 Wireless PCMCIA Card in Rear Facing Phantom Position; Tested at 1850.2MHz (1900 GSM EDGE Bottom Channel) with 10mm Separation – Host 1 used SYSTEM / SOFTWARE: SARA2 / 2.39 VPM INPUT POWER DRIFT: 0.0dB DATE / TIME: 27/10/2005 20:02:52 DUT BATTERY MODEL/NO: N/A FILENAME: WS614714_0032.txt PROBE SERIAL NUMBER: 170 AMBIENT TEMPERATURE: 22.3°C LIQUID SIMULANT: 1900 Body DEVICE UNDER TEST: Novatel U730 Card RELATIVE PERMITTIVITY: 53.98 RELATIVE HUMIDITY: 58.9% CONDUCTIVITY: 1.506 PHANTOM S/NO: CubePhantom.csv LIQUID TEMPERATURE: 22.2°C PHANTOM ROTATION: 0° MAX SAR X-AXIS LOCATION: 8.00 mm DUT POSITION: Rear Facing Phantom MAX SAR Y-AXIS LOCATION: -13.00 mm ANTENNA CONFIGURATION: Integral MAX E FIELD: 17.36 V/m TEST FREQUENCY: 1850.2MHz SAR 1g: 0.555 W/kg AIR FACTORS: 406 / 385 / 409 SAR 10g: 0.356 W/kg CONVERSION FACTORS: 0.346 / 0.346 / 0.346 SAR START: 0.103 W/kg TYPE OF MODULATION: 8PSK SAR END: 0.104 W/kg MODN. DUTY CYCLE: 25% SAR DRIFT DURING SCAN: 0.21 % DIODE COMPRESSION FACTORS (V*200): 20 / 20 / 20 PROBE BATTERY LAST CHANGED: 14/10/05 INPUT POWER LEVEL: Max EXTRAPOLATION: poly4 FCC ID: NBZNRM-U730 Report Number WS614714/01 Issue 1 Page 49 of 71 2.2 MAXIMUM 1900 EDGE SAR TEST RESULT INCLUDING COURSE AREA SCAN – 2D Figure 36: SAR Body Testing Results for the Novatel U730 Wireless PCMCIA Card in Rear Facing Phantom Position; Tested at 1909.8MHz (1900 GSM EDGE Top Channel) with 10mm Separation – Host 1 used SYSTEM / SOFTWARE: SARA2 / 2.39 VPM INPUT POWER DRIFT: 0.0dB DATE / TIME: 27/10/2005 20:26:18 DUT BATTERY MODEL/NO: N/A FILENAME: WS614714_0033.txt PROBE SERIAL NUMBER: 170 AMBIENT TEMPERATURE: 22.1°C LIQUID SIMULANT: 1900 Body DEVICE UNDER TEST: Novatel U730 Card RELATIVE PERMITTIVITY: 53.98 RELATIVE HUMIDITY: 53.7% CONDUCTIVITY: 1.506 PHANTOM S/NO: CubePhantom.csv LIQUID TEMPERATURE: 22.2°C PHANTOM ROTATION: 0° MAX SAR X-AXIS LOCATION: 10.00 mm DUT POSITION: Rear Facing Phantom MAX SAR Y-AXIS LOCATION: -13.00 mm ANTENNA CONFIGURATION: Integral MAX E FIELD: 18.25 V/m TEST FREQUENCY: 1909.8MHz SAR 1g: 0.620 W/kg AIR FACTORS: 406 / 385 / 409 SAR 10g: 0.369 W/kg CONVERSION FACTORS: 0.346 / 0.346 / 0.346 SAR START: 0.106 W/kg TYPE OF MODULATION: 8PSK SAR END: 0.105 W/kg MODN. DUTY CYCLE: 25% SAR DRIFT DURING SCAN: -0.96 % DIODE COMPRESSION FACTORS (V*200): 20 / 20 / 20 PROBE BATTERY LAST CHANGED: 14/10/05 INPUT POWER LEVEL: Max EXTRAPOLATION: poly4 FCC ID: NBZNRM-U730 Report Number WS614714/01 Issue 1 Page 50 of 71 2.2 MAXIMUM 1900 EDGE SAR TEST RESULT INCLUDING COURSE AREA SCAN – 2D Figure 37: SAR Body Testing Results for the Novatel U730 Wireless PCMCIA Card in Rear Facing Phantom Position; Tested at 1909.8MHz (1900 GSM EDGE Top Channel) with 18mm Separation – Host 2 used SYSTEM / SOFTWARE: SARA2 / 2.39 VPM INPUT POWER DRIFT: 0.0dB DATE / TIME: 28/10/2005 11:26:08 DUT BATTERY MODEL/NO: N/A FILENAME: WS614714_0034.txt PROBE SERIAL NUMBER: 170 AMBIENT TEMPERATURE: 22.1°C LIQUID SIMULANT: 1900 Body DEVICE UNDER TEST: Novatel U730 Card RELATIVE PERMITTIVITY: 53.98 RELATIVE HUMIDITY: 49.2% CONDUCTIVITY: 1.506 PHANTOM S/NO: CubePhantom.csv LIQUID TEMPERATURE: 22.1°C PHANTOM ROTATION: 0° MAX SAR X-AXIS LOCATION: 10.00 mm DUT POSITION: Rear Facing Phantom MAX SAR Y-AXIS LOCATI…

Text truncated - open the document above for the full version.

REPORT ON Limited FCC CFR 47: Parts 15, 22 and 24 and Industry Canada RSS-132 and 133 Testing of a Novatel Wireless Inc U730 Quad-Band GPRS/EGPRS/UMTS/HSDPA Data Module COMMERCIAL-IN-CONFIDENCE FCC ID: NBZNRM-U730 Report No OR614714/01 Issue 2 November 2005 Competence. Certainty. Quality COMMERCIAL-IN-CONFIDENCE TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk ; www.babt.com Report No OR614714/01 Issue 2 Page 1 of 167 COMMERCIAL-IN-CONFIDENCE REPORT ON Limited FCC CFR 47: Parts 15, 22 and 24 and Industry Canada RSS-132 and 133 Testing of a Novatel Wireless Inc U730 Quad-Band GPRS/EGPRS/UMTS/HSDPA Data Module FCC ID: NBZNRM-U730 Report No OR614714/01 Issue 2 November 2005 PREPARED FOR Novatel Wireless Inc Suite 200, 6715 – 8 th Street N.E. Calgary Alberta T2E 7H7 Canada . PREPARED BY J Plummer Technical Author APPROVED BY K Adsetts M Jenkins Authorised Signatory Authorised Signatory DATED 14 th November 2005 ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Parts 15, 22 and 24. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineers; P Harrison S Hartley A Hubbard R Small FCC ID: NBZNRM-U730 COMMERCIAL-IN-CONFIDENCE Report No OR614714/01 Issue 2 Page 2 of 167 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY 1.1 Status .................................................................................................................................. 4 1.2 Introduction.......................................................................................................................... 5 1.3 Brief Summary of Results ................................................................................................... 7 1.4 Product Information............................................................................................................. 9 1.5 Test Conditions ................................................................................................................... 11 1.6 Deviations from the Standard............................................................................................. 11 1.7 Modification Record ............................................................................................................ 11 1.8 Alternative Test Site ............................................................................................................ 11 2 TEST DETAILS FCC Part 15 B, Industry Canada RSS-132 and RSS-133 2.1 Spurious Radiated Emissions ............................................................................................. 13 FCC Part 22 and Industry Canada RSS-132 2.2 Maximum Peak Output Power (Radiated) .......................................................................... 16 2.3 Modulation Characteristics.................................................................................................. 19 2.4 Occupied Bandwidth ........................................................................................................... 24 2.5 Spurious Emissions At Antenna Terminals (+/- 1MHz)...................................................... 29 2.6 Radiated Emissions ............................................................................................................ 40 2.7 Conducted Spurious Emissions .......................................................................................... 48 2.8 Frequency Stability Under Temperature Variations............................................................ 74 2.9 Frequency Stability Under Voltage Variations .................................................................... 77 2.10 Maximum Peak Output Power (Conducted) ....................................................................... 77 FCC Part 24 and Industry Canada RSS-133 2.11 Maximum Peak Output Power (Radiated) .......................................................................... 79 2.12 Maximum Peak Output Power (Conducted) ....................................................................... 79 2.13 Modulation Characteristics.................................................................................................. 81 2.14 Occupied Bandwidth ........................................................................................................... 91 2.15 Spurious Emissions At Antenna Terminals (+/- 1MHz)...................................................... 96 2.16 Radiated Emissions ............................................................................................................ 106 2.17 Conducted Spurious Emissions .......................................................................................... 115 2.18 Frequency Stability Under Temperature Variation.............................................................. 152 2.19 Frequency Stability Under Voltage Variation ...................................................................... 155 3 TEST EQUIPMENT 3.1 Test Equipment ................................................................................................................... 158 3.2 Measurement Uncertainty ................................................................................................... 161 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT 4.1 Accreditation, Disclaimers and Copyright ........................................................................... 163 FCC ID: NBZNRM-U730 COMMERCIAL-IN-CONFIDENCE Report No OR614714/01 Issue 2 Page 3 of 167 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY Limited FCC CFR 47: Parts 15, 22 and 24 and Industry Canada RSS-132 and 133 Testing of a Novatel Wireless Inc U730 Quad-Band GPRS/EGPRS/UMTS/HSDPA Data Module FCC ID: NBZNRM-U730 COMMERCIAL-IN-…

Text truncated - open the document above for the full version.
