NBZNRM-X950DMerlin X950D - Mobile Broadband expresscard modem

Merlin X950D User Guide Contents About this Guide - Everyday Basics - MobiLink Basics - Connection Basics - SMS Basics - Address Book Basics - Troubleshooting - Glossary Regulatory Notices Safety Notices Specifications LED States © Novatel Wireless Inc. All rights reserved. Merlin, MobiLink, Ovation, and the Novatel Wireless logo are all trademarks of Novatel. All other brands and product names are trademarks of their respective holders About this Guide This guide provides the following information: ● Everyday Basics: If you are working with the default settings and want a quick reference for daily activities, read this section. ● MobiLink Basics: This section provides an overview of the MobiLink control panel. Read this to familiarize yourself with the control panel options. ● Connection Basics: If you had trouble setting up your profile as part of the installation or you want to find out how to automatically connect to the network when you turn your laptop power on, read this section. ● SMS Basics: This section shows you how to send and receive SMS. ● Address Book Basics: Thinking about sending an SMS to a group of people? You’ll want to read this section first. ● Troubleshooting: This section provides assistance should you need it. ● Glossary: Understanding all those technical terms For installation instructions, please refer to the Quick Start Guide. A printed version of this guide was included in the product box. You’ll also find a copy on the CD. For information on advanced topics not included in this guide, please refer to the MobiLink online help. Note: MobiLink software is for supported Windows platforms only. Support for Mac OS and Linux is provided through drivers. For more information, see http:// www.novatelwireless.com/support/index.html file:///C|/Documents%20and%20Settings/gdavies/Desktop/User_guide.htm [02/07/2007 15:52:29] MobiLink Index About this Guide This guide provides the following information: ● Everyday Basics: If you are working with the default settings and want a quick reference for daily activities, read this section. ● MobiLink Basics: This section provides an overview of the MobiLink control panel. Read this to familiarize yourself with the control panel options. ● Connection Basics: If you had trouble setting up your profile as part of the installation or you want to find out how to automatically connect to the network when you turn your laptop power on, read this section. ● SMS Basics: This section shows you how to send and receive SMS. ● Address Book Basics: Thinking about sending an SMS to a group of people? You’ll want to read this section first. ● Troubleshooting: This section provides assistance should you need it. ● Glossary: Understanding all those technical terms For installation instructions, please refer to the Quick Start Guide. A printed version of this guide was included in the product box. You’ll also find a copy on the CD. For information on advanced topics not included in this guide, please refer to the MobiLink online help. Note: MobiLink software is for supported Windows platforms only. Support for Mac OS and Linux is provided through drivers. For more information, see http://www.novatelwireless.com/ support/index.html file:///C|/Documents%20and%20Settings/gdavies/Desktop/content/mobilink_index.htm [02/07/2007 15:52:30] Everyday Basics Everyday Basics After you install the MobiLink™ software and set up your Novatel Wireless Data Product for first time use, it’s time to get down to the everyday basics. The following steps provide a roadmap of typical usage activities. Use it as a guide and customize it according to your needs. 1 Turn on your laptop power. Remove your Novatel Wireless Data Product from your laptop before you turn on the power. 2 Start MobiLink. MobiLink is the communications software you use to send and receive SMS, and connect to the cellular network. Doubleclick the MobiLink icon on your desktop to start the application. Want to have MobiLink start automatically each time you start your computer? Click Here 3 Insert your Novatel Wireless Data Product. You’ll see the message “No Device Detected” on the MobiLink control panel before you insert your Novatel Wireless Data Product. After you insert it, the message will change to “Initializing Device”. The LED on your Novatel Wireless Data Product will display a solid red light while it searches for available networks. When a network is found and attached to, the light on the LED will begin to flash: green for GPRS, violet for EDGE, blue for UMTS. The LED will light yellow for HSDPA . The message on the MobiLink control panel will change to “Ready”. You’ll find a complete list of LED colors and related states here. 4 Send or receive SMS. Once you are attached to a cellular network, you can send and receive SMS. Check the envelope icon on the MobiLink control panel. It will appear blue when SMS is available and gray when it is not. Click the envelope icon on the MobiLink control panel to send and receive SMS. file:///C|/Documents%20and%20Settings/gdavies/Desktop/content/everyday_basics.htm (1 of 4) [02/07/2007 15:52:32] Everyday Basics Click to send and receive SMS Need more information? Click Here. Not sure what “attached” means? Click Here 5 Surf the web or check your email. When you surf the web or send or receive email, you are sending and receiving data from the cellular network. Before you can do this, you have to connect to the network. 1. Select a profile from the drop down box. file:///C|/Documents%20and%20Settings/gdavies/Desktop/content/everyday_basics.htm (2 of 4) [02/07/2007 15:52:32] Everyday Basics 2. Click the Connect button on the MobiLink control panel to connect to the network. If your SIM card is locked, type in your PIN code and click OK. 3. Click the Internet icon to launch your web browser. Not sure what your PIN code is? Check with your mobile operator. Don’t see a profile? You might have to set one up. Click Here Want to connect to the cellular network…

Text truncated - open the document above for the full version.

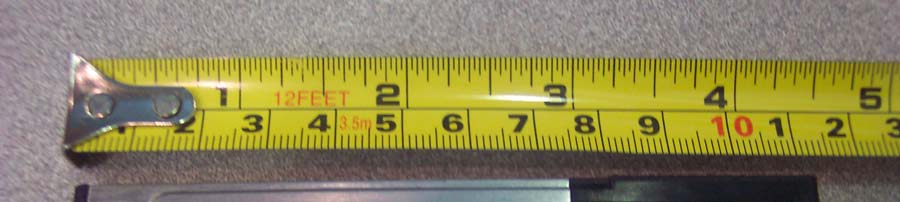

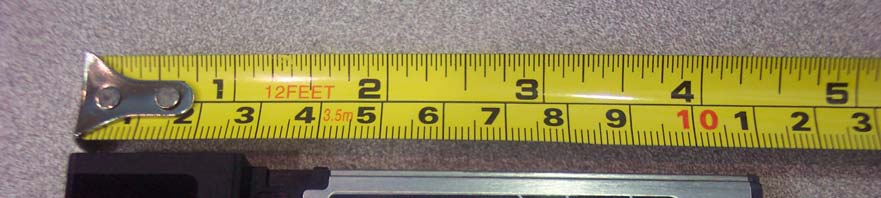

Novatel Wireless Inc Model NRM-X950D FCC ID # NBZ-NRM-X950D IC ID # 3229A-X950D Date: July 24, 2007 Revision #:0 External Photographs Top View Bottom View Novatel Wireless Inc Model NRM-X950D FCC ID # NBZ-NRM-X950D IC ID # 3229A-X950D Date: July 24, 2007 Revision #:0 Side view with external antenna connection

Novatel Wireless Inc Model NRM-X950D FCC ID # NBZ-NRM-X950D IC ID # 3229A-X950D Label Location Approximate label location Date: July 24, 2007 Revision #:0

0682 Q u a l c o m m 3 G C D M A THIS PRODUCT COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERENCE. MODEL: NRM-X950D FCC ID: NBZNRM-X950D IC: 3229A-X950D Express Card | 34 TM TM Merlin TM X950D N1246 4 2 . 0 2 4 . 0 Novatel Wireless Technologies Ltd. Suite 325, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 TITLE: LABEL BOTTOM FCC X950D NVTL P/N: 25016480ECO: 07273 NOTES: 1. MATERIAL AND DIECUT INCLUDED ON HIDDEN MECHANICAL LAYER Material: Base Layer: .025mm 3M 7830 GLOSS WHITE POLYESTER Adhesive: .020mm ACRYLIC Laminate: .025mm CLEAR GLOSS POLYESTER Rev.1 05/11/07 - Lawrence Zalasky - INITIAL RELEASE Rev.2 06/06/07 - LZ - CORRECTED FCC NUMBER, ADDED A-TICK MARK

Novatel Wireless Inc Model NRM-X950D FCC ID # NBZ-NRM-X950D IC ID # 3229A-X950D Date: July 24, 2007 Revision #:0 Internal Photographs Top View – Cover removed Top View – Shields removed Novatel Wireless Inc Model NRM-X950D FCC ID # NBZ-NRM-X950D IC ID # 3229A-X950D Date: July 24, 2007 Revision #:0 Bottom View – Cover removed Bottom View – Shields removed

© 2007 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 2867 Progress Place, Suite 4D • Escondido, CA 92029 • U.S.A. TEL (760) 737-3131 • FAX (760) 737-9131 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Novatel Wireless Dates of Test: June 14-15, 2007 6715 8 th Street N.E. Test Report Number: SAR.20070602 Calgary, Alberta, Canada T2E 7H7 Revision B This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1999 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, OET Bulletin 65 Supp. C, RSS-102 and Safety Code 6 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Certificate # 2387.01 FCC ID: NBZNRM-X950D IC Certificate: 3229A-X950D Model(s): X950D Test Sample: Pre-Production Unit same as Production Serial No.: 001018-00-013613-6 Equipment Type: Wireless Modem Classification: Portable Transmitter Next to Body TX Frequency Range: 824.2 – 848.8 MHz, 1850.2 – 1909.8 MHz Frequency Tolerance: ± 25 ppm Maximum RF Output: 850 MHz (GSM) – 22.7 dBm, 850 MHz (GPRS) – 25.5 dBm, (Average over 8 Slots) 850 MHz (WCDMA) – 23.3 dBm, 1900 MHz (GSM) – 19.5 dBm, 1900 MHz (GPRS) – 22.5 dBm, 1900 MHz (WCDMA) – 22.1 dBm Conducted Maximum RF Output: 850 MHz (GSM) – 31.94 dBm, 850 MHz (GPRS) – 32.03 dBm, (Peak Power) 850 MHz (WCDMA) – 27.21 dBm, 1900 MHz (GSM) – 29.09 dBm, 1900 MHz (GPRS) – 28.87 dBm, 1900 MHz (WCDMA) – 24.76 dBm Conducted Signal Modulation: GMSK, 8-PSK, WCDMA Antenna Type (Length): Internal(Bi-link P/N 12015070) Battery: Laptop Supplied Application Type: Certification FCC Rule Parts: Part 22 & 24 Industry Canada: RSS-102 FCC ID: NBZNRM-X950D © 2007 RF Exposure Lab, LLC Page 2 of 120 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ...........................................................................................................................3 SAR Definition [5]......................................................................................................................3 2. SAR Measurement Setup .....................................................................................................4 Robotic System .........................................................................................................................4 System Hardware .....................................................................................................................4 System Description ...................................................................................................................4 E-Field Probe ............................................................................................................................5 3. Robot Specifications .............................................................................................................7 4. Probe and Dipole Calibration ................................................................................................8 5. Phantom & Simulating Tissue Specifications........................................................................9 SAM Phantom ...........................................................................................................................9 Brain & Muscle Simulating Mixture Characterization ................................................................9 Device Holder ...........................................................................................................................9 6. Definition of Reference Points.............................................................................................10 Ear Reference Point................................................................................................................10 Device Reference Points ........................................................................................................10 7. Test Configuration Positions ...............................................................................................11 Positioning for Cheek/Touch [5] ..............................................................................................11 Positioning for Ear / 15 ̊ Tilt [5]................................................................................................12 Body Worn Configurations ......................................................................................................13 8. ANSI/IEEE C95.1 – 1999 RF Exposure Limits [2]...............................................................14 Uncontrolled Environment.......................................................................................................14 Controlled Environment .......................................................................................................... 14 9. Measurement Uncertainty ...................................................................................................15 10. System Validation ........................................................................................................... 16 Tissue Verification...................................................................................................................16 Test System Verification .........................................................…

Text truncated - open the document above for the full version.

Confidentiality Statement: This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer. Product Integrity Laboratory 5151-47 th Street, NE Calgary, Alberta T3J 3R2 Tel: (403) 568-6605 Fax : (403) 568-6970 Certification Test Report FCC Part 22, Subpart H/ Industry Canada RSS 132 Part 24, Subpart E/ Industry Canada RSS 133 Novatel Wireless Inc Merlin X950D FCC ID # NBZNRM-X950D IC ID # 3229A-X950D Project Code CG-626 (Report CG-626-RA-1-2) Revision: 2 (Replaces CG-626-RA-1-1) August 30, 2007 Prepared for: Novatel Wireless Inc Author: Glen Moore EMC Manager Approved by: Nick Kobrosly Lab Manager CG-626-RA-1-2 Novatel Wireless Inc Compliance Test Report Model NRM-X950D FCC ID # NBZNRM-X950D IC ID # 3229A-X950D ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 45 Report Summary NTS Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers: FCC 101386 IC 46405-3978 File # IC3978-2 Standards Council of Canada Accredited Laboratory No. 440 Applicant: Novatel Wireless Inc. 6715 – 8th St N.E. Suite 325 Calgary, Alta. T2E-7H7 Customer Representative: Mr. Jim Turner Regulatory Specialist Ph: (403) 295-4855 Fax: (403) 295-4801 E Mail: [email protected] EUT Description: EUT Description Applicant Model Revision Serial Number PC Express Card Novatel Wireless Inc Merlin X950D HW – Rev 1.0 Firmware- Rev 2.1 001018-00-013613-6 001018-00-013612-8 CG-626-RA-1-2 Novatel Wireless Inc Compliance Test Report Model NRM-X950D FCC ID # NBZNRM-X950D IC ID # 3229A-X950D ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 45 Test Summary Deviations* from: StatusApplicable Rule Parts Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Mode FCC IC Cell 2.1049/22.905 RSS 132 4.5 A Occupied BW No No No PASS PCS 2.1049/24.238 RSS 133 6.5 Cell 2.1046/22.913 RSS 132 4.4 B Peak Power Output (Conducted) No No No PASS PCS 2.1046/24.232 RSS 133 6.4 Cell 2.1046/22.913 RSS 132 4.4 C Peak Power Output (Radiated) No No No PASS PCS 2.1046/24.232 RSS 133 6.4 Cell 2.1055/22.335 RSS 132 4.3 D TX Frequency Stability No No No PASS PCS 2.1055/24.235 RSS 133 6.3 Cell 2.1051/22.917 RSS 132 4.5 E Conducted Spurious Emissions (including bandedge measurements) No No No PASS PCS 2.1051/24.238 RSS 133 6.5 Cell 2.1053/22.917 RSS 132 4.3 F Field Strength of Spurious Emissions RSS 129/133 RX Spurious Emissions No No No PASS PCS 2.1053/24.238 RSS 133 6.3 G Test Equipment List No No No PASS Test Log Appendix Test Case Test Dates Tested by A Occupied BW June 5-26 , 2007 Andrew Gibson/Glen Moore B Peak Power Output (Conducted) June 5-July 25, 2007 Andrew Gibson/Glen Moore C Peak Power Output (Radiated) June 5- July 25, 2007 Glen Moore/Deniz Demerci D TX Frequency Stability July 30, 2007 Glen Moore E TX Conducted Spurious Emissions (including bandedge measurements) June 5-July 25, 2007 Andrew Gibson/Glen Moore F Field Strength of Spurious Emissions RSS 129/133 RX Spurious Emissions June 5- July 18, 2007 David Raynes/Glen Moore Prepared By: ______________________ Glen Moore EMC Manager Reviewed By: ______________________ Approved By:___________________ Alex Mathews Robyn Zuehlke Compliance Specialist Qaulity Manager CG-626-RA-1-2 Novatel Wireless Inc Compliance Test Report Model NRM-X950D FCC ID # NBZNRM-X950D IC ID # 3229A-X950D ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 45 Table of Contents REPORT SUMMARY ........................................................................................................................................................2 TEST SUMMARY..............................................................................................................................................................3 TEST LOG ........................................................................................................................................................................3 REGISTER …

Text truncated - open the document above for the full version.

CG-626-RA-1-0 Model:X950D Compliance Test Report Test Photographs Figure 1 Radiated Emissions Test Photograph Date: Revison #
