NCI-IVT01IVT01

USER MANUAL VIA IVT01 Fanless low-power platform for AIoT applications with octa-core MediaTek i500 processor 1.00-20012022 Copyright Copyright ©2022 VIA Technologies Incorporated. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise without the prior written permission of VIA Technologies, Incorporated. Trademarks All trademarks are the property of their respective holders. Disclaimer No license is granted, implied or otherwise, under any patent or patent rights of VIA Technologies. VIA Technologies makes no warranties, implied or otherwise, in regard to this document and to the products described in this document. The information provided in this document is believed to be accurate and reliable as of the publication date of this document. However, VIA Technologies assumes no responsibility for the use or misuse of the information (including use or connection of extra device/equipment/add-on card) in this document and for any patent infringements that may arise from the use of this document. The information and product specifications within this document are subject to change at any time, without notice and without obligation to notify any person of such change. VIA Technologies, Inc. reserves the right the make changes to the products described in this manual at any time without prior notice. Regulatory Compliance FCC-A Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his personal expense. Notice 1 The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Notice 2 Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits. Notice 3 The product described in this document is designed for general use, VIA Technologies assumes no responsibility for the conflicts or damages arising from incompatibility of the product. Check compatibility issue with your local sales representatives before placing an order. Notice 4 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and a human body. VIA IVT01 System User Manual 3 Battery Recycling and Disposal • Only use the appropriate battery specified for this product. • Do not re-use, recharge, or reheat an old battery. • Do not attempt to force open the battery. • Do not discard used batteries with regular trash. • Discard used batteries according to local regulations. Safety Precautions • Always read the safety instructions carefully. • Keep this User’s Manual for future reference. • All cautions and warnings on the equipment should be noted. • Keep this equipment away from humidity. • Put this equipment on a reliable flat surface before setting it up. • Check the voltage of the power source and adjust to 110/220V before connecting the equipment to the power inlet. • Do not place the power cord where people will step on it. • Always unplug the power cord before inserting any add-on card or module. • If any of the following situations arise, get the equipment checked by authorized service personnel: − The power cord or plug is damaged. − Liquid has entered into the equipment. − The equipment has been exposed to moisture. − The equipment is faulty or you cannot get it work according to User’s Manual. − The equipment has been dropped and damaged. − The equipment has an obvious sign of breakage. • Do not leave this equipment in extreme temperatures or in a storage temperature above 60°C (140°F). . The equipment may be damaged. • Do not leave this equipment in direct sunlight. • Never pour any liquid into the opening. Liquid can cause damage or electrical shock. • Do not place anything over the power cord. • Do not cover the ventilation holes. The openings on the enclosure protect the equipment from overheating. VIA IVT01 System User Manual 4 Box Contents Items for IVT01 • 1 x IVT01 • 1 x Power cable • 1 x USB cable Ordering Information Part Number Description IVT-01-1E20A0 VIA IVT01 is an Android™ system with 8” FHD LCD panel and capacitive touch screen. It is powered by the 2.0GHz MediaTek i500 octa-core processor with 4GB LPDDR4 SDRAM, the system supports Wi-Fi, Bluetooth, LTE and GPS wireless connectivity as well as 16GB eMMC storage and a CMOS FHD front camera and also includes USB 2.0 connector, Micro SIM card slot, 3.5mm audio jack, connectors to support CAN, RS-232, GPIO and power input. VIA IVT01 System User Manual iii Revision History Revision Date Description 1.00 07/02/2022 Initial release VIA IVT01 System User Manual 1 1. Product Overview The VIA IVT01 is an Android™ system with 8” FHD LCD panel and capacitive touch screen n. It is powered by the 2.0GHz MediaTek i500 octa-core processor with 4GB LPDDR4 SDRAM, the system supports LTE, GPS with Dead Reckoning Technology, Wi-Fi and Bluetooth wireless connectivity as well as 16GB eMMC storage and a CMOS FHD front camera. Measuring just 220mm (W) x 37mm (H) x 145mm (D), the system integrates a set of I/O features through the side panel, including USB 2.0 connector, Micro SIM card slot…

Text truncated - open the document above for the full version.

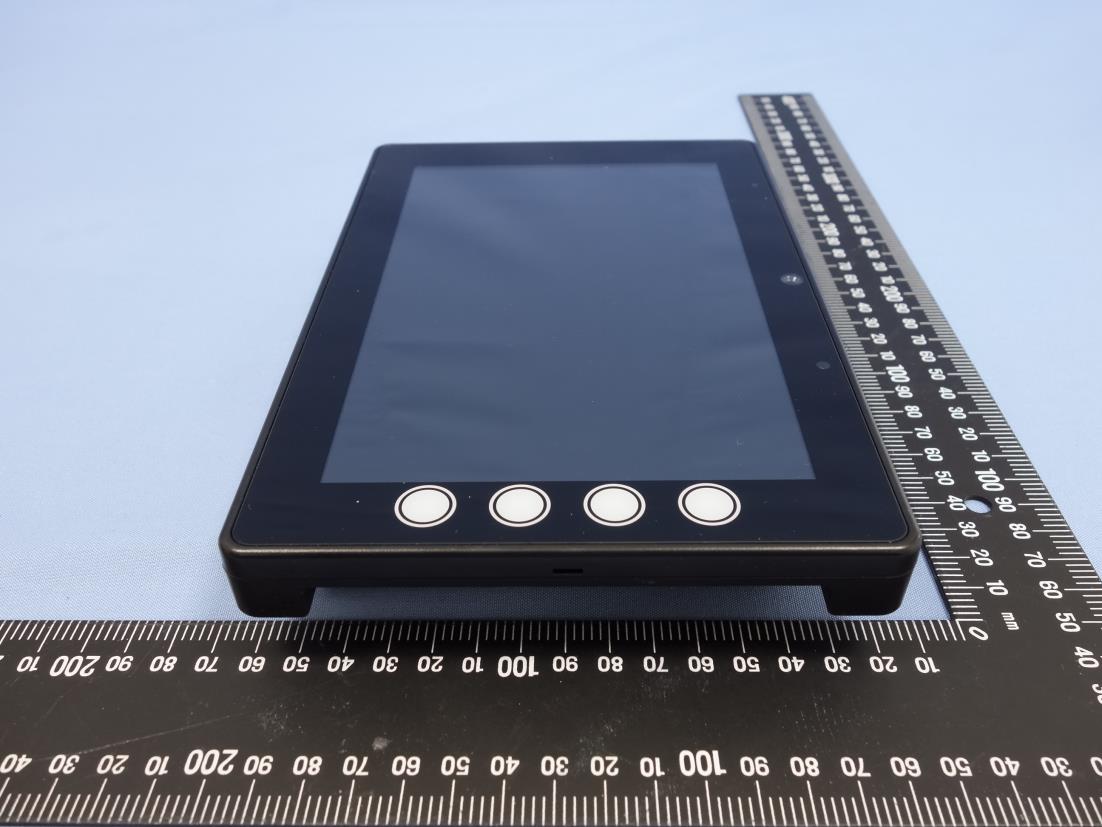

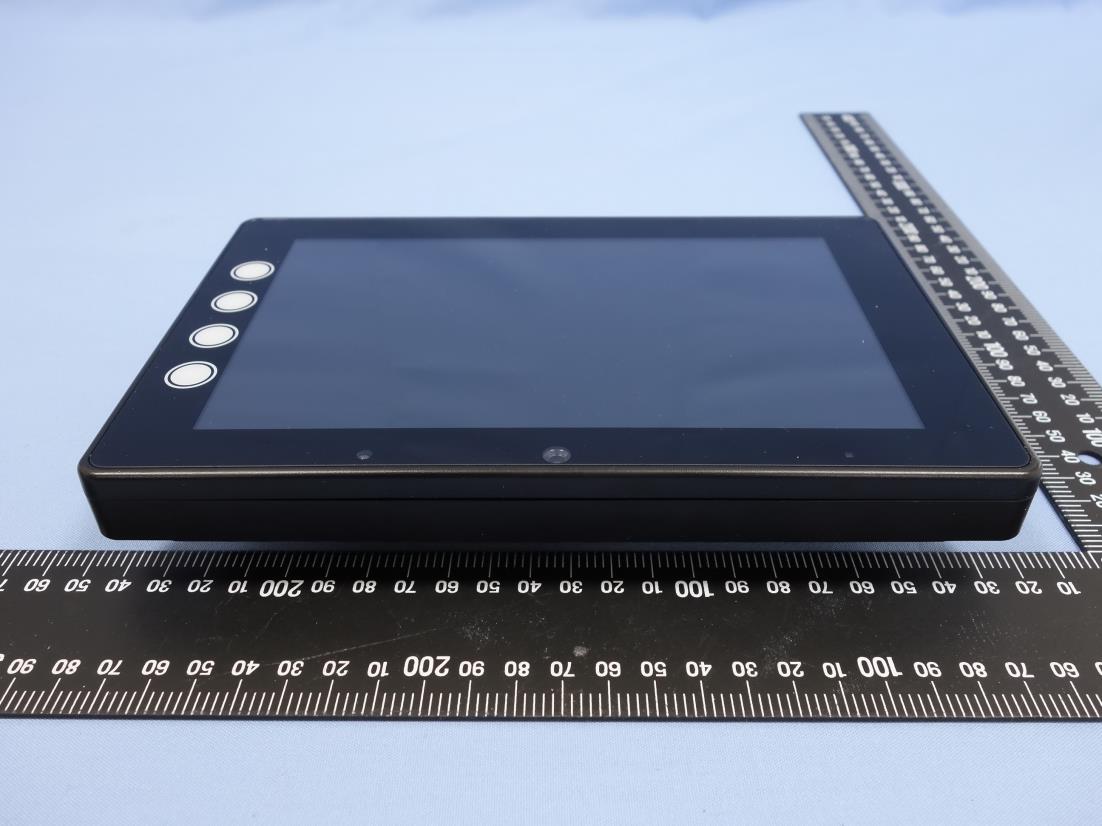

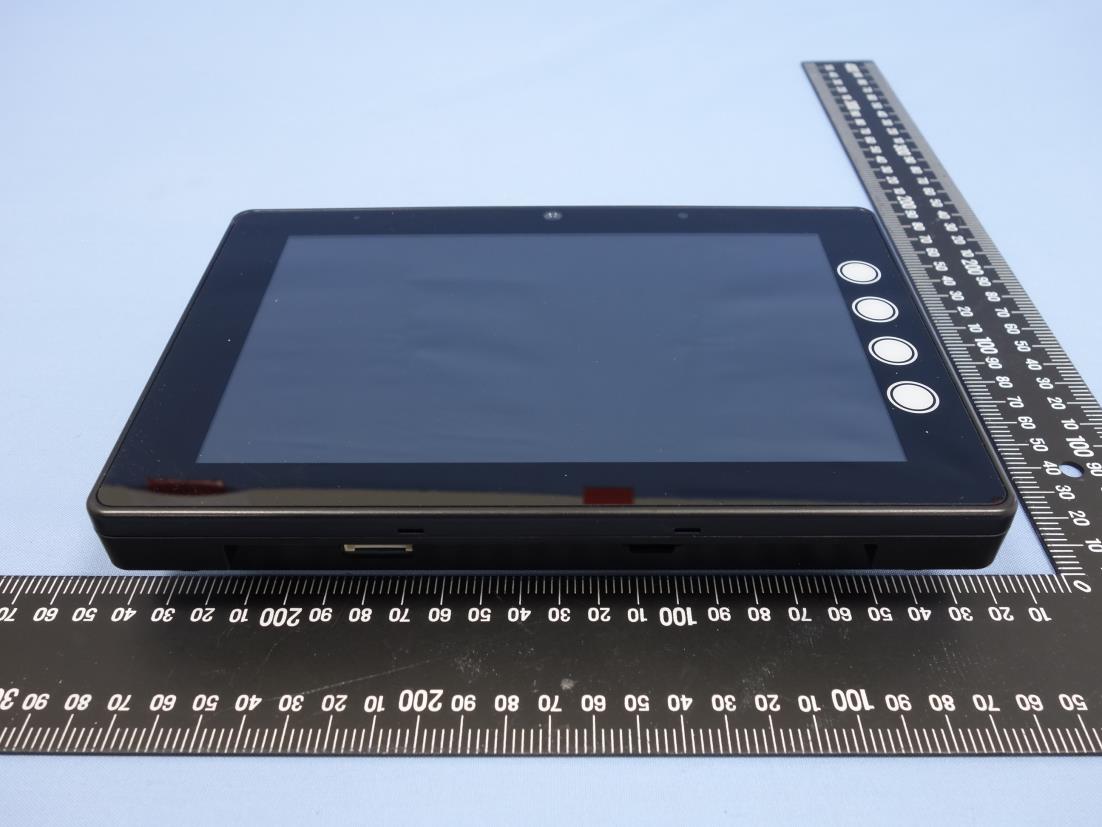

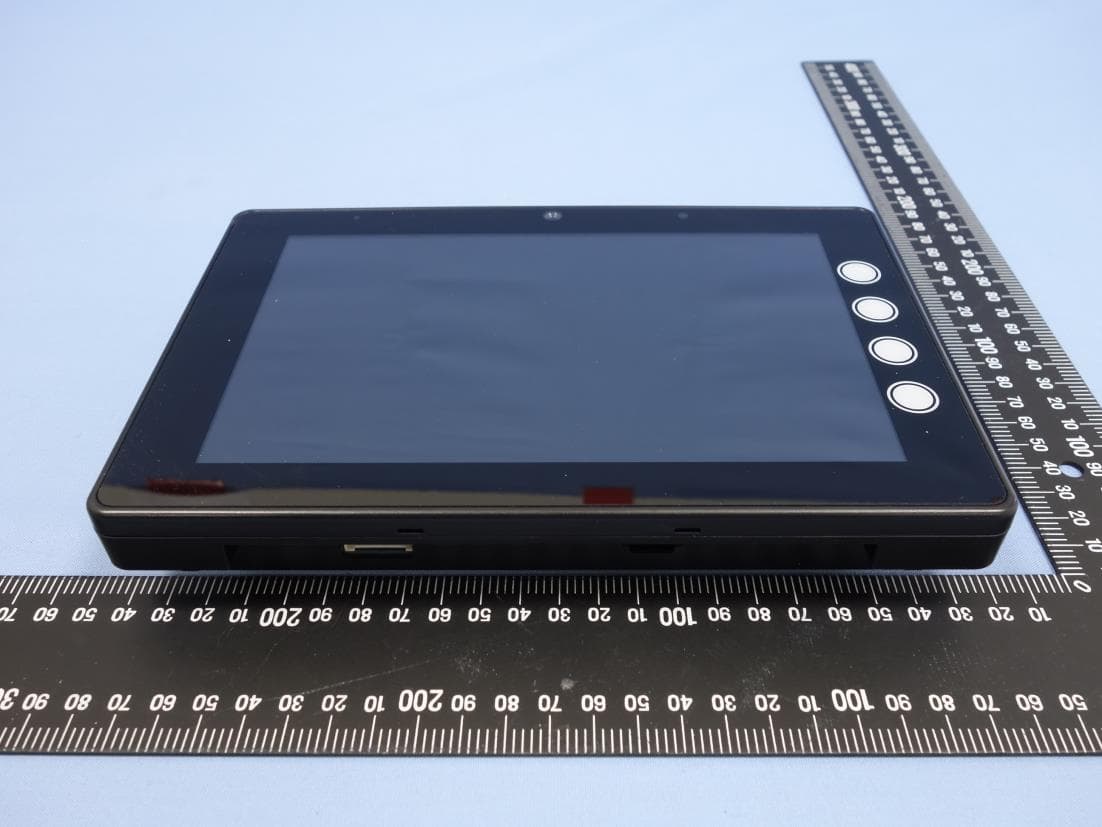

Appendix EP Photographs of EUT Page 1 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 2 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 3 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01

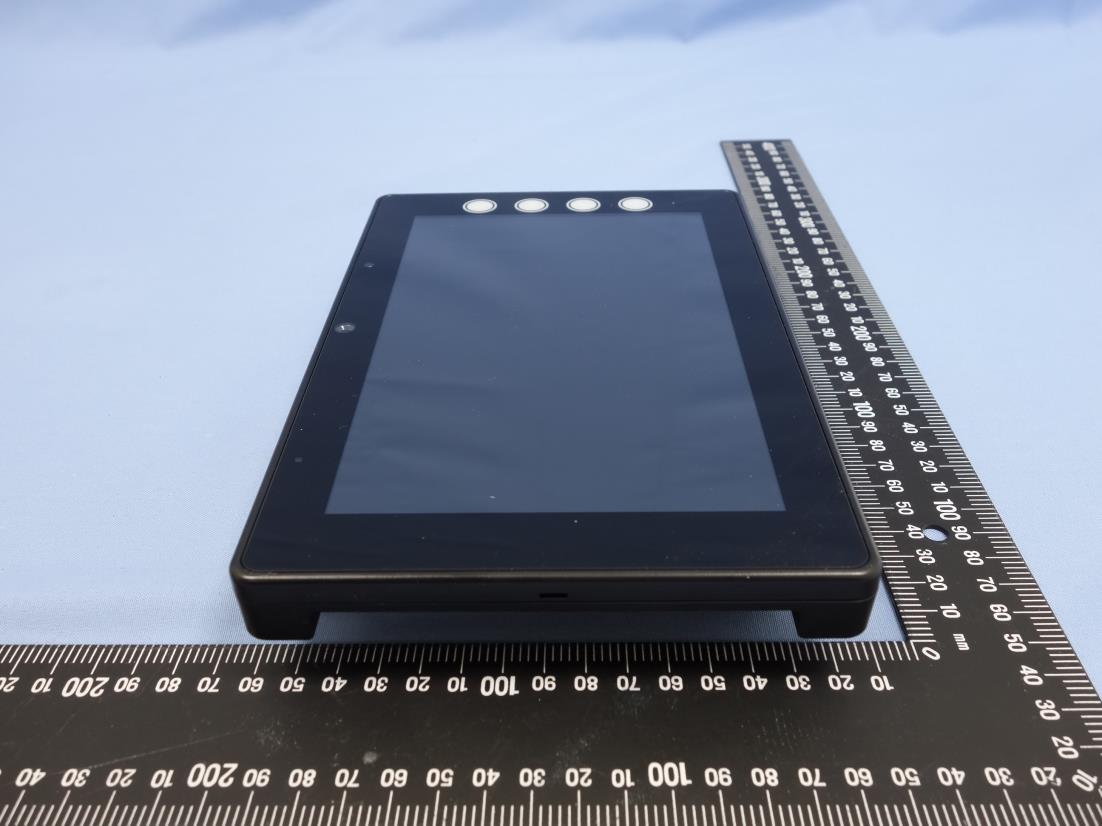

Appendix EP Photographs of EUT Page 4 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 LTE Main LTE Aux Appendix EP Photographs of EUT Page 5 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 6 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 7 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 8 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 9 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 10 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 11 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 12 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 13 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 14 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 15 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 16 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 17 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01 Appendix EP Photographs of EUT Page 18 of 18 CN2205TH(P15C-BLE) 001 CN2205TH(P15C-BT) 001 CN2205TH(P15C-WiFi) 001 CN2205TH(P15E-WiFi) 001 CN2205TH(FCC-MPE) 001 CN2205TH(FCC-Colocated) 001 Product: IVT01 Type Identification: IVT01

2022/2/10 IVT-01 ProjectLTE/WiFi/BLE RevisionHistory ReleasedDate VersionRecord Oct. 5 th , 2021 0.0Initialassessment Nov. 18th , 2021 1.0 New cable routing simulation, Add LTE Aux ant. Feb. 10th , 2022 1.1 Add ant. peak gain andHorizontal & Vertical planes Product Overview &Dimension Antenna ANTType Size (L * W *H) Cable Length(mm)CableType LTEMainPCB31*64*0.8mm105mmΦ=1.13normal LTEAuxPCB29*57*0.8mm135mmΦ=1.13normal WiFiMainPCB37.8*19*0.8mm185mmΦ=1.13normal WiFIAuxPCB36*25*0.8mm182mmΦ=1.13normal BLEPCB38*30*0.8mm176mmΦ=1.13normal  Antenna efficiency &gain ResultsSummary LTEMain Frequency (MHz) Efficiency (%) Average gain(dBi) Frequency (MHz) Efficiency (%) Average gain(dBi) 814 38.93 -4.10 915 56.41 -2.49 821 43.00 -3.67 925 56.08 -2.51 830 45.92 -3.38 940 55.63 -2.55 832 48.66 -3.13 960 50.89 -2.93 837 52.00 -2.84 1710 54.67 -2.62 845 55.61 -2.55 1750 49.97 -3.01 849 56.85 -2.45 1785 49.56 -3.05 859 62.04 -2.07 1805 51.16 -2.91 868 61.88 -2.08 1840 56.41 -2.49 875 61.80 -2.09 1880 54.27 -2.65 877 61.56 -2.11 1920 48.88 -3.11 880 60.69 -2.17 1950 44.00 -3.57 882 59.95 -2.22 1980 50.86 -2.94 890 56.46 -2.48 2110 40.04 -3.98 894 56.91 -2.45 2140 33.19 -4.79 900 56.44 -2.48 2170 23.81 -6.23  Antenna efficiency &gain ResultsSummary LTEAux Frequency (MHz) Efficiency (%) Average gain(dBi) Frequency (MHz) Efficiency (%) Average gain(dBi) 814 46.56 -3.32 915 50.81 -2.94 821 44.54 -3.51 925 47.32 -3.25 830 41.57 -3.81 940 36.21 -4.41 832 43.18 -3.65 960 20.83 -6.81 837 43.84 -3.58 1710 34.17 -4.66 845 43.19 -3.65 1750 37.16 -4.30 849 41.88 -3.78 1785 32.78 -4.84 859 41.95 -3.77 1805 27.44 -5.62 868 36.92 -4.33 1840 24.82 -6.05 875 29.86 -5.25 1880 24.08 -6.18 877 28.61 -5.43 1920 24.67 -6.08 880 27.31 -5.64 1950 27.86 -5.55 882 27.24 -5.65 1980 27.61 -5.59 890 33.16 -4.79 2110 38.88 -4.10 894 37.64 -4.24 2140 41.97 -3.77 900 44.83 -3.48 2170 41.03 -3.87  Antenna efficiency &gain Frequency (MHz) BLE Efficiency(%) Average gain(dBi) 2400 43.92-3.57 2450 43.33-3.63 2500 42.05-3.76 ResultsSummary Frequency (MHz) WiFiMain WiFiAux Efficiency (%) Average gain(dBi) Efficiency (%) Average gain(dBi) 2400 49.23 -3.08 49.42 -3.06 2450 50.51 -2.97 44.01 -3.57 2500 55.11 -2.59 42.97 -3.68 5150 55.34 -2.57 57.84 -2.38 5250 52.78 -2.78 58.73 -2.31 5350 54.25 -2.66 57.59 -2.40 5470 56.50 -2.48 56.52 -2.48 5600 52.73 -2.78 54.70 -2.62 5725 52.13 -2.83 53.16 -2.74 5785 52.98 -2.76 52.84 -2.77 5850 51.19 -2.91 50.12 -3.00  Antenna peak gain ResultsSummary LTEMain Frequency (MHz) Peak Gain Data (dBi) Frequency (MHz) Peak Gain Data (dBi) 814 2.40 915 2.81 821 2.71 925 2.86 830 2.78 940 2.87 832 2.00 960 2.07 837 2.22 1710 2.75 845 2.41 1750 2.20 849 2.42 1785 2.40 859 2.54 1805 1.77 868 2.18 1840 1.68 875 1.86 1880 1.99 877 2.76 1920 2.11 880 2.55 1950 1.86 882 2.39 1980 2.05 890 1.92 2110 2.58 894 2.10 2140 2.14 900 2.33 2170 2.47  Antenna peak gain ResultsSummary LTEAux Frequency (MHz) Peak Gain Data (dBi) Frequency (MHz) Peak Gain Data (dBi) 814 2.16 915 2.96 821 1.90 925 2.40 830 2.46 940 1.02 832 2.60 960 1.09 837 2.58 1710 1.48 845 2.41 1750 1.71 849 2.19 1785 1.77 859 1.98 1805 2.00 868 2.14 1840 2.30 875 2.17 1880 2.45 877 2.01 1920 2.46 880 1.85 1950 2.62 882 1.86 1980 2.41 890 1.74 2110 2.67 894 2.19 2140 2.43 900 2.81 2170 2.64  Antenna peak gain Frequency (MHz) BLE Peak Gain Data (dBi) 2400 2.28 2450 2.25 2500 2.26 ResultsSummary Frequency (MHz) WiFiMain WiFi Aux Peak Gain Data (dBi) Peak Gain Data (dBi) 2400 2.582.22 2450 2.462.38 2500 2.842.69 5150 2.212.63 5250 2.342.58 5350 1.982.06 5470 1.701.76 5600 2.881.35 5725 2.792.49 5785 2.672.40 5850 2.862.60 Efficiency 1. LTE Main antenna Low band >38%, High band>23% 2.LTE Aux antenna Low band >27%, Highband>24% 3.BLE antenna 2.4G>42% 4.WiFi Main antenna 2.4G >49%,5G>51% 5.WiFi Aux antenna 2.4G >42%,5G>50% Isolation <-15dB Summary

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN2205TH(FCC-MPE) 001 Auftrags-Nr.: Order no.: 238538787 Seite 1 von 11 Page 1 of 11 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-01-17 Auftraggeber: Client: Emplus Technologies, Inc 8F, No.535, Zhongzheng Rd., Xindian Dist, New Taipei City 231, Taiwan Prü fgegenstand: Test item: IVT01 Bezeichnung / Typ-Nr.: Identification / Type no.: IVT01 Auftrags-Inhalt: Order content: FCC Certification Prü fgrundlage: Test specification: IEEE Std C95.1 47 CFR §2.1091 47 CFR §1.1310 KDB 447498 D01 Wareneingangsdatum: Date of sample receipt: 2022-01-18 Prü fmuster-Nr.: Test sample no: A003202360-003 Prü fzeitraum: Testing period: 2022-03-04 - 2022-05-13 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass ü berprü ft von: compiled by: Ethan Shao genehmigt von: authorized by: Brenda Chen Datum: Date: 2022-09-13 Ausstellungsdatum: Issue date: 2022-09-13 Stellung / Position: Assistant Project Engineer Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2205TH(FCC-MPE) 001 Seite 2 von 11 Page 2 of 11 Contents HISTORY OF THIS TEST REPORT .............................................................................. 3 1 GENERAL REMARKS ............................................................................................. 4 1.1 COMPLEMENTARY MATERIALS ............................................................................... 4 1.2 DECISION RULE OF CONFORMITY ........................................................................... 4 2 TEST SITES .......................................................................................................... 5 2.1 TEST FACILITIES ................................................................................................... 5 2.2 TEST FACILITY ...................................................................................................... 5 3 GENERAL PRODUCT INFORMATION ......................................................................... 6 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 6 3.2 RATINGS AND SYSTEM DETAILS ............................................................................. 6 4 MAXIMUM PERMISSIBLE EXPOSURE EVALUATION .................................................... 8 4.1 INTRODUCTION ..................................................................................................... 8 4.2 REFERENCE LEVELS ............................................................................................. 8 4.3 CLASSIFICATION OF THE ASSESSMENT METHODS.................................................. 10 5 TEST RESULTS ................................................................................................... 11 5.1 MPE-BASED EXEMPTION..................................................................................... 11 APPENDIX EP - PHOTOGRAPHS OF EUT Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2205TH(FCC-MPE) 001 Seite 3 von 11 Page 3 of 11 HISTORY OF THIS TEST REPORT Report No. Description Date Issued CN2205TH(FCC-MPE) 001 Original Release 2022-09-13 Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2205TH(FCC-MPE) 001 Seite 4 von 11 Page 4 of 11 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix EP - Photographs of EUT 1.2 Decision Rule of Conformity The decision rule of conformity of this test report is following the requirements of the requested standard in the quotation, and agreed among testing laboratory and manufacturer (applicant) to exclude the consideration of Measurement Uncertainty, unless it is required by the specific standard. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2205TH(FCC-MPE) 001 Seite 5 von 11 Page 5 of 11 2 Test Sites 2.1 Test Facilities Taipei Testing Laboratories 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) 2.2 Test Facility Taipei Testing Laboratories No.458-18, Sec. 2, Fenliao Rd., Linkou Dist., New Taipei City 244 Taiwan (R.O.C.) Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2205TH(FCC-MPE) 001 Seite 6 von 11 Page 6 of 11 3 General Product Information 3.1 Product Function and Intended Use The EUT is IVT01. It contains WLAN compatible enabling the user to communicate data through wireless interface. For details refer to the User Guide, Data Sheet and Circuit Diagram. 3.2 Ratings and System Details Basic …

Text truncated - open the document above for the full version.

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN2205TH(P15E-WiFi) 001 Auftrags-Nr.: Order no.: 238538787 Seite 1 von 34 Page 1 of 34 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-01-17 Auftraggeber: Client: VIA Technologies, Inc 8F, No.535, Zhongzheng Rd., Xindian Dist, New Taipei City 231, Taiwan Prü fgegenstand: Test item: IVT01 Bezeichnung / Typ-Nr.: Identification / Type no.: IVT01 Auftrags-Inhalt: Order content: FCC Part 15E Test report (WiFi 5GHz) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart E Section 15.407 Wareneingangsdatum: Date of sample receipt: 2022-01-18 Prü fmuster-Nr.: Test sample no: A003202360-003 Prü fzeitraum: Testing period: 2022-04-13 - 2022-05-12 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass zusammengestellt von: compiled by: genehmigt von: authorized by: Brenda Chen Datum: Date: 2022-05-18 Ausstellungsdatum: Issue date: 2022-05-18 Stellung / Position: Ethan Shao Assistant Project Engineer Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite 2 von 34 Page 2 of 34 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.407(a) & 15.203 Antenna Requirement Pass 5.1.2 15.407(a) Maximum Conducted Output Power Pass 5.1.3 15.407(a) 26 dB Bandwidth Pass 5.1.3 2.1049 99% Occupied Bandwidth Pass 5.1.4 15.407(e) 6 dB Bandwidth (U-NII-3 Band only) Pass 5.1.5 15.407(g) Frequency Stability Pass 5.1.6 15.407(a) Power Spectral Density Pass 5.1.7 15.407(b) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass - 15.407(h) & KDB 905462 D02 Dynamic Frequency Selection Not Applicable 5.2.1 15.207 Mains Conducted Emission Pass Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite 3 von 34 Page 3 of 34 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...................................................................................................... 8 2.4 CALIBRATION ....................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 8 3. GENERAL PRODUCT INFORMATION ......................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 9 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS .......................................... 10 3.4 SUBMITTED DOCUMENTS ..................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................. 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 11 4.2 CARRIER FREQUENCY AND CHANNEL ................................................................... 11 4.3 TEST OPERATION AND TEST SOFTWARE ............................................................... 12 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 14 4.5 TEST SETUP DIAGRAM ........................................................................................ 15 4.6 DUTY CYCLE OF TEST SIGNAL ............................................................................. 16 5. TEST RESULTS ................................................................................................... 17 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ....................................................... 17 5.1.1 Antenna Requirement…

Text truncated - open the document above for the full version.

Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B5 von B49 Page B5 of B49 802.11a CH 48 (Horizontal) Peak CH 48 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B6 von B49 Page B6 of B49 802.11a CH 48 (Horizontal) Average CH 48 (Vertical) Average Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B7 von B49 Page B7 of B49 802.11ac VHT20 CH 36 (Horizontal) Peak CH 36 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B8 von B49 Page B8 of B49 802.11ac VHT20 CH 36 (Horizontal) Average CH 36 (Vertical) Average Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B9 von B49 Page B9 of B49 802.11ac VHT20 CH 40 (Horizontal) Peak CH 40 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B10 von B49 Page B10 of B49 802.11ac VHT20 CH 40 (Horizontal) Average CH 40 (Vertical) Average Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B11 von B49 Page B11 of B49 802.11ac VHT20 CH 48 (Horizontal) Peak CH 48 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B12 von B49 Page B12 of B49 802.11ac VHT20 CH 48 (Horizontal) Average CH 48 (Vertical) Average Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B13 von B49 Page B13 of B49 802.11ac VHT40 CH 38 (Horizontal) Peak CH 38 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B14 von B49 Page B14 of B49 802.11ac VHT40 CH 38 (Horizontal) Average CH 38 (Vertical) Average Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B15 von B49 Page B15 of B49 802.11ac VHT40 CH 46 (Horizontal) Peak CH 46 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B16 von B49 Page B16 of B49 802.11ac VHT40 CH 46 (Horizontal) Average CH 46 (Vertical) Average Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B17 von B49 Page B17 of B49 802.11ac VHT80 CH 42 (Horizontal) Peak CH 42 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B18 von B49 Page B18 of B49 802.11ac VHT80 CH 42 (Horizontal) Average CH 42 (Vertical) Average Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B19 von B49 Page B19 of B49 Mask, 4.5GHz ~ 7GHz U-NII-3 802.11a CH 149 (Horizontal) Peak CH 149 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B20 von B49 Page B20 of B49 802.11a CH 157 (Horizontal) Peak CH 157 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B21 von B49 Page B21 of B49 802.11a CH 165 (Horizontal) Peak CH 165 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B22 von B49 Page B22 of B49 802.11ac VHT20 CH 149 (Horizontal) Peak CH 149 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B23 von B49 Page B23 of B49 802.11ac VHT20 CH 157 (Horizontal) Peak CH 157 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B24 von B49 Page B24 of B49 802.11ac VHT20 CH 165 (Horizontal) Peak CH 165 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B25 von B49 Page B25 of B49 802.11ac VHT40 CH 151 (Horizontal) Peak CH 151 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B26 von B49 Page B26 of B49 802.11ac VHT40 CH 159 (Horizontal) Peak CH 159 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B27 von B49 Page B27 of B49 802.11ac VHT80 CH 155 (Horizontal) Peak CH 155 (Vertical) Peak Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B28 von B49 Page B28 of B49 Spurious Emissions, Tx Mode, 1GHz ~ 40GHz U-NII-1 802.11a CH 36 (Horizontal) CH 36 (Vertical) Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B29 von B49 Page B29 of B49 802.11a CH 40 (Horizontal) CH 40 (Vertical) Prü fbericht - Nr.: Test Report No. CN2205TH(P15E-WiFi) 001 Seite B30 von B49 Page …

Text truncated - open the document above for the full version.
