NCI-M360-WS200VIA Mobile360 Wireless Speed Sensor

VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 1 OF 7 VIA Mobile360 Wireless Speed Sensor USER GUIDE 一、 Instructions for use 1. Upgrade the M500 to a version that supports Wireless Speed Sensor (V3.0.0(2pd) and V2.0.0(3pd) or higher) and install VIA Workx APP V1.6.6 or higher on the phone. 2. Enter the VIA Workx APP to Connect M500, the "Camera" interface will be displayed by default, click "Settings", and find the "Optional Accessories" in the "Settings" page, and the Wireless Speed Sensor is N/A (unpaired state) when it is used for the first time. (Figure 1) Figure 1 3. If the Wireless Speed Sensor has been paired before, the optional accessory “Wireless Speed Sensor” is in paired status and displays the MAC address of the Wireless Speed Sensor. (Figure 2) Click on the “Wireless Speed Sensor” in the app settings page to unpair. (Figure 3) After VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 2 OF 7 unpairing, it will revert to the "unpaired" state. (Figure 1) Figure 2 Figure 3 4. When the Wireless Speed Sensor is in the "unpaired" state, click on the “Wireless Speed Sensor” to enter the Wireless Speed Sensor pairing prompt page. (Figure 4) Click "Start Pairing", wait for the M500 to scan to the corresponding Wireless Speed Sensor, (Figure 5) click on the Wireless Speed Sensor that needs to be added, Enter Maximum Speed Limit, Tire Dimension and Installation Location. (Figure 6) Click "OK" and it will be displayed in the pairing. (Figure 7) After successful pairing, you can see the MAC and corresponding battery information of the connected Wireless Speed Sensor on the settings page. (Figure 3) VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 3 OF 7 Figure 4 Figure 5 Figure 6 Figure 7 5. When Wireless Speed Sensor is not bound, the LCD screen does not display "speed icon". (Figure 8) After the Wireless Speed Sensor is binding, the LCD screen displays the "speed icon”. (Figure 9) When the vehicle is moving, the "speed icon" will display the actual speed. (Figure 10) When the VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 4 OF 7 vehicle exceeds the maximum speed limit, the "speed icon" will display the speed in red font. (Figure 11) Figure 8 Figure 9 VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 5 OF 7 Figure 10 Figure 11 Tel：510-683-3300 Company: VIA Technologies, Inc. Address: 940 Mission Court, Fremont,94539 VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 6 OF 7 For FCC 1.Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. 2.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 3.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4.RF exposure statements: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body or nearby persons. VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 7 OF 7 Operational description Product name: VIA Mobile360 Wireless Speed Sensor Brand name: VIA Model name: WS200 FCC ID: NCI-M360-WS200 Frequency 2402MHz~2480MHz Operating Temperature -20°C~70°C Power Consumption 3Vdc

VIA Technologies, Inc. To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attestation Section 2.911(d)(5)(i) and Section 2.911(d)(5)(ii) (KDB 986446 D01 Covered Equipment) Section 2.911(d)(5)(i) VIA Technologies, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Section 2.911(d)(5)(ii) VIA Technologies, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Type of Equipment subject to FCC Certification: VIA Mobile360 Wireless Speed Sensor FCC ID: NCI-M360-WS200 If you have any questions, please feel free to contact me Contact Person: Mirror Hu Position in the Company: Engineer Address: 8F, No.535, Zhongzheng Rd., Xindian Dist, New Taipei Taiwan Email: [email protected] Date of Signature: 2024/6/24 ___________________________ Signatory (signature of the applicant)

V02072023 VIA Technologies, Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 6/24/2024 Ref: Attestation Statement Part 2.911(d)(7) Filing FCC ID: NCI-M360-WS200 VIA Technologies, Inc. certifies that, as of the dates of this application, Americas Compliance Consulting LLC dba iCertifi “iCertifi” is our designated U.S. agent for service of process for the above referenced FCC ID. VIA Technologies, Inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission-related proceeding involving the equipment. iCertifi accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Americas Compliance Consulting LLC dba iCertifi FCC FRN: 0033399411 Address: 2445 NE Division St, ste 202 Bend, OR 97703 United States Contact Person: Mr Paul A Preston Tel: 866-885-4575 Email: [email protected] Sincerely, VIA Technologies, Inc. FRN: 0015296189 Americas Compliance Consulting LLC dba iCertifi Mirror Hu Paul Preston Signature

5 5 4 4 3 3 2 2 1 1 DD CC BB AA VIA CONFIDENTIAL ICM-42607-T DVDD DECOUPLE AVDD IOVDD Block Diagram SYSCLK0 38.4MHz SILICON LABS I2C VREGVDD VREGVSS TDK 6-Axis MotionTrackingTM RFVDD EFR32BG22C224F512GM32-C PAVDD VBAT 0.1uF2.2uF 1uF VBAT 0.1uF1uF VBAT 0.01uF1uF VBAT 0.1uF10uF VBAT 120pF0.1uFBLM18AG102SN1 VBAT 120pF0.1uFBLM18AG102SN1 1uF RESETn ADC VBAT 680K 680K RF2G4_IO 1p21p3 18p 1p0 2.7nu 0 ohm Title Size Document NumberRev Date:Sheetof WS200 A Block Diagram A3 14Friday, June 07, 2024 Title Size Document NumberRev Date:Sheetof WS200 A Block Diagram A3 14Friday, June 07, 2024 Title Size Document NumberRev Date:Sheetof WS200 A Block Diagram A3 14Friday, June 07, 2024

VIA Technologies, Inc. Declaration of Authorization We Company Name: VIA Technologies, Inc. Address: 8F, No.535, Zhongzheng Rd., City: Xindian Dist, New Taipei State: Country: Taiwan Declare that Name Representative of agent: William Chung / Senior Director Agent Company name: Eurofins E&E Wireless Taiwan Co., Ltd. Address: No. 140-1, Changan Street, Bade District, City: Taoyuan Country: Taiwan Is authorized to apply for Certification of the following product(s) Product Name: VIA Mobile360 Wireless Speed Sensor FCC ID : NCI-M360-WS200 Trademark: VIA on our behalf This is valid until December 31, 2025, or until FCC certification are completed, whichever comes sooner. Date: 2024/6/24 Contact Person / Title: Mirror Hu / Engineer Tel.: 886-2-2218-5452#6260 E-mail: [email protected] Signature:

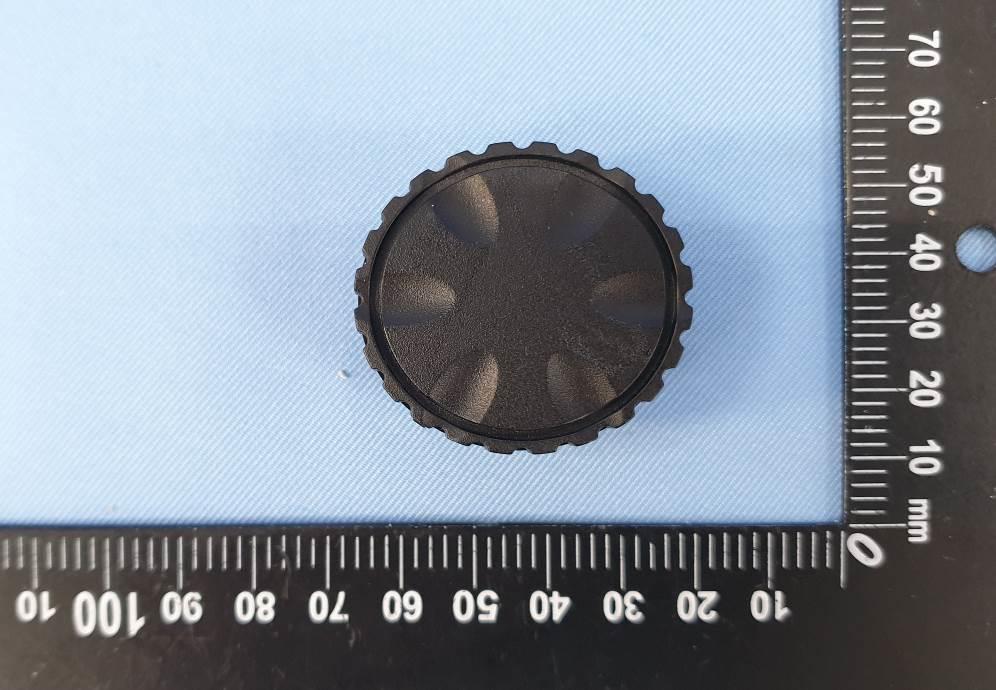

C246242_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 1 of 4 External Photos Model Number: WS200 C246242_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 2 of 4 EUT Photo (1) EUT Photo (2) C246242_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 3 of 4 EUT Photo (3) EUT Photo (4) C246242_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 4 of 4 EUT Photo (5) EUT Photo (6)

ILabel Here I

C246242_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 1 of 7 Internal Photos Model Number: WS200 C246242_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 2 of 7 EUT Photo (1) EUT Photo (2) Bluetooth LE ANT. C246242_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 3 of 7 EUT Photo (3) EUT Photo (4) C246242_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 4 of 7 EUT Photo (5) EUT Photo (6) C246242_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 5 of 7 EUT Photo (7) EUT Photo (8) C246242_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 6 of 7 EUT Photo (9) EUT Photo (10) C246242_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 7 of 7 EUT Photo (11)

VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 1 OF 7 VIA Mobile360 Wireless Speed Sensor USER GUIDE 一、 Instructions for use 1. Upgrade the M500 to a version that supports Wireless Speed Sensor (V3.0.0(2pd) and V2.0.0(3pd) or higher) and install VIA Workx APP V1.6.6 or higher on the phone. 2. Enter the VIA Workx APP to Connect M500, the "Camera" interface will be displayed by default, click "Settings", and find the "Optional Accessories" in the "Settings" page, and the Wireless Speed Sensor is N/A (unpaired state) when it is used for the first time. (Figure 1) Figure 1 3. If the Wireless Speed Sensor has been paired before, the optional accessory “Wireless Speed Sensor” is in paired status and displays the MAC address of the Wireless Speed Sensor. (Figure 2) Click on the “Wireless Speed Sensor” in the app settings page to unpair. (Figure 3) After VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 2 OF 7 unpairing, it will revert to the "unpaired" state. (Figure 1) Figure 2 Figure 3 4. When the Wireless Speed Sensor is in the "unpaired" state, click on the “Wireless Speed Sensor” to enter the Wireless Speed Sensor pairing prompt page. (Figure 4) Click "Start Pairing", wait for the M500 to scan to the corresponding Wireless Speed Sensor, (Figure 5) click on the Wireless Speed Sensor that needs to be added, Enter Maximum Speed Limit, Tire Dimension and Installation Location. (Figure 6) Click "OK" and it will be displayed in the pairing. (Figure 7) After successful pairing, you can see the MAC and corresponding battery information of the connected Wireless Speed Sensor on the settings page. (Figure 3) VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 3 OF 7 Figure 4 Figure 5 Figure 6 Figure 7 5. When Wireless Speed Sensor is not bound, the LCD screen does not display "speed icon". (Figure 8) After the Wireless Speed Sensor is binding, the LCD screen displays the "speed icon”. (Figure 9) When the vehicle is moving, the "speed icon" will display the actual speed. (Figure 10) When the VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 4 OF 7 vehicle exceeds the maximum speed limit, the "speed icon" will display the speed in red font. (Figure 11) Figure 8 Figure 9 VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 5 OF 7 Figure 10 Figure 11 Tel：510-683-3300 Company: VIA Technologies, Inc. Address: 940 Mission Court, Fremont,94539 VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 6 OF 7 For FCC 1.Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. 2.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 3.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4.RF exposure statements: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body or nearby persons. VIA TECHNOLOGIES INC DOCUMENT NO.：WS200 REVISION：A PAGE NO.：PAGE 7 OF 7 Operational description Product name: VIA Mobile360 Wireless Speed Sensor Brand name: VIA Model name: WS200 FCC ID: NCI-M360-WS200 Frequency 2402MHz~2480MHz Operating Temperature -20°C~70°C Power Consumption 3Vdc

MPE Evaluation Report for FCC Report No.: USSC246242001 Issued Date: Aug. 08, 2024 Eurofins E&E Wireless Taiwan Co., Ltd. Page 1 of 12 Template: v01.00 MPE Evaluation Report for FCC Applicant Name : VIA Technologies, Inc Applicant Address : 8F, No.535, Zhongzheng Rd.,Xindian Dist, New Taipei Taiwan Product Name : VIA Mobile360 Wireless Speed Sensor Brand Name : VIA Model Number : WS200 FCC ID : NCI-M360-WS200 Report Number : USSC246242001 Compliant Standards : FCC 47 CFR §2.1091 Sample Received Date : Jun. 18, 2024 Report Issued Date : Aug. 08, 2024 The above equipment has been tested by Eurofins E&E Wireless Taiwan Co., Ltd., and found compliance with the requirement of the above standards. The test record, data evaluation & Device Under Test (DUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s characteristics under the conditions specified in this report. Note: 1. The test results are valid only for samples provided by customers and under the test conditions described in this report. 2. This report shall not be reproduced except in full, without the written approval of Eurofins E&E Wireless Taiwan Co., Ltd. 3. The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Approved By： Ted Fu / SAR Technical Director MPE Evaluation Report for FCC Report No.: USSC246242001 Issued Date: Aug. 08, 2024 Eurofins E&E Wireless Taiwan Co., Ltd. Page 2 of 12 Template: v01.00 Table of Contents Revision History ........................................................................................................................................................................... 3 1. Test Regulations .................................................................................................................................................................... 4 1.1. Reference Standard and Guidance .............................................................................................................................. 4 1.2. RF Exposure Limits ...................................................................................................................................................... 4 2. Information of Testing Laboratory ....................................................................................................................................... 6 3. DUT (Device Under Test) Information .................................................................................................................................. 7 3.1. Device Overview .......................................................................................................................................................... 7 4. Maximum Permissible Exposure (MPE) Assessment ......................................................................................................... 8 4.1. Introduction .................................................................................................................................................................. 8 4.2. Determination of Exemption for Low Power Devices ................................................................................................... 8 4.3. Standalone Maximum Permissible Exposure Evaluation ........................................................................................... 11 4.4. Total Exposure Ratio Evaluation for Simultaneous Transmission ............................................................................... 12 MPE Evaluation Report for FCC Report No.: USSC246242001 Issued Date: Aug. 08, 2024 Eurofins E&E Wireless Taiwan Co., Ltd. Page 3 of 12 Template: v01.00 Revision History Rev. Issued Date Description Revised by 00 Aug. 08, 2024 Initial Issue Abby Huang MPE Evaluation Report for FCC Report No.: USSC246242001 Issued Date: Aug. 08, 2024 Eurofins E&E Wireless Taiwan Co., Ltd. Page 4 of 12 Template: v01.00 1. Test Regulations 1.1. Reference Standard and Guidance The Maximum Permissible Exposure (MPE) evaluation documented in this report were performed in accordance with following FCC published KDB guidance and standard： 47 CFR Part 1.1307 47 CFR Part 1.1310 47 CFR Part 2.1091 KDB Publication 447498 D01 – General RF Exposure Guidance v06 KDB Publication 447498 D04 – Interim General RF Exposure Guidance v01 1.2. RF Exposure Limits According to 47 CFR §1.1310, for operations within the frequency range of 300 kHz and 6 GHz (inclusive), the limits for maximum permissible exposure (MPE), derived from whole-body SAR limits and listed in below table, may be used instead of whole-body SAR limits to evaluate the environmental impact of human exposure to RF radiation as specified in §1.1307(b), except for portable devices as defined in §2.1093 of this chapter as these evaluations shall be performed according to the SAR provisions in §2.1093. At operating frequencies above 6 GHz, the MPE limits listed in below table shall be used in all cases to evaluate the environmental impact of human exposure to RF radiation as specified in §1.1307(b). Limits for Maximum Permissible Exposure (MPE) to Radiofrequency Electromagnetic Fields Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) (i) Limits for Occupational / Controlled Exposure 0.3 – 3.0 614 1.63 *(100) ≤ 6 3.0 – 30 1842 / f 4.89 / f *(900 / f2) < 6 30 – 300 61.4 0.163 1.0 < 6 300 – 1500 N/A N/A f / 300 < 6 1500 – 100000 N/A N/A 5 < 6 (ii) Limits for General Population / Uncontrolled Exposure 0.3 – 1.34 614 1.63 *(100) < 30 1.34 – 30 824 / f 2.19 / f *(180 / f2) < 30 30 – 300 27.5 0.073 0.2 < 30 300 – 1500 N/A N/A f / 1500 < 30 1500 – 100000 N/A N/A 1.0 < 30 Notes: 1. f = frequency in MHz.…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA VIA CONFIDENTIAL ICM-42607-T DVDD DECOUPLE AVDD IOVDD Block Diagram SYSCLK0 38.4MHz SILICON LABS I2C VREGVDD VREGVSS TDK 6-Axis MotionTrackingTM RFVDD EFR32BG22C224F512GM32-C PAVDD VBAT 0.1uF2.2uF 1uF VBAT 0.1uF1uF VBAT 0.01uF1uF VBAT 0.1uF10uF VBAT 120pF0.1uFBLM18AG102SN1 VBAT 120pF0.1uFBLM18AG102SN1 1uF RESETn ADC VBAT 680K 680K RF2G4_IO 1p21p3 18p 1p0 2.7nu 0 ohm Title Size Document NumberRev Date:Sheetof WS200 A Block Diagram A3 14Friday, June 07, 2024 Title Size Document NumberRev Date:Sheetof WS200 A Block Diagram A3 14Friday, June 07, 2024 Title Size Document NumberRev Date:Sheetof WS200 A Block Diagram A3 14Friday, June 07, 2024 5 5 4 4 3 3 2 2 1 1 DD CC BB AA PAGE 01System Block Diagram Index MCU and Sensor PAGE 02 PAGE 03 Index PAGE 04REVISION HISTORY Title Size Document NumberRev Date:Sheetof WS200 A Index A3 24Friday, June 07, 2024 Title Size Document NumberRev Date:Sheetof WS200 A Index A3 24Friday, June 07, 2024 Title Size Document NumberRev Date:Sheetof WS200 A Index A3 24Friday, June 07, 2024 5 5 4 4 3 3 2 2 1 1 DD CC BB AA BAT housing symbol Antenna matching circuits Crystal circuits POWER Source Debug_JTAG1 VCOM_TX VCOM_RX SWO SWDIOSWCLK waiting modify BATTERY HOLDER symbol 24_0313 modify symbol 24_0327 modify symbol 24_0311 modify symbol OK 24_0315 G-Sensor 99G26-05079L is Murata battery CR2477W xx panasonic coin battery BR2477A 0.5 mm test point 2mm test point 2mm test point Address:0x68 reserve for INT mode of G-sensor 2024/03/26 modify 2024/03/26 modify 2024/03/26 modify modify match circuits R12/R13 =>0 ohm 24_0530 VDD3V0 GND_E VDD3V0 GND_E GND_E GND_E GND_E GND_E GND_E GND_E GND_E GND_E GND_E GND_EGND_E VDD3V0 VDD3V0 GND_E VDD3V0 GND_E VDD3V0 GND_E VBATVDD3V0 VDD3V0 GND_E GND_E GND_E GND_E GND_E GND_EGND_E VDD3V0 GND_EGND_E VDD3V0 GND_E VBAT GND_E GND_E VDD3V0 GND_EGND_E Title Size Document NumberRev Date:Sheetof WS200 A MCU and Sensor A3 34Friday, June 07, 2024 Title Size Document NumberRev Date:Sheetof WS200 A MCU and Sensor A3 34Friday, June 07, 2024 Title Size Document NumberRev Date:Sheetof WS200 A MCU and Sensor A3 34Friday, June 07, 2024 C370.1uF T_PB0 1 ANT2 6901G3-SM-2015075-CR 1 C30 0.1uF C44 2.2uF C43 1pF/x C25 0.1uF R4 0 C26 2.2uF J1 2199SB-10G-301523/x 1 34 2 56 78 109 C27 0.01uF T_INT1 1 R11 0 C33 1uF C40 1.2pF/x R12 0 C38 0.1uF T_INT2 1 R6 10K/x R10 10K/x R7 0 C34 0.1uF R5 0 T_GND 1 C35 0.1uF + CE1 100uF 1 2 C39 120pF U2 EFR32BG22C224F512GM32-C E-GND G1 PC00 1 PC01 2 PC02 3 PC03 4 PC04 5 PC05 6 HFXTAL_I 7 HFXTAL_0 8 RESETn 9 RFVDD 10 RFVSS 11 RF2G4_IO 12 PAVDD 13 PB02 14 PB01 15 PB00 16 PA00 17 PA01 18 PA02 19 PA03 20 PA04 21 PA05 22 PA06 23 DECOUPLE 24 VREGSW 25 VREGVDD 26 VREGVSS 27 DVDD 28 AVDD 29 IOVDD 30 PD01 31 PD00 32 U1 ICM-42607-T AP_SDO/AP_AD0 1 RESV_1 2 RESV_2 3 INT1/INT 4 VDDIO 5 GND 6 FSYNC 7 VDD 8 INT2 9 RESV_4 10 RESV_3 11 AP_CS 12 AP_SCL/AP_SCLK 13 AP_SDA/AP_SDIO/AP_SDI 14 C20 10uF 10V X5R C12 1uF C45 10pF/x C31 0.01uF R1 10K C41 1.3pF/x + CE2 100uF 1 2 R8 680K_1% R3 0 BAT1_- BAT-BRACKET-NP 1 -_1 2 -_2 T_BAT 1 C8 10uF 10V X5R R13 0 C36 120pF C28 0.1uF FB1 BLM18AG102SN1DOSC1 38.4MHz GND2 4 1 1 3 3 GND1 2 C32 1uF R2 10K C29 10uF 10V X5R FB2 BLM18AG102SN1D R9 680K_1% C46 10pF/x BAT1_+BAT-BRACKET-PP +_1 1 +_2 2 SCL SDA VDDIO VDD VDDIO X2 X1 G_INT RESET PTI_DFARME PROG INT ADC PTI_DOUT RF2G4_IO RST RST RF2G4_IO RST TXD RXD SO PA3 PA1 PTI_DFARMEPTI_DOUT ADC VDD3V0 SDASCLVDD3V0VDD3V0AVDDIOVDD RXD TXD PA4 PA3 SO PA1 AVDD IOVDD G_INT G_INT X2 X1 5 5 4 4 3 3 2 2 1 1 DD CC BB AA R10first release modify antenna circuits L1=>R12,C42=>R13 C40/C41/C43 unmount RA0 REVISION HISTORY Title Size Document NumberRev Date:Sheetof WS200 A REVISION HISTORY A3 44Friday, June 07, 2024 Title Size Document NumberRev Date:Sheetof WS200 A REVISION HISTORY A3 44Friday, June 07, 2024 Title Size Document NumberRev Date:Sheetof WS200 A REVISION HISTORY A3 44Friday, June 07, 2024

規格承認書 Specification for Approval 客 戶：威盛電子 Customer 天線型態： Dipole Antenna（產地：中國東莞） Part name 型號： AR Y196-3154-009-00 Part No. 客戶承認印 CUSTOMER APPROVED BY APPROVAL CHIEF SUPERVISOR Approval No. Model Part No. CHIEF SALES CHIEF ENGINEER ROX TERI FOUNTAIN REASON Date: 24/06/21 Date: 24/06/21 驊 陞 科 技 股 份 有 限 公 司 WIESON TECHNOLOGIES CO., LTD. (SR -83-16) 2 www.wieson.com Executive Summary •Revision History •Antenna Specification •Antenna Placement •Antenna MeasurementVector Network Analyzer –Return Loss Result •The Antenna Anechoic Chamber Measurement –Chamber Measurement Photo –Antenna Measurement •Peak Gain、Efficiency Result •2DAntenna Pattern Result •Conclusion & Recommendations 3 www.wieson.com Revision History RevisionDateEngineerDescription 012024/03/21BettyNew Release 022024/03/27Emily Change of Organization, Antenna Redesign. 032024/04/08Emily Redesign the Antenna 042024/04/22BettyAntenna Designof Actual Environment 052024/05/23BettyAntenna Design With Metal Case 062024/05/27Ting Remove the components on the circuit. 072024/06/03Ting Confirm antennaperformance. 4 www.wieson.com Antenna Specification ItemSpecification Operating Frequency(MHz)2400-2500 Bandwidth100MHz (Min.) Return Loss10dB(Min.) PolarizationLinear Peak Gain0.39 dBi (Max) Impedance50Ω MaterialFPC V.S.W.R2: 1 RadiationOmni directional Efficiency35 %(Max) 5 www.wieson.com AntennaPlacement Ant 6 www.wieson.com Antenna Measurement Vector Network Analyzer 7 www.wieson.com Return Loss Result 8 www.wieson.com Z X Y Z Y Chamber Measurement Photo 9 www.wieson.com Peak Gain/Efficiency Result Frequency (GHz) Peak Gain (dBi) 3D Radiation Efficiency (%) 2.4-0.0930 2.410.2333 2.420.3935 2.430.1733 2.440.3735 2.450.2935 2.460.1434 2.470.2935 2.48-0.0233 2.490.0734 2.5-0.3432 10 www.wieson.com XZ-planeYZ-planeXY-plane X Z Y Z Y X Frequency：2400MHz Far-field amplitude limits: Max: 5dB min: -50 dB 2D Antenna PatternResult 11 www.wieson.com XZ-planeYZ-planeXY-plane X Z Y Z Y X Frequency：2450MHz Far-field amplitude limits: Max: 5dB min: -50 dB 2D Antenna PatternResult 12 www.wieson.com XZ-planeYZ-planeXY-plane X Z Y Z Y X Frequency：2500MHz Far-field amplitude limits: Max: 5dB min: -50 dB 2D Antenna PatternResult 13 www.wieson.com •此測報為天線放置實際環境中，包含金屬支架的調適所得結果。 •此版本取下原有匹配電路中的元件，為0歐姆電路。 •饋入點尺寸為5mm*6mm。 •以下表格為目前被動量測結果: Conclusion &Recommendations Speed Sensor Operating Frequency 2400-2500MHz Return Loss 10dB(Min.) Peak Gain0.39dBi(Max.) Efficiency35% (Max.) Wieson Technologies Co., LTD. Address：15F, No.237, Sec.1, Datong Rd., Xizhi Dist., New Taipei City 221006, Taiwan

RF Test Report Report No.: USRC246242001 Issued Date: Aug. 08, 2024 Eurofins E&E Wireless Taiwan Co., Ltd. Page 1 of 47 Template : v02.00 RF Test Report Applicant ： VIA Technologies, Inc Product Name ： VIA Mobile360 Wireless Speed Sensor Trade Name ： VIA Model Number ： WS200 Applicable Standard ： FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Received Date ： Jun. 18, 2024 Test Period ： Jul. 18, 2024 ~ Jul. 22, 2024 Issued Date ： Aug. 08, 2024 Issued by Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Frequency Range: 9 kHz to 325 GHz Bade test site： Test Firm Registration Number: 226252 Test Firm Designation Number: TW0010 Wugu test site： Test Firm Registration Number: 191812 Test Firm Designation Number: TW0034 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of Eurofins E&E Wireless Taiwan Co., Ltd. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. RF Test Report Report No.: USRC246242001 Issued Date: Aug. 08, 2024 Eurofins E&E Wireless Taiwan Co., Ltd. Page 2 of 47 Template : v02.00 Revision History Rev. Issued Date Description Revised by 00 Aug. 08, 2024 Initial Issue Snow Wang RF Test Report Report No.: USRC246242001 Issued Date: Aug. 08, 2024 Eurofins E&E Wireless Taiwan Co., Ltd. Page 3 of 47 Template : v02.00 Verification of Compliance Applicant : VIA Technologies, Inc Product Name : VIA Mobile360 Wireless Speed Sensor Trade Name : VIA Model Number : WS200 FCC ID : NCI-M360-WS200 Applicable Standard : FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Test Result : Complied Performing Lab. : Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Eurofins E&E Wireless Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Eurofins E&E Wireless Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By ： RF Test Report Report No.: USRC246242001 Issued Date: Aug. 08, 2024 Eurofins E&E Wireless Taiwan Co., Ltd. Page 4 of 47 Template : v02.00 TABLE OF CONTENTS 1 General Information ........................................................................................................ 5 1.1. Summary of Test Result ............................................................................................ 5 1.2. Testing Location .........................................................................…
