NCI-M360-D700Dash Cam

VIA Mobile360 D700 User Manual 2 1. Overview *Note: The lens can be rotated within a certain range, but it should not be rotated violently, otherwise it will cause the rotating mechanism to fail. Front Lens Ambient Light Sensor Yellow LED Green LED Red LED 4 x IR LED Rear Lens Short Record/ Voice Key Button 3 Speaker Micro USB connector Micro SD Card Slot Power Connector Micro SIM Card Slot 4 Mic Pedestal 5 1.1 Specifications Item Description Processor 800MHz ARM Cortex-A53 Dual-core System Memory 512MB DDR3L DRAM Internal Storage 128MB SPI Flash Wireless AMPAK AP6255 (802.11 a/b/g/n/ac +BT4.2) Ublox GPS receiver 4G/3G Quectel EC25-AF FDD: B2/B4//B5/B12/B13/B14/B66 WCDMA:B2/B4/B5 Field of View FOV: D=116°, H=100°, V=56° Sensor Sony IMX307 Image Resolution1920x1080p @ 29 FPS IO 1x Micro SD Card(200GB max) 1x Micro SIM card slot 1x Micro USB connector(for debug only) Power Supply 9-36V DC Dimensions 124.5mm x 41.25mm x 95.6mm 6 2. Getting Started with your Recorder VIA Mobile360 D700 supports Android phones and iPhone connections. The driving recorder supports automatic video recording to SD card after startup, and can be played back in mobile App. To use this feature, you need to insert a SD card into the driving recorder. The recorder needs to communicate with the cloud through 4G network to support remote wake-up, and two way audio communication. To use this function, you need to insert a SIM card into the recorder. Insert SD Card or SIM Card: When inserting a SD card or SIM card, use your fingernail to press the card into the driving recorder. When it is fully inserted, the card will snap into the slot. To remove the card, use your fingernail to gently press the card into the driving recorder and it will pop up, allowing you to remove it. *Note: It supports up to 200G SD card and must be formatted into FAT32 file system. Please confirm The SIM can connect to internet. The SIM card does not support hot plug. 7 2.1 Power On, Off and LED States Manual startup and shutdown: When using DC power adapter and 12-pin power connector (with Power On/Off switch) to connect the recorder; please press the switch manually to switch on and off the recorder. Automatic startup and shutdown: When using the 12-pin power connector to 12V/5A Car plug power adaptor or 12-pin power connector to OBD II Connector and ACC to bullet plug cable connect the recorder, the recorder will start automatically when the car starts (ACC is on). LED States: LED indicator states as shown below: 8 2.2 Connect with CAN bus The recorder supports connecting the CAN bus of the car, and can read the driving speed and fuel consumption from the CAN bus. When using the app connects the recorder, you can view information such as driving speed and fuel consumption of the journey. You can connect the CAN bus in the following ways. Connect the CAN bus through the OBD II line: use the OBD II connection line in the accessories to connect the vehicle's OBD and the recorder's wiring port. Connect via OBD II Bluetooth: TBD. 9 2.3 Using Your Recorder with a phone The driving recorder supports connecting with Android phone and iPhone. In order to use your recorder, installation of the official VIA Mobile360 App is required. You can scan the QR code below to download and install the VIA Mobile360 App. App for Android is also supplied on Google Play Store. *Note: Android 5.0 or iOS 9.0 above is required. 10 Connect Driving Recorder: Once the VIA Mobile360 App has been installed on your phone, open the app and follow the prompts to connect the recorder's Wi-Fi named by “VIA Mobile360_XXX” in the phone's WLAN setting. The default password is 12345678. 11 After connecting to the recorder’s Wi-Fi, return to the VIA Mobile360 App. The app has established a connection with the recorder shown as below. 12 3. VIA Mobile360 App Menu VIA Mobile360 App has the following menu: Live: View the live stream and GPS tracks of the recorder; Trips: View or download the trips on App; Stats: Statistics about the driving status of the vehicle during the trip; Album: View the videos in the SD card of the device and download the videos locally to the mobile phone. Me: Setting maps and checks the app version. 13 3.1 Live The “Live” interface showed as below: ①:Full screen; ②:Mute button; ③:Lens switch button; ④:Speed display; ⑤:GPS signal; ⑥:4G network signal: If there is no signal or the SIM card cannot access the Internet, the map will not be displayed. ⑦:Device Settings: Configuring the recorder parameters; ⑧:Map; 14 3.1.1 Device Settings Click the “Device Settings” button on the live interface to enter the device settings interface and configure the recorder parameters. Trip: Set the alarm recording duration (10 seconds/20 seconds/30 seconds), units display (Metric/Imperial) and alert sensitivity; Network: Switch the recorder's Wi-Fi mode (need to reconnect after switching 2.4G/5G) and display the network information of the device. Device: Displays the device model, device version, SD card capacity, format SD card, and reset. Vehicle Configure: Set vehicle size, tank capacity and displacement; 15 Alert Sensitivity and Alarm Recording Duration: Set the alert sensitivity during vehicle driving. When the recorder detects that the G-Sensor value exceeds the threshold, it will record an alarm video. The length of the alarm video will depend on the value of the alarm recording duration. 3.2 Trips When the driving recorder is turned on, it begins to record a trip until the recording of the trip ends when the device is turned off. In the “Trips” interface, you can view and download the trip by date. A red mark in the calendar indicates that a collision alert has occurred during this date. 16 Click “Download” to download the trip to your phone locally. Click on the trip to enter the trip details screen. The trip details show the GPS map trajectory, the trip video, the collision alert video and other information of the trip. *Note: When the CAN bus is not connected, the App wi…

Text truncated - open the document above for the full version.

VIA Technologies Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/3/30 Subject; Request for Confidentiality FCC ID: NCI-M360-D700 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Bom List Tune up procedure NII Software Security In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Mirror Hu Title: Engineer

VIA Technologies Inc. Letter of Authorization Company: VIA Technologies Inc. Address: 8F, 533,ZhongZheng Rd.,Xindian Dist. New Tapei City 231, Taiwan Product Name: Dash Cam Model Number: Mobile360 D700 FCC Identifier: NCI-M360-D700 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Mirror Hu Date: 2020/3/30 Title: Engineer Signature of applicant:

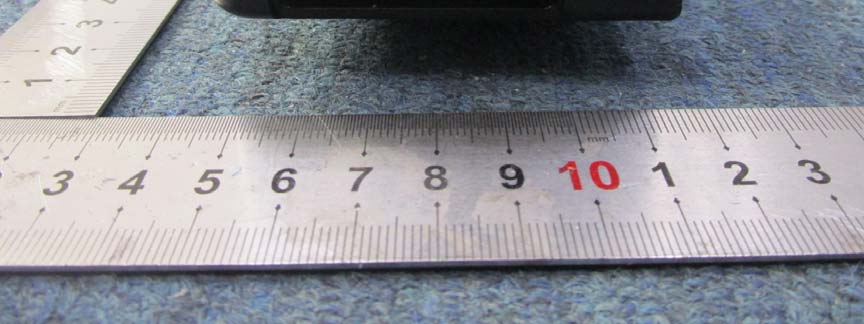

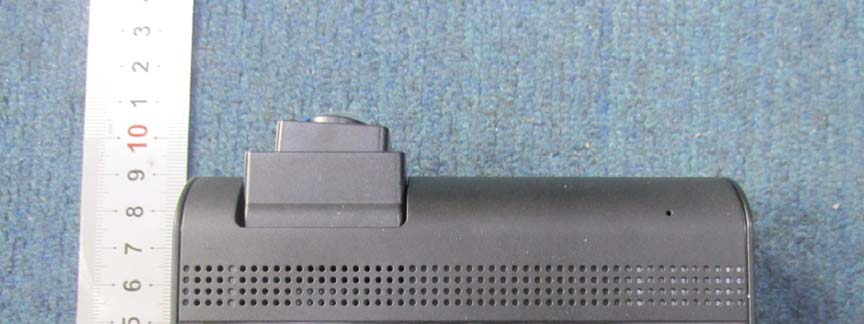

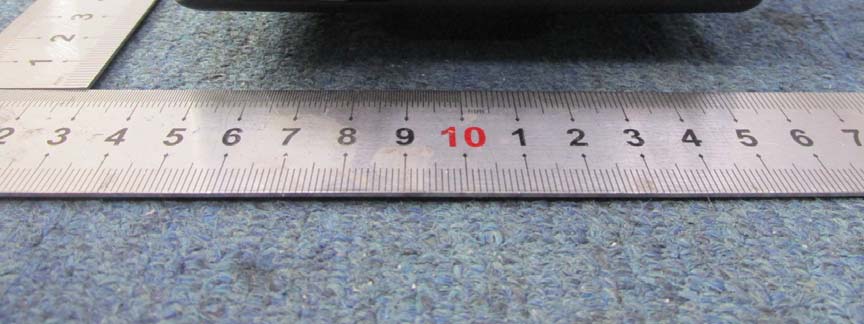

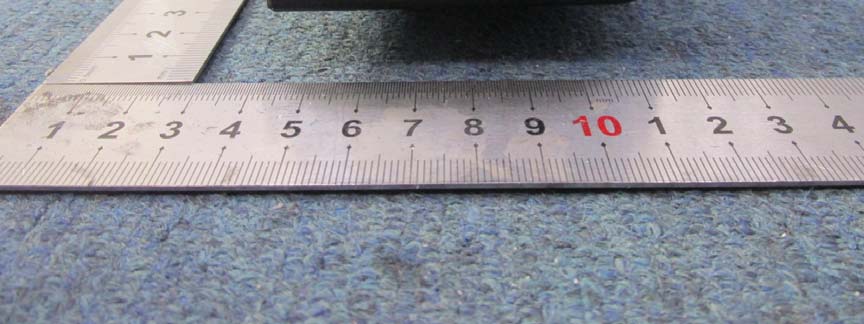

External Photo

Internal Photo WWAN ANT BT/WIFI GPS ANT

RF Exposure FCC ID: NCI-M360-D700 Applicant: VIA Technologies,Inc Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Dash Cam Refer Standard: FCC Part 2.1091: Radio Frequency (RF) Exposure Compliance of Radio communication Apparatus (All Frequency Bands) FCC MPE Limited: Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Test Data Predication of MPE limit at a given distance Where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) SRD Antenna Gain information 2.4G WLAN：2.8dBi 5G WLAN：2.5dBi BT: 2.8 dBi WWAN Antenna Gain information: Max gain：3.5dBi Worst-Case mode Conducted Output Power Results for2.4G WIFI 802.11b mode Channel Frequency (MHz) Output Power(dBm) Tune Up tolerance(dBm) 1 2412 16.65 16±1 6 2437 16.92 16±1 11 2462 16.62 16±1 Worst-Case mode Conducted Output Power Results for BT /BLE Bluetooth Band Mode Test Frequency Power(dBm) Tune-up tolerance(dBm) BT EDR GFSK 2402 3.22 3±1 GFSK 2441 3.00 3±1 GFSK 2480 2.46 3±1 pi/4DQPSK 2402 2.41 2±1 pi/4DQPSK 2441 2.22 2±1 pi/4DQPSK 2480 1.52 2±1 8DPSK 2402 2.85 2±1 8DPSK 2441 2.56 2±1 8DPSK 2480 1.93 2±1 BLE GFSK 2402 5.54 5±1 GFSK 2440 5.41 5±1 GFSK 2480 4.94 5±1 Worst-Case mode Conducted Power Test results of band U-NII-1/U-NII-3 802.11a mode Frequency (MHz) Conducted Output Power (dBm) Tune Up tolerance(dBm) 5180 10.38 9.5±1 5220 10.09 9.5±1 5240 10.29 9.5±1 5745 12.31 11.5±1 5785 11.71 11.5±1 5825 11.42 11.5±1 Worst-Case mode Conducted Output Power Results for WWAN Band Channel Frequency (MHz) Max Tune up power(dBm) Max Tune up power(mW) Duty cycle(%) Average power(mW) WCDMA850 Low 826.4 23.00 0.200 100 0.200 Mid 836.6 23.00 0.200 100 0.200 High 846.4 23.00 0.200 100 0.200 WCDMA1900 Low 1852.4 24.00 0.251 100 0.251 Mid 1880 24.00 0.251 100 0.251 High 1907.6 24.00 0.251 100 0.251 WCDMA1700 Low 1852.4 24.00 0.251 100 0.251 Mid 1880 24.00 0.251 100 0.251 High 1907.6 24.00 0.251 100 0.251 LTE Band 2 Low 1860 21.00 0.126 100 0.126 Mid 1880 21.00 0.126 100 0.126 High 1900 21.00 0.126 100 0.126 LTE Band 4 Low 1720 20.00 0.100 100 0.100 Mid 1732.5 20.00 0.100 100 0.100 High 1745 20.00 0.100 100 0.100 LTE Band 5 Low 829 22.50 0.178 100 0.178 Mid 836.5 22.50 0.178 100 0.178 High 844 22.50 0.178 100 0.178 LTE Band 12 Low 704 22.50 0.178 100 0.178 Mid 707.5 22.50 0.178 100 0.178 High 711 22.50 0.178 100 0.178 LTE Band 13 Low 779.5 22.50 0.178 100 0.178 Mid 782 22.50 0.178 100 0.178 High 784.5 22.50 0.178 100 0.178 LTE Band 14 Low 790.5 22.50 0.178 100 0.178 Mid 793 22.50 0.178 100 0.178 High 795.5 22.50 0.178 100 0.178 LTE Band 66 Low 1720 21.00 0.126 100 0.126 Mid 1745 21.00 0.126 100 0.126 High 1770 21.00 0.126 100 0.126 Note: for power tolerance please refer to tune up for detail. Calculation results (for 2.4G WIFI): Worst-case mode Frequency (MHz) Maximum tune up power(dBm) RF distance(cm) Result (mW/cm2) Limit (mW/cm2) 2412 17 20 0.019 1.0 2437 17 20 0.019 2462 17 20 0.019 Calculation results (for 5G WIFI): Worst-Case mode Frequency (MHz) Maximum tune up power(dBm) RF distance(cm) Result (mW/cm2) Limit (mW/cm2) 5180 10.5 20 0.0039 1.0 5220 10.5 20 0.0039 5240 10.5 20 0.0039 5745 12.5 20 0.0063 5785 12.5 20 0.0063 5825 12.5 20 0.0063 Calculation results (for BT/BLE): Worst-case mode Bluetooth Band Mode Te s t Frequency Power(dBm) Result (mW/cm2) Limit (mW/cm2) BT EDR GFSK 2402 4 0.001 1.0 GFSK 2441 4 0.001 GFSK 2480 4 0.001 pi/4DQPSK 2402 3 0.001 pi/4DQPSK 2441 3 0.001 pi/4DQPSK 2480 3 0.001 8DPSK 2402 3 0.001 8DPSK 2441 3 0.001 8DPSK 2480 3 0.001 BLE GFSK 2402 6 0.0015 GFSK 2440 6 0.0015 GFSK 2480 6 0.0015 Calculation results (for WWAN): Worst-Case mode Band Channel Frequency (MHz) Result(mW/cm2) Limit(mW/cm2) Ratio WCDMA850 Low 826.4 0.089 0.55 0.160 Mid 836.6 0.089 0.56 0.160 High 846.4 0.089 0.57 0.160 WCDMA1900 Low 1852.4 0.112 1.0 0.112 Mid 1880 0.112 1.0 0.112 High 1907.6 0.112 1.0 0.112 LTE Band 2 Low 1860 0.056 1.0 0.056 Mid 1880 0.056 1.0 0.056 High 1900 0.056 1.0 0.056 LTE Band 4 Low 1720 0.045 1.0 0.045 Mid 1732.5 0.045 1.0 0.045 High 1745 0.045 1.0 0.045 LTE Band 5 Low 829 0.079 0.55 0.143 Mid 836.5 0.079 0.56 0.142 High 844 0.079 0.56 0.140 LTE Band 12 Low 704 0.079 0.47 0.168 Mid 707.5 0.079 0.47 0.167 High 711 0.079 0.47 0.167 LTE Band 13 Low 779.5 0.079 0.52 0.152 Mid 782 0.079 0.52 0.152 High 784.5 0.079 0.52 0.151 LTE Band 14 Low 790.5 0.079 0.53 0.150 Mid 793 0.079 0.53 0.149 High 795.5 0.079 0.53 0.149 LTE Band 66 Low 1720 0.056 1.0 0.056 Mid 1745 0.056 1.0 0.056 High 1770 0.056 1.0 0.056 Simultaneous Transmission Calculation (Worst-case mode) No. Transmitter Combinations Scenario Supported or not 1 WWAN+2.4G WLAN+BT Ye s 2 WWAN +5G WLAN+BT Ye s Antenna Mode/Channel Calculation results(mW/cm2) Limit (mW/cm2) Ratio WWAN LTE Band12 0.079 0.47 0.168 WLAN 2.4G WIFI 0.019 1.0 0.019 WLAN 5G WIFI 0.0063 1.0 0.0063 BT BLE 0.0015 1.0 0.0015 Max Simultaneous Transmission Calculation (Worst-case mode) No. Worst Mode MPE Ratio Results 1 LTE Band12 +2.4G WIFI+BLE 0.168+0.019+0.0015 0.1885<1.0(pass)

Report No.: SET2020-01318 CCIC-SET/ TRF:IRF(2019-05-23) Page 1 of 51 RF TEST REPORT Report No.: SET2020-01318 Product Name: Dash Cam FCC ID: NCI-M360-D700 Model No. : Mobile360 D700 Applicant: VIA Technologies,Inc Address： 8F, 535 Zhongzheng Rd. Xindian Dist. New Taipei City, Taiwan Dates of Testing: 01/01/2020 —03/02/2020 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China. Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2020-01318 CCIC-SET/ TRF:IRF(2019-05-23) Page 2 of 51 Test Report Product Name ....................... : Dash Cam Brand Name .......................... : VIA Trade Name ........................... : VIA Applicant ............................... : VIA Technologies,Inc Applicant Address ................ : 8F, 535 Zhongzheng Rd. Xindian Dist. New Taipei City, Taiwan Manufacturer ........................ : VIA Technologies,Inc Manufacturer Address ......... : 8F, 535 Zhongzheng Rd. Xindian Dist. New Taipei City, Taiwan Test Standards ...................... : 47 CFR Part 15 Subpart C ANSI C63.10-2013 Test Result ............................ : PASS Tested by ............................. : 2020.03.02 Vincent, Test Engineer Reviewed by ......................... : 2020.03.02 Chris You, Senior Engineer Approved by ......................... : 2020.03.02 ShuangwenZhang, Manager Report No.: SET2020-01318 CCIC-SET/ TRF:IRF(2019-05-23) Page 3 of 51 TABLE OF CONTENTS RF TEST REPORT ....................................................................................................................... 1 1. GENERAL INFORMATION ................................................................................................. 4 1.1. EUT Description .................................................................................................................... 4 1.2. Test Standards and Results ..................................................................................................... 5 1.3. Table for Supporting Units ..................................................................................................... 6 1.4. Facilities and Accreditations .................................................................................................. 6 2. 47 CFR PART 15C REQUIREMENTS ................................................................................. 7 2.1. Antenna requirement .............................................................................................................. 7 2.2. Maximum Conducted Output Power ..................................................................................... 8 2.3. 6dB Bandwidth .................................................................................................................... 10 2.4. Conducted Band Edges and Spurious Emissions ................................................................. 12 2.5. Power spectral density (PSD) .............................................................................................. 14 2.6. Radiated Band Edge and Spurious Emission ....................................................................... 16 2.7. Conducted Emission ............................................................................................................ 31 3. LIST OF MEASURING EQUIPMENT .............................................................................. 35 4. UNCERTAINTY OF EVALUATI ON .................................................................................. 36 APPENDIX A ............................................................................................................................... 37 Change History Issue Date Reason for change 1.0 2020.03.02 First edition Report No.: SET2020-01318 CCIC-SET/ TRF:IRF(2019-05-23) Page 4 of 51 1. General Information 1.1. EUT Description EUT Type Dash Cam EUT supports Radios application WLAN2.4GHz 802.11b/g/n (HT20) Frequency Range 802.11b/g/n-20MHz: 2.412GHz - 2.462GHz Channel Number 802.11b/g/n-20MHz: 11 Bit Rate of Transmitter 802.11b: 11/5.5/2/1 Mbps 802.11g: 54/48/36/24/18/12/9/6 Mbps 802.11n : up to 72.2 Mbps Modulation Type DSSS (802.11b), OFDM (802.11g/n) MIMO Not support Antenna Type Internal Antenna Gain 2.8dBi Note 1: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 2: The EUT was programmed to be in continuously transmitting mode and the transmit duty cycle is not less than 98%. Report No.: SET2020-01318 CCIC-SET/ TRF:IRF(2019-05-23) Page 5 of 51 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (WiFi, 2.4GHz ISM band radiators) for the EUT FCC Certification: No. Identity Document Title 1 47 CFR Part 15 Subpart C 2017 Radio Frequency Devices 2 ANSI C63.10 2013 American National Standard for Testing Unlicensed Wireless Devices Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47 Description Result 1 15.203 Antenna Requirement PA S S 2 15.247(b) Peak Output Power PA S S 3 15.247(a) 6dB Bandwidth PA SS 4 15.247(d) Conducted Band Edges and Spurious Emission PA S S 5 15.247(e) Power spectral density (PSD) PA S S 6 15.207 Conducted Emission PA S S 7 15.209 15.205 15.247(d) Radiated Ban…

Text truncated - open the document above for the full version.

Report No.:SET2020-01320 CCIC-SET/ TRF:IRF(2019-05-23) Page 1 of 34 RF TEST REPORT Report No.: SET2020-01320 Product Name: Dash Cam FCC ID: NCI-M360-D700 Model No. : Mobile360 D700 Applicant: VIA Technologies,Inc Address： 8F, 535 Zhongzheng Rd. Xindian Dist. New Taipei City, Taiwan Dates of Testing: 01/01/2020 —02/28/2020 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China. Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 34 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.:SET2020-01320 CCIC-SET/ TRF:IRF(2019-05-23) Page 2 of 34 Test Report Product Name ...................... : Dash Cam Brand Name ......................... : VIA Trade Name .......................... : VIA Applicant .............................. : VIA Technologies,Inc Applicant Address ............... : 8F, 535 Zhongzheng Rd. Xindian Dist. New Taipei City, Taiwan Manufacturer ........................ : VIA Technologies,Inc Manufacturer Address ........ : 8F, 535 Zhongzheng Rd. Xindian Dist. New Taipei City, Taiwan Test Standards ..................... : 47 CFR Part 15 Subpart C：Radio Frequency Devices ANSI C63.10-2013：American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 DTS Meas Guidance v05r02 Test Result ........................... : PASS Tested by ............................ : 2020.02.28 Vincent, Test Engineer Reviewed by ......................... : 2020.02.28 Chris You, Senior Engineer Approved by ........................ : 2020.02.28 Shuangwen Zhang, Manager Report No.: SET2020-01320 CCIC-SET/ TRF:IRF(2019-05-23) Page 3 of 34 TABLE OF CONTENTS RF TEST REPORT ....................................................................................................................... 1 1. GENERAL INFORMATION ................................................................................................. 4 1.1. EUT Description .................................................................................................................... 4 1.2. Test Standards and Results ..................................................................................................... 5 1.3. Table for Supporting Units ..................................................................................................... 6 1.4. Facilities and Accreditations .................................................................................................. 7 2. 47 CFR PART 15C REQUIREMENTS ................................................................................. 8 2.1. Antenna requirement .............................................................................................................. 8 2.2. Peak Output Power................................................................................................................. 9 2.3. 6dB Bandwidth .................................................................................................................... 10 2.4. Conducted Band Edges and Spurious Emissions ................................................................. 11 2.5. Power spectral density (PSD) .............................................................................................. 13 2.6. Radiated Band Edge and Spurious Emission ....................................................................... 15 2.7. Conducted Emission ............................................................................................................ 23 3. LIST OF MEASURING EQUIPMENT .............................................................................. 27 4. UNCERTAINTY OF EVALUATI ON .................................................................................. 28 APPENDIX A ............................................................................................................................... 29 Change History Issue Date Reason for change 1.0 2020.02.28 First edition Report No.: SET2020-01320 CCIC-SET/ TRF:IRF(2019-05-23) Page 4 of 34 1. General Information 1.1. EUT Description EUT Type Dash Cam Frequency Range Bluetooth LE 2402MHz~2480MHz Channel Number Bluetooth LE 40 Bit Rate of Transmitter Bluetooth LE 1Mbps Modulation Type Bluetooth LE GFSK Antenna Type Internal Antenna Gain 2.8dBi Note 1: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 2: The EUT was programmed to be in continuously transmitting mode and the transmit duty cycle is not less than 98%. Report No.: SET2020-01320 CCIC-SET/ TRF:IRF(2019-05-23) Page 5 of 34 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC Certification: No. Identity Document Title 1 47 CFR Part 15 Subpart C 2017 Radio Frequency Devices 2 ANSI C63.10-2013 American National Standard for Testing Unlicensed Wireless Devices Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47 Description Result 1 15.203 Antenna Requirement PA S S 2 15.247(b) Peak Output Power PA S S 3 15.247(a) Bandwidth PA S S 4 15.247(d) Conducted Band Edges and Spurious Emission PA S S 5 15.247(e) Power spectral density (PSD) PA S S 6 15.207 Conducted Emission PA S S 7 15.209 15.205 15.247(d) Radiated Band Edges and Spurious Emission PA S S The te…

Text truncated - open the document above for the full version.

15C Setup photo
