NCI-VESHPD01A1Door Station

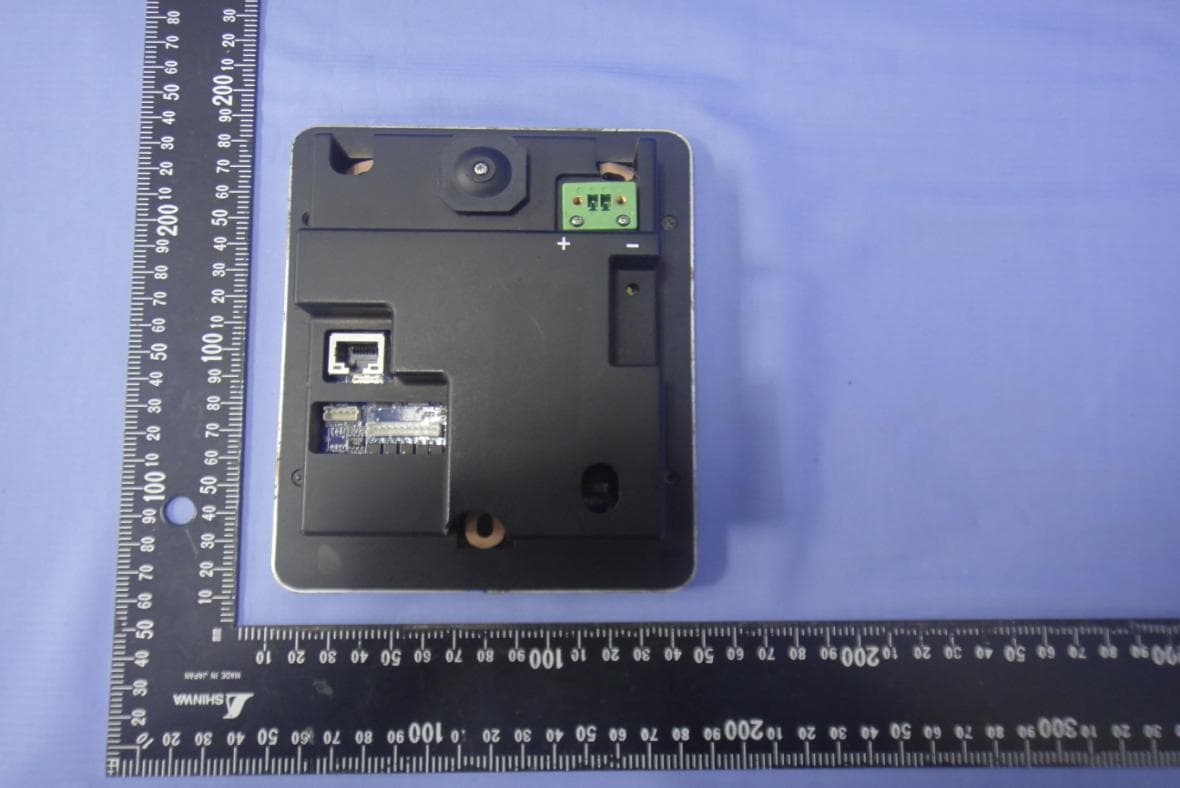

Quick Guide SHP-D01 Door Station 2. SHP-D01 Front/Side panel Product Information Product InformationProduct InformationProduct Information Model: Model: Model: Model: SHP-D01 Package Lists: Package Lists:Package Lists:Package Lists: -SHP-D01 door station X 1 -RS485 cable X 1 -DIO cable X 1 -M4 * 30mm screw X 3 -8mm brass pipe + spring X 1 -Quick Guide X 1 5. SHP-D01 Installation steps 1. Put brass pipe + spring on the embedded box, as indicated in the ○ 1 . 2. Distance between bottom of the embedded box and the ground is 132 cm. Front panel and size Side panel and size ○ 1 132 cm RJ45 port RS485 port 3. SHP-D01 back panel mm mm mm mm DC-In power Adjustment of camera switch ring DI1 reserved reserved DI2 reserved reserved DO1 Open the door Connect NO Relay default status is On DO2 reserved reserved DO3 reserved reserved DIO pin definition DIO definition 4. Relay connection (use OMRON MY2-J Relay as an example ) Green LED Red LED Green LED ON: normal operation Green LED flash: booting Red LED ON: ○ 1 Enable home or egress security ○ 2 Anti-dismantle has been triggered ○ 3 Security has been triggered ○ 4 Force status has been triggered DIO port Note NoteNoteNote: ::: 1. This diagram is for reference only, please see DIO definition for actual connection . 2. Max. value of motion for DIO is 400mA . 3. DI can externally connect to spring switch and NC of the dry contact . If the same DI needs to use 2 or more spring switches, connect by series . 4. DI that externally connects to switch (eg, doorbell, emergency pressure deduction) and gas detector, can connect to NO. To use 2 or more devices, connect by series. 5. If DI2 of the door station is not connected to door detector, please short DI2 and DI2GND. 6. When DO connects to electric lock, power supply locks, interruption of power supply unlocks. 7. When DO connects to alarm, alarm connects to Relay NO, motion on Relay will enable the alarm . 1. SHP-D01 Specifications Item Description Camera 500 megapixel wide-angle color lens Brightness exposure LED Reader (RFID) Support 13.56MHz, ISO14443A standard Network Interface RJ-45 Network transmis-sion rate 10/100M Power DC-12V Power consump-tion <10W Operating tem-perature 0~40 ° Humidity 0~95%, non-condensing Alarm speaker Dry Contact switch black brow Red Orange Yellow Green Bleu Purple Grey White Red black brow Purple For more information on this and other VIA products, please visit : www.viatech.com/en/ 6. SHP-D01 installation diagram 60 cm Distance between lens and subject 145 cm Height between lens and ground Angle of view 60 ° 179.6 cm 69.2 cm 110.4 cm 6. Put the front plaque and plate back. Fix the bottom with two M2 screws. M2 screw M2 screw Note NoteNoteNote: ::: 1. Be careful of the orientation during installation. 2. Please do not install any other device close to the door station , keep at least 10 cm of distance. Assistant Exposure light key lens RFID area (within rectangular area ) 4. Use M4 screw to fix the main part. 5. Distance between bottom of the door station and the ground is 131 cm. Please consider the thickness of the tile or marble. 131 cm 3. Remove two M2 screws from the bottom of the plaque. Take off the plate in order to separate the plaque and the main part. M2 screw M2 screw plate VIA Technologies, Inc. VIA Technologies, Inc.VIA Technologies, Inc.VIA Technologies, Inc. 1F, 531, Zhong-zheng Road, Xindian District, New Taipei City 231, Taiwan Tel: 886-2-2218-5452 Fax: 886-2-2218-5453 Copyright © 2015 VIA Technologies, Inc. All right s reserved. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference receiv ed, including interference that may cause. CAUTION! To prevent shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualif ied personnel.

VIA Technologies, Inc. 8F, No.535, Zhongzheng Rd., Xindian Dist, New Taipei City 231, Taiwan(R.O.C) Date : October, 23 ,2015 TUV SUD BABT TCB/FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, VIA Technologies, Inc. hereby authorize Compliance Certification Services Inc / David.Wang toact as our agent in all matters relating to applications for equipment authorization, including thesigning of all documents relating to these matters. This authorization expires on 01/01/2016 Sincerely, _____________________________________ Signature Name/Title: Mirror Hu / Engineer Contact information / Address 8F, No.535, Zhongzheng Rd., Xindian Dist, New Taipei City 231, Taiwan(R.O.C) TEL: +886-2-2218-5452 FAX: +886-2-2218-7402 Email: [email protected]

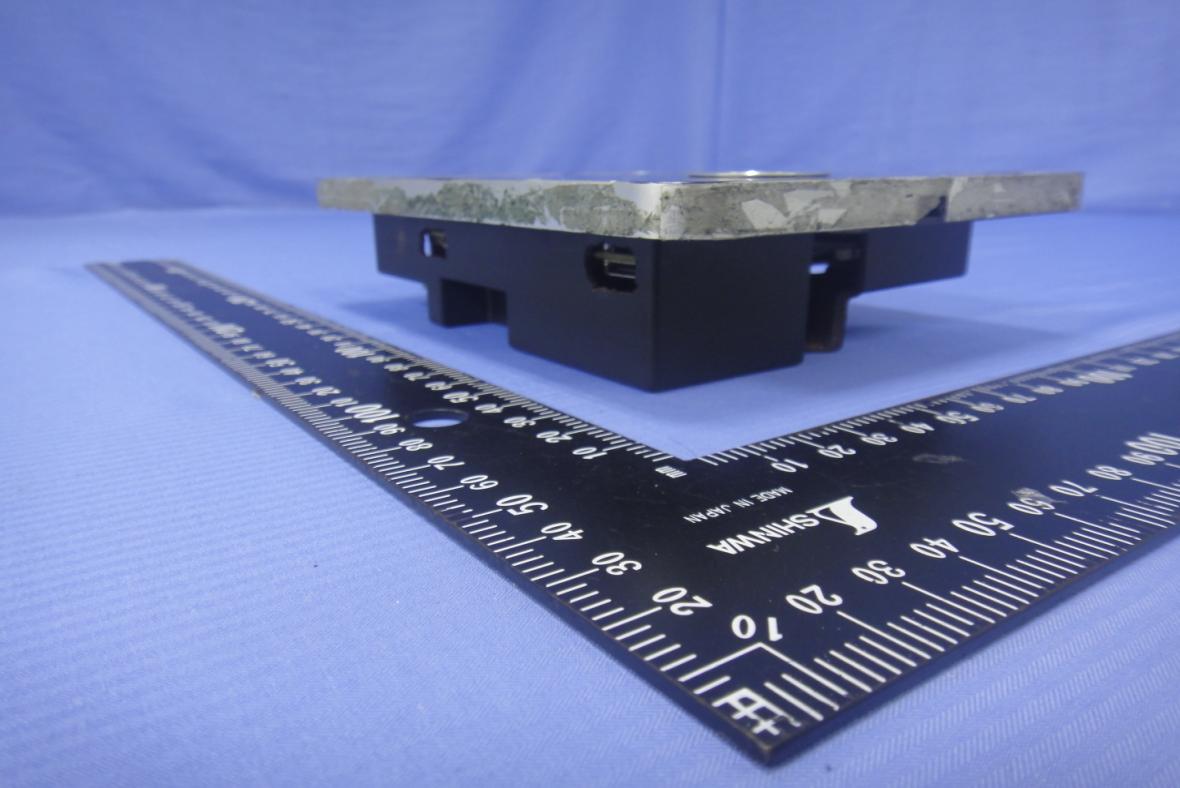

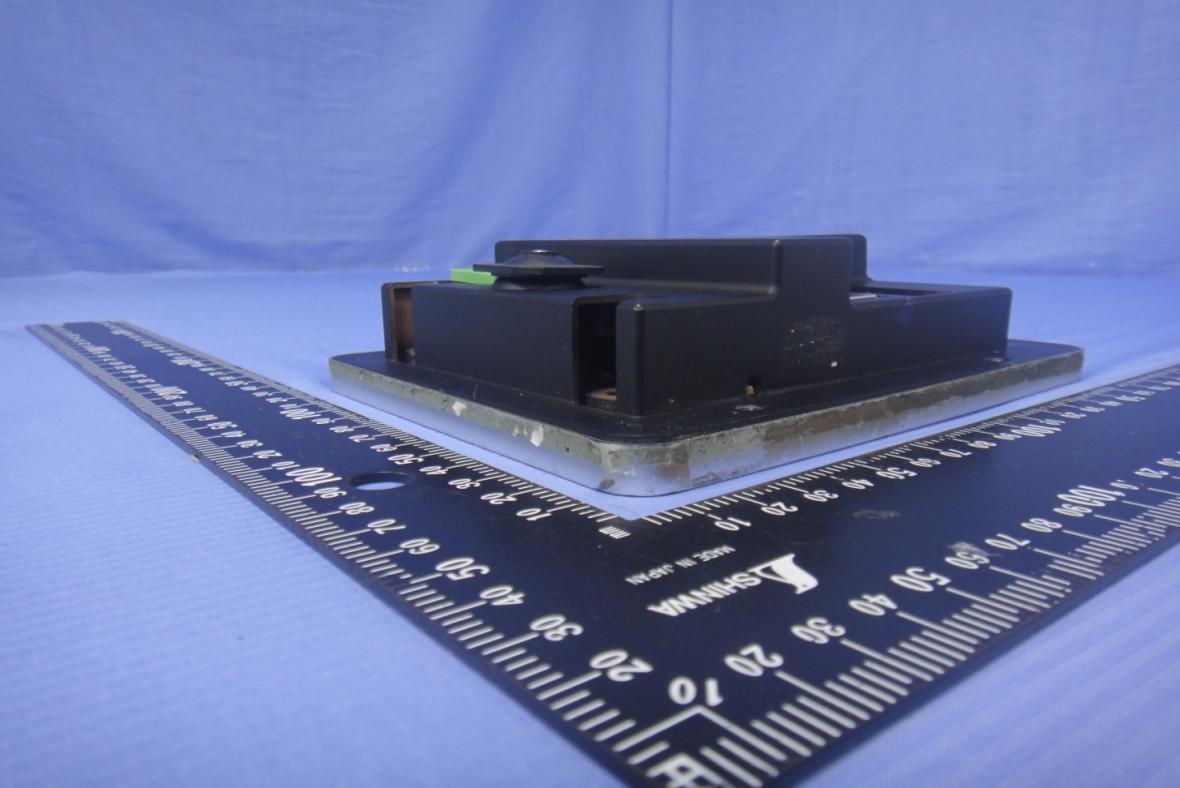

Compliance Certification Services Inc. Report No.: T150824D03 A1 - 1 / 13 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150824D03 A1 - 2 / 13 Rev. 00

Compliance Certification Services Inc. Report No.: T150824D03 A1 - 3 / 13 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150824D03 A1 - 4 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150824D03 A1 - 5 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150824D03 A1 - 6 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150824D03 A1 - 7 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150824D03 A1 - 8 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150824D03 A1 - 9 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150824D03 A1 - 10 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150824D03 A1 - 11 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150824D03 A1 - 12 / 13 Rev. 00 Module Compliance Certification Services Inc. Report No.: T150824D03 A1 - 13 / 13 Rev. 00 Antenna RF IC

Compliance Certification Services Inc. FCC ID: NCI-VESHPD01A1 Report No.: T150824D03-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 29 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Door Station Model: SHP-D01, SHP-D02, SHP-D03, SHP-B01 Trade Name: VIA Issued to VIA Technologies, Inc. 8F, No.535, Zhongzheng Rd., Xindian Dist, New Taipei City 231, Taiwan(R.O.C) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: October 20, 2015 Compliance Certification Services Inc. FCC ID: NCI-VESHPD01A1 Report No.: T150824D03-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 20, 2015 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: NCI-VESHPD01A1 Report No.: T150824D03-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ....................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 3. TEST METHODOLOGY ..................................................................................................6 3.1 EUT CONFIGURATION ..........................................................................................6 3.2 EUT EXERCISE ......................................................................................................6 3.3 GENERAL TEST PROCEDURES ...........................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................................7 3.5 DESCRIPTION OF TEST MODES ..........................................................................7 4. INSTRUMENT CALIBRATION ........................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ..........................................................8 4.2 MEASUREMENT EQUIPMENT USED....................................................................8 4.3 MEASUREMENT UNCERTAINTY ..........................................................................9 5. FACILITIES AND ACCREDITATIONS .......................................................................... 10 5.1 FACILITIES ........................................................................................................... 10 5.2 EQUIPMENT ......................................................................................................... 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................... 12 6.1 SETUP CONFIGURATION OF EUT ..................................................................... 12 6.2 SUPPORT EQUIPMENT ....................................................................................... 12 7. FCC PART 15.225 REQUIREMENTS ........................................................................... 13 7.1 20 DB BANDWIDTH .............................................................................................. 13 7.2 RADIATED EMISSIONS ....................................................................................... 15 7.3 FREQUENCY STABILITY ..................................................................................... 21 7.4 POWERLINE CONDUCTED EMISSIONS ............................................................ 23 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................... 26 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: NCI-VESHPD01A1 Report No.: T150824D03-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: VIA Technologies, Inc. 8F, No.535, Zhongzheng Rd., Xindian Dist, New Taipei City 231, Taiwan(R.O.C) Equipment Under Test: Door Station Trade Name: VIA Model: SHP-D01, SHP-D02, SHP-D03, SHP-B01 Date of Test: October 1 ~ 20, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.225. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: NCI-VESHPD01A1 Report No.: T150824D03-RP Page 5 Rev. 00 2. EUT DESCRIPTION Product Door Station Trade Name VIA Model Number SHP-D01, SHP-D02, SHP-D03, SHP-B01 Model Discrepancy All the specification and layout are identical except they come with different model numbers for marketing purposes Received Date August 24, 2015 Power Ratting VDC from Power Adapter Frequency Range 13.56MHz Modulation Technique ASK Number of Channels 1 Channel Antenna Specification SUNION / ANT-MB-VIA-5439 Loop Antenna / Gain: 0.5 dBi Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: NCI-VESHPD01A1filing to comply with Section 15.225 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. FCC ID: NCI-VESHPD01A1 Report No.: T150824D03-RP Page 6 Rev. 00 3. TES…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: NCI-VESHPD01A1 Report No.: T150824D03-RP Page 26 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTOS Compliance Certification Services Inc. FCC ID: NCI-VESHPD01A1 Report No.: T150824D03-RP Page 27 Rev. 00 Radiated Emission Set up Photos 9kHz ~ 30MHz Compliance Certification Services Inc. FCC ID: NCI-VESHPD01A1 Report No.: T150824D03-RP Page 28 Rev. 00 30MHz ~ 1GHz Compliance Certification Services Inc. FCC ID: NCI-VESHPD01A1 Report No.: T150824D03-RP Page 29 Rev. 00 Powerline Conducted Emissions Setup Photos
