NCI-VNT6656G6A1XUSB Embedded Module

VNT6656G6A10/ VNT6656G6A40 USER'S MANUAL Revision 1.0 February 22, 2006 VIA TECHNOLOGIES, INC. Copyright Notice: Copyright © 2005, VIA Technologies, Incorporated. All Rights Reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise without the prior written permission of VIA Technologies, Incorporated. VNT6656G6A10/VNT6656G6A40 may only be used to identify WLAN products of VIA Technologies, Inc. is a registered trademark of VIA Technologies, Incorporated. All trademarks are the properties of their respective owners. Disclaimer Notice: No license is granted, implied or otherwise, under any patent or patent rights of VIA Technologies Inc. VIA Technologies Inc. makes no warranties, implied or otherwise, in regard to this document and to the products described in this document. The information provided by this document is believed to be accurate and reliable as of the publication date of this document. However, VIA Technologies Inc. assumes no responsibility for any errors in this document. Furthermore, VIA Technologies Inc. assumes no responsibility for the use or misuse of the information in this document and for any patent infringements that may arise from the use of this document. The information and product specifications within this document are subject to change at any time, without notice and without obligation to notify any person of such change. Offices: USA Office: Taipei Office: 940 Mission Court 8 th Floor, No. 533 Fremont, CA 94539 Chung-Cheng Road, Hsin-Tien USA Taipei, Taiwan ROC Tel: (510) 683-3300 Tel: (886-2) 2218-2078 Fax: (510) 683-3301 or (510) 687-4654 Fax: (886-2) 2219-8461 Web: www.vntek.com Web: www.vntek.com.tw VIA Technologies, Inc. User's Manual Revision 1.0 • February 22, 2006 - iii - Revision History Revision History Release Date Revision Initials 1.0 2006-02-22 Initial release. RTW VIA Technologies, Inc. User's Manual Revision 1.0 • February 22, 2006 - iv - Table of Contents Table of Contents 1. Features ........................................................................................................................1 1.1. Drivers and Applications.......................................................................................... 1 1.2. Certifications ........................................................................................................... 1 1.3. Software Packages ................................................................................................. 1 1.4. Programming Guide ................................................................................................ 1 2. Drivers and Utilities ..................................................................................................... 2 2.1. Drivers ..................................................................................................................... 2 2.2. Utilities for end users............................................................................................... 2 2.3. Utilities for manufacturers........................................................................................ 2 3. Software Package Information ................................................................................... 3 3.1. Directory structure ................................................................................................... 3 3.2. Driver Keywords/Parameters .................................................................................. 4 4. Windows Utilities ......................................................................................................... 6 4.1. WiFiset .................................................................................................................... 6 4.1.1. Status ................................................................................................................... 6 4.1.2. Config................................................................................................................... 6 4.1.3. Site Survey......................................................................................................... 10 4.1.4. Statistics............................................................................................................. 11 4.1.5. Signal ................................................................................................................. 11 4.1.6. Profiles ............................................................................................................... 12 4.2. WPA Networking ................................................................................................... 16 Appendix A: Terminology ................................................................................................... 19 Appendix B: Important Notices .......................................................................................... 20 VIA Technologies, Inc. User's Manual Revision 1.0 • February 22, 2006 - 1 - Features 1. Features 1.1. Drivers and Applications „ Drivers available for Microsoft Windows 95/98/ME/NT/2000/XP and all major distributions of Linux. „ Setup utility for automatic driver installation on Windows. „ Mass-production support tool. „ Mass-production application interface for custom programs. „ PATCH utility for driver customization. This utility allows the manufacturers to customize the driver packages, such as changing the drivers’ icons and file names. 1.2. Certifications „ "Designed for Microsoft Windows" Logo. „ Wi-Fi Certified. 1.3. Software Packages „ Software package for manufacturers: A complete set of drivers and utilities. „ Evaluation package (CD version) for manufacturers: Includes MPTOOL, Winsetup, and drivers for Windows only. „ Software package for end users: Includes all drivers and utilities, except MPTOOL and PATCH. 1.4…

Text truncated - open the document above for the full version.

FCC ID: NCI-VNT6656G6A1X Report No. RF950210H01 Modular Approval Request Letter Advance Data Technology March 23, 2006 Dear Application Examiner, VIA Technolo gies, Inc.’s USB Embedded Module, FCC ID: NCI-VNT6656G6A1X, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip VT6656. 3. “The modular transmitter must have its own power supply regulation.” there is a regulators inside of chip AL2230 to supply regulated power to RF cuircuit . 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: NCI-VNT6656G6A1X Report No. RF950210H01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

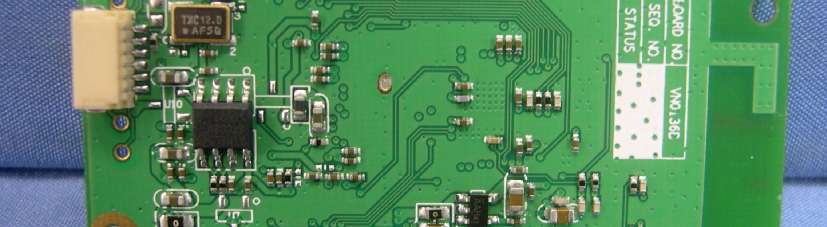

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

1.5cm 1.7cm Model: VNT6656G6A10 MAC ID: 000FA300001 FCC ID: NCI-VNT6656G6A1X S/N : XXXXXXXXXX Made in Taiwan

1.5cm 1.7cm Model: VNT6656G6A10 MAC ID: 000FA300001 FCC ID: NCI-VNT6656G6A1X S/N : XXXXXXXXXX Made in Taiwan

Page 3 Page 4 Page 5

FCC ID: NCI-VNT6656G6A1X Report No. 950210H01 Operational Description This device is a USB Embedded Module, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (USB Embedded Module) is powered from host equipment. The antennas used in this product are as following: No.Brand NameModel No.Gain (dBi)Antenna TypeAntenna Connector 1 WalsinRFANT5220110A0T 2Chip.NA 2 High-tekT700(PEN) 0.05 PIFA I-PEX The other instruction, please have a look at the users manual.

Report No.: SA950210H01 1 RF EXPOSURE REPORT REPORT NO.: SA950210H01 MODEL NO.: VNT6656G6A10 FCC ID: NCI-VNT6656G6A1X ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:VIA Technologies, Inc. ADDRESS:8F, 533, Chung-Cheng Rd. Hsin-Tien, Taipei 231 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950210H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950210H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950210H01 4 6. Test Results 6.1 Antenna Gain The antennas used in this product are as following: No.Brand NameModel No.Gain (dBi)Antenna TypeAntenna Connector 1 Walsin RFANT5220110A0 T 2Chip.NA 2 High-tekT700(PEN) 0.05 PIFA I-PEX Report No.: SA950210H01 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Antenna 1 : Chip antenna (Gain : 2dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.2410.0201.0 6243764.8630.0201.0 11246264.5650.0201.0 Antenna 2 : PIFA antenna (Gain : 0.05dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.2410.0131.0 6243764.8630.0131.0 11246264.5650.0131.0 For Part 802.11g: Antenna 1 : Chip antenna (Gain : 2dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241264.8630.0201.0 6243766.6810.0211.0 11246267.6080.0211.0 Antenna 2 : PIFA antenna (Gain : 0.05dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241264.8630.0131.0 6243766.6810.0131.0 11246267.6080.0141.0

Report No.: RF950210H011Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.:RF950210H01 MODEL NO.:VNT6656G6A10 RECEIVED:Feb. 10, 2006 TESTED:Feb. 15 to 24, 2006 ISSUED: March 27, 2006 APPLICANT:VIA Technologies, Inc. ADDRESS:8F, 533, Chung-Cheng Rd. Hsin-Tien, Taipei 231 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 70 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950210H012Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ................ 8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS ............................. 10 3.5DESCRIPTION OF SUPPORT UNITS.........................................................11 3.6CONFIGURATION OF SYSTEM UNDER TEST ......................................... 12 4TEST TYPES AND RESULTS..................................................................... 13 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 13 4.1.2TEST INSTRUMENTS ................................................................................ 13 4.1.3TEST PROCEDURES................................................................................. 14 4.1.4TEST SETUP .............................................................................................. 14 4.1.5EUT OPERATING CONDITIONS................................................................ 15 4.1.6TEST RESULTS.......................................................................................... 16 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS.......................................................................................... 22 4.2.7TEST RESULTS –DSSS (MODE 1) ............................................................ 23 4.2.8TEST RESULTS – OFDM (MODE 1) .......................................................... 26 4.2.9TEST RESULTS –DSSS (MODE 2) ............................................................ 29 4.2.10 TEST RESULTS – OFDM (MODE 2) .......................................................... 32 4.36dB BANDWIDTH MEASUREMENT .......................................................... 35 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 35 4.3.2TEST INSTRUMENTS ................................................................................ 35 4.3.3TEST PROCEDURE ................................................................................... 36 4.3.4TEST SETUP .............................................................................................. 36 4.3.5EUT OPERATING CONDITIONS................................................................ 36 4.3.6TEST RESULTS –DSSS ............................................................................. 37 4.3.7TEST RESULTS-OFDM .............................................................................. 40 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 43 4.4.2TEST INSTRUMENTS ................................................................................ 43 Report No.: RF950210H013Report Format Version 2.0.4 4.4.3TEST PROCEDURES................................................................................. 44 4.4.4TEST SETUP .............................................................................................. 44 4.4.5EUT OPERATING CONDITIONS................................................................ 44 4.4.6TEST RESULTS – DSSS ............................................................................ 45 4.4.7TEST RESULTS –OFDM ............................................................................ 46 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 47 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 47 4.5.2TEST INSTRUMENTS ................................................................................ 47 4.5.3TEST PROCEDURE ................................................................................... 48 4.5.4TEST SETUP .............................................................................................. 48 4.5.5EUT OPERATING CONDITIONS................................................................ 48 4.5.6TEST RESULTS –DSSS ..................................................................…

Text truncated - open the document above for the full version.

Report No.: RF950210H0167Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950210H0168Report Format Version 2.0.4 RADIATED EMISSION TEST
