NCI-VNT6656GEV0X802.11 BG Wireless Module

VIA Technologies, Inc.
802.11 BG Wireless Module - FCC ID NCI-VNT6656GEV0X - VIA Technologies, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 05, 2006
Application Purpose
Original Equipment
Date of Application
Jul 04, 2006
Equipment Note
802.11 BG Wireless Module
Frequency Range
2412.00000000 - 2462.00000000
Company
VIA Technologies, Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗
↗
↗
↗
↗
↗
↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

VNT6656GEV00 USER'S MANUAL Revision 1.0 June 6, 2006 VIA TECHNOLOGIES, INC. Copyright Notice: Copyright © 2006, VIA Technologies, Incorporated. All Rights Reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise without the prior written permission of VIA Technologies, Incorporated. VNT6656GEV00 may only be used to identify WLAN products of VIA Technologies, Inc. is a registered trademark of VIA Technologies, Incorporated. All trademarks are the properties of their respective owners. Disclaimer Notice: No license is granted, implied or otherwise, under any patent or patent rights of VIA Technologies Inc. VIA Technologies Inc. makes no warranties, implied or otherwise, in regard to this document and to the products described in this document. The information provided by this document is believed to be accurate and reliable as of the publication date of this document. However, VIA Technologies Inc. assumes no responsibility for any errors in this document. Furthermore, VIA Technologies Inc. assumes no responsibility for the use or misuse of the information in this document and for any patent infringements that may arise from the use of this document. The information and product specifications within this document are subject to change at any time, without notice and without obligation to notify any person of such change. Offices: USA Office: Taipei Office: 940 Mission Court 8 th Floor, No. 533 Fremont, CA 94539 Chung-Cheng Road, Hsin-Tien USA Taipei, Taiwan ROC Tel: (510) 683-3300 Tel: (886-2) 2218-2078 Fax: (510) 683-3301 or (510) 687-4654 Fax: (886-2) 2219-8461 Web: www.vntek.com Web: www.vntek.com.tw VIA Technologies, Inc. User's Manual Revision 1.0 • June 6, 2006 - iii - Revision History Revision History Release Date Revision Initials 1.0 2006-06-06 Initial release. SH VIA Technologies, Inc. User's Manual Revision 1.0 • June 6, 2006 - iv - Table of Contents Table of Contents 1. Features ........................................................................................................................1 1.1. Drivers and Applications.......................................................................................... 1 1.2. Certifications ........................................................................................................... 1 1.3. Software Packages ................................................................................................. 1 1.4. Programming Guide ................................................................................................ 1 2. Drivers and Utilities ..................................................................................................... 2 2.1. Drivers ..................................................................................................................... 2 2.2. Utilities for end users............................................................................................... 2 2.3. Utilities for manufacturers........................................................................................ 2 3. Software Package Information ................................................................................... 3 3.1. Directory structure ................................................................................................... 3 3.2. Driver Keywords/Parameters .................................................................................. 4 4. Windows Utilities ......................................................................................................... 6 4.1. WiFiset .................................................................................................................... 6 4.1.1. Status ................................................................................................................... 6 4.1.2. Config................................................................................................................... 6 4.1.3. Site Survey......................................................................................................... 10 4.1.4. Statistics............................................................................................................. 11 4.1.5. Signal ................................................................................................................. 11 4.1.6. Profiles ............................................................................................................... 12 4.2. WPA Networking ................................................................................................... 16 Appendix A: Terminology ................................................................................................... 19 Appendix B: Important Notices .......................................................................................... 20 For OEM integrators This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including …

Text truncated - open the document above for the full version.

Cover Letter(s)

No. 65, Ku Dai Keng St., Hsichih, Taipei 221, R.O. C. Tel: 886-2-2646-2550 FAX: 886-2-26464641 No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan, R.O.C. Tel: 886-3-407-1718 FAX:886-3-407-1738 Rev 2 C:\tmp\06LR016 VNT6656GEV00\FCC\AP FORM.doc 02/08/02 Date: Jun. 28 th , 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: NCI-VNT6656GEV0X Model: VNT6656GEV00 We would like to have a FCC certification for NCI-VNT6656GEV0X (EUT). The EUT is a 802.11 BG Wireless Module. We have uploaded the following document for the EUT onto your website. 1. Form 731 2. Application & Authorization letter 3. Test Report 4. Block Diagram 5. Manual 6. external photo 7. internal photo & setup photo Please review the information we submitted and issue us a grant for the subject model. If you have any comments, please do not hesitate to contact us. Thank you for your attention to these matters. Sincerely, ________________ Eddy Hsiung / Director International Standards Laboratory No. 65, Ku Dai Keng St., Hsichih, Taipei 221, R.O. C. Tel: 886-2-2646-2550 FAX: 886-2-26464641 No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan, R.O.C. Tel: 886-3-407-1718 FAX:886-3-407-1738 Rev 2 C:\tmp\06LR016 VNT6656GEV00\FCC\AP FORM.doc 02/08/02 FCC Labeling Requirements and Information Date: Jun. 28 th , 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: NCI-VNT6656GEV0X Model: VNT6656GEV00 The following label information is required by the FCC Rules and Regulations for certified devices. Please find marketing information required by the FCC Rules and Regulations as following: Label Requirements An intentional radiator device subject to certification by the FCC shall carry a warning label which includes the following statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (Due to the space limitation, the statement is listed on page 24 of the users’ manual) The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID: NCI-VNT6656GEV0X Sincerely, ________________ Eddy Hsiung / Director International Standards Laboratory No. 65, Ku Dai Keng St., Hsichih, Taipei 221, R.O. C. Tel: 886-2-2646-2550 FAX: 886-2-26464641 No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan, R.O.C. Tel: 886-3-407-1718 FAX:886-3-407-1738 Rev 2 C:\tmp\06LR016 VNT6656GEV00\FCC\AP FORM.doc 02/08/02 Request for Confidentiality Date: Jun. 28 th , 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: NCI-VNT6656GEV0X Model: VNT6656GEV00 In regards the exhibits submitted in support of the application for FCC ID: NCI-VNT6656GEV0X, please classify the following as confidential under the provision of 47 CFR 0.459. ‰ Block Diagram ‰ Technical Spec The application contains technical information which the applicant deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ________________ Eddy Hsiung / Director International Standards Laboratory

Cover Letter(s)

VIA Technologies Inc VIA Technologies Inc 8F,533,Chung-Cheng Road Hsin-Tien,Taipei 231 Taiwan, R. O. C. Tel: 886-2-2218-5452 Fax: 886-2-2218-5260 Date: Jun. 28th, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Applications FCC ID: NCI-VNT6656GEV0X Model: VNT6656GEV00 Dear Sir, We would like to declare that our product 802.11 BG Wireless Module, Model: VNT6656GEV00, FCC ID: VNT6656GEV00 meets the requirements as a modular device which was indicated in FCC Public DA 00-1407, and to have your authorization as a modular approval. The statements are listed below: 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see the attached EUT photo (Internal photo of EUT.pdf). 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip VT6656. 3. “The modular transmitter must have its own power supply regulation.” The modulator of the transmitter needs 2.8 V DC power supply for RF transmitting level. The mini-PCI interface provides 3.3V DC power supply, so there is a 3.3/2.8 DC regulator on the module, and the part number of this regulator is R1114N281D-TR-F. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photos of antennas are showed in the test report and Internal photo of EUT. 5. “The modular transmitter must be tested in a stand-alone configuration”. The EUT is tested in a stand-alone configuration via a USB mini card extender board. The EUT is outside the notebook PC chassis using the extender board to extend the EUT outside the computer chassis. Please see the attached EUT photo (External photo of EUT.pdf). 6. “The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.” Please see exhibition label samples (Label and location.pdf). And also in the OEM installation manual, there are labels and the instructions on how to label the end product.

External Photos

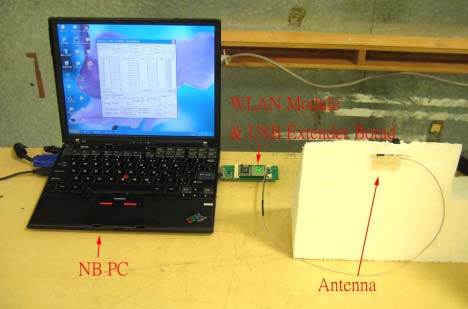

- SET UP PHOTO

ID Label/Location Info

1.7cm Made in Taiwan Model: VNT6656GEV00 MAC ID: 000FA300001 FCC ID: NCI-VNT6656GEV0X S/N : XXXXXXXXXX 1.5cm

Internal Photos

International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 Appendix Photographs of EUT of Product Name 802.11 BG Wireless Module Model VNT6656GEV00 International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -1- EUT-1. International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -2- EUT-2. International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -3- EUT-3. International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -4- EUT-4. International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -5- EUT-5. International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -6- EUT-6. International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -7- EUT-7. International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -8- EUT-8. International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -9- EUT-9. International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -10- EUT-10. International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -11- EUT-11. International Standards Laboratory Report Number: ISL-06LR016P HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -12- EUT-12.

RF Exposure Info

Report Number: ISL-06LR016MPE Issue Date:2006/06/28 HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 ISL-T10-R2-3 MPE Test Report of Product Name 802.11 BG Wireless Module Model VNT6656GEV00 Applied by: VIA Technologies Inc 8F,533,Chung-Cheng Road, Hsin-Tien,Taipei 2310 Taiwan, R. O. C.. Test Performed by: International Standards Laboratory No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325 Taiwan, R.O.C. Tel:(03)407-1718 Fax:(03)407-1738 International Standards Laboratory Report Number: 06LR016MPE HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 Contents of Report 1. General...................................................................................................... 1 1.1 Certification of Accuracy of Test Data ...................................................................... 1 2. Description of Equipment Under Test (EUT).................................. 2 2.1 General Test Conditions ............................................................................................ 4 3. RF Exposure Measurement [Section 15.247(b)(4) & 1.1307(b)] .............. 5 3.1 Applied Standards ...................................................................................................... 5 3.2 Test Procedure ........................................................................................................... 5 3.3 Test Setup................................................................................................................... 5 3.4 Calculation for Maximum Permissible Exposure (MPE) .......................................... 5 4. Appendix : Test Equipment ........................................................................ 7 4.1 Test Equipment List ................................................................................................... 7 FCC ID: NCI-VNT6656GEV0X International Standards Laboratory Report Number: 06LR016MPE HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -1- 1. General 1.1 Certification of Accuracy of Test Data Standards: CFR 47 Part 15 Subpart B Class B CFR 47 Part 15 Subpart C (Section 15.247) Test Procedure: ANSI C63.4:2003 Equipment Tested: 802.11 BG Wireless Module Model: VNT6656GEV00 Applied by: VIA Technologies Inc Sample received Date: 2006/06/16 Final test Date : 2006/06/26 Test Result PASS Test Site: Chamber 02, Conduction 02 Temperature Refer to each site test data Humidity: Refer to each site test data Test Engineer: Jerry Chiou All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Approve & Signature --------------------------------------- Eddy Hsiung/Director Test results given in this report apply only to the specific sample(s) tested under stated test conditions. This report shall not be reproduced other than in full without the explicit written consent of ISL. This report totally contains 9 pages, including 1 cover page , 1 contents page, and 7 pages for the test description. This report must not be use to claim product endorsement by NVLAP or any agency of the U.S. Government. This test data shown below is traceable to NIST or national or international standard. International Standards Laboratory certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). FCC ID: NCI-VNT6656GEV0X International Standards Laboratory Report Number: 06LR016MPE HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A;BSMI:SL2-IN-E-0037;SL2-R1-E-0037;CNLA:1178; IC:IC4067 LT LAB: NVLAP:200234-0;VCCI: R-1435,C-1440;NEMKO:ELA 113B; BSMI:SL2-IN-E-0013;CNLA:0997; IC:IC4164-1 -2- 2. Description of Equipment Under Test (EUT) Description: 802.11 BG Wireless Module Model No.: VNT6656GEV00 Frequency Range 802.11b/g: 2400~2483.5 MHz Support channel: 802.11b/g 11 Channels Modulation Skill: 802.11b DBPSK(1Mbps), DQPSK(2Mbps), CCK(5.5/11Mbps) 802.11g OFDM (6M - 54Mbps) Antennas Type: Antenna 1: PIFA (6-23-7M59K-021 , made by FAVORTRON CO., LTD) Antenna 2: PIFA (6-23-7M59K-011 , made by FAVORTRON CO., LTD) Antenna 3: PIFA (13-130-F14911, made by VSO ELECTRIC CO., LTD ) Antenna 4: PIFA (13-130-F14931 , made by VSO ELECTRIC CO., LTD) Antenna 5: PIFA (13-130-F53021 , made by VSO ELECTRIC CO., LTD) Antenna 6: PIFA (13-130-F62011 , made by VSO ELECTRIC CO., LTD) Antenna 7: PIFA (13-130-F62021 , made by VSO ELECTRIC CO., LTD) Antenna 8: PIFA (13-130-F66021 , made by VSO ELECTRIC CO., LTD) Antenna 9: PIFA (13-130-F66041 , made by VSO ELECTRIC CO., LTD) Antenna Connected: The antenna is connected to the RF connector of the WLAN adapter. Antenna peak Gain: Antenna 1: -0.01 dBi (11b/g) Antenna 2: -0.97 dBi (11b/g) Antenna 3: -4.4 dBi (11b/g) Antenna 4: -4.4 dBi (11b/g) Antenna 5: -3.37 dBi (11b/g)Black -6.03 dBi (11b/g)Grey Antenna 6: -0.22 dBi (11b/g) Antenna 7: -0.22 dBi (11b/g) Antenna 8: -0.31 dBi (11b/g) Antenna 9: -1.55 dBi (11b/g) WLAN Power Type : 3.3V DC from the EUT FCC ID: NCI-VNT6656GEV0X International Standards Laboratory Report Number: 06LR016MPE HC LAB:NVLAP:200234-0;VCCI: R-341,C-354; NEMKO:ELA 113A…

Text truncated - open the document above for the full version.

RF Exposure Info

編號 : 版次 : 廠商名稱 Vendor Name 鴻 呈(VSO) ECS 料 號 ECS Part No. 13-130-F14911 ECS 品 名 ECS Descriptio n ANTENNA...SET L..W/CABLE..G550.LEAD-FREE.VSO 廠商型號 Vendor Part No . 821-101-01210280 廠商聯絡人 Windows 王志偉 Vendor Address: Phone: (02)32343038 Fax: (02)32343056 Mobile: 0963-322-105 E-mail: [email protected] Web: vso.com.tw 客戶承認 王志偉 西元 2006 年 05月 16 日 廠商簽名 RoHS 承 認 書 RoHS APPROVAL SHEET 精英電腦股份有限公司 Elitegroup Computer Systems Co., Ltd 精 英 電 腦 PIFA Antenna Assembly 1. Electrical Specifications 1.1 Frequency Ranges ........................................ 2.4~2.5GHz 1.2 Impedance .................................................. 50ȍ 1.3 VSWR ...................................................... 2.0max 1.4 Return Loss ................................................ -10dBmax 2. Physical Properties 2.1 Cable Type .................................. ...... .......ӥ1.13mm Coaxial, L:230mm 2.2 Cable Color ................................................Black 2.3 Cable Attenuations ........................................1.8dB/m @ 1.0GHz 2.6dB/m @ 2.0GHz 3.7dB/m @ 3.0GHz 4.8dB/m @ 4.0GHz 5.2dB/m @ 5.0GHz 6.4dB/m @ 6.0GHz 2.4 Cable Connector .......................................... I-PEX 2.5 PIFA Metal .................................................Ꭽػ੉ 2.6 Operating Temperature .................................. -20к ~ +65к 2.7 Storage Temperature ........ ............................. -30к ~ +75к G-551-L H-PLANE-2.4GHZ=-9.1dbi E-PLANE-2.4GHZ=-7.8dbi H+E H-PLANE-2.45GHZ=-4.7dbi E-PLANE-2.45GHZ=-4.8dbi H+E H-PLANE-2.5GHZ=-4.4dbi E-PLANE-2.5GHZ=-6.2dbi H+E

RF Exposure Info

編號 : 版次 : 廠商名稱 Vendor Name 鴻 呈(VSO) ECS 料 號 ECS Part No. 13-130-F14931 ECS 品 名 ECS Descriptio n ANTENNA...SET R..W/CABLE..G550.LEAD-FREE.VSO 廠商型號 Vendor Part No . 821-101-01210290 廠商聯絡人 Windows 王志偉 Vendor Address: Phone: (02)32343038 Fax: (02)32343056 Mobile: 0963-322-105 E-mail: [email protected] Web: vso.com.tw 客戶承認 王志偉 西元 2006 年 05月 16 日 廠商簽名 RoHS 承 認 書 RoHS APPROVAL SHEET 精英電腦股份有限公司 Elitegroup Computer Systems Co., Ltd 精 英 電 腦 PIFA Antenna Assembly 1. Electrical Specifications 1.1 Frequency Ranges ........................................ 2.4~2.5GHz 1.2 Impedance .................................................. 50ȍ 1.3 VSWR ...................................................... 2.0max 1.4 Return Loss ................................................ -10dBmax 2. Physical Properties 2.1 Cable Type .................................. ...... .......ӥ1.13mm Coaxial, L:230mm 2.2 Cable Color ................................................Black 2.3 Cable Attenuations ........................................1.8dB/m @ 1.0GHz 2.6dB/m @ 2.0GHz 3.7dB/m @ 3.0GHz 4.8dB/m @ 4.0GHz 5.2dB/m @ 5.0GHz 6.4dB/m @ 6.0GHz 2.4 Cable Connector .......................................... I-PEX 2.5 PIFA Metal .................................................Ꭽػ੉ 2.6 Operating Temperature .................................. -20к ~ +65к 2.7 Storage Temperature ........ ............................. -30к ~ +75к PDF 檔案以 "PDF 製作工廠" 試用版建立 http://www.fineprint.com PDF 檔案以 "PDF 製作工廠" 試用版建立 http://www.fineprint.com

RF Exposure Info

Specification 2.1 Cable............................................. ∮1.13 50Ω 2.3 Pifa body.................................... ......Pifa body NI-PLATED. 2.4 Color............................................. Black 2.5 Color............................................. Gray 2.2Operating Temp................................. -20c°~+65c° 1.4 Return loss.................................... RL≦-10dB 1.5 Gain............................................. 0dbi Physical Properties 2.4GHz ~5.85GHz Dual Band PIFA antenna. 1.1 Frequency Rang..............................2.4Ghz~5.85Ghz 1.2 Impedance ....................................50Ω Nominal 1.3 VSWR..........................................VSWR ≦2 FOR NB WLAN802.11a+b+g : Antenna Assembly PDF created with pdfFactory trial version www.pdffactory.com 表 單 編 號 : D W - E - 0 0 2 熱 縮 套 管 薄 透 明 套 管 : 支 撐 膠 支 撐 膠 導 電 膠 布 薄 熱 縮 套 管 醋 酸 膠 布 導 電 泡 棉 V . 0 3 用 網 絡 分 析 義 測 試 未 標 示 尺 寸 公 差 均 為 E L E C T R I C C O . , L T D . P A G E : 1 O F 1 D A T E : 2 0 0 5 . 0 3 . 0 3 增 加 醋 酸 布 一 段 以 及 變 更 導 電 泡 棉 所 貼 位 置 R E V . R E V I S I O N D E S C R I P T I O N A P P R O V A L D A T E 0 5 . 0 3 . 0 3 PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com G600灰色Returnloss PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com G600黑色Returnloss PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com

RF Exposure Info

料 率 ~ ~ 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB Far-field amplitude of G400BT-2.4G-Ex-2.nsi Far-field amplitude, Eprincipal: Linear, Tau = 0.000 deg Gain = -2.69088 dBi Max far-field (global) = -49.23862 dB, Max far-field (plot) = -49.23862 dB Normalization: Reference, Network offset = 0.000 dB Hpeak at: -3.00001 deg, Vpeak at: 0.000 deg Plot centering: On test-20060406 NSI2000 V4.0.174, Filename:C:\PIFA\ECSM\G300\Data\G300-2.4G-Ex-2.nsi Measurement date/time: 4/6/2006 4:57:04 PM, Filetype: NSI-97 Far-field Cut Analysis: Avg value: -8.581 dB -3. dB beam width: 62.11 deg -6. dB beam width: 117.26 deg -10. dB beam width: 197.83 deg Left Sidelobe: -1.53 dB at -47.632 deg Right Sidelobe: -3.49 dB at 68.691 deg Far-field display setup Azimuth (deg) Span = 360.00001 deg, Center = 0.000 deg, #pts = 361 Start= -180.00001 deg, Stop = 180.00001 deg, Delta = 1.000 deg Elevation (deg) Center = 0.000 deg, #pts = 1 Selected beam(s) 1 of 3 Beam Frequency Azimuth Elevation Pol ---- --------- ------- --------- --- 1 2.400 GHz Azimuth Elevation Single-pol ================================================= Far-field amplitude of G300-2.4G-Ex.nsi 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB Far-field amplitude of G400BT-2.4G-Ex-2.nsi Far-field amplitude, Eprincipal: Linear, Tau = 0.000 deg Gain = -4.62222 dBi Max far-field (global) = -52.14963 dB, Max far-field (plot) = -52.14963 dB Normalization: Reference, Network offset = 0.000 dB Hpeak at: -6.00001 deg, Vpeak at: 0.000 deg Plot centering: On test-20060406 NSI2000 V4.0.174, Filename:C:\PIFA\ECSM\G300\Data\G300-2.4G-Ex-2.nsi Measurement date/time: 4/6/2006 4:57:04 PM, Filetype: NSI-97 Far-field Cut Analysis: Avg value: -9.529 dB -3. dB beam width: 75.15 deg -6. dB beam width: 176.81 deg -10. dB beam width: 199.02 deg Left Sidelobe: -1.59 dB at -45.627 deg Right Sidelobe: -1.94 dB at 72.702 deg Far-field display setup Azimuth (deg) Span = 360.00001 deg, Center = 0.000 deg, #pts = 361 Start= -180.00001 deg, Stop = 180.00001 deg, Delta = 1.000 deg Elevation (deg) Center = 0.000 deg, #pts = 1 Selected beam(s) 1 of 3 Beam Frequency Azimuth Elevation Pol ---- --------- ------- --------- --- 2 2.450 GHz Azimuth Elevation Single-pol ================================================= Far-field amplitude of G300-2.4G-Ex.nsi 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB Far-field amplitude of G400BT-2.4G-Ex-2.nsi Far-field amplitude, Eprincipal: Linear, Tau = 0.000 deg Gain = -4.26204 dBi Max far-field (global) = -52.0764 dB, Max far-field (plot) = -52.07645 dB Normalization: Reference, Network offset = 0.000 dB Hpeak at: 75.99999 deg, V…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Mirror Hu(Engineer)
[email protected]886-2-2218-5452Fax: 886-2-2218-7402

Technical Contact

International Stantards LaboratoryJerry Chiou
[email protected]886-3-407-1718

No. 65, Ku Dai Keng Street, · Hsichih · Taiwan

Test Firm

International Standards LaboratoryDavid Wu
[email protected]886-2-2646-2550Fax: 886-2-2646-4641

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz177.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular Approval. Power Output listed is conducted. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment must be installed and operated with the specified antennas listed in this report. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
