NCIVTS8787XVIA Pixetto Smart Camera

Overview Grove connector Packing List • VIA Pixetto vision sensor • Micro USB 2.0 cable • Grove cable 6. Wait until all three LEDs are lit. This indicates that the device is ready to use. Remember to remove the camera lens cover. Camera lens Reset button Microphone Micro USB 2.0 port Wi-Fi antenna Micro SD card slot • Quick Guide Connecting Method 1. Go to www.pixetto.ai website to download the pixetto-studio-1.0.0-windows.exe. 2. Double click on the pixetto-studio-1.0.0-windows.exe to install. 3. After the installation is completed, the following shortcuts will be created on your desktop. 7. Open the VIA Pixetto Utility tool to view the live capture video from the VIA Pixetto vision sensor. Updating Firmware 1. Connect the VIA Pixetto vision sensor to your PC/laptop. 2. Open the VIA Pixetto Utility tools. Click Help from the menu items then select “Device Update” to update the firmware. Quick Guide Specifications 4. Connect the Micro USB cable to the Micro USB 2.0 port on the VIA Pixetto vision sensor. 5. Connect the VIA Pixetto vision sensor to the USB 2.0 or USB 3.0 port on your personal computer/laptop. 3. Wait until the upgrade is completed. CAUTION: Do not unplug the cable during the update process. Removing the cable may cause damage to the VIA Pixetto vision sensor. Safety Precautions • We recommend adult supervision for users under the age of 18 years old. • Avoid contact with moist objects, or moist or damp environments. • The device is not water proof. Please avoid contact with water at all times. • Do not expose the device to extreme high or low temperatures. • To avoid damage, do not touch the surface of the device while in use For full instructions, please visit the official website www.pixetto.ai Processor ARM Cortex-A7 900MHz System Memory 64MB DDR SDRAM Storage 128MB SPI Flash memory Camera Sensor GalaxyCore GC2053 CMOS image sensor Camera Resolution 1920 x 1080 Camera Lens 130° Field-of-View Onboard I/O 3 LEDs (for power, Wi-Fi and active status) 1 Reset button 1 Microphone 1 Grove connector 1 Micro USB 2.0 port 1 Micro SD card slot 1 Wi-Fi antenna Power Supply 5V/500mA Micro USB 2.0 port 5V/300mA and 3.3V/500mA Grove connector Operating System Linux Operating Temp. 0°C ~ 45 °C Size 38mm x 38mm (1.5” x 1.5”) FCC Caution § 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that To which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The modular can be installed or integrated in mobile or Mobile devices. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated withminimum distance 20cm between the radiator & your body If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: Contains FCC ID: NCIVTS8787X The requirement for KDB 996369 D03: List of applicable FCC rules FCC Part 15. 247. No. Description 1 Peak Output Power 2 6dB and 99% Occupied Bandwidth 3 Conducted Band Edges and Spurious Emission 4 Power spectral density (PSD) 5 Conducted Emission 6 Radiated Band Edges and Spurious Emission

VIA Technologies Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/2/20 Subject; Request for Confidentiality FCC ID: NCIVTS8787X To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Mirror Hu Title: Engineer

VIA Technologies Inc. Letter of Authorization Company: VIA Technologies Inc. Address: 8F, 533,ZhongZheng Rd.,Xindian Dist. New Tapei City 231, Taiwan Product Name: VIA Pixetto Model Number: VTS8787X FCC Identifier: NCIVTS8787X We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Mirror Hu Date: 2020/2/20 Title: Engineer Signature of applicant:

VIA Technologies Inc. Dear Application Examiner, { VIA Technologies Inc., model: VTS8787C, FCC ID: NCIVTS8787X, }, would like to have your authorization as a modular approval specific to { WIFI FP RF MODULE } The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: { modular transmitter must have no its own RF shielding , so this is a LMA submission} 2. “The modular transmitter must have buffered modulation/data inputs.”: {modular Hi1131S have buffered modulation and data inputs} 3. “The modular transmitter must have its own power supply regulation.”: {the Hi1131S Power part have own power supply regulation, input voltage 3.3±DC} 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).”: { has a permanently and irreplaceable attached antenna.} 5. “The modular transmitter must be tested in a stand-alone configuration”: {test in stand-alone configuration} 6. “The modular transmitter must be labeled with its own FCC ID number.”: {the modular have own FCC ID, please see the Label} 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.”: { The modular complies with this requirement, and see the User Manaul} 8. “The modular transmitter must comply with any applicable RF exposure requirements.”: {the modular comply the RF exposure requirement, please see the RF exposure evaluation report} Please contact me if you have any further questions. Signature: Contact Name: Mirror Hu/Title: Engineer Company name: VIA Technologies Inc. Address: 8F, No.535, Zhongzheng Rd., Xindian Dist, New Taipei,Taiwan Tele: 886-2-2218-5452 E-mail: [email protected] 2020/2/26

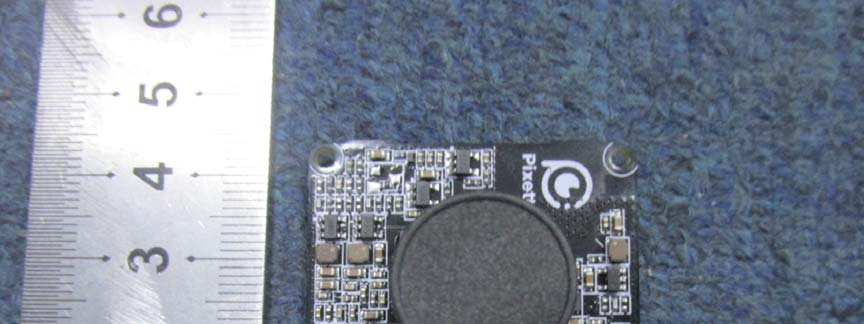

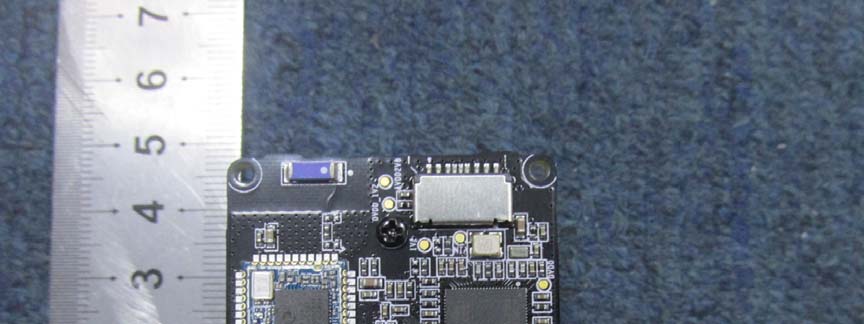

External Photo

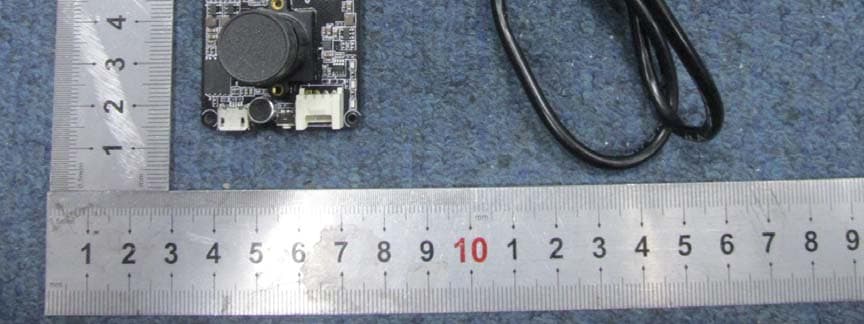

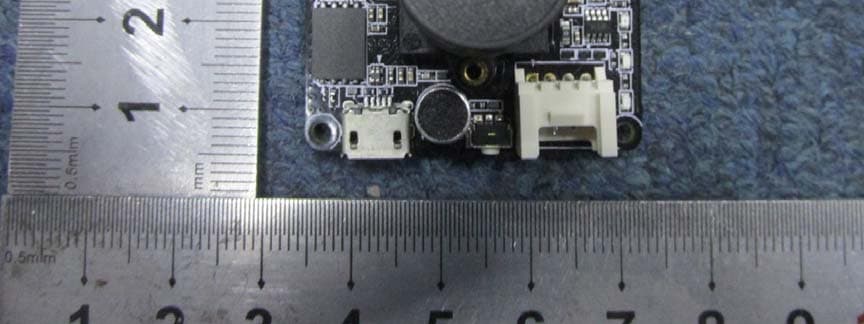

External Photo WIFI ANT

Report No.: SET2020-01030 CCIC-SET/TRF: GJ-EMC-E (2019-05-22) Page 1 of 20 EMC TEST REPORT Report No.: SET2020-01030 Product Name: VIA Pixetto Smart Camera Main Model: VTS8787C Serail Model: VTS8787X(X=A~Z) FCC ID: NCIVTS8787X Applicant: VIA Technologies Inc. Address: 8F, 533,ZhongZheng Rd.,Xindian Dist. New Tapei City 231, Taiwan Received Date: 2020.01.15 Tested Date: 2020.01.15-2020.02.17 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China. Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 20 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2020-01030 CCIC-SET/TRF: GJ-EMC-E (2019-05-22) Page 2 of 20 Te s t R e p o r t Product Name ....................... : VIA Pixetto Smart Camera Model No. ............................ : VTS8787X(X=A~Z) Applicant ............................... : VIA Technologies Inc. Applicant Address ................ : 8F, 533,ZhongZheng Rd.,Xindian Dist. New Tapei City 231, Taiwan Manufacturer ........................ : VIA Technologies Inc. Manufacturer Address ......... : 8F, 533,ZhongZheng Rd.,Xindian Dist. New Tapei City 231, Taiwan Test Standards ...................... : 47 CFR Part 15 Subpart B: Radio Frequency Devices Test Result ............................ : PASS Tested by ............................. : Yun Lei Fang Test Engineer 2020.02.19 Reviewed by ......................... : Chris You Senior Engineer 2020.02.19 Approved by ......................... : Shuangwen Zhang, Manager 2020.02.19 Report No.: SET2020-01030 CCIC-SET/TRF: GJ-EMC-E (2019-05-22) Page 3 of 20 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 4 1.1 EUT Description ......................................................................................................................... 4 1.2 Test Standards and Results ........................................................................................................ 5 1.3 Facilities and Accreditations ...................................................................................................... 6 1.3.1 Facilities .................................................................................................................................... 6 1.3.2 Test Environment Conditions .................................................................................................... 7 1.3.3 Measurement Uncertainty ......................................................................................................... 7 2. TEST CONDITIONS SETTING............................................................................................... 8 2.1 Test Peripherals .......................................................................................................................... 8 2.2 Test Mode .................................................................................................................................... 8 2.3 Test Setup and Equipments List ................................................................................................ 9 2.3.1 Conducted Emission.................................................................................................................. 9 2.3.2 Radiated Emission ..................................................................................................................... 9 3. 47 CFR PART 15B REQUIREMENTS .................................................................................. 12 3.1 Conducted Emission ................................................................................................................. 12 3.1.1 Requirement ............................................................................................................................ 12 3.1.2 Test Description ...................................................................................................................... 12 3.1.3 Test Result ............................................................................................................................... 12 3.2 Radiated Emission .................................................................................................................... 15 3.2.1 Requirement ............................................................................................................................ 15 3.2.2 Test Description ...................................................................................................................... 16 3.2.3 Test Result ............................................................................................................................... 16 Change History Issue Date Reason for change 1.0 2020.02.19 First edition Report No.: SET2020-01030 CCIC-SET/TRF: GJ-EMC-E (2019-05-22) Page 4 of 20 1. GENERAL INFORMATION 1.1 EUT Description EUT Name .......................... .: VIA Pixetto Smart Camera Trade Name.....................: VIA Brand Name.....................: VIA Hardware Version............ : RA Software Version .................. : Hi3516EV200_SDK_V1.0.1.0 Note1:The EUT is a VIA Pixetto Smart Camera, Support 2.4G WIFI; Note 2:For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SET2020-01030 CCIC-SET/TRF: GJ-EMC-E (2019-05…

Text truncated - open the document above for the full version.

15B Setup Photo
