NCT137V6TIndustrial Radio Remote Controller

SAGA1‐V6 User Manual 1. Limited Warranty Warranty Gain Electronic Co., Ltd. guarantees that this equipment meets its published specifications at the time of shipment from the factory. This equipment will perform as described if installed properly. However, Gain cannot guarantee that operation in SAGA product is absolutely error‐free, or without interruption. Warranty Period This equipment is warranted against defects in materials and workmanship for a period of one year from the date of shipment. During the warranty period, Gain is responsible for necessary repairs as long as the product can be proved to be defective. For warranty service or repair, this equipment must be returned to the service facility designated by Gain. Customer is responsible for shipping charges to Gain, while Gain will bear return shipping charges. Excluded Items This warranty does not include consumable parts such as batteries, fuses, buttons and relays. Also this warranty does not cover failure or damage resulting from misuse, accident, unauthorized modification, unsuitable operating environment, natural disasters, improper software setting or improper maintenance. Limitation of liability and remedy If your SAGA product fails to work as warranted above, Gain's maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product. Gain disclaims any liability as a result of any direct/indirect, special, incidental or consequential damages. Remarks No other warranty is expressed or implied, except for the above mentioned. 2. Attention ¾ Read this manual carefully before operating and installation. ¾ Due to the complex nature of equipment, it is necessary to read the entire manual before installation. ¾ Never allow any unauthorized personnel to dismantle equipment as this may cause the equipment damage. ¾ The equipment has been stringently tested for quality assurance before delivery from factory. However, it must not be used in extremely dangerous situations, or where damage may result. ¾ Do not use this device during electrical storm or where there are conditions of high electrical interference. ¾ Always check transmitter battery and receiver input power condition before operation. ¾ After operation, by pressing “STOP” pushbutton switches off receiver unit then keeping the transmitter in a safe place when not in use to avoid any unintentionally operation. ¾ The installation and maintenance service is allowed only when the receiver power is disconnected to avoid electrical shock. ¾ The contents of the manual may be amended by the manufacturer without notice. ¾ The specification and function of remote is subjected to change without notice by manufacturer. 3. FCC CAUTION (1) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. (2) Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. INDUSTRY CANADA NOTICE: Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. 4. Receiver Installation Caution 1. The installation of receiver is allowed only when the receiver remains off and power disconnected. 2. The installation of receiver should be equipped with additional safety devices e.g. isolation switches, fuses .etc... 3. We strongly recommend mounting the receiver as followings: ¾ Mounting spot should keep a safety distance with battery, fuel tank (fuel lines), and exhaust muffle. Industry Canada Caution This device complies with Industry Canada licence‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'IndustrieCanadaapplicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. □2 □2 ¾ Mounting spot is better with the shade for climate circumstances are normally extremely hot or humid. ¾ Avoid the location with vibration and receiver’s cable gland should face down. 4. Please read the receiver wiring diagram carefully before starting installation. 5. Wiring Diagram The standard wiring is as picture #1 shown. If it requires the separate source of power line for relays and receiver input power , please unplug the red jumper( Picture #1) and re‐plug the spare wire #13 (Picture #2 shown), thus wire #2 becomes positive polarity contact (COM) for output replays . 6. Transmitter & Receiver Overview SAGA1‐V6 Transmitter Overview □1 Function buttons □2 Stop Button □3StartPushbuttonA/Start Pushbutton B □4 LED Indicator □5 Bottom Casing □6 Belt Clip Picture #1.Picture #2. □3 □1 □3 □6 □5 □4 □2 SAGA1‐V6 Receiver Overview 7. General Operation Getting Started 1. Unscrew the bottom casing of transmitter, install 2 new AA‐size batteries in the battery compartment (make sure batteries correctly installed according to the indication of “Positive” & “Negative”) and fasten transmitter bottom casing firmly. 2. Press and hold “Start Pushbutton A” & “Start Pushbutton B” on transmitter simultaneously (Factory default) to power on the system. 3. Press function button for operation. Deactivate the operation of transmitter Press Stop pushbutton to deactivate the operation of transmitter and switch off receiver power isolate sw…

Text truncated - open the document above for the full version.

July 8, 2013 FCC ID：NCT137V6T Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) Name: Daphne Liang Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: SAGA / SAGA1-V6 FCC ID: NCT137V6T Product Name: Industrial Radio Remote Controller Signature FCC grantee contact person information.

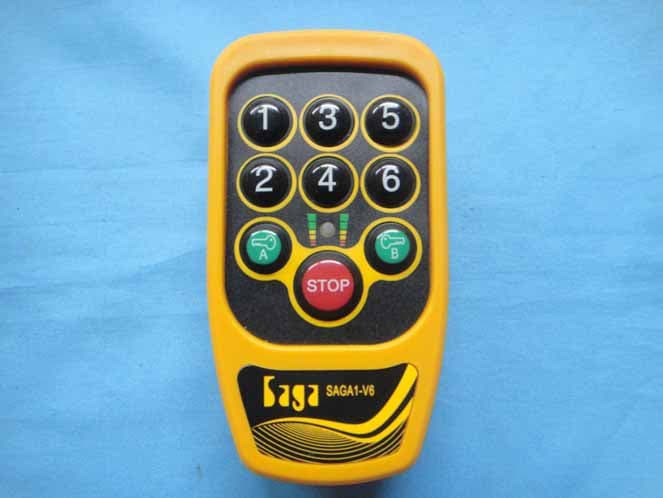

Compliance Certification Services Inc. Report No.T130701N03 Page A1 / 6 External Photo ( SAGA1-V6 ) Compliance Certification Services Inc. Report No.T130701N03 Page A2 / 6 Compliance Certification Services Inc. Report No.T130701N03 Page A3 / 6

Label drawing & Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. GAIN ELECTRONIC CO., LTD Product: Industrial Radio Remote Controller Brand Name : SAGA Model : SAGA1-V6 Made in Taiwan FCC ID: NCT137V6T IC : 2802A-137V6T Caution would be marked on User’s manual

Compliance Certification Services Inc. Report No.T130701N03 Page A4 / 6 Internal Photo ( SAGA1-V6 ) Compliance Certification Services Inc. Report No.T130701N03 Page A5 / 6 Antenna Compliance Certification Services Inc. Report No.T130701N03 Page A6 / 6

Compliance Certification Services Inc. FCC ID: NCT137V6T Report No.: T130701N03-RP1 Page 1 / 40 FCC 47 CFR PART 15 SUBPART C ANSI C63.4: 2009 TEST REPORT For Industrial Radio Remote Controller MODEL: SAGA1-V6 BRAND: SAGA Issued to GAIN ELECTRONIC CO., LTD 4F-1, NO.288-5, HSIN YA RD, CHIEN CHEN ZONE (806), KAOHSIUNG, TAIWAN, ROC Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: August 16, 2013 Compliance Certification Services Inc. FCC ID: NCT137V6T Report No.: T130701N03-RP1 Page 2 / 40 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 July 23, 2013 Initial Issue ALL Sunny.Chang 01 August 16, 2013 Update test dataALL Sunny Chang Compliance Certification Services Inc. FCC ID: NCT137V6T Report No.: T130701N03-RP1 Page 3 / 40 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................7 3.1 EUT CONFIGURATION ...................................................................................7 3.2 EUT EXERCISE ...............................................................................................7 3.3 GENERAL TEST PROCEDURES ....................................................................7 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................8 3.5 DESCRIPTION OF TEST MODES...................................................................8 4. INSTRUMENT CALIBRATION .............................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................9 4.2 MEASUREMENT EQUIPMENT USED ............................................................9 4.3 MEASUREMENT UNCERTAINTY .................................................................10 5. FACILITIES AND ACCREDITATIONS ...............................................................11 5.1 FACILITIES ....................................................................................................11 5.2 EQUIPMENT ..................................................................................................11 5.3 LABORATORY ACCREDITATIONS LISTING ...............................................11 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................12 6. SETUP OF EQUIPMENT UNDER TEST ............................................................13 6.1 SETUP CONFIGURATION OF EUT ..............................................................13 6.2 SUPPORT EQUIPMENT................................................................................13 6.3 EUT OPERATING CONDITION .....................................................................13 7. FCC PART 15.249 REQUIREMENTS ................................................................14 7.1 20 DB BANDWIDTH.......................................................................................14 7.2 BAND EDGES MEASUREMENT ...................................................................17 7.3 DUTY CYCLE.................................................................................................19 7.4 SPURIOUS EMISSION..................................................................................22 7.5 POWERLINE CONDUCTED EMISSIONS .....................................................38 APPENDIX I - PHOTOGRAPHS OF TEST SETUP .................................................39 APPENDIX II - PHOTOGRAPHS OF EUT .............................................................. A1 Compliance Certification Services Inc. FCC ID: NCT137V6T Report No.: T130701N03-RP1 Page 4 / 40 1. TEST RESULT CERTIFICATION Product: Industrial Radio Remote Controller Model: SAGA1-V6 Brand Name: SAGA Applicant: GAIN ELECTRONIC CO., LTD 4F-1, NO.288-5, HSIN YA RD, CHIEN CHEN ZONE (806), KAOHSIUNG, TAIWAN, ROC Manufacturer: GAIN ELECTRONIC CO., LTD 4F-1, NO.288-5, HSIN YA RD, CHIEN CHEN ZONE (806), KAOHSIUNG, TAIWAN, ROC Tested: July 04, 2013 ~ July 23, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2012 ANSI C63.4 : 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: NCT137V6T Report No.: T130701N03-RP1 Page 5 / 40 2. EUT DESCRIPTION Product Industrial Radio Remote Controller Model Number SAGA1-V6 Brand Name SAGA Received Date July 01, 2013 Frequency Range 904.000MHz to 926.138MHz Transmit Peak Power 93.96 dBμV/m Data Rate 9.6kbps Number of Channels 160 Channel Type of Modulation FSK Power Supply 3Vdc (2 AA Size Battery) Antenna Type Planar inverted-F antenna (PIFA); Gain: 0 dBi Temperature Range -40°C ~ +80°C Remark: 1. Client consigns only one model sample to test (Model Number: SAGA1-V6 ). Therefore, the testing Lab. just guarantees the unit, which has been tested. 2. This submittal(s) (test report) is intended for FCC ID: NCT137V6T filing to comply with Section 15.107 & 15.109 (FCC Part 15, Subpart B) and Section 15.207, 15.209, 15.249. 3. For more details, please refer to the User’s manual of the EUT. Compliance Certification Services Inc. FCC ID: NCT137V6T Report No.…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: NCT137V6T Report No.: T130701N03-RP1 Page 39 / 40 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED RF EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID: NCT137V6T Report No.: T130701N03-RP1 Page 40 / 40
