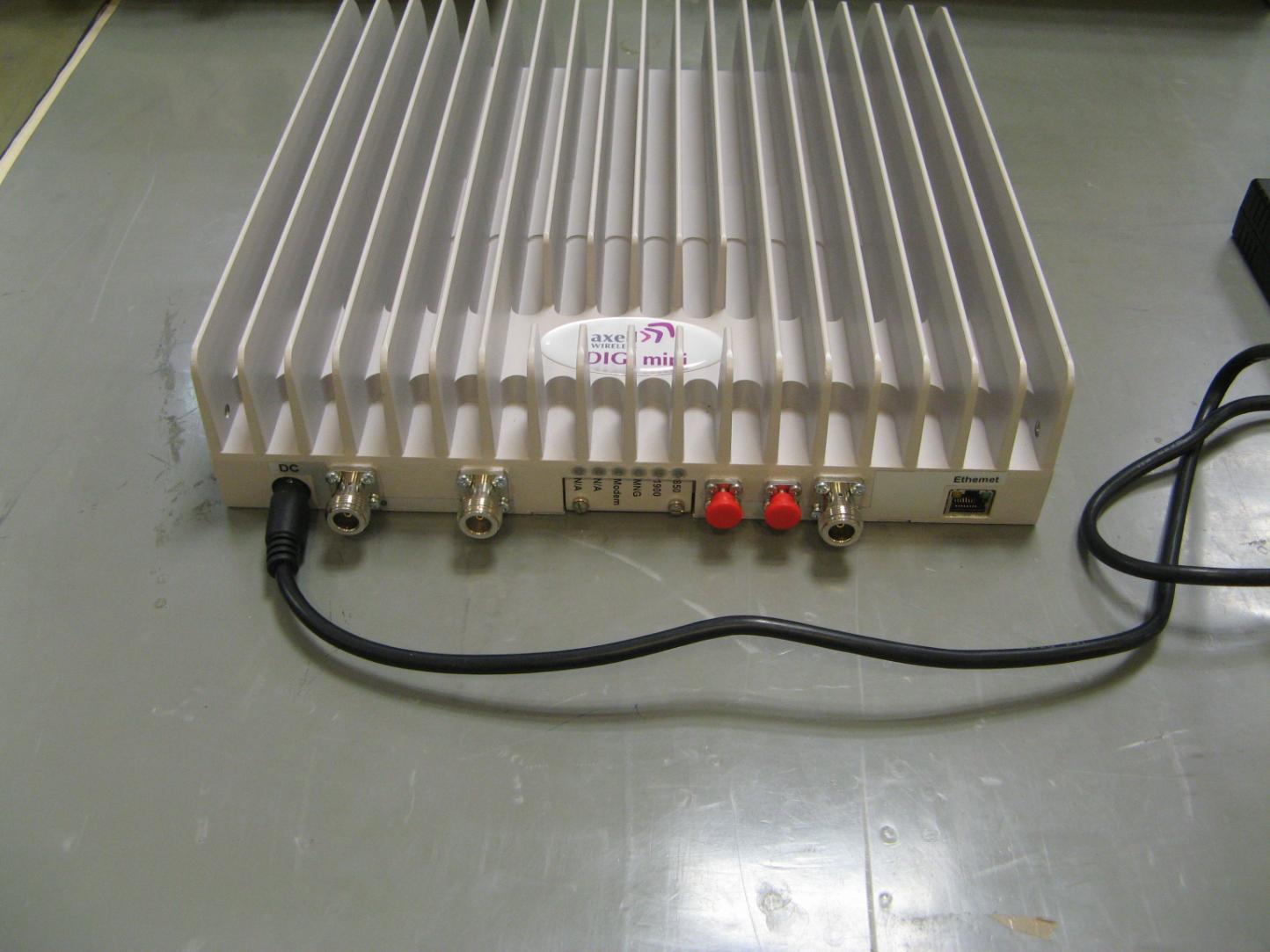

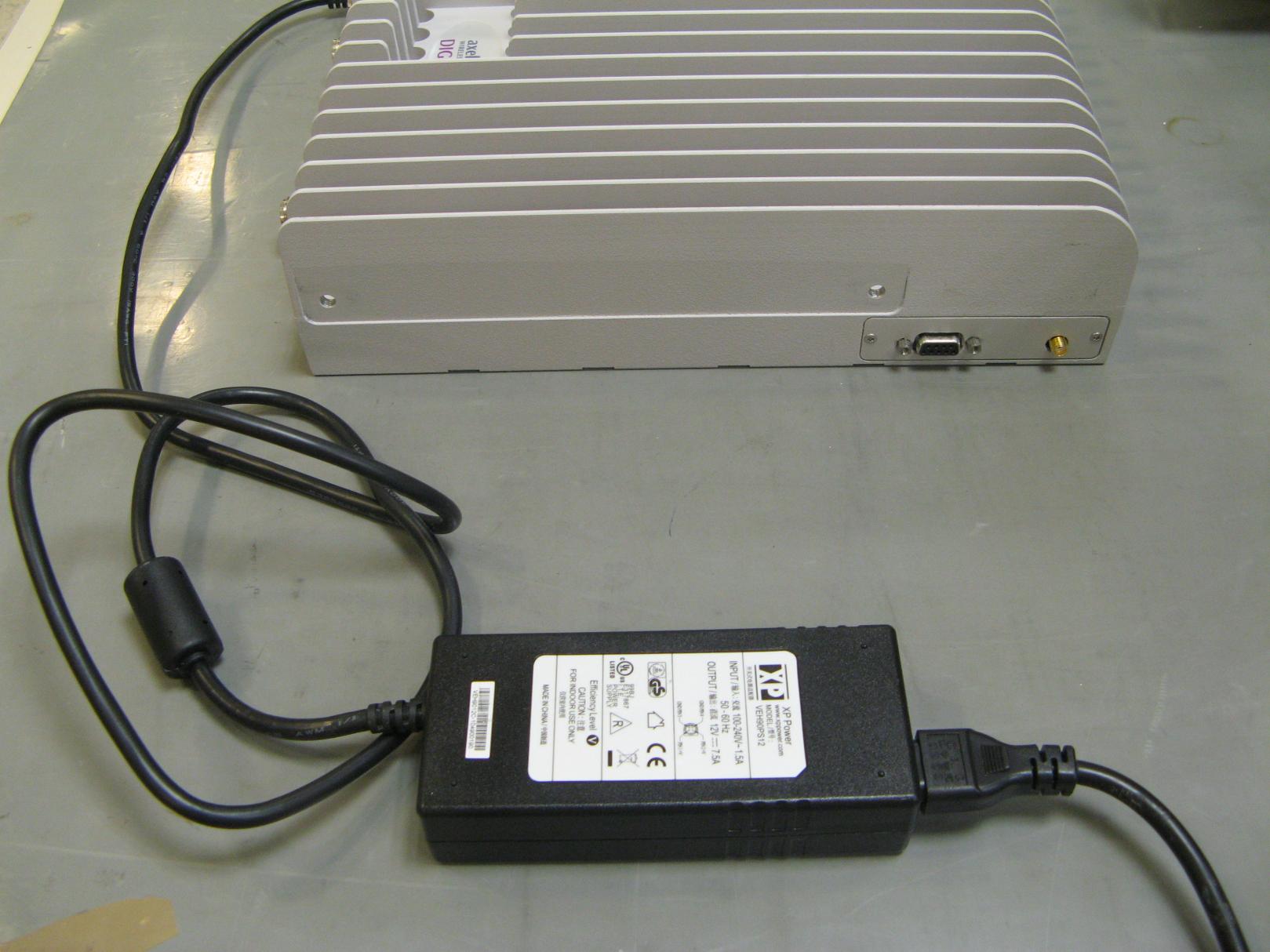

AXELL DIGIMINI-AMERICAS REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL DIGImini Americas High Selectivity Digital Multi-Band Mini-Repeater Rev 3.5 Product Description and User’s Manual THIS DOCUMENT IS VALID FOR THE FOLLOWING REPEATER MODELS: Product Part Number IC ID FCC ID DigiMini 850/1900 D-MINI-2108-2019 8749A-DM819 NEO-DMINI21082019 DigiMini 700U/1700 D-MINI-2107U-2017 8749A-DM7U17 NEODMINI2107U2017 DigiMini 700L/1700 D-MINI-2107L-2017 8749A-DM7L17 NEODMINI2107L2017 DIGI mini 4 bands Accessory upgrade kit D-MINI 4B-AK Single Band/Dual Band Tri Band/Quad Band AXELL DIGIMINI- AMERICAS REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL II DIGImini Americas User Manual Rev 3.5 © Axell Wireless Ltd Copyright © 2012 Axell Wireless Ltd All rights reserved. No part of this document may be copied, distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language without the prior written permission of Axell Wireless Ltd. The manufacturer has made every effort to ensure that the instructions contained in this document are adequate and free of errors and omissions. The manufacturer will, if necessary, explain issues which may not be covered by this document. The manufacturer's liability for any errors in the document is limited to the correction of errors and the aforementioned advisory services. This document has been prepared to be used by professional and properly trained personnel, and the customer assumes full responsibility when using them. The manufacturer welcomes customer comments as part of the process of continual development and improvement of the documentation in the best way possible from the user's viewpoint. Please submit your comments to the nearest Axell Wireless sales representative. Contact Information Headquarters Axell Wireless Aerial House Asheridge Road Chesham Buckinghamshire HP5 2QD United Kingdom Tel: +44 1494 777000 Fax: +44 1494 777002 Commercial inquiries [email protected] Web site www.axellwireless.com Support issues [email protected] Technical Support Line, English speaking +44 1494 777 747 Contact information for Axell Wireless offices in other countries can be found on our web site, www.axellwireless.com AXELL DIGIMINI- AMERICAS REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL © Axell Wireless Ltd DIGImini Americas User Manual Rev 3.5 III About This Manual This Product Manual provides the following information: • Description of the DIGImini Repeater • Procedures for setup, configuration and checking the proper operation of the Mini-Repeater • Maintenance and troubleshooting procedures For whom it is Intended This Product Manual is intended for experienced technicians and engineers. It is assumed that the customers installing, operating, and maintaining Axell Wireless Mini-Repeaters are familiar with the basic functionality of Repeaters. Notice Confidential - Authorized Customer Use This document may be used in its complete form only and is solely for the use of Axell Wireless employees and authorized Axell Wireless channels or customers. The material herein is proprietary to Axell Wireless. Any unauthorized reproduction, use or disclosure of any part thereof is strictly prohibited. All trademarks and registered trademarks are the property of their respective owners. Disclaimer of Liability Contents herein are current as of the date of publication. Axell Wireless reserves the right to change the contents without prior notice. The information furnished by Axell Wireless in this document is believed to be accurate and reliable. However, Axell Wireless assumes no responsibility for its use. In no event shall Axell Wireless be liable for any damage resulting from loss of data, loss of use, or loss of profits and Axell Wireless further disclaims any and all liability for indirect, incidental, special, consequential or other similes damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Guarantees • All antennas must be installed with lightning protection. Damage to power modules, as a result of lightning are not covered by the warranty. • Antennas must be connected before switching on AC or DC power. Switching power on prior to the connection of antenna cables is regarded as faulty installation procedure and therefore not covered by the Axell Wireless warranty. Exclusive Remedies • The remedies provided herein are the Buyer’s sole and exclusive remedies. Axell Wireless shall not be viable for any direct, incidental, or consequential damages, whether based on contract, tort, or any legal theory. AXELL DIGIMINI- AMERICAS REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL IV DIGImini Americas User Manual Rev 3.5 © Axell Wireless Ltd Compliance with FCC FCC Part 15 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. If not installed and used in accordance with the instructions, this equipment generates, uses and can radiate radio frequency energy. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to RF reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the Donor antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Unauthorized Changes to Equipment Changes or Modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment FCC RF Exposure Limits This unit complies with FCC RF exposure limits for…

Text truncated - open the document above for the full version.

Test Lab Inquiry on 10/01/2012 : We are testing a series of repeaters which operate in multiple bands and support a variety of technologies, including (CDMA/WCDMA, GSM & LTE) Can you please confirm if it is acceptable to use a CW signal in place of a modulated signal, when performing radiated spurious emissions, conducted spurious and intermodulation tests. The alternative would be to load the units with the range of applicable signals e.g. QPSK, GMSK, 64QAM for each of the technologies above. However this would significantly extend the test time, and we believe that the CW signal would provide worst case results for these tests. Testing would still be performed on each band, with the CW signal/s set to the maximum input for the EUT. I have attached an example data sheet for the products in question. FCC response on 10/11/2012 For reference, FCC guidance has included the following (from 2009 Licensed Devices General Technical Requirements powerpoint/notes): Intermodulation INTERMOD TEST – Transmitters and amplifiers designed to handle multiple channels must be tested with multiple carriers for each emission type to show intermodulation products. For multi channel devices show a single channel comparison of input and output signal and also perform the three tone intermodulation test. This is a conducted measurement. In most cases the equipment is modulated during the test. In some cases, such as FM, the signal is unmodulated. For units where a power reduction is required at the band edges, the test only needs to be done at the first channels at each edge of the band with maximum power. Intermodulation (continued) – Intermodulation products are spurious emissions which must meet the emissions mask in each Radio Service rule part – Test Procedure - Should be tested at highest rated output level • Three Signal Test – requires only one test – two near to each other at one edge of passband – other signal alone at other edge of passband • Two Signal Test - requires the test be done twice – Once with two signals at upper edge of passband – Once with two signals at lower edge of passband Three signals of equal magnitude at their highest rated output level should be tested for each type of modulation. The two channels near each other should be separated by at least one operating channel width. The two tone test is also accepted but must be performed twice, one time at each end of the operating band. As we understand it, general industry procedures include: i) Measured using a 1 MHz Measurement Bandwidth, for UTRA signals with the first interfering signal at 3.5 MHz offset from the center of the first UTRA channel in the passband and the second carrier adjusted in frequency such that the intermodulation product falls at the frequency of the first UTRA channel in the passband. ii) Measured using a 1 MHz Measurement Bandwidth, for CDMA signals with the first interfering signal at 1.25 MHz offset from the center of the first CDMA channel in the passband and the second carrier adjusted in frequency such that the intermodulation product falls at the frequency of the first CDMA channel in the passband. iii) Measured using a 1 MHz Measurement Bandwidth, for E-UTRA signals with the first interfering signal at 1.0 MHz offset from the edge of the first and last E-UTRA channel in the passband and the second carrier adjusted in frequency such that the intermodulation product falls at the frequency of the first and last E-UTRA channel in the passband. iv) Measured using a 3 kHz Measurement Bandwidth, for GSM signals with two continuous wave (CW) input signals spaced 600 kHz apart and centered in the pass band of the booster. Attachment Details: 3GPP

Label Location

AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 Page 1 of 4 RF Exposure and Transmitter Power Considerations for the DIGImini 2108-2019 FCC ID: NEO-DMINI21082019 The FCC requires that the calculated MPE be equal to or less than a given limit dependent on frequency at a distance of 20 cm from a device to the body of a user. The MPE calculation as given in FCC OET Bulletin 65, page 19 is used to calculate the safe operating distance for the user. The DIGImini is a cellular repeater which operates using two antennas, an outdoor antenna for cellular base station communication and an indoor antenna for communication with user devices. This MPE calculation is intended to address the RF exposure compliance of the indoor antenna (downlink) only, the outdoor antenna (uplink) RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s). Outdoor antenna gain: 13 dBi (max) with 2 dB cable loss. Indoor antenna gain: 2.2 dBi (max). The transmitter operation of the DIGImini covers the Cellular 850 MHz (Band V) and PCS 1900 MHz (Band II) operating bands using GSM, GPRS, EDGE, CDMA, W-CDMA and LTE cellular operating technologies. The following FCC Rule Parts are applicable: Part 1.1307 (b) Actions that may have a significant environmental effect, for which Environmental Assessments (EAs) must be prepared. Part 1.1310 – Radiofrequency radiation exposure limits Part 2.1091 – Radiofrequency radiation exposure evaluation: mobile devices Part 22.913 (a)(2) The ERP of mobile transmitters and auxiliary test transmitters must not exceed 7 Watts. Part 24.232 (b) Mobile/ Portable stations are limited to 2 Watts EIRP peak power. AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 Page 2 of 4 CALCULATIONS Maximum Transmitter Power for DIGImini 2108-2019 The maximum transmitter power for uplink and downlink transmissions on each frequency band is calculated below. The highest measured conducted output power, combined with the highest applicable antenna gain was chosen as being representative of the worst case operating condition. In all cases the ERP/EIRP met the appropriate Part 22 and Part 24 limits detailed above. 1. Uplink ERP – 850 MHz (Band V) Maximum specified uplink antenna gain = 13 dBi with 2 dB cable loss Max. Conducted Transmitter Power for the DIGImini: P = 21.9 dBm measured @ antenna socket in GSM GMSK operating mode. EIRP eff = 21.9 + 13 - 2 = 32.9 dBm ERP eff = EIRP eff – 2.1 dB (half wave dipole gain) ERP eff = 32.9 – 2.1 = 30.8 dBm (1.2 W) ie: ERP eff = 1.2 W (meets 7 W limit) EIRP – PCS 1900 MHz (Band II) Max. Conducted Transmitter Power for the DIGImini: P = 21.2 dBm measured @ antenna socket in GSM 8-PSK operating mode. EIRP eff = 21.2 + 13 - 2 = 32.2 dBm ie: EIRP eff = 1.66 W (meets 2 W limit) 2. Downlink ERP – 850 MHz (Band V) Maximum specified downlink antenna gain = 2.2 dBi Max. Conducted Transmitter Power for the DIGImini: P = 21.7 dBm measured @ antenna socket in GSM GMSK operating mode. EIRP eff = 21.7 + 2.2 = 23.9 dBm ERP eff = EIRP eff – 2.1 dB (half wave dipole gain) ERP eff = 23.9 – 2.1 = 21.8 dBm (0.15 W) ie: ERP eff = 0.15 W (meets 7 W limit) EIRP – PCS 1900 MHz (Band II) Max. Conducted Transmitter Power for the DIGImini: P = 21.5 dBm measured @ antenna socket in GSM 8-PSK operating mode. EIRP eff = 21.5 + 2.2 = 23.7 dBm ie: EIRP eff = 0.23 W (meets 2 W limit) AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 Page 3 of 4 MPE Calculation for the DIGImini 2108-2019 Indoor Antenna The MPE calculation as given in FCC OET Bulletin 65, page 19 is used to calculate the safe operating distance for the user. This calculation addresses the RF exposure compliance of the indoor antenna only using the following maximum downlink transmitter powers calculated above: 850 MHz (Band V) EIRP: 23.9 dBm PCS 1900 MHz (Band II) EIRP: 23.7 dBm S = EIRP/4 π R 2 Where S = Power density EIRP = Effective Isotropic Radiated Power (EIRP = P x G) P = Conducted Transmitter Power G = Antenna Gain (relative to an isotropic radiator) R = distance to the centre of radiation of the antenna (safe operating distance) DIGImini @850 MHz (Band V): Values: Transmitter frequency range = 869 MHz to 894 MHz (DL) P = Power Input to antenna = 21.7 dBm G = Antenna Gain = 2.2 dBi Therefore Max. EIRP = 23.9 dBm (0.245 W) Power Density Requirement From table 1 (b) - Limits for General Population/ Uncontrolled Exposure of FCC Rule Part 1.1310 for 850 MHz S = f/1500 mW/cm 2 (f = operating frequency) S req = 824/1500 = 0.55 mW/cm 2 (worst case) Calculation: S = EIRP/4 π R 2 0.55 = 245/(12.56 x R 2 ) R 2 = 245/(12.56 x 0.55) R = 5.96 cm (<20 cm) AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 Page 4 of 4 DIGImini @ PCS 1900 MHz (Band II): Values: Transmitter frequency range = 1930 MHz to 1990 MHz (DL) P = Power Input to antenna = 21.5 dBm G = Antenna Gain = 2.2 dBi Therefore Max. EIRP = 23.7 dBm (0.234 W) Power Density Requirement From table 1 (b) - Limits for General Population/ Uncontrolled Exposure of FCC Rule Part 1.1310 for 1900 MHz S req = 1.0 mW/cm 2 Calculation: S = EIRP/4 π R 2 1.0= 234/(12.56 x R 2 ) R 2 = 234/(12.56 x 1.0) R = 4.32 cm (<20 cm) C…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: D-MINI-2108-2019 FCC ID: NEO-DMINI21082019 To: FCC Parts 2.1046; 2.1049; 22.913(a); 22.917; 24.232; 24.238 & 15.107 3GPP TS 36.143 V10.3.0 Test Report Serial No.: RFI-RPT-RP87376JD01A V4.0 Version 4.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of John Newell, Group Quality Manager: Checked By: Ian Watch Signature: Date of Issue: 05 November 2012 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP87376JD01A V4.0 VERSION 4.0 ISSUE DATE: 05 NOVEMBER 2012 Page 2 of 173 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP87376JD01A V4.0 VERSION 4.0 ISSUE DATE: 05 NOVEMBER 2012 RFI Global Services Ltd Page 3 of 173 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 6 2.3. Methods and Procedures 7 2.4. Deviations from the Test Specification 7 3. Equipment Under Test (EUT) ....................................................................................................... 8 3.1. Identification of Equipment Under Test (EUT) 8 3.2. Description of EUT 8 3.3. Modifications Incorporated in the EUT 8 3.4. Additional Information Related to Testing 9 3.5. Support Equipment 13 4. Operation and Monitoring of the EUT during Testing ............................................................. 14 4.1. Operating Modes 14 4.2. Configuration and Peripherals 14 5. Measurements, Examinations and Derived Results ................................................................ 15 5.1. General Comments 15 5.2. Test Results Part 22 16 5.2.1. AC Conducted Spurious Emissions 16 5.2.2. Transmitter Conducted Output Power 20 5.2.3. Transmitter Frequency Stability (Temperature Variation) 25 5.2.4. Transmitter Frequency Stability (Voltage Variation) 26 5.2.5. Transmitter Occupied Bandwidth 27 5.2.6. Transmitter Conducted Emissions 40 5.2.7. Transmitter Out of Band Radiated Emissions 43 5.2.8. Transmitter Band Edge Conducted Emissions 50 5.3. Test Results Part 24 83 5.3.1. AC Conducted Spurious Emissions 83 5.3.2. Transmitter Conducted Output Power 86 5.3.3. Transmitter Frequency Stability (Temperature Variation) 93 5.3.4. Transmitter Frequency Stability (Voltage Variation) 94 5.3.5. Transmitter Occupied Bandwidth 95 5.3.6. Transmitter Conducted Emissions 113 5.3.7. Transmitter Out of Band Radiated Emissions 116 5.3.8. Transmitter Band Edge Conducted Emissions 123 5.4. Test Results: 3GPP TS 36.143 V10.3.0 Clause 11 168 5.4.1. Input Intermodulation 168 6. Measurement Uncertainty ........................................................................................................ 171 Appendix 1. Test Equipment Used .............................................................................................. 172 TEST REPORT SERIAL NO: RFI-RPT-RP87376JD01A V4.0 VERSION 4.0 ISSUE DATE: 05 NOVEMBER 2012 Page 4 of 173 RFI Global Services Ltd 1. Customer Information Company Name: Axell Wireless Address: Aerial House Asheridge Road Chesham Buckinghamshire HP5 2QD United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP87376JD01A V4.0 VERSION 4.0 ISSUE DATE: 05 NOVEMBER 2012 RFI Global Services Ltd Page 5 of 173 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 22.913(a), Part 22.917 Subpart H (Public Mobile Services) Specification Reference: 47CFR24 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 24.232, Part 24.238 Subpart E (Personal Communication Services) Specification Reference: 47CFR15.107 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 15 Subpart B (Unintentional Radiators) - Sections 15.107 Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH Test Dates: 21 May 2012 to 01 November 2012 TEST REPORT SERIAL NO: RFI-RPT-RP87376JD01A V4.0 VERSION 4.0 ISSUE DATE: 05 NOVEMBER 2012 Page 6 of 173 RFI Global Services Ltd 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 22 15.107(a) AC Conducted Spurious Emissions Part 2.1046(a)/22.913(a) Transmitter Conducted Output Power Part 2.1049 Transmitter Occupied Bandwidth Part 2.1051/22.917 Transmitter Conducted Emissions Part 2.1053/22.917 Transmitter Out of Band Radiated Emissions Part 2.1051/22.917 Transmitter Band Edge Conducted Emissions Part 2.1055/22.355 Transmitter Frequency Stability (Temperature and Voltage Variation) Part 24 15.107(a) AC Conducted Spurious Emissions Part 2.1046(a)/24.232 Transmitter Conducted Output Power Part 2.1049 Transmitter Occupied Bandwidth Part 2.1051/24.238 Transmitter Conducted Emissions Part 2.1053/24.238 Transmitter Out of Band Radiated Emissions Part 2.1051/24.238 Transmitter Band Edge Conducted Emissions Part 2.1055/24.235 Transmitter Frequency Stability (Temperature and Voltage Variation) 3GPP Reference (TS 36.143 V10.3.0) Measurement Result Clause 11 Input Intermodulation Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: RFI-RPT-RP87376JD01A V4.0 VERSION 4.0 ISSUE DATE: 05 NOVEMBER 2012 RFI Global Services Ltd Page 7 of 173 2.3. Methods and Procedures Referenc…
