NEODMBR37073708PSClass B Booster

Cobham Wireless – Coverage Date: 6-Set-15 www.cobham.com/wireless Doc. No. 00060CDUM Rev. 1.0 Page | I The most important thing we build is trust D-MBR 3707 3708 PS NFPA Repeaters The future of in-building coverage User Manual – 00060CDUM Rev. 1.0 This manual is relevant for 700/800 MHz Digital Multi-Channel Class B RF Signal Booster D-MBR 3707-3708 PS NFPA Booster D-MBR 3707-3708 AC feeder and battery charger D-MBR 3707-3708 PS NFPA CLASS B SIGNAL BOOSTER PRODUCT DESCRIPTION AND USER’S MANUAL www.cobham.com/wireless Cobham Wireless – Coverage Date: 6-Set-15 Page | II Doc. No. 00060CDUM Rev. 1.0 Copyright © 2015 Axell Wireless Limited trading as Cobham Wireless All rights reserved. No part of this document may be copied, distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language without the prior written permission of Axell Wireless Limited trading as Cobham Wireless. The manufacturer has made every effort to ensure that the instructions contained in this document are adequate and free of errors and omissions. The manufacturer will, if necessary, explain issues which may not be covered by this document. The manufacturer's liability for any errors in the document is limited to the correction of errors and the aforementioned advisory services. This document has been prepared to be used by professional and properly trained personnel, and the customer assumes full responsibility when using them. The manufacturer welcomes customer comments as part of the process of continual development and improvement of the documentation in the best way possible from the user's viewpoint. Please submit your comments to the nearest Cobham Wireless sales representative. Contact Information Headquarters Axell Wireless trading as Cobham Wireless Aerial House, Asheridge Road Chesham, Buckinghamshire HP5 2QD, United Kingdom Tel: +44 1494 777000 Fax: +44 1494 777002 Commercial inquiries [email protected] Website www.cobham.com/wireless Support issues [email protected] Technical Support Line, English speaking +44 1494 777 747 About This Manual This Product Manual provides the following information: • Description of the Repeater unit • Procedures for setup, configuration and checking the proper operation of the unit • Maintenance and troubleshooting procedures For whom it is intended This Product Manual is intended for experienced technicians and engineers. It is assumed that the customers installing, operating, and maintaining Cobham Wireless Repeaters are familiar with the basic functionality of Repeaters. Notice Confidential - Authorized Customer Use This document may be used in its complete form only and is solely for the use of Cobham Wireless employees and authorized Cobham Wireless channels or customers. The material herein is proprietary to Cobham Wireless. Any unauthorized reproduction, use or disclosure of any part thereof is strictly prohibited. All trademarks and registered trademarks are the property of their respective owners. D-MBR 3707-3708 PS NFPA CLASS B SIGNAL BOOSTER PRODUCT DESCRIPTION AND USER’S MANUAL Cobham Wireless – Coverage Date: 6-Set-15 www.cobham.com/wireless Doc. No. 00060CDUM Rev. 1.0 Page | III Disclaimer of Liability Contents herein are current as of the date of publication. Cobham Wireless reserves the right to change the contents without prior notice. The information furnished by Cobham Wireless in this document is believed to be accurate and reliable. However, Cobham Wireless assumes no responsibility for its use. In no event shall Cobham Wireless be liable for any damage resulting from loss of data, loss of use, or loss of profits and Cobham Wireless further disclaims any and all liability for indirect, incidental, special, consequential or other similes damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Safety Instructions and Warnings Throughout this manual, important safety warnings and admonishments are included to warn of possible hazards to persons or equipment. A safety warning identifies a possible hazard and then describes what may happen if the hazard is not avoided. The safety warnings – in the form of Dangers, Warnings and Cautions must be followed at all times. These warnings are flagged by the use of a warning icon, usually the triangular alert icon seen below. The exclamation point within the triangular alert icon is intended to warn the operator or service personnel of operation and maintenance from factors relating to the product and its operating environment, which could pose a safety hazard. Guarantees All antennas must be installed with lightning protection. Damage to power modules, as a result of lightning are not covered by the warranty. Switching on AC or DC power prior to the connection of antenna cables is regarded as faulty installation procedure and therefore not covered by the Cobham Wireless warranty. Repeater enclosures should be closed using the two screws. The screws must be fully tightened. Failure to do so may affect the IP65 compliancy and therefore any warranty. Exclusive Remedies The remedies provided herein are the Buyer’s sole and exclusive remedies. Cobham Wireless shall not be viable for any direct, incidental, or consequential damages, whether based on contract, tort, or any legal theory. D-MBR 3707-3708 PS NFPA CLASS B SIGNAL BOOSTER PRODUCT DESCRIPTION AND USER’S MANUAL www.cobham.com/wireless Cobham Wireless – Coverage Date: 6-Set-15 Page | IV Doc. No. 00060CDUM Rev. 1.0 General Safety Warnings Concerning Use of System Always observe standard safety precautions during installation, operation and maintenance of this product. Caution labels! Throughout this manual, there are "Caution" warnings. "Caution" calls attention to a procedure or practice, which, if ignored, may result in injury or damage to the system, system component or even the user. Do not perform any procedure preceded by a "Cauti…

Text truncated - open the document above for the full version.

Attestation exhibit We, Axell Wireless, state under our sole responsibility that all warning labels and Class B disclosure of the booster (FCC ID:NEODMBR37073708PS) are shown in all documentations such as user manual and data sheet. These documents are supplied with the booster, and can also be found online at our website www.axellwireless.com. We declare that the Warning label will be visible on the outside packaging of device as well as on the device itself. _______________________ Mr. Raviv Cohen [email protected]

AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 Authority to Act as Signatory 10 th June, 2014 Attn: Director of Certification On our behalf, I appoint Raviv Cohen, R&D Engineer, Axell Wireless, 6 Bareket Street, Kiryat Matalon P.O. Box 10241 ,Petah-Tikva49002, Tel Aviv, Israel. In the preparation of applications for FCC equipment certification for Axell wireless, Grantee Code NEO. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified, still resides with Peter Bradfield, Axell Wireless Aerial House, Asheridge Road, Chesham Bucks, HP5 2QD, UK. Dated this 10th Day of June 2014 By: Peter l. Bradfield Signature Printed Thank you for your attention to this matter. Yours faithfully For and on behalf Axell Wireless Peter L Bradfield Senior Systems Engineer Tel +44 (0)1494 777000 Fax +44 (0)1494 777002 www.axellwireless.com

Axell Wireless Israel Ltd. Tel: +972 3918 0180; Fax: +972 3918 0190, www.axellwireless.com October 25, 2015 To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Application for certification via PAG of the D-MBR 3707-3708-PS-NFPA-48DC-B Band Selective Repeater, FCC ID:NEODMBR37073708PS Dear Gentlemen, Please find attached our application for certification of the Band Selective Repeater that supports the 700 MHz and 800 MHz bands, FCC ID:NEODMBR37073708PS, model name D-MBR 3707-3708-PS-NFPA-48DC-B, prepared in accordance with FCC Rules, parts 2 and 90.219. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC (Registration Numbers 90623, 90624). The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, tel: 011 972 4626 8440, fax:011 972 4628 8277, e-mail: [email protected]. We hope this application satisfies your requirements. Please send an invoice to Hermon Labs. Sincerely yours Raviv Cohen R&D Engineer Axell Wireless Israel Ltd.

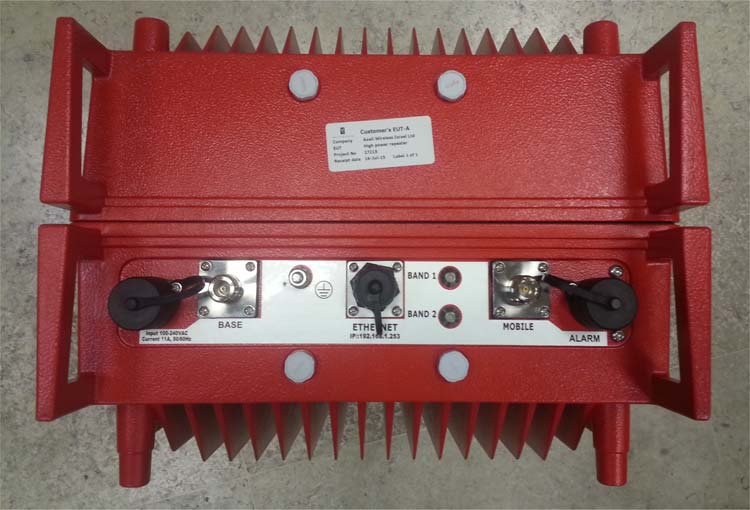

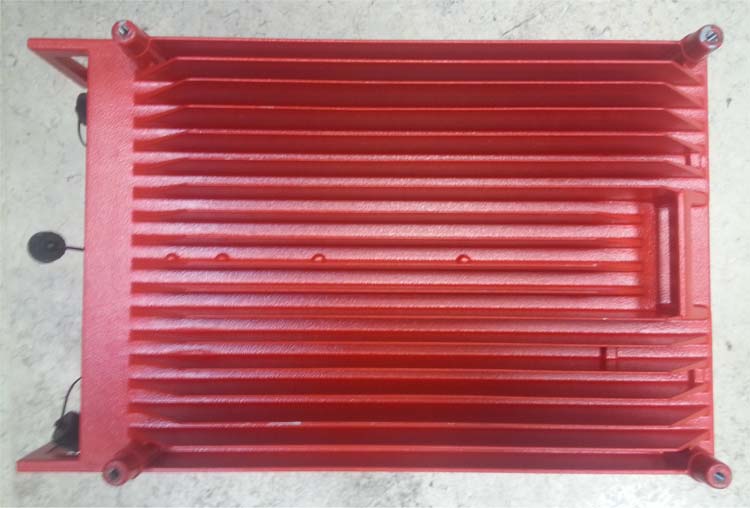

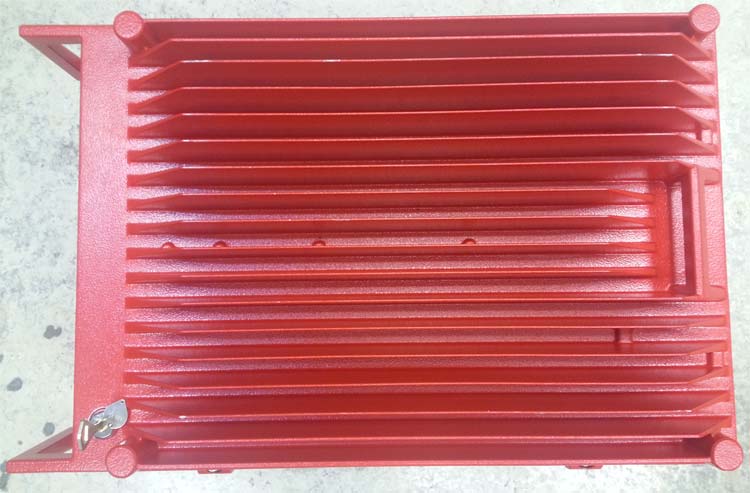

Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 1 of 7 EXTERNAL PHOTOGRAPHS This document contains 6 photographs Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 2 of 7 Photograph No.1 Repeater front view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 3 of 7 Photograph No.2 Repeater rear side view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 4 of 7 Photograph No.3 Repeater side view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 5 of 7 Photograph No.4 Repeater other side view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 6 of 7 Photograph No.5 Antenna connectors Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 7 of 7 Photograph No.6 Repeater short side view

Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 1 of 2 LABEL The labels are affixed on the EUT as shown below. The label material is sheet silver color metalized polyester with a permanent adhesive. Label with FCC ID Warning label Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 2 of 2 Labels location Label with FCC ID:NEODMBR37073708PS will be located here. The Warning label will be located here. FCC ID:NEODMBR37073708PS Part 90 Signal Boosters Warning

Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 1 of 32 INTERNAL PHOTOGRAPHS This document contains 26 photographs Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 2 of 32 Photograph No.1 Repeater internal view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 3 of 32 Photograph No.2 Internal close view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 4 of 32 Photograph No.3 Internal close view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 5 of 32 Photograph No.4 Main PCB (CCD module) front view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 6 of 32 Photograph No.5 Main PCB (CCD module), close view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 7 of 32 Photograph No.6 Main PCB (CCD module) second side view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 8 of 32 Photograph No.7 RF boards Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 9 of 32 Photograph No.8 RF boards second side Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 10 of 32 Photograph No.9 RF PCB (ADEM module) front view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 11 of 32 Photograph No.10 ADEM module second side Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 12 of 32 Photograph No.11 RF PCB (ADEM module) second side Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 13 of 32 Photograph No.12 ADEM module second side close view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 14 of 32 Photograph No.13 RF PCB (ADEM module) with shields removed Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 15 of 32 Photograph No.14 RF PCB (ADEM module) close view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 16 of 32 Photograph No.15 Shielding compartments of the RF PCB (ADEM module) Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 17 of 32 Photograph No.16 RF PCB front view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 18 of 32 Photograph No.17 RF PCB front side, close view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 19 of 32 Photograph No.18 Second side of the RF PCB Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 20 of 32 Photograph No.19 PA module front view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 21 of 32 Photograph No.20 PA module front side, close view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 22 of 32 Photograph No.21 PA module second side Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 23 of 32 Photograph No.22 PA module second side, close view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 24 of 32 Photograph No.23 DC/DC convertor front view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 25 of 32 Photograph No.24 DC/DC convertor second side view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 26 of 32 Photograph No.25 Duplexer general view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 27 of 32 Photograph No.26 Duplexer (first side view) Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 28 of 32 Photograph No.27 Duplexer (second side view) Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 29 of 32 Photograph No.28 PA-700 MHz module front view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 30 of 32 Photograph No.29 PA-700 MHz module bottom view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 31 of 32 Photograph No.30 PA-800 MHz module front view Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 32 of 32 Photograph No.31 PA-800 MHz module bottom view

Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The booster may be installed indoors or outdoors as stated in the User’s manual page V, the calculation was done to confirm a safe distance. Limit for power density for general population/uncontrolled exposure is f/1500 mW/cm 2 for 300 – 1500 MHz frequency range: P = 758/1500 = 0.5 mW/cm 2 The power density P (mW/cm 2 ) = P T / 4 r 2 , where P T is the transmitted power, which is equal to the peak transmitter output power plus maximum antenna gain. Indoor antenna installation The maximum equivalent isotropically radiated power EIRP is P T = 36.74 dBm + 0.2 dBi = 36.94 dBm = 4943 mW, where 36.74 dBm is the EUT maximum conducted output power in DL mode in 851-861 MHz with analog FM modulation; 0.2 dBi – antenna assembly gain. The EUT maximum conducted output power in UL mode is 35.21 dBm (in 806-816 MHz with iDEN QAM modulation), that is less than in DL mode. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {4943 / (0.5 x12.56)} = 28 cm. Outdoor antenna installation The maximum equivalent isotropically radiated power EIRP is P T = 36.74 dBm + 7 dBi = 43.74 dBm = 23659 mW, where 36.74 dBm is the EUT maximum conducted output power in DL mode in 851-861 MHz with analog FM modulation; 7 dBi – antenna assembly gain (please refer to page 8 of User_manual_27215). The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {23659 / (0.5 x12.56)} = 62 cm. A warning about a safe distance is contained in the user manual.

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 314 Report ID: AXERAD_FCC.27215_rev1.docx Date of Issue: 27-Oct-15 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC CFR 47 PART 90, section 90.219 FOR: Axell Wireless Israel Ltd. High power repeater, Class B Model: D-MBR 3707-3708-PS-NFPA-48DC-B FCC ID:NEODMBR37073708PS This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: AXERAD_FCC.27215_rev1.docx Date of Issue: 27-Oct-15 Page 2 of 314 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 EUT modules and sub-assemblies ................................................................................................................................ 5 6.3 EUT options/configurations ........................................................................................................................................... 5 6.4 Ports and lines .............................................................................................................................................................. 5 6.5 Support and test equipment .......................................................................................................................................... 5 6.6 Changes made in EUT .................................................................................................................................................. 5 6.7 Test configuration .......................................................................................................................................................... 6 6.8 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests according to 47CFR part 90 requirements ......................................................................................... 8 7.1 Peak output power test .................................................................................................................................................. 8 7.2 Occupied bandwidth test ............................................................................................................................................. 56 7.3 Emission mask test ................................................................................................................................................... 104 7.4 Radiated spurious emission measurements .............................................................................................................. 173 7.5 Spurious emissions at RF antenna connector test .................................................................................................... 189 7.6 Intermodulation product test ...................................................................................................................................... 280 7.7 Noise figure test ........................................................................................................................................................ 292 8 APPENDIX A Test equipment and ancillaries used for tests ..................................................................................... 296 8.1 Test equipment and ancillaries used for tests ........................................................................................................... 297 9 APPENDIX B Measurement uncertainties ................................................................................................................. 298 10 APPENDIX C Test facility description ....................................................................................................................... 299 11 APPENDIX D Specification references ..................................................................................................................... 299 12 APPENDIX E Test equipment correction factors ....................................................................................................... 300 13 APPENDIX F Abbreviations and acronyms ............................................................................................................... 314 Report ID: AXERAD_FCC.27215_rev1.docx Date of Issue: 27-Oct-15 Page 3 of 314 1 Applicant information Client name: Axell Wireless Israel Ltd. Address: 6 Bareket street, Petach Tikva 49002, Israel Tel…

Text truncated - open the document above for the full version.

Report ID: AXERAD_FCC.27215_rev1.docx Date of Issue: 27-Oct-15 Test specification: Section 90.219(e)(3), Radiated spurious emissions Test procedure: 47 CFR, Sections 2.1053; KDB 935210 D02 v03 Test mode: Compliance Verdict: PASS Date(s): 26-Jul-15 - 27-Jul-15 Temperature: 23.2 ºC Air Pressure: 1005 hPa Relative Humidity: 48 % Power Supply: 120 VAC Remarks: Page 173 of 314 7.4 Radiated spurious emission measurements 7.4.1 General This test was performed to measure radiated spurious emissions from the EUT. Specification test limits are given in Table 7.4.1. Table 7.4.1 Radiated spurious emission test limits Frequency, MHz Attenuation below carrier, dBc ERP of spurious, dBm Equivalent field strength limit @ 3m, dB(V/m)*** 0.009 – 10 th harmonic* 43+10logP** -13 84.4 * - Excluding the in band emission within ± 250 % of the authorized bandwidth from the carrier ** - P is transmitter output power in Watts *** - Equivalent field strength limit was calculated from maximum allowed ERP of spurious as follows: E=sqrt(30×P×1.64)/r, where P is ERP in Watts, 1.64 is numeric gain of ideal dipole and r is antenna to EUT distance in meters 7.4.2 Test procedure for spurious emission field strength measurements in 9 kHz to 30 MHz band 7.4.2.1 The EUT was set up as shown in Figure 7.4.1, energized and the performance check was conducted. 7.4.2.2 The specified frequency range was investigated with antenna connected to spectrum analyzer. To find maximum radiation the turntable was rotated 360 0 and the measuring antenna was rotated around its vertical axis. 7.4.2.3 The worst test results (the lowest margins) were recorded in Table 7.4.2 and shown in the associated plots. 7.4.3 Test procedure for spurious emission field strength measurements above 30 MHz 7.4.3.1 The EUT was set up as shown in Figure 7.4.2, energized and the performance check was conducted. 7.4.3.2 The specified frequency range was investigated with antenna connected to spectrum analyzer. To find maximum radiation the turntable was rotated 360 0 and the measuring antenna height was swept from 1 to 4 m in both, vertical and horizontal, polarizations. 7.4.3.3 The worst test results (the lowest margins) were recorded in Table 7.4.2 and shown in the associated plots. Report ID: AXERAD_FCC.27215_rev1.docx Date of Issue: 27-Oct-15 Test specification: Section 90.219(e)(3), Radiated spurious emissions Test procedure: 47 CFR, Sections 2.1053; KDB 935210 D02 v03 Test mode: Compliance Verdict: PASS Date(s): 26-Jul-15 - 27-Jul-15 Temperature: 23.2 ºC Air Pressure: 1005 hPa Relative Humidity: 48 % Power Supply: 120 VAC Remarks: Page 174 of 314 Figure 7.4.1 Setup for spurious emission field strength measurements in 9 kHz to 30 MHz band Spectrum analyzer/ EMI receiver EUT Ground plane 1.0m Height Test distance Power supply Auxilliary equipment Flush mounted turn table Wooden table Loop antenna Figure 7.4.2 Setup for spurious emission field strength measurements above 30 MHz Spectrum analyzer/ EMI receiver Test antenna Test antenna EUT Ground plane 1.0m 4.0m 1.5 m Height Test distance Ferrites Power supply Auxilliary equipment Flush mounted turn table Wooden table Report ID: AXERAD_FCC.27215_rev1.docx Date of Issue: 27-Oct-15 Test specification: Section 90.219(e)(3), Radiated spurious emissions Test procedure: 47 CFR, Sections 2.1053; KDB 935210 D02 v03 Test mode: Compliance Verdict: PASS Date(s): 26-Jul-15 - 27-Jul-15 Temperature: 23.2 ºC Air Pressure: 1005 hPa Relative Humidity: 48 % Power Supply: 120 VAC Remarks: Page 175 of 314 Table 7.4.2 Spurious emission field strength test results TEST DISTANCE: 3 m TEST SITE: Semi anechoic chamber EUT HEIGHT: 0.8 m INVESTIGATED FREQUENCY RANGE: 0.009 – 8700 MHz DETECTOR USED: Peak VIDEO BANDWIDTH: > Resolution bandwidth TEST ANTENNA TYPE: Active loop (9 kHz – 30 MHz) Biconilog (30 MHz – 1000 MHz) Double ridged guide (above 1000 MHz) MODULATION: Unmodulated ASSIGNED FREQUENCY RANGE: 758 - 775 MHz Downlink 788 – 805 MHz Uplink CONFIGURATION: Single Band Dual Channels BOOSTER OUTPUT POWER SETTINGS: 34 dBm Frequency, MHz Field strength, dB(V/m) RBW, kHz Antenna polarization Antenna height, m Turn-table position**, degrees Limit, dB(V/m) Margin, dB* Verdict Low carrier frequency 758 MHz All emissions were found more than 20 dB below the limit Pass Mid carrier frequency 766 MHz All emissions were found more than 20 dB below the limit Pass High carrier frequency 775 MHz All emissions were found more than 20 dB below the limit Pass ASSIGNED FREQUENCY RANGE: 851 – 861 MHz Downlink 806 – 816 MHz Uplink CONFIGURATION: Single Band Dual Channels BOOSTER OUTPUT POWER SETTINGS: 34 dBm Frequency, MHz Field strength, dB(V/m) RBW, kHz Antenna polarization Antenna height, m Turn-table position**, degrees Limit, dB(V/m) Margin, dB* Verdict Low carrier frequency 851 MHz All emissions were found more than 20 dB below the limit Pass Mid carrier frequency 856 MHz All emissions were found more than 20 dB below the limit Pass High carrier frequency 861 MHz All emissions were found more than 20 dB below the limit Pass *- Margin = Field strength of spurious – calculated field strength limit. **- EUT front panel refers to 0 degrees position of turntable. Report ID: AXERAD_FCC.27215_rev1.docx Date of Issue: 27-Oct-15 Test specification: Section 90.219(e)(3), Radiated spurious emissions Test procedure: 47 CFR, Sections 2.1053; KDB 935210 D02 v03 Test mode: Compliance Verdict: PASS Date(s): 26-Jul-15 - 27-Jul-15 Temperature: 23.2 ºC Air Pressure: 1005 hPa Relative Humidity: 48 % Power Supply: 120 VAC Remarks: Page 176 of 314 Table 7.4.3 Spurious emission field strength test results ASSIGNED FREQUENCY RANGE: 758 - 775 MHz Downlink 788 – 805 MHz Uplink 851 – 861 MHz Downlink 806 – 816 MHz Uplink TEST DISTANCE: 3 m TEST SITE: Semi anechoic chamber EUT HEIGHT: 0.8 m INVESTIGATED FREQUENCY RANGE: 0.009 – 8700 MHz DETECTOR USED: Peak VIDEO BANDWIDTH: > Resolution bandwidth TEST ANTENNA TYPE: Active loop (9 kHz – 30 MHz) Biconilog (30 MHz – 1000 MHz) …

Text truncated - open the document above for the full version.

Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 1 of 7 SETUP PHOTOGRAPHS This document contains 6 photographs Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 2 of 7 Photograph No.1 Peak output power, occupied bandwidth, emission mask measurement setup Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 3 of 7 Photograph No.2 Spurious emissions measurement setup in the semi anechoic chamber below 30 MHz Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 4 of 7 Photograph No.3 Spurious emissions measurement setup in the semi anechoic chamber in 30 -1000 MHz Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 5 of 7 Photograph No.4 Spurious emissions measurement setup in the anechoic chamber above 1000 MHz Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 6 of 7 Photograph No.5 Spurious emissions at RF antenna connector and intermodulation product test setup Axell Wireless Ltd. FCC ID:NEODMBR37073708PS Page 7 of 7 Photograph No.6 Spurious emissions at RF antenna connector and intermodulation product test setup
