NEO50-0637SERIESUHF Signal Extender

Denver Channelised CE User/Maintenance Handbook Handbook Nō.-50-063708HBKMIssue No:-2 Date:-03/11/2003 Page:- 1 of 51 Channelised Bi-Directional RF Amplifier Operation & Maintenance Manual For Dicarlo Associates, Inc. AFL product part Nō.:50-063701 Denver Channelised CE User/Maintenance Handbook Handbook Nō.-50-063708HBKMIssue No:-2 Date:-03/11/2003 Page:- 2 of 51 Table of Contents AMENDMENT LIST RECORD SHEET................................................................................................. 4 INTRODUCTION....................................................................................................................................... 5 Scope...........................................................................................................................................................................5 Purpose.......................................................................................................................................................................5 Glossary of Terms.....................................................................................................................................................6 Key to AFL RF Module Drawing Symbols.............................................................................................................7 1.SAFETY CONSIDERATIONS....................................................................................................... 8 1.1Electric Shock Hazard.................................................................................................................................8 1.2RF Radiation Hazard...................................................................................................................................8 1.3Chemical Hazard..........................................................................................................................................9 1.4Emergency Contact Numbers.....................................................................................................................9 2.OVERVIEW/SYSTEM DESCRIPTION..................................................................................... 10 3.SPECIFICATION.......................................................................................................................... 13 3.150-063701 Parts Lists.................................................................................................................................13 3.1.1UHF Duplex Shelf 50-063702 Parts List.................................................................................................13 3.1.2Downlink UHF 5 Channel Shelf 50-063703 Parts List............................................................................14 3.1.3Uplink UHF 4 Channel Shelf 50-063704 Parts List................................................................................15 3.1.4Leaky Feeder UHF Duplex/PA Shelf 50-063705 Parts List....................................................................16 3.1.5UHF Simplex Shelf 50-063706 Parts List................................................................................................17 3.1.6Power Supply Shelf 50-063707 Parts List................................................................................................18 3.2Technical Specification..............................................................................................................................19 3.2.1Channel Module Frequencies..................................................................................................................20 3.3Mechanical Specification...........................................................................................................................21 4.SYSTEM DRAWINGS.................................................................................................................. 22 4.1Drg. Nō. 50-063751, Channelised Cell Enhancer Rack Layout Drawing.............................................22 4.2Drg. Nō. 50-063781, Channelised Cell Enhancer System Diagram.......................................................23 4.3Drg. Nō. 50-063792, Base Side Duplex Shelf Outline Drawing..............................................................24 4.3Drg. Nō. 50-063793, Downlink Channels Shelf Outline Drawing..........................................................25 4.4Drg. Nō. 50-063794, Uplink Channels Shelf Outline Drawing...............................................................26 4.5Drg. Nō. 50-063795, Tunnel Side Duplexer Shelf Outline Drawing......................................................27 4.6Drg. Nō. 50-063796, UHF Simplex Shelf Outline Drawing....................................................................28 4.7Drg. Nō. 50-063797, Power Supply Shelf Outline Drawing....................................................................29 5.SUB-UNIT MODULES.................................................................................................................. 30 5.1UHF Duplex Shelf 50-063702....................................................................................................................30 5.1.1Bandpass Filter (02-010701)...................................................................................................................30 5.1.1.1Description.......................................................................................................................................30 5.1.1.2Technical Specification....................................................................................................................30 5.1.23dB UHF Splitter (05-002603)................................................................................................................31 5.1.2.1Description.......................................................................................................................................31 5.1.2.2Technical Specification.................................…

Text truncated - open the document above for the full version.

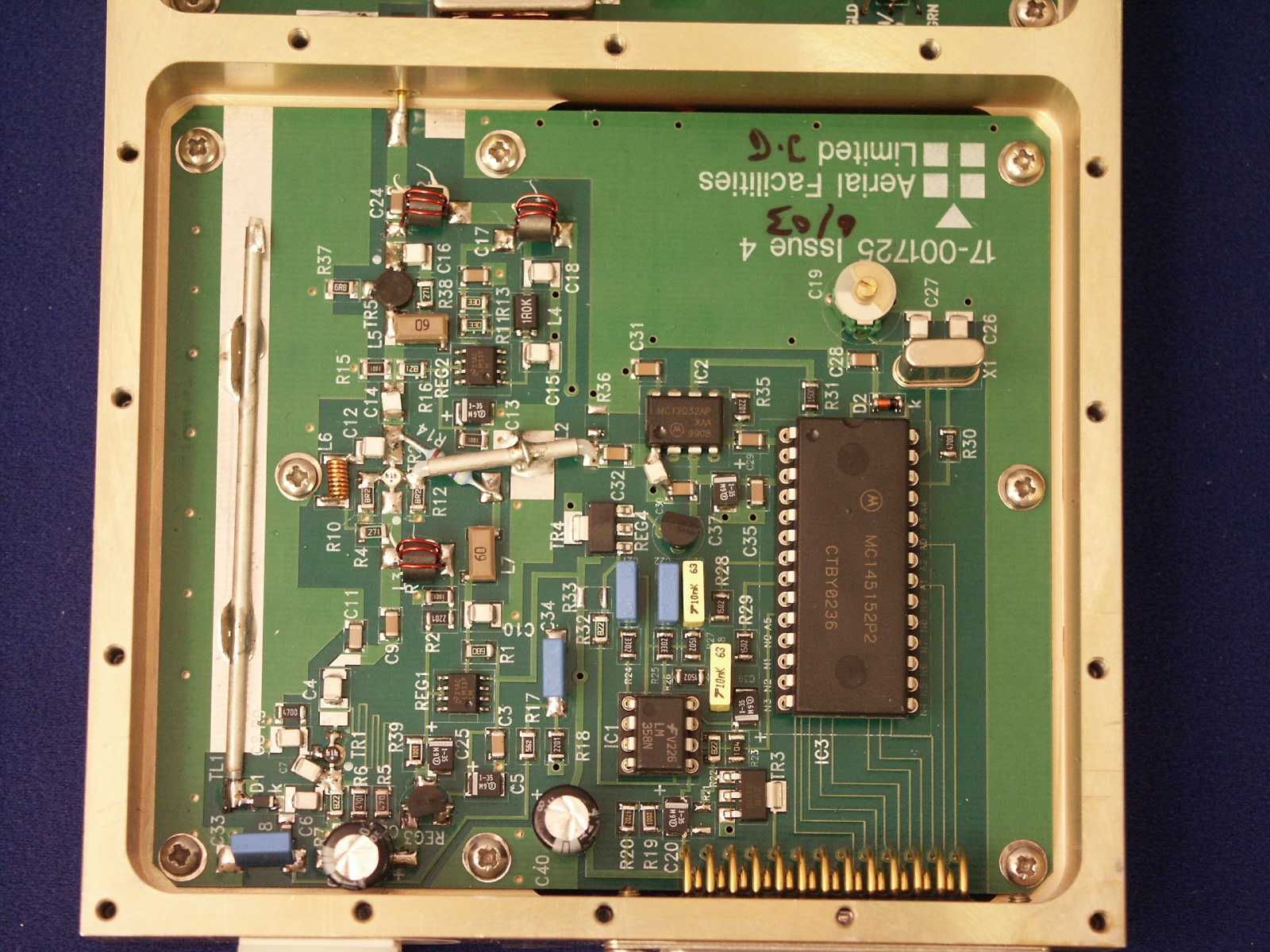

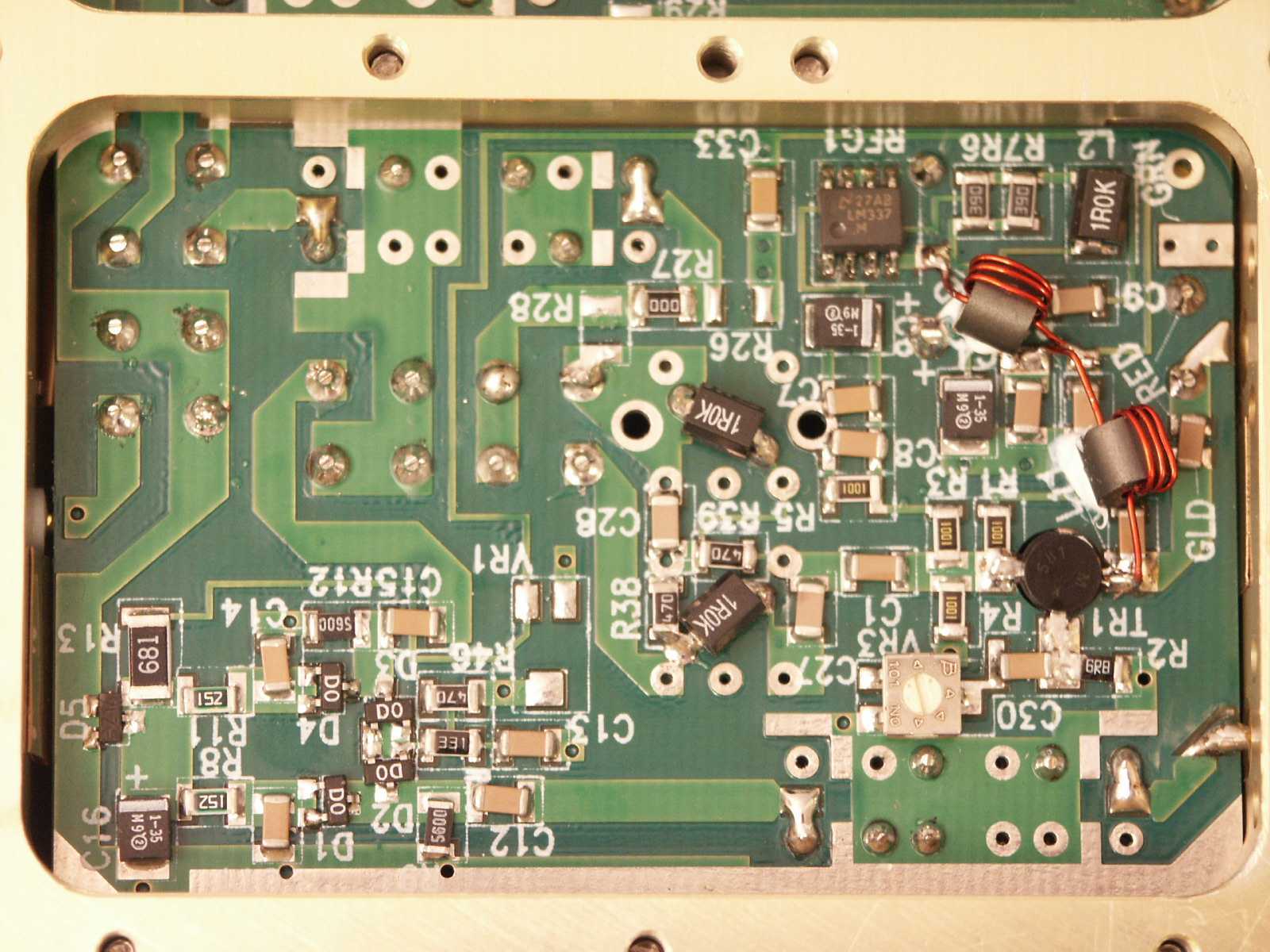

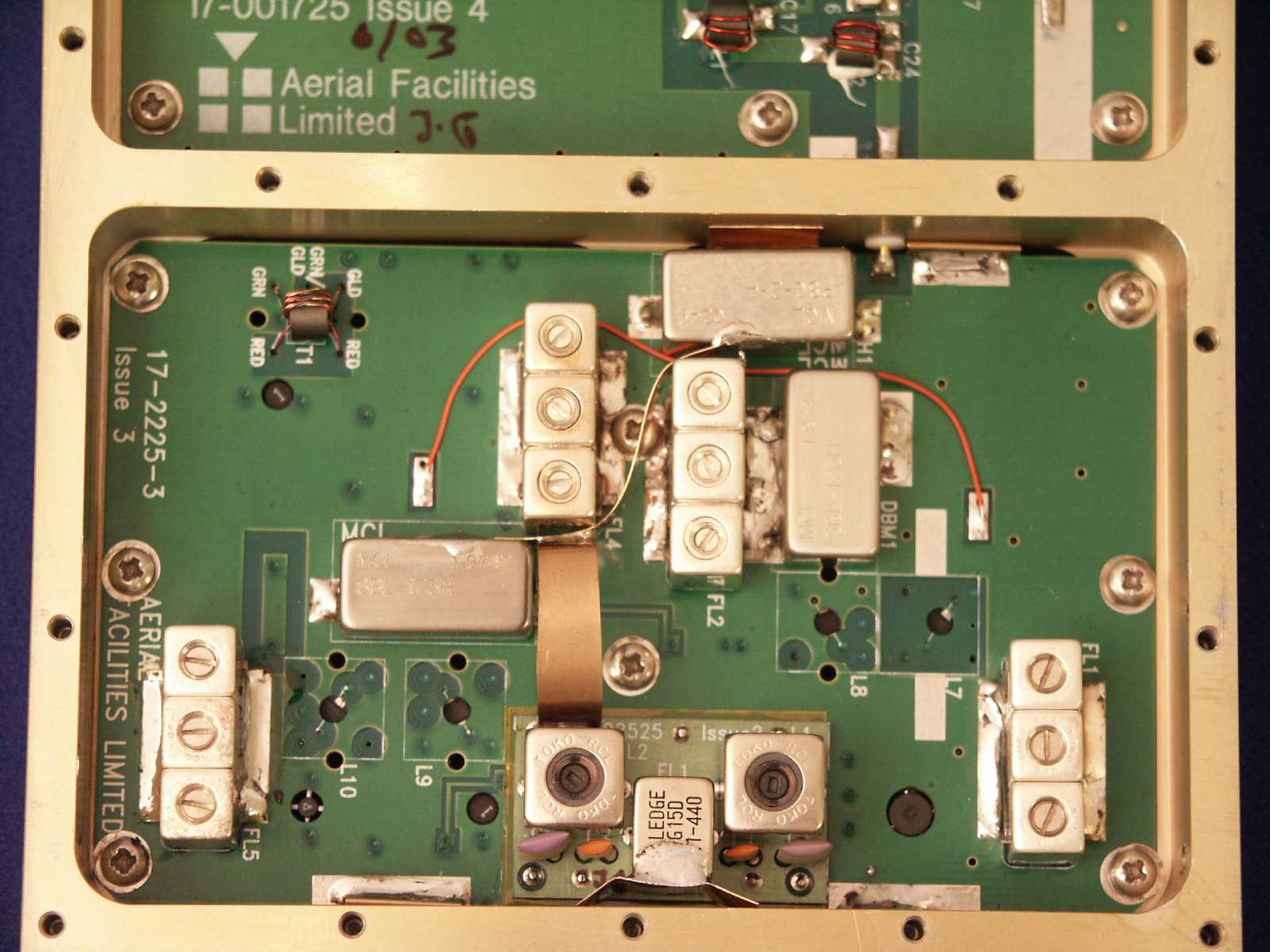

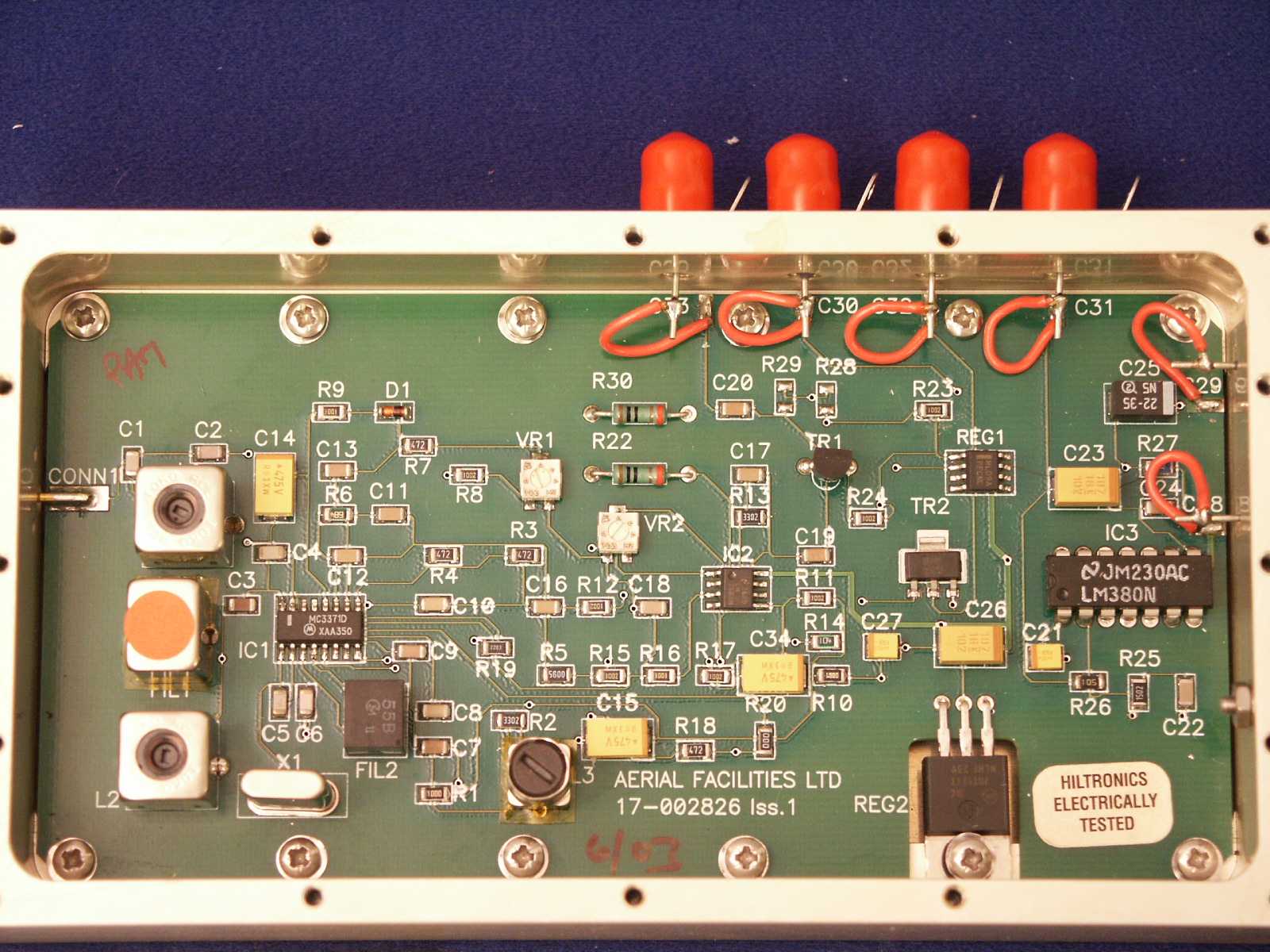

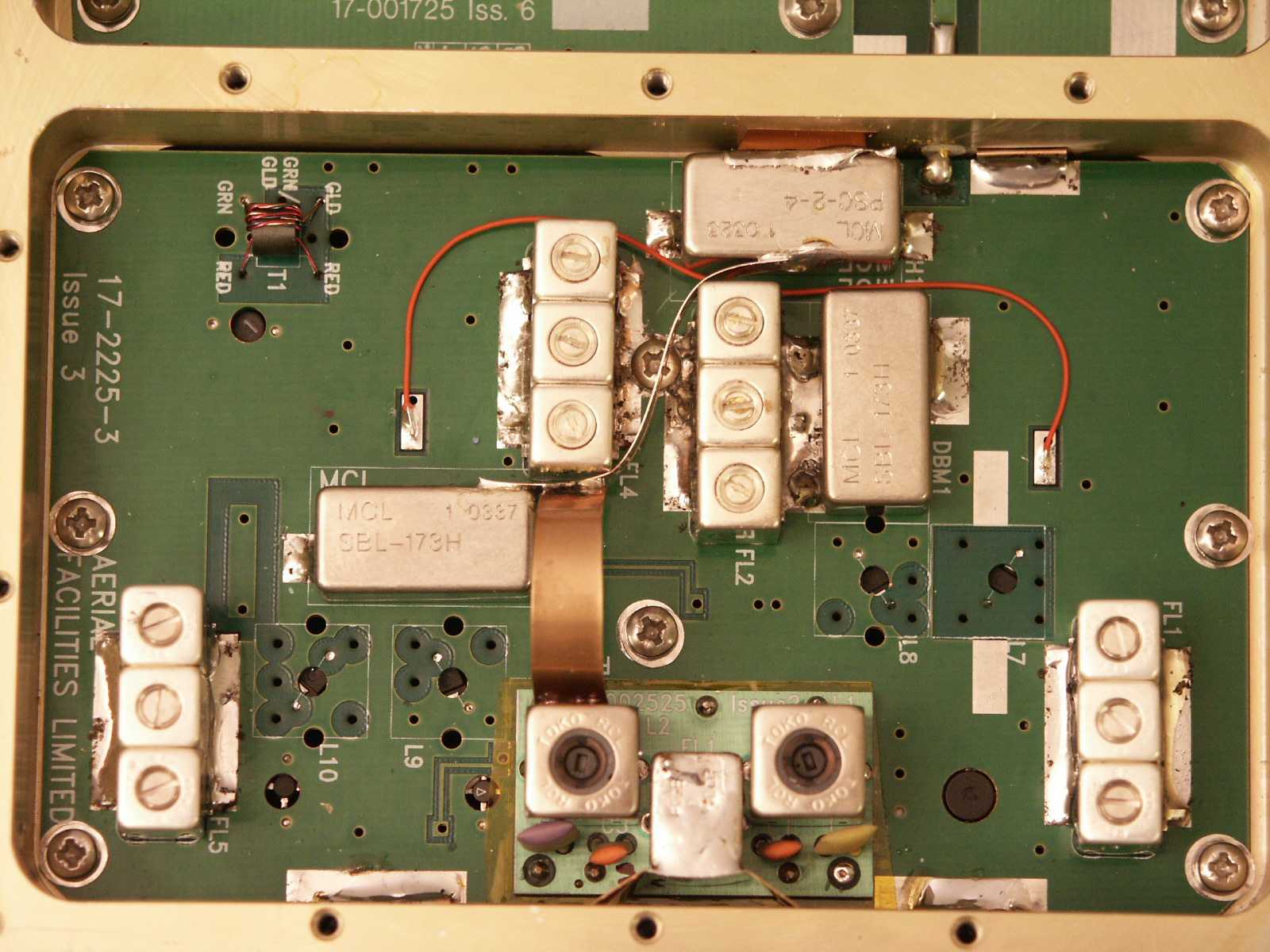

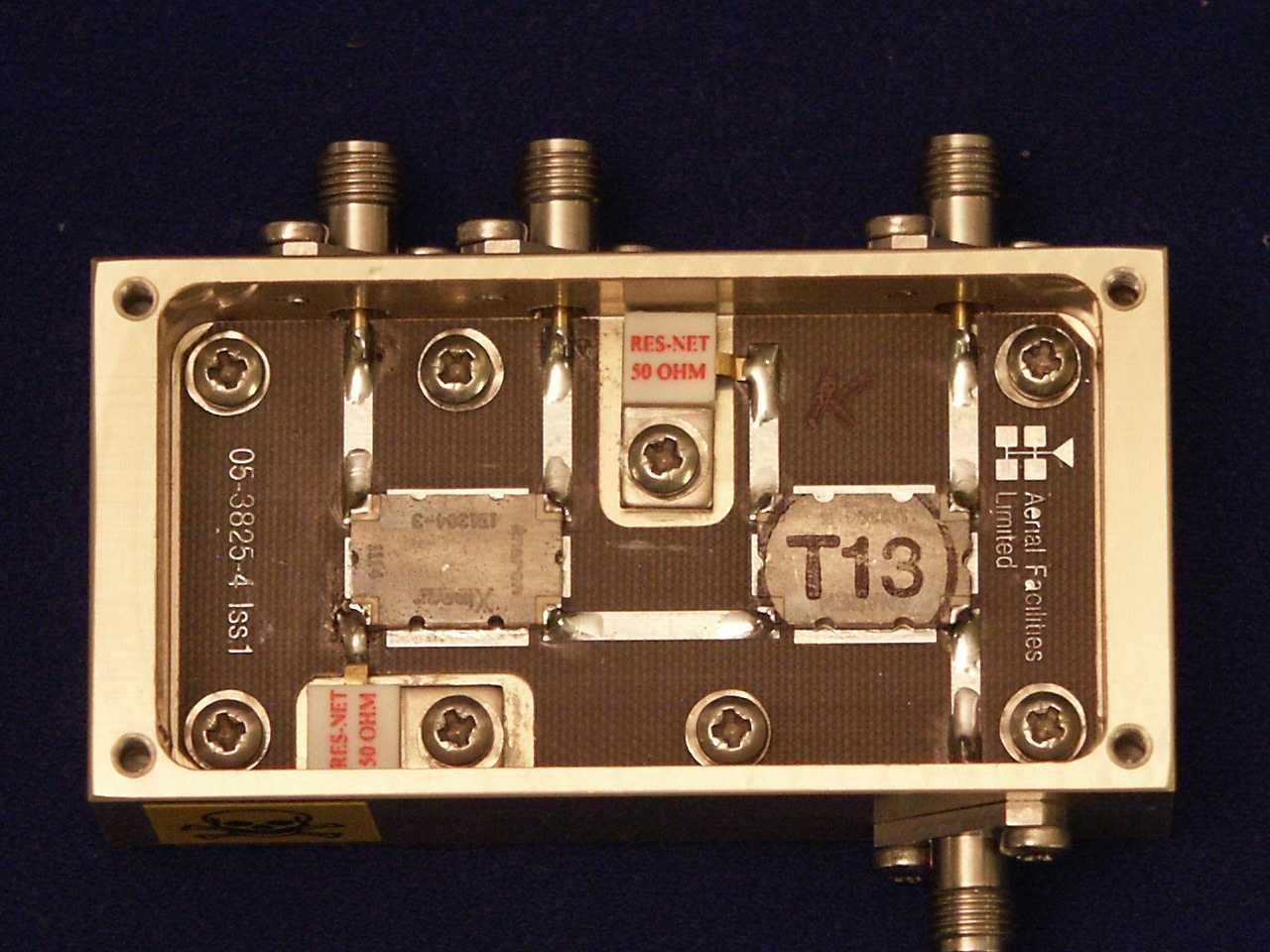

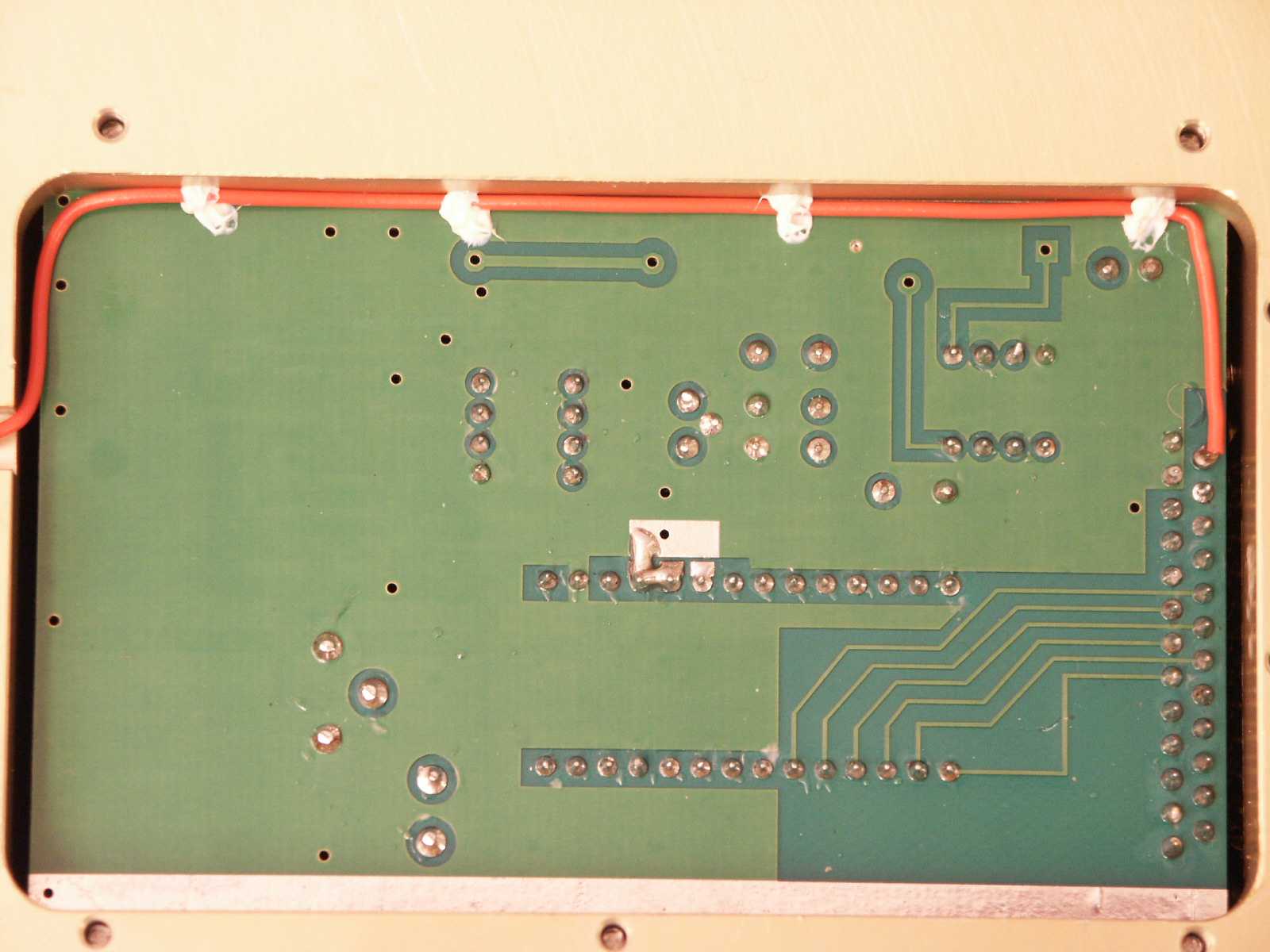

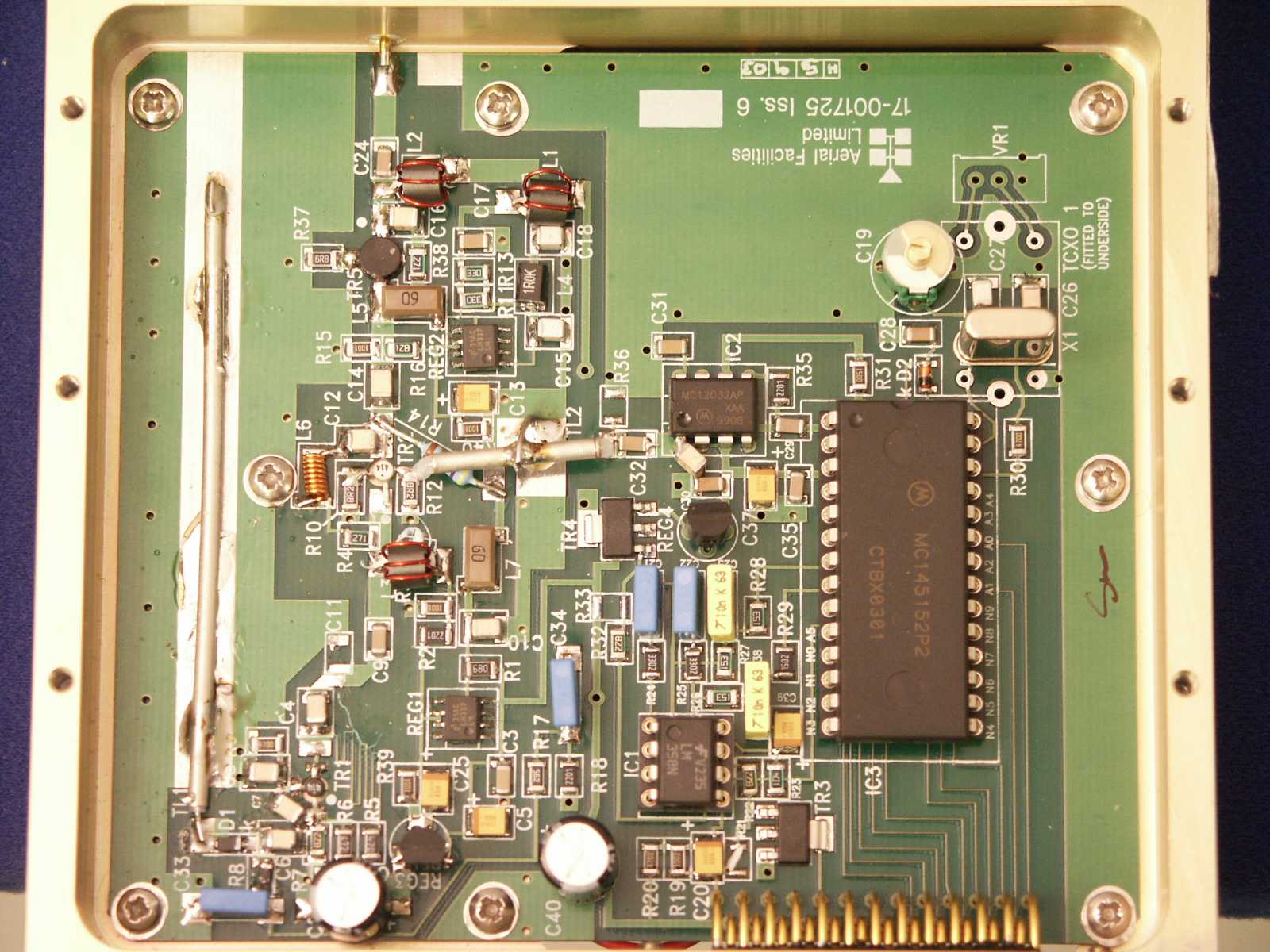

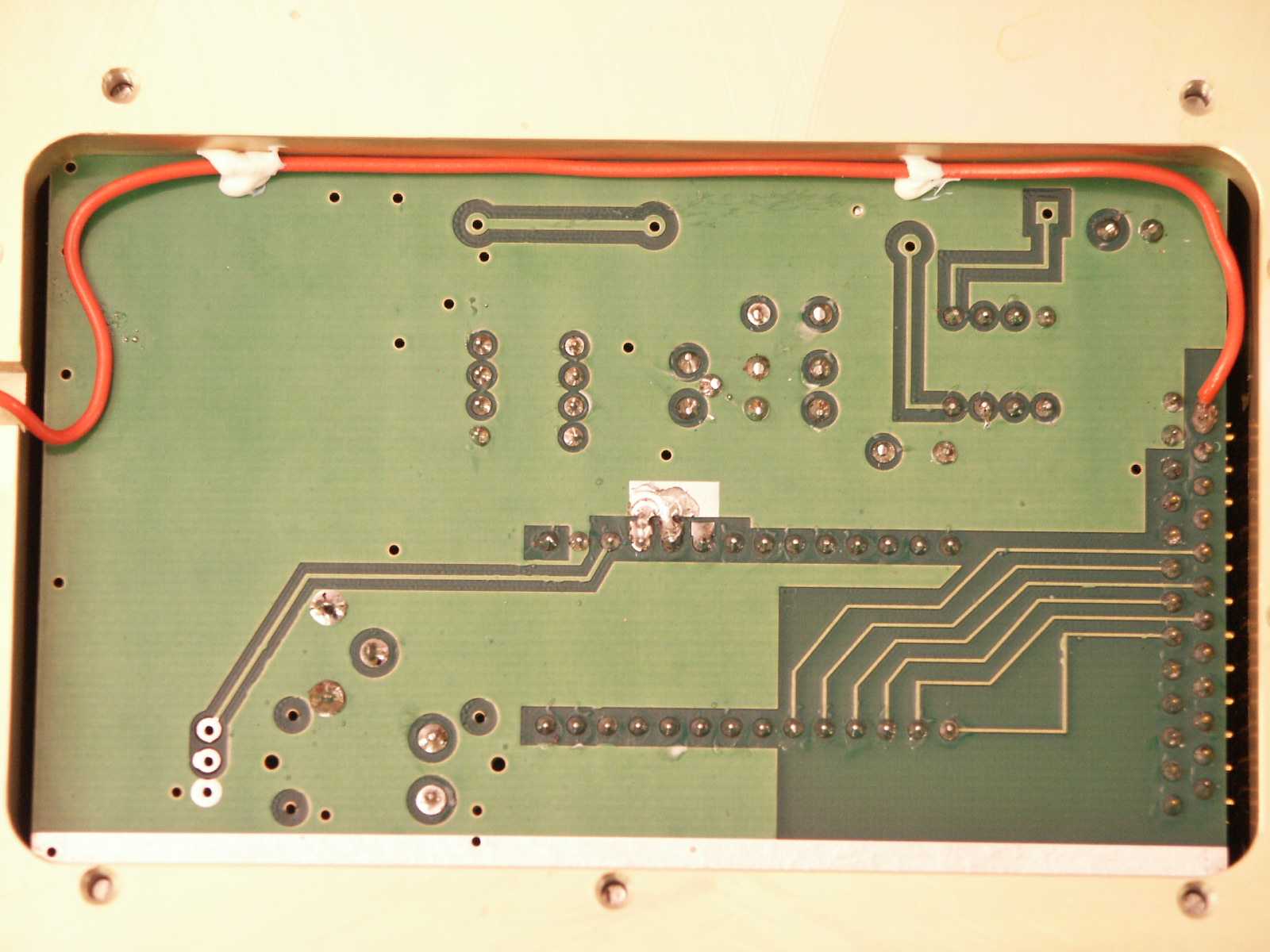

Denver Channelised CE User/Maintenance Handbook Handbook Nō.-50-063708HBKMIssue No:-1 Date:-29/09/2003 Page:- 23 of 51 4.2Drg. Nō. 50-063781, Channelised Cell Enhancer System Diagram 5 CHN UHF CHANNELISED CE 80dB SYSTEM DIAGRAM 50-063781 1A - MNR 30/07/03 dB dB dB dB dB SQ UEL CH SQUEL CH BANDPASS FIL TER 457-458.5MHz 02-010701 LNA 31dB GAIN 11-007402 10-000701 0-30dB ATTENUATOR SPL ITTER 05-002603 SPL ITTER 05-003803 5 x CHANNEL M O DUL E 17-003012 05-003803 CO M BINER 05-003803 SPL ITTER 05-003803 CO M BINER CO M BINER 05-002603 LNA 21dB GAIN 11-007302 11-006102 LPA 15dB GAIN 12-016301 23dB GAIN 20W PA 02-010701 457-458.5MHz BANDPASS FIL TER 02-010701 452-453.5MHz BANDPASS FIL TER SPL ITTER 05-002603 ISOLATOR 08-004905 11-006102 15dB GAIN LPA 12-016301 23dB GAIN 20W PA 11-007302 21dB GAIN LNA AT T ENUAT O R 10-000701 0-30dB LNA 11-007402 31dB GAIN 452-453.5MHz BANDPASS FIL TER 02-010701 05-002603 SPLITTER 05-003803 SPL ITTER SPL ITTER 05-003803 05-003401 CO M BINER 08-004905 ISOLATOR 11-006102 15dB GAIN LPA AGC ATT. 17-001201 451.5-453MHz BANDPASS FIL TER 02-010701 451.5-453MHz 02-010701 BANDPASS FIL TER ATTENUATO R 10-000701 0-30dB 17-001201 AG C ATT. 31dB GAIN 11-007402 LNA 31dB GAIN LNA 11-007402 11-006102 15dB GAIN LPA 4 x CHANNEL M O DUL E 17-003012 CHANNEL M O DUL E 17-010802 CHANNEL MO DUL E 17-010802 11-007402 31dB GAIN LNA 17-002802 17-002802 ANT F ACINGBASE 2F ACINGBASE 1 ANT FEEDER L EAKY PO RT 1 PO RT 2FEEDER L EAKY 50-063702BASE SIDEDUPL EX/PACHASSIS,4 U 50-063703DO WNL INKCHANNEL S4U CHANNEL SUPL INK50-0637044U L CX SIDE50-063705CHASSIS,4 UDUPL EX/PA 50-063707PSU CHASSIS 110V AC INPUT OUTPUT TO DC 6 x DC F IL T ERS 400W PSU 400W PSU 7.5A MCB 96-920045 96-500009 FILTER AC 15A FREQUENCY PROGRAMMING DATA B/W=15kHz FREQUENCY PROGRAMMING DATA B/W=15kHz FREQUENCY PROGRAMMING DATA B/W=15kHz FREQUENCY PROGRAMMING DATA B/W=15kHz FREQUENCY PROGRAMMING DATA B/W=15kHz FREQUENCY PROGRAMMING DATA B/W=15kHz FREQUENCY PROGRAMMING DATA B/W=15kHz FREQUENCY PROGRAMMING DATA B/W=15kHz FREQUENCY PROGRAMMING DATA B/W=15kHz FREQUENCY PROGRAMMING DATA B/W=15kHz FREQUENCY PROGRAMMING DATA B/W=15kHz 24V UNIT S 457. 050M H z457. 300M H z457. 775M H z457. 850M H z458. 225M H z 452. 050M H z452. 300M H z452. 775M H z453. 225M H z 452. 850M H z 452. 850M H z DATE DESCRIPTION No ISSUE THIRD ANGL E PRO JECTION 123456789101112 ABCDEFGH 123456789101112 A BCDEFGH PERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGRE P RODUCTION OR US E OF THIS DE SIGN B Y OTHE RS ISTHIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD. UNLESS OTHERWISE STATEDALL DIMENSIONS ARE IN mm DATE DRAWN CHKD APPD TWO DECIMAL PLACES ± 0.1mmNO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mm BY AERIAL FACILITIES LTD. TOLERANCES SCALE CUSTOMER DRAWING No Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited England TI TLE 2A PRO DUCT IO N ISSUE M NR 30/ 07/ 03 GAIN 15dB ALC -25dBm 17-001201 AG C ATT. dB 2 x SIMPLEX CO NT RO L L ER 13-002811 RB PB CHASSIS,4 UUHF SIM PL EX50-063706 ADDING T EXT 23/ 09/ 03 MNR 1B BY ALC -23dBm GAIN 15dB AL C - 1 7 d Bm G AIN 2 5 d B AL C - 2 0 d Bm GAIN 15dB

BY DAT E DESCRIPT ION No THI RD ANGLE PROJECTI ON 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE ISSUE 3A FCC IDENT. LABEL POSITION RACK MOUNTED UNIT 80-312190 1A 1:5 DBS 30/9/03 PRODUCTION ISSUE 30/ 9/ 02 DBS Li m i t ed Aerial Facilities POWERALARM FCC IDENT. LABEL v oltage Hig h DANGER Heav y CAUTION Ae ria l Fa c ilitie sLim ited England BY DAT E DESCRIPT ION No ISSUE 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.RE P RODUCT ION OR US E OF T HIS DE S IGN B Y OT HE RS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCTION ISSUE 30/9/03 DBS PSU ALARM FCC IDENT. LABEL

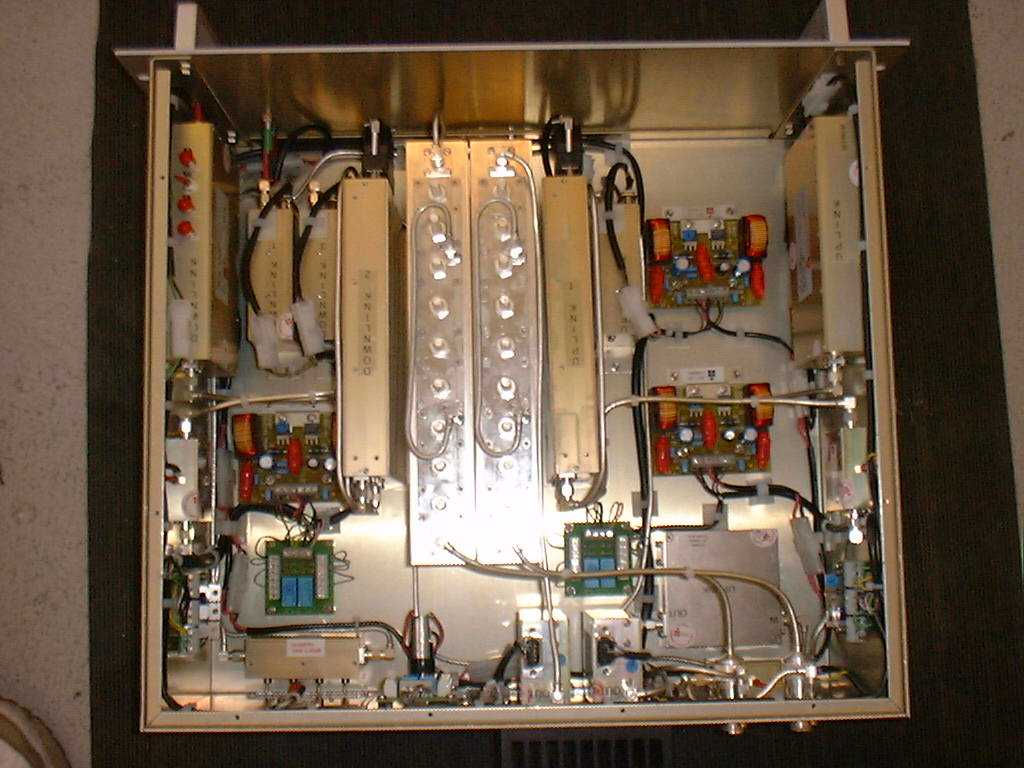

Denver Channelised CE User/Maintenance Handbook Handbook Nō.-50-063708HBKMIssue No:-1 Date:-29/09/2003 Page:- 10 of 51 2.OVERVIEW/SYSTEM DESCRIPTION The equipment covered in this manual is a UHF Bi-directional Amplifier (also known as a Repeater). Its main sphere of application is in urban areas where the topography is such that shadows occur in the propagation pattern (for example within large buildings, conference centres and tunnels, etc.) The Amplifier is a 4-port device for direct connection to two Base facing antennas, usually a highly directional Yagi or similar aligned towards the base (donor) site, and two radiating cable feeders to cover the mobiles. The channel frequencies passed by the Amplifier are set as per the specific customer requirements. In this instance, the channel module frequencies have been ‘hard-wired’ and so it is not possible to change frequencies without some re- configuration of the channel programming. The system for which the Amplifier is to be used with is mainly duplex channel UHF radio system but with a single simplex channel. The duplex channels operate constantly in each direction using the Base Antenna port 2 and Radiating Cable port 2. There are five Downlink (Base Transmit) duplex channels and four Uplink (Base Receive) duplex channels. In addition there is the Uplink simplex (talkaround) channel operating via these ports. The Downlink simplex channel operates through the Base Antenna port 1 and Radiating Cable port 1 ports. This is to avoid any interaction between the common frequency channel high gain paths. Using separate antennas adds the isolation required for the simplex part of the Amplifier to work. The simplex channels are not constantly operating in their entirety. Instead, each simplex path has the output amplification disabled and when an input is detected in one path that amplifier will be switched on and the other path will be held off until that input signal has stopped. In this way, the simplex part of the system is constantly ready to pass the channel in either path. The Bi-directional Amplifier consists of six different 19” rack mount 4U chassis. These are a Base side Duplex/PA chassis (AFL part: 50-063702) to provide the link with Antenna 2 and the remainder of the system. In addition there is a Tunnel side Duplex/PA chassis (AFL part: 50-063705) to connect the Radiating cable 2 to the remainder of the system. The channel selectivity is made in the Downlink by a Downlink Channel chassis (AFL part: 50- 063703) and in the Uplink by the Uplink Channel chassis (AFL part: 50-063704). The Downlink simplex channel and part of the Uplink simplex channel circuit is housed in the Simplex chassis (AFL part: 50-063706) and there is a Power Supply chassis (AFL part: 50- 063707) to provide the DC supply to each of the five RF units. The Bi-directional Amplifier is housed in a single 38U 19” rack. All external connections are made towards the bottom of the rear of the rack suitable for cable entry via cable ducts through the open underside of the rack. External connections are for the 110V AC input, four ‘N’ type female RF connectors and a Krone block for the alarm output. Denver Channelised CE User/Maintenance Handbook Handbook Nō.-50-063708HBKMIssue No:-1 Date:-29/09/2003 Page:- 11 of 51 For better understanding of the system, the system diagram on page 23 should be consulted. Downlink path Duplex system signals in the Downlink path arriving at Base Antenna port 2 are first passed to the Base side chassis and so through a duplexed bandpass filter to ensure good input selectivity. This is then followed by a 31dB gain LNA to provide some amplification and a switchable attenuator then allows up to 30dB of gain adjustment in 2dB steps. From here signals are routed to the Downlink Channel chassis where a 2 way splitter is followed by two three way splitters to provide six equal paths. One of these is terminated with a 50ohm load and the remaining five each connect to a channel selectivity module. The Downlink channel modules offer 15dB gain and have ALC circuitry to limit the module output to -25dBm. This is ensure that the total output power may not become higher than the specified level. The channel module outputs are taken to two three way combiners for connection to a two way combiner which then routes signals out of the Downlink Channel chassis and to the Tunnel side chassis. The Downlink duplex channel frequencies factory set are: 457.050MHz 458.225MHz 457.850MHz 457.300MHz 457.775MHz In the Tunnel side chassis a 21dB gain LNA is then followed by a 15dB gain LPA to drive a 23dB gain 20Watt Power Amplifier which provides the final stage of amplification. The Power Amplifier is followed by a duplexed bandpass filter connecting to the Radiating cable port 2. The Downlink simplex channel, 452.850MHz, is received at Base Antenna port 1 and is passed through a bandpass filter to provide selectivity. A 31dB gain LNA then provides initial amplification and this is followed by a switchable attenuator giving up to 30dB of gain adjustment in 2dB steps. An ALC attenuator is then fitted for muting the input of the channel module when an Uplink path signal has been detected and is being amplified in that direction. The channel module following the attenuator has 15dB of gain and has ALC circuitry to limit the module output to -20dBm to limit the total output power to that specified in case of an increase in off-air signal input. The channel module is followed by a 31dB gain LNA and then a 15dB gain 1Watt LPA. A bandpass filter after the LPA connects to the Radiating cable port 1. Uplink path All Uplink channels enter the Bi-Directional Amplifier at Radiating Cable port 2 and pass to the Tunnel side chassis where a duplexed bandpass filter routes the signals to the Uplink input amplifier, a 31dB gain LNA. A switchable attenuator then gives up to 30dB of gain adjustment in 2dB steps before signals connect to the Uplink Channel chassis. In the Uplink Channel…

Text truncated - open the document above for the full version.

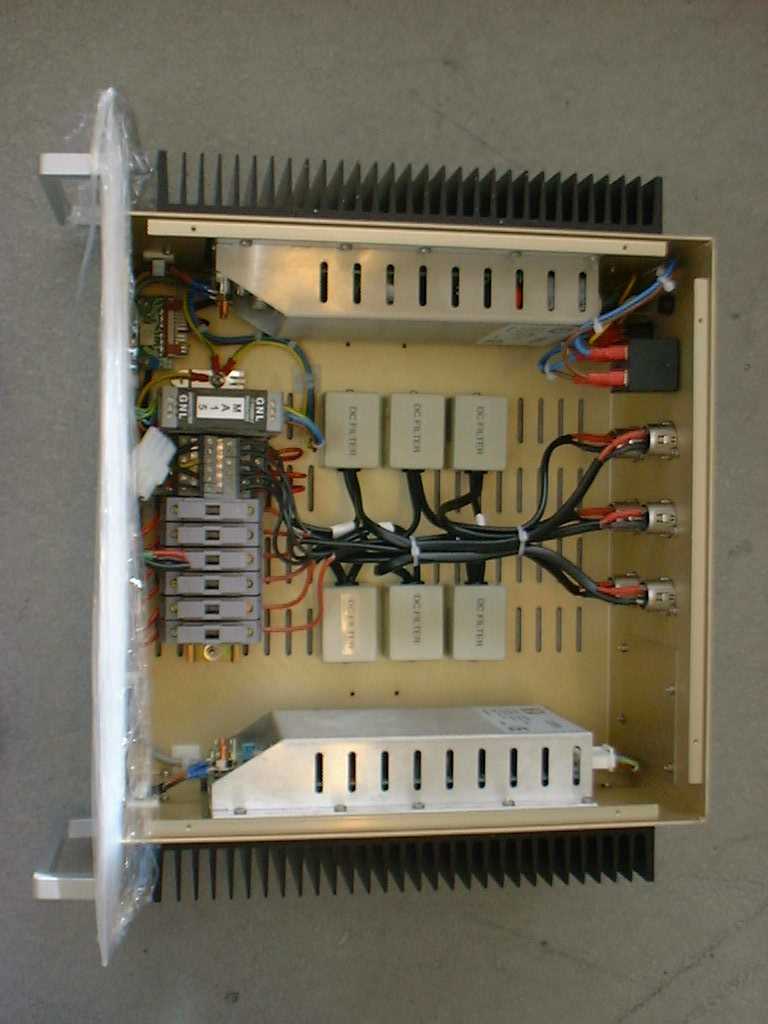

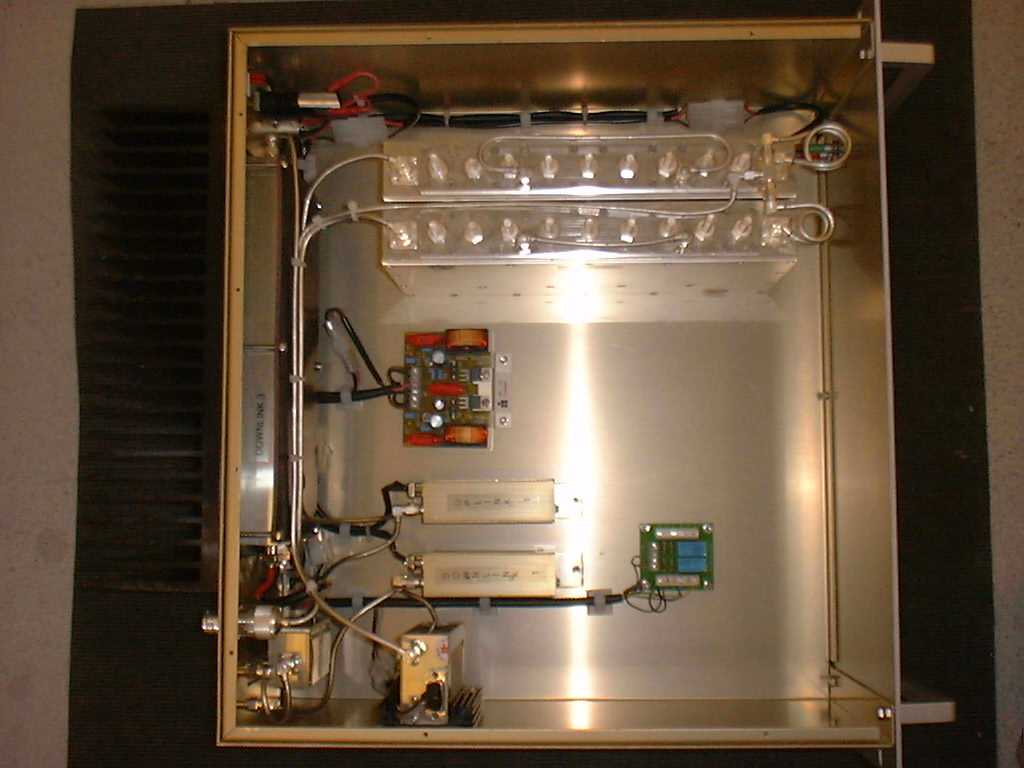

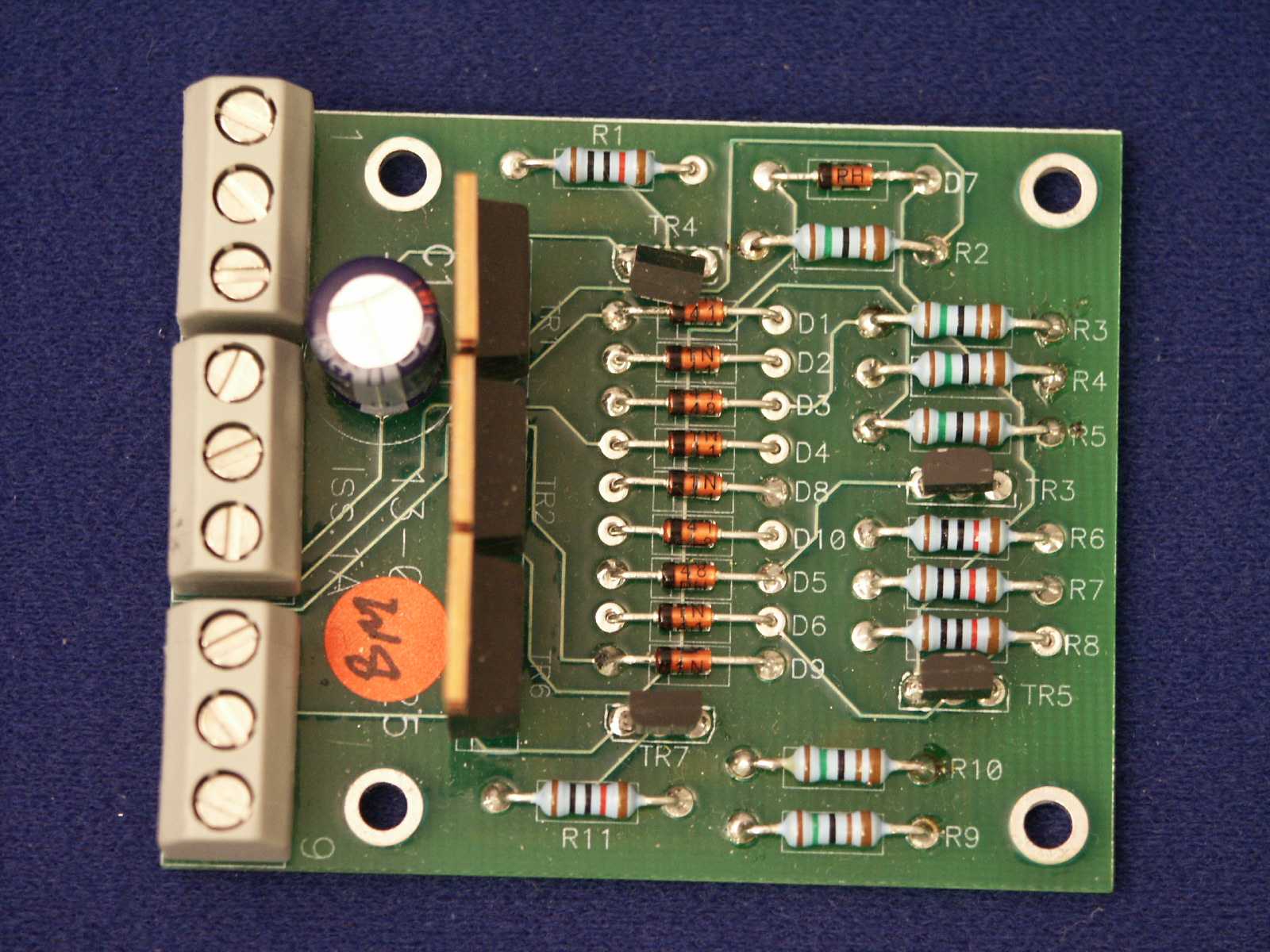

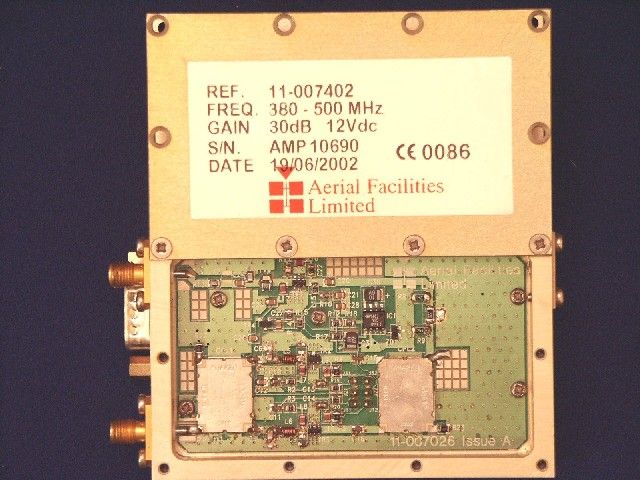

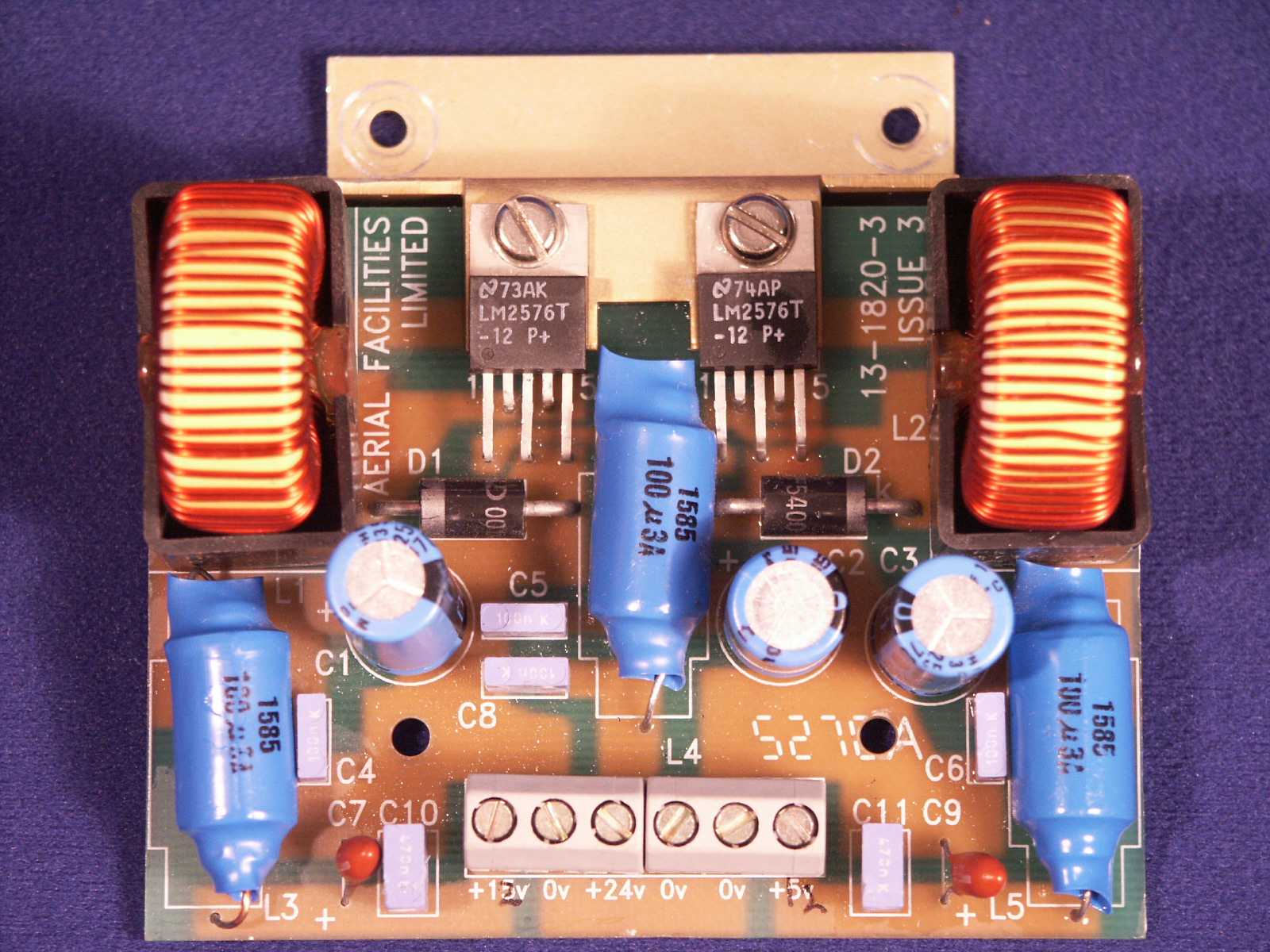

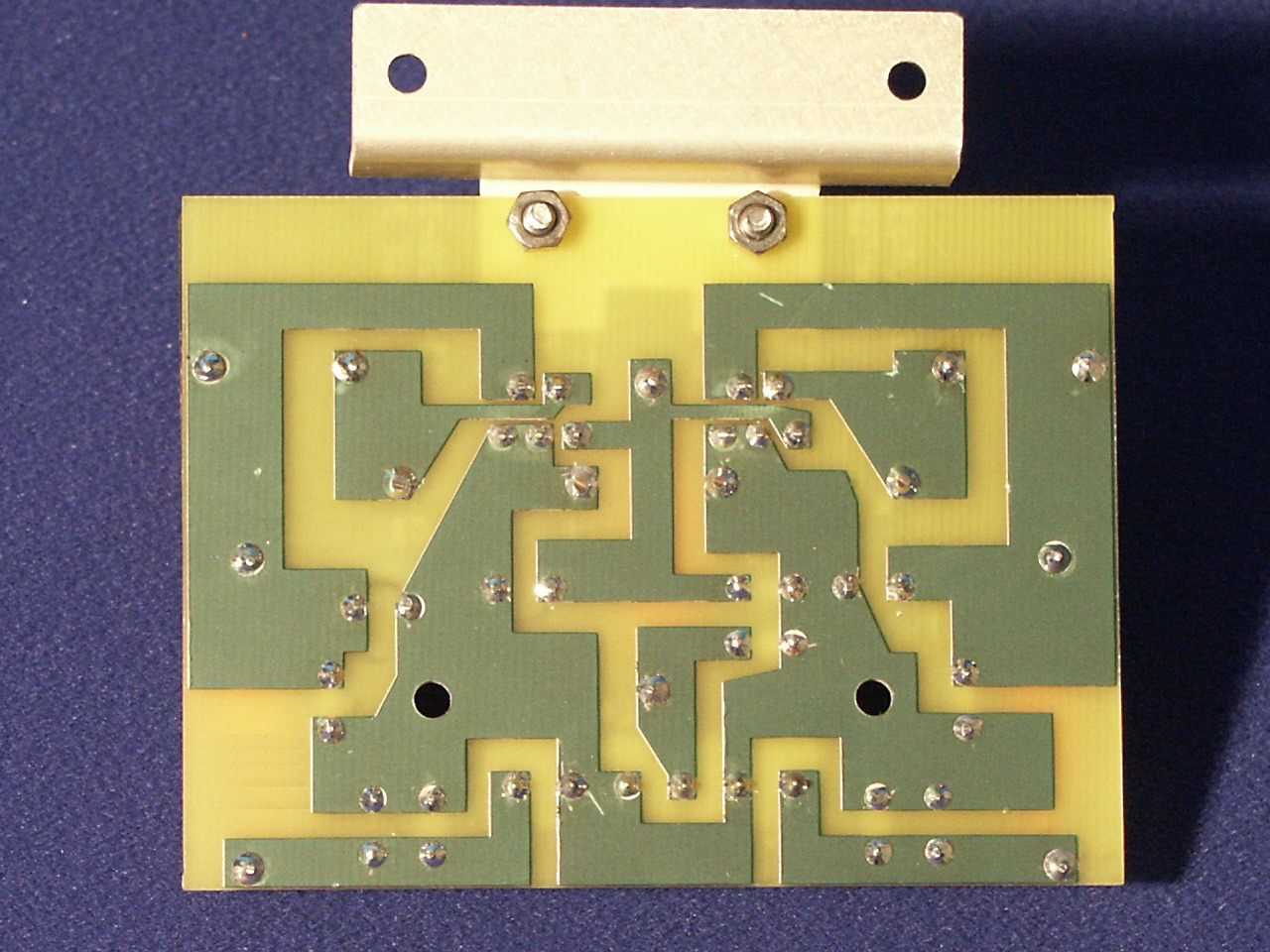

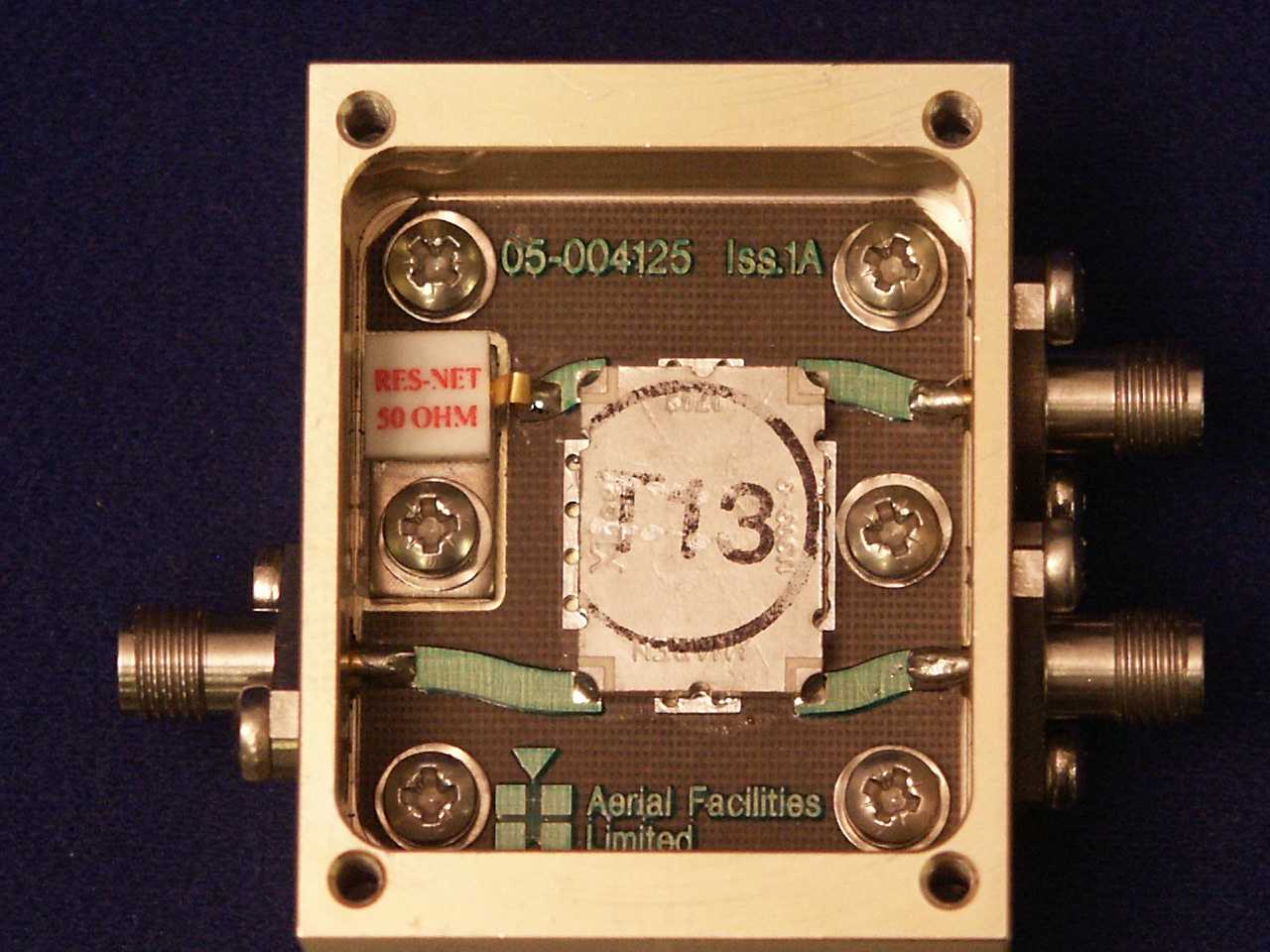

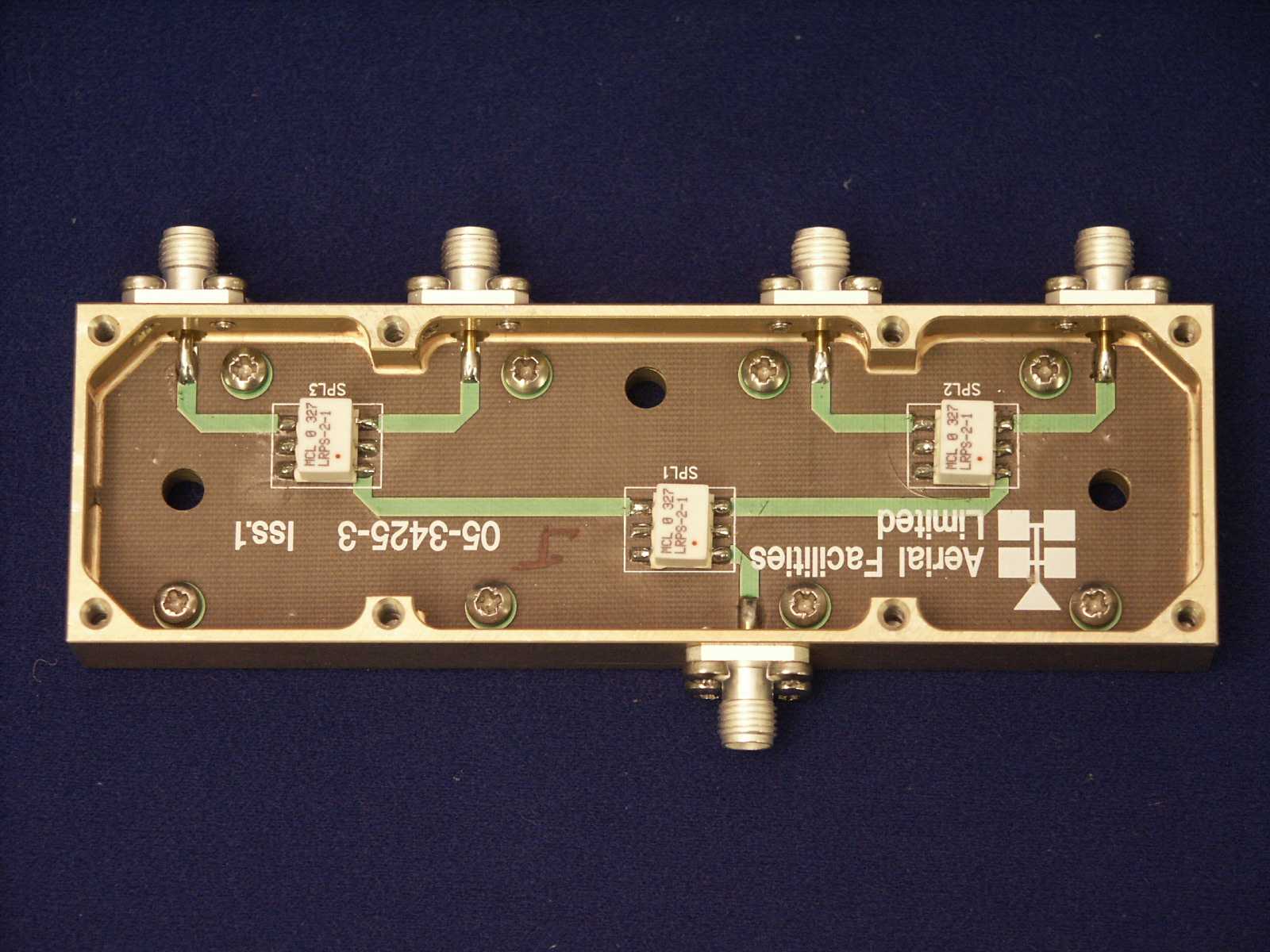

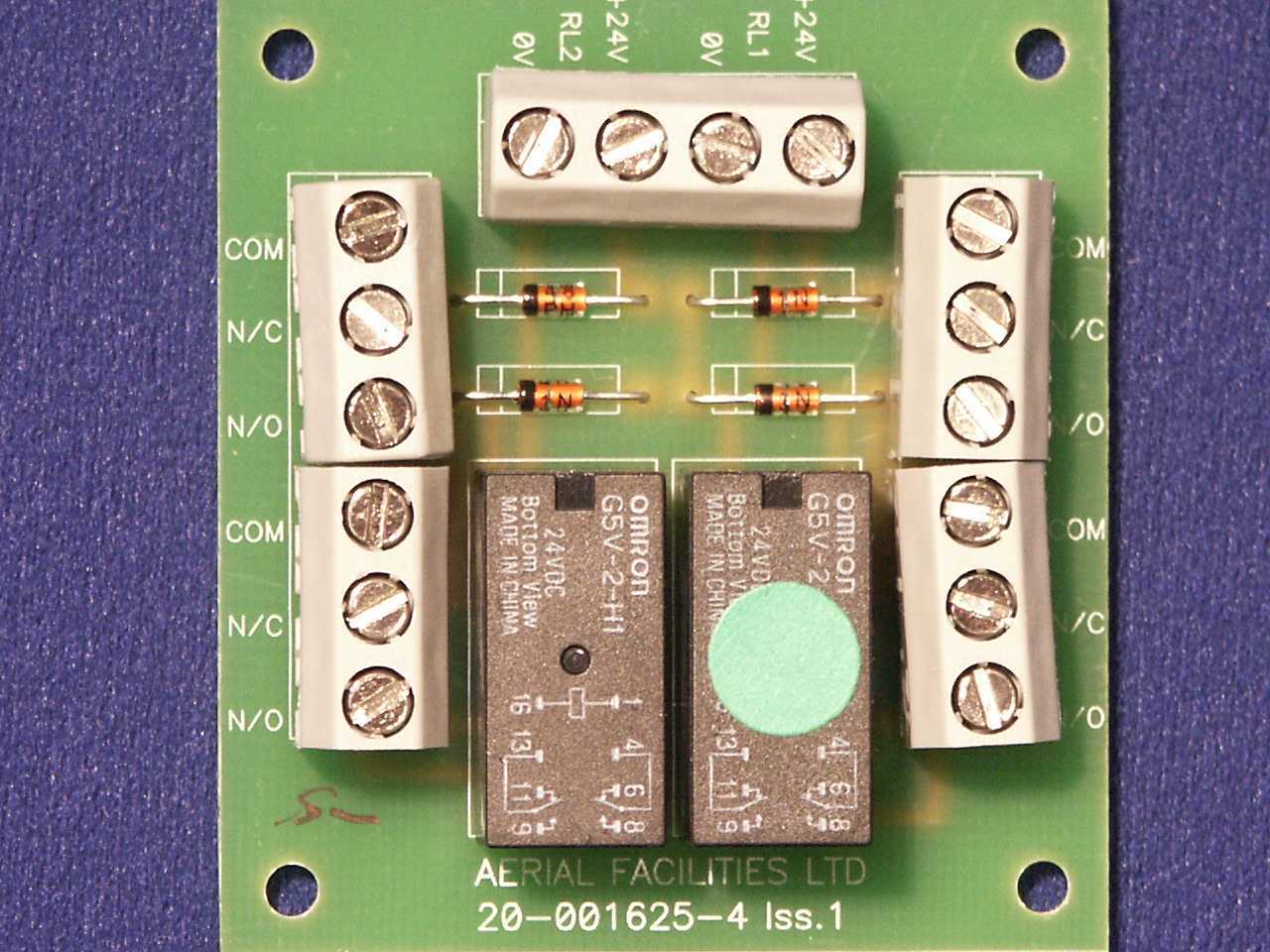

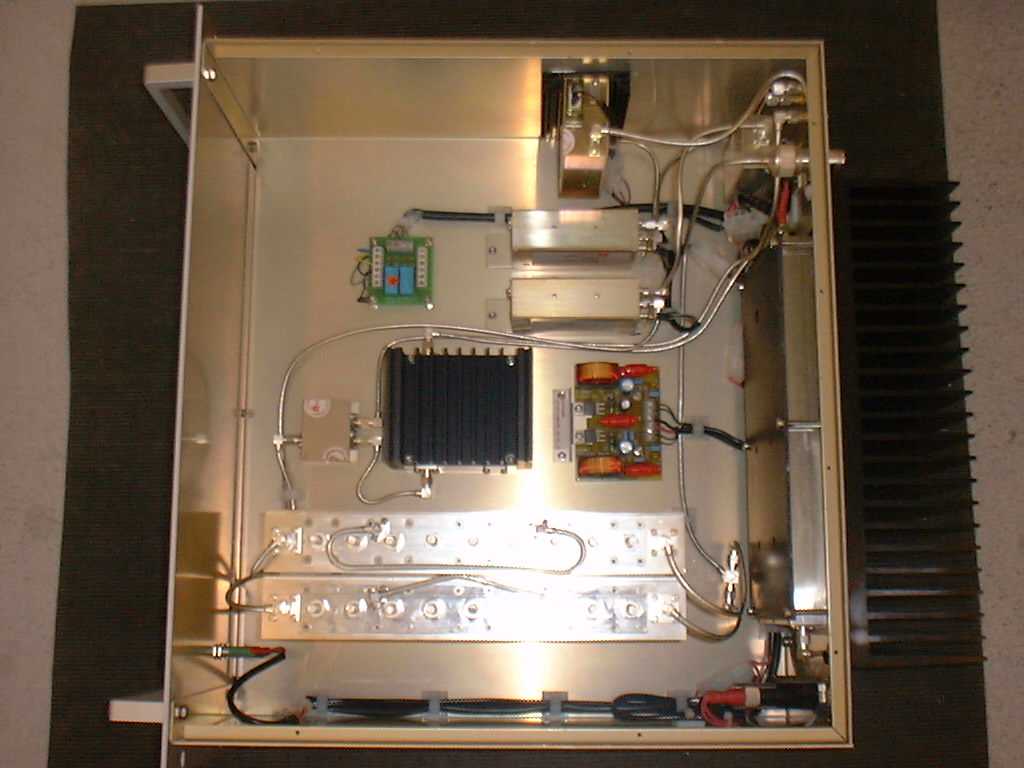

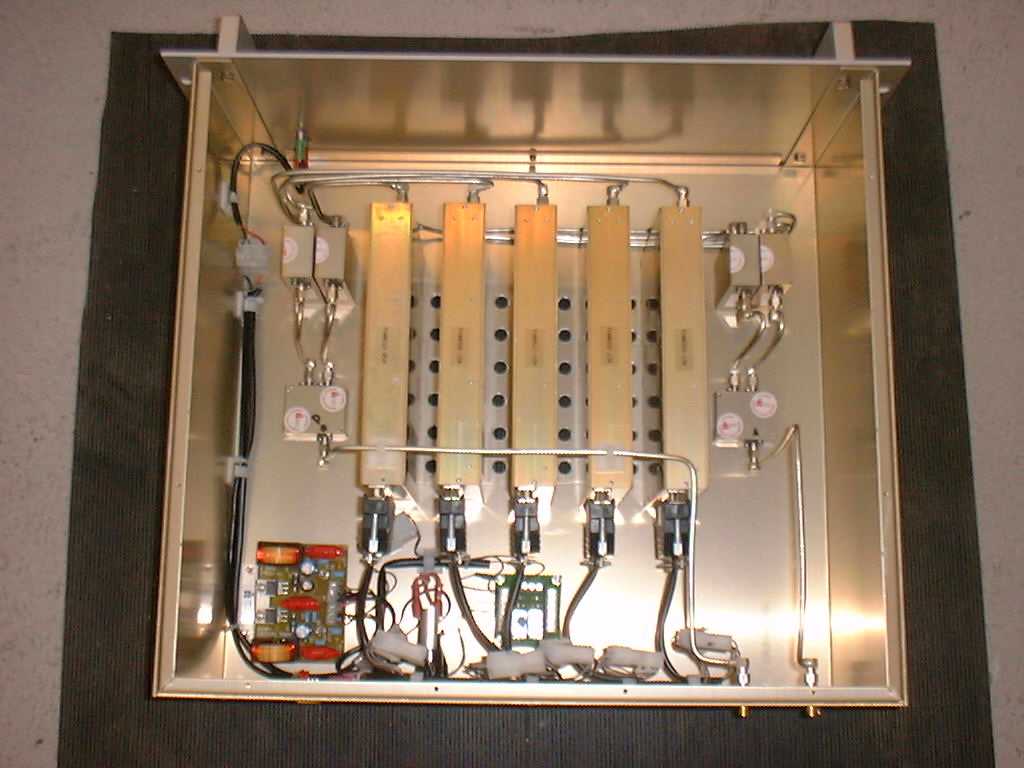

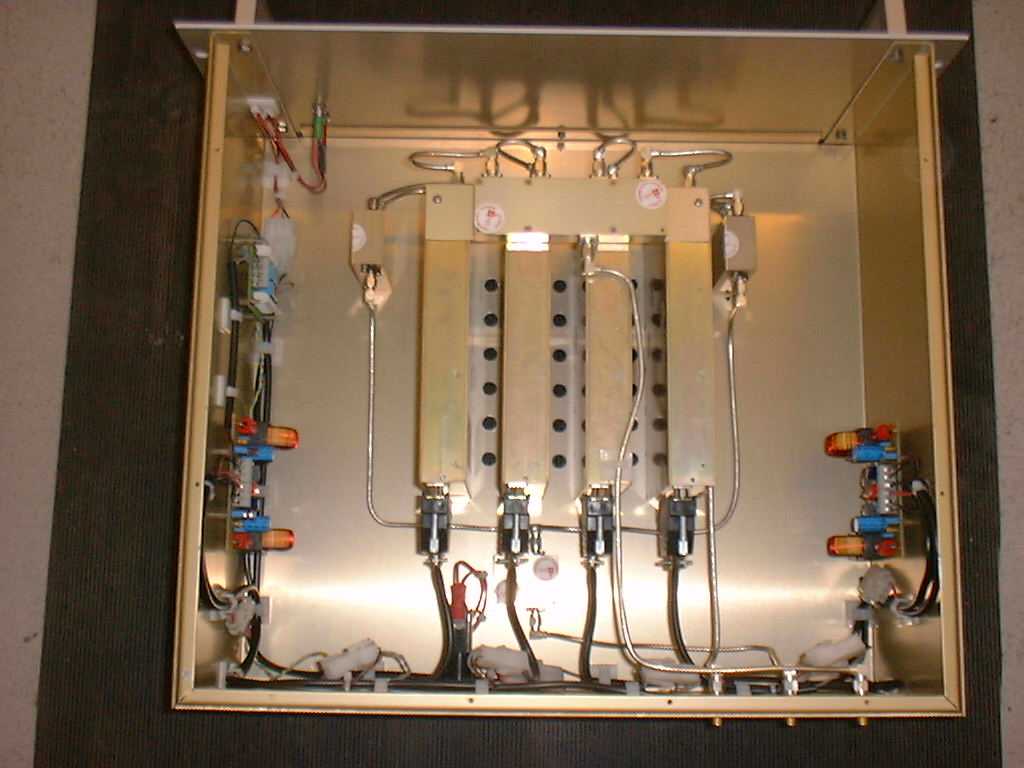

Denver Channelised CE User/Maintenance Handbook Handbook Nō.-50-063708HBKMIssue No:-1 Date:-29/09/2003 Page:- 13 of 51 3.SPECIFICATION 3.150-063701 Parts Lists 50-063702BASE ANT SIDE UHF DUPLEX/PA CHASSIS1 50-063703DOWNLINK UHF 5 CHANNEL CHASSIS1 50-063704UPLINK UHF 4 CHANNEL CHASSIS1 50-063705LCX SIDE UHF DUPLEX/PA CHASSIS1 50-063706UHF SIMPLEX CHANNEL CHASSIS1 50-063707POWER SUPPLY CHASSIS, 110V AC INPUT1 97-50003338U RACK 38U 600 x 600mm RAL70351 97-500065EURORACK GND/EARTHING KIT1 3.1.1 Base Antenna Side UHF Duplex/PA Shelf 50-063702 Parts List 02-0107015POLE UHF COMBLINE BANDPASS FILTER2 05-002603UHF 3dB SPLITTER SMA1 08-00490525Watt 2 PORT ISOLATOR N 330-470MHz1 10-0007011/4Watt 0-30dB SWITCHED ATTENUATOR1 11-006102LPA 380-500MHz 1Watt1 11-007302LNA. 380-500MHz 20dB1 11-007402LNA. 380-500MHz 30dB1 12-016301POWER AMPLIFIER 380-470MHz 20Watt CLASS A1 17-004327ATTENUATOR COVER1 17-004730ATTENUATOR MOUNTING1 19-00082619" CHASSIS 400mm DEEP LID1 19-0010214U 19" RACKMOUNT 400mm DEEP CHASSIS1 19-0010244U 19" CHASSIS FRONT PANEL1 80-063820HEATSINK 20Watt PA1 91-030002N ADAPTOR PANEL FEMALE/FEMALE1 91-130005SMA BULKHEAD ADAPTOR FEMALE/FEMALE2 91-500001POWER PLUG 3 PIN PANEL MOUNT NC-X1 91-600014'D' 9 WAY SOCKET (NON FILTERED)3 91-600015'D' 9 WAY PLUG (NON FILTERED)1 91-600019'D'15 WAY SHELL (2W7)1 91-640004LARGE PIN FOR 91-660001 D SOCKET2 91-6600012W5 MIXED D TYPE SOCKET (7 WAY)1 96-110021T10A 0.25 x 1.25' FUSE CERAMIC2 96-110034FUSE HOLDER 16-30A, 32mm1 96-700034LED RED 5mm IP671 96-700035LED GREEN 5mm IP671 97-4000024U HANDLE [ALLOY]2 Denver Channelised CE User/Maintenance Handbook Handbook Nō.-50-063708HBKMIssue No:-1 Date:-29/09/2003 Page:- 14 of 51 3.1.2 Downlink UHF 5 Channel Shelf 50-063703 Parts List 05-002603UHF 3dB SPLITTER SMA2 05-0038033 WAY SPLITTER, UHF4 13-001803DUAL DC/DC CONVERTER 24V-12V 1A2 17-003012CHANNEL MODULE 450MHz, 15kHz (8p)5 19-00082619" CHASSIS 400mm DEEP LID1 19-0010214U 19" RACK MOUNT 400mm DEEP CHASSIS1 19-0010244U 19" CHASSIS FRONT PANEL1 20-00160112V RELAY BOARD3 91-130005SMA BULKHEAD ADAPTOR FEMALE/FEMALE2 91-500001POWER PLUG 3 PIN PANEL MOUNT NC-X1 91-600015'D' 9 WAY PLUG (NON FILTERED)1 91-620001'D' 25 WAY SOCKET5 93-930003SMA 50ohm TERMINATION2 96-110001FUSE HOLDER 20 x 5mm6.3A1 96-110011T 4A A.SURGE FUSE 20mm2 96-600002INSULATING BOOT SMALL1 96-600003INSULATING BOOT D.C.1 96-700034LED RED 5mm IP671 96-700035LED GREEN 5mm IP671 97-4000024U HANDLE [ALLOY]2 Denver Channelised CE User/Maintenance Handbook Handbook Nō.-50-063708HBKMIssue No:-1 Date:-29/09/2003 Page:- 15 of 51 3.1.3 Uplink UHF 4 Channel Shelf 50-063704 Parts List 05-002603UHF 3dB SPLITTER SMA1 05-0034014 WAY SPLITTER LOW POWER1 05-0038033 WAY SPLITTER, UHF2 13-001803DUAL DC/DC CONVERTER 24V-12V 1A2 17-003012CHANNEL MODULE 450MHz, 15kHz (8p)4 19-00082619" CHASSIS 400mm DEEP LID1 19-0010214U 19" CHASSIS 400mm DEEP CHASSIS1 19-0010244U 19" CHASSIS FRONT PANEL1 20-00160112V RELAY BOARD2 91-130005SMA BULKHEAD ADAPTOR FEMALE/FEMALE3 91-500001POWER PLUG 3 PIN PANEL MOUNT NC-X1 91-600015'D' 9 WAY PLUG1 91-620001'D' 25 WAY SOCKET4 93-930003SMA 50ohm TERMINATION1 96-110001FUSE HOLDER 20 x 5mm6.3A1 96-110011T 4A A.SURGE FUSE 20mm2 96-600002INSULATING BOOT SMALL1 96-600003INSULATING BOOT D.C.1 96-700034LED RED 5mm IP671 96-700035LED GREEN 5mm IP671 97-4000024U HANDLE [ALLOY]2 Denver Channelised CE User/Maintenance Handbook Handbook Nō.-50-063708HBKMIssue No:-1 Date:-29/09/2003 Page:- 16 of 51 3.1.4 Tunnel side UHF Duplex/PA Shelf 50-063705 Parts List 02-0107015POLE COMBLINE BANDPASS FILTER2 10-0007011/4Watt 0-30dB SWITCHED ATTENUATOR1 11-006102LPA 380-500MHz 1Watt1 11-007302LNA. 380-500MHz 20dB1 11-007402LNA. 380-500MHz 30dB1 12-016301POWER AMPLIFIER 380-470MHz 20Watt CLASS A1 13-001803DUAL DC/DC CONVERTER 24V-12V 1A1 17-004327ATTENUATOR COVER1 17-004730ATTENUATOR MOUNTING1 19-00082619" CHASSIS 400mm DEEP LID1 19-0010214U 19" RACK MOUNT 400mm DEEP CHASSIS1 19-0010244U 19" CHASSIS FRONT PANEL1 80-063820HEATSINK 20Watt PA1 91-030002N ADAPTOR PANEL FEMALE/FEMALE1 91-130005SMA BULKHEAD ADAPTOR FEMALE/FEMALE2 91-500001POWER PLUG 3 PIN PANEL MOUNT NC-X1 91-600014'D' 9 WAY SOCKET (NON FILTERED)3 91-600015'D' 9 WAY PLUG (NON FILTERED)1 91-600019'D'15 WAY SHELL (2W7)1 91-640004LARGE PIN FOR 91-660001 D SOCKET2 91-6600012W5 MIXED D TYPE SOCKET (7 WAY)1 96-110021T10A 0.25 x 1.25' FUSE CERAMIC2 96-110034FUSE HOLDER 16-30A, 32mm1 96-700034LED RED 5mm IP671 96-700035LED GREEN 5mm IP671 97-4000024U HANDLE [ALLOY]2 Denver Channelised CE User/Maintenance Handbook Handbook Nō.-50-063708HBKMIssue No:-1 Date:-29/09/2003 Page:- 17 of 51 3.1.5 UHF Simplex Shelf 50-063706 Parts List 02-0107015POLE COMBLINE BANDPASS FILTER2 08-9300032 PORT ISOLATOR 360-470MHz SMA1 10-0007011/4Watt 0-30dB SWITCHED ATTENUATOR1 11-006102LNA 380-500MHz 1Watt2 11-007402LNA. 380-500MHz 30dB3 13-001803DUAL DC/DC CONVERTER 24V-12V 1A2 13-002811SIMPLEX CONTROLLER1 17-001201ALC ATTENUATOR2 17-002802SIMPLEX RX/SQUELCH & AF2 17-004327ATTENUATOR COVER1 17-004730ATTENUATOR MOUNTING1 17-010802CHANNEL MODULE 450MHz 8p 15kHz BW + IF OUT2 19-00082619" CHASSIS 400mm DEEP LID1 19-0010214U 19" RACK MOUNT 400mm DEEP CHASSIS1 19-0010244U 19" CHASSIS FRONT PANEL1 20-00160112V RELAY BOARD1 91-030002N ADAPTOR PANEL FEMALE/FEMALE2 91-130005SMA BULKHEAD ADAPTOR FEMALE/FEMALE2 91-500001POWER PLUG 3 PIN PANEL MOUNT NC-X1 91-600014'D' 9 WAY SOCKET (NON FILTERED)5 91-600015'D' 9 WAY PLUG (NON FILTERED)1 91-620001'D' 25 WAY SOCKET1 96-110034FUSE HOLDER 16-30A, 32mm1 96-700034LED RED 5mm IP671 96-700035LED GREEN 5mm IP671 97-4000024U HANDLE [ALLOY]2 Denver Channelised CE User/Maintenance Handbook Handbook Nō.-50-063708HBKMIssue No:-1 Date:-29/09/2003 Page:- 18 of 51 3.1.6 Power Supply Shelf 50-063707 Parts List 80-00890224V RELAY PCB ASSEMBLY1 80-008920DUAL PSU HEATSINK2 80-008921DUAL PSU CASE1 80-008922DUAL PSU LID1 80-008925DUAL PSU FRONT PANEL1 91-5100043 PIN PANEL MOUNT SOCKET NC-X6 91-5100353 WAY MATE N LOK PLUG HOUSING2 91-520001POWER MAINS INLET FIXED1 91-520005MAINS L…

Text truncated - open the document above for the full version.

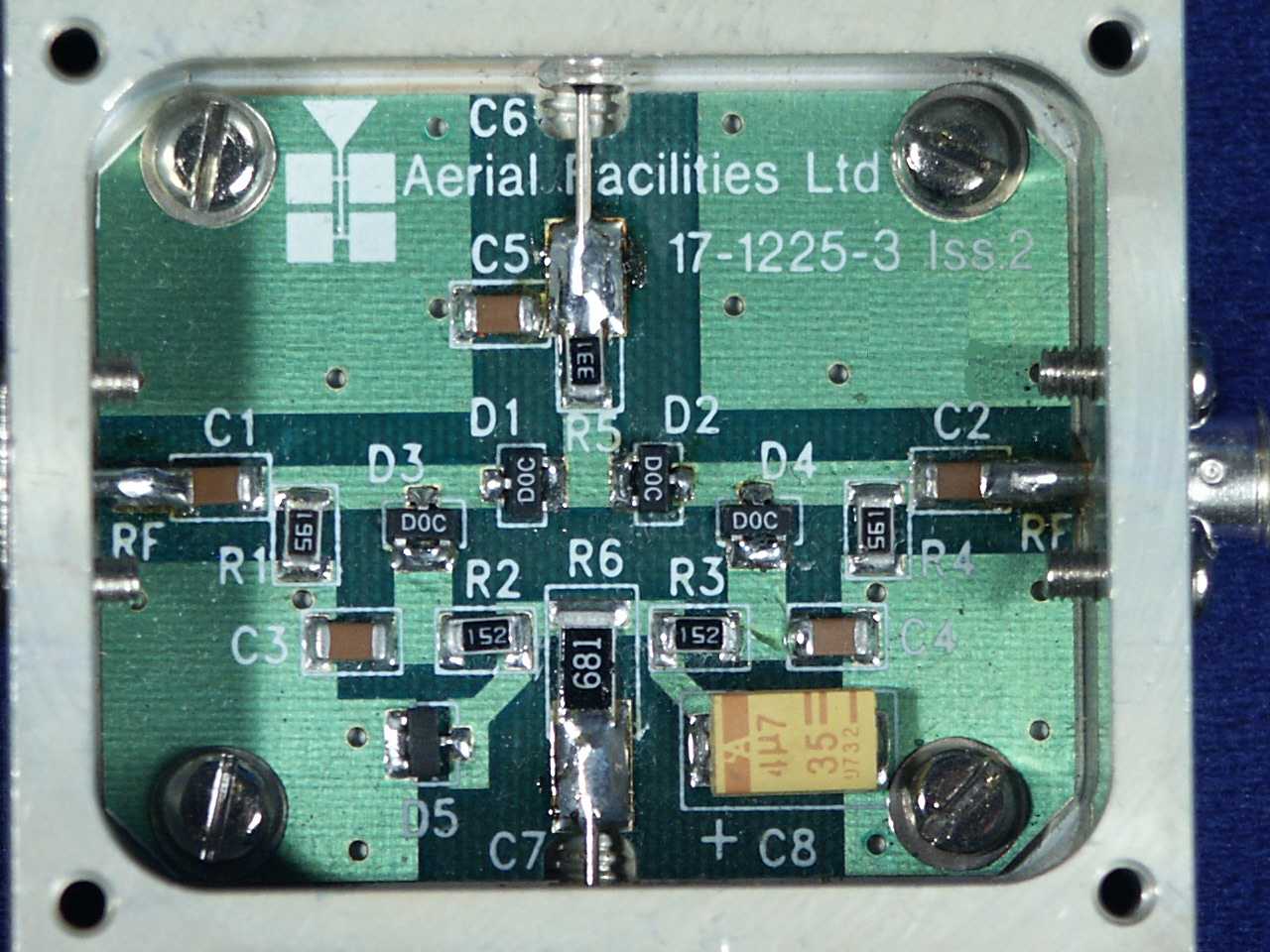

BY DAT E DESCRIPT ION No ISSUE USED O N SELECT ON TEST OPTI ON AL ATTEN U ATI ON RF IN RF OUT ATT1 ATT2 ATT3 ATT4 R5 R11 R17 R3 R4 R8 R9 R14 R15 R20 R21 R24 R25 R23LK1 R19 R13 R7 R22 R16 R10 R2 R6 R12 R18 R1 22R 47R 100R 270R 22R 47R 100R 330R 470R 470R 470R 470R 470R 470R 220R 270R 270R 220R 150R 150R 150R 150R 10-000702 1 PRODUCTION ISSUE (CR0482) 25/ 6/ 93 DBS REFER TO PCB SUB-ASSEMBLY FOR FURTHER COMPONENT INFORMATION AREAS SHOWN THUS: SIGNIFY 50 ohm STRIPLINE. 1A PRODUCTION ISSUE (CR0962) 21/ 1/ 99 SEW Fax: (01494) 777002 Tel: (01494) 777000 Aerial Facilities Ltd THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.RE P RODUCT ION OR US E OF T HIS DE S IGN B Y OT HE RS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRG.No TITLE A3 ISS ATTENUATOR, SWITCHED, 0.25W, 0-30dB,CIRCUIT DIAGRAM 10-000770 1A DBS 25/06/93 10-000703

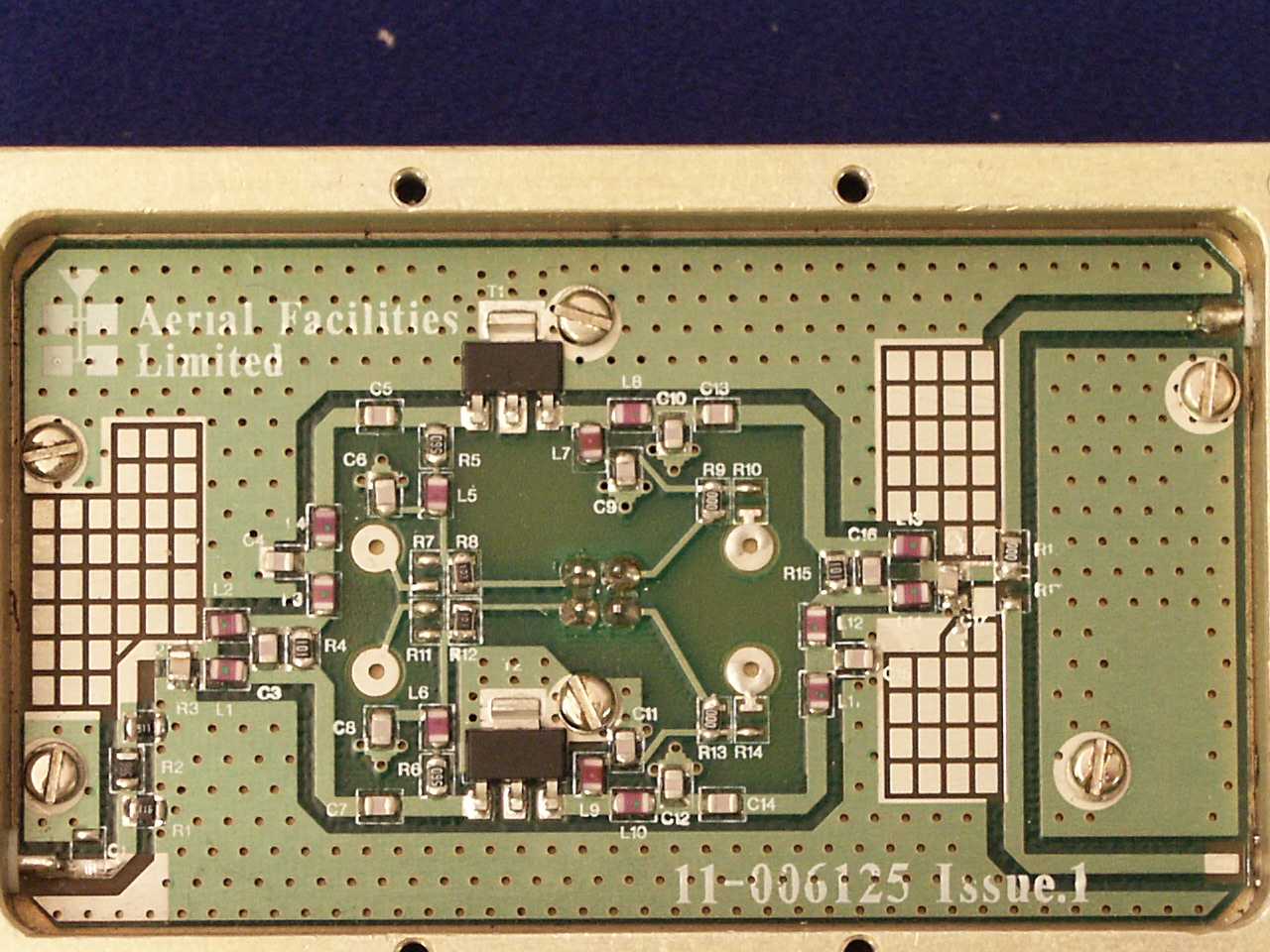

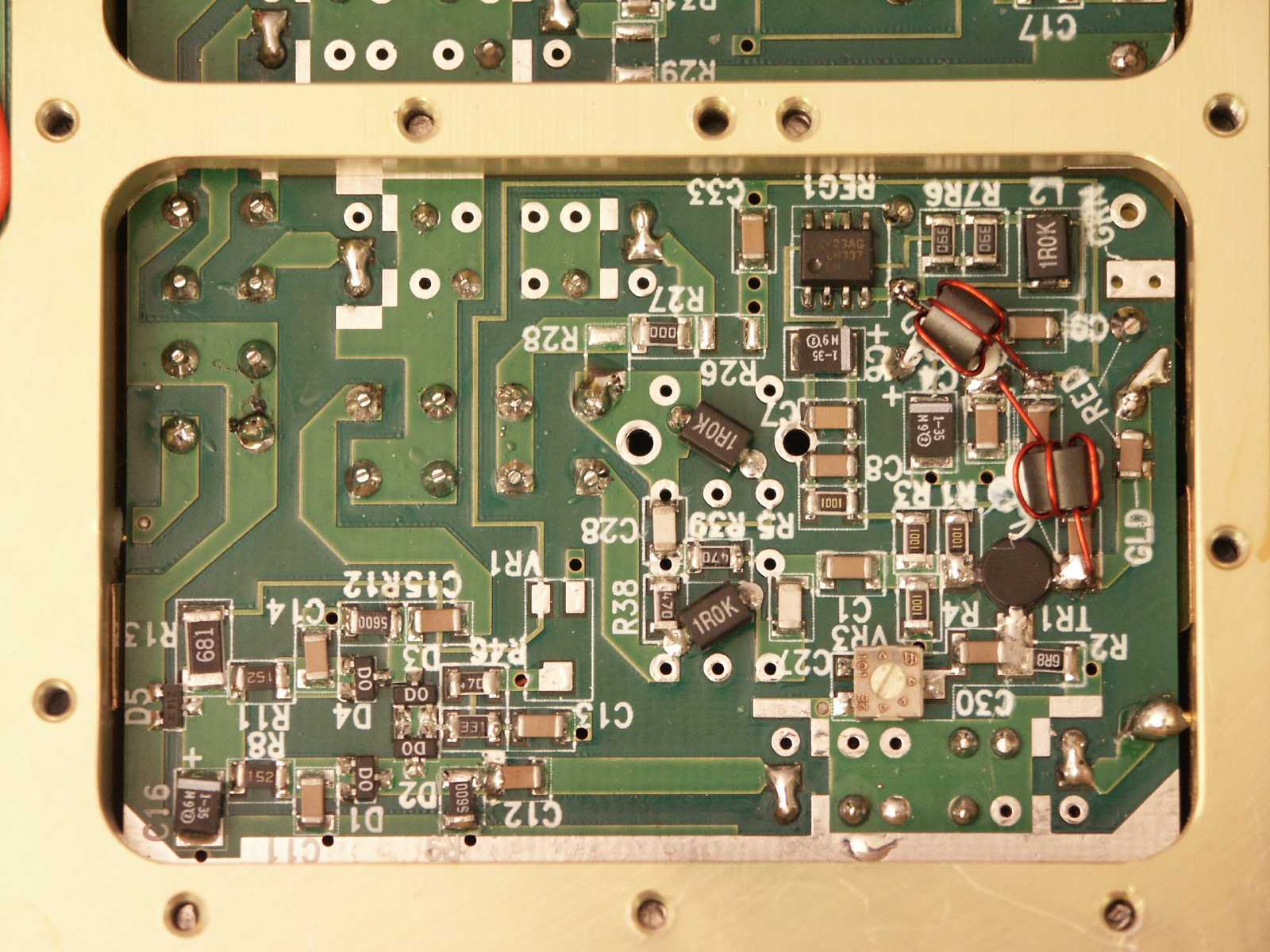

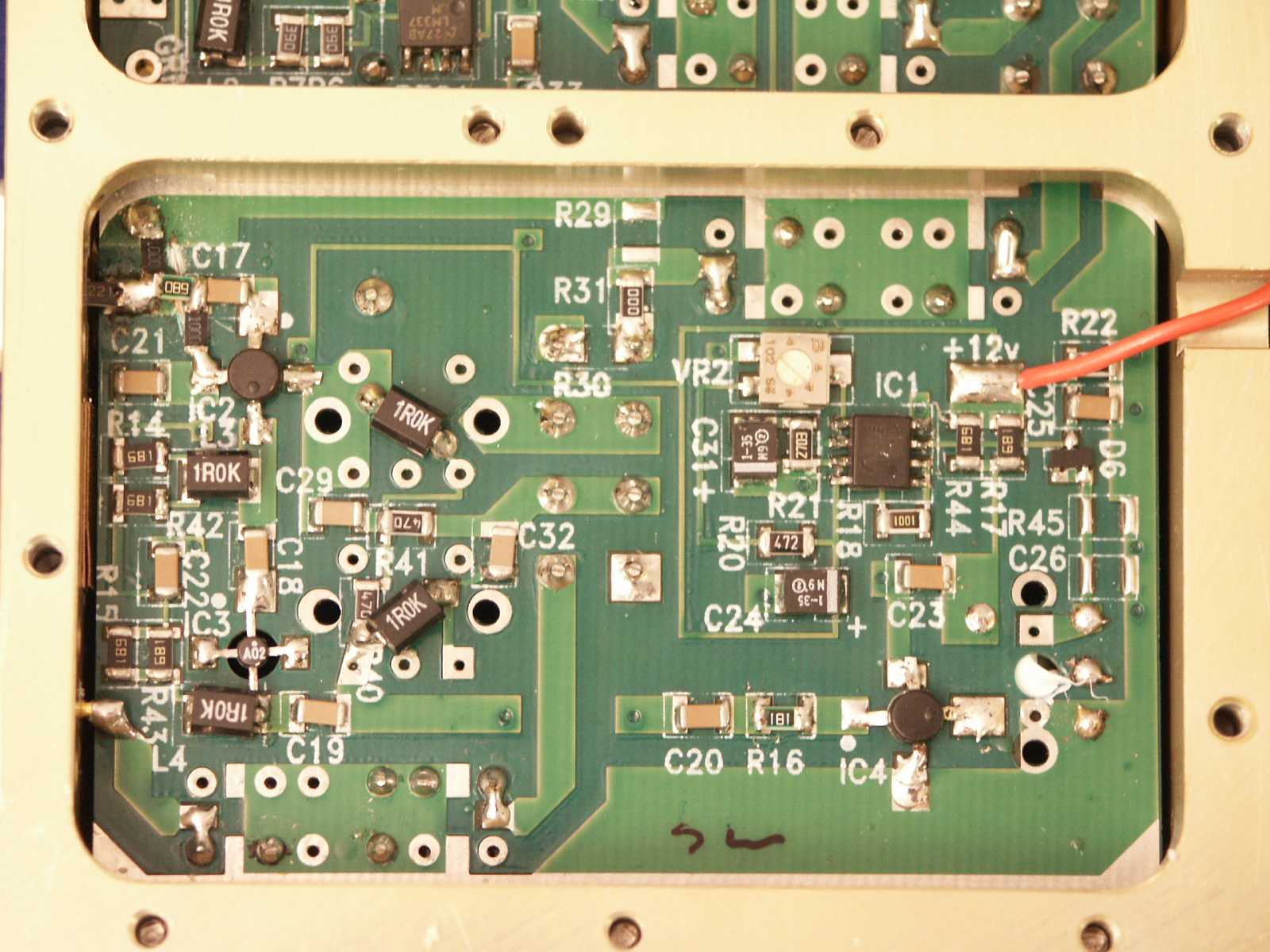

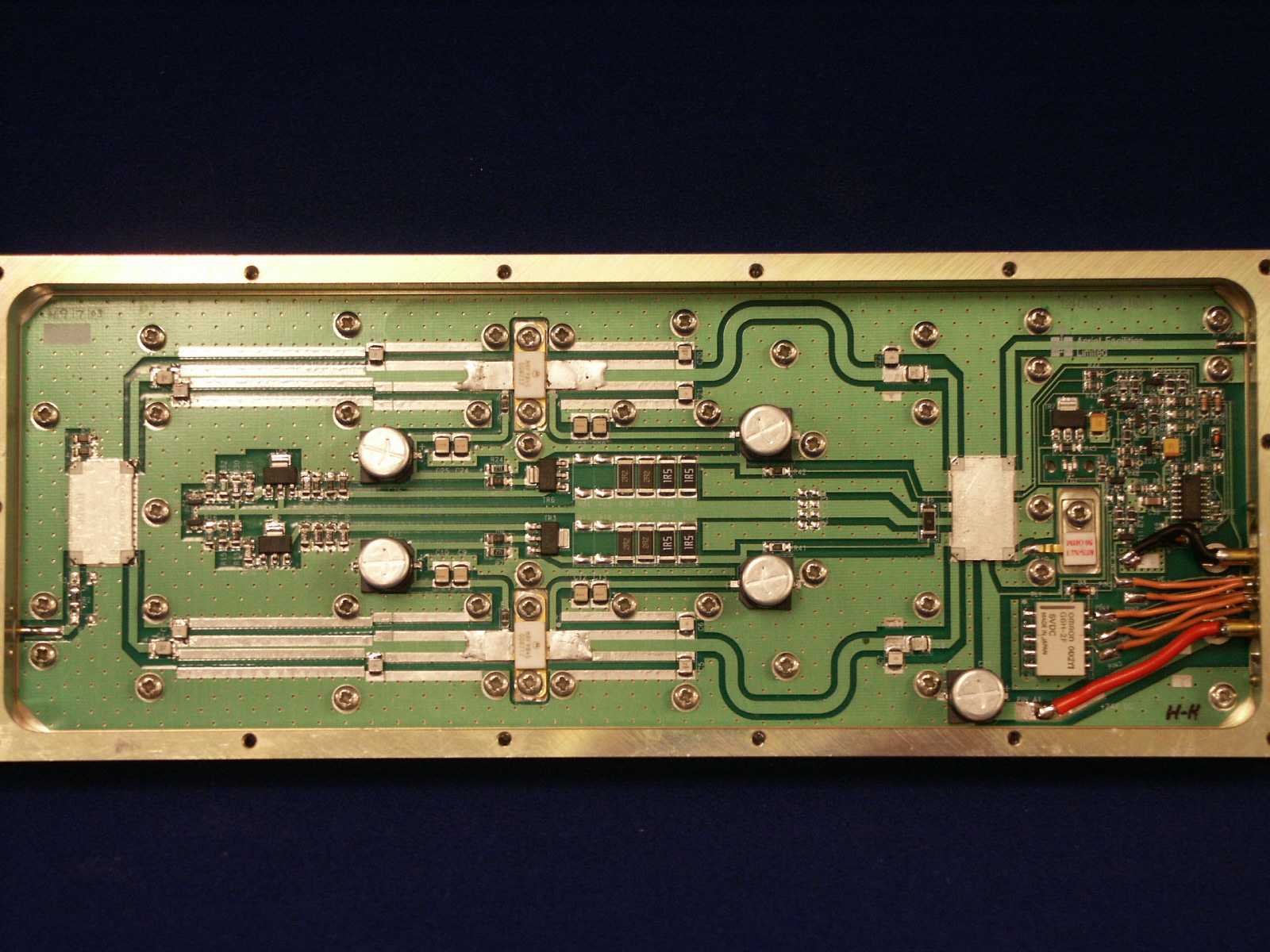

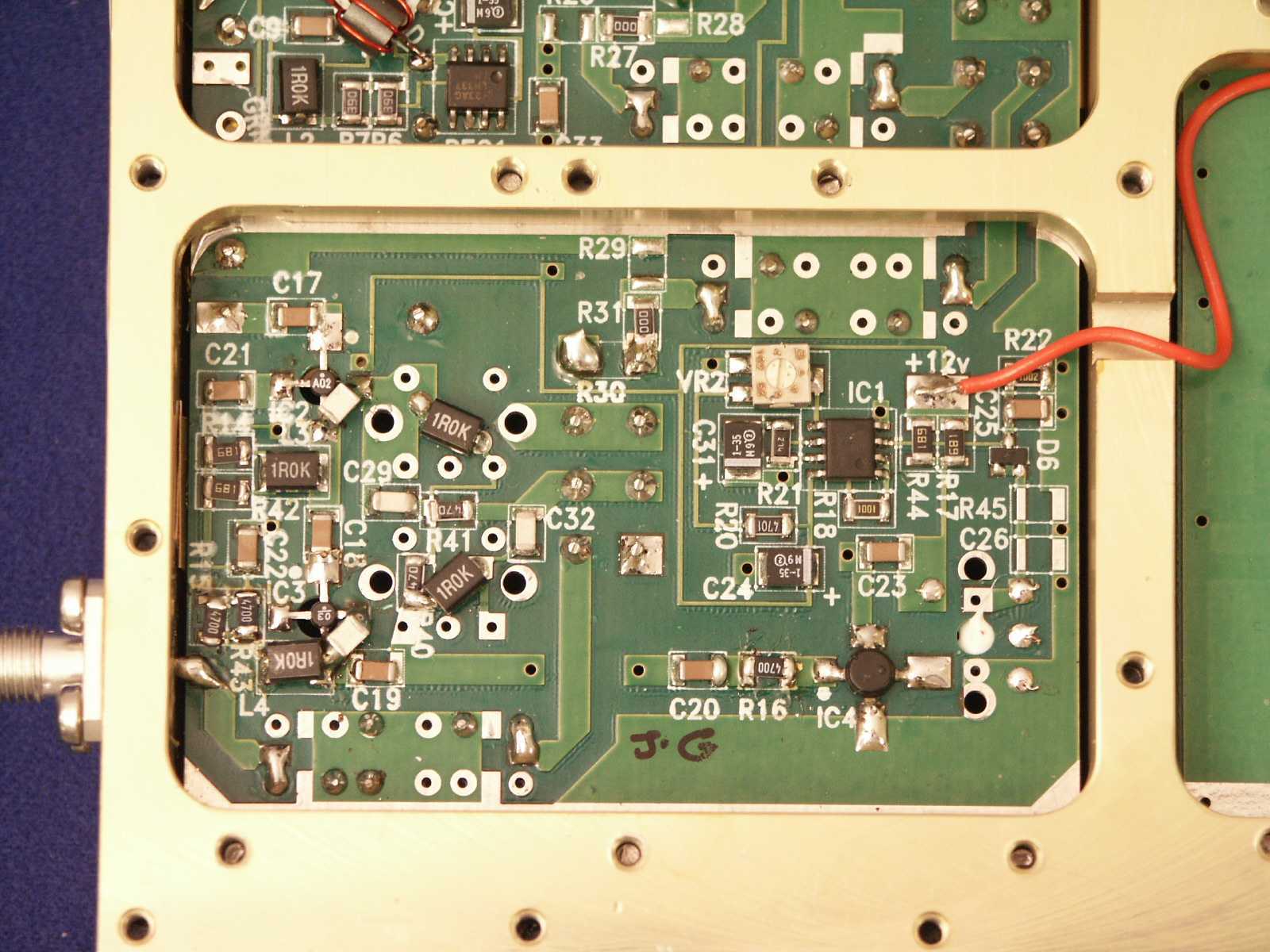

Maintenance Handbook H/book Number:- Issue No:- Date:- Page:- Drg. Nō. 11-006102, Low Noise Amplifier General Assembly 380-500MHz 1W AMPLIFIER WITH RELAY ASSEMBLY 11-006102 1A 1.5:1 MNR 22/03/02 5 21 2 22 2 4 24 2 IN 2 PLACES 25 4 3 32 7 17 24 2 8 26 30 27 2 20 2 15 33 2 27 5 16 23 5 1 6 IN 2 PLACES 2 25 10 34 see note 3 34 see note 2 35 see note 2 31 IN 4 PLACES 28 19 BY DAT E DESCRIPT IO N No ISSUE 1 23 456 78 9 ABCDEF 1 23 456 78 9 FEDABC Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Ltd TWO DECIMAL PL ACES ± 0 .1 mmO NE DECIMAL PL ACE ± 0 .3 mmNO DECIM AL PL ACE ± 1 m m BY AERIAL F ACIL IT IES L T D.PERMISSIBL E O NL Y IF EXPRESSL Y AUTHO RISED IN WRITINGREPRO DUCTIO N O R USE O F THIS DESIG N BY O THERS ISTHIS IS A PRO PRIETARY DESIG N O F AERIAL FACIL ITIES L TD. DRAWN CHKD AL L DIM ENSIO NS ARE IN m m UNL ESS O T HERWISE ST AT ED APPDDAT E T O L ERANCES SCAL E England CUSTO MER DRG .No TITLE A3 PRODUCTION ISSUE 22/03/02 MNR J5 CO N1 J4 REG 3 ABC R4 0 R5 0 R5 1 R4 4 R4 3 COMPONENTS TO BE ADDED TO 11-003912,ITEM 15,DC PCB SUB-ASSEMBLY DC PCB RF PCB R4 5 R4 9 L12 R12 R14 11-006125 Issue.1 L6 T2 L9 L10 C12 C14 C11 R13 L11 C15 R10 C9 R9 L13 R15 L14 C16 C17 R17R16 RL1 AFL S/N ******** IN DATE **/**/20** PO WERFREQ.REF. 11-006102 1W 12-24vDC380-500MHz 0086 AFL OUT SENSITIVE DEVICES E LE C TR O S TA TI C OBSERVE PRECAUTIONS ATTENTION FOR HA NDLING see note 2 AFL LABEL DETAILS - SCALE 1:1 2. LIDS,ITEMS 2 & 3 AND LABELS,ITEMS 31,34 & 35,TO BE FITTED ON TEST1. SOLDER JOINTS TO BE MADE USING OR Maintenance Handbook H/book Number:- Issue No:- Date:- Page:- Drg. Nō. 11-006170, LNA RF Circuit Diagram C1 C2 C3 C7 R6 C8 R1 1 R1 2R5 C5 C6 R7 R8 R1 R2 R3 R4 C4 R1 3 R1 4 R9 R1 0 C1 0 C1 4C1 3 R1 5 C1 6 C1 7 380-500MHz 1W AMPLIFIER (RF) CIRCUIT DIAGRAM 11-006170 1A N.T.S MNR 23/01/02 C9C1 1 C1 2 R1 6R1 7 C1 5 DATE DESCRIPTION No ISSUE THIRD ANGL E PRO JECTION 123456789101112 ABCDEFGH 123456789101112 A BCDEFGH PERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGRE P RODUCTION OR US E OF THIS DE SIGN B Y OTHE RS ISTHIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD. UNLESS OTHERWISE STATEDALL DIMENSIONS ARE IN mm DATE DRAWN CHKD APPD TWO DECIMAL PLACES ± 0.1mmNO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mm BY AERIAL FACILITIES LTD. TOLERANCES SCALE CUSTOMER DRAWING No Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited England TI TLE 2A 910R 5R6 910R 8.2pF L1L2 3.3pF 100R 18nH L3 18nH18nH 18nH L4 6.8pF 220pF 1nF 56R56R 1nF 220pF 220pF220pF 220pF220pF 10K 0R0 10K 0R0 6.8nH L5 6.8nH L6 T1CYL 5 G D S G D S CYL 5T2 L7 180nH180nH L9 7.5nH L8 7.5nH L10 18nH L11L12 18nH 18nH L13 18nH L14 6.8pF6.8pF 100R 3.3pF 8.2pF RF O UT RF IN ANY CO M PO NENT S IN ARE NO T USED IN T HIS BUIL D PRO DUCTIO N ISSUE 23/ 01/ 02 MNR 0R0 RF O UT (OPTIONAL) 6.8pF CB IB Maintenance Handbook H/book Number:- Issue No:- Date:- Page:- Drg. Nō. 11-006171, LNA DC Wiring Diagram 380-500MHz 1W AMPLIFIERSCHEMATIC DIAGRAM 11-006171 1A MNR 23/01/02 BY DAT E DESCRIPT IO N No ISSUE 12 3 4 5 6 7 89 A BCDEF 1 23456789 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PRO PRIETARY DESIG N O F AERIAL FACIL ITIES L TD.REPRO DUCT IO N O R USE O F T HIS DESIG N BY O T HERS ISPERMISSIBL E O NL Y IF EXPRESSL Y AUTHO RISED IN WRITINGBY AERIAL FACIL ITIES L TD. NO DECIM AL PL ACE ± 1 m mO NE DECIMAL PL ACE ± 0 .3 mmTWO DECIMAL PL ACES ± 0 .1 mm AL L DIM ENSIO NS ARE IN m m UNL ESS O THERWISE STATED CHKD DRAWN APPDDAT E TO L ERANCES SCAL E England CUST O M ER DRAWING .No TITLE 3A LM7808CT REG 3 G I O +6V 220mA-ve+6V 220mA-ve J4 1 CO N2 - J5CO N2 - J4 J4 2J5 1J5 2 DC INPUT DC O UT PUT RF PCB FOR CIRCUIT DIAGRAM SEE 11-006170 SEE 11-003971 FOR CIRCUIT DIAGRAM DC PCB +8V C B A RF IN PRODUCTION ISSUE 23/01/02 MNR OUTRF OC GOOD/0v BAD 9 CO N1 9 REL AY CO NT ACT G O O DREL AY CO M MO NREL AY CO NTACT BAD PIN OUTS 9 WAY 'D' TTL VO L TAG E SETTTL AL ARM/0 v G O O DGROUND+12V DC I/P 7 CO N18 CO N15 CO N14 CO N1 68754 A3 CO N12 CO N1 32 CO N1 1 * * * = ONLY APPLIES TO 11-006802 * CB IB Maintenance Handbook H/book Number:- Issue No:- Date:- Page:- Drg. Nō. 11-003971, LNA DC Schematic Diagram DC PCB FOR LNA's AND LPA's,CIRCUIT DIAGRAM 11-003971 DJL 24/09/01 R33 TR 7 R32 R31 TR 8 R34 R21R20 TR 1 R24 TR 2 R23R22 TR 3 R25 R11 R12 R10 R9 C2 R6 R4 R8 R7 C8 R47 C4 C5 R43 R44 R45 C10 C11 C15 C17 C16 R52 C14 R49 R51 R50 C13 R46R48 R39 R40 R38 R42 VR1 R41 R53R54R55 RL1 1 R35 TR 4 TR 6 R16 R17 R18 R19 R15 C3 R14 R3 R2 R5 R29 R1 R36 R27 R13 C12 C9 R56 R57 C19 C1 C7 C6 C18 R58 R28 BY DAT E DESCRIPT IO N No ISSUE 12 3 4 5 6 7 89 A BCDEF 1 23456789 A BCD E F Chesham(01494)778301 Fax (01494)778910 Aerial Facilities Limited TWO DECIMAL PL ACES ± 0 .1 mmO NE DECIMAL PL ACE ± 0 .3 mmNO DECIM AL PL ACE ± 1 m m BY AERIAL FACIL ITIES L TD.PERMISSIBL E O NL Y IF EXPRESSL Y AUTHO RISED IN WRITINGREPRO DUCT IO N O R USE O F T HIS DESIG N BY O T HERS ISTHIS IS A PRO PRIETARY DESIG N O F AERIAL FACIL ITIES L TD. DRAWN CHKD UNL ESS O THERWISE STATED AL L DIM ENSIO NS ARE IN m m APPDDAT E TO L ERANCES SCAL E England CUST O M ER DRAWING .No TITLE A3 PROTOTYPE ISSUE AA 2 4 /9 /0 1 DJL THIRD ANG L E PRO JECTIO N 4K 7 BCW71 10K BCW71 4K 7 10K 4K 710K BCW71 4K 710K 4K 7 10K BCW71 120R 3K 6 270K 1K 100n 100K 100K 270K 1K 2 + REG1 IO A 1K + + + 100n IC2 8 5 3 4 10u + 100n + 3 4 IC3 2 8 5 1K REG2 IO A + 1K1K 100R +- 1 23 - + 56 7 - 2 + 3 1 1K 1K 2K 2 22K 560R 2K 4 + 3K 100K 120R 100K 0R 1K 8 4K 7 56R 4K 7 TR 5 FZT751 BCW71 1U BCW71 3V 3 D3 9 - + 10 8 12 +- 13 14 6 -+ 5 7 IC1:CIC1:B IC1:D 114 LM 324M LM 324M LM 324M IC1:A LM 324M ZD 1 1. 23V LL4148 D2 LE D 1 IC4:BIC4:A + 1u 10u + 10u 1u 1u >12V DC I/P 10u ZD 35. 1V 10u 470R D1 LL4148 CON 1 1 J2 2 9CON 1 CON 1 8 4CON 1 5CON 1 CON 1 3 RL1/1 ZD 2 100n 48 LM 337LM 10u 10u LL4148 1. * IF APPLICABLE, VALUES WILL BE DETERMINED AT A HIGHER LEVEL BOM I C L7660CI C L7660C LM 337LM 2 J2 1 1 J1 2 J5 2 J1 1 J5 1 J3 2 J4 2 J3 1 J4 CON 1 + 1u 470p + 10u + 1u 2. CONNECTORS J1-5 TO BE FITTED AS NECESSARY PRODUCTION …

Text truncated - open the document above for the full version.

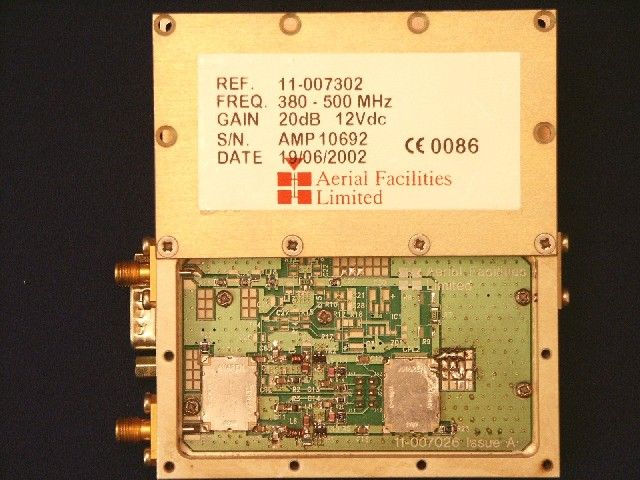

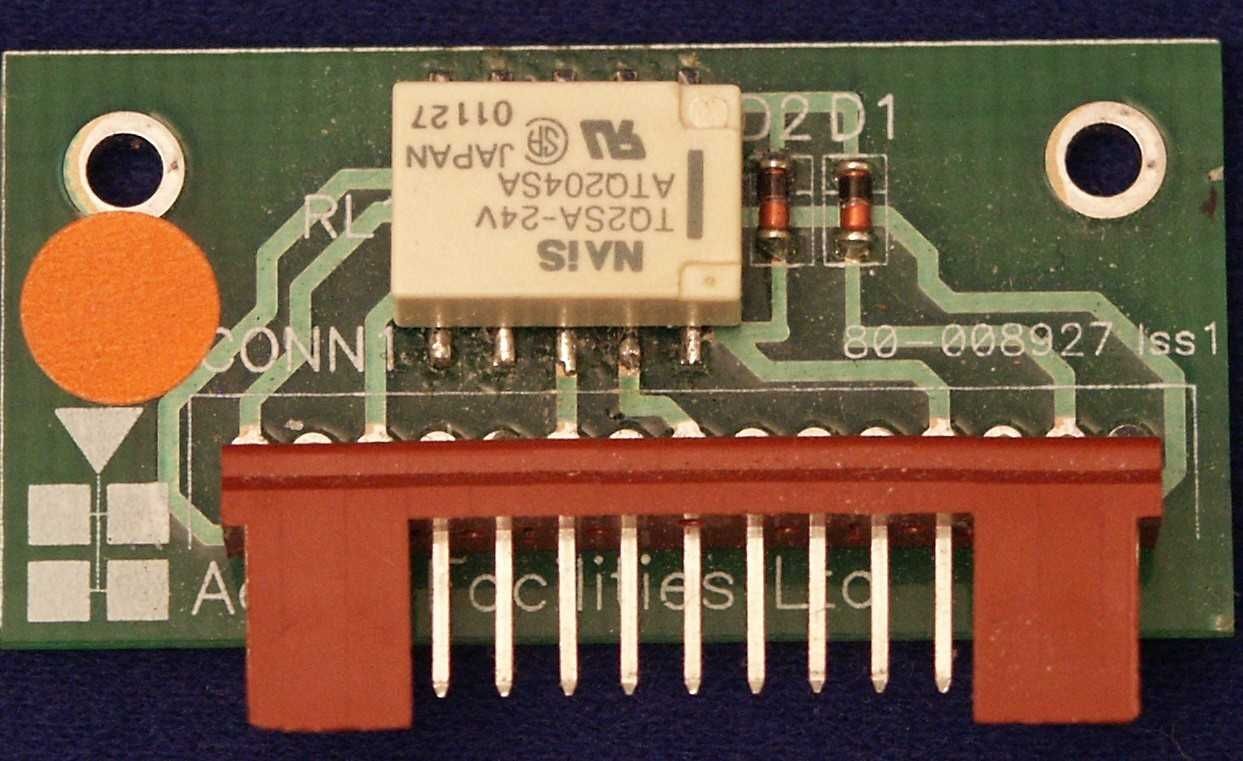

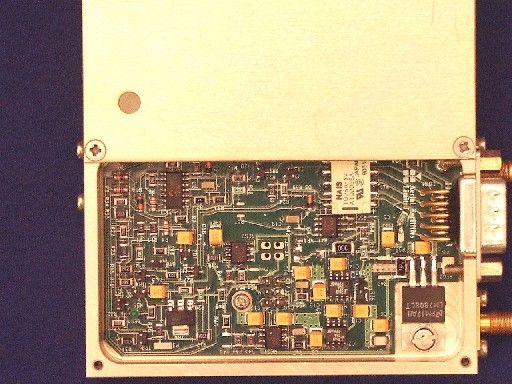

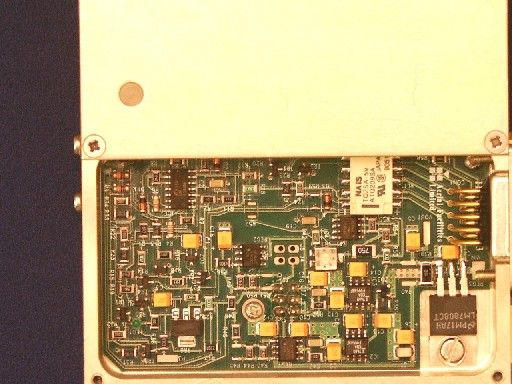

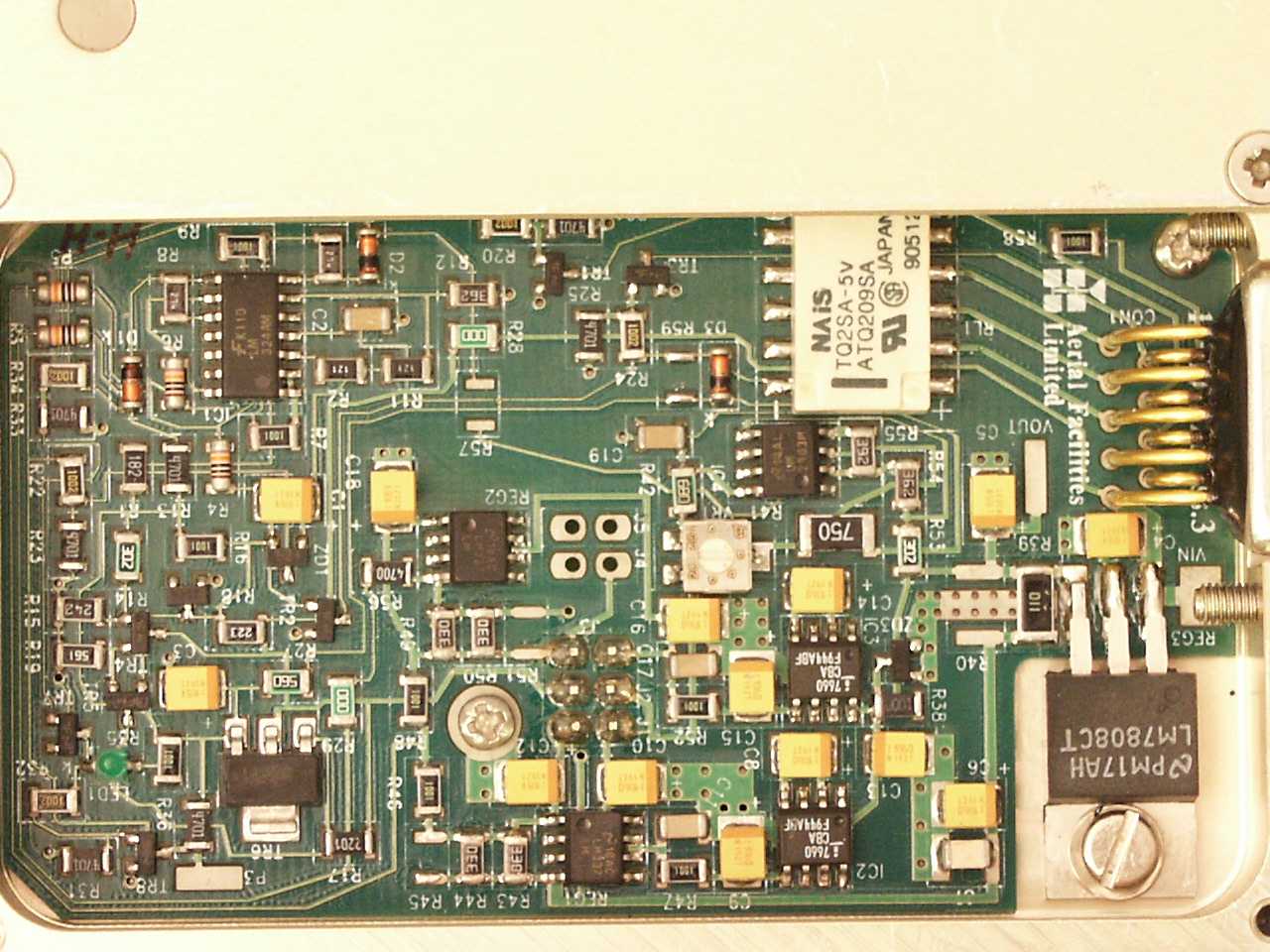

Maintenance Handbook H/book Number:- Issue No:- Date:- Page:- Drg. Nō. 11-007302, LNA Assembly With Alarm Relay BY DAT E DESCRIPT IO N No ISSUE 1 23 456 78 9 ABCDEF 1 2 3 4 5 6 7 8 9 FEDABC Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Ltd TWO DECIMAL PL ACES ± 0 .1 mmO NE DECIMAL PL ACE ± 0 .3 mmNO DECIM AL PL ACE ± 1 m m BY AERIAL F ACIL IT IES L T D.PERMISSIBL E O NL Y IF EXPRESSL Y AUT…

Text truncated - open the document above for the full version.
