800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 1 of 88 24 Channel 800MHz & VHF Cell Enhancers Maintenance Handbook For Terry Consulting AFL Works Order Nō.: Q111353 AFL product part Nō’s.: 50-078001 (800 & VHF CE’s) 80-209302 (Battery Back-up) 800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 2 of 88 Table of Contents AMENDMENT LIST RECORD SHEET .................................................................................................. 6 INTRODUCTION ....................................................................................................................................... 7 Scope...........................................................................................................................................................................7 Purpose.......................................................................................................................................................................7 Glossary of Terms .....................................................................................................................................................8 Key to AFL RF Module Drawing Symbols .............................................................................................................9 1. SAFETY CONSIDERATIONS ..................................................................................................... 10 1.1 Earthing of Equipment ..............................................................................................................................10 1.2 Electric Shock Hazard ...............................................................................................................................10 1.3 RF Radiation Hazard.................................................................................................................................11 1.4 Chemical Hazard........................................................................................................................................12 1.5 Emergency Contact Numbers ...................................................................................................................12 2. OVERVIEW/SYSTEM DESCRIPTION...................................................................................... 13 3. SPECIFICATION .......................................................................................................................... 14 3.P Photographs..................................................................................................................................................14 3.P.1 800MHz Air I/F Uplink Shelf 50-078002................................................................................................14 3.P.2 Eight Channel Downlink Shelf 50-078003 ..............................................................................................15 3.P.3 Power Amplifier/Driver Shelf 50-078004................................................................................................16 3.P.4 800MHz In-Line Amplifier 50-078017....................................................................................................17 3.P.5 VHF/800MHz Multi-Coupler Shelf 50-078015.......................................................................................18 3.P.6 VHF Simplex Shelf 50-078010................................................................................................................19 3.P.7 VHF Duplex Shelf 50-078011 .................................................................................................................20 3.P.8 VHF Air Interface Shelf 50-078012 ........................................................................................................21 3.P.9 VHF Combiner Shelf 50-078013 .............................................................................................................22 3.P.10 PSU Shelf 50-078014...........................................................................................................................23 3.P.11 Battery Backup 80-209302...................................................................................................................24 3.P.12 Rack Photos..........................................................................................................................................25 3.1 Electrical Specification ..............................................................................................................................29 3.2 Channel Frequency Listing .......................................................................................................................30 3.3 Mechanical Specifications..........................................................................................................................31 3.3.1 Rack Mounted Equipment Mechanical Specifications.............................................................................31 3.3.2 Wall Mounted Equipment (50-078017 & 80-209302).............................................................................31 3.4 Parts Lists ...................................................................................................................................................32 3.4.1 Whole System Parts List (50-078001) .....................................................................................................32 3.4.2 800MHz AIF Uplink Shelf 50-078002 Parts List ....................................................................................33 3.4.3 800MHz 8 Channel, Channel Module Shelf 50-078003 Parts List..........................................................34 3.4.4 800MHz 40W Amplifier Shelf 50-078004 Parts List ..............................................................................35 3.4.5 VHF Simplex Shelf 50-078010/1..................................…

Text truncated - open the document above for the full version.

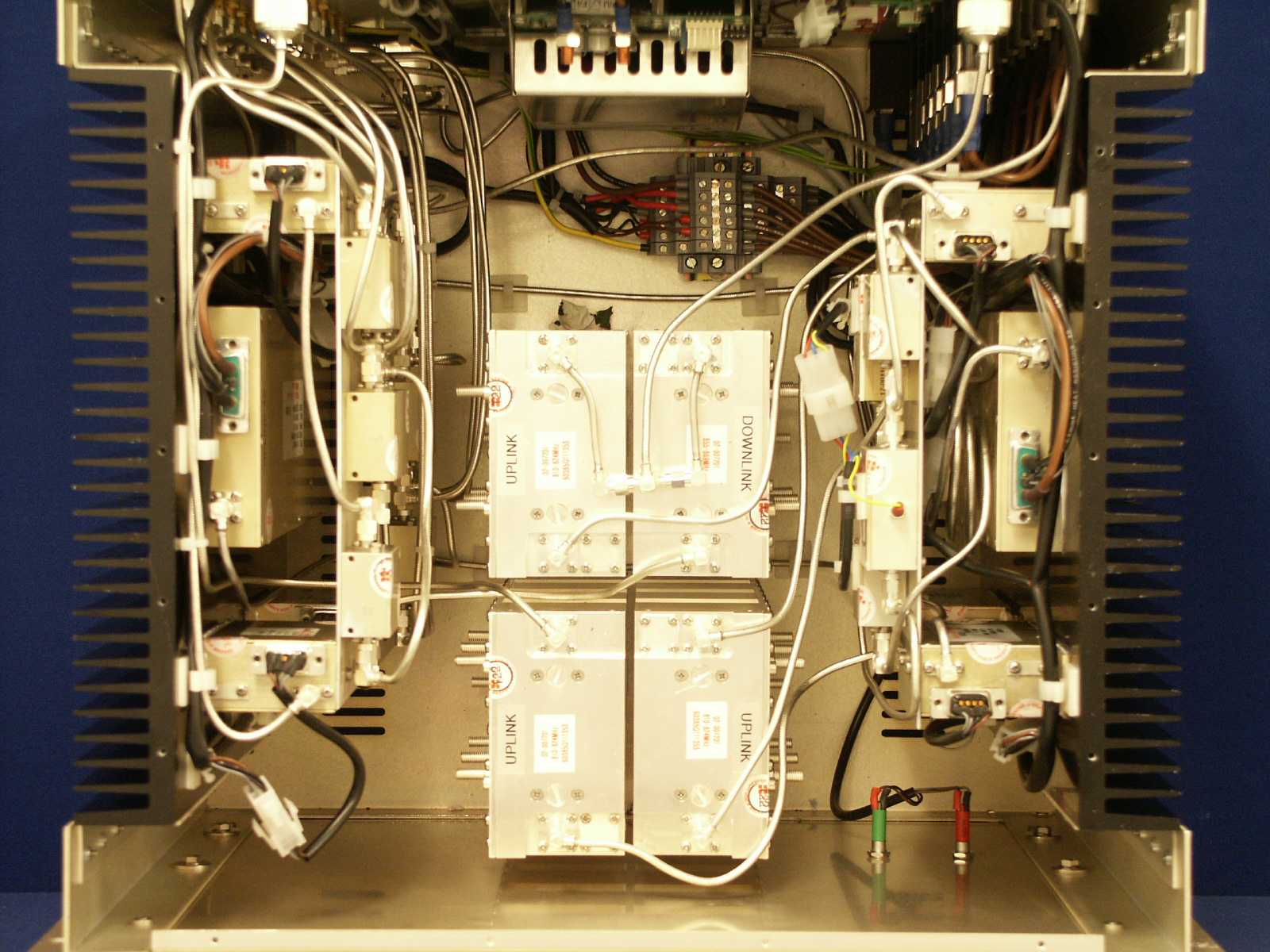

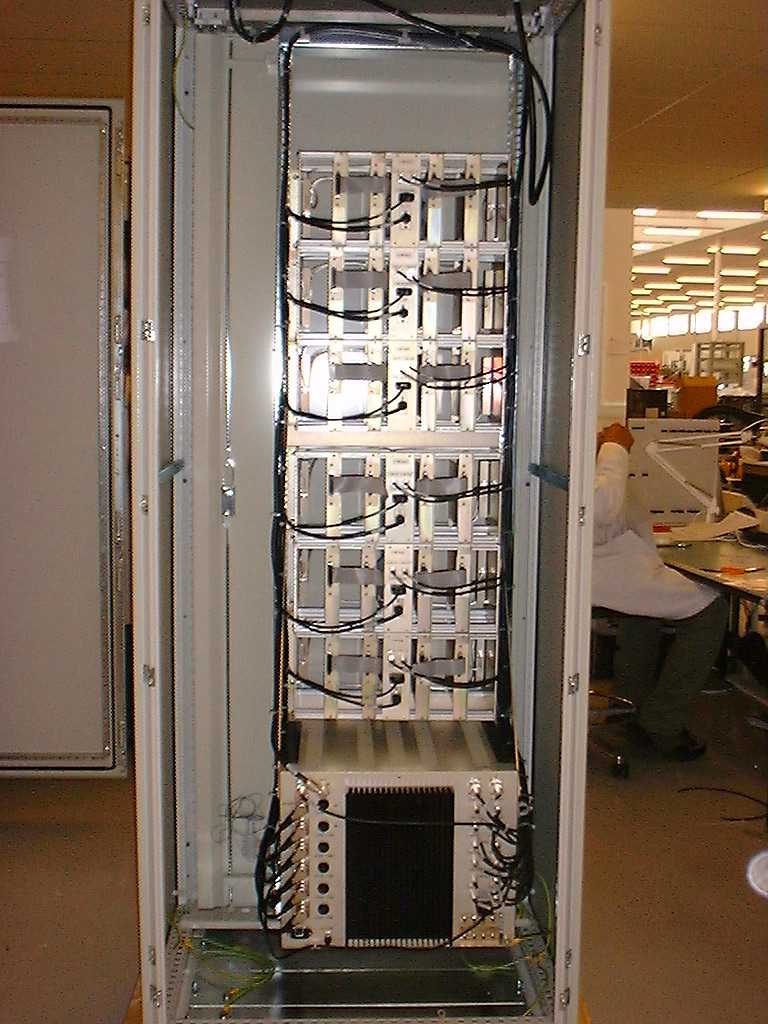

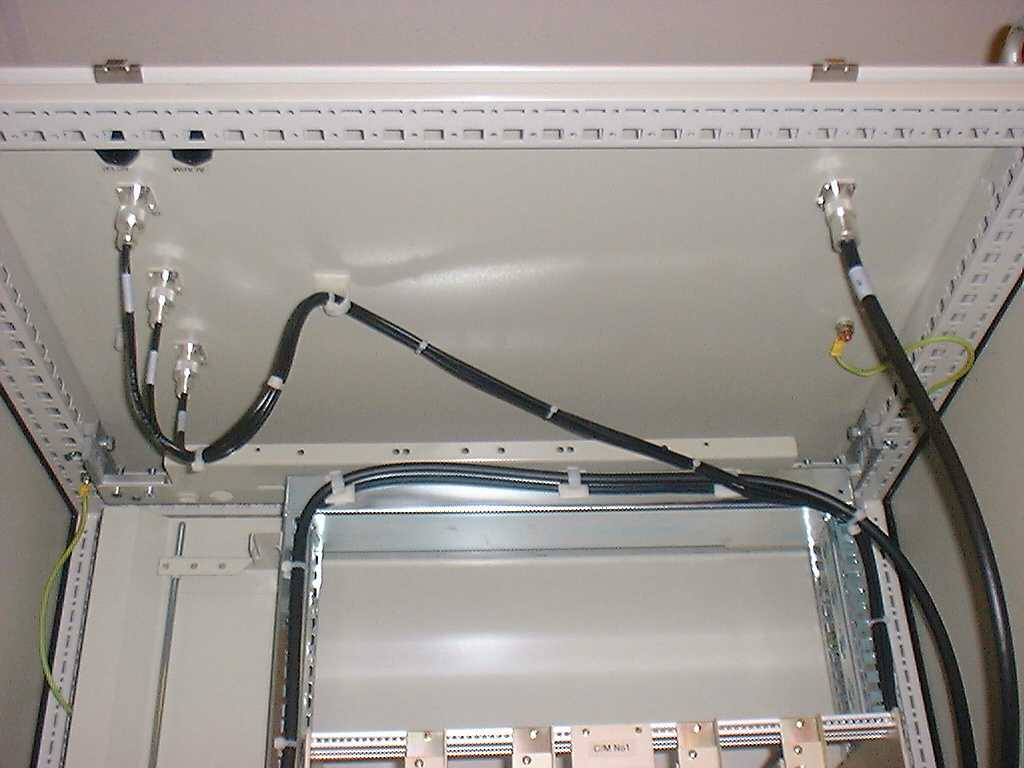

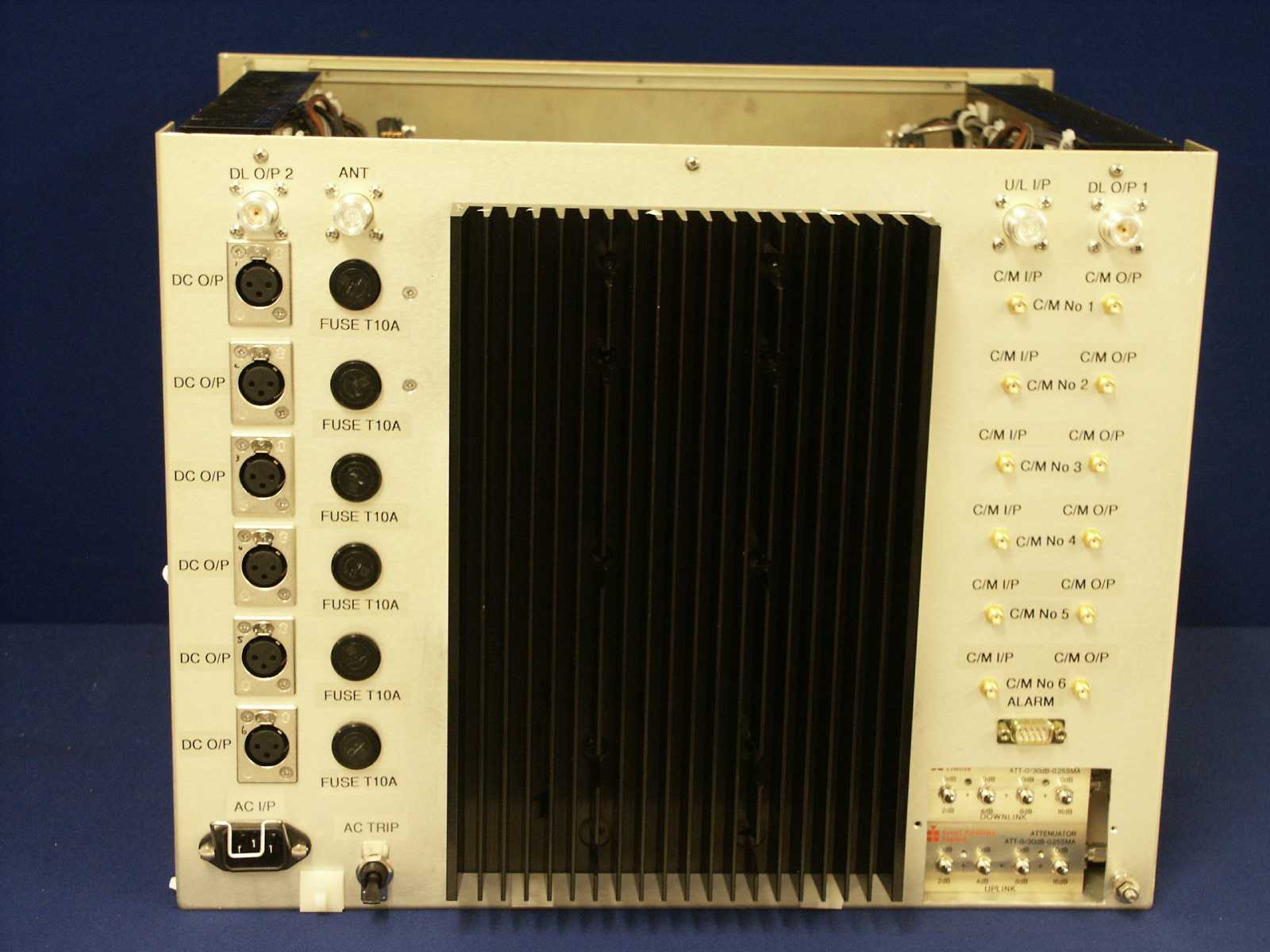

BY DAT E DESCRIPT ION No THI RD ANGLE PROJECTI ON 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E TOLERANCES SCALE England CUST OMER DRAWING.No TITLE ISSUE 3A FCC IDENT. LABEL POSITION RACK MOUNTED UNIT 80-312190 1A 1:5 DBS 30/9/03 PRODUCTION ISSUE 30/ 9/ 02 DBS Li m i t ed Aerial Facilities POWERALARM FCC IDENT. LABEL

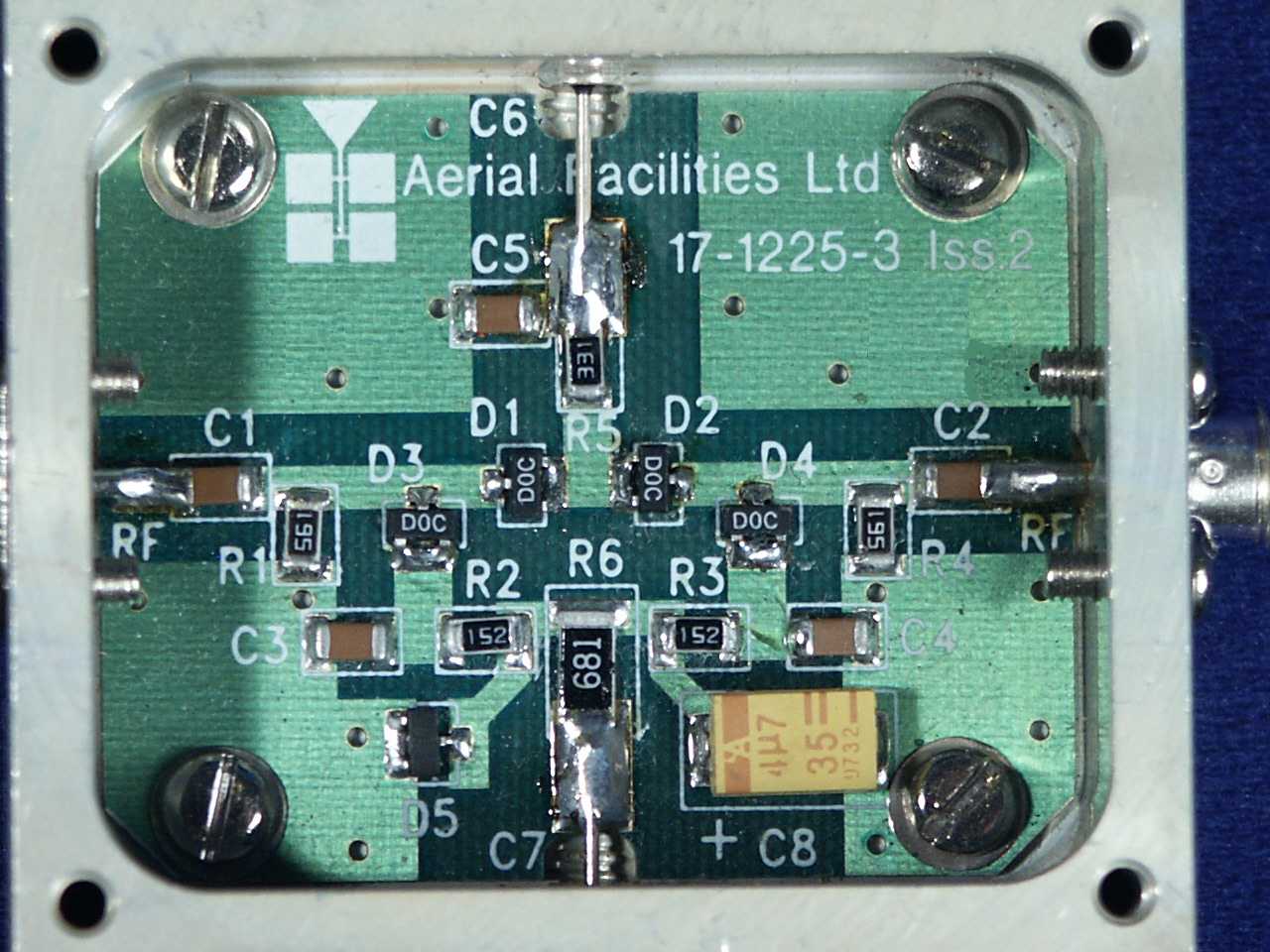

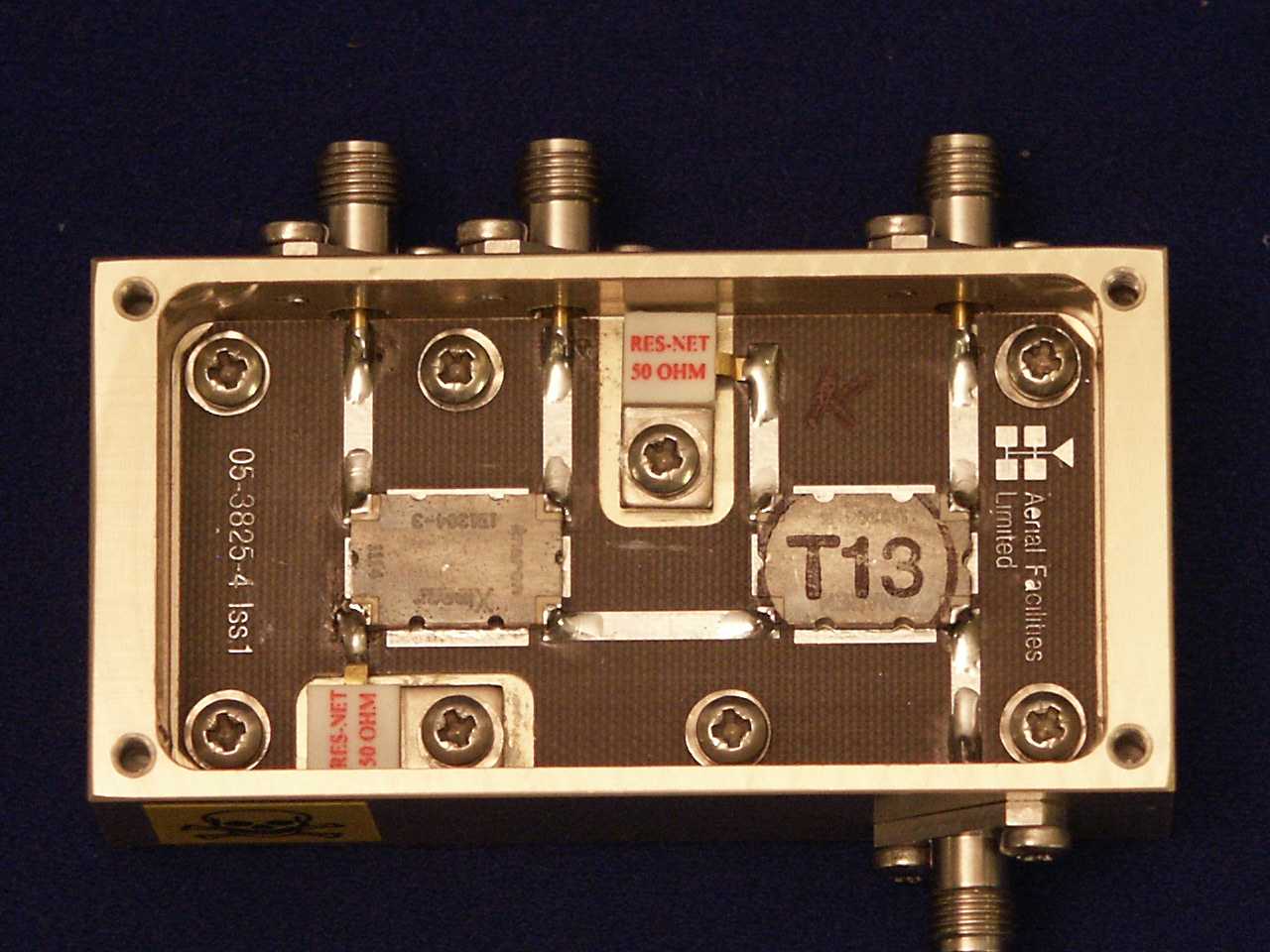

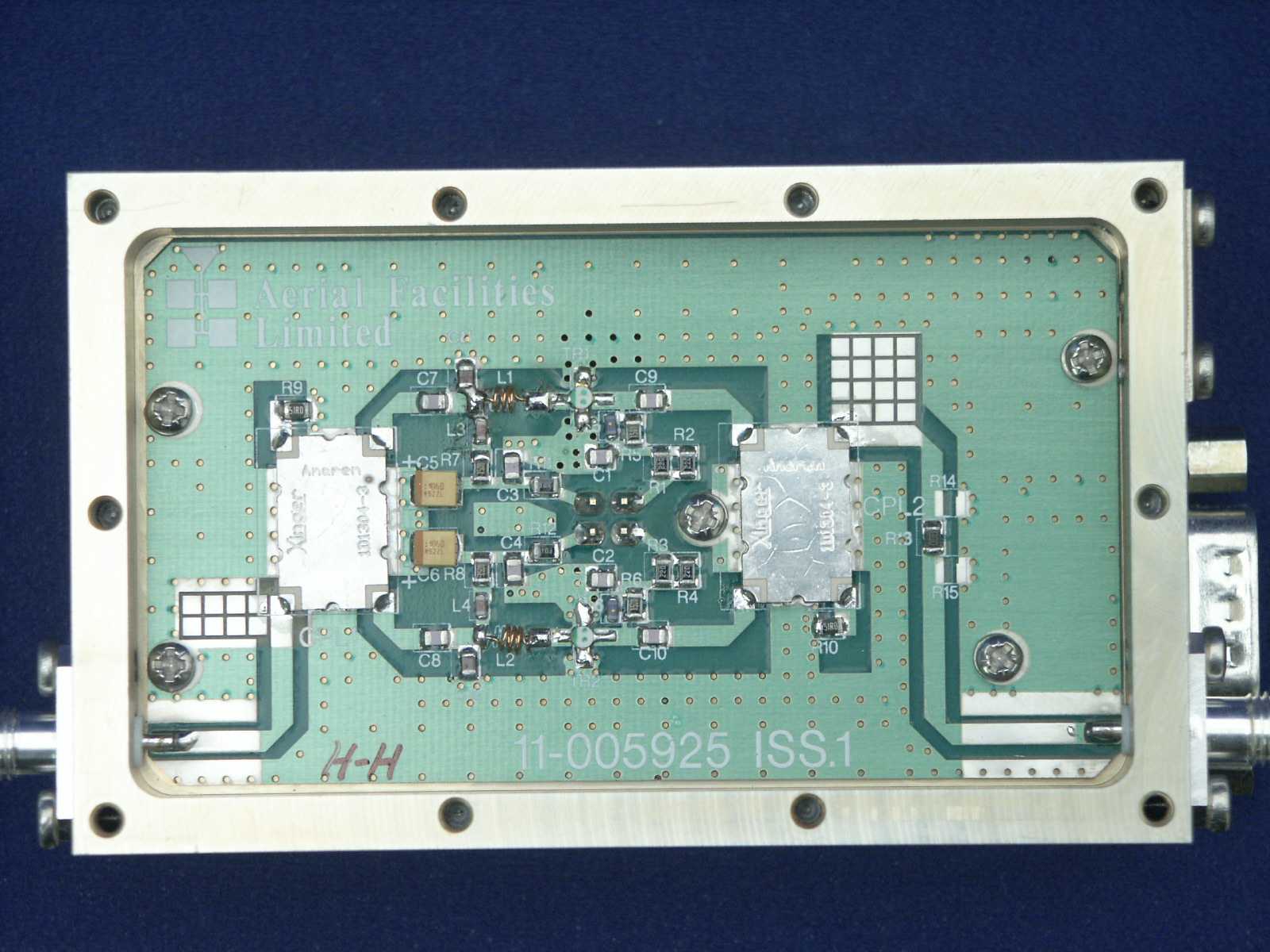

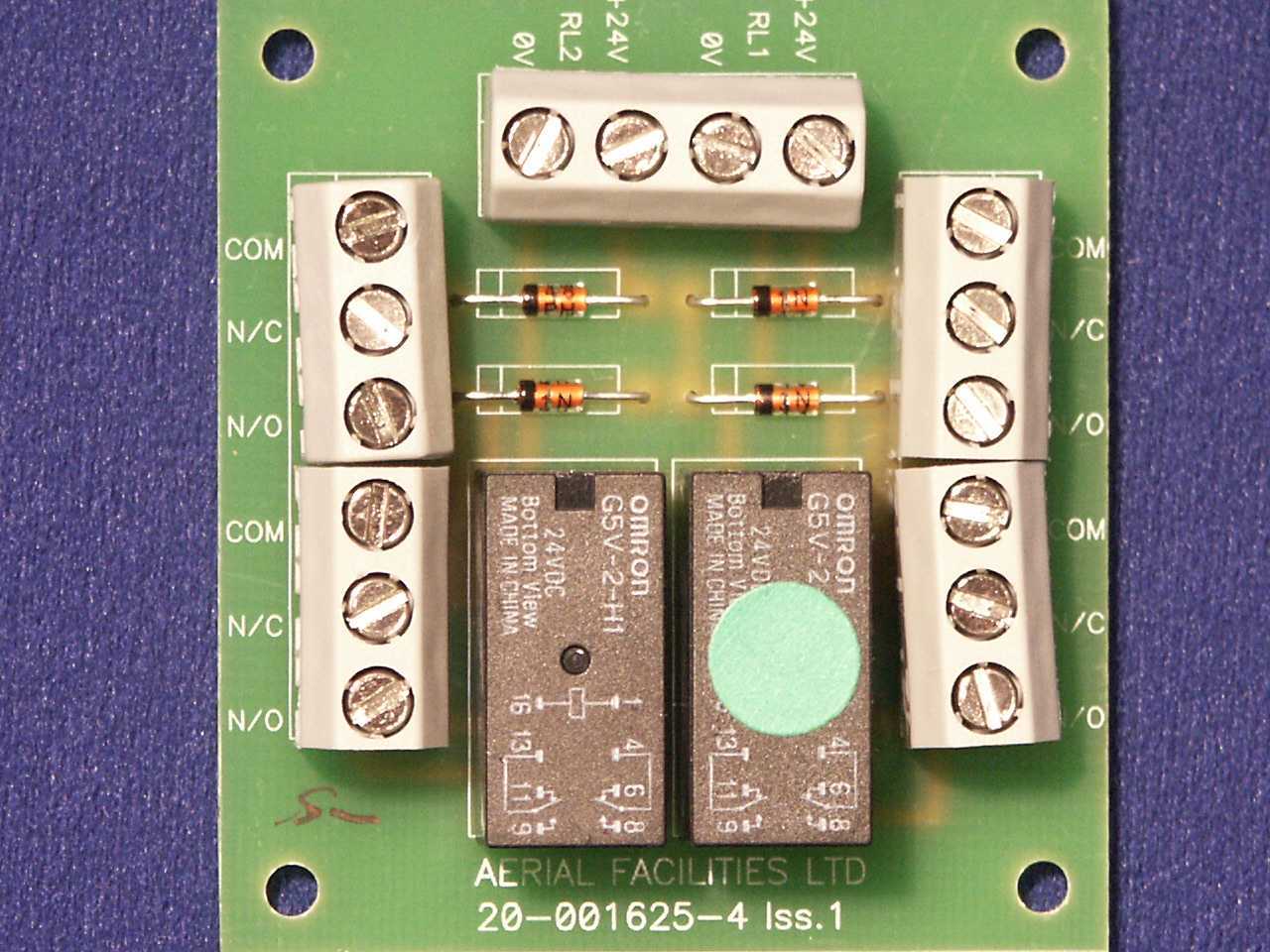

800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 49 of 88 5. SUB-UNIT MODULES 5.1 Bandpass Filters (02-007201 & 01-002503) 5.1.1 Description The bandpass filters are multi-section designs with a bandwidth dependent upon the passband frequencies, (both tuned to customer requirements). The response shape is basically Chebyshev with a passband design ripple of 0.1dB. The filters are of slot coupled, folded combline design, and are carefully aligned during manufacture in order to optimise the insertion loss, VSWR and intermodulation characteristics of the unit. The tuned elements are silver-plated to reduce surface ohmic losses and maintain a good VSWR figure and 50Ω load at the input and output ports. Being passive devices, the bandpass filters should have an extremely long operational life and require no maintenance. Should a filter be suspect, it is usually most time efficient to replace the module rather than attempt repair or re-tuning. 5.1.2 Technical Specification (02-007201) PARAMETER SPECIFICATION Response Type Chebyshev Frequency Range: 800 - 950MHz (tuned to spec.) Bandwidth: 10-25MHz (tuned to spec.) Number of Sections: 8 Insertion Loss: 1.0 dB VSWR: better than 1.2:1 Power Handling: 100W max operation: -10°C to +60°C Temperature range: storage: -20°C to +70°C Weight: 3 kg (typical) 5.1.3 Technical Specification (01-002503) SPECIFICATION PARAMETER Response type: Chebyshev Frequency range: 135 – 250MHz Bandwidth: 3.5MHz (tuned to spec.) Nō. of sections: 6 Insertion loss: 1.2dB VSWR: Better than 1.2:1 Power Handling: 100W maximum operate: -10°C to +60°C Temperature range: store: -20°C to +70°C Weight: 3 kg Size: 384 x 82.5 x 56.4mm 800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 50 of 88 5.2 900MHz Splitter/Combiner (05-002602) 5.2.1 Description The Splitter/Combiner used is a device for accurately matching two or more RF signals to single or multiple ports, whilst maintaining an accurate 50Ω load to all inputs/outputs and ensuring that the VSWR and insertion losses are kept to a minimum. Any unused ports will be terminated with an appropriate 50Ω load. Being passive devices, the splitters should have an extremely long operational life and require no maintenance. Should a unit be suspect, it is usually most time efficient to replace the whole module rather than attempt repair or re-tuning. Being passive devices, the splitters should have an extremely long operational life and require no maintenance. Should a unit be suspect, it is usually most time efficient to replace the whole module rather than attempt repair or re-tuning. 5.2.2 Technical Specification PARAMETER SPECIFICATION Narrowband: 815 – 960MHz Frequency Range: Broadband: 800 – 1200MHz Narrowband: 145MHz Bandwidth: Broadband: 400MHz Input ports: 1 Output ports: 2 Narrowband: 3.3dB Insertion loss: Broadband: 3.5dB Return loss input & output: 1.3:1 Impedance: 50Ω Narrowband: >20dB Isolation: Broadband: >18dB MTFB: >180,000 hours Splitting: 20Watts Power rating: Combining: 0.5Watt Connectors: SMA female Weight: 200g (approximately) Size: 54 x 44 x 21mm (including connectors) 800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 51 of 88 5.3 1 Watt 3dB Broadband Splitter (05-002901) 5.3.1 Description The 1 Watt, 3dB Splitter/Combiner used is a device for accurately matching two or more RF signals to single or multiple ports, whilst maintaining an accurate 50Ω load to all inputs/outputs and ensuring that the VSWR and insertion losses are kept to a minimum. Any unused ports will be terminated with an appropriate 50Ω load. 5.3.2 Technical Specification PARAMETER SPECIFICATION Frequency Range: 100 - 520 MHz Bandwidth: 380 MHz Inputs: 1 Outputs: 2 Insertion Loss: 3.5 dB (typical) Isolation: >18 dB Return Loss (VSWR) – Input: Better than 1.3:1 Return Loss (VSWR) – Output: Better than 1.3:1 Impedance: 50 Ω Power Rating – Splitter: 20 Watts Power Rating – Combiner: 1.0 Watt Connectors: SMA female Size: 54 x 44 x 21 mm (including connectors) Weight: 200 gm (approximately) 800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 52 of 88 5.4 Four Way Splitter (05-003302) 5.4.1 Description The Splitter/Combiner used is a device for accurately matching two or more RF signals to single or multiple ports, whilst maintaining an accurate 50Ω load to all inputs/outputs and ensuring that the VSWR and insertion losses are kept to a minimum. Any unused ports will be terminated with an appropriate 50Ω load. 5.4.2 Technical Specification PARAMETER SPECIFICATION Frequency range: 700-900MHz Bandwidth: 200MHz Rejection: >14dB Insertion loss: 7.5dB (in band, typical) Connectors: SMA Weight: <1.5kg operational : -10°C to +60°C Temperature range: storage -20°C to +70°C 5.5 Four Way Hybrid Splitter (05-003401) 5.5.1 Description The hybrid splitter used is a device for accurately matching one or more RF signals to single or multiple ports, whilst maintaining an accurate 50Ω load to all inputs/outputs and ensuring that the VSWR and insertion losses are kept to a minimum. Any unused ports would be terminated with an appropriate 50Ω load. 5.5.2 Technical Specification 05-003401 PARAMETER SPECIFICATION Frequency range: 70 – 250MHz Bandwidth: 180MHz Rejection: >14dB Insertion loss: 6.5dB (in band, typical) Connectors: SMA Weight: <1.5kg operational : -10°C to +60°C Temperature range: storage -20°C to +70°C 800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 53 of 88 5.6 3 Way Splitter/Combiner (05-003801) 5.6.1 Description The 3 way Splitter/Combiner used is a ‘Zinger’ type design for accurately matching three RF signals to a single port, whilst maintaining an accurate balance between ports, and ensuring that the VSWR and insertion losses attain the be…

Text truncated - open the document above for the full version.

800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 11 of 88 1.3 RF Radiation Hazard RF radiation, (especially at UHF frequencies) arising from transmitter outputs connected to AFL’s equipment, must be considered a safety hazard. This condition might only occur in the event of cable disconnection, or because a ‘spare’ output has been left unterminated. Either of these conditions would impair the system’s efficiency. No investigation should be carried out until all RF power sources have been removed. This would always be a wise precaution, despite the severe mismatch between the impedance of an N type connector at 50Ω, and that of free space at 377Ω, which would severely mitigate against the efficient radiation of RF power. Radio frequency burns could also be a hazard, if any RF power carrying components were to be carelessly touched! Antenna positions should be chosen to comply with requirements (both local & statutory) regarding exposure of personnel to RF radiation. When connected to an antenna, the unit is capable of producing RF field strengths, which may exceed guideline safe values especially if used with antennas having appreciable gain. In this regard the use of directional antennas with backscreens and a strict site rule that personnel must remain behind the screen while the RF power is on, is strongly recommended. Where the equipment is used near power lines, or in association with temporary masts not having lightning protection, the use of a safety earth connected to the case-earthing bolt is strongly advised.

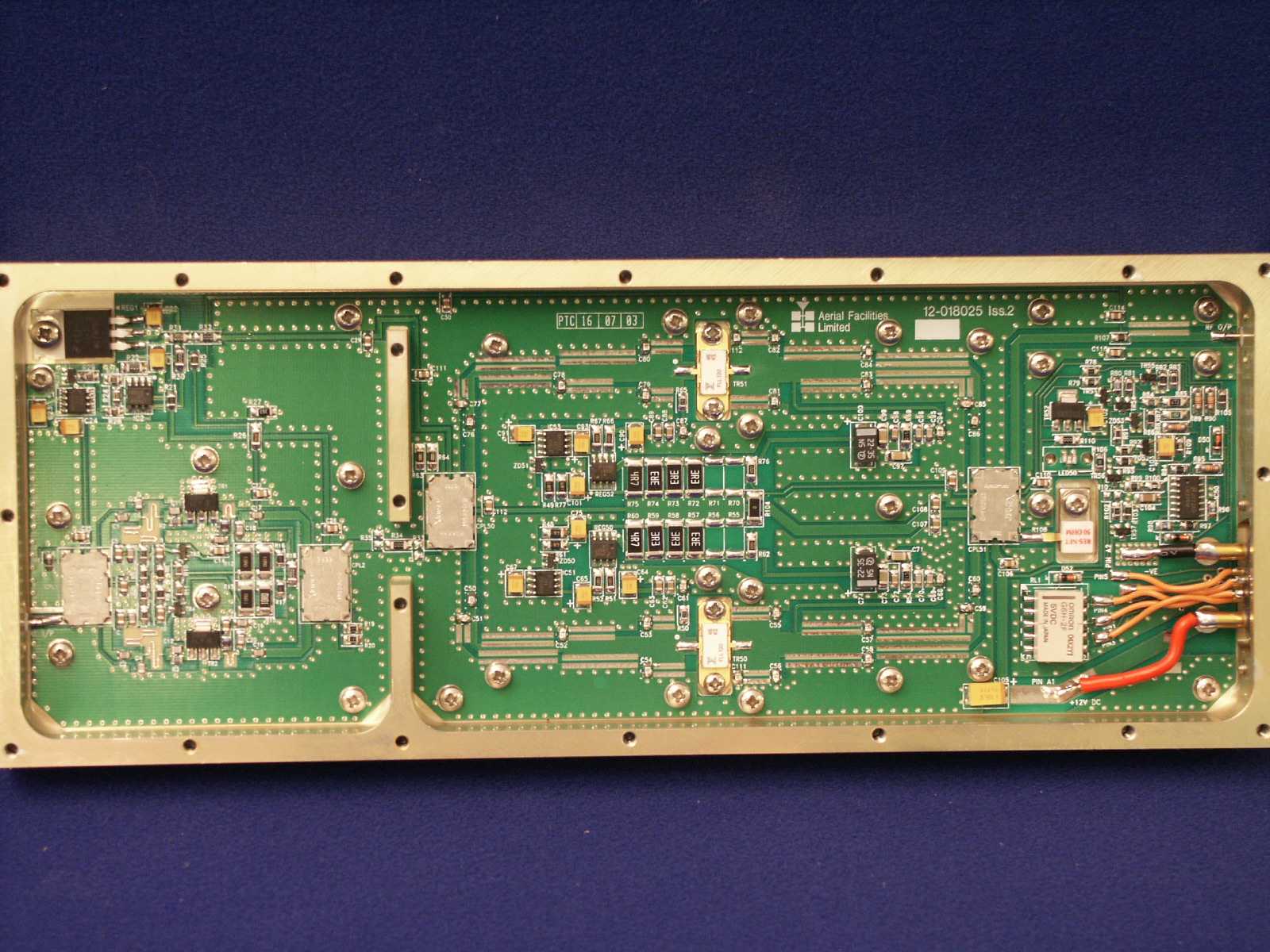

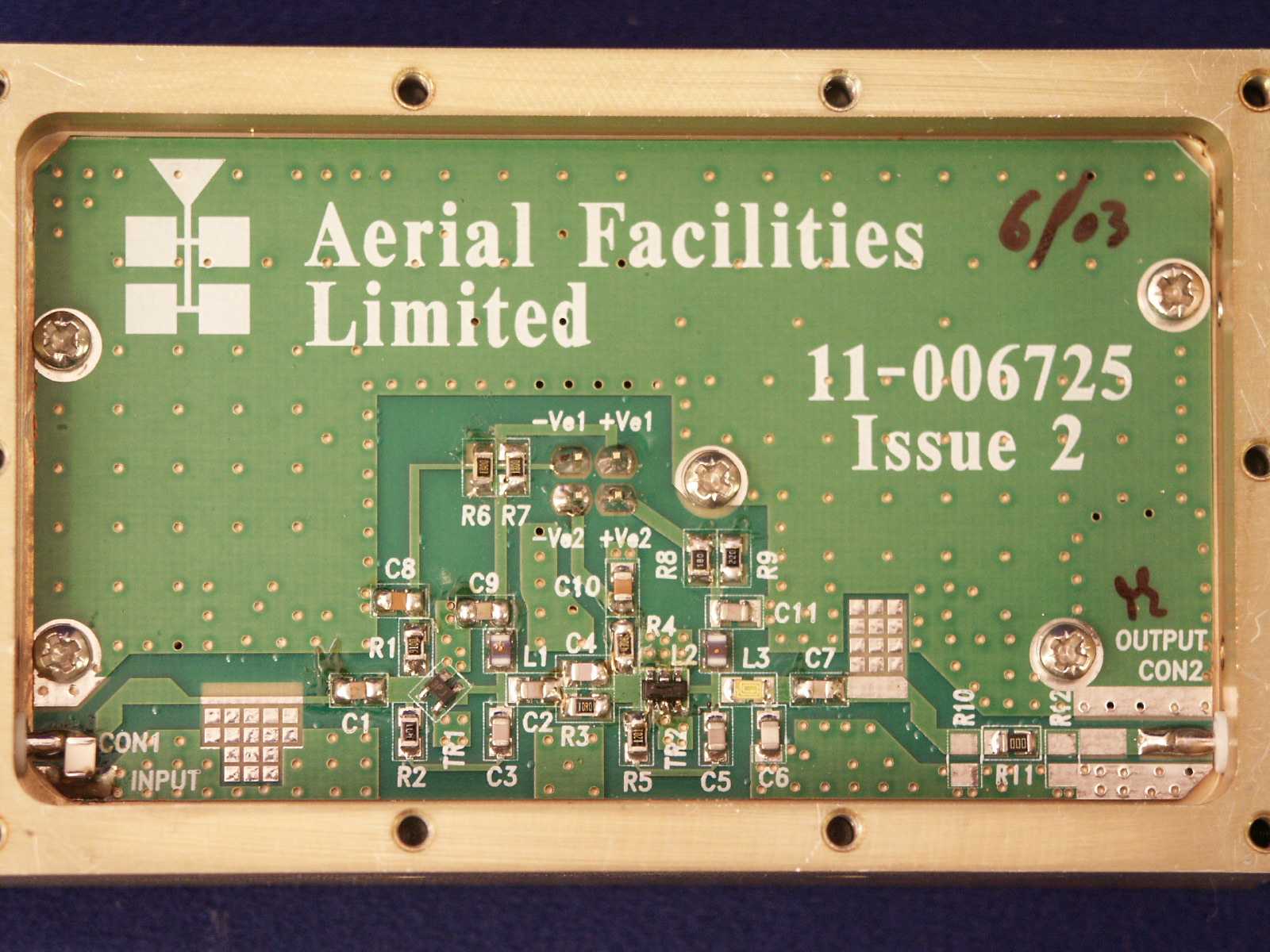

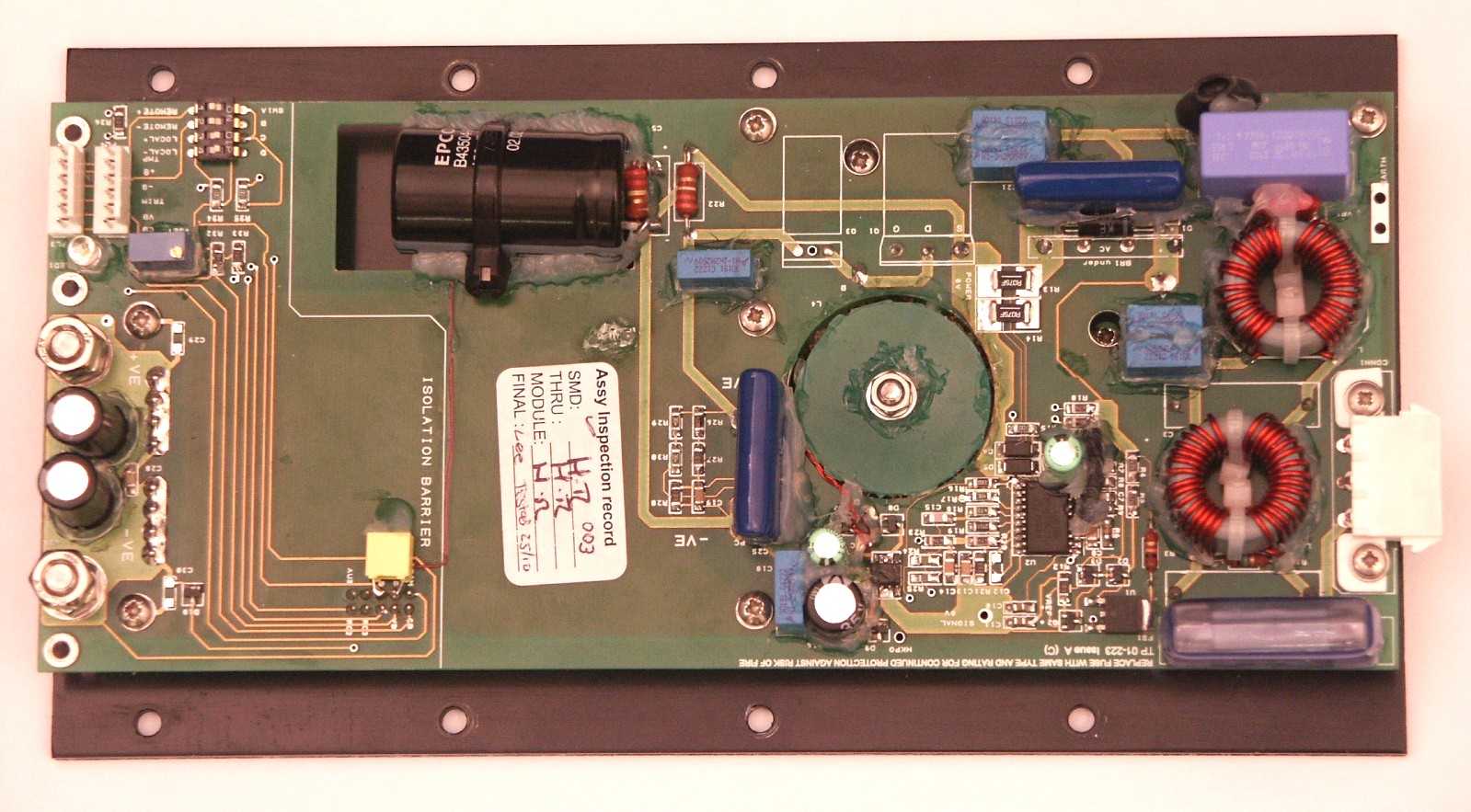

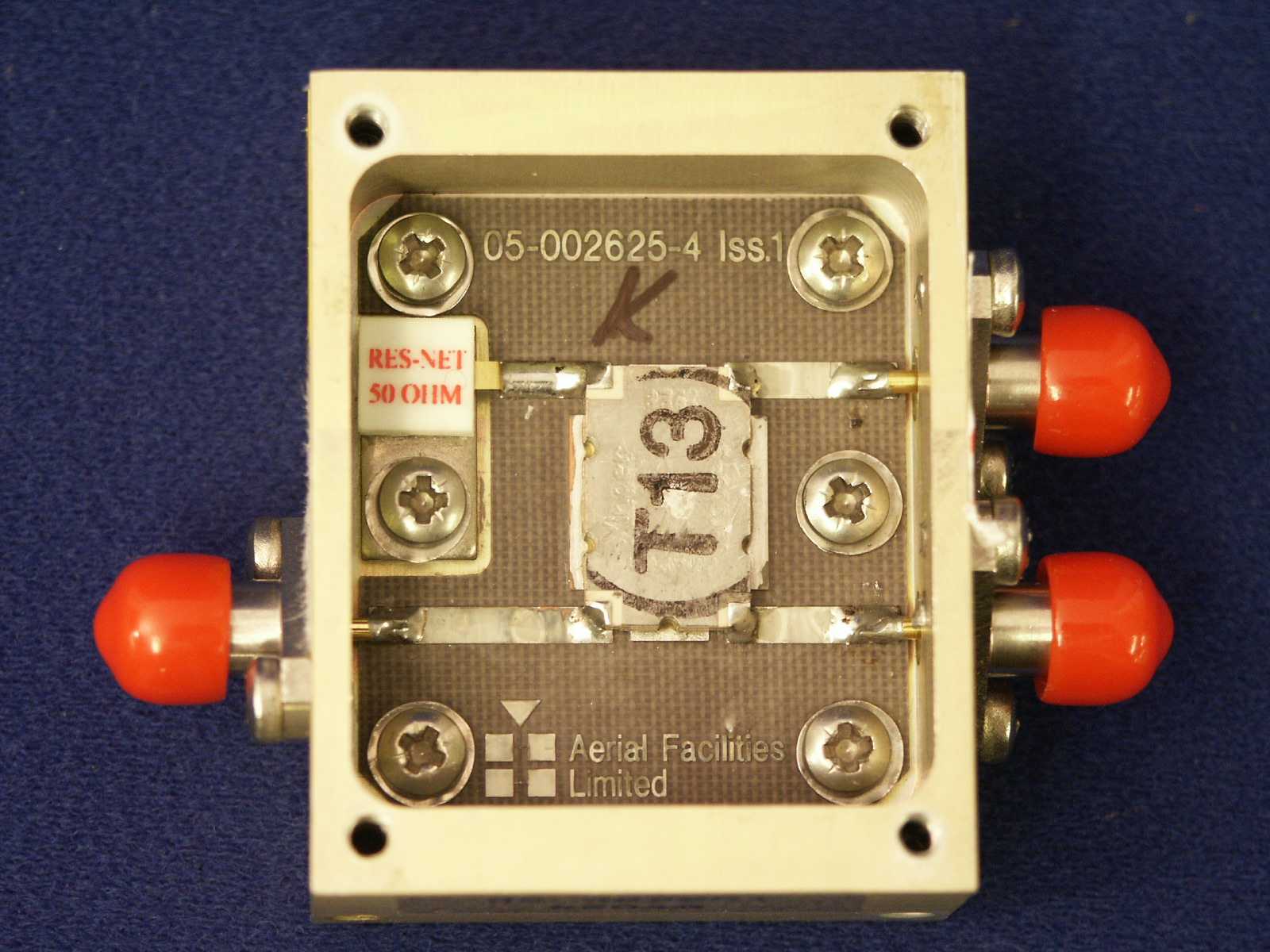

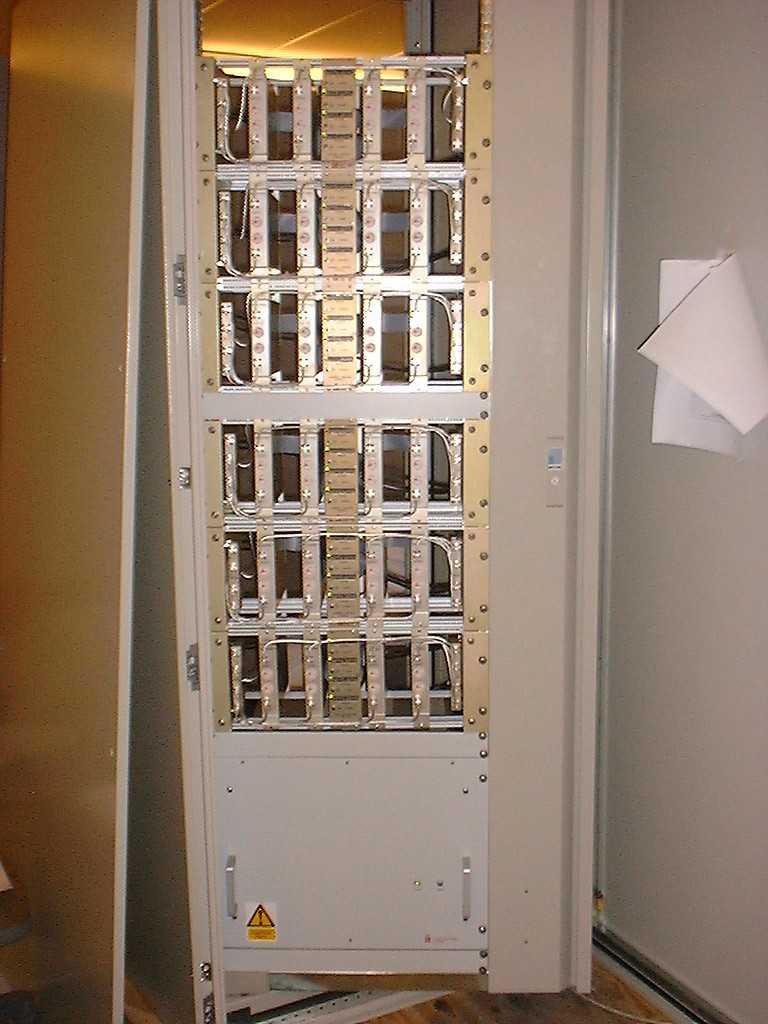

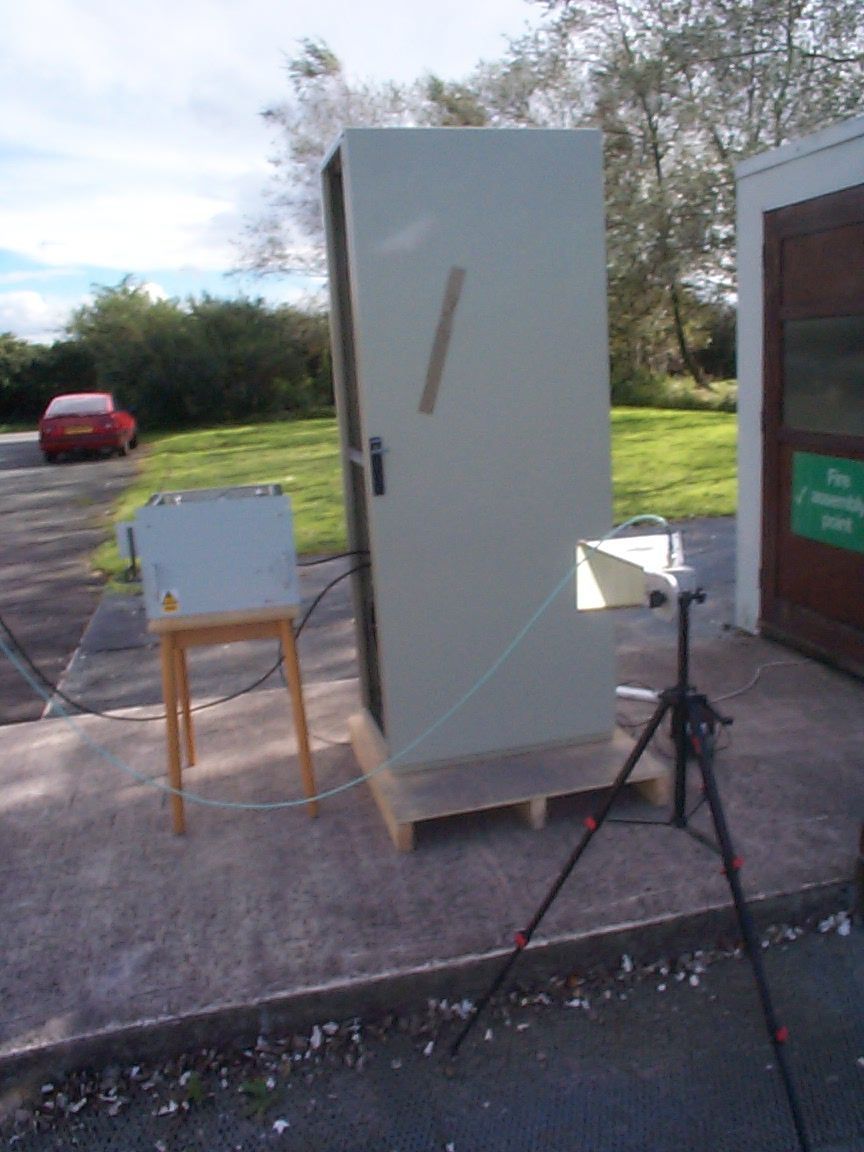

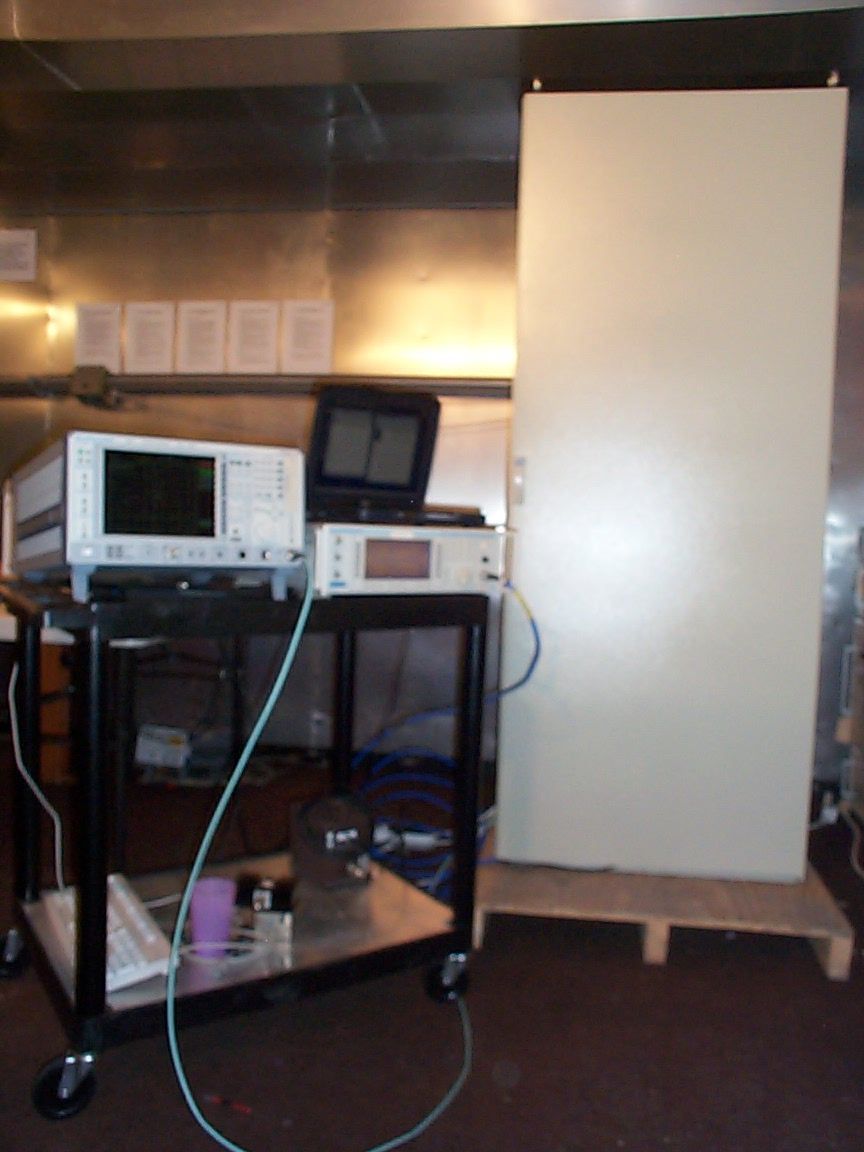

TRL C OMPLIANCE S ERVICES L TD EMC D IVISION L ONG G REEN F ORTHAMPTON G LOUCESTER GL19 4QH U NITED K INGDOM T ELEPHONE +44 (0)1684 833818 F AX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1136/5795 COPY NO: 2 ISSUE NO: 1 FCC ID: NE0-50-0780-800 REPORT ON THE CERTIFICATION TESTING OF A Aerial Facilities Limited Cell Enhancer (NE0-50-0780-800) WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart S PRIVATE LAND MOBILE REPEATER TEST DATE: 10 th September 2004 – 13 th September 2004 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 11 th October 2004 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Services Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1136/5780 Page 2 of 58 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-53 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RU1136/5780 Page 3 of 58 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NE0-50-0780-800 PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart S TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMIUM GAIN +101.68 dB MAXIMUM INPUT Uplink -74 dBm, Downlink -63.4 MAXIMUM OUTPUT Uplink +27.68 dBm, Downlink +18.98 ANTENNA TYPE: Not applicable CHANNEL SPACING: 25 kHz NUMBER OF CHANNELS: Channel No. Uplink 22 Downlink 22 FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110 Vac TEST DATE(s): 10 th September 2004 – 13 th September 2004 ORDER No(s): 26773 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Latimer Park, Latimer Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RU1136/5780 Page 4 of 58 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart S TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 26773 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Latimer Park, Latimer Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494777020 FAX: +44 (0)1494777002 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 10 th September 2004 – 13 th September 2004 TEST REPORT No: RU1136/5795 RU1136/5780 Page 5 of 58 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain signal generation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2. Product Use: Private Land Mobile Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 21 o C 5. Supply Voltages: Vnom +110 Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [X] 25 kHz Wideband [ ] 8. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RU1136/5780 Page 6 of 58 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 26 o C Radio Laboratory Relative humidity = 44% Supply voltage = +110 Vac Channel number = See test results Frequency MHz Signal Generator input level dBm Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Gain after 20dB input level increase dBm 810.0 MHz -74 32.08 -5.9 100.18 113.08 817.0 MHz -74 32.08 -4.4 101.68 113.80 824.0 MHz -74 32.08 -6.5 99.58 114.82 Notes: 1. The level of the signal generator takes into consideration the loss from the cable. 2. The signal generator input was increased by 20dBs and the level of the output signal remeasured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER RHODE & SCHWARZ ESIB 7 100 182 630 X ATTENUATOR AFL 10-002530 8616 N/A X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2042 119562/021 254 X Spectrum Analyser Attenuator 30dB Cable TRL280 EUT Signal Generator TRL254 RU1136/5780 Page 7 of 58 32.08dB AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 26 o C Radio Laboratory Relative humidity = 50% Supply voltage = +110 Vac The intermodulation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was the maximum input of -74dBm.The cable and attenuator loss between the EUT and the spectrum analyser was 32.08dB. This loss was taken into account by adjusting the analysers level offset. Sweep data is shown on the next page: A B C D CMTA TRL 05 823.575 MHz Sig Gen TRL 478 811.025 MHz Sig Gen TRL 254 811…
