800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 1 of 88 24 Channel 800MHz & VHF Cell Enhancers Maintenance Handbook For Terry Consulting AFL Works Order Nō.: Q111353 AFL product part Nō’s.: 50-078001 (800 & VHF CE’s) 80-209302 (Battery Back-up) 800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 2 of 88 Table of Contents AMENDMENT LIST RECORD SHEET .................................................................................................. 6 INTRODUCTION ....................................................................................................................................... 7 Scope...........................................................................................................................................................................7 Purpose.......................................................................................................................................................................7 Glossary of Terms .....................................................................................................................................................8 Key to AFL RF Module Drawing Symbols .............................................................................................................9 1. SAFETY CONSIDERATIONS ..................................................................................................... 10 1.1 Earthing of Equipment ..............................................................................................................................10 1.2 Electric Shock Hazard ...............................................................................................................................10 1.3 RF Radiation Hazard.................................................................................................................................11 1.4 Chemical Hazard........................................................................................................................................12 1.5 Emergency Contact Numbers ...................................................................................................................12 2. OVERVIEW/SYSTEM DESCRIPTION...................................................................................... 13 3. SPECIFICATION .......................................................................................................................... 14 3.P Photographs..................................................................................................................................................14 3.P.1 800MHz Air I/F Uplink Shelf 50-078002................................................................................................14 3.P.2 Eight Channel Downlink Shelf 50-078003 ..............................................................................................15 3.P.3 Power Amplifier/Driver Shelf 50-078004................................................................................................16 3.P.4 800MHz In-Line Amplifier 50-078017....................................................................................................17 3.P.5 VHF/800MHz Multi-Coupler Shelf 50-078015.......................................................................................18 3.P.6 VHF Simplex Shelf 50-078010................................................................................................................19 3.P.7 VHF Duplex Shelf 50-078011 .................................................................................................................20 3.P.8 VHF Air Interface Shelf 50-078012 ........................................................................................................21 3.P.9 VHF Combiner Shelf 50-078013 .............................................................................................................22 3.P.10 PSU Shelf 50-078014...........................................................................................................................23 3.P.11 Battery Backup 80-209302...................................................................................................................24 3.P.12 Rack Photos..........................................................................................................................................25 3.1 Electrical Specification ..............................................................................................................................29 3.2 Channel Frequency Listing .......................................................................................................................30 3.3 Mechanical Specifications..........................................................................................................................31 3.3.1 Rack Mounted Equipment Mechanical Specifications.............................................................................31 3.3.2 Wall Mounted Equipment (50-078017 & 80-209302).............................................................................31 3.4 Parts Lists ...................................................................................................................................................32 3.4.1 Whole System Parts List (50-078001) .....................................................................................................32 3.4.2 800MHz AIF Uplink Shelf 50-078002 Parts List ....................................................................................33 3.4.3 800MHz 8 Channel, Channel Module Shelf 50-078003 Parts List..........................................................34 3.4.4 800MHz 40W Amplifier Shelf 50-078004 Parts List ..............................................................................35 3.4.5 VHF Simplex Shelf 50-078010/1..................................…

Text truncated - open the document above for the full version.

BY DAT E DESCRIPT ION No THI RD ANGLE PROJECTI ON 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E TOLERANCES SCALE England CUST OMER DRAWING.No TITLE ISSUE 3A FCC IDENT. LABEL POSITION RACK MOUNTED UNIT 80-312190 1A 1:5 DBS 30/9/03 PRODUCTION ISSUE 30/ 9/ 02 DBS Li m i t ed Aerial Facilities POWERALARM FCC IDENT. LABEL

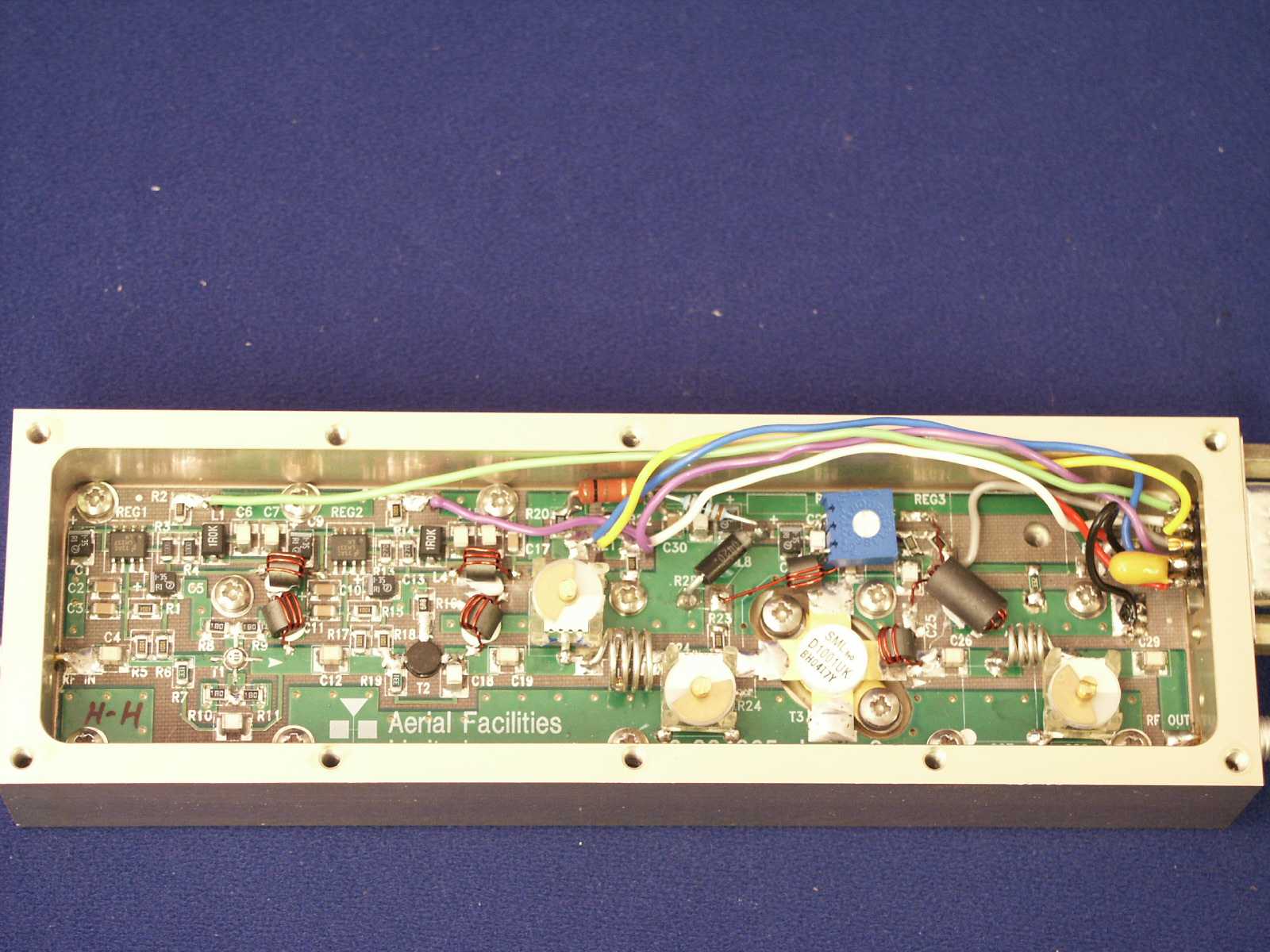

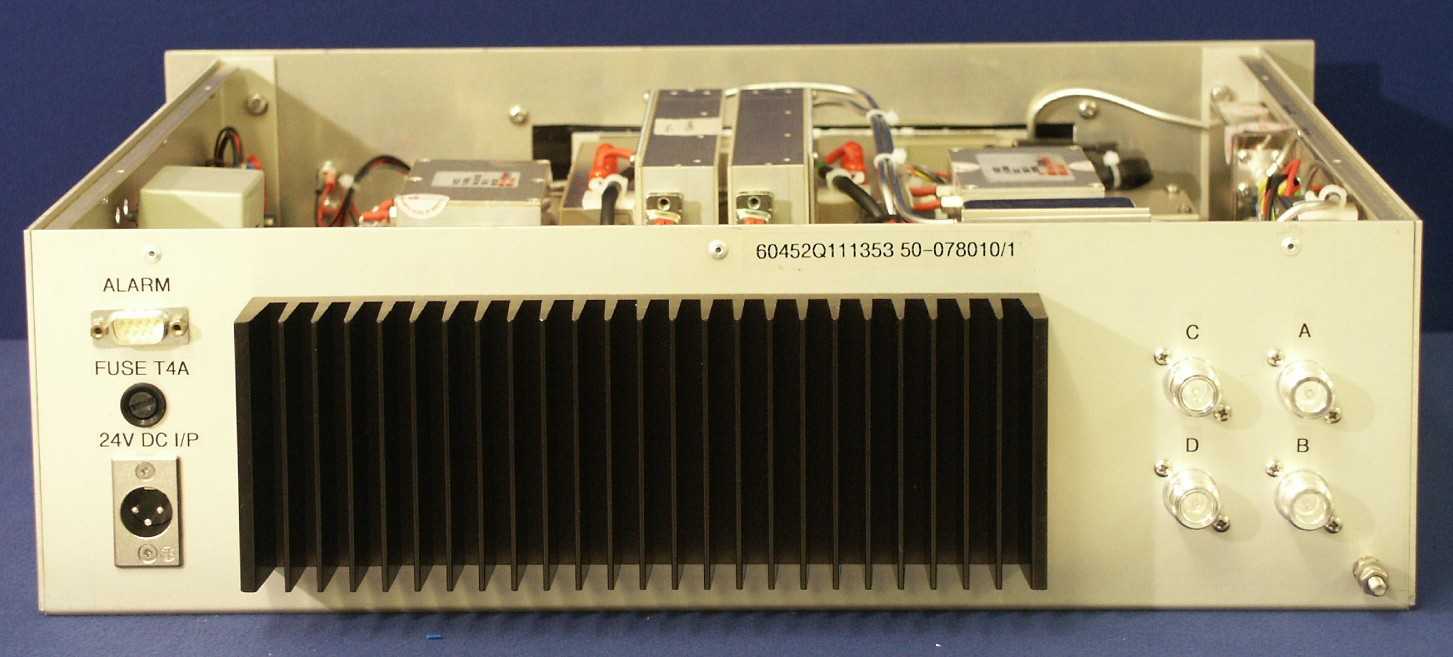

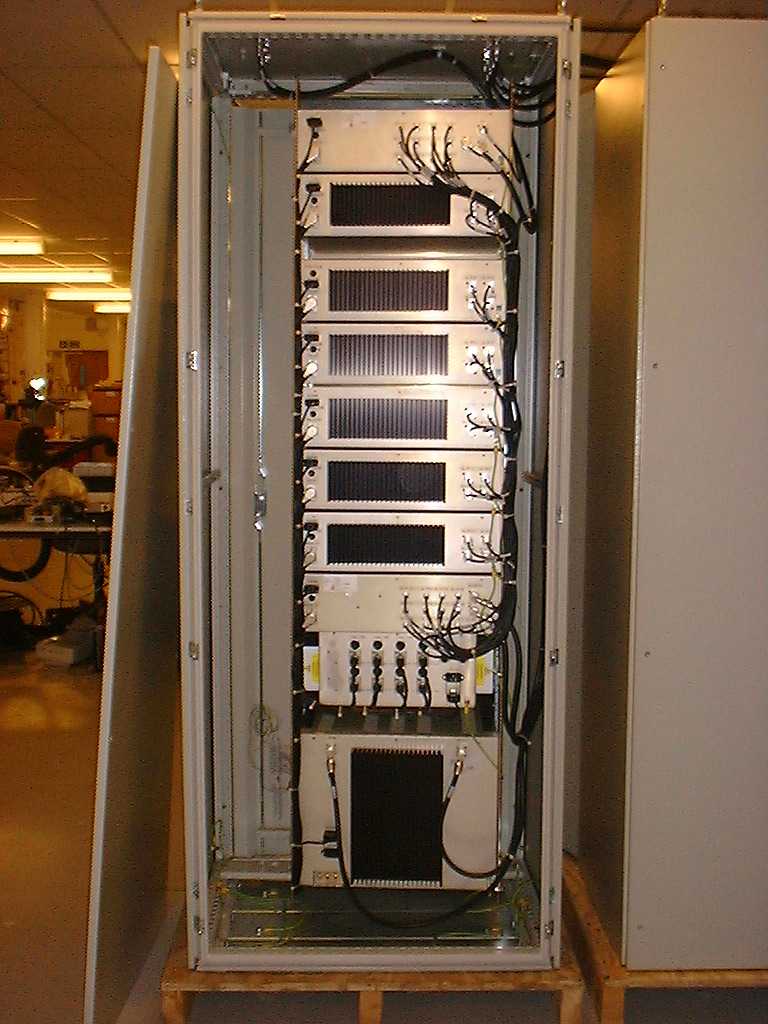

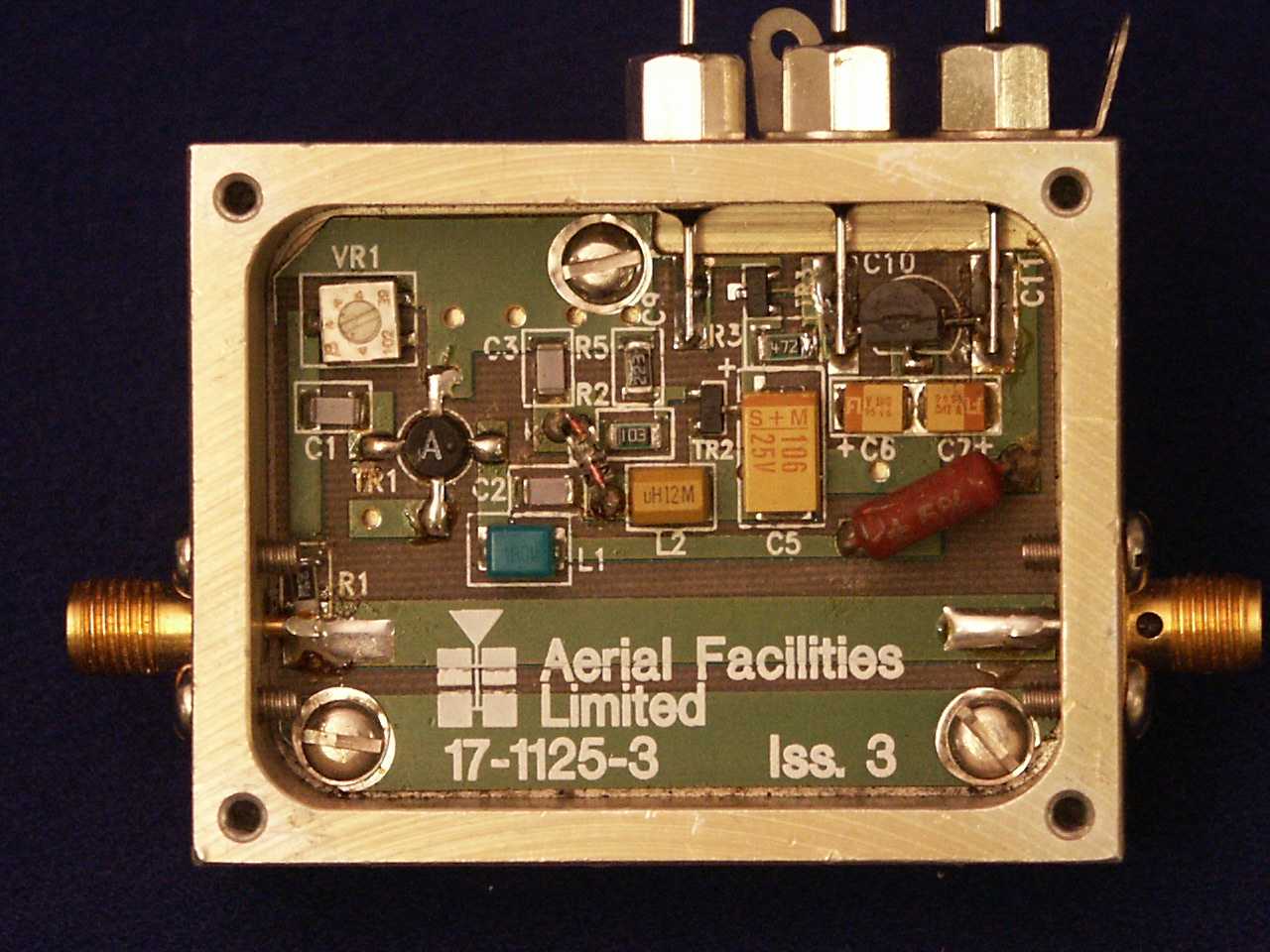

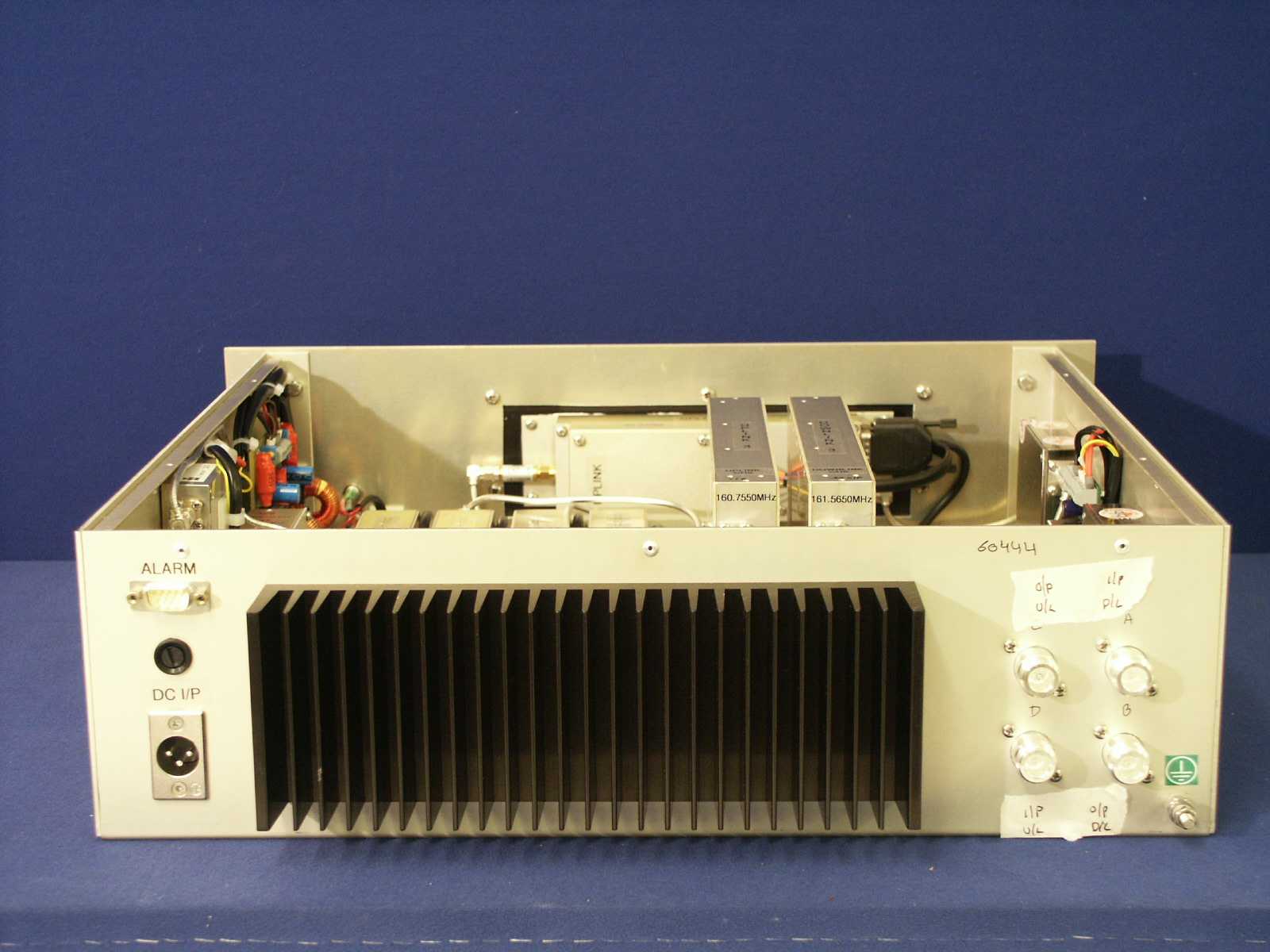

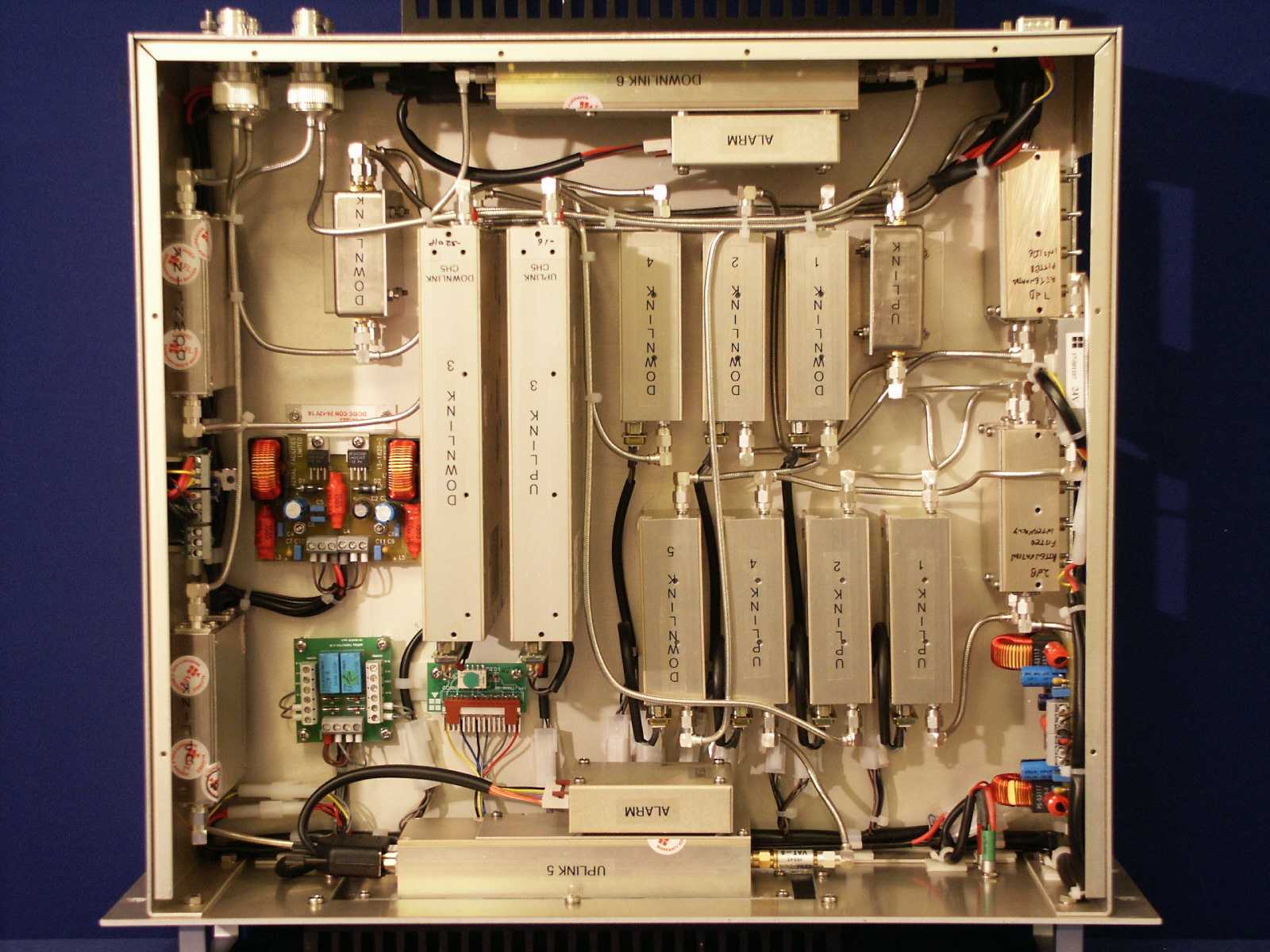

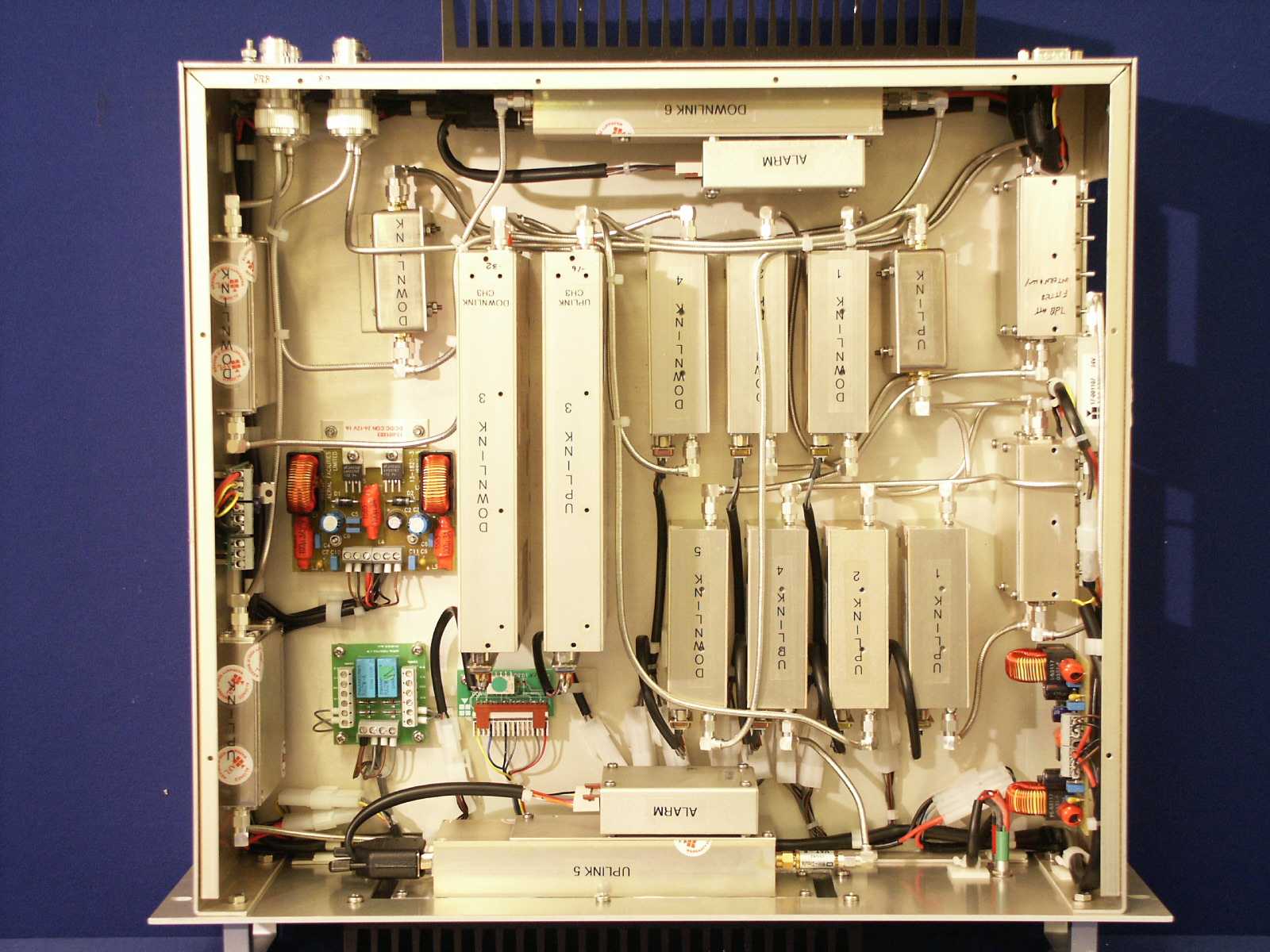

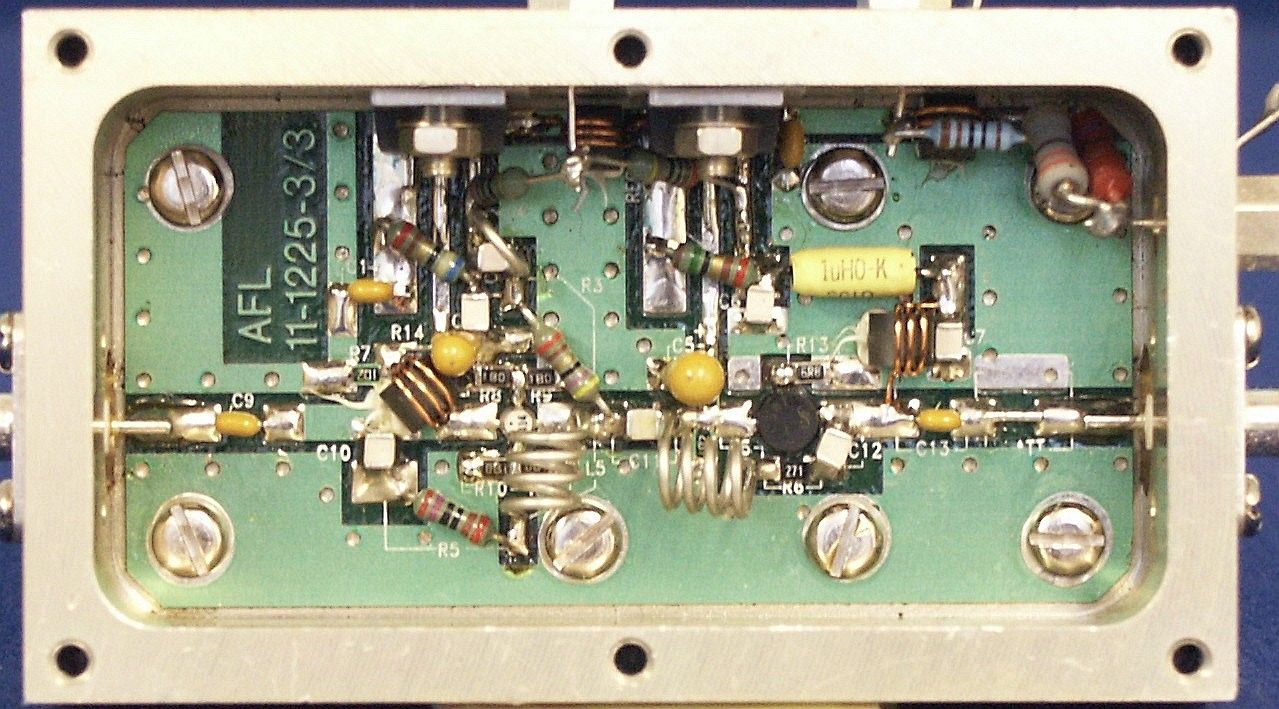

800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 32 of 88 3.4 Parts Lists 3.4.1 Whole System Parts List (50-078001) AFL Part Nō. Part Description Qty. 50-078002 800MHz AIR I/F + BSCE UPLINK SHELF 1 50-078003 800MHz 8CH CHANNEL MOD. SHELF 3 50-078004 800MHz 40W HPA / DRIVER SHELF 2 50-078010/1 VHF SIMPLEX SHELF 1 50-078010/2 VHF SIMPLEX SHELF 1 50-078011/1 VHF DUPLEX SHELF 1 50-078011/2 VHF DUPLEX SHELF 1 50-078011/3 VHF DUPLEX SHELF 1 50-078011/4 VHF DUPLEX SHELF 1 50-078012 VHF AIR I/F SHELF 1 50-078013 VHF COMBINER SHELF 1 50-078014 VHF PSU SHELF 1 50-078015 VHF/ 800 Tx MULTICOUPLER 1 50-078017 800MHz IN LINE AMPLIFIER 2 60-020608 40U SWING FRAME CABINET Q104362 3 80-209302 12V 160Ah BATTERY BACK UP STANDARD 2 800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 33 of 88 3.4.2 800MHz AIF Uplink Shelf 50-078002 Parts List AFL Part Nō. Part Description Qty. 02-007201 900MHz 8POLE 10-20MHz B/W SMA 4 05-002602 900MHz SPLITTER/COMBINER, 20W 5 05-003801 3WAY GEN.SPLIT 900MHz GEN.ASS 4 10-000701 1/4W0-30dB SWITCHED ATTENUATOR 2 11-005902 900MHz LOW NOISE AMP WITH RELAY ASS 3 11-006702 GA 800-1000MHz LNA 29dB (WITH RELAY 4 12-018001 PA 800-960MHz 10W 30dB 2 14-000225 CASE RAIL LONG R.S.A./R.F.A. 4 17-001109 CE AGC UNIT LOG DET/AMP ASSY (12v) 1 17-001201 C/E AGC UNIT ATTENUATOR ASSY 1 20-001601 12V RELAY BOARD 1 50-012820 CCE RACK MOUNTED 8U CHASSIS 1 50-012822 CCE RACK MOUNTED LID 1 50-012825 CCE RACK MOUNTED HEATSINK BRACKET 4 50-027720 RACK MTD CHAN C.E. MODIFIED HEATSIN 2 80-090822 C/E 8U FRONT PANEL, AFL (RAL7035) 1 80-310420 BCC 400W POWER SUPPLY HEATSINK 1 91-030002 N ADAPTOR PANEL FEMALE:FEMALE 4 91-130005 SMA BULKHEAD ADAPTOR F/F 12 91-500025 3 PIN RIGHT ANGLE FREE PLUG NC-X 3 91-510003 3 PIN R.ANGLE FREE SOC.NC-X. 3 91-510004 3 PIN PNL.MOUNT SOCKET NC-X 3 91-510032 20A SOCKET CONTACT PIN 4 91-520001 PWR MAINS INL FIXED/SOLD.TERMS 1 91-520005 MAINS LEAD (KETTLE, IEC) 1 91-520010 MAINS RETAINING CLIP 1 91-600007 'D' 9 WAY BLACK SHELL 8 91-600014 'D' 9 WAY SOCKET S/B (NON FILTERED) 7 91-600015 'D' 9 WAY PLUG S/B (NON FILTERED) 1 91-660001 2W5 MIXED D TYPE SOCKET (7 WAY) 2 96-110034 FUSE HOLDER 16-30A, 32mm BODY 3 96-300057 15V 27A PSU 400W (XP BCC) 1 96-700034 LED RED 5mm IP67 INTEGRAL RES. 24V 1 96-700035 LED GREEN 5mm IP67 INTEGRAL RES 24V 1 96-900018 AC TRIP SWITCH (5 AMP M.C.B.) 2 97-400005 HANDLE TYPE H6802 3U [ALLOY] 2 99-200008 DANGER HIGH VOLTAGE LABEL 2x2' 1 99-200017 CAUTION HEAVY LABEL 75x55mm 2 800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 34 of 88 3.4.3 800MHz 8 Channel, Channel Module Shelf 50-078003 Parts List AFL Part Nō. Part Description Qty. 05-003302 4 WAY SPLITTER GSM 900MHz 4 17-002101 CHANNEL CONTROL MODULE 2 17-002103 26WAY RIBBON CABLE LEAD 8 17-003022 MODULE PATTERNED LEAVE 8 17-003023 SUBRACK SIDE PANEL 4 17-003024 SUBRACK REAR BRACKET 8 17-003025 BOTTOM MODULE GUIDE 8 17-003028 MODULE SQUARE LEAVE 8 17-003029 TOP MODULE GUIDE 8 17-009127 CHAN MOD 810-860MHz 30KHz 8p TCXO 8 91-100004 SMA PLUG ELBOW UT-85/RG405 32 91-500001 POWER PLG 3 PIN PNL.MOUNT NC-X 2 91-510003 3 PIN R.ANGLE FREE SOC.NC-X. 2 91-600007 'D' 9 WAY BLACK SHELL 4 91-600014 'D' 9 WAY SOCKET S/B (NON FILTERED) 2 91-600015 'D' 9 WAY PLUG S/B (NON FILTERED) 2 92-280033 Captive Screw 16 96-110001 FUSE HOLDER 20 x 5mm6.3A 2 96-110007 T 1.6A A.SURGE FUSE 20mm 4 97-000002 BLACK MODULE CAGE RUNNER 16 97-600001 SUBRACK FRONT HORIZ 4 97-600002 SUBRACK M2.5 STD TAP 4 800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 35 of 88 3.4.4 800MHz 40W Amplifier Shelf 50-078004 Parts List AFL Part Nō. Part Description Qty. 02-007201 900MHz 8POLE 10-20MHz B/W SMA 1 05-002602 900MHz SPLITTER/COMBINER, 20W 2 10-000901 SW. ATTENUATOR 0.25W 0-15dB 1 11-005802 900MHz DRIVER STAGE WITH RELAY 1 12-018002 PA 800-960MHz 20W CLASS A 2 14-000225 CASE RAIL LONG R.S.A./R.F.A. 2 50-012820 CCE RACK MOUNTED 8U CHASSIS 1 50-012822 CCE RACK MOUNTED LID 1 50-012825 CCE RACK MOUNTED HEATSINK BRACKET 4 50-027720 RACK MTD CHAN C.E. MODIFIED HEATSIN 2 80-090822 C/E 8U FRONT PANEL, AFL (RAL7035) 1 80-310420 BCC 400W POWER SUPPLY HEATSINK 1 91-030002 N ADAPTOR PANEL FEMALE:FEMALE 2 91-510032 20A SOCKET CONTACT PIN 4 91-520001 PWR MAINS INL FIXED/SOLD.TERMS 1 91-520005 MAINS LEAD (KETTLE, IEC) 1 91-520010 MAINS RETAINING CLIP 1 91-600007 'D' 9 WAY BLACK SHELL 1 91-600014 'D' 9 WAY SOCKET S/B (NON FILTERED) 1 91-600015 'D' 9 WAY PLUG S/B (NON FILTERED) 1 91-660001 2W5 MIXED D TYPE SOCKET (7 WAY) 2 96-300057 15V 27A PSU 400W (XP BCC) 1 96-700034 LED RED 5mm IP67 INTEGRAL RES. 24V 1 96-700035 LED GREEN 5mm IP67 INTEGRAL RES 24V 1 96-900018 AC TRIP SWITCH (5 AMP M.C.B.) 1 97-400005 HANDLE TYPE H6802 3U [ALLOY] 2 99-200008 DANGER HIGH VOLTAGE LABEL 2x2' 1 99-200017 CAUTION HEAVY LABEL 75x55mm 2 800MHz & VHF Cell Enhancers Maintenance Handbook H/book Number:-50-078001HBKM Issue No:- A Date:-02/09/2004 Page:- 36 of 88 3.4.5 VHF Simplex Shelf 50-078010/1 AFL Part Nō. Part Description Qty. 08-930002 2 PORT ISOLATOR 150-300MHz SMA 2 10-000901 SW. ATTENUATOR 0.25W 0-15dB 4 11-001202 10/600MHz LNA 24v SMA Alarm 7 12-002213 3 STAGE ALARM/SIMPLEXMUTE PCB SUB-ASS 2 12-002220 3 STAGE ALARM PCB COVER 2 12-002804 SINGLE CH. ALARM/SIMPLEX MUTE BOARD 7 12-002820 SINGLE CHANNEL ALARM COVER 7 12-004902 POWER AMP VHF 5W CLASS AB 2 13-001803 DUAL DC/DC CONVERTER 24V-12V 1A 1 13-001822 DC-DC CON 24V-5V/15V COVER 1 13-002811 SIMPLEX CONTROLLER PCB ASSEMBLY 2 17-001201 C/E AGC UNIT ATTENUATOR ASSY 4 17-002802 SIMPLEX C.E Rx/SQUELCH & AF (SMD) 2 17-009135 VHF 15Kstep CH MOD 15kHz 8p BW+IFRX 2 19-000826 2U,3U,4U 19" UNIT 400 DEEP LID 1 19-000921 3U 19" UNIT 400 DEEP CHASSIS + BKT 1 19-000924 3U 19" UNIT FRONT PANEL FAB 1 80-063920 HEATSINK 2U ASS140 (5W) MILCHBUCK 2 91-030002 N ADAPTOR PANEL FEMALE:FEMALE 4 91-500001…

Text truncated - open the document above for the full version.

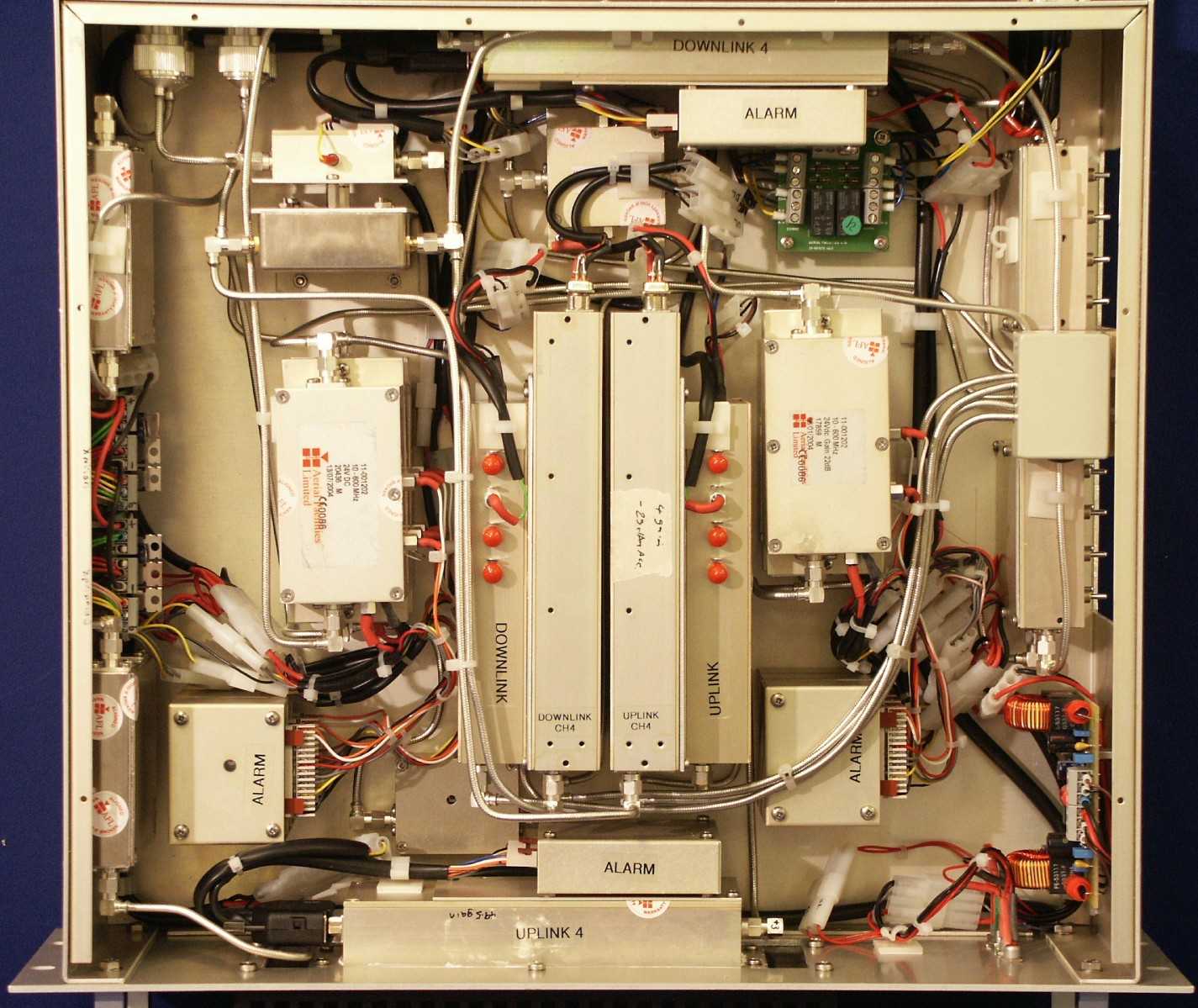

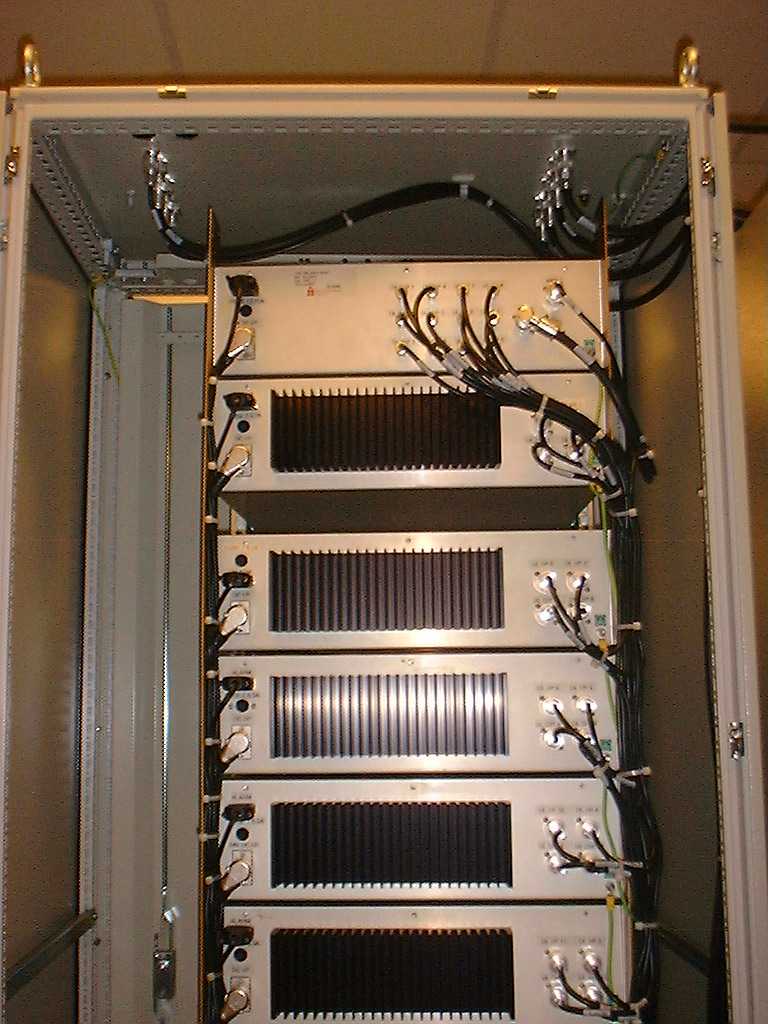

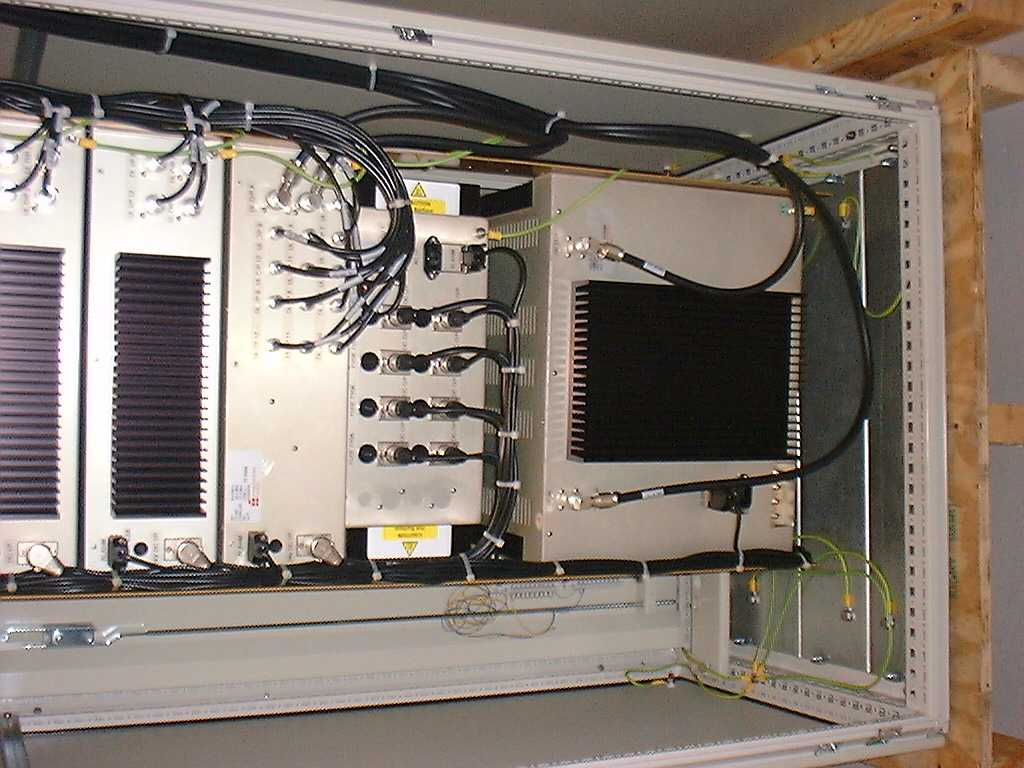

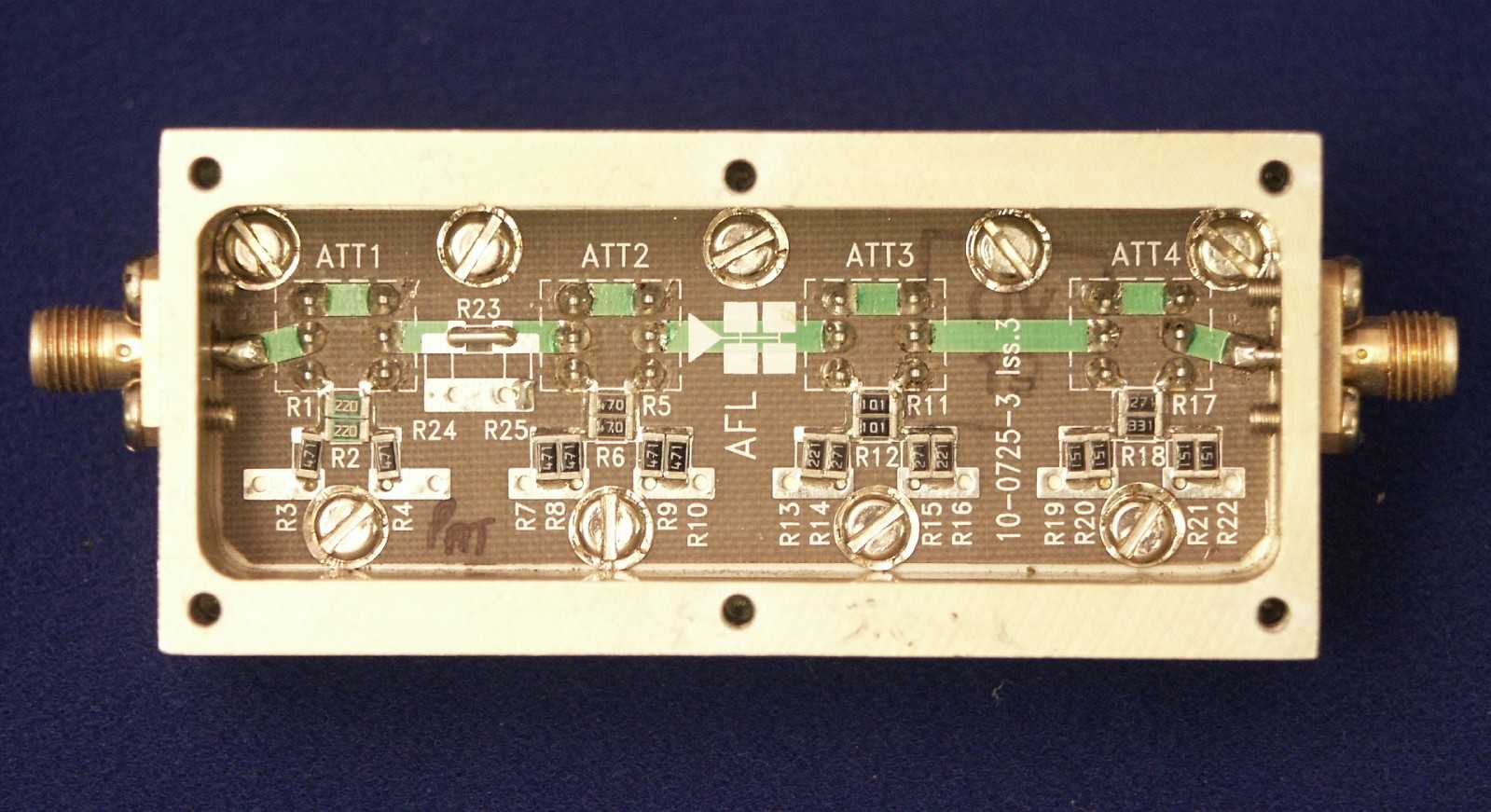

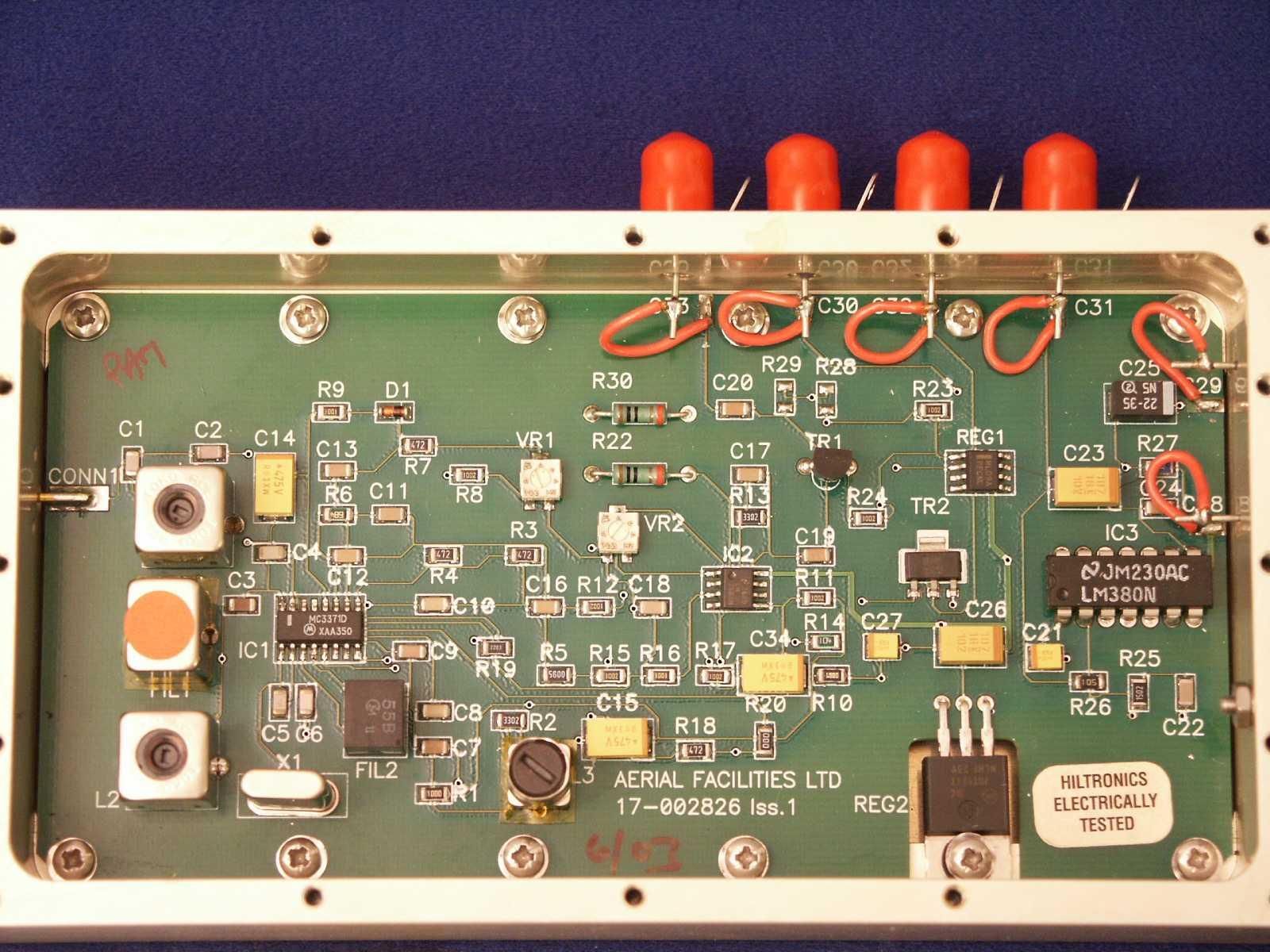

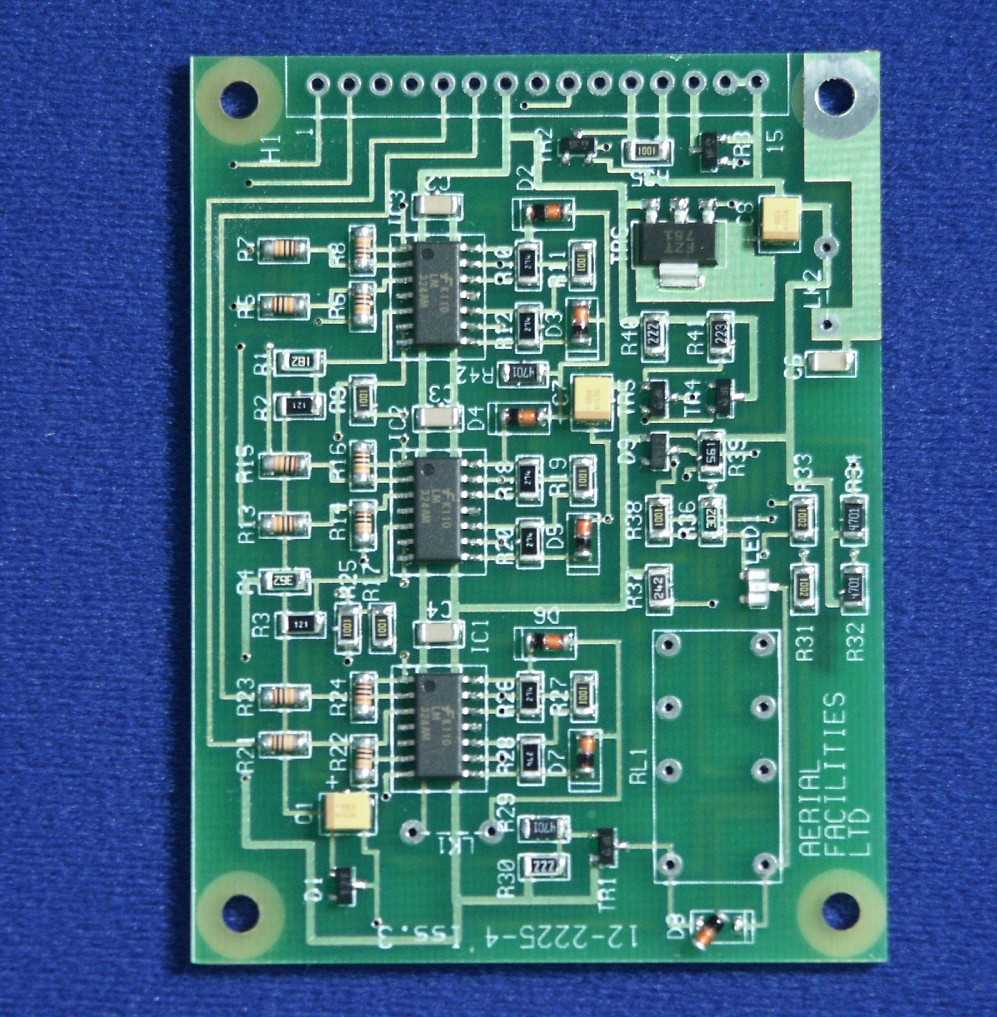

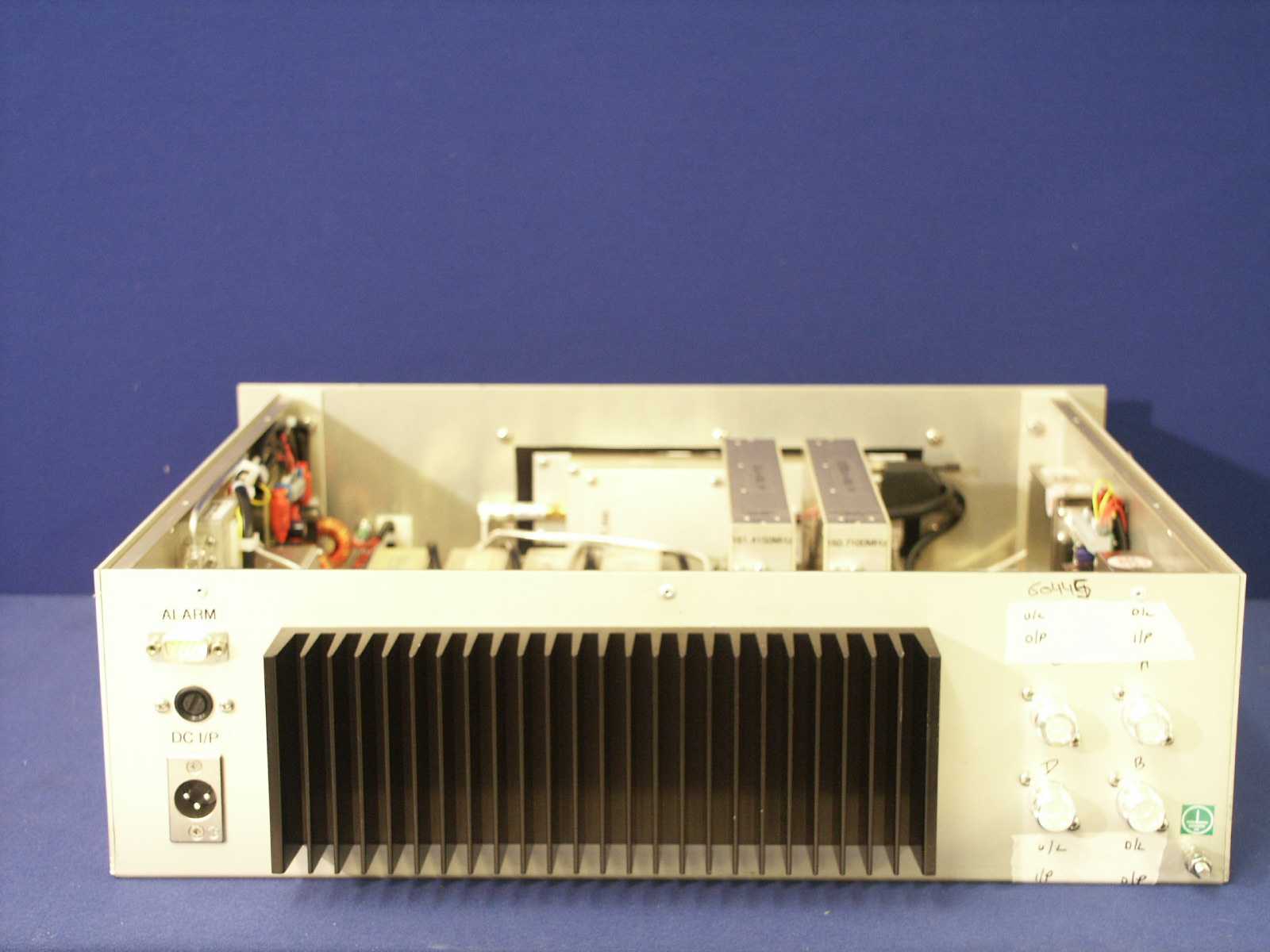

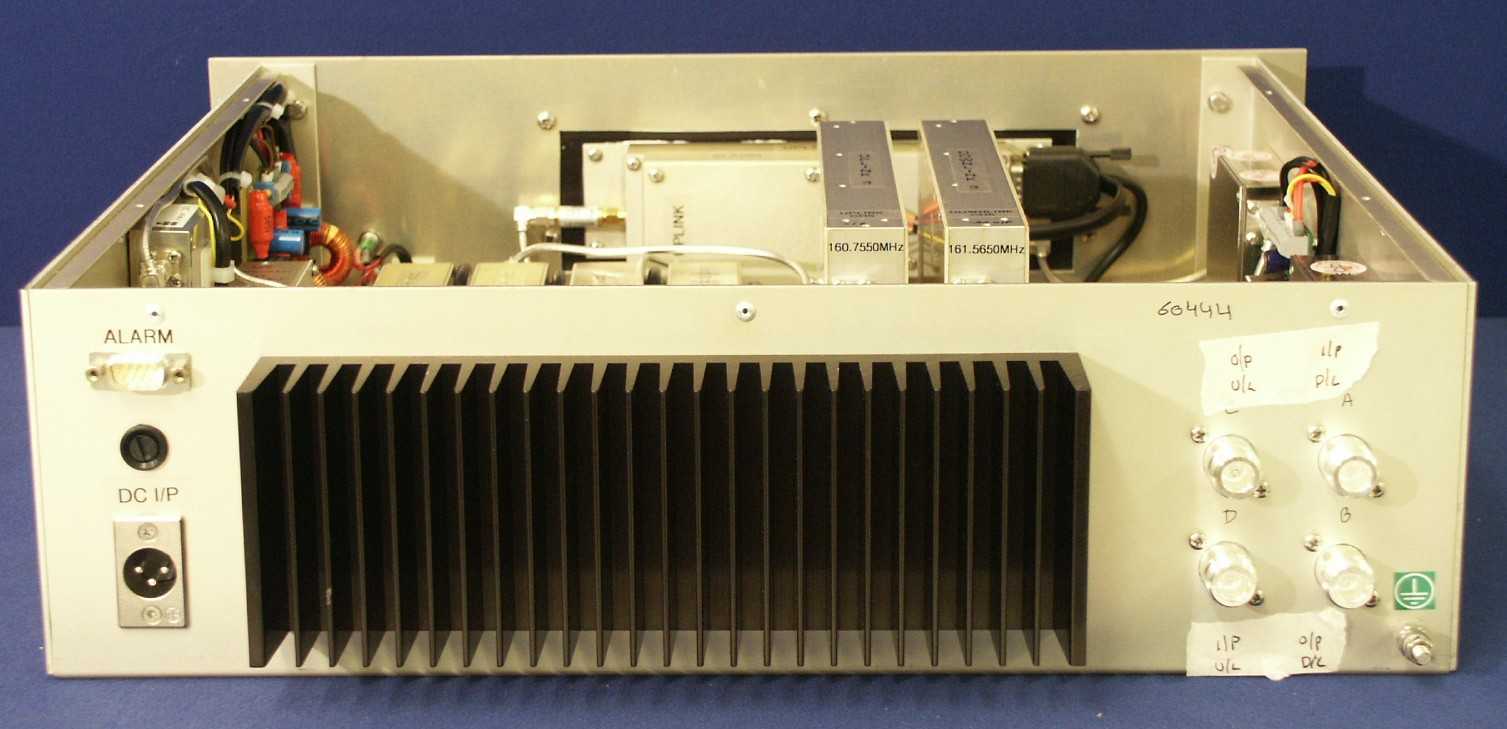

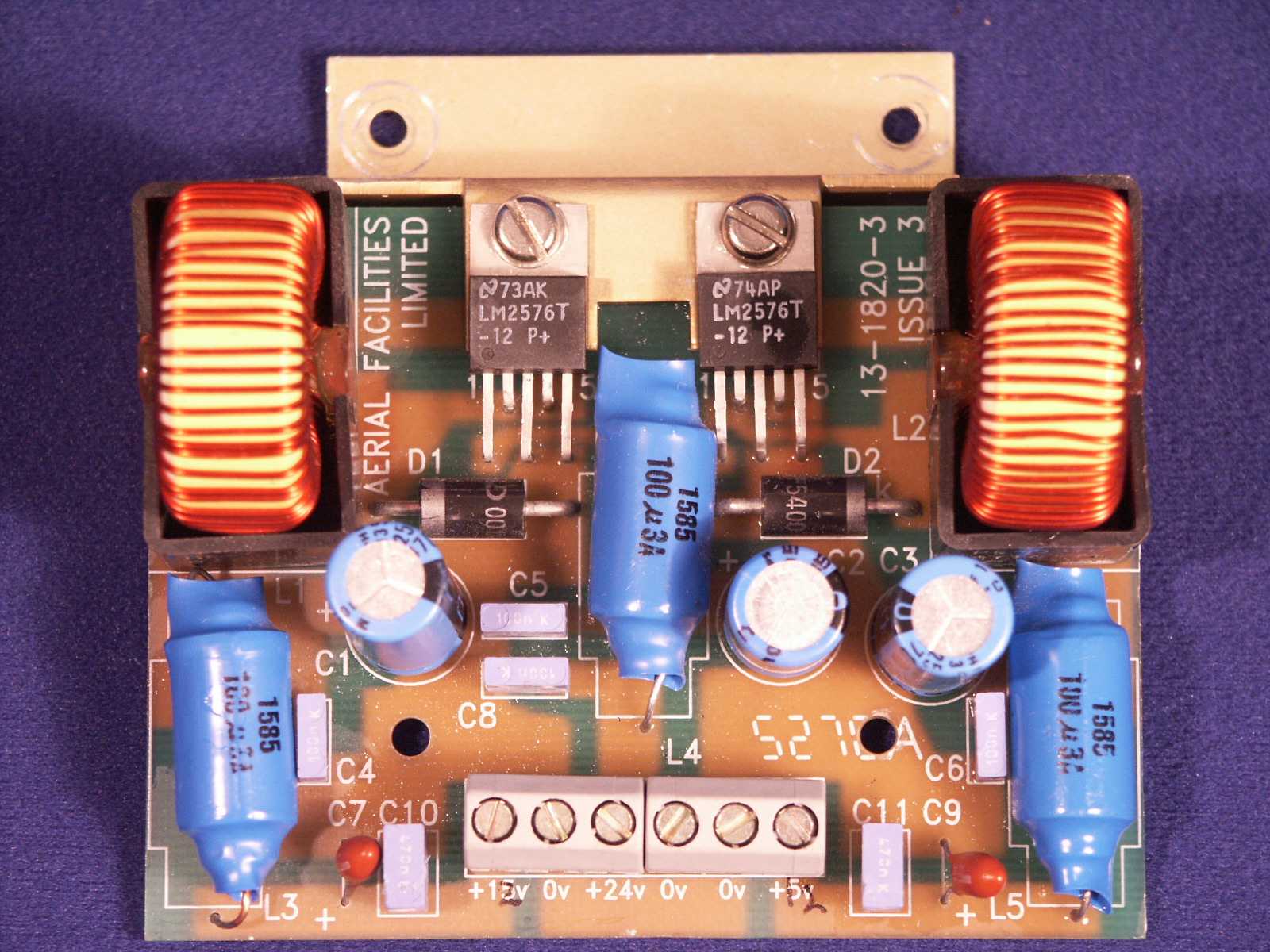

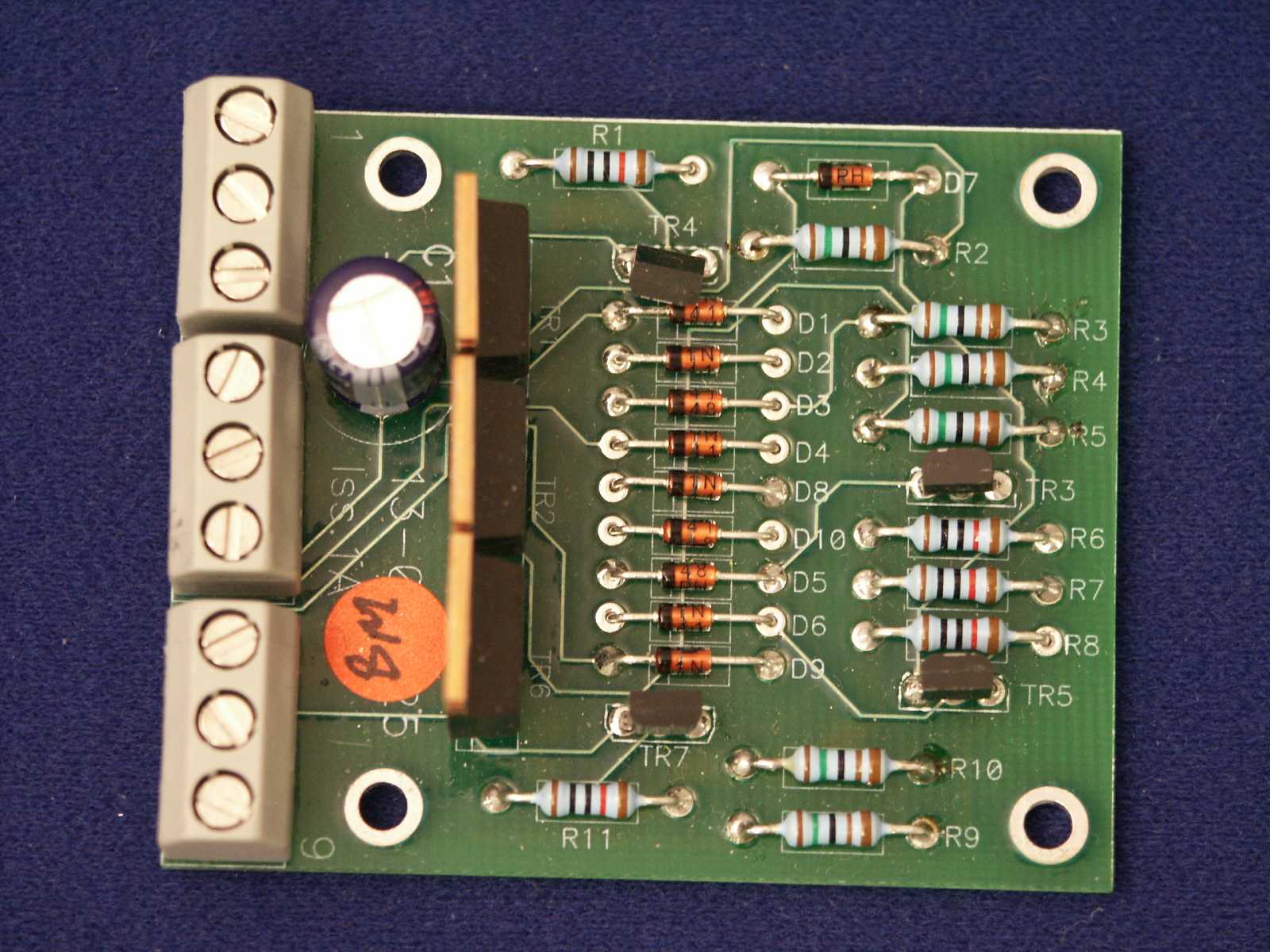

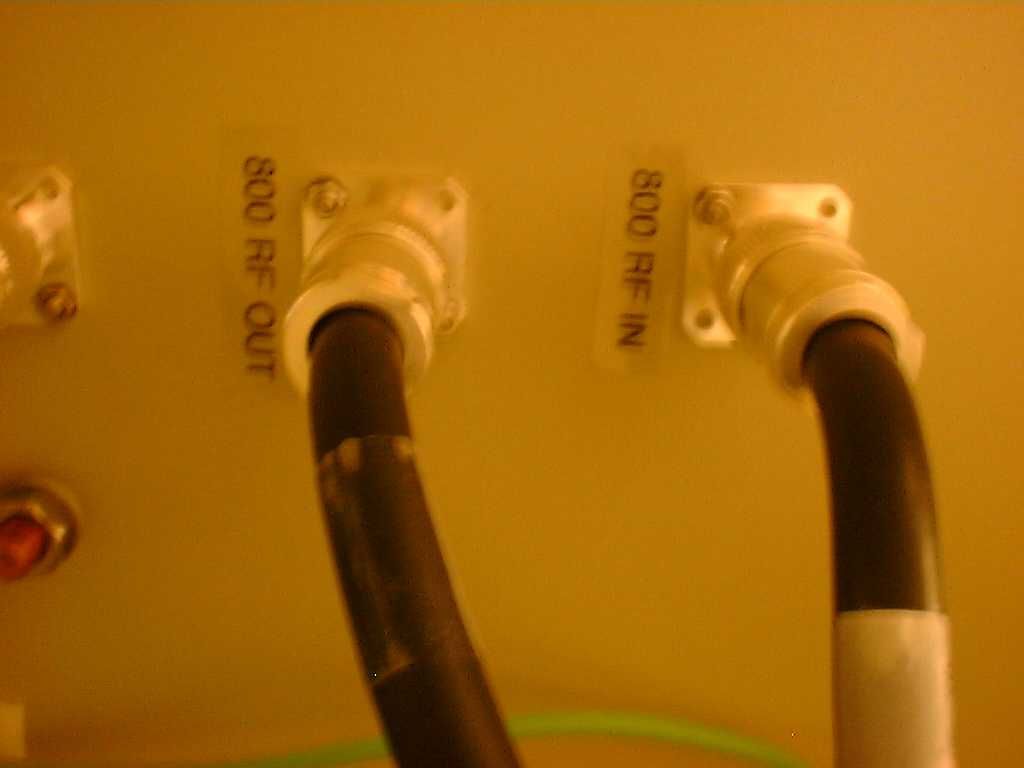

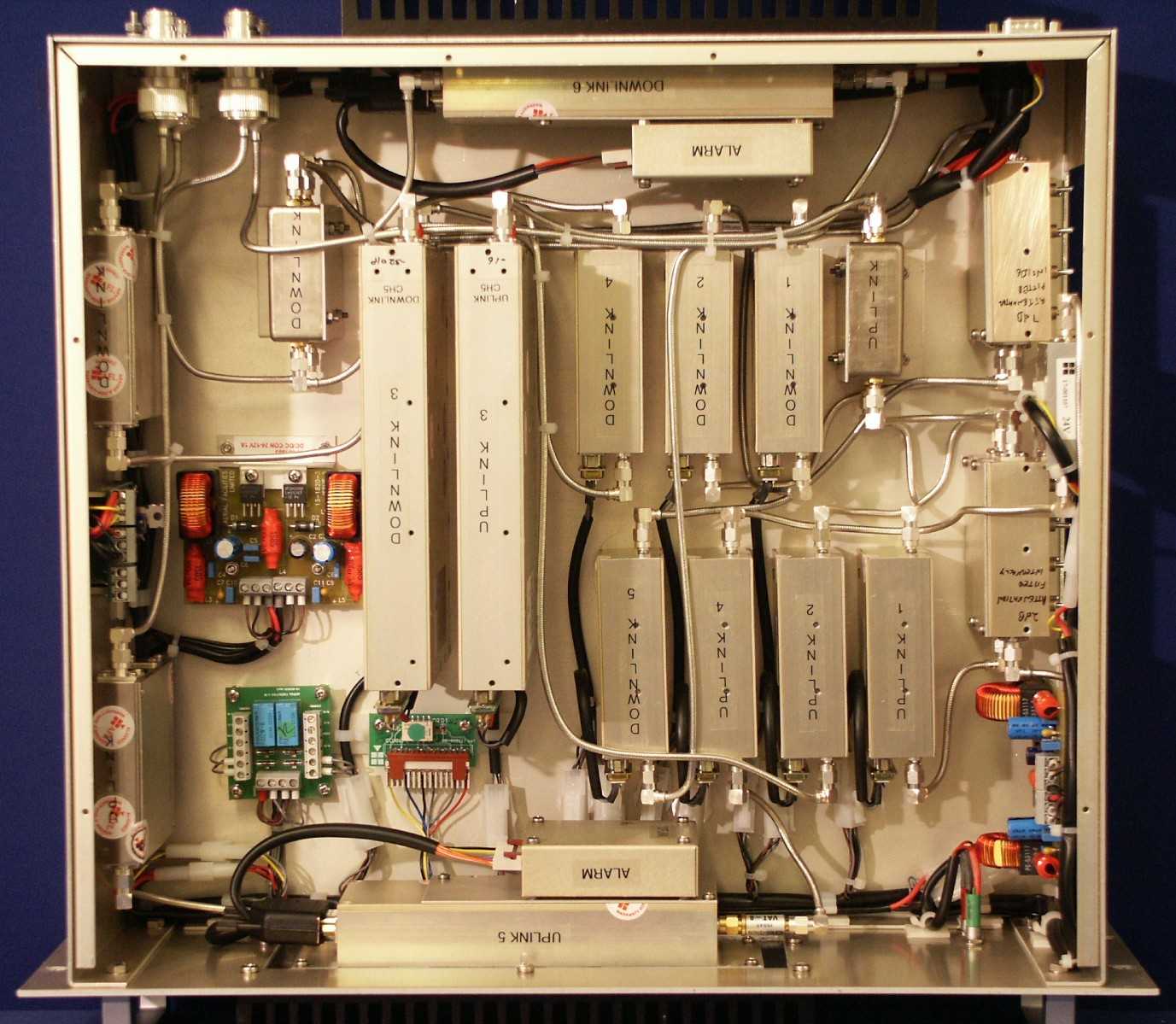

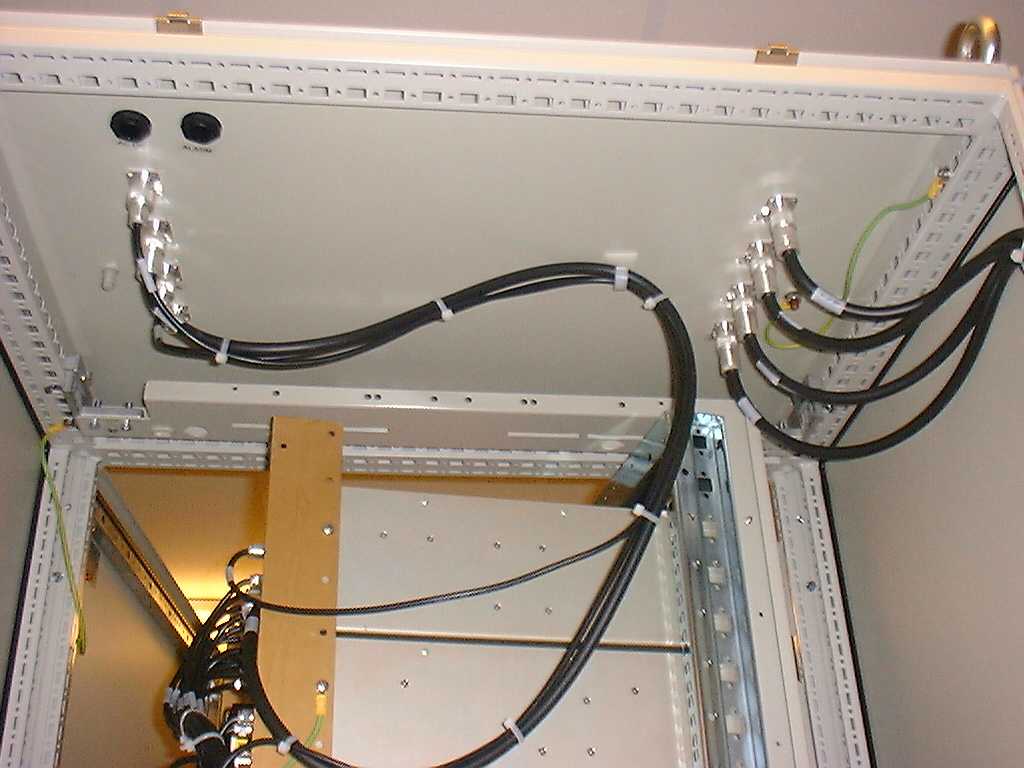

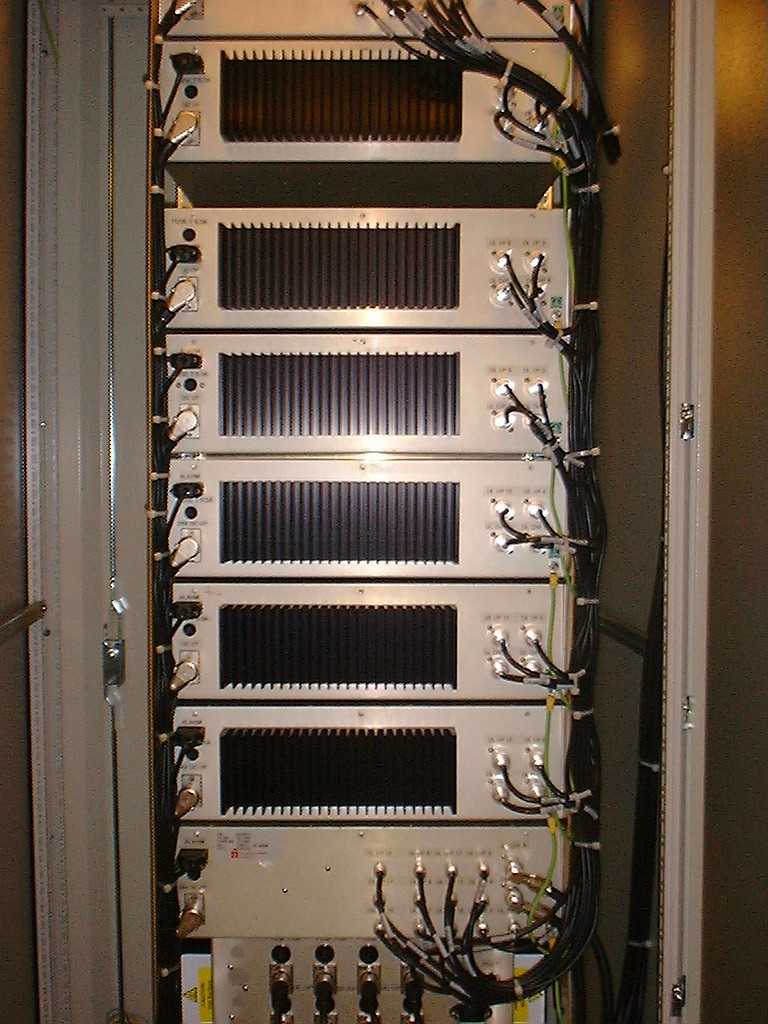

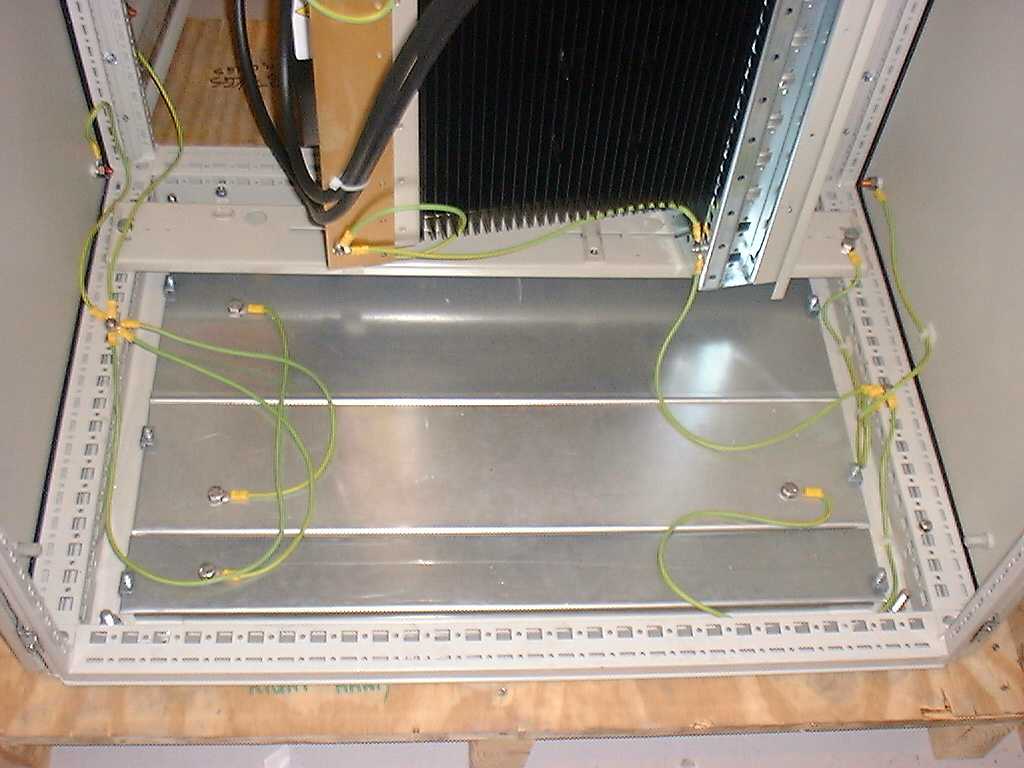

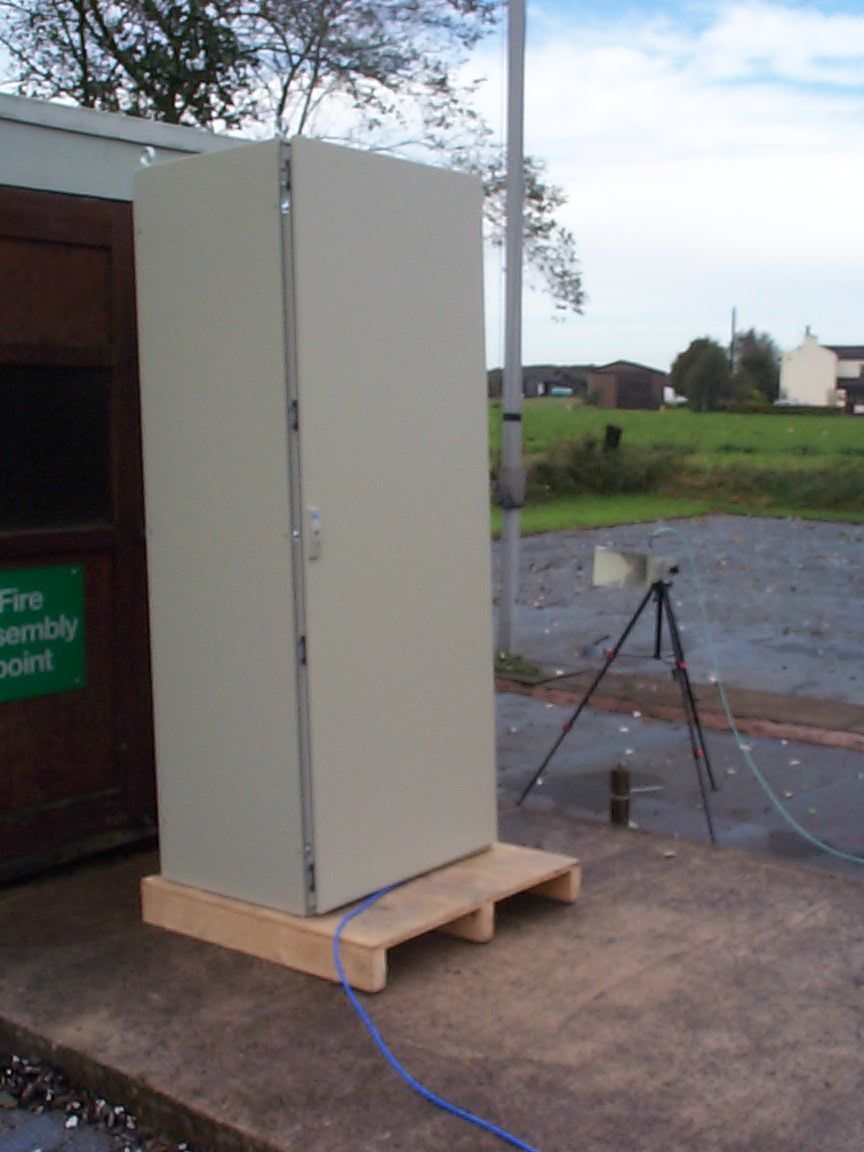

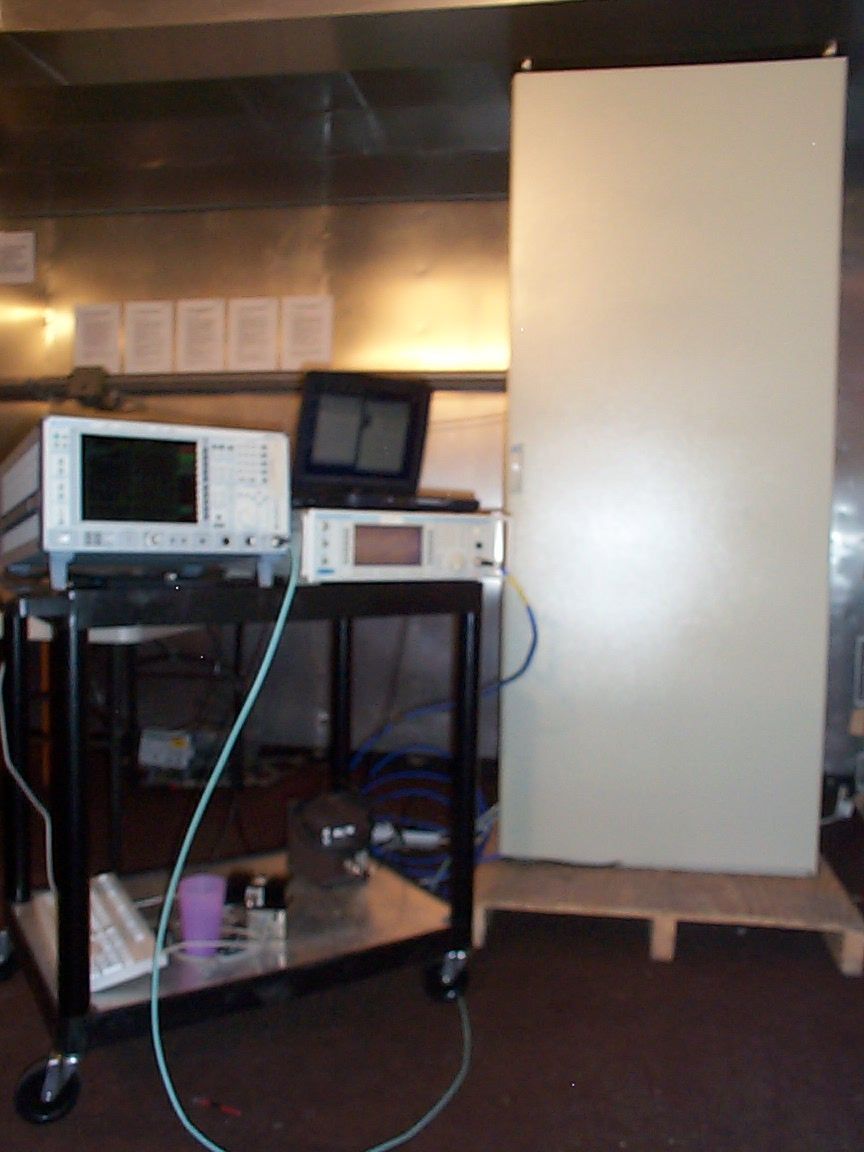

TRL C OMPLIANCE S ERVICES L TD EMC D IVISION L ONG G REEN F ORTHAMPTON G LOUCESTER GL19 4QH U NITED K INGDOM T ELEPHONE +44 (0)1684 833818 F AX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1136/5780 COPY NO: 2 ISSUE NO: 1 FCC ID: NE0-50-0780-VHF REPORT ON THE CERTIFICATION TESTING OF A Aerial Facilities Limited Cell Enhancer WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart H PRIVATE LAND MOBILE REPEATER. TEST DATE: 16 th September 2004 – 17 th September 2004 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 29 th September 2004 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Services Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02 RU1136/5780 Page 2 of 68 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-40 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RF335 iss02 RU1136/5780 Page 3 of 68 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NE0-50-0780-VHF PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart H TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMIUM GAIN 114.18 dB MAXIMUM INPUT -87.34 dBm MAXIMUM OUTPUT +26.84 dBm ANTENNA TYPE: Not applicable CHANNEL SPACING: 25 kHz NUMBER OF CHANNELS: Channel No. Uplink 6 Downlink 6 FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110 Vac TEST DATE(s): 16 th September 2004 – 17 th September 2004 ORDER No(s): 26773 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Latimer Park, Latimer Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RF335 iss02 RU1136/5780 Page 4 of 68 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart H TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 26773 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Latimer Park, Latimer Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494777020 FAX: +44 (0)149477002 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 16 th September 2004 – 17 th September 2004 TEST REPORT No: RU1136/5780 RF335 iss02 RU1136/5780 Page 5 of 68 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain signal generation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2. Product Use: Private Land Mobile Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 21 o C 5. Supply Voltages: Vnom +110 Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [X] 25 kHz Wideband [ ] 8. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RF335 iss02 RU1136/5780 Page 6 of 68 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 22 o C Radio Laboratory Relative humidity = 51% Supply voltage = +110 Vac Channel number = See test results Frequency MHz Signal Generator input level dBm Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Gain after 20dB input level increase dBm 160.53 -82.24 29.84 -3 109.8 89.38 160.935 -88.03 29.84 -4.9 112.97 92.99 161.415 -87.34 29.48 -2.1 114.19 94.78 Notes: 1. The level of the signal generator takes into consideration the loss from the cable. 2. The signal generator input was increased by 20dBs and the level of the output signal remeasured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER RHODE & SCHWARZ ESIB 7 100 182 630 X ATTENUATOR AFL 10-002530 8616 N/A X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2042 119562/021 254 X Spectrum Analyser Attenuator 30dB Cable TRL280 EUT Signal Generator TRL254 RF335 iss02 RU1136/5780 Page 7 of 68 29.84dB AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 22 o C Radio Laboratory Relative humidity = 51% Supply voltage = +110 Vac The Intermodulation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was the maximum input of -82.2dBm.The cable and attenuator loss between the EUT and the spectrum analyser was 29.84dB. This loss was taken into account by adjusting the analysers level offset. Sweep data is shown on the next page: A B C D CMTA TRL 05 161.415 MHz Sig Gen TRL 478 160.755 MHz Sig Gen TRL…
