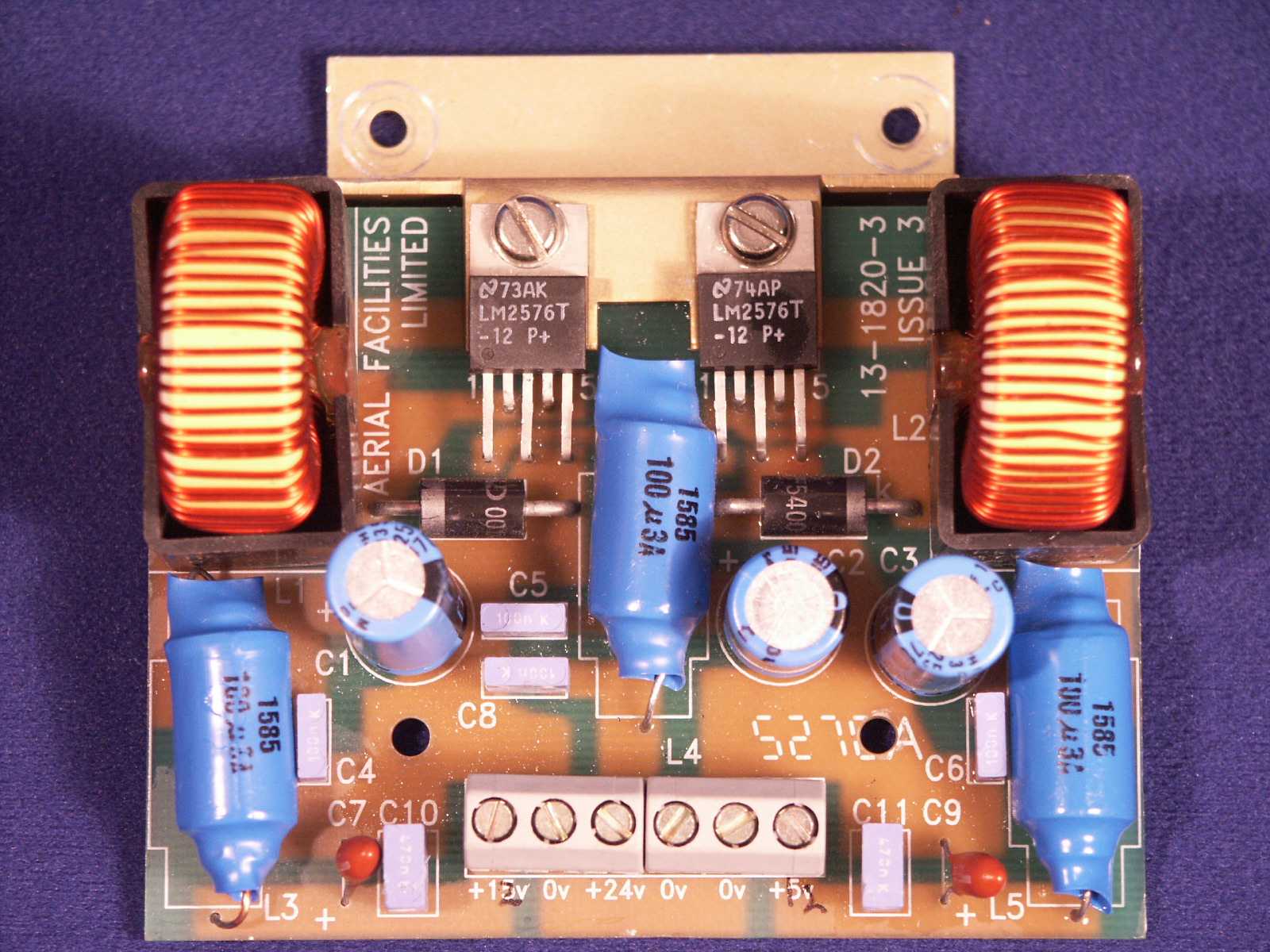

Weehawken Tunnel UHF Repeaters User/Maintenance Handbook Handbook Nō.-Weehawken_UHF Issue No:-A Date:-05/08/05 Page:- 1 of 72 Weehawken Tunnel Radio Repeater System User/Maintenance Handbook For G.E Transport Systems AFL Works Order Nō.: Q112727 AFL product part Nō.’s: 50-118101 (3 Ch UHF CCE) 50-118201 (UHF Simplex CCE) 50-118301 (1 Ch UHF CCE) 80-230701 (UHF Triplexer) 80-231301 (VHF/UHF Power Supply) 80-231303 (Alarm System) Weehawken Tunnel UHF Repeaters User/Maintenance Handbook Handbook Nō.-Weehawken_UHF Issue No:-A Date:-05/08/05 Page:- 2 of 72 Table of Contents INTRODUCTION ............................................................................................................................................ 6 Scope................................................................................................................................................................................ 6 Purpose............................................................................................................................................................................ 6 EC DECLARATION OF CONFORMITY.................................................................................................................. 7 Glossary of Terms .......................................................................................................................................................... 8 Key to AFL RF Module Drawing Symbols .................................................................................................................. 9 1. SAFETY CONSIDERATIONS .......................................................................................................... 10 1.1 Earthing of Equipment ................................................................................................................................... 10 1.2 Electric Shock Hazard .................................................................................................................................... 10 1.3 RF Radiation Hazard...................................................................................................................................... 11 1.4 Chemical Hazard............................................................................................................................................. 12 1.5 Emergency Contact Numbers ........................................................................................................................ 12 2. OVERVIEW/ SYSTEM DESCRIPTION.......................................................................................... 13 2.1 General System Description ........................................................................................................................... 13 3. WEEHAWKEN UHF RACK DRAWINGS ...................................................................................... 14 3.1 UHF Rack System Diagram, Drg. Nō. 80-231482 ........................................................................................ 14 3.2 UHF Rack Layout and Interconnections Diagram, Drg. Nō. 80-231453 ................................................... 15 3.3 Rack to Rack Interconnections Diagram, Drg. Nō. 80-231455 ................................................................... 16 3.4 Weehawken UHF System Frequencies Look-up Table ............................................................................... 17 4. UHF CELL ENHANCERS ................................................................................................................. 18 4.1 Three Channel UHF Cell Enhancer 50-118101 ............................................................................................ 18 4.1.1 Three Channel UHF Cell Enhancer Description.......................................................................................... 18 4.1.2 Three Channel UHF Cell Enhancer Electrical Specifications......................................................................18 4.1.3 Three Channel UHF Cell Enhancer Mechanical Specifications .................................................................. 19 4.1.4 Three Channel UHF Cell Enhancer System Diagram, Drg. Nō. 50-118181................................................ 20 4.1.5 Three Channel UHF Cell Enhancer Outline Drawing, Drg. Nō. 50-118191 ............................................... 21 4.1.6 Three Channel UHF Cell Enhancer 50-118101 Parts List...........................................................................22 4.2 UHF Simplex Cell Enhancer (50-118201) ..................................................................................................... 23 4.2.1 UHF Simplex Cell Enhancer Description ..................................................................................................... 23 4.2.2 UHF Simplex Cell Enhancer Technical Specification .................................................................................. 23 4.2.3 UHF Simplex Cell Enhancer System Diagram, Drg. Nō. 50-118281 ........................................................... 24 4.2.4 UHF Simplex Cell Enhancer Outline Drawing............................................................................................. 25 4.2.5 UHF Simplex Cell Enhancer Parts List ........................................................................................................ 26 4.3 One Channel UHF Cell Enhancer (50-118301) ............................................................................................ 27 4.3.1 One Channel UHF Cell Enhancer Description ............................................................................................ 27 4.3.2 One Channel UHF Cell Enhancer Technical Specification..........................................................................27 4.3.3 One Channel UHF Cell Enhancer System Diagram..................................................................................... 28 4.3.4 One Channel UHF Cell Enhancer Outline Drawing .…

Text truncated - open the document above for the full version.

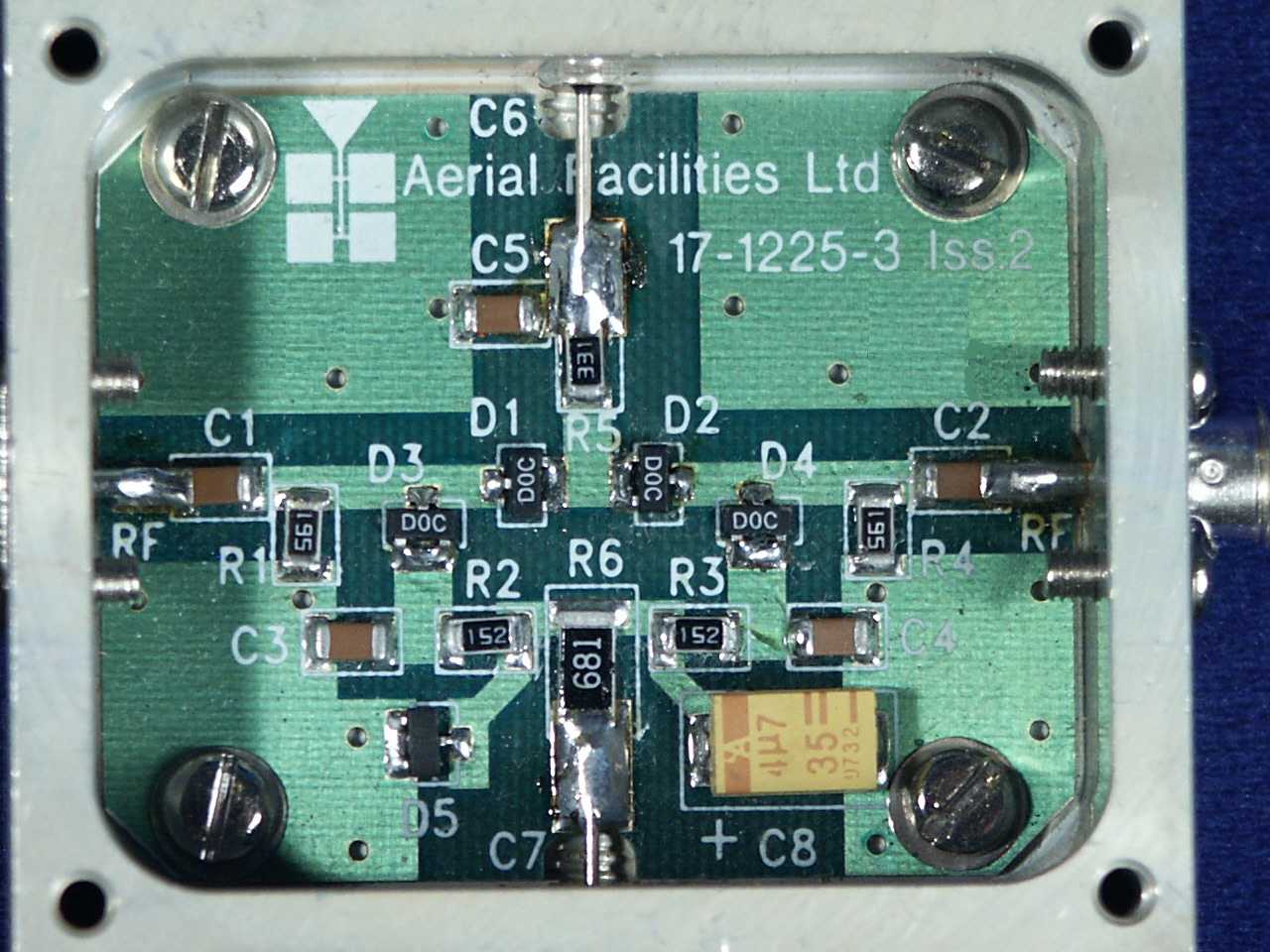

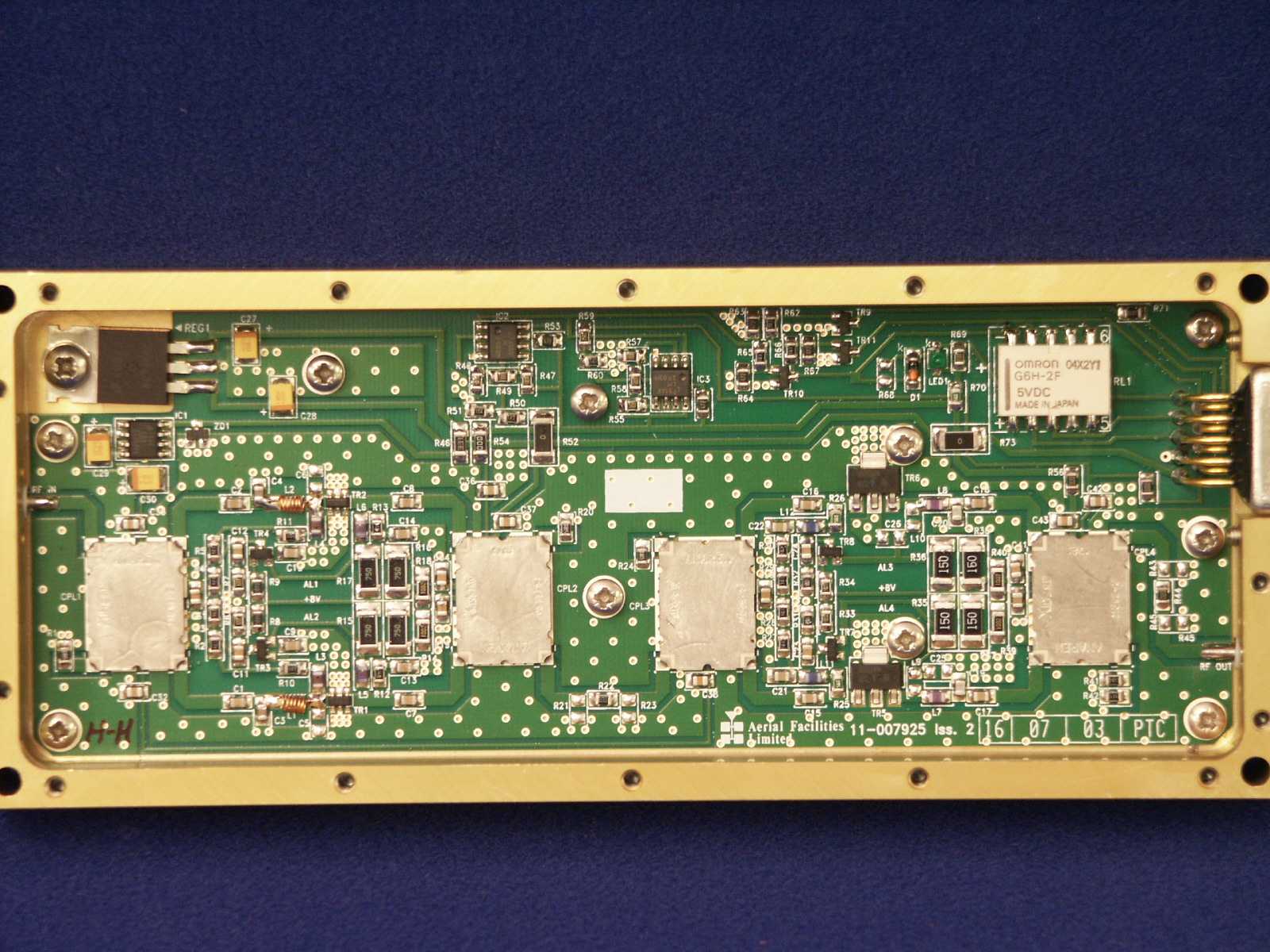

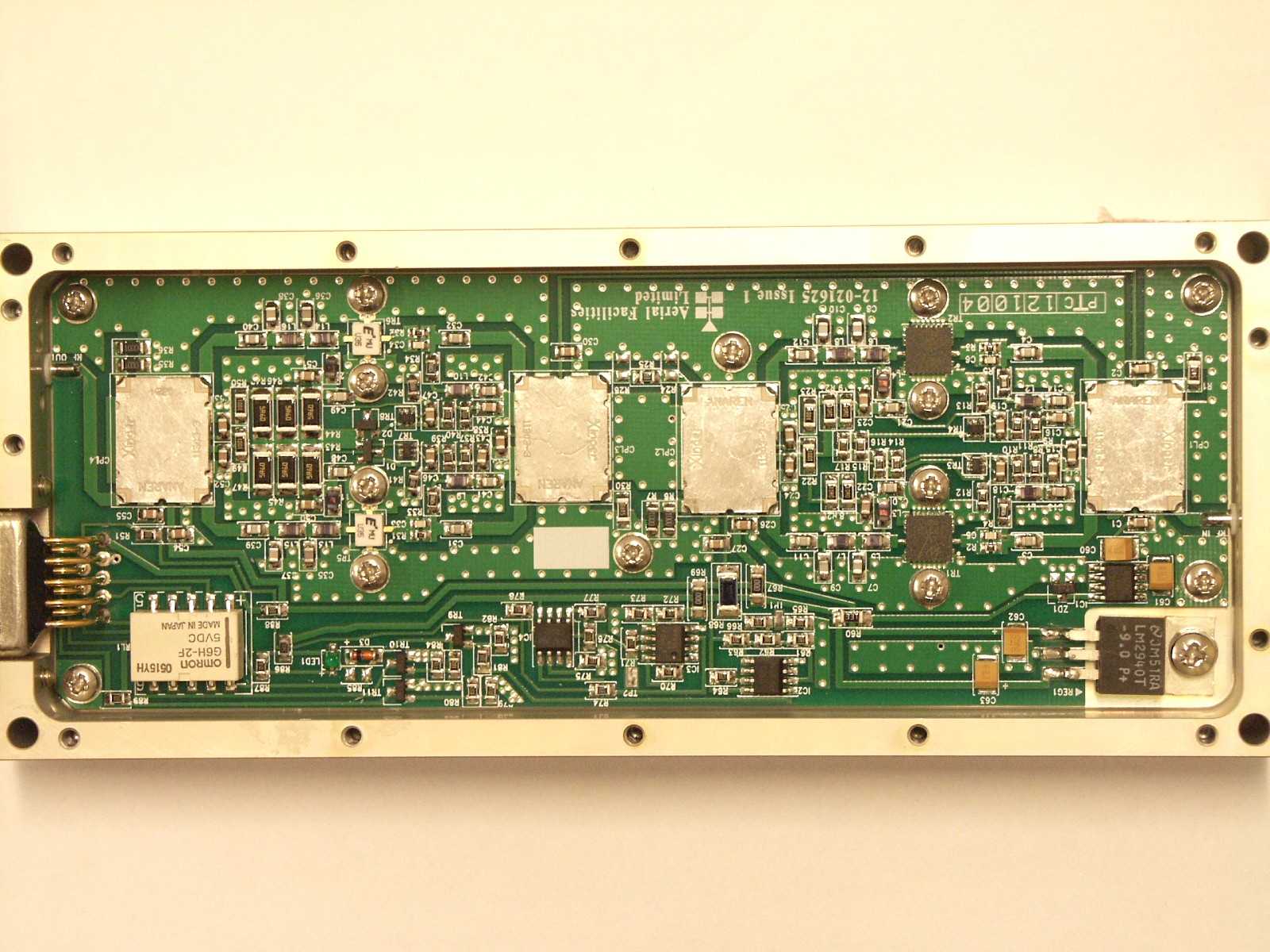

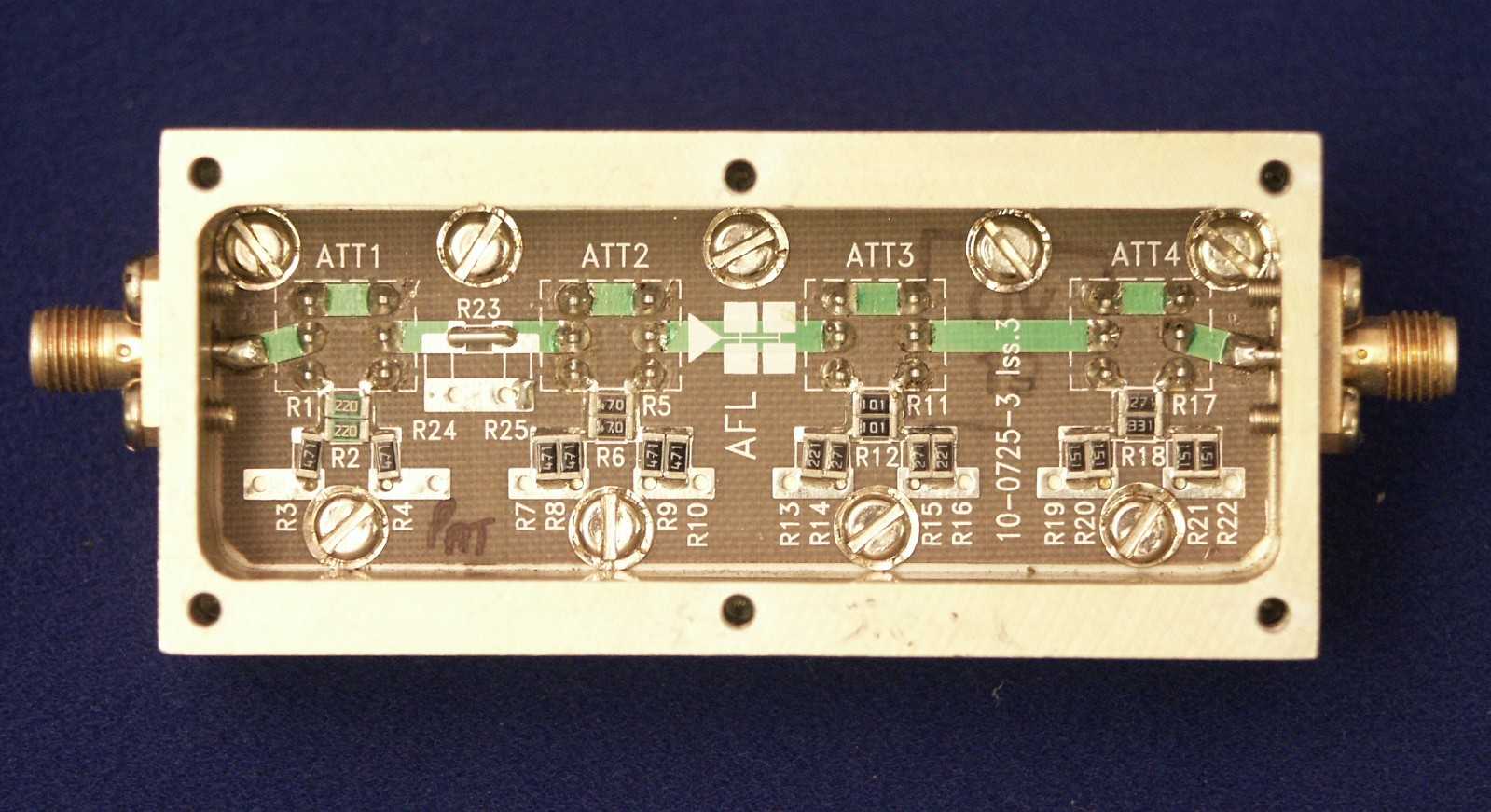

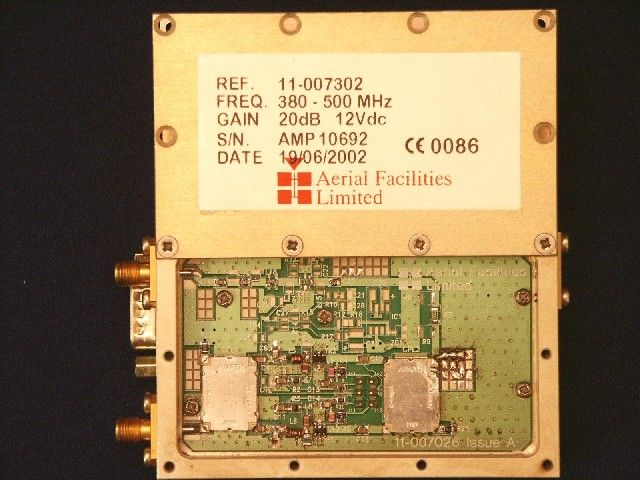

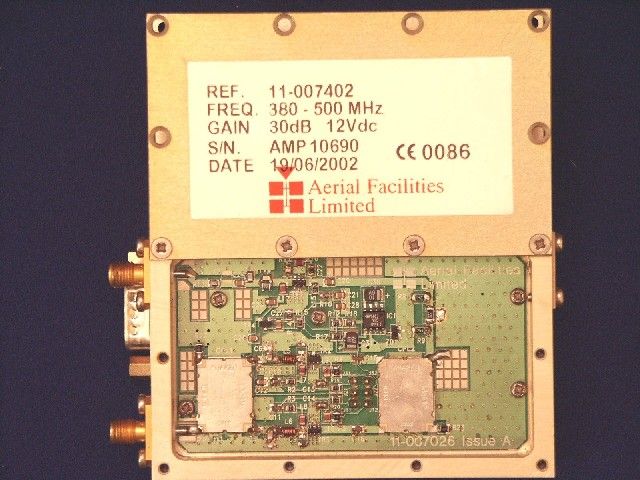

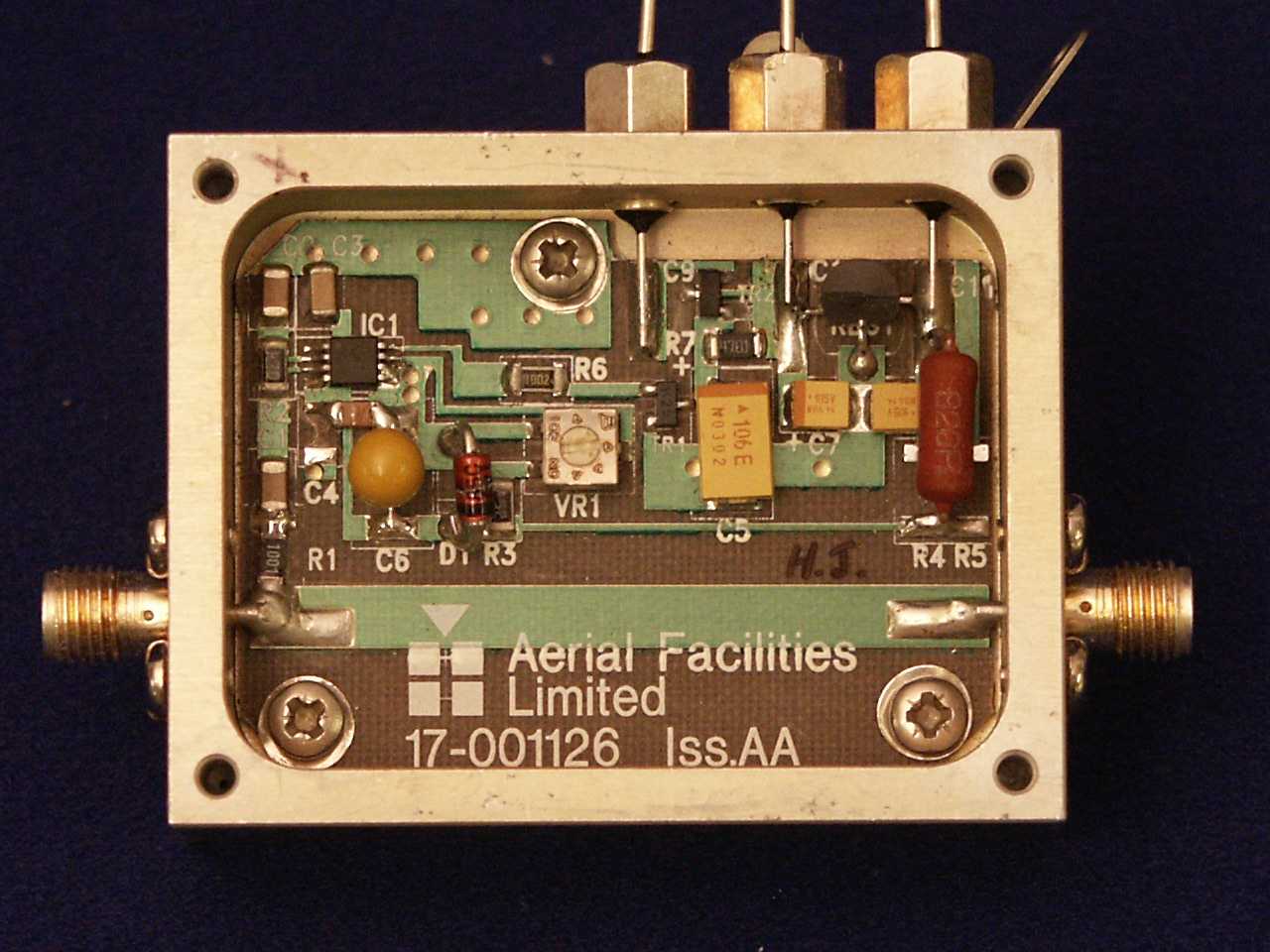

Weehawken Tunnel UHF Repeaters User/Maintenance Handbook Handbook Nō.-Weehawken_UHF Issue No:-A Date:-05/08/05 Page:- 13 of 72 2. OVERVIEW/ SYSTEM DESCRIPTION 2.1 General System Description The Weehawken tunnel radio system is designed to amplify various bands of radio frequencies, in either channelised or band selective modes. This handbook is dedicated to the UHF radio repeating system. All the hardware is built into standard 19” rack mounted cabinets which have an environmental IP rating of 54. The systems in this document will be described separately, as individual shelves (UHF) and the various passive combiners, splitters and cross-band coupler shelves will be described in other documents. Every active module in the entire system has a dedicated alarm and these are series wired within the shelves to a relay which gives a volt-free output pair for each shelf which is wired to a ‘krone-block’ termination in the bottom of the rack cabinet. Weehawken Tunnel UHF Repeaters User/Maintenance Handbook Handbook Nō.-Weehawken_UHF Issue No:-A Date:-05/08/05 Page:- 17 of 72 3.4 Weehawken UHF System Frequencies Look-up Table Agency Channel Number Uplink Tx Downlink Rx Jersey City Police Department UHF CHN 1 465.3750 460.3750 Jersey City Fire Department UHF CHN 2 465.5500 460.5500 Jersey City Fire Department UHF CHN 3 465.6000 460.6000 Hoboken Fire Dept UHF CHN 4 471.5500 471.5500 West New York Police Department UHF CHN 5 473.3125 470.3125 Weehawken Tunnel UHF Repeaters User/Maintenance Handbook Handbook Nō.-Weehawken_UHF Issue No:-A Date:-05/08/05 Page:- 18 of 72 4. UHF CELL ENHANCERS 4.1 Three Channel UHF Cell Enhancer 50-118101 4.1.1 Three Channel UHF Cell Enhancer Description The UHF (400MHz band) cell enhancer employs three channel modules in each path for three dedicated frequencies (NJ FD x2 & NJPD). The downlink output is realised using a phased-parallel arrangement for the power amplifiers which effectively doubles their 20Watts output. All amplifiers have built-in alarms which are configured as a summary, volt-free relay contact pair terminating at pins 1 & 2 on the ‘D’ type alarm connector. 4.1.2 Three Channel UHF Cell Enhancer Electrical Specifications PARAMETER SPECIFICATION 460.3-460.7MHz (Downlink) Frequency range: 465.3-465.7MHz (Uplink) Bandwidth: 0.4MHz Gain: >90dB Gain Adjustment: 0 - 30dB (in 2dB steps) Uplink Power: >10.0Watts Downlink Power: >20.0Watts (x2) Uplink +40dBm IP3: Downlink +54dBm Downlink AGC gain: 10dB Downlink AGC level: -22dBm Uplink AGC gain: 14dB Uplink AGC level: -8dBm Noise Figure: <6dB (at maximum gain) AGC: Fitted in channel modules VSWR: better than 1.5:1 RF Connectors: N type, female operational: -10°C to +55°C Temperature range: storage: -40°C to +70°C 1 Downlink amplifiers 2 Uplink amplifiers Alarms Fitted: (volt-free contacts/TTL) 3 Each channel module Weehawken Tunnel UHF Repeaters User/Maintenance Handbook Handbook Nō.-Weehawken_UHF Issue No:-A Date:-05/08/05 Page:- 19 of 72 4.1.3 Three Channel UHF Cell Enhancer Mechanical Specifications PARAMETER SPECIFICATION Height: Standard Eurorack Width: 19" (482.6mm) Rack Depth: 600mm (800 optional) Height: 8U Width: 19" (482.6mm) Shelves: Depth: <400mm(excluding heatsinks, connectors, handles and feet) operational: -10°C to +55°C Temperature range: storage: -40°C to +70°C Weight: 20kg (approximately) Humidity: 5 – 95% non-condensing RF Connectors: N type female Environmental Protection: IP54 Case: Alocrom 1200 Heatsinks: Matt black Handles: Silver anodised alloy Finish: Fascia Painted to RAL 7035 Supply Cable: Unit supplied with suitable supply input leads, connector and specified length of cable Weehawken Tunnel UHF Repeaters User/Maintenance Handbook Handbook Nō.-Weehawken_UHF Issue No:-A Date:-05/08/05 Page:- 23 of 72 4.2 UHF Simplex Cell Enhancer (50-118201) 4.2.1 UHF Simplex Cell Enhancer Description The UHF Simplex cell enhancer operates by muting the uplink channel when the downlink channel is transmitting, and vice-versa so that positive feedback between Tx and Rx amplifiers is not possible. 4.2.2 UHF Simplex Cell Enhancer Technical Specification PARAMETER SPECIFICATION 460.3-460.7MHz (Downlink) Frequency range: 465.3-465.7MHz (Uplink) Bandwidth: 0.4MHz Gain: >90dB Gain Adjustment: 0 - 30dB (in 2dB steps) Uplink Power: >10.0Watts Downlink Power: >20.0Watts (x2) Uplink +40dBm IP3: Downlink +54dBm Downlink AGC gain: 10dB Downlink AGC level: -22dBm Uplink AGC gain: 14dB Uplink AGC level: -8dBm Noise Figure: <6dB (at maximum gain) AGC: Fitted in channel modules VSWR: better than 1.5:1 RF Connectors: N type, female operational: -10°C to +55°C Temperature range: storage: -40°C to +70°C Case: Alocrom 1200 Heatsinks: Matt black Handles: Silver anodised alloy Finish: Fascia Painted to RAL 7035 1 Downlink amplifiers 2 Uplink amplifiers Alarms Fitted: (volt-free contacts/TTL) 3 Each channel module Weehawken Tunnel UHF Repeaters User/Maintenance Handbook Handbook Nō.-Weehawken_UHF Issue No:-A Date:-05/08/05 Page:- 27 of 72 4.3 One Channel UHF Cell Enhancer (50-118301) 4.3.1 One Channel UHF Cell Enhancer Description The 5W/1W single channel cell enhancer is for the West New York PD in order that this agency may communicate into and out of the Weehawken tunnel. 4.3.2 One Channel UHF Cell Enhancer Technical Specification PARAMETER SPECIFICATION 470.3125MHz (Downlink) Frequencies: 473.3125MHz (Uplink) Gain: >90dB Gain Adjustment: 0 - 30dB (in 2dB steps) Uplink Power: >1.0Watts Maximum uplink output: +30.8dBm Downlink Power: >5.0Watts Maximum downlink output power: +37.5dBm Uplink +44dBm IP3: Downlink +50dBm Downlink Ch. module AGC level: -17dBm Uplink Ch. module AGC level: -8dBm Noise Figure: <6dB (at maximum gain) AGC: Fitted in channel modules VSWR: better than 1.5:1 RF Connectors: N type, female operational: -10°C to +55°C Temperature range: storage: -40°C to +70°C Case: Alocrom 1200 Heatsinks: Matt black Handles: Silver anodised alloy Finish: Fascia: Painted to RAL 7035 1 Downlink amplifiers 2 Uplink amplifiers…

Text truncated - open the document above for the full version.

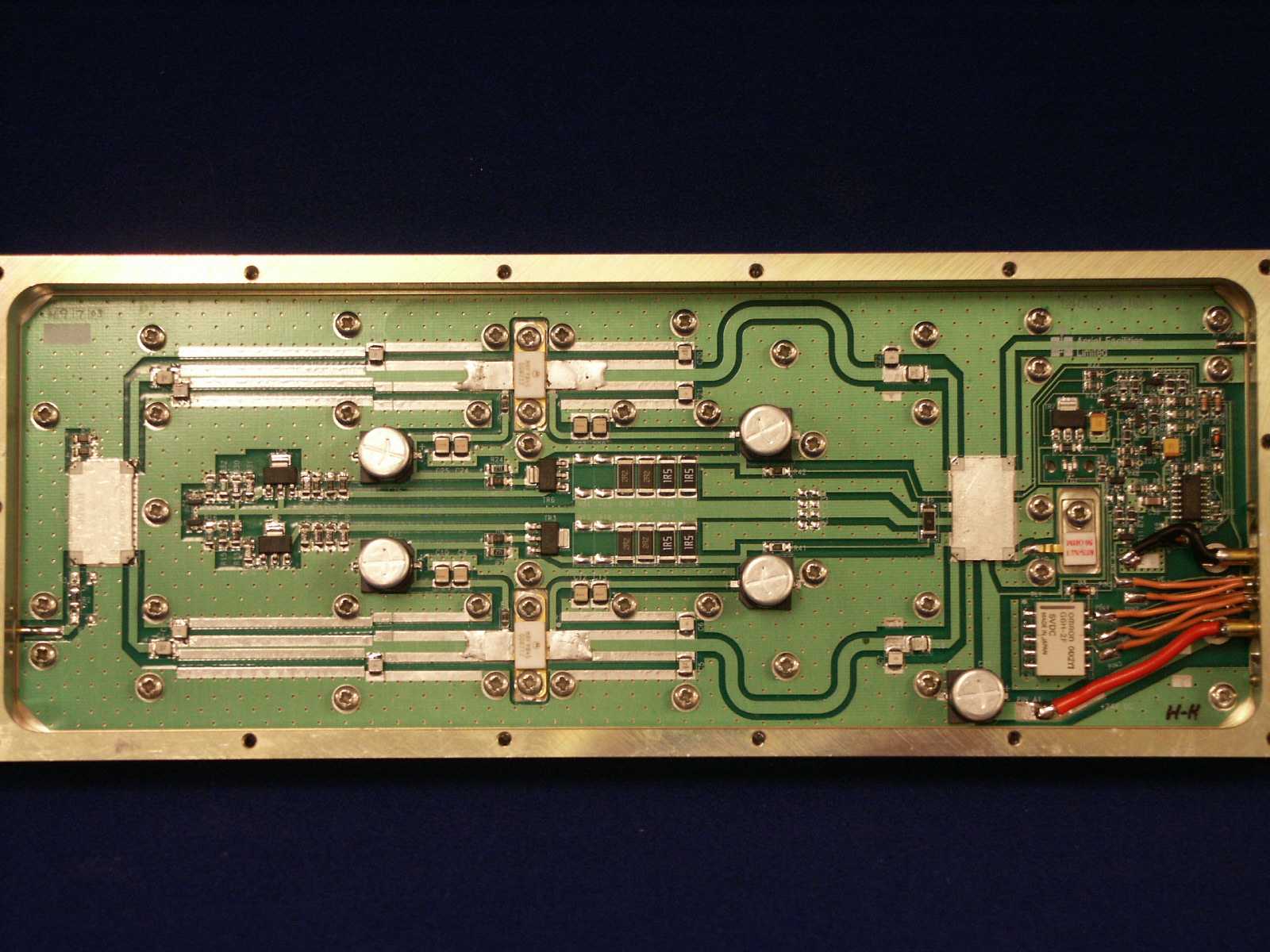

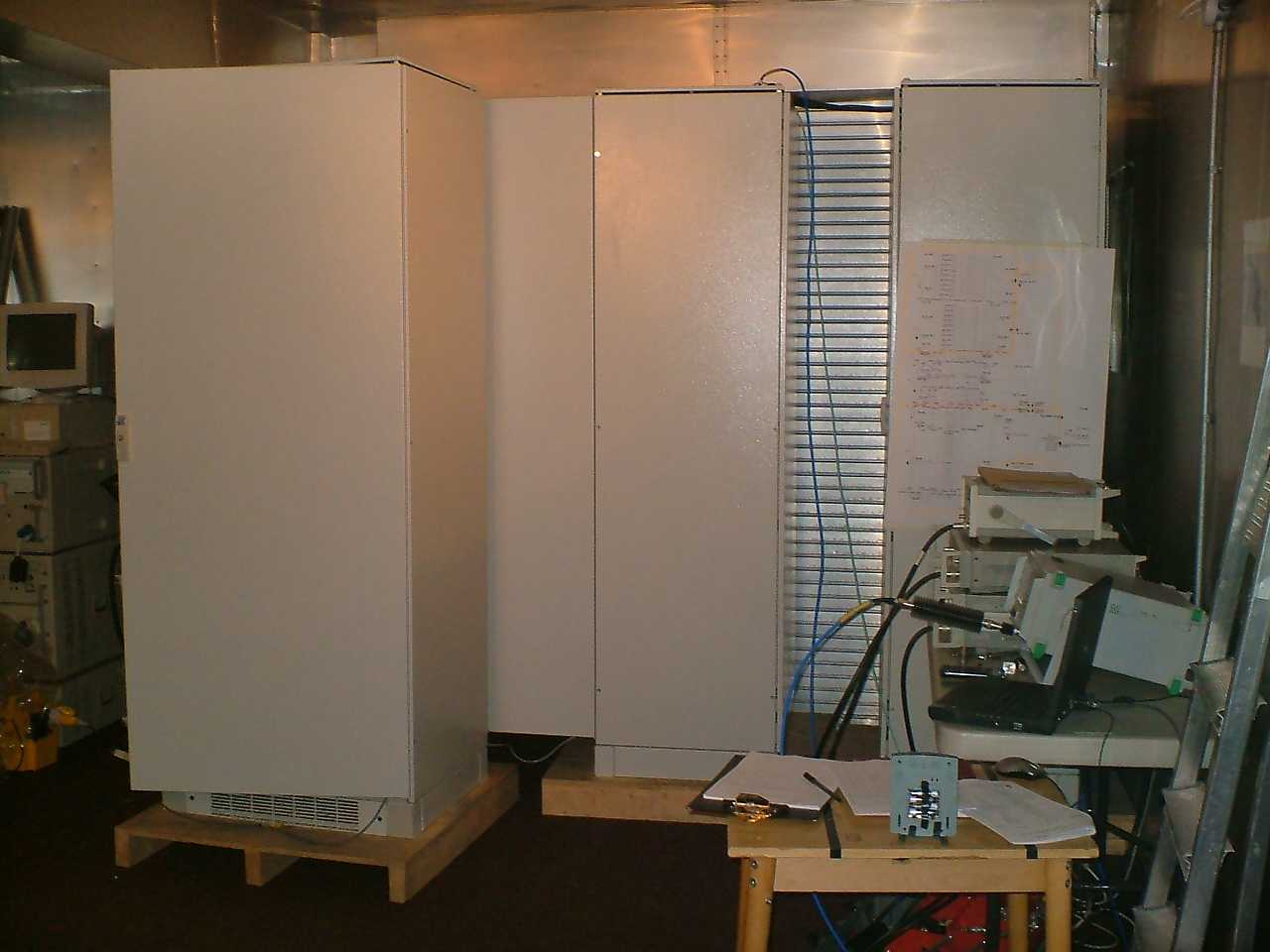

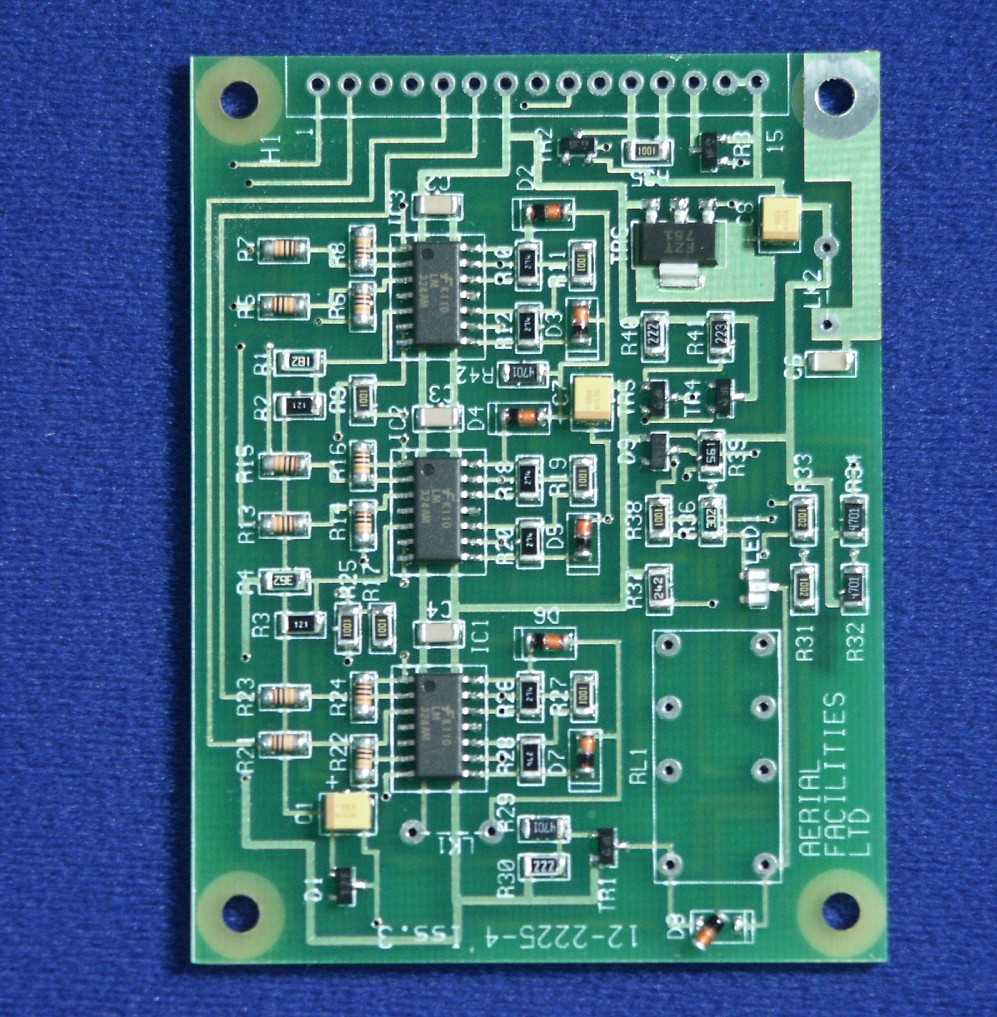

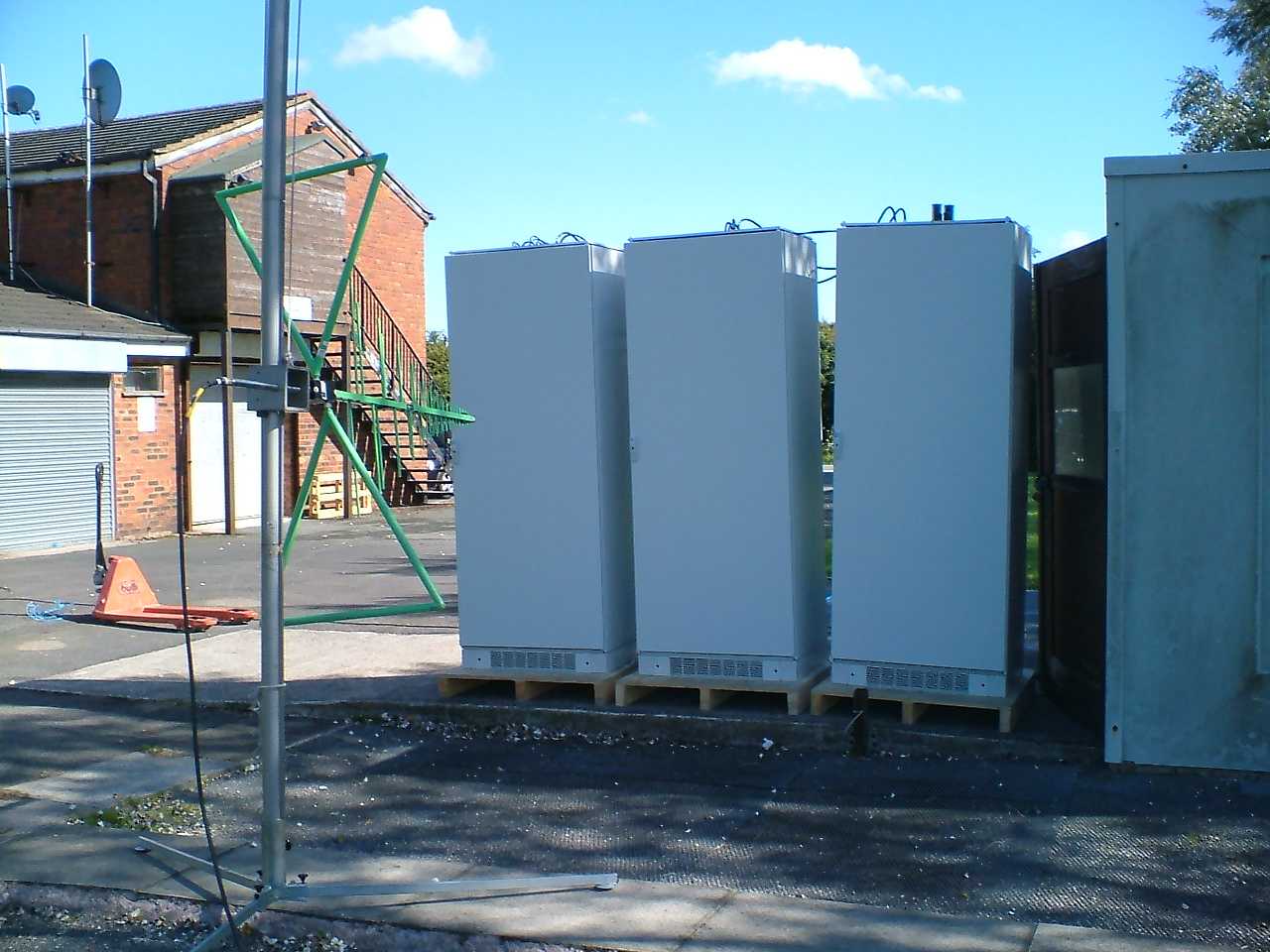

TRL C OMPLIANCE L TD EMC D IVISION L ONG G REEN F ORTHAMPTON G LOUCESTER GL19 4QH U NITED K INGDOM T ELEPHONE +44 (0)1684 833818 F AX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1193/6627 COPY NO: 1 ISSUE NO: 1 FCC ID: NEO50-1181UHF REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED OFF AIR BI-DIRECTION AMPLIFIER SYSTEM (UHF) WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 23 rd August 2005 – 30 th August 2005 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 11 th November 2005 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02 RU1193/6627 Page 2 of 59 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-52 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RF335 iss02 RU1193/6627 Page 3 of 59 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO50-1181UHF PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: OFF AIR BI-DIRECTION AMPLIFIER SYSTEM (UHF) EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMUM GAIN Uplink 100.33dB Downlink 110.91dB MAXIMUM INPUT Uplink -74dBm Downlink -79dBm MAXIMUM OUTPUT Uplink +26.33dBm Downlink +31.91dBm ANTENNA TYPE: Not applicable CHANNEL SPACING: 15kHz Duplex 7.5kHz Simplex NUMBER OF CHANNELS: Uplink 5 Downlink 5 FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): 110Vac TEST DATE(s): 23 rd August 2005 – 30 th August 2005 ORDER No(s): 32001 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RF335 iss02 RU1193/6627 Page 4 of 59 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): OFF AIR BI-DIRECTION AMPLIFIER SYSTEM (UHF) EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 32001 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 23 rd August 2005 – 30 th August 2005 TEST REPORT No: RU1193/6627 RF335 iss02 RU1193/6627 Page 5 of 59 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2. Product Use: Private Land Mobile Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 21 o C 5. Supply Voltages: Vnom 110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [X] 15kHz Duplex 7.5kHz Simplex Wideband [ ] 8. Test Location TRL Compliance Limited Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RF335 iss02 RU1193/6627 Page 6 of 59 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 23 o C Radio Laboratory Relative humidity = 52% Supply voltage = 110Vac Channel number = See test results Frequency MHz Signal Generator input level dBm Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Gain after 10dB input level increase dBm 465.375 MHz -59 38.12 -11.79 85.33 75.59 465.550 MHz -57 38.12 -11.75 83.37 73.51 465.600 MHz -57 38.12 -11.66 83.46 73.65 471.550 MHz -74 38.12 -11.79 100.33 91.03 473.3125 MHz -66 38.12 -10.70 93.42 83.63 Notes: 1. The signal generator input was increased by 10dBs and the level of the output signal remeasured. 2. Antenna Port input split into 2 channelised amplifiers. TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8304-300-N N/A 220 X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2042 119388/080 176 X Spectrum Analyser TRL479 EUT Signal Generator TRL176 Cable & Attenuator RF335 iss02 RU1193/6627 Page 7 of 59 37.37dB AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 26 o C Radio Laboratory Relative humidity = 53% Supply voltage = 110Vac The Intermodulation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was 10 dB above the maximum input of –57dBm.The cable and attenuator loss between the EUT and the spec…
