NEO50-1185900Tunnel radio downlink 900MHz amplifier

Weehawken Tunnel 900MHz Pager System User/Maintenance Handbook Handbook Nō.-Weehawken_900 Issue No:-A Date:-05/08/05 Page:- 1 of 50 Weehawken Tunnel Radio Repeater System User/Maintenance Handbook For G.E Transport Systems AFL Works Order Nō.: Q112727 AFL product part Nō.’s: 50-118501 (2 Ch 900MHz Pager) 80-231302 (800MHz Power Supply) 80-231303 (Alarm System) Weehawken Tunnel 900MHz Pager System User/Maintenance Handbook Handbook Nō.-Weehawken_900 Issue No:-A Date:-05/08/05 Page:- 2 of 50 Table of Contents INTRODUCTION ............................................................................................................................................ 5 Scope................................................................................................................................................................................ 5 Purpose............................................................................................................................................................................ 5 EC DECLARATION OF CONFORMITY.................................................................................................................. 6 Glossary of Terms .......................................................................................................................................................... 7 Key to AFL RF Module Drawing Symbols .................................................................................................................. 8 1. SAFETY CONSIDERATIONS ............................................................................................................ 9 1.1 Earthing of Equipment ..................................................................................................................................... 9 1.2 Electric Shock Hazard ...................................................................................................................................... 9 1.3 RF Radiation Hazard...................................................................................................................................... 10 1.4 Chemical Hazard............................................................................................................................................. 11 1.5 Emergency Contact Numbers ........................................................................................................................ 11 2. OVERVIEW/ SYSTEM DESCRIPTION.......................................................................................... 12 2.1 General System Description ........................................................................................................................... 12 3. WEEHAWKEN RACK DRAWINGS................................................................................................ 13 3.1 Rack 3............................................................................................................................................................... 13 3.1.1 Pager/800MHz Rack System Diagram, Drg. Nō. 80-231483 ....................................................................... 13 3.1.2 Rack 3 Layout and Interconnections Diagram, Drg. Nō. 80-231454 ........................................................... 14 3.1.3 Rack to Rack Interconnections Diagram, Drg. Nō. 80-231455 .................................................................... 15 3.1.4 Power Distribution Sketch ............................................................................................................................ 16 3.2 Weehawken System Frequencies Look-up Table ......................................................................................... 17 4. DOWNLINK PAGING AMPLIFIER................................................................................................ 18 4.1 Two Channel 900MHz Pager Cell Enhancer (50-118501)........................................................................... 18 4.1.1 Two Channel 900MHz Pager Cell Enhancer Description ............................................................................ 18 4.1.2 Two Channel 900MHz Pager Cell Enhancer Technical Specification ......................................................... 18 4.1.3 Two Channel 900MHz Pager System Diagram, Drg. Nō. 50-118581 .......................................................... 19 4.1.4 Two Channel 900MHz Pager Cell Enhancer Outline Drawing.................................................................... 20 4.1.5 Two Channel 900MHz Pager Cell Enhancer Parts List ...............................................................................21 5. POWER SUPPLIES & ALARMS ...................................................................................................... 22 5.1 800MHz Power Supply (80-231302) .............................................................................................................. 22 5.1.1 800MHz Power Supply Description .............................................................................................................. 22 5.1.2 800MHz Power Supply Technical Specification ........................................................................................... 22 5.1.3 800MHz Power Supply System Diagram ...................................................................................................... 22 5.1.4 800MHz Power Supply Outline Drawing, Drg. Nō. 80-231392 ................................................................... 23 5.1.5 800MHz Power Supply Parts List ................................................................................................................. 24 5.2 Alarm/Monitor Shelf (80-231303).................................................................................................................. 25 5.2.1 Alarm/Monitor Shelf Description .................................................................................................................. 25 5.2.2 Alarm/Monito…

Text truncated - open the document above for the full version.

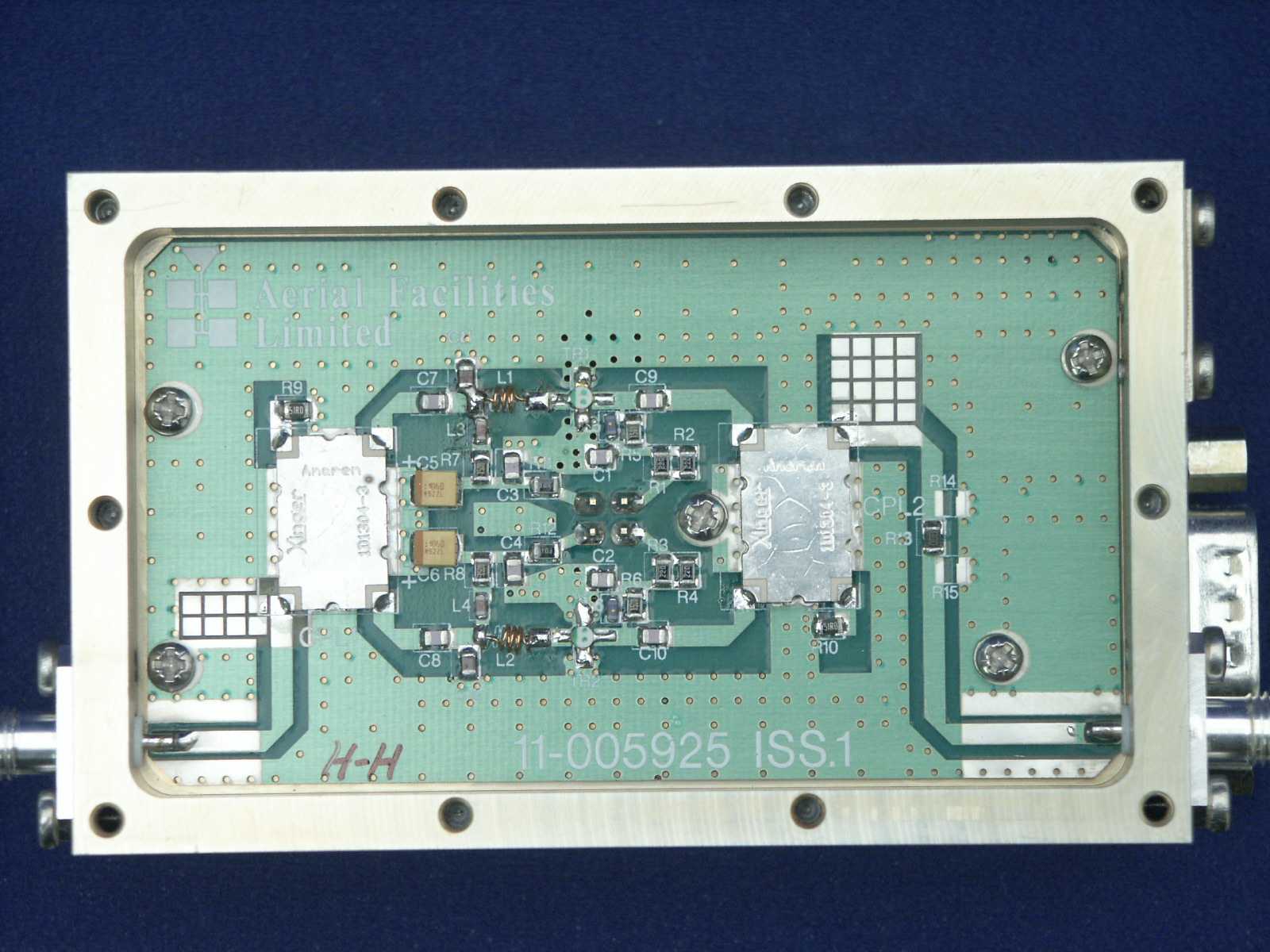

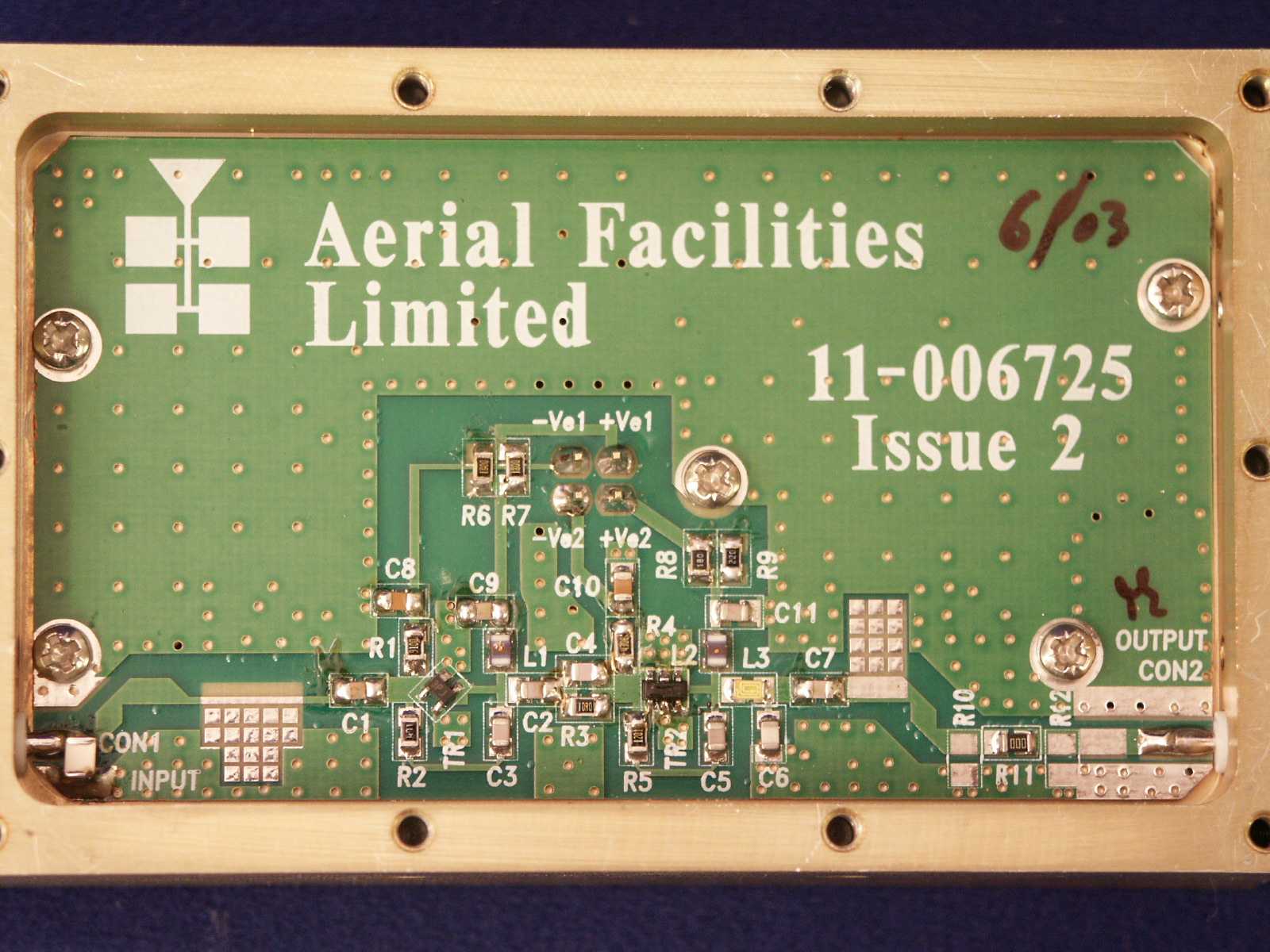

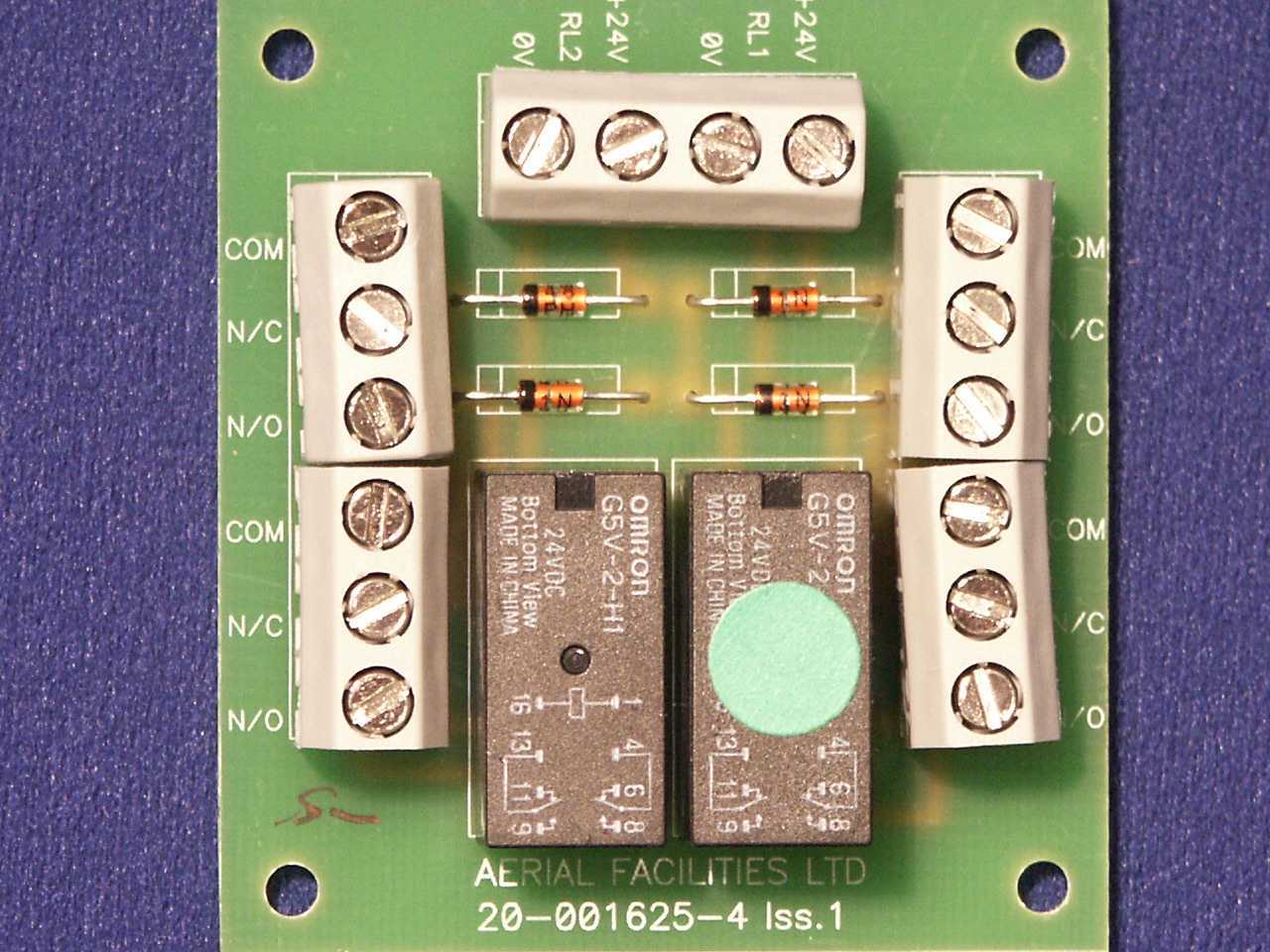

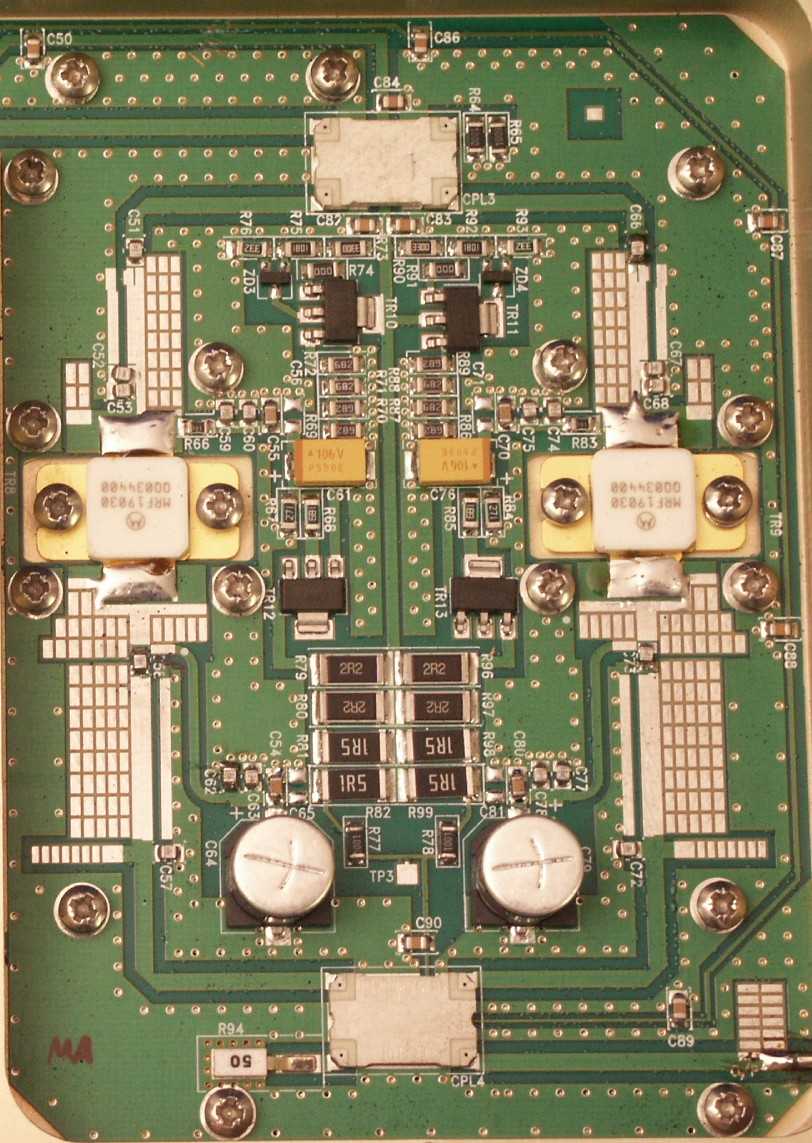

Weehawken Tunnel 900MHz Pager System User/Maintenance Handbook Handbook Nō.-Weehawken_900 Issue No:-A Date:-05/08/05 Page:- 12 of 50 2. OVERVIEW/ SYSTEM DESCRIPTION 2.1 General System Description The Weehawken tunnel radio system is designed to amplify various bands of radio frequencies, in either channelised or band selective modes. All the hardware is built into standard 19” rack mounted cabinets which have an environmental IP rating of 54. There is also a single, free standing wall mounted amplifier which carries the whole signal network to the River Portal area. The system in this document will be described separately, as individual shelves (900MHz Pager) and the various passive combiners, splitters and cross-band coupler shelves will also be described in separate documents. Every active module in the entire system has a dedicated alarm and these are series wired within the shelves to a relay which gives a volt-free output pair for each shelf which is wired to a ‘krone-block’ termination in the rack cabinet. Weehawken Tunnel 900MHz Pager System User/Maintenance Handbook Handbook Nō.-Weehawken_900 Issue No:-A Date:-05/08/05 Page:- 17 of 50 3.2 Weehawken System Frequencies Look-up Table Agency Channel Number Uplink Tx Downlink Rx New Jersey Transit Paging 900 CHN 1 929.5875 New Jersey Transit Paging 900 CHN 2 929.6125 Weehawken Tunnel 900MHz Pager System User/Maintenance Handbook Handbook Nō.-Weehawken_900 Issue No:-A Date:-05/08/05 Page:- 18 of 50 4. DOWNLINK PAGING AMPLIFIER 4.1 Two Channel 900MHz Pager Cell Enhancer (50-118501) 4.1.1 Two Channel 900MHz Pager Cell Enhancer Description The pager cell enhancer provides two channels (downlink only) in the 900MHz band for the NJ Transit system. These two frequencies are relayed to all the sites (leaky feeders) in the system. All amplifiers have built-in alarms which are configured as a summary, volt-free relay contact pair terminating at pins 1 & 2 on the ‘D’ type alarm connector. 4.1.2 Two Channel 900MHz Pager Cell Enhancer Technical Specification PARAMETER SPECIFICATION 929.5875MHz (Downlink) Frequencies: 929.6125MHz (Downlink) Gain: >90dB Gain Adjustment: 0 - 30dB (in 2dB steps) Shelf size: 4U Uplink Power: >1.0Watts Maximum uplink output: +30.8dBm Downlink Power: >5.0Watts Maximum downlink output power: +37.5dBm Uplink +44dBm IP3: Downlink +50dBm Downlink Ch. module AGC level: -17dBm Uplink Ch. module AGC level: -8dBm Noise Figure: <6dB (at maximum gain) AGC: Fitted in channel modules VSWR: better than 1.5:1 RF Connectors: N type, female operational: -10°C to +55°C Temperature range: storage: -40°C to +70°C Case: Alocrom 1200 Heatsinks: Matt black Handles: Silver anodised alloy Finish: Fascia: Painted to RAL 7035 1 Downlink amplifiers 2 Uplink amplifiers Alarms Fitted: (volt-free contacts/TTL) 3 Each channel module Weehawken Tunnel 900MHz Pager System User/Maintenance Handbook Handbook Nō.-Weehawken_900 Issue No:-A Date:-05/08/05 Page:- 22 of 50 5. POWER SUPPLIES & ALARMS 5.1 800MHz Power Supply (80-231302) 5.1.1 800MHz Power Supply Description The power supply for the 800MHz cell enhancer uses 15V PSU modules ‘turned down’ to 12V (all the amplifiers in the 800MHz CE use 12V DC supply). It is a standard power supply shelf using two PSU modules with their outputs combined through power diodes and terminating in six, dedicated 12V outputs. Failure of either PSU module will trigger a non- latching summary alarm, (short-term mains failures will allow the system to return to a ‘non- alarmed’ state). The alarm interface is on the alarm ‘D’ connector pins 1 & 2. 5.1.2 800MHz Power Supply Technical Specification PARAMETER SPECIFICATION Input: 110V AC @50/60Hz (single port) Outputs: 6 x 12V DC @ 20A each Front panel indicators: (x 2) Green LED for ‘PSU1/PSU2 ON’’ Fuses 1 x 20A each outlet socket DC Socket XLR operational: -10°C to +55°C Temperature range storage: -40ºC to +70ºC Alarmed devices: Either PSU failure Alarm interface (volt-free contacts): ‘D’ type alarm connector, pins 1 & 2 MTBF: >50,000 hours Earthing: M8 stud 5.1.3 800MHz Power Supply System Diagram The system diagram is not available at the time of writing this document. Weehawken Tunnel 900MHz Pager System User/Maintenance Handbook Handbook Nō.-Weehawken_900 Issue No:-A Date:-05/08/05 Page:- 25 of 50 5.2 Alarm/Monitor Shelf (80-231303) 5.2.1 Alarm/Monitor Shelf Description The alarm shelf acts as an alarm concentrator for all the alarms in the system. Firstly, within each shelf containing active components, the individually alarmed modules are ‘summed’ and presented to that shelves’ 9-way alarm connector as a volt-free relay contact pair. These alarm contact pairs are wired to the krone block in the lower rack space and from there the pairs are presented to the alarm shelf. At the alarm shelf the pairs are summed together to form an overall system alarm. In this way a system alarm may be broken down to scrutinise the shelf alarm and ultimately to the individual modules’ alarms. This shelf has its own dedicated mains-driven power 12V DC supply. As all the alarms in the system are ‘held closed loops’, should any power supply fail, the main system alarm will be triggered. 5.2.2 Alarm/Monitor Shelf Technical Specification PARAMETER SPECIFICATION Operating voltage: 12V (floating earth) Alarm output relay contacts: Max. switch current: 1.0Amp Max. switch volts: 120Vdc/60VA Max. switch power: 24W/60VA Min. switch load: 10.0μA/10.0mV Relay isolation: 1.5kV Mechanical life: >2x10 7 operations Relay approval: BT type 56 Connector details: 25 Way ‘D’ Connector operational: :-10°C to +55°C Temperature range storage: :-40°C to +70°C Weehawken Tunnel 900MHz Pager System User/Maintenance Handbook Handbook Nō.-Weehawken_900 Issue No:-A Date:-05/08/05 Page:- 27 of 50 6. SUB-UNIT MODULES Note that the sub unit modules are tabled in part number order – the modules pertinent to any particular shelf will be found in the parts list under the heading of that shelf. 6.1 Bandpass Filter (02-004502) 6…

Text truncated - open the document above for the full version.

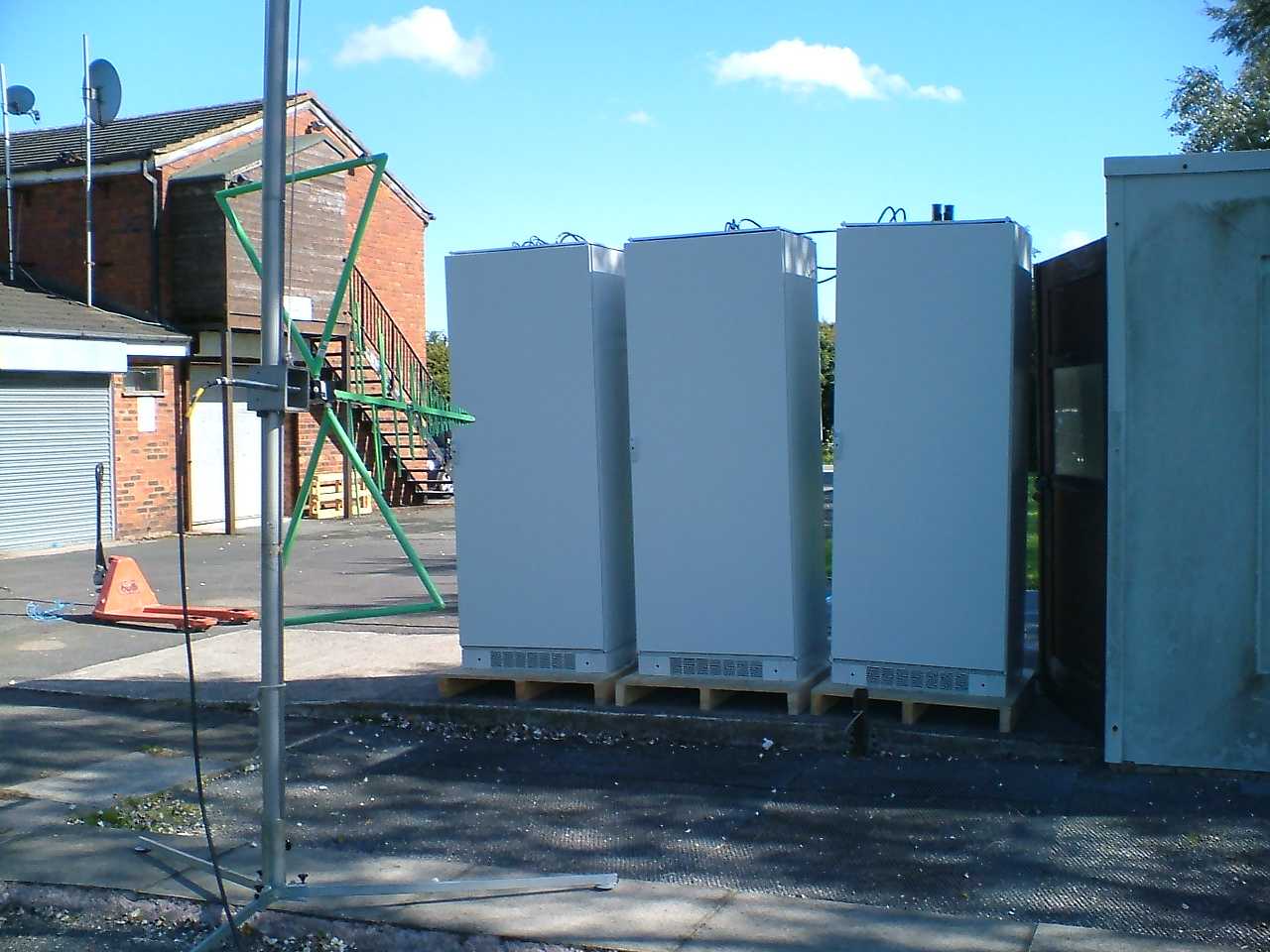

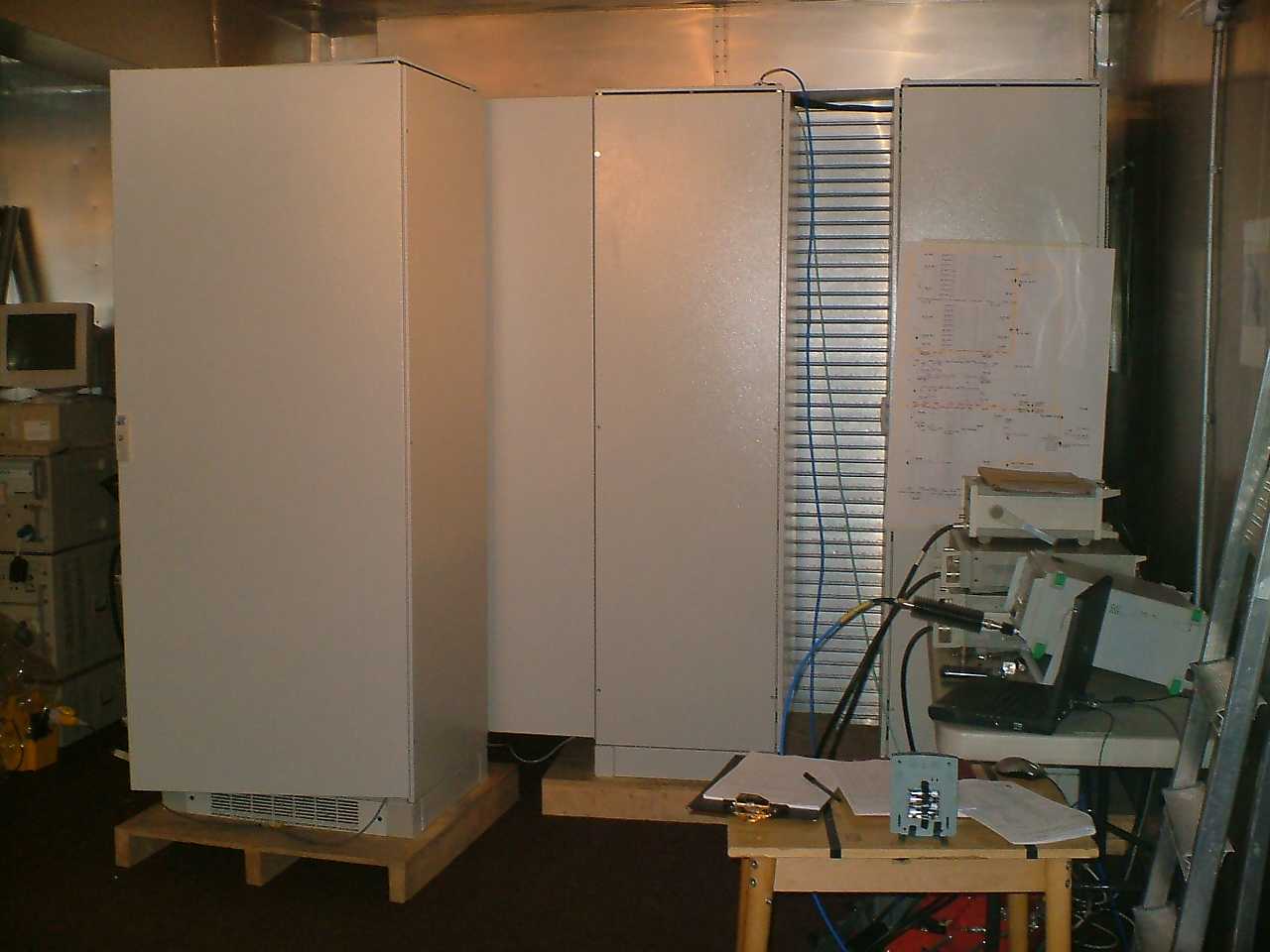

TRL C OMPLIANCE L TD EMC D IVISION L ONG G REEN F ORTHAMPTON G LOUCESTER GL19 4QH U NITED K INGDOM T ELEPHONE +44 (0)1684 833818 F AX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1193/6631 COPY NO: 1 ISSUE NO: 1 FCC ID: NEO50-1185900 REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED OFF AIR AMPLIFIER SYSTEM (900MHz) DOWNLINK ONLY WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart P PRIVATE LAND MOBILE REPEATER. TEST DATE: 17 th August 2005 – 25 th August 2005 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 11 th November 2005 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02 RU1193/6631 Page 2 of 70 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-22 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RF335 iss02 RU1193/6631 Page 3 of 70 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO50-1185900 PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: OFF AIR AMPLIFIER SYSTEM (900MHz) EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMUM GAIN +95.75 dB MAXIMUM INPUT -65dBm MAXIMUM OUTPUT +30.75 dBm ANTENNA TYPE: Not applicable CHANNEL SPACING: 15 kHz NUMBER OF CHANNELS: Downlink 2 FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110 Vac TEST DATE(s): 17 th August 2005 – 25 th August 2005 ORDER No(s): 32001 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RF335 iss02 RU1193/6631 Page 4 of 70 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): OFF AIR AMPLIFIER SYSTEM (900MHz) EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 32001 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 17 th August 2005 – 25 th August 2005 TEST REPORT No: RU1193/6631 RF335 iss02 RU1193/6631 Page 5 of 70 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2. Product Use: Private Land Mobile Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 21 o C 5. Supply Voltages: Vnom +110 Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [X] 15kHz Wideband [ ] 8. Test Location TRL Compliance Limited Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RF335 iss02 RU1193/6631 Page 6 of 70 AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – DOWNLINK Ambient temperature = 25 o C Radio Laboratory Relative humidity = 54% Supply voltage = +110 Vac Channel number = See test results Frequency MHz Signal Generator input level dBm Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Gain after 10dB input level increase dBm 929.5875 MHz -64 28.12 2.31 94.43 84.78 929.6125 MHz -65 28.12 2.63 95.75 85.96 Notes: 1. The signal generator input was increased by 10dBs and the level of the output signal remeasured. 2. Downlink consists of 2 channels only TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8304-200 N/A 103 X ATTENUATOR BIRD 8304-300-N N/A 220 X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2042 119388/080 176 X Spectrum Analyser TRL479 EUT Signal Generator TRL176 Cable & Attenuator RF335 iss02 RU1193/6631 Page 7 of 70 27.64dB AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– DOWNLINK Ambient temperature = 26 o C Radio Laboratory Relative humidity = 52% Supply voltage = +110 Vac The Intermodulation and spurious products were measured with the amplifier operating at maximum gain. A two tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was 10dB above the maximum input of -64dBm.The cable and attenuators loss between the EUT and the spectrum analyser was 27.64 dB. This test was performed on the frequencies listed in the table below. Sweep data is shown on the next page for scan with the highest intermodulation product: RF Input Frequency (MHz) Highest Intermodulation Product Level (dBm) Limit (dBm) 929.5875 959.61…

Text truncated - open the document above for the full version.
