12 Channel Channelised Cell Enhancer User Handbook Handbook Nō.-50-122501HBK Issue No:-A Date:-16/03/05 Page:- 1 of 40 12 Channel VHF Repeater User Handbook For W.O.W AFL Works Order Nō.:Q112547 AFL product part Nō.:50-122501 12 Channel Channelised Cell Enhancer User Handbook Handbook Nō.-50-122501HBK Issue No:-A Date:-16/03/05 Page:- 2 of 40 Table of Contents AMENDMENT LIST RECORD SHEET ...................................................................................................4 INTRODUCTION.........................................................................................................................................5 Scope ........................................................................................................................................................................... 5 Purpose ....................................................................................................................................................................... 5 Glossary of Terms...................................................................................................................................................... 6 Key to AFL RF Module Drawing Symbols ............................................................................................................. 7 1. SAFETY CONSIDERATIONS .........................................................................................................8 1.1 Earthing of Equipment ................................................................................................................................ 8 1.2 Electric Shock Hazard.................................................................................................................................. 8 1.3 RF Radiation Hazard ................................................................................................................................... 9 1.4 Chemical Hazard ........................................................................................................................................ 10 1.5 Emergency Contact Numbers.................................................................................................................... 10 2. OVERVIEW/SYSTEM DESCRIPTION .......................................................................................11 3. SPECIFICATION ............................................................................................................................12 3.P Cell Enhancer Case Internal Photograph ................................................................................................ 12 3.1 Description .................................................................................................................................................. 13 3.2 Electrical Specification ............................................................................................................................... 13 3.3 Mechanical Specification............................................................................................................................ 14 3.4 System Diagram, Drg. Nō. 50-122580 ....................................................................................................... 15 3.5 Generic System Case Outline Drawing..................................................................................................... 16 3.5 Parts List ..................................................................................................................................................... 17 4. SUB-UNIT MODULES....................................................................................................................18 4.1 3 Port Tx Hybrid Couplers (05-000103 & 05-000104) ............................................................................ 18 4.1.1 Description ............................................................................................................................................... 18 4.1.2 Technical Specification............................................................................................................................. 18 4.2 ¼Watt 0- -30dB Switched Attenuator (10-000703)..................................................................................19 4.2.1 General Application ................................................................................................................................. 19 4.2.2 Switched Attenuators ................................................................................................................................ 19 4.3 VHF/UHF Low Noise Amplifier (11-006002) ........................................................................................... 20 4.3.1 Description ............................................................................................................................................... 20 4.3.2 Technical Specification............................................................................................................................. 20 4.3.3 LNA ‘D’ Connector Pin-out details .......................................................................................................... 20 4.4 10Watt Power Amplifier (12-002001) ....................................................................................................... 21 4.4.1 Description ............................................................................................................................................... 21 4.4.2 Technical Specification............................................................................................................................. 21 4.5 20Watt Power Amplifier (12-003601) ....................................................................................................... 22 4.5.1 Description .............................................................................................................................…

Text truncated - open the document above for the full version.

voltage Hig h DANGER He a v y CAUT ION CE- / - N Pro d u c t re f : BPA 800MHz Aerial FacilitiesLim ited En g la n d BY DAT E DESCRIPT ION No ISSUE 1 2 34 5678 9 A BCDE F 1 234 5678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCTION OR USE OF THIS DESIGN BY OTHERS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E TOLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCT ION ISSUE 30/ 9/ 03 DBS PSU ALARM FCC IDENT . LABEL DS PB

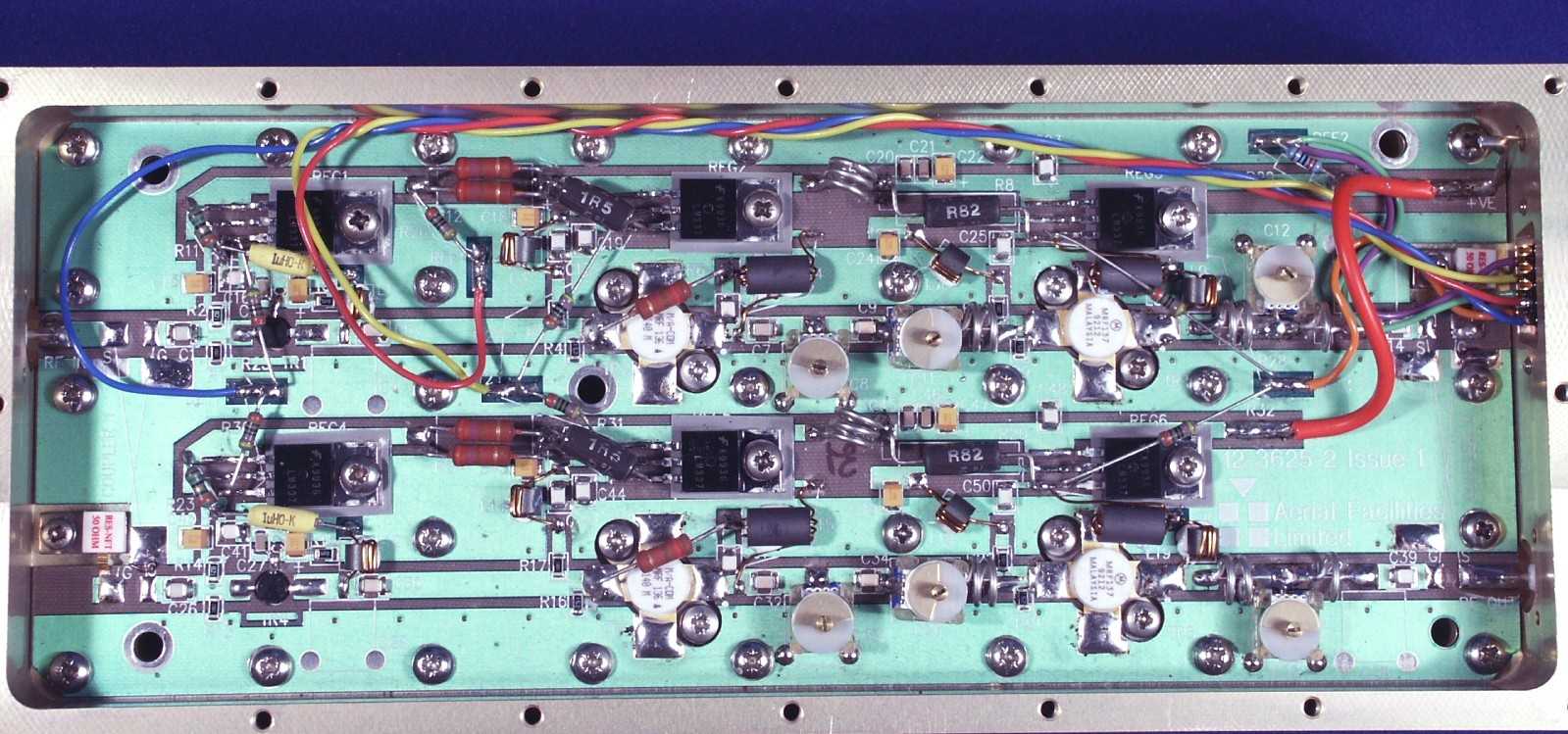

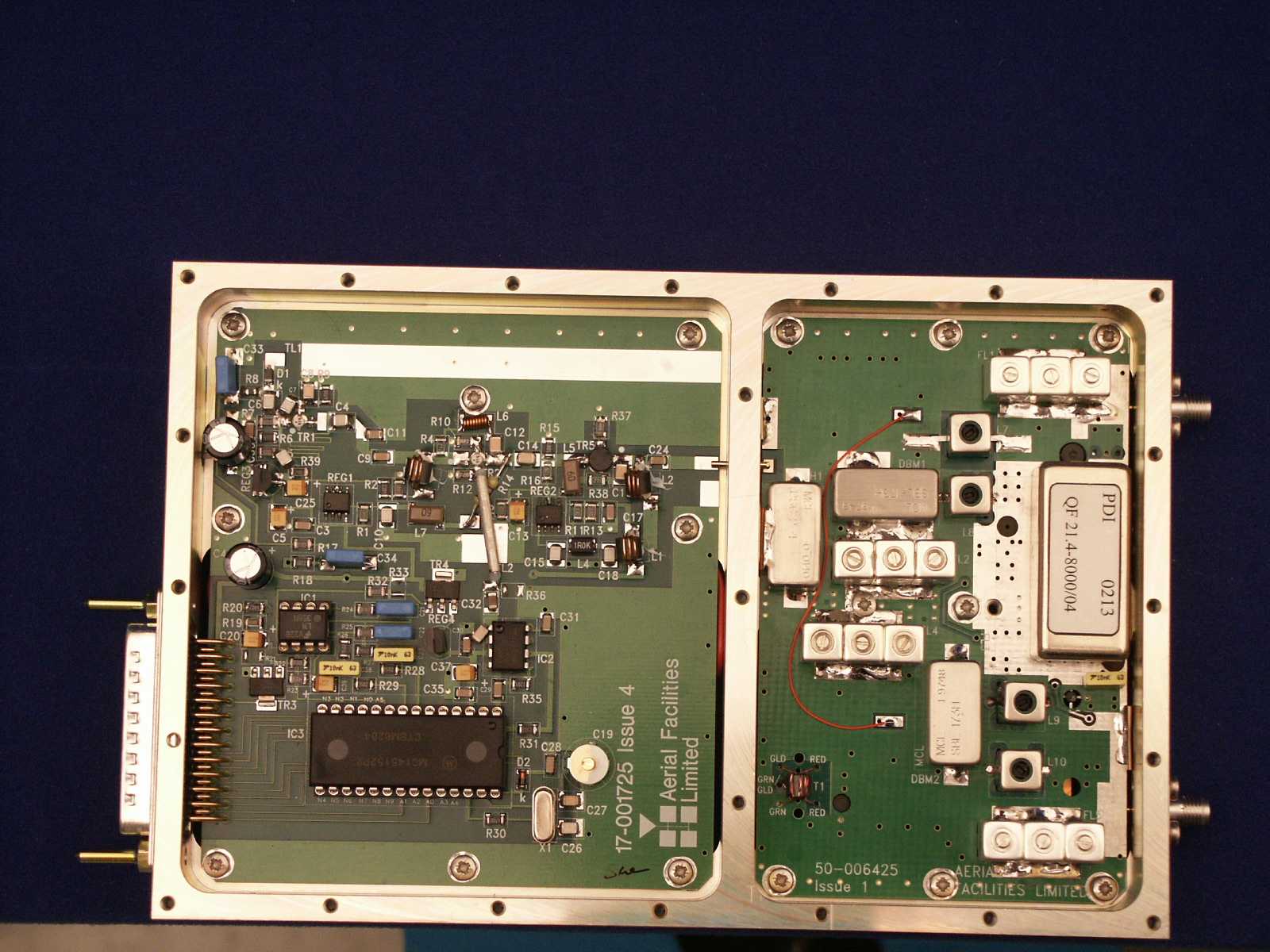

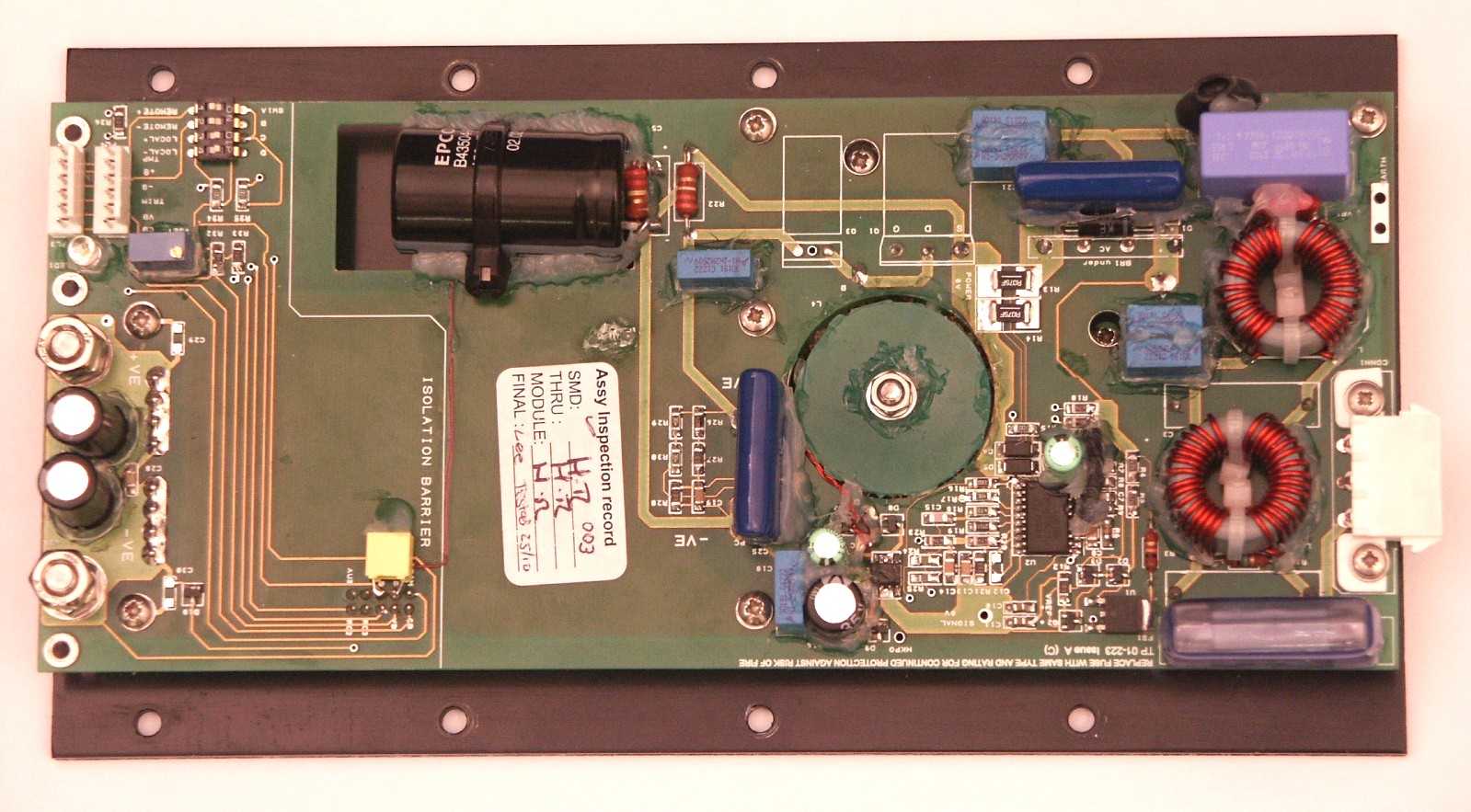

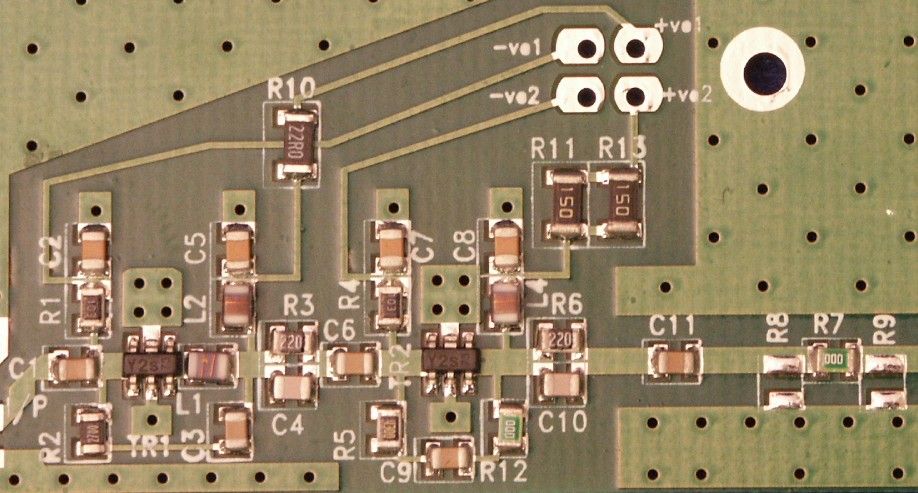

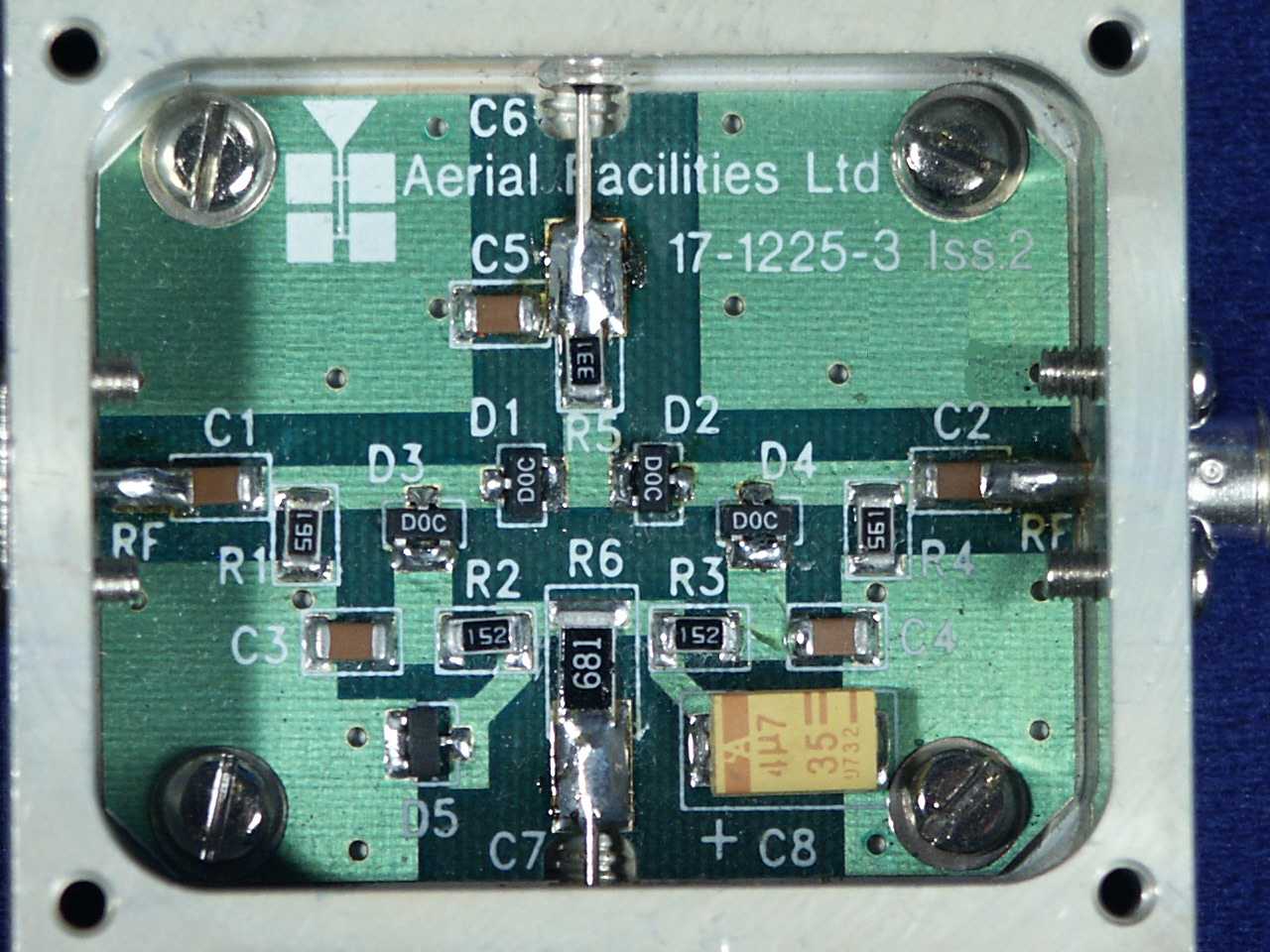

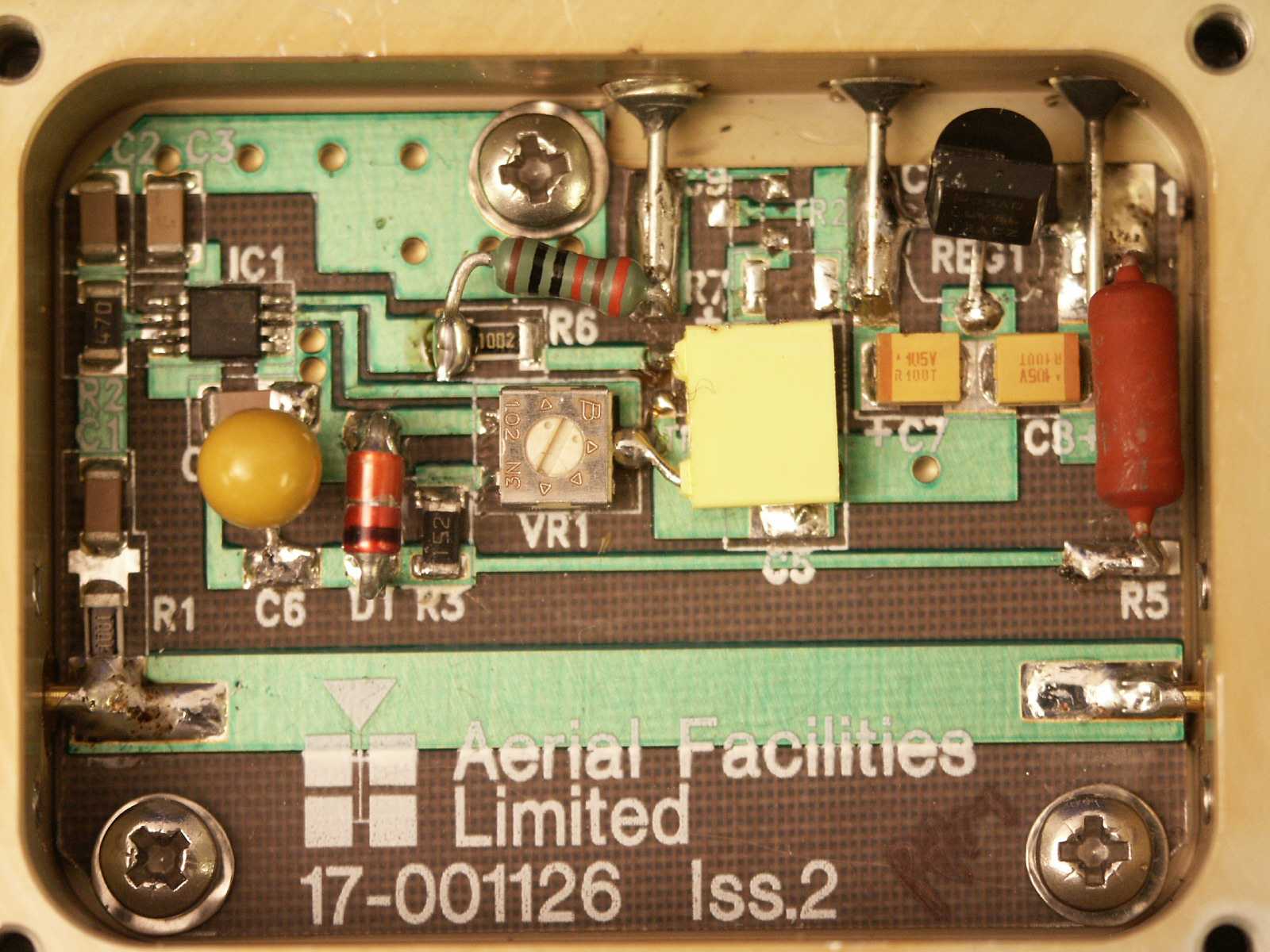

12 Channel Channelised Cell Enhancer User Handbook Handbook Nō.-50-122501HBK Issue No:-A Date:-16/03/05 Page:- 12 of 40 3. SPECIFICATION 3.P Cell Enhancer Case Internal Photograph

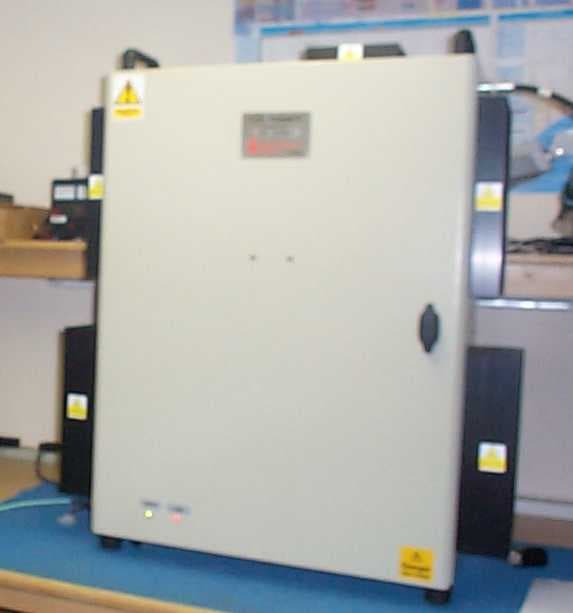

12 Channel Channelised Cell Enhancer User Handbook Handbook Nō.-50-122501HBK Issue No:-A Date:-16/03/05 Page:- 11 of 40 2. OVERVIEW/SYSTEM DESCRIPTION The AFL Channel Selective Cell Enhancer is a 2-way on-band repeater. Various models are available to cover frequency bands from 50MHz to 3000MHz. Its main sphere of applications is in urban areas where the topology is such that shadows occur in the propagation pattern (for example within large buildings, conference centres and tunnels, etc.,) The Channel Selective Cell Enhancer is a 2-port device for direct connection to two antennas, usually a highly directional Yagi or similar aligned towards the base (donor) site and an omni-directional antenna to cover the mobiles. The frequency bands that are passed by the Cell Enhancer are set as per the specific customer requirements. AFL manufacture a wide range of Cell Enhancers, configured for each customer's specific requirements. Two basic physical variants are available, a rack mounted version to fit in a standard 19" rack and an environmentally sealed wall mounted version which requires no further enclosure. The rack-mounted version is usually supplied in 3 units, a power supply unit and 2 RF units (one containing each path). Each shelf/tray unit containing active modules has a ‘D.C. on’ indicator on the front panel and the PSU also has an ‘A.C. on’ indicator. The wall-mounted version is supplied in a single environmentally-protected case. Handles are provided for carrying the unit and the door is fitted with locks. A supply isolator switch is fitted inside the unit and there are ‘.DC. on’ and ‘Alarm on’ indicators on the outside of the door. 12 Channel Channelised Cell Enhancer User Handbook Handbook Nō.-50-122501HBK Issue No:-A Date:-16/03/05 Page:- 13 of 40 3.1 Description The system consists of separate modules mounted within a lockable, environmentally protected enclosure. It is designed to amplify twelve bi-directional channels (six uplink, six downlink) of mobile signals operating in the VHF waveband. All twelve channel selective modules are configurable for any frequency (within the channel modules’ designed range) set by the DIP switches on the channel control modules – see section 4.8 for channel frequency calculation examples. Alarms are provided for each amplifier and channel selective module which are wired as a volt-free, relay isolated summary loop, terminating at pins 1 & 2 in the external connector. The ‘normal’ condition is that each active device ‘holds’ a local relay closed, (so if power fails, the alarms become active) making a fail-safe system. 3.2 Electrical Specification PARAMETER SPECIFICATION Frequency range: 167.0-172MHz (Downlink) 162.0-165MHz (Uplink) Channel module frequencies: Unspecified Bandwidth: 3MHz uplink 5MHz downlink Channel ripple: <±1.5dB Gain: >95dB Gain Adjustment: 0 - 30dB (in 2dB steps) Spurious noise (in-band 30kHz): <-13dBm (U/L & D/L) Uplink Power: >10.0Watts Downlink Power: >40.0Watts DownlinkO/P power/channel: +24dBm UplinkO/P power/channel: +18dBm Channel module gain: 30dB -15.5dBm (downlink) Channel module ALC: -14dBm (uplink) +44dBm (downlink) PA 1 dB compression point: +38dBm (uplink) +56dBm (downlink) PA IP3: +50dBm (uplink) Noise Figure: <6dB VSWR: better than 1.5:1 RF Connectors: N type, female Input supply power: 110 or 230V ac operational: -10°C to +60°C Temperature range: storage: -40°C to +70°C 1 Amplifiers Alarms Fitted: (volt-free contacts/TTL) 2 Channel modules 12 Channel Channelised Cell Enhancer User Handbook Handbook Nō.-50-122501HBK Issue No:-A Date:-16/03/05 Page:- 14 of 40 3.3 Mechanical Specification Height: 800mm Width: 600mm Case Size: Depth: 250mm (excluding heatsinks, connectors, handles and feet) Fixings: 4 holes on 630(w) x 640(h)mm Weight: 80kg (approximately) RF Connectors: N type female Environmental Protection: IP65 with door closed and ports terminated Case: To RAL 7035 Heatsinks: Matt black Finish: Handles: Black technopolymer operational: -20°C to +60°C Temperature Range: storage: -40°C to +70°C Supply cord: Unit supplied with 3-pin IP68 connector for customer interface with AC input. 12 Channel Channelised Cell Enhancer User Handbook Handbook Nō.-50-122501HBK Issue No:-A Date:-16/03/05 Page:- 18 of 40 4. SUB-UNIT MODULES 4.1 3 Port Tx Hybrid Couplers (05-000103 & 05-000104) 4.1.1 Description The transmitter hybrid couplers provide isolation from unwanted reflected frequencies to/from the leaky feeder antennas. They are 4 port devices with the one unused port terminated internally with a 50 Ω dummy load. The ‘104’ version has higher power capability due to an attached heatsink. Being passive devices, the hybrid couplers should be maintenance free over their entire lifetime and have an extremely high MTBF figure. It is not recommended that the top cover be removed or any of the internal components needlessly touched, since the original factory alignment/tuning would be extremely hard to reproduce in a ‘field’ environment. 4.1.2 Technical Specification PARAMETER SPECIFICATION Frequency Range: 140-170 MHz Bandwidth: ±10% of f o Insertion Loss: 3.2dB Impedance: 50Ω V.S.W.R: 1.2:1 Input to input isolation: >20dB Connectors: Type N Standard Dimensions: 140 x 120 x 35mm 25Watts (05-000103) Power rating: 100W (05-000104) Weight: 0.5kg 12 Channel Channelised Cell Enhancer User Handbook Handbook Nō.-50-122501HBK Issue No:-A Date:-16/03/05 Page:- 19 of 40 4.2 ¼Watt 0- -30dB Switched Attenuator (10-000703) 4.2.1 General Application In many practical applications for Cell Enhancers etc., the gain in each path is found to be excessive. Therefore, provision is made within the unit for the setting of attenuation in each path, to reduce the gain. 4.2.2 Switched Attenuators The AFL switched attenuators are available in two different types; 0 – 30dB in 2 dB steps (as in this case), or 0 – 15dB in 1 dB steps. The attenuation is simply set using the four miniature toggle switches on the top of each unit. Each switch is clearly mar…

Text truncated - open the document above for the full version.

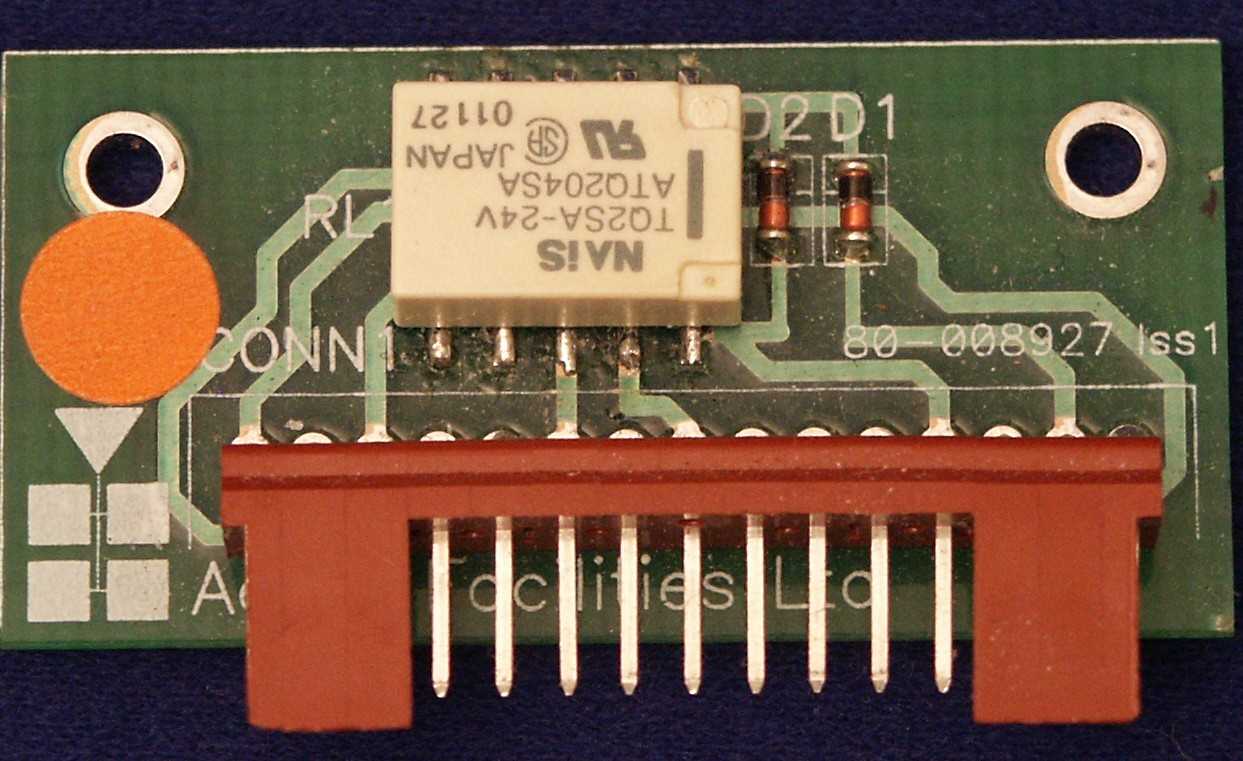

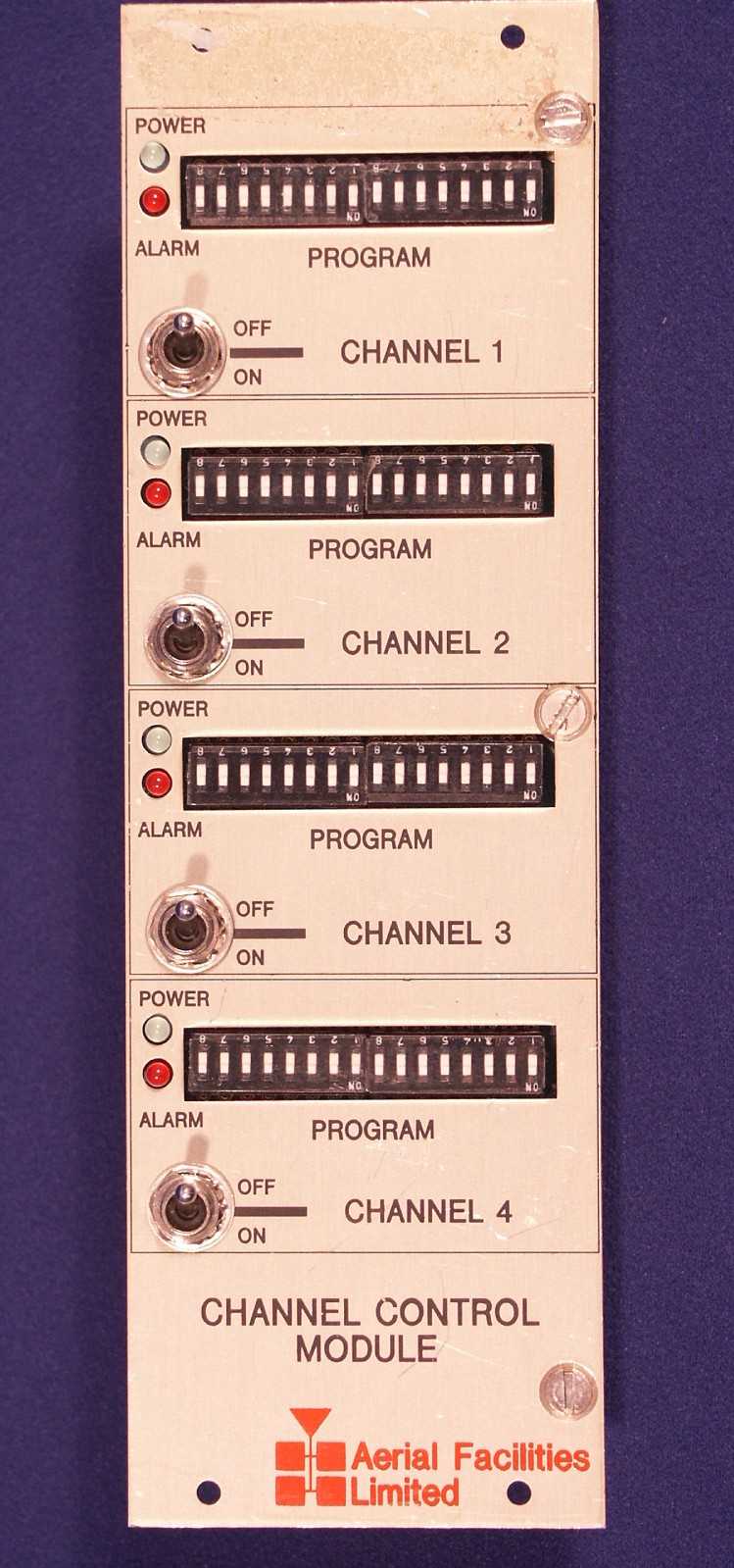

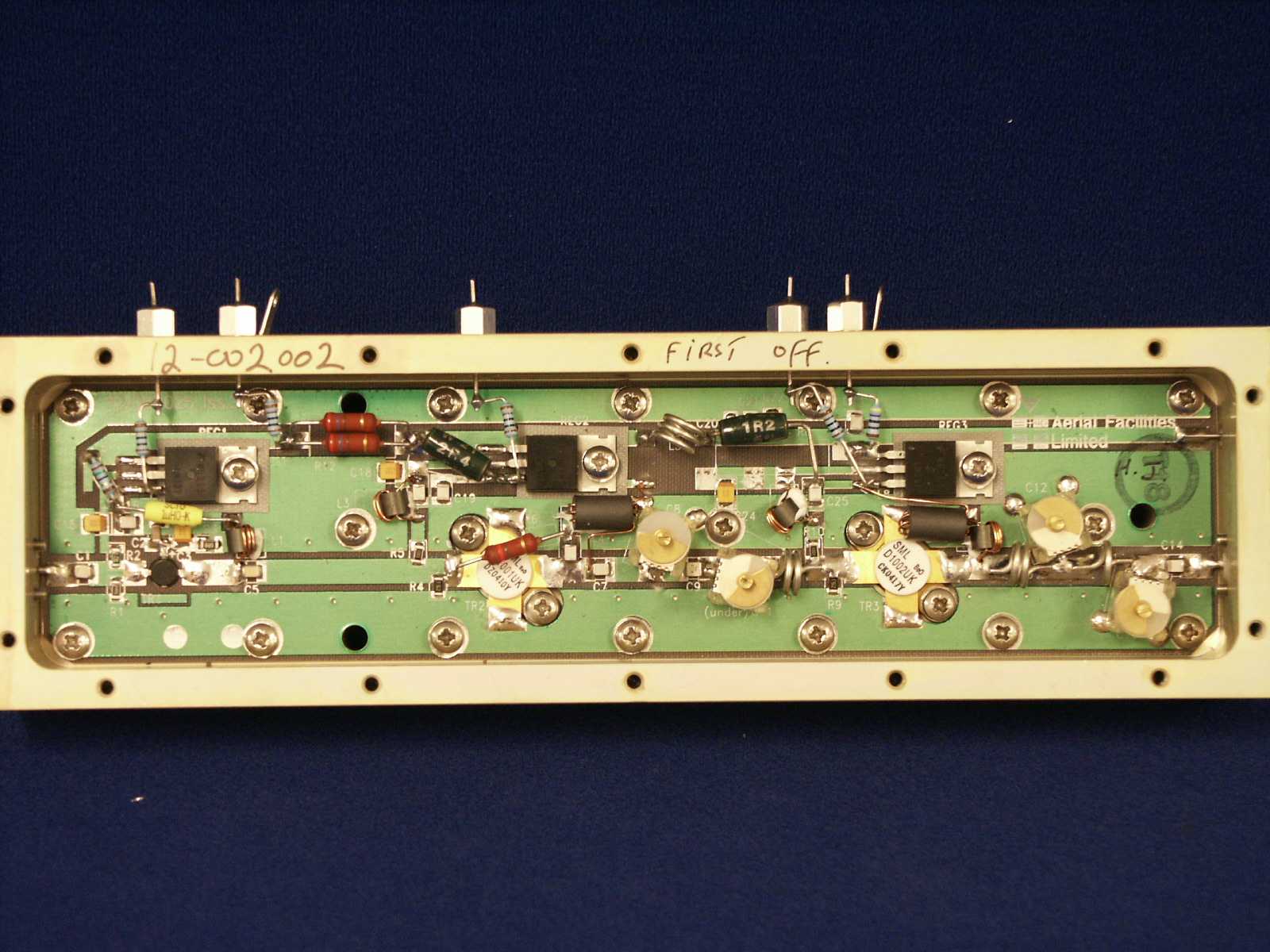

12 Channel Channelised Cell Enhancer User Handbook Handbook Nō.-50-122501HBK Issue No:-A Date:-16/03/05 Page:- 17 of 40 3.5 Parts List AFL Part Nō. Part Description Qty. 05-000103 TX HYBRID COUPLER 3 PORT NO HTSINK 1 05-000104 TX HYBRID COUPLER 3 PORT W/HEATSINK 1 10-000703 1/4W0-30dB SWITCHED ATTENUATOR 2 11-006002K LNA VHF 70-500MHz KIT 4 12-002001K PWR AMP 10W 100-250MHz SMA KIT 1 12-003601K POWER AMP.150MHz 20W KIT 2 13-003011 DC/DC CONVERTER.18-36in 12v out 8.3A 1 13-003020 DC/DC CONVERTER 24-12V HEATSINK 1 17-000526 CE 10/20W HEATSINK THERMAL GASKET 4 17-002101 CHANNEL CONTROL MODULE 4 17-002103 26WAY RIBBON CABLE LEAD 12 17-003022 MODULE PATTERNED LEAVE 12 17-003023 SUBRACK SIDE PANEL 4 17-003024 SUBRACK REAR BRACKET 12 17-003025 BOTTOM MODULE GUIDE 12 17-003028 MODULE SQUARE LEAVE 12 17-003029 TOP MODULE GUIDE 12 17-009106 160MHz VHF CHAN MOD, 30kHz (8p) 12 20-001602 24V RELAY BOARD 1 80-031820 20W PA HEATSINK 2 80-310420 BCC 400W POWER SUPPLY HEATSINK 2 91-030002 N ADAPTOR PANEL FEMALE:FEMALE 2 91-130001 SMA ADAPT 'T' ALL FEMALE 3 GHz 2 91-800027 DIN RAIL NON-FUSED TERMINAL BLOCK 9 91-800028 DIN RAIL END-STOP 4 91-800029 DIN RAIL TERMINAL BLOCK PARTITION 3 92-120009 M20 IP68 CABLE GLAND 3 93-970016 6 WAY SPLITTER 1-500MHz SMA 4 94-100004 STPS12045TV 60A DUAL DIODE 2 96-100006 FUSE HOLDER ATO IN-LINE 1 96-110057 25A ATO FUSE 1 96-300051 JWS100-12/A PSU 1 96-300054 24V 17A PSU 400W (XP BCC) 1 96-700034 LED RED 5mm IP67 1 96-700035 LED GREEN 5mm IP67 1 96-900018 AC TRIP SWITCH (5 AMP M.C.B.) 1 97-100109 CASE 800 x 600 x 250 SAREL(FEC 650-754) 1 97-400010 BLACK PLASTIC HANDLE 50mm HIGH 2 97-600001 SUBRACK FRONT HORIZ 4 97-600002 SUBRACK M2.5 STD TAP 24 97-900004 RUBBER FOOT FOR CELL ENHANCERS 4 99-200017 CAUTION HEAVY LABEL 75 x 55mm 1

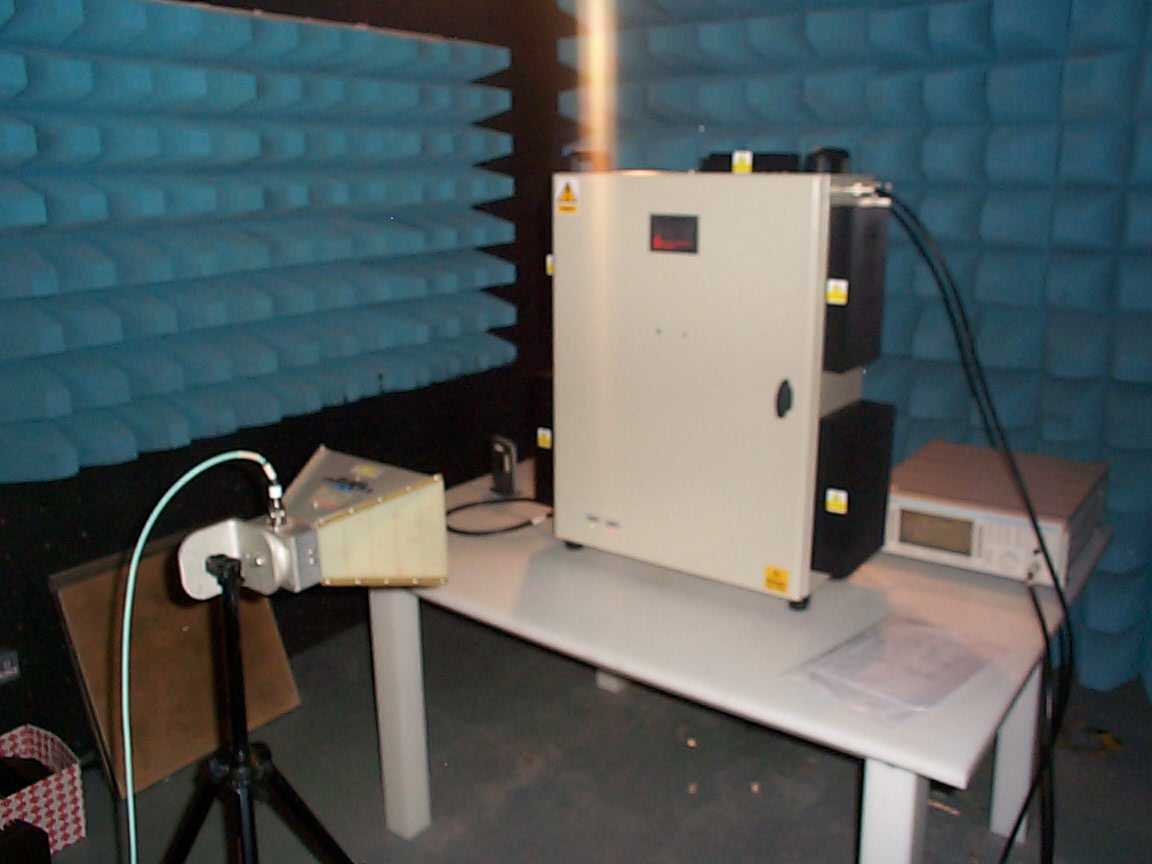

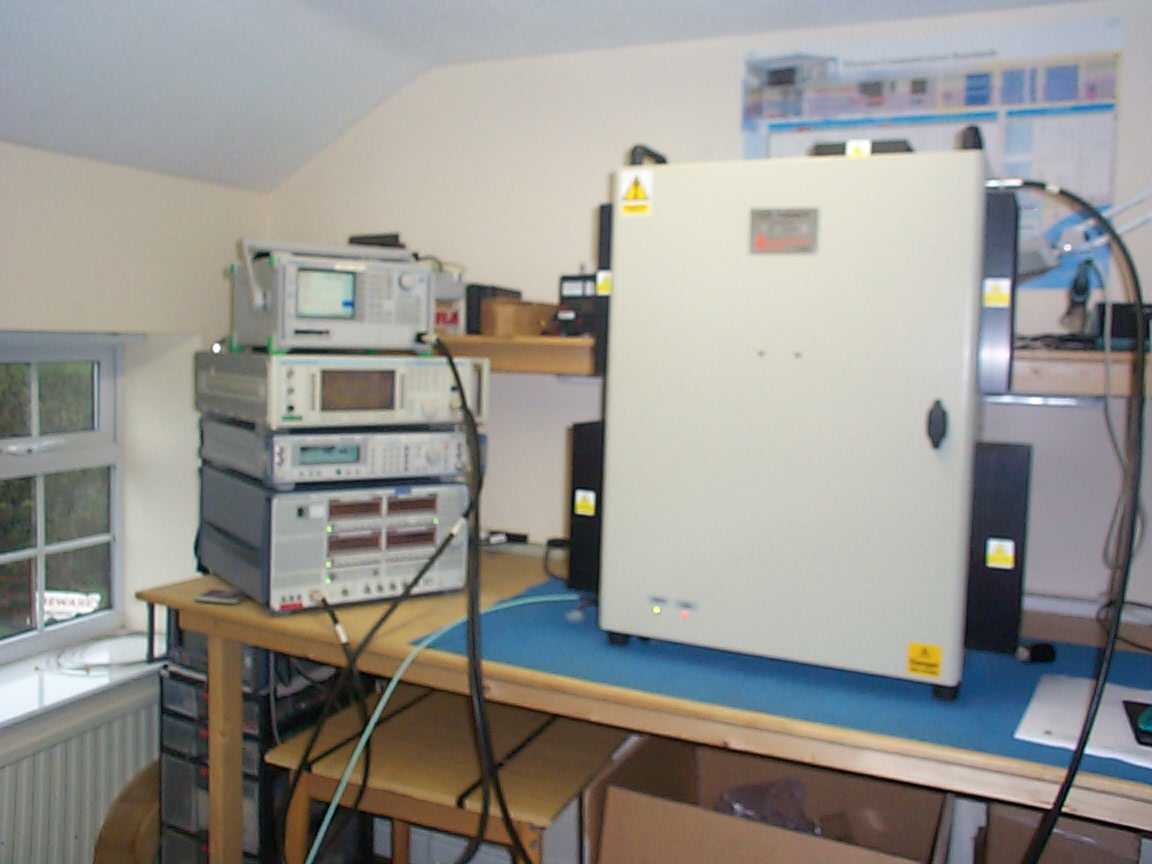

TRL COMPLIANCE SERVICES LTD EMC DIVISION L ONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM T ELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1181/6240 COPY NO: 2 ISSUE NO: 1 FCC ID: NEO50-1225Series REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED 55-122501 CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 12 th April 2005 – 14 th April 2005 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 5 th January 2006 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Services Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1181/6240 Page 2 of 44 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-39 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C MEASUREMENT UNCERTAINTY D Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RU1181/6240 Page 3 of 44 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO50-1225Series PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 55-122501 Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMIUM GAIN Uplink = 98.35 dB Downlink = 98.90 dB MAXIMUM INPUT Uplink = -78.5 dBm Downlink = -73.0 dBm MAXIMUM OUTPUT Uplink = 19.85 dBm Downlink = 25.90 dBm (radiating cable system) ANTENNA TYPE: Not applicable CHANNEL SPACING: Uplink 12.5 kHz Downlink 12.5 kHz NUMBER OF CHANNELS: Uplink = 6 Downlink = 6 FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110Vac TEST DATE(s): 12 th April 2005 – 14 th April 2005 ORDER No(s): 30090 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RU1181/6240 Page 4 of 44 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 55-122501 Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 30090 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 12 th April 2005 – 14 th April 2005 TEST REPORT No: RU1181/6240 RU1181/6240 Page 5 of 44 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry; therefore the test was not performed. 2 The EUT is not a keyed carrier system; therefore the test was not performed. Uplink Class A [X] Class B [ ] 2. Product class: Downlink Class A [X] Class B [ ] 3. Product Use: Private Land Mobile Repeater 4. Emission Designator: F3E 5. Temperatures: Ambient (Tnom) 25 o C 6. Supply Voltages: Vnom +110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] 8. Channel spacing: Narrowband [X] 12.5 kHz Wideband [ ] 9. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 11. Modifications made during test program No modifications were performed. System description: The 55-122501 cell enhancer is a Bi-directional amplifier, consisting of an uplink and a downlink. The uplink operates in the frequency band 162 – 165.25 MHz, the uplink is narrowband and is capable of supporting 6 channels with a channel spacing of 12.5 kHz. The downlink operates in the frequency band 167 – 175.2 MHz, the downlink is narrowband and is capable of supporting 6 channels with a channel spacing of 12.5 kHz. RU1181/6240 Page 6 of 44 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 25 o C Radio Laboratory Relative humidity = 37% Supply voltage = +110Vac Channel number = See test results Frequency MHz Signal Generator input level dBm Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Gain after 10dB input level increase dBm 162.0 MHz -75.0 26.6 -6.25 95.35 85.56 163.5 MHz -78.5 26.6 -6.75 98.35 89.81 165.0 MHz -75.0 26.6 -6.39 95.21 85.57 Notes: 1. The level of the signal generator takes into consideration the loss from the cable. 2. The signal generator input was increased by 20dBs and the level of the output signal remeasured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8304-300-N N/A 220 X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2042 119388/080 176 X Spectrum Analyser TRL479 EUT Signal Generator TRL176 Cable & Attenuator RU1181/6240 Page 7 of 44 26.1dB AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperat…
