NEO50-1285SERIESUHF Channelised Repeater type 50-128501

Two Channel 400MHz Cell Enhancer User Handbook Handbook Nō.-50-128501HBK Issue No:-A Date:-12/08/2005 Page:- 1 of 39 Two Channel 400MHz Cell Enhancer User Handbook For AFL Inc. AFL Works Order Nō.: Q112941 AFL product part Nō.: 50-128501 Two Channel 400MHz Cell Enhancer User Handbook Handbook Nō.-50-128501HBK Issue No:-A Date:-12/08/2005 Page:- 2 of 39 Table of Contents AMENDMENT LIST RECORD SHEET ...................................................................................................4 INTRODUCTION.........................................................................................................................................5 Scope ........................................................................................................................................................................... 5 Purpose ....................................................................................................................................................................... 5 Glossary of Terms...................................................................................................................................................... 6 Key to AFL RF Module Drawing Symbols ............................................................................................................. 7 1. SAFETY CONSIDERATIONS .........................................................................................................8 1.1 Earthing of Equipment ................................................................................................................................ 8 1.2 Electric Shock Hazard.................................................................................................................................. 8 1.3 RF Radiation Hazard ................................................................................................................................... 9 1.4 Chemical Hazard ........................................................................................................................................ 10 1.5 Emergency Contact Numbers.................................................................................................................... 10 2. OVERVIEW/SYSTEM DESCRIPTION .......................................................................................11 3. SPECIFICATIONS..........................................................................................................................12 3.1 Description .................................................................................................................................................. 12 3.2 Electrical Specification ............................................................................................................................... 12 3.3 Mechanical Specification............................................................................................................................ 13 3.4 System Diagram .......................................................................................................................................... 14 3.5 Parts Lists .................................................................................................................................................... 15 4. SUB-UNIT MODULES....................................................................................................................17 4.1 UHF Notch Filter (02-020001) ................................................................................................................... 17 4.1.1 Description ............................................................................................................................................... 17 4.1.2 Technical Specifications ........................................................................................................................... 17 4.2 Bandpass Filters (02-011204 & 02-013401) .............................................................................................. 18 4.2.1 Description ............................................................................................................................................... 18 4.2.2 Technical Specification............................................................................................................................. 18 4.3 30dB Power Monitor (07-012501) ............................................................................................................. 19 4.3.1 Description ............................................................................................................................................... 19 4.3.2 Technical Specification............................................................................................................................. 19 4.4 ¼Watt 0- -30dB Switched Attenuator (10-000701)..................................................................................19 4.4.1 General Application ................................................................................................................................. 19 4.4.2 Switched Attenuators ................................................................................................................................ 19 4.5 Low Noise Amplifier (11-007402).............................................................................................................. 20 4.5.1 Description ............................................................................................................................................... 20 4.5.2 Technical Specification............................................................................................................................. 20 4.5.3 LNA ‘D’ Connector Pin-out details .......................................................................................................... 20 4.6 1Watt Low Power Amplifier (11-007901)................…

Text truncated - open the document above for the full version.

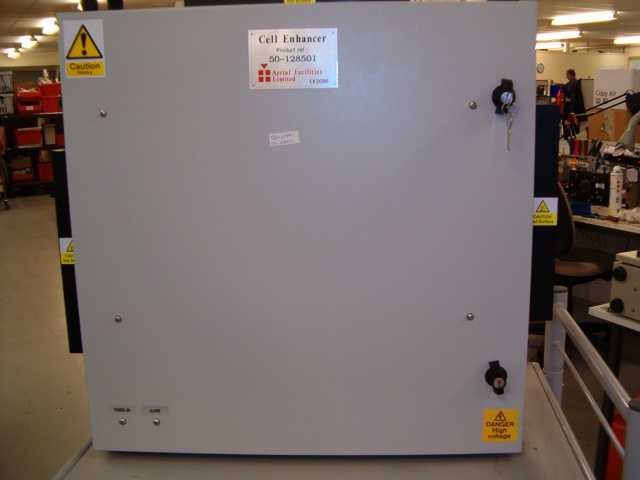

voltage Hig h DANGER Heavy CA UT ION Ae ria l F a c il itie sLim ited England BY DAT E DESCRIPT ION No ISSUE 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUT HORISED IN WRIT INGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCTION ISSUE 30/9/03 DBS PSU ALARM FCC IDENT. LABEL

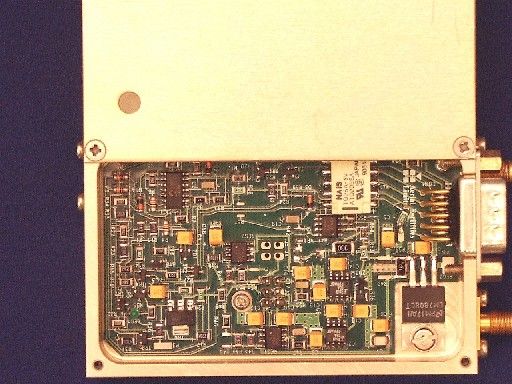

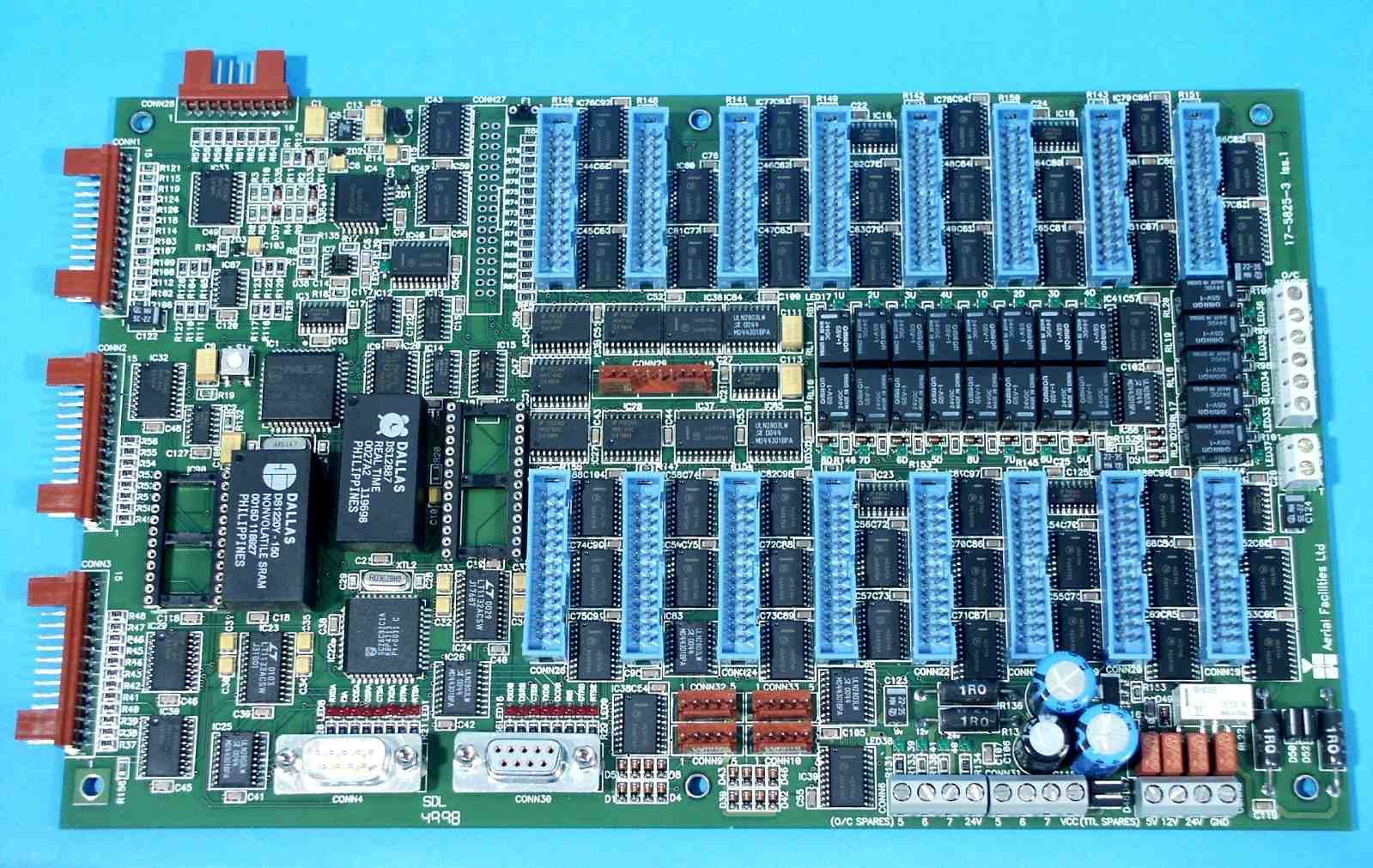

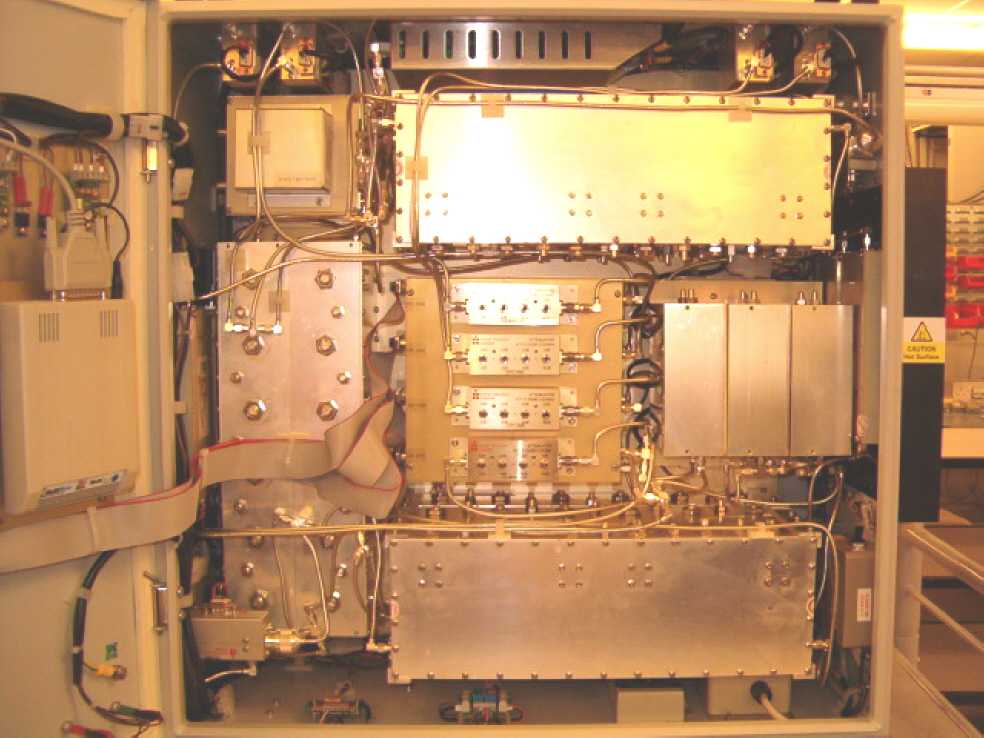

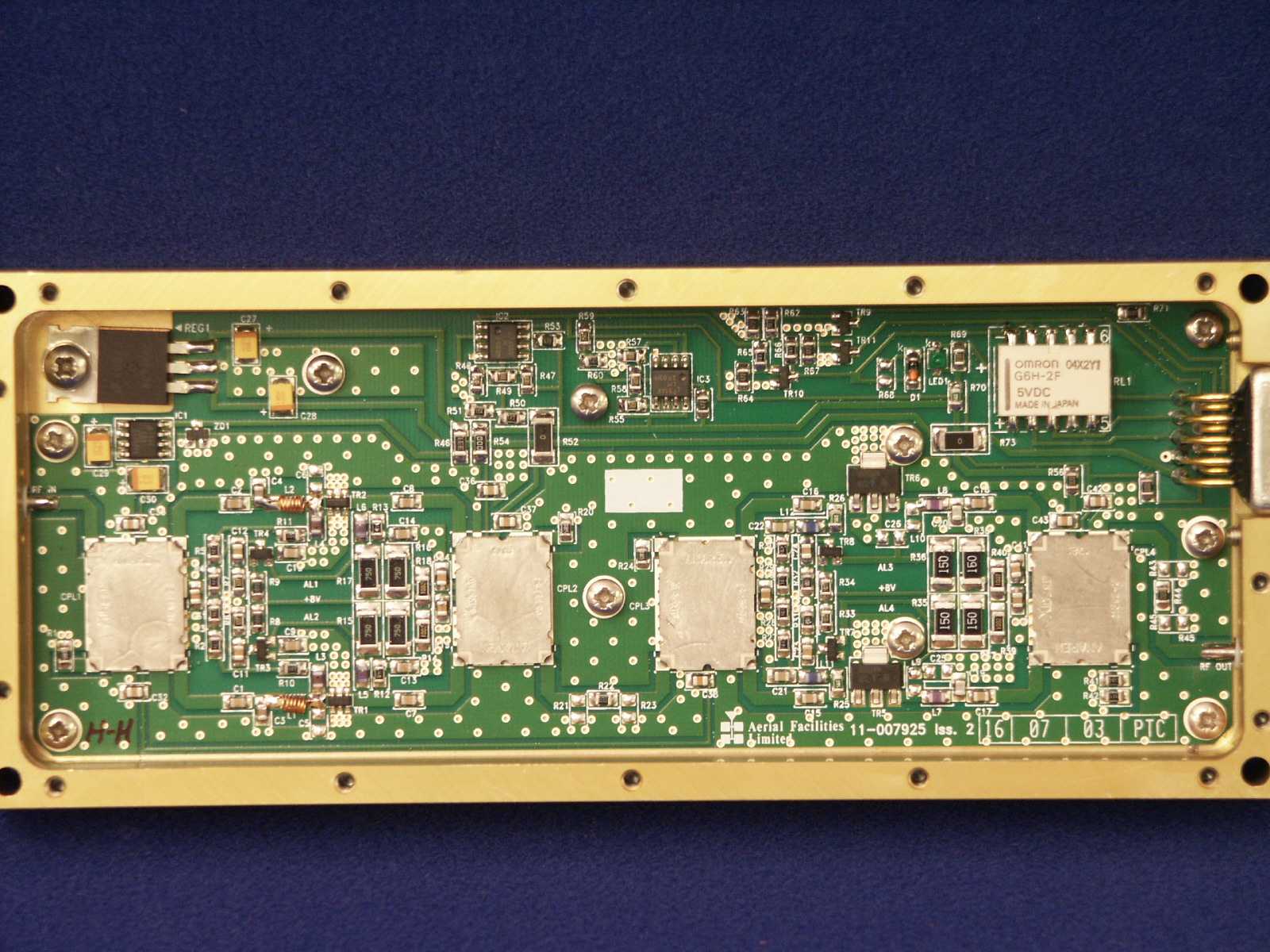

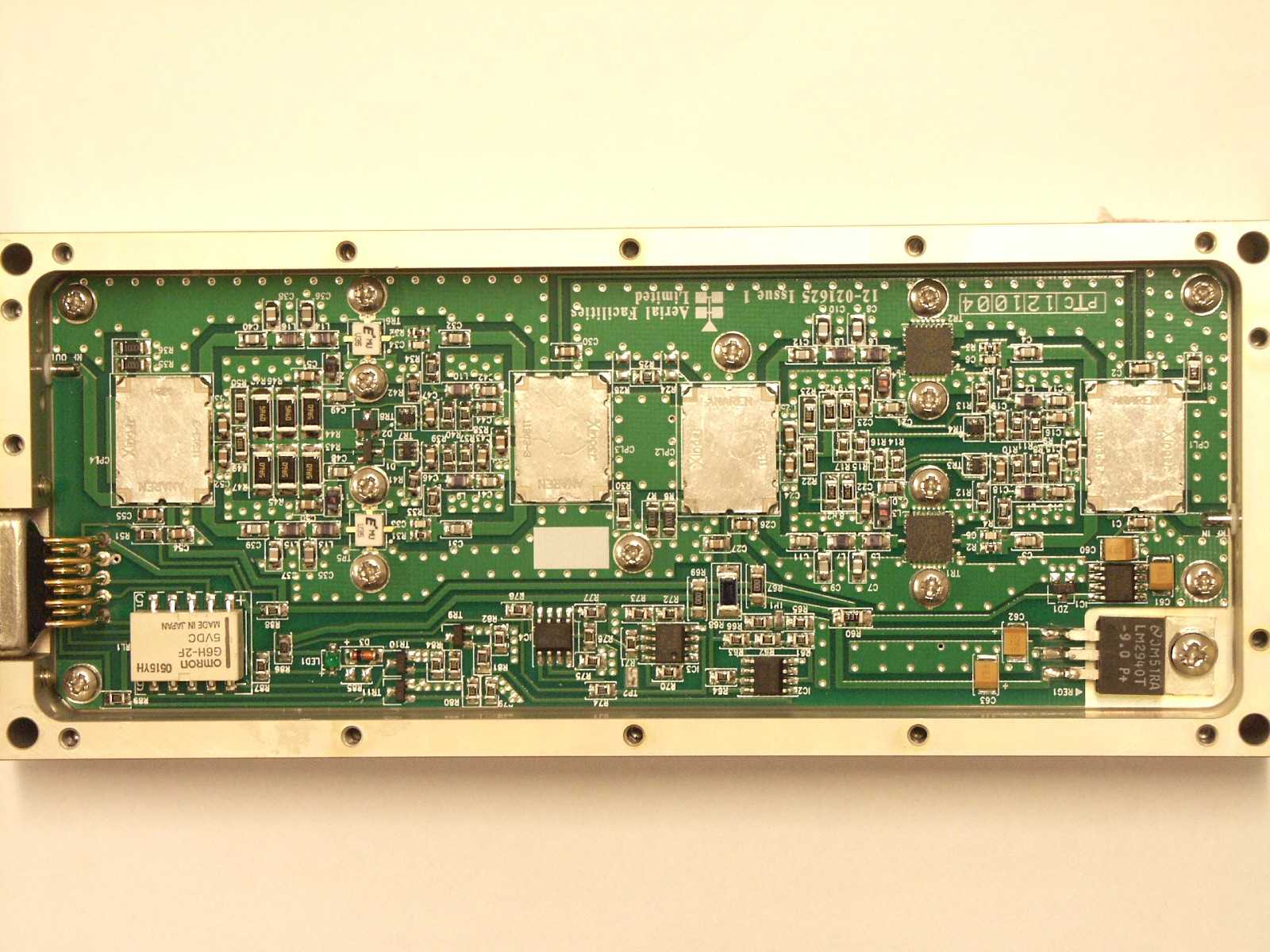

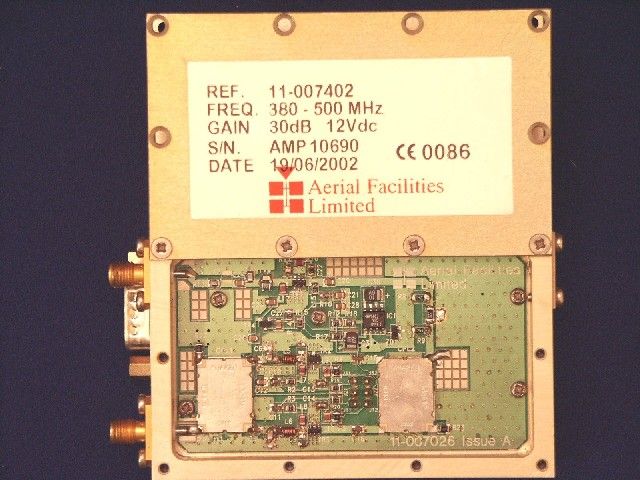

Two Channel 400MHz Cell Enhancer User Handbook Handbook Nō.-50-128501HBK Issue No:-A Date:-12/08/2005 Page:- 11 of 39 2. OVERVIEW/SYSTEM DESCRIPTION This equipment is designed to enhance one 275kHz spaced channel in the 400MHz UHF band, and one IF select channel having 1.45MHz bandwidth also in the 400MHz band using 5 and 1Watt amplifiers on the downlink and uplink paths respectively. An RS232 controller/monitor together with a modem is fitted to provide remote monitoring of all active alarms and to allow remote re-configuration of channel module frequencies. See the RS232 controller/monitor handbook (17-005801HBKM) for more details on this feature. Two Channel 400MHz Cell Enhancer User Handbook Handbook Nō.-50-128501HBK Issue No:-A Date:-12/08/2005 Page:- 17 of 39 4. SUB-UNIT MODULES 4.1 UHF Notch Filter (02-020001) 4.1.1 Description The notch reject filters fitted here are tuned to eliminate the unwanted channel frequencies of the band 1 amplifier (where the filters are fitted in the band 2 path and vice-versa). The filters should require no routine maintenance, being totally passive devices. If a filter is suspected of failure, no invasive measures are recommended as even opening the case of the device could render it unusable. 4.1.2 Technical Specifications PARAMETER SPECIFICATION Passband1 492.5-494 & 490.6MHz Passband2 481-489 & 496.3-496.6MHz Stopband1: 496.3 & 496.5MHz Stopband2: 492.5-494, 496.3-496.6 & 494-494.5MHz Insertion Loss: 0.6dB typical Rejection: 40dB typical Power Rating 50 Watt Impedance 50Ω VSWR Better than 1.22:1 Two Channel 400MHz Cell Enhancer User Handbook Handbook Nō.-50-128501HBK Issue No:-A Date:-12/08/2005 Page:- 18 of 39 4.2 Bandpass Filters (02-011204 & 02-013401) 4.2.1 Description The bandpass filters are multi-section designs with a bandwidth dependent upon the passband frequencies, (both tuned to customer requirements). The response shape is basically Chebyshev with a passband design ripple of 0.1dB. The filters are of combline design, and are carefully aligned during manufacture in order to optimise the insertion loss, VSWR and intermodulation characteristics of the unit. The tuned elements are silver-plated to reduce surface ohmic losses and maintain a good VSWR figure and 50Ω load at the input and output ports. Being passive devices, the bandpass filters should have an extremely long operational life and require no maintenance. Should a filter be suspect, it is usually most time efficient to replace the module rather than attempt repair or re-tuning. 4.2.2 Technical Specification FILTER 1 489.5-491 MHz (02-011204) FILTER 2 496.3-496.7 MHz (02-013401) FILTER 3 492.5-494 MHz (02-011204) Passband: FILTER 3 499.3-499.7 MHz (02-013401) FILTER 1 3.0 dB (02-011204) FILTER 2 3.5 dB (02-013401) FILTER 3 3.0 dB (02-011204) Insertion Loss: FILTER 3 3.5 dB (02-013401) FILTER 1 MAX(>40dB) (02-011204) FILTER 2 MAX (>40dB) (02-013401) FILTER 3 MAX (>40dB) (02-011204) Isolation: FILTER 4 MAX (>40dB) (02-013401) Impedance:50 ohm Two Channel 400MHz Cell Enhancer User Handbook Handbook Nō.-50-128501HBK Issue No:-A Date:-12/08/2005 Page:- 19 of 39 4.3 30dB Power Monitor (07-012501) 4.3.1 Description The purpose of these couplers is to tap off known portions (usually 15-30dB) of RF signal from transmission lines at the antenna ports, either resistively or by induction, and to combine them, for example through splitter units for different purposes (alarms/monitoring etc.), whilst maintaining an accurate 50Ω load to all ports/interfaces throughout the specified frequency range. They are formally known as directional couplers as they couple power from the RF mainline in one direction only. Various constructional techniques are used depending on the specification required. These include microstrip, stripline, coaxial cable and capacitive types. 4.3.2 Technical Specification PARAMETER SPECIFICATION Frequency range: 350 – 550MHz Insertion Loss: <0.3dB Coupling level: -30dBc Rejection: N/A Weight: <200gms Connectors: N type, female operation: -10°C to +60°C Temperature range: storage: -20°C to +70°C 4.4 ¼Watt 0- -30dB Switched Attenuator (10-000701) 4.4.1 General Application In many practical applications for Cell Enhancers etc., the gain in each path is found to be excessive. Therefore, provision is made within the unit for the setting of attenuation in each path, to reduce the gain. 4.4.2 Switched Attenuators The AFL switched attenuators are available in two different types; 0 – 30dB in 2 dB steps (as in this case), or 0 – 15dB in 1 dB steps. The attenuation is simply set using the four miniature toggle switches on the top of each unit. Each switch is clearly marked with the attenuation it provides, and the total attenuation in line is the sum of the values switched in. They are designed to maintain an accurate 50Ω impedance over their operating frequency at both input and output. Two Channel 400MHz Cell Enhancer User Handbook Handbook Nō.-50-128501HBK Issue No:-A Date:-12/08/2005 Page:- 20 of 39 4.5 Low Noise Amplifier (11-007402) 4.5.1 Description The 30dB gain low noise amplifier used is a double stage solid-state low-noise amplifier. Class A circuitry is used in the unit to ensure excellent linearity over a very wide dynamic range. The two active devices are very moderately rated to provide a long trouble-free working life. There are no adjustments on this amplifier, and in the unlikely event of failure then the entire amplifier should be replaced. The amplifier features a dedicated, in- built alarm monitoring system which gives a TTL ‘open collector’ type switched signal on alarm, this is then integrated using a built-in relay to give a volt-free contact for summation into the main alarm system. 4.5.2 Technical Specification PARAMETER SPECIFICATION Frequency range: 380-500MHz Bandwidth: <140MHz Gain: 30-32dB 1dB Compression Point: +22dBm (typical) 3rd order intercept: +34-35dBm (typical) Input/Output return loss: >20dB Noise figure: <1.3dB Connectors: SMA female Supply: …

Text truncated - open the document above for the full version.

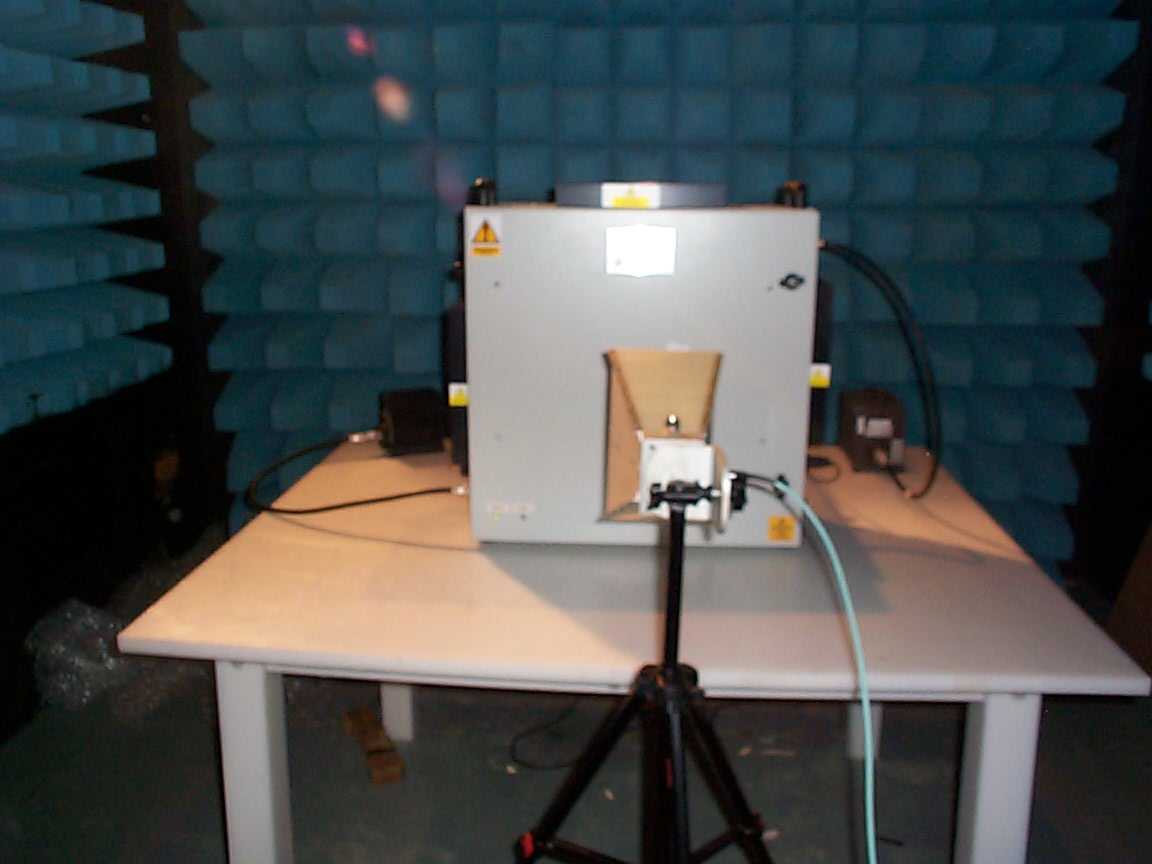

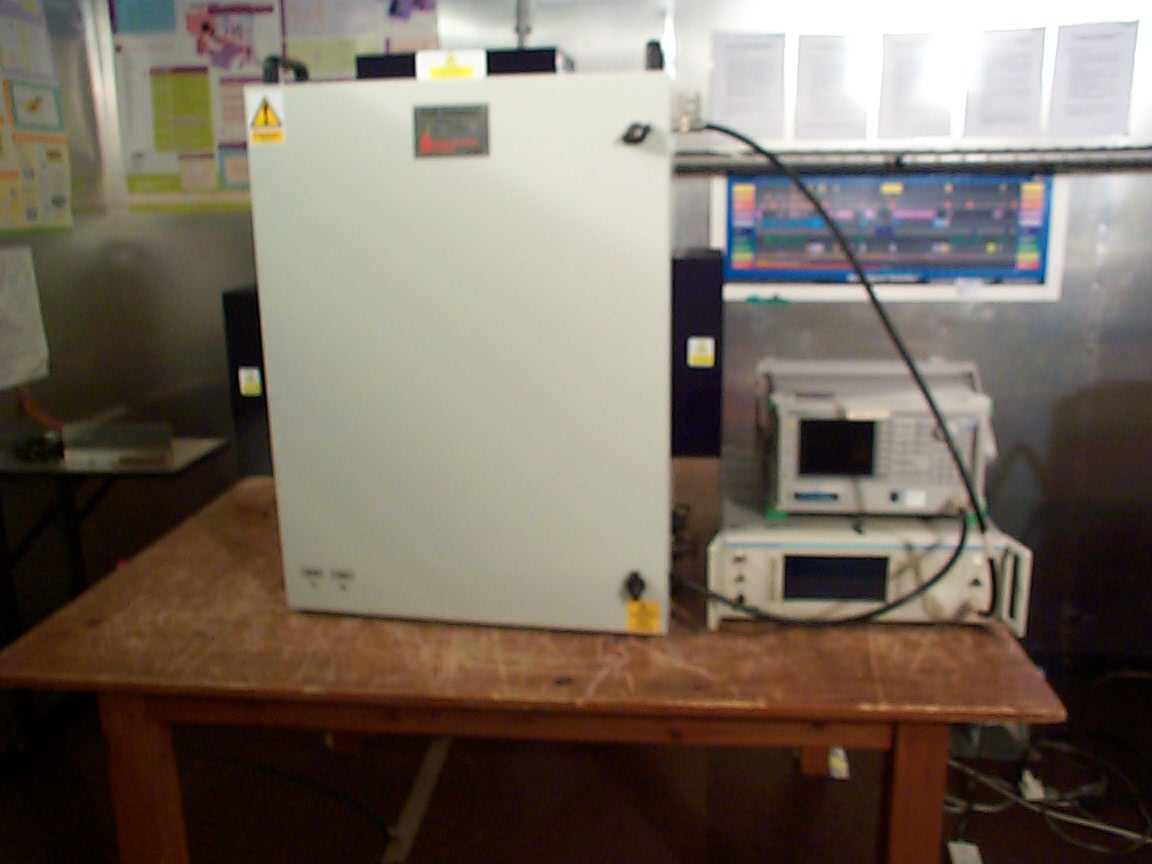

TRL COMPLIANCE LTD EMC DIVISION L ONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM T ELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com TEST REPORT NO: RU1194/6803 COPY NO: 2 ISSUE NO: 1 FCC ID: NEO50-1285Series REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED 50-128501 CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 5 th June 2005 – 8 th August 2005 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 27 th January 2006 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Limited 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE TRL Compliance A Cape Group Company RU1194/6803 Page 2 of 79 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-71 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C MEASUREMENT UNCERTAINTY D SYSTEM DIAGRAM E Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RU1194/6803 Page 3 of 79 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO50-1285Series PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 50-128501 Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMIUM GAIN Uplink = 67.74 dB Downlink = 72.48 dB MAXIMUM INPUT Uplink = -44 dBm Downlink = -41 dBm MAXIMUM OUTPUT Uplink = 22.69 dBm Downlink = 31.13 dBm (radiating cable system) ANTENNA TYPE: Not applicable CHANNEL SPACING: Uplink = 1 x 275 kHz channel & 1 x 1.45 MHz channel Downlink =1 x 275 kHz channel & 1 x 1.45 MHz channel NUMBER OF CHANNELS: Uplink 2 Downlink 2 FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110 Vac TEST DATE(s): 5 th June 2005 – 8 th August 2005 ORDER No(s): 32088 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RU1194/6803 Page 4 of 79 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 50-128501 Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 32088 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 5 th June 2005 – 8 th August 2005 TEST REPORT No: RU1194/6803 RU1194/6803 Page 5 of 79 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. Uplink Class A [X] Class B [ ] 2. Product class: Downlink Class A [X] Class B [ ] 3. Product Use: Private Land Mobile Repeater 4. Emission Designator: F3E 5. Temperatures: Ambient (Tnom) 21 o C 6. Supply Voltages: Vnom +110 Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] 8. Channel spacing: Narrowband [X] 2 x 275 kHz 2 x 1.45 MHz Wideband [ ] 9. Test Location TRL Compliance Limited Up Holland [X] Long Green [ ] 10. Modifications made during test program No modifications were performed. System description: The 50-128501 is a bidirectional amplifier consisting of an uplink and a downlink. The uplink has 2 channels, a 275 kHz channel operating over the frequency range 499.3375MHz - 499.6125MHz and a 1.45MHz channel operating over the frequency range 492.5125MHz - 493.9625MHz. The downlink has 2 channels, a 275 kHz channel operating over the frequency range 496.3375MHz - 496.6125MHz and a 1.45MHz channel operating over the frequency range 489.5000MHz – 490.9625MHz. RU1194/6803 Page 6 of 79 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 23 o C Radio Laboratory Relative humidity = 47% Supply voltage = +110 Vac & +12 Vdc Channel number = See test results Frequency Band – 492.5125MHz – 493.9625MHz Frequency MHz Voltage Signal Generator input level dBm Output Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Output Power dBm Gain after 10dB input level increase dBm 492.5125 110 Vac -42.05 30.78 -5.70 67.13 25.08 57.08 493.2375 110 Vac -45.05 30.78 -4.92 70.91 25.86 61.33 493.9625 110 Vac -45.05 30.78 -4.75 71.08 26.03 61.34 Notes: 1. The signal generator input was increased by 10dBs and the level of the output signal remeasured 2. Input level is adjusted for the input cable loss. Frequency Band – 499.3375 MHz – 499.6125 MHz Frequency MHz Voltage Signal Generator input level dBm Output Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Output Power dBm Gain after 10dB input level increase dBm …

Text truncated - open the document above for the full version.
