NEO50-1467SERIES50-1467 Series VHF Chanellised air interface

Aerial Facilities Limited Technical Literature Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKMIssue No. A Date:15/10/2006Page 1 of 86 Aerial Facilities Limited New York Justice Centre Radio Repeater Equipment For GPD Telecom Inc. AFL Works Order: Q114828 AFL product part Nǀs.: 50-146501 (VHF Repeater) 50-146601 (UHF Repeater) 50-146701 (800MHz Repeater) Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKM Page: 2 of 86 Table of Contents 1.INTRODUCTION ............................................................................................................ 5 Scope and Purpose of Document.................................................................................................... 5 Limitation of Liability Notice ............................................................................................................ 5 2.SAFETY CONSIDERATIONS ........................................................................................ 6 2.1Earthing of Equipment......................................................................................................... 6 2.2Electric Shock Hazard.......................................................................................................... 6 2.3RF Radiation Hazard ............................................................................................................ 6 2.4Chemical Hazard .................................................................................................................. 7 2.5Laser Safety .......................................................................................................................... 7 2.6Emergency Contact Numbers ............................................................................................. 7 3.EQUIPMENT OVERVIEW.............................................................................................. 8 3.1System Description.............................................................................................................. 8 3.2Whole System Diagram, Drg. # 50-146581 ......................................................................... 9 4.SYSTEM DETAILS....................................................................................................... 10 4.1VHF Channel Selective Cell Enhancer Rack (50-146501) ............................................... 10 4.1.1VHF Cell Enhancer Rack Description .............................................................................. 10 4.1.2VHF Cell Enhancer Rack Electrical Specification ............................................................ 10 4.1.3VHF Cell Enhancer Rack Mechanical Specification......................................................... 11 4.1.4VHF Cell Enhancer Rack Parts List ................................................................................. 11 4.1.5VHF Downlink O/P Combiner Shelf (50-146502) ............................................................. 12 4.1.5.PVHF Downlink O/P Combiner Shelf Photographs...................................................................12 4.1.5.1Description ..............................................................................................................................13 4.1.5.2Technical Specification ...........................................................................................................13 4.1.6.3Parts List .................................................................................................................................13 4.1.5.4System Diagram, Drg. # 50-146582.......................................................................................14 4.1.6VHF Uplink I/P Splitter Shelf (50-146503) ........................................................................ 15 4.1.6.PVHF Uplink I/P Splitter Shelf Photographs..............................................................................15 4.1.6.1Description ..............................................................................................................................16 4.1.6.2Technical Specification ...........................................................................................................16 4.1.6.3Parts List .................................................................................................................................16 4.1.6.4System Diagram, Drg. # 50-146583.......................................................................................17 4.1.7VHF Duplex BDA Channel 1 Shelf (50-146504) .............................................................. 18 4.1.7.PVHF Duplex BDA Channel 1 Shelf Photographs ....................................................................18 4.1.7.1Description ..............................................................................................................................19 4.1.7.2Technical Specification ...........................................................................................................19 4.1.7.3Parts List .................................................................................................................................20 4.1.7.4System Diagram, Drg. # 50-146584.......................................................................................21 4.1.8VHF Duplex BDA Channel 2 Shelf (50-146505) .............................................................. 22 4.1.8.PVHF Duplex BDA Channel 2 Shelf Photographs ....................................................................22 4.1.8.1Description ..............................................................................................................................22 4.1.8.2Technical Specification ...........................................................................................................22 4.1.8.3Parts List .................................................................................................................................22 4.1.8.4System Diagram.............…

Text truncated - open the document above for the full version.

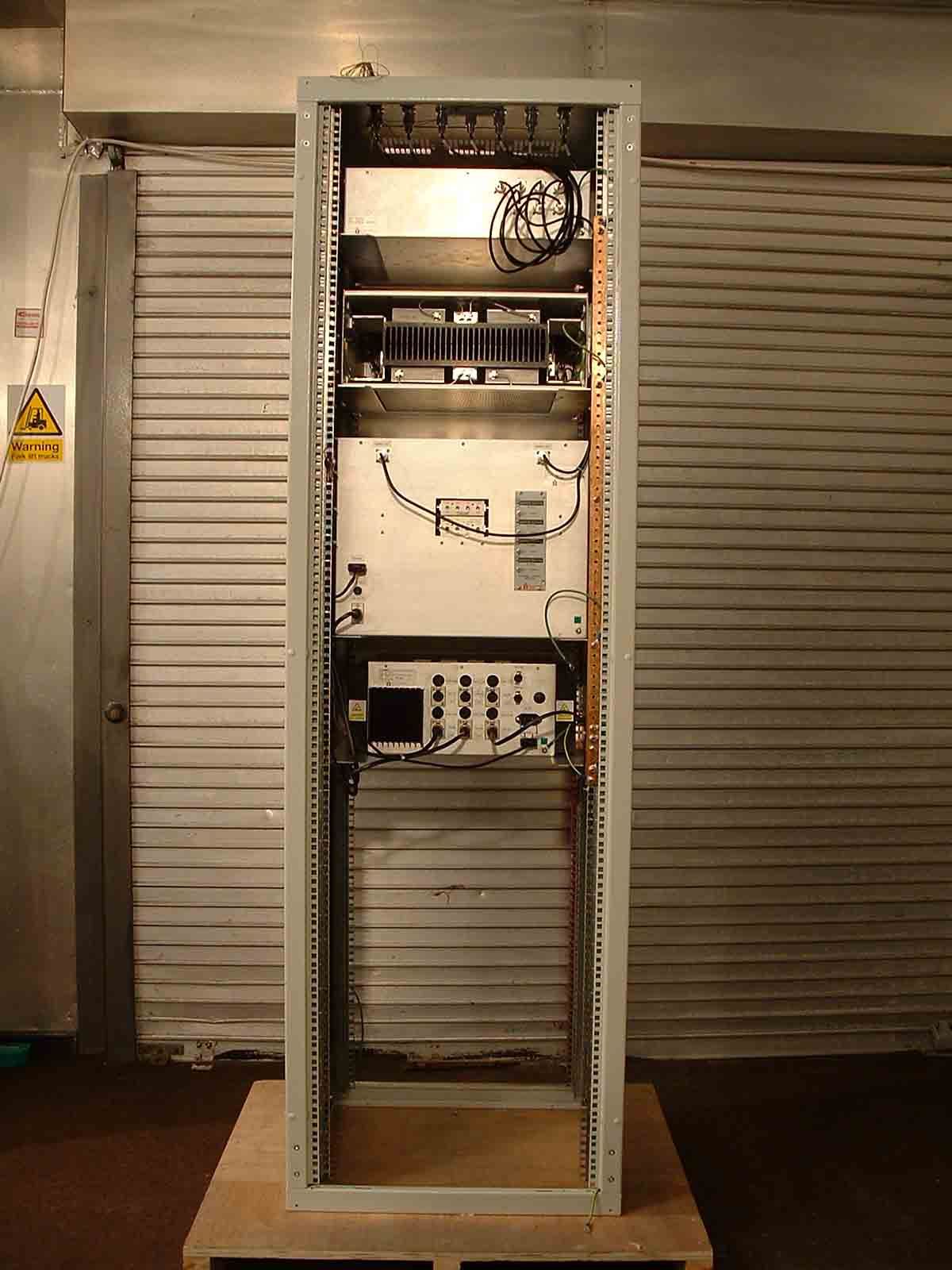

Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKM Page: 44 of 86 4.2 UHF Channel Selective Cell Enhancer Rack (50-146601) 4.2.1 Description The UHF cell enhancer in this system is a six channel, duplex only, two-way radio repeater rack with automatic gain control of both up and downlink paths. A dedicated power supply provides all the DC needed by the whole rack, driven from the local mains supplies (identical with PSU in VHF cell enhancer rack). Alarms are provided from each active device and all are ‘looped’ to form a normally closed fail-safe alarm (locally for each shelf and globally for the whole enhancer). This loop alarm is easily configured to join any other similarly wired system. 4.2.2 Electrical Specification PARAMETERSPECIFICATION 453.7500MHz 465.0375MHz 471.2625MHz 479.8375MHz 481.0375MHz 485.6375MHz UHF downlink 458.7500MHz 460.0375MHz 470.7125MHz 474.2625MHz 476.8375MHz UHF frequencies: 484.0375MHz UHF uplink Gain Adjustment: 0 - 30dB (in 2dB steps) Gain Adjustment: 0 – 15dB (in 1dB step) Uplink Power: 5 Carriers @ +24dBm Downlink Power: 5 Carriers @ +27dBm AGC: Fitted in all channel selective modules In-Band Spurious: Better than –13dBm (measured with 30KHz BW with max gain setting) Noise Figure: <6dB (@ maximum gain) VSWR: better than 1.5:1 Impedance: 50ȍ 1 Amplifiers Alarms Fitted: (volt-free contacts/TTL) 2 PSU 4.2.3 Mechanical Specification PARAMETERSPECIFICATION Height: 43U Standard Eldon Vented Rack Width: 19" (482.6mm) Rack Depth: 600mm Height: See shelves parts lists Width: 19" (482.6mm) Shelves: Depth: <450mm(excluding heatsinks, connectors, handles and feet) operational: -20°C to +60°C Temperature range: storage: -40°C to +70°C Weight: >100kg Humidity: 5 – 95% non-condensing RF Connectors: N type female Environmental protection: IP44 Supply cable: Dedicated PSU shelf supply cable Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKM Page: 45 of 86 4.2.4 Parts List AFL Part Nǀ.Part Description Qty. 50-146512 VHF/UHF SYSTEM PSU 24v 1 50-146602 UHF DOWNLINK COMBINER 1 50-146603 UHF UPLINK SPLITTER 1 50-146604 UHF DUPLEX BDA CHN1 1 50-146605 UHF DUPLEX BDA CHN2 1 50-146606 UHF DUPLEX BDA CHN3 1 50-146607 UHF DUPLEX BDA CHN4 1 50-146608 UHF DUPLEX BDA CHN5 1 50-146609 UHF UPLINK COMBINER 1 50-146610 UHF DOWNLINK SPLITTER 1 50-146612 UHF DUPLEX BDA CHN6 1 80-054020 600mm DEEP SUPPORT BRACKET 22 80-063654 1U BLANKING PANEL (BS) RAL 7035 4 90-100011 IEC MAINS LEAD '6 AMP' for USA 1 91-000002 N PLUG RG223:U 58 91-030002 N ADAPTOR PANEL FEMALE:FEMALE 4 97-500175 ELDON 43U 600 x 600 RACK (VENTED LID) 1 99-000082 PALLET 900 x 900 x 7ply FOR RACKS 1 Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKM Page: 46 of 86 4.2.5 Downlink Combiner Shelf (50-146602) 4.2.5.P Downlink Combiner Photographs Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKM Page: 47 of 86 4.2.5.1Description The UHF downlink combiner shelf receives signals from the outputs of the six BDA shelves and combines them using a series of bandpass, notch filters and hybrid couplers. The two UHF outputs then directly drive the leaky feeder antennas. This is a passive only shelf and has no need of a power source or alarms. 4.2.5.2Technical Specification PARAMETERSPECIFICATION DC power consumption: None Chassis height: 4U IP protection: IP44 Relative humidity range: 5-95% Impedance: 50ȍ Alarms: None operation: -10C to +60C Temperature Range: storage: -30C to +70C Case: Alocrom 1200/Iridite NCP Heatsinks: None Fascia: Painted to RAL7035 Finish: Handles: Silver anodise 4.2.5.3Parts List AFL Part Nǀ.Part Description Qty. 02-007309 SDF C/L5P VAR.BW TOP SMA 50mm POST 3 02-013401 6P CL FLTR(0.5 min BW) LARGE SMA ASSY 2 02-020001 UHF 2 LN NOTCH FILTER SMA 3 05-000101 TRANSMITTER HYBD COUPL.4 PORT 1 05-000104 TRANS.HYBRD.COUPL.3 PORT 50W INT.L 1 19-001022K 4U CHASSIS KIT (450mm deep) 1 91-030002 N ADAPTOR PANEL FEMALE:FEMALE 9 91-130001 SMA ADAPT 'T' ALL FEMALE 3 GHz 5 Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKM Page: 48 of 86 4.2.5.4System Diagram, Drg. # 50-146682 Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKM Page: 49 of 86 4.2.6 Uplink Splitter Shelf (60-146603) 4.2.6.P Uplink Splitter Shelf Photographs Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKM Page: 50 of 86 4.2.6.1Description The UHF uplink splitter receives a single RF source (from the leaky feeder antenna(s) and directs it through hybrid couplers, bandpass and notch filters to the inputs of the UHF uplink BDA shelves. This is a passive only shelf and has no need of a power source or alarms. 4.2.6.2Technical Specification PARAMETERSPECIFICATION DC power consumption: None Chassis height: 4U IP protection: IP44 Relative humidity range: 5-95% Impedance: 50ȍ Alarms: None operation: -10C to +60C Temperature Range: storage: -30C to +70C Case: Alocrom 1200/Iridite NCP Heatsinks: None Fascia: Painted to RAL7035 Finish: Handles: Silver anodise 4.6.2.3Parts List AFL Part Nǀ.Part Description Qty. 02-007302 SDF C/L5P VAR.BW TOP SMA 40 mm POST 1 02-007309 SDF C/L5P VAR.BW TOP SMA 50mm POST 1 02-013401 6P CL FLTR (0.5 min BW) LARGE SMA ASSY 2 02-020001 UHF 2 LN NOTCH FILTER SMA 3 05-002603 UHF 3DB SPLITTER SMA 2 19-001022K 4U CHASSIS KIT (450mm deep) 1 91-030002 N ADAPTOR PANEL FEMALE:FEMALE 7 91-130001 SMA ADAPT 'T' ALL FEMALE 3 GHz 3 Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKM Page: 51 of 86 4.2.6.4System Diagram, Drg. # 50-146683 Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKM Page: 52 of 86 4.2.7 UHF Duplex Channel 1 BDA (50-146604) 4.2.7.P Duplex Shelf Photographs (hardware identical, only 1 shelf shown) Bronx Justice Centre Radio Repeaters Handbook Number: 80-283501HBKM Page: 53 of 86 4.2.7.1Description The BDA shelves amplify the UHF digital signals at specific frequencies, selected by the channel control modules. They each have a gain of approximately 95dB and switched attenuators after th…

Text truncated - open the document above for the full version.

AerialFacilitiesLimited RF SystemEngineering. RadioSiteEngineering. Tel:+44(0)1494777000 Fax:+44(0)1494777002 AerialHouse, AsheridgeRoad, Chesham,Buckinghamshire, England,HP52QD lothJanuary,2006. TRLComplianceServicesLtd LongGreen Forthampton Gloucester GL194QH UK ToWhomIt MayConcern: Wecertifythatwearenotsubjecttodenialoffederalbenefits,thatincludesFCCbenefits,pursuantto Section5301oftheAnti-DrugAbuseACTof1988,U.S.C.862.Further,noparty,asdefinedin47CFR 1.2002(b),totheapplicationissubjecttodenialoffederalbenefits,thatincludesFCCbenefits. Thankyouforyourattentiontothesematters. Yoursfaithfully Forandonbehalf AerialFacilitiesLimited /?flU) PeterL Bradfield SeniorSystemsEngineer RegisteredOffice:AerialHouse,AsheridgeRoad,Chesham,Buckinghamshire,HP52QDEnglandRegisteredNo.4042808(England) www.aerialfacilities.com

AerialFacilitiesLimited RF SystemEngineering. RadioSiteEngineering. Tel:+44(0)1494777000 Fax:+44(0)1494777002 AerialHouse, AsheridgeRoad, Chesham,Buckinghamshire, England,HP52QD lothJanuary,2007 TRLComplianceServicesLtd LongGreen Forthampton Gloucester GLl94QH UK REF:NE050-l467SERIES,Declaredandreportedpower. ThePoweramplifierusedin theunitin thedownlinkdirectionis describedasa 80W.Theseamplifiers areusednotto producetheselevelsofpowerbuttoensuregoodlinearityinthemulti-carrier environment.It is thethirdorderinterceptpointwearelookingfortoensuretheattenuationof unwantedintermodulationproductsis maximum.Infactthelevelofeachcarrierat theoutputis limitedto20dBmin thedownlink,thisis achievedbyanindividualALC. If youhaveanyfurtherquestionsorcommentsdonothesitatetocontactme. Yoursfaithfully Forandonbehalf AerialFacilitiesLimited £!/;tU( PeterL Bradfield SeniorSystemsEngineer Tel:+441494777020 Fax+441494777002 [email protected] AsheridgeRoad,Chesham,Buckinghamshire,HP52QDEnglandRegisteredNo.4042808(England) www.aerialfacilities.com

AerialFacilitiesLimited RF SystemEngineering. RadioSiteEngineering. Tel:+44(0)1494777000 Fax:+44(0)1494777002 AerialHouse, AsheridgeRoad, Chesham,Buckinghamshire, England,HP52QD 1rfhJanuary,2007 RequestforConfidentiality TRLComplianceServicesLtd LongGreen Forthampton Gloucester GL194QH UK RE:CertificationApplication FCCID:NE050-1467SERIES ToWhomIt MayConcern: Pleasebeadvisedthatthefollowinginformationis tobeheldconfidentialonbehalfof Aerial FacilitiesLimited . CircuitDiagrams SchematicDiagrams PartsList/TuneUpInformation . . TheapplicationcontainstechnicalinformationwhichAerialFacilitiesLimiteddeemstobetrade secretsandpropriety.If madepublic,theinformationmightbeusedtothedisadvantageofthe applicantinthemarketplace. Thankyouforyourattentiontothismatter. Yoursfaithfully Forandonbehalf AerialFaCiliti"#l1;ut( PeterL Bradfield SeniorSystemsEngineer RegisteredOffice:AerialHouse,AsheridgeRoad,Chesham,Buckinghamshire,HP52QDEnglandRegisteredNo.4042808(England) www.aerialfacilities.com

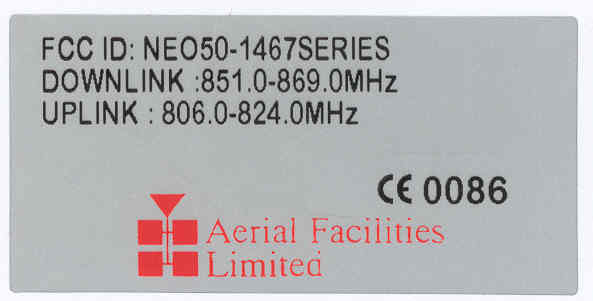

BY DAT E DESCRIPT ION No THI RD ANGLE PROJECTI ON 1 2 34 5678 9 A BCDE F 1 234 5678 9 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.RE P RODUCT ION OR US E OF T HIS DE S IGN B Y OT HE RS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmT WO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE ISSUE 3A FCC IDENT. LABEL POSITION RACK MOUNTED UNIT 80-312190 1A 1:5 DBS 30/9/03 PRODUCTION ISSUE 30/ 9/ 02 DBS Li m i t ed Aerial Facilities POWERALARM FCC IDENT. LABEL

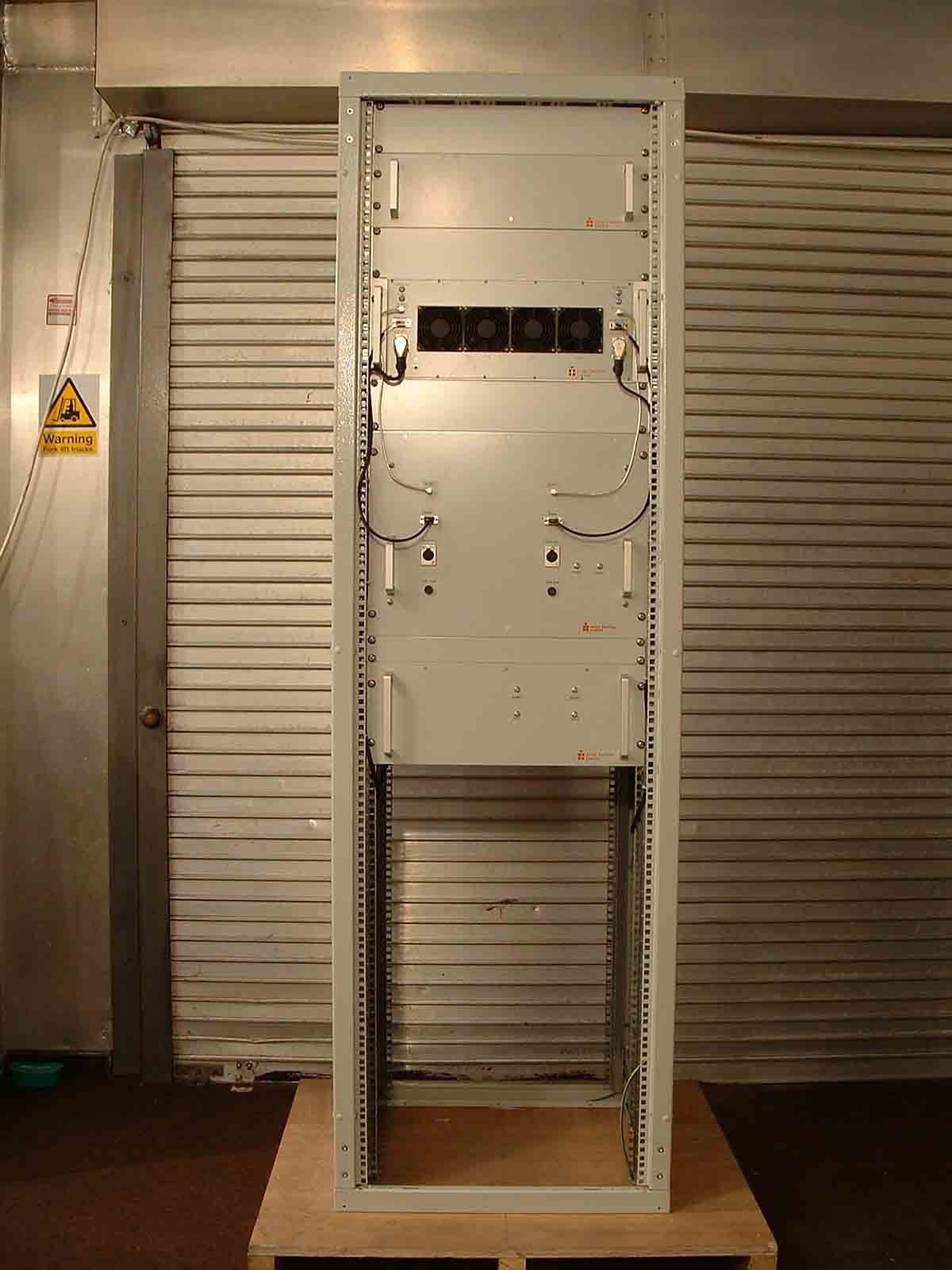

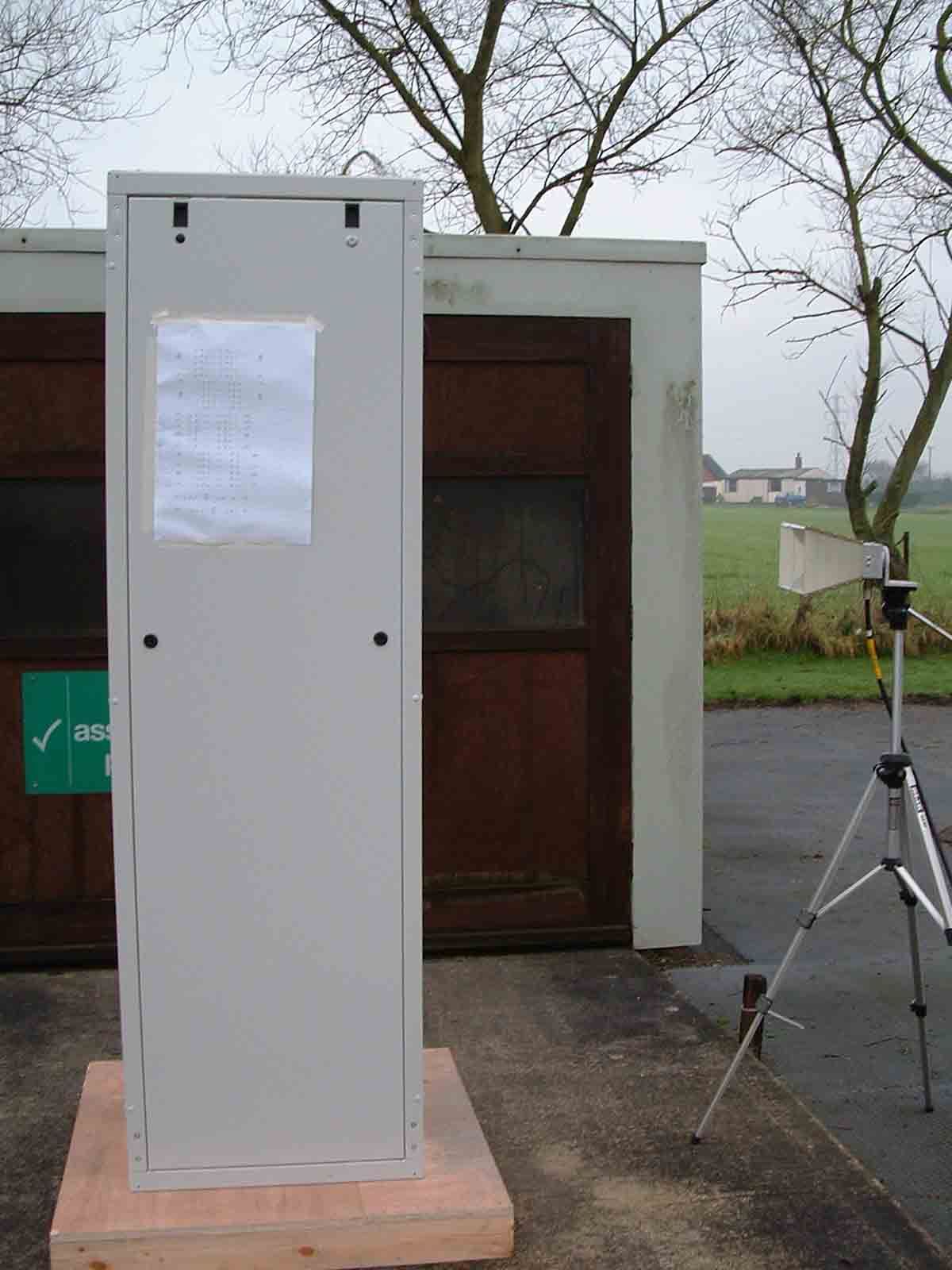

TRL COMPLIANCE LTD L ONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM T ELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com TEST REPORT NO: RU1296/7399 COPY NO: 1 ISSUE NO: 1 FCC ID: NEO50-1467SERIES REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED 50-146701 800MHz CHANNELISED AIR INTERFACE WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 18 th December 2006 – 4 th January 2007 TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO SECTION LEADER DATE: 26 th January 2007 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Limited 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02 RU1296/7399 Page 2 of 84 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-71 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: EUT Front Overview PHOTOGRAPH No. 3: EUT Rear Overview APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C MEASUREMENT UNCERTAINTY D SYSTEM DIAGRAM E Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RF335 iss02 RU1296/7399 Page 3 of 84 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO50-1467SERIES PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 50-146701 800MHz Channelised Air interface EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMUM GAIN: Uplink Downlink = 83.38 dB = 88.43 dB MAXIMUM INPUT: Uplink Downlink = -58.42 dBm = -52.42 dBm MAXIMUM OUTPUT CONDUCTED: Uplink Downlink = 24.96 dBm = 36.01 dBm ANTENNA TYPE: Uplink Downlink Yagi Distributed Antenna System ANTENNA GAIN\LOSS: Uplink Downlink = 10 dBi = N/A, Leaky Feed Antenna MAXIMUM OUTPUT RADIATED: Uplink = 34.96 dBm NUMBER OF CHANNELS: Uplink Downlink = N/A Wideband = N/A Wideband CHANNEL SPACING: Wideband FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110Vac TEST DATE(s): 18 th December 2006 – 4 th January 2007 ORDER No(s): 41051 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO SECTION LEADER RF335 iss02 RU1296/7399 Page 4 of 84 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 50-146701 800MHz Channelised Air interface EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 41051 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s): 18 th December 2006 – 4 th January 2007 TEST REPORT No: RU1296/7399 RF335 iss02 RU1296/7399 Page 5 of 84 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. Uplink Class A [ ] Class B [X] 2. Product class: Downlink Class A [ ] Class B [X] 3. Product Use: Private Land Mobile Repeater 4. Emission Designator: F3E 5. Temperatures: Ambient (Tnom) 22 o C 6. Supply Voltages: Vnom +110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] 8. Channel spacing: Narrowband [ ] Wideband [X] 9. Test Location: TRL Compliance Limited Up Holland [X] Long Green [ ] 10. Modifications made during test program: No modifications were performed. System description: The 50-146701 is a bi-directional amplifier. The uplink is wideband and operates over two frequency ranges, 811.0 MHz – 816.0 MHz and 821.0 MHz – 824.0 MHz. The downlink is wideband and operates over two frequency ranges, 856 .0MHz – 861.0 MHz and 866.0 MHz – 869.0 MHz. RF335 iss02 RU1296/7399 Page 6 of 84 COMPLIANCE TESTS TRANSMITTER TESTS AMPLIFIER GAIN – CONDUCTED – Part 2.1046 – UPLINK Ambient temperature = 22 o C Radio Laboratory Relative humidity = 46% Supply voltage = +110Vac Channel number = See test results Frequency MHz Signal Generator Input Level dBm Input Losses dB Output Losses dB Level at Spectrum Analyser dBm EUT Gain dB Conducted Output Power dBm Gain After 10dB Input Level Increase dB 811.0 -56.5 0.42 42.5 -17.27 82.15 25.23 72.63 813.5 -58.0 0.42 42.5 -17.54 83.38 24.96 74.10 816.0 -57.5 0.42 42.5 -17.56 82.86 24.94 73.37 821.0 -56.0 0.42 42.5 -16.95 81.97 25.55 73.04 822.5 -57.5 0.42 42.5 -17.12 83.30 25.38 74.10 824.0 -56.0 0.42 42.5 -17.64 81.28 24.86 72.05 Notes: 1. The signal generator input was increased by 10dBs and the level of the output signal remeasured. Frequency MHz EUT Gain dB Conducted Output Power dBm Antenna Gain dBi Radiated Output Power dBm 811.0 82.15 25.43 10 35.43 813.5 83.38 24.96 10 34.96 816.0 82.86 24.94 10 34.94…
