Aerial Facilities Limited Two Channel UHF Repeater For Inner Wireless Inc. AFL Works Order: Q115559 AFL product part #: 50-187601 Aerial Facilities Limited Technical Literature 2 Channel UHF Cell Enhancer Handbook Handbook Number: 50-187601HBKM Issue No. A Date 22/05/2007 Page 1 of 51 Two Channel UHF Cell Enhancer User Handbook Handbook Number: 50-187601HBKM Page: 2 of 51 Table of Contents 1. INTRODUCTION ............................................................................................................ 4 Scope and Purpose of Document.................................................................................................... 4 Limitation of Liability Notice ............................................................................................................ 4 2. SAFETY CONSIDERATIONS ........................................................................................ 5 2.1 Earthing of Equipment......................................................................................................... 5 2.2 Electric Shock Hazard..........................................................................................................5 2.3 RF Radiation Hazard ............................................................................................................5 2.4 Chemical Hazard .................................................................................................................. 6 2.5 Laser Safety .......................................................................................................................... 6 2.6 Emergency Contact Numbers ............................................................................................. 6 3. EQUIPMENT OVERVIEW.............................................................................................. 7 3.P Photographs ......................................................................................................................... 7 3.1 Description.......................................................................................................................... 10 3.2 Technical Specification ..................................................................................................... 10 3.3 Mechanical Specification................................................................................................... 11 3.4 Parts List ............................................................................................................................. 12 3.5 System Diagram .................................................................................................................13 4. SUB-UNIT MODULES.................................................................................................. 14 4.1 Bandpass Filter (02-010201).............................................................................................. 14 4.1.1 Description .......................................................................................................................................14 4.1.2 Technical Specification ....................................................................................................................14 4.2 Two-Way Splitter (07-002503)............................................................................................ 15 4.2.1 Description .......................................................................................................................................15 4.2.2 Technical Specification ....................................................................................................................15 4.2.3 Drg. # 07-002501, 2 Way Splitter Assembly Drawing .....................................................................16 4.3 0.25Watt 0- -30dB Switched Attenuator (10-000703)....................................................... 17 4.3.1 General Application..........................................................................................................................17 4.3.2 Switched Attenuators .......................................................................................................................17 4.3.3 Switched Attenuator Assembly Drawing, Drg. # 10-000703 ...........................................................18 4.3.4 0-30dB Attenuator Circuit Diagram, Drg. # 10-000770...................................................................19 4.4 11-007302 & 11-007402 Low Noise Amplifiers................................................................. 20 4.4.1 Description .......................................................................................................................................20 4.4.2 Technical Specification (11-007302)...............................................................................................20 4.4.3 Technical Specification (11-007402)...............................................................................................20 4.4.4 LNA ‘D’ Connector Pin-out details ...................................................................................................21 4.4.5 Drg. # 11-007302, LNA Assembly With Alarm Relay ......................................................................22 4.4.6 Drg. # 11-007370, LNA RF Circuit Diagram....................................................................................23 4.4.7 Drg. # 11-007371, LNA DC Wiring Diagram....................................................................................24 4.4.8 Drg. # 11-003971, LNA DC Circuit Diagram....................................................................................25 4.4.9 Drg. # 11-007402, LNA Assembly With Alarm Relay ......................................................................26 4.4.10 Drg. # 11-007470, LNA RF Circuit Diagram....................................................................................27 4.5 12-021601 5Watt Medium Power Tetra Amplifier.........................................…

Text truncated - open the document above for the full version.

3.5 System Diagram Two Channel UHF Cell Enhancer User Handbook Handbook Number: 50-187601HBKM Page: 13 of 51

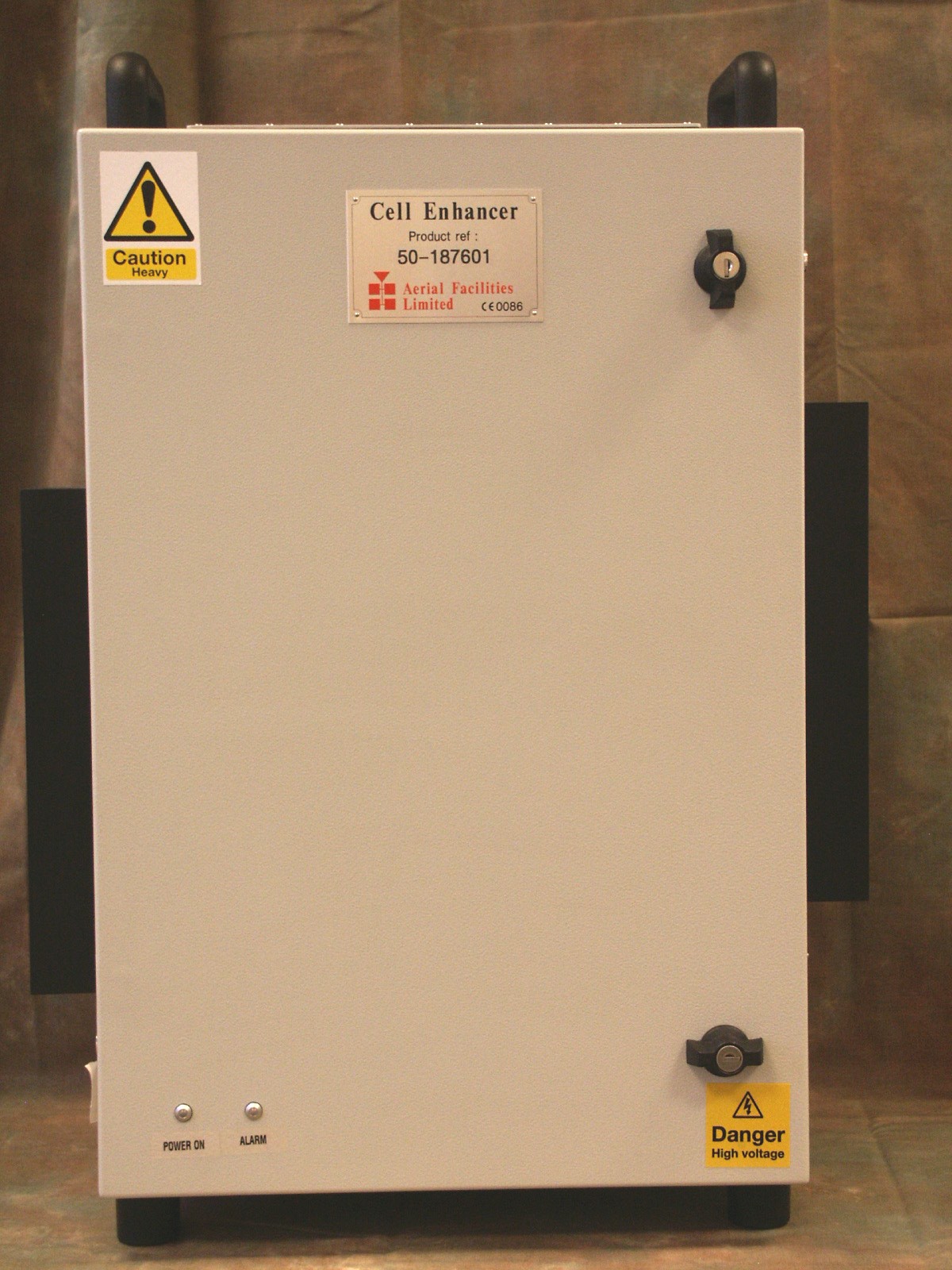

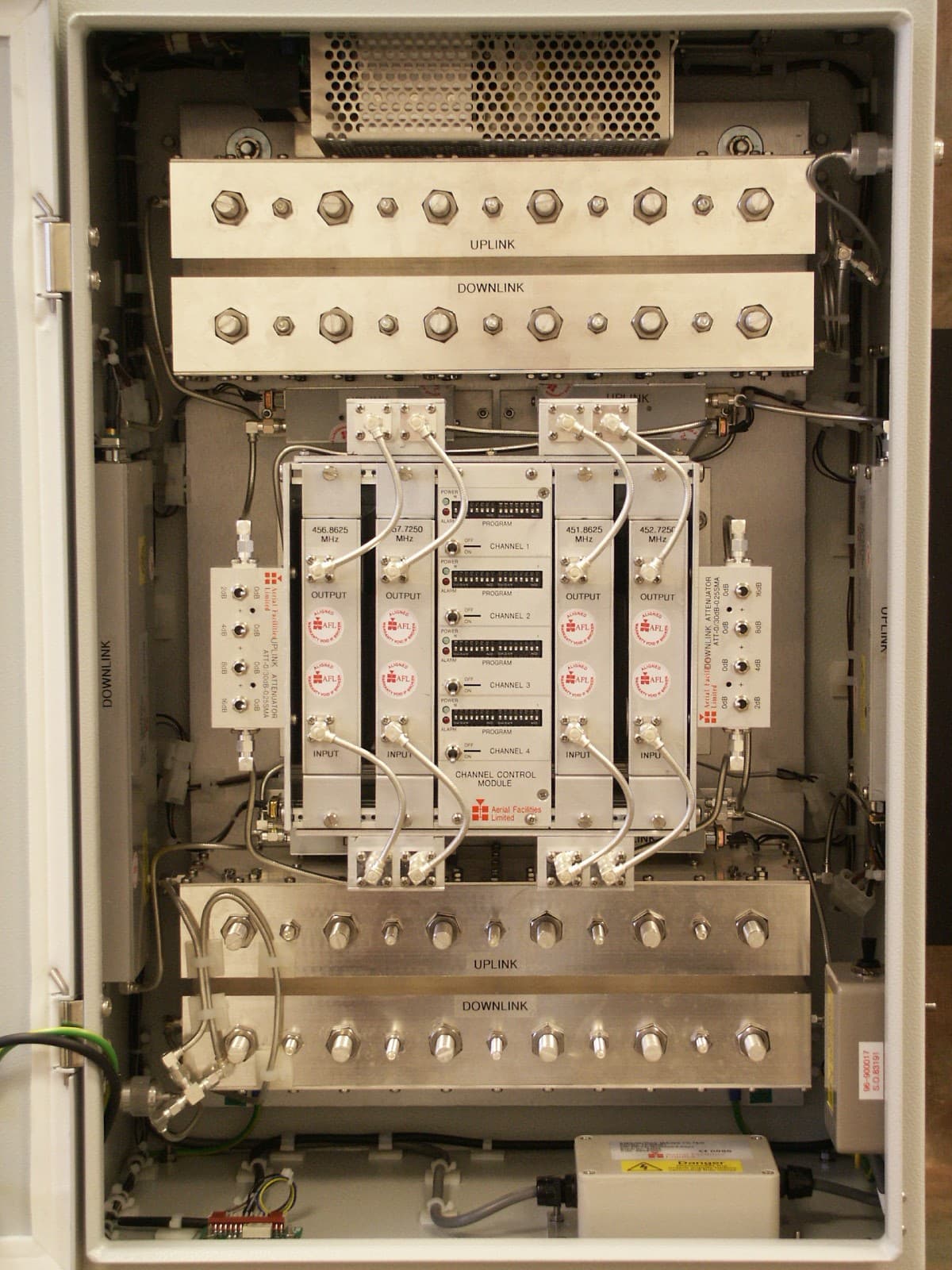

3. EQUIPMENT OVERVIEW 3.P Photographs External front view, door closed Two Channel UHF Cell Enhancer User Handbook Handbook Number: 50-187601HBKM Page: 7 of 51 Photographs continued............... Mains PSU Uplink channel modules Two Channel UHF Cell Enhancer User Handbook Handbook Number: 50-187601HBKM Page: 8 of 51 Internal view, door open Downlink channel modules Downlink power amplifier Uplink switched attenuator Uplink power amplifier Downlink switched attenuator Mains isolation switch

voltage Hig h DANGER Heavy CA UT ION Aerial FacilitiesLim ited England BY DAT E DESCRIPT ION No ISSUE 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCTION ISSUE 30/9/03 DBS PSU ALARM FCC IDENT . LABEL

Module 10-000701 Module 11-7302dc Module 11-7302rf 11-7402dc Module 11-7402rf Module 12-021601 Module 17-002101back 17-002101front Module 80-008901 Channel module (back) Channel Module (front)

REPORT ON THE CERTIFICATION TESTING OF AN AERIAL FACILITIES LIMITED 50-187601 2 CHANNEL UHF CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST REPORT NO: RU1333/7614 COPY NO: 1 ISSUE NO: 1 FCC ID: NEO50-1876 SERIES REPORT ON THE CERTIFICATION TESTING OF AN AERIAL FACILITIES LIMITED 50-187601 2 CHANNEL UHF CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 16 th – 18 th May 2007 TESTED BY: S HODGKINSON APPROVED BY: J CHARTERS RADIO SECTION LEADER DATE: 13 th June 2007 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Limited 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1333/7614 Page 3 of 52 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 4 APPLICANT’S SUMMARY 5 EQUIPMENT TEST CONDITIONS 6 TESTS REQUIRED 6 TEST RESULTS 7-46 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup SYSTEM DIAGRAM B APPLICANT’S SUBMISSION OF DOCUMENTATION LIST C Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RU1333/7614 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO50-1876 SERIES PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 2 Channel UHF cell enhancer EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMUM GAIN: Downlink = 83.45 dB Uplink = 85.07 dB MAXIMUM INPUT: Downlink = -55.35dBm Uplink = -60.35dBm MAXIMUM OUTPUT CONDUCTED: Downlink = 28.10dBm Uplink = 24.72dBm ANTENNA TYPE: Not applicable CHANNEL SPACING: Not applicable NUMBER OF CHANNELS: 2 FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110Vac TEST DATE(s): 16 th – 18 th May 2007 ORDER No(s): 44059 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU TESTED BY: S HODGKINSON APPROVED BY: J CHARTERS RADIO SECTION LEADER RF335 iss02 RU1333/7614 Page 5 of 52 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 50-187601SERIES EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 42437 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s): 16 th – 18 th May 2007 TEST REPORT No: RU1333/7614 RF335 iss02 RU1333/7614 Page 6 of 52 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 2.1046 22.913(a) Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 2.1049 22.917(b) Yes Complies Spurious Emissions at Antenna Terminals 22.917(d) Yes Complies Field Strength of Spurious Emissions 22.917(d) Yes Complies Frequency Stability 2.1055 22.355 N/A(note 1) N/A Transient behaviour N/A N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2. Product Use: Private Land Mobile Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 19 o C 5. Supply Voltages: Vnom 110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [X] 6. Equipment Category: Multi-channel [ ] 7. Channel spacing: Narrowband [ ] Wideband [X] 8. Test Location: TRL Compliance Services Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RF335 iss02 RU1333/7614 Page 7 of 52 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 19 o C Radio Laboratory Relative humidity = 58% Supply voltage = 110Vac Channel Frequency = See test results Frequency MHz Operating Voltage Signal Generator input level dBm Cable & Attenuator Loss dB Level at Spectrum Analyser dBm Gain dB Gain after 10dB input level increase dBm 456.8625 110Vac -60.35 -30.9 -6.31 84.94 75.40 457.7250 110Vac -60.35 -30.9 -6.18 85.07 75.85 Notes: 1. The level of the signal generator takes into consideration the loss from the cable. 1. The signal generator input was increased by 10dB and the level of the output signal remeasured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER Rhode & Schwarz FSU 200034 281 X ATTENUATOR BIRD 8304-300-N N/A 221 X ATTENUATOR BIRD 8304-100-N N/A 222 X CABLE TRL N TYPE N/A 274 X CABLE TRL N TYPE N/A 273 X SIGNAL GENERATOR Hewlet Packard 83630B 3722A00588 340 X Spectrum Analyser TRL281 EUT Signal Generator TRL340 Cable & Attenuator RF335 iss02 RU1333/7614 Page 8 of 52 AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 28 o C Radio Laboratory Relative humidity = 39% Supply voltage = 110Vac The Intermodualation and spurious products were measured with the amplifier operating at maximum gain. A two tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was the maximum input of –50dBm. The cable and attenuator loss between the EUT and the spectrum analyser was -30.9dB. Note: 2 tone test was performed because the unit is a two channel device only. Sweep data is shown on the next page: TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL N…
