NEO55-1248SERIES55-124801 UHF Signal Booster

Tetrapol Band Selective Repeater User Handbook Handbook Nō.-55-124801HBKM Issue No:-1 Date:-22/01/2004 Page:- 1 of 32 Tetrapol Band Selective Repeater User Handbook For Coverage Solutions Corporation AFL Works Order Nō.:Q110695 AFL product part Nō.:55-124801 Tetrapol Band Selective Repeater User Handbook Handbook Nō.-55-124801HBKM Issue No:-1 Date:-22/01/2004 Page:- 2 of 32 Table of Contents AMENDMENT LIST RECORD SHEET....................................................................................................4 INTRODUCTION.........................................................................................................................................5 Scope ........................................................................................................................................................................... 5 Purpose ....................................................................................................................................................................... 5 Glossary of Terms...................................................................................................................................................... 6 Key to AFL RF Module Drawing Symbols ............................................................................................................. 7 1. SAFETY CONSIDERATIONS .........................................................................................................8 1.1 RF Radiation Hazard ................................................................................................................................... 8 1.2 Chemical Hazard .......................................................................................................................................... 9 1.3 Emergency Contact Numbers...................................................................................................................... 9 2. OVERVIEW/SYSTEM DESCRIPTION .......................................................................................10 3. SPECIFICATION ............................................................................................................................11 3.1 Parts Lists.................................................................................................................................................... 11 3.2 Technical Specification............................................................................................................................... 12 3.3 Mechanical Specification............................................................................................................................ 13 4. SYSTEM DRAWINGS ....................................................................................................................14 4.1 System Diagram .......................................................................................................................................... 14 4.2 Generic Wall-Mount Case Outline Drawing............................................................................................ 15 5. SUB-UNIT MODULES....................................................................................................................16 5.1 Bandpass Filters & Duplexer (02-007306 & 16-041401) ......................................................................... 16 5.1.1 Description ............................................................................................................................................... 16 5.1.2 Technical Specification (02-007306)........................................................................................................ 16 5.1.3 Technical Specification (16-041401)........................................................................................................ 16 5.2 ¼Watt 0- -30dB Switched Attenuator (10-000701)..................................................................................17 5.2.1 General Application ................................................................................................................................. 17 5.2.2 Switched Attenuators ................................................................................................................................ 17 5.3 Low Noise Amplifiers (11-007302 & 11-007402)...................................................................................... 17 5.3.1 Description ............................................................................................................................................... 17 5.3.2 Technical Specification, 11-007302 ......................................................................................................... 17 5.3.3 Technical Specification, 11-007402 ......................................................................................................... 18 5.4 1Watt Low Power Amplifier (11-007901)................................................................................................. 18 5.4.1 Description ............................................................................................................................................... 18 5.4.2 Technical Specifications ........................................................................................................................... 18 5.5 10W Power Amplifier (12-016302)............................................................................................................ 19 5.5.1 Description ............................................................................................................................................... 19 5.5.2 Technical Specification............................................................................................................................. 19 5.6 Dual DC/DC Converter (13-001803)......................................................................................................…

Text truncated - open the document above for the full version.

4.1 System Diagram

voltage Hig h DANGER Heavy CA UT ION Aerial FacilitiesLim ited England BY DAT E DESCRIPT ION No ISSUE 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCTION ISSUE 30/9/03 DBS PSU ALARM FCC IDENT . LABEL

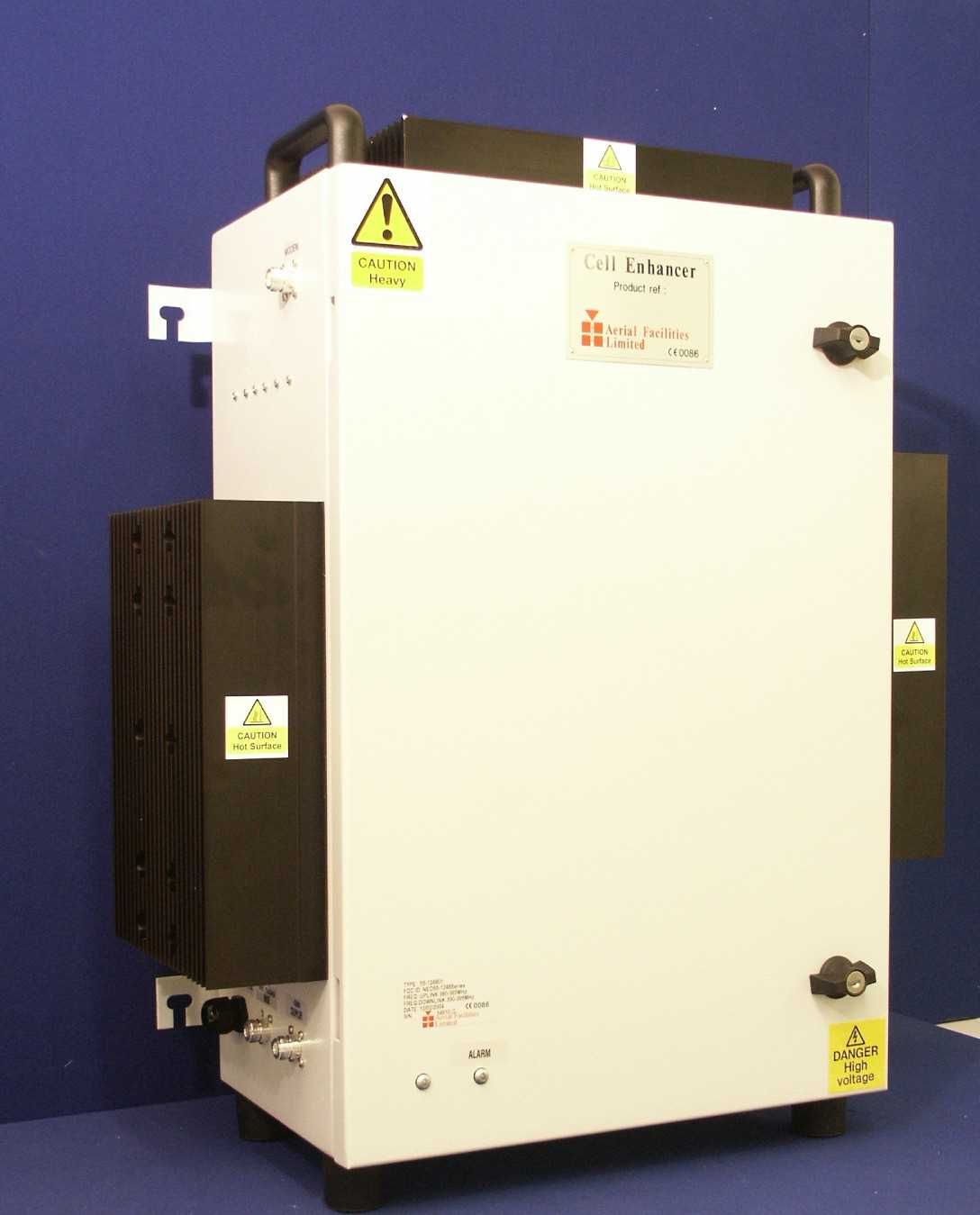

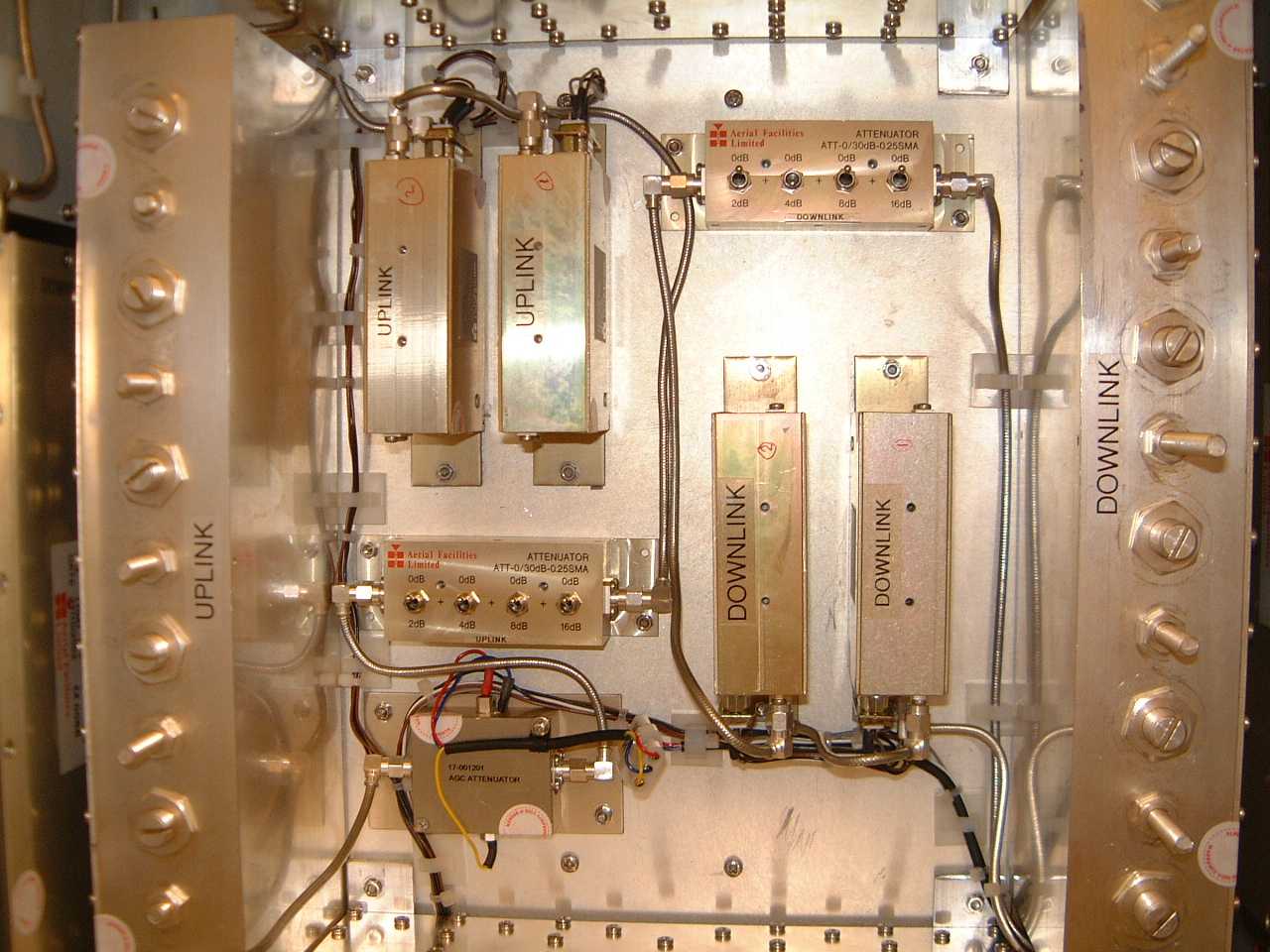

OVERVIEW/SYSTEM DESCRIPTION The AFL Band Selective Cell Enhancer is a 2-way on-band repeater. Various models are available to cover frequency bands from 50MHz to 3000MHz with power levels up to 100Watts. Its main sphere of applications is in urban areas where the topology is such that shadows occur in the propagation pattern (for example within large buildings, conference centres and tunnels, etc.) The Band Selective Cell Enhancer is a 2-port device for direct connection to two antennas, usually a highly directional Yagi or similar aligned towards the base (donor) site and an omni- directional or leaky feeder antenna to cover the mobiles. The frequency bands that are passed by the Cell Enhancer are set as per the specific customer requirements. AFL manufacture a wide range of Cell Enhancers, configured for each customer's specific requirements. Two basic physical variants are available, a rack mounted version to fit in a standard 19" rack and an environmentally sealed wall mounted version which requires no further enclosure. This system consists of a bi-directional band selective, cell enhancer operating in the 390MHz band. It is housed in a wall-mounted environmentally protected (IP65) case powered from an externally supplied 24Volt DC source. Alarms are provided for each amplifier as a summary, volt-free relay contact pair for easy integration into an existing alarm system. A supply isolator switch is fitted inside the unit and there are D.C. and Alarm on indicators on the outside of the door. An automatic gain control system is employed in the uplink path in an attempt to negate the overloading effect from mobiles operated close the antenna.

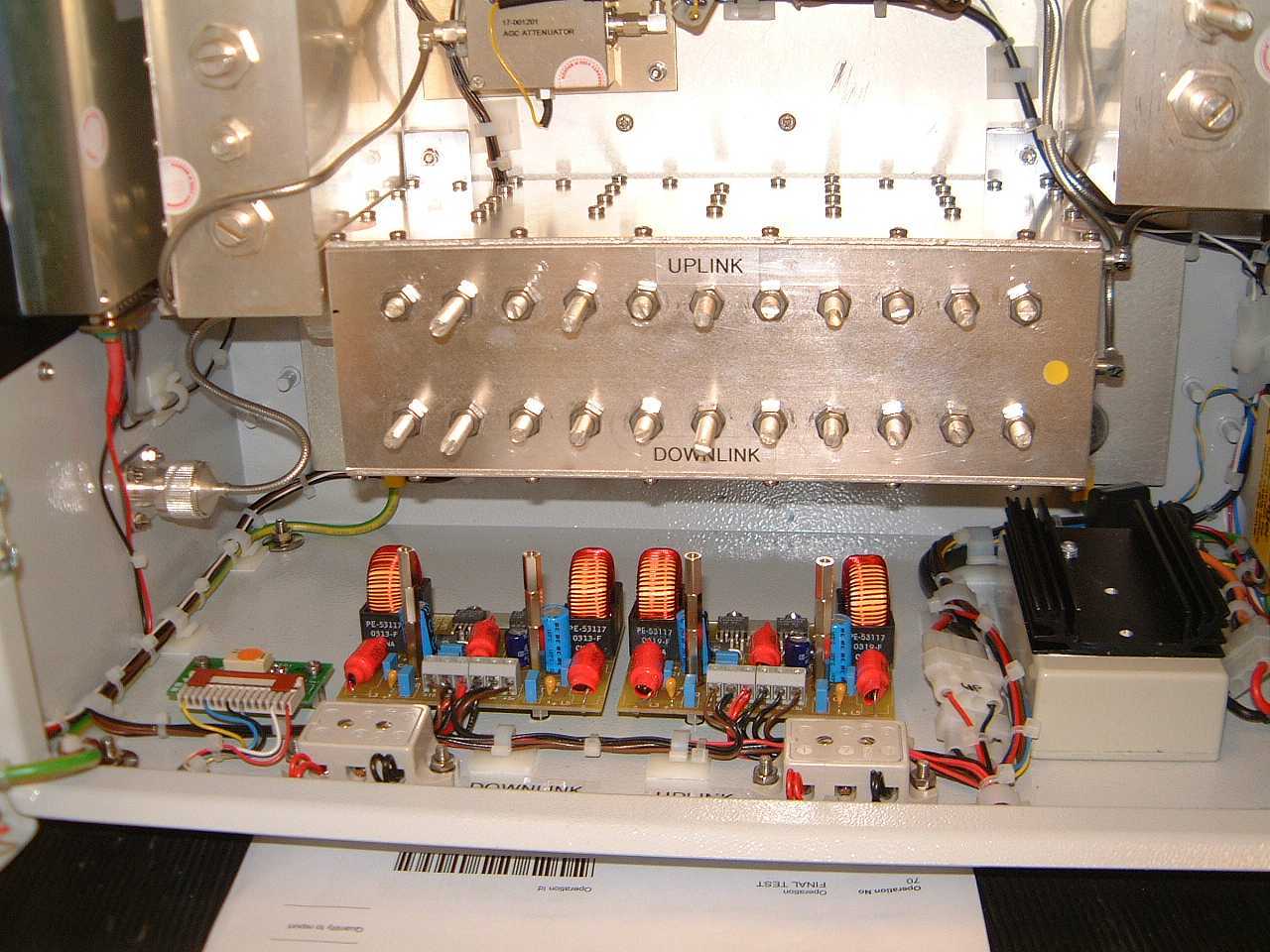

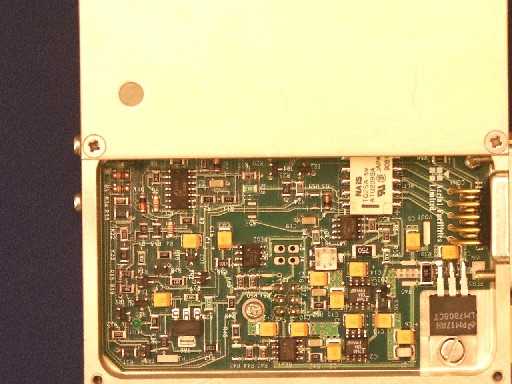

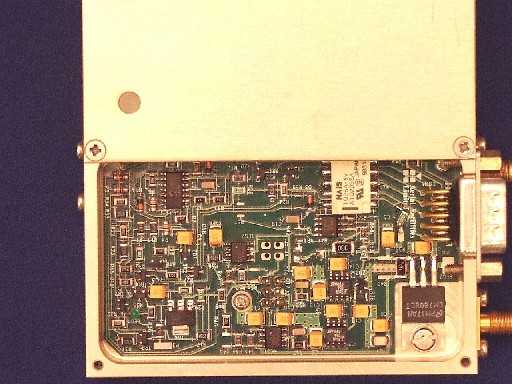

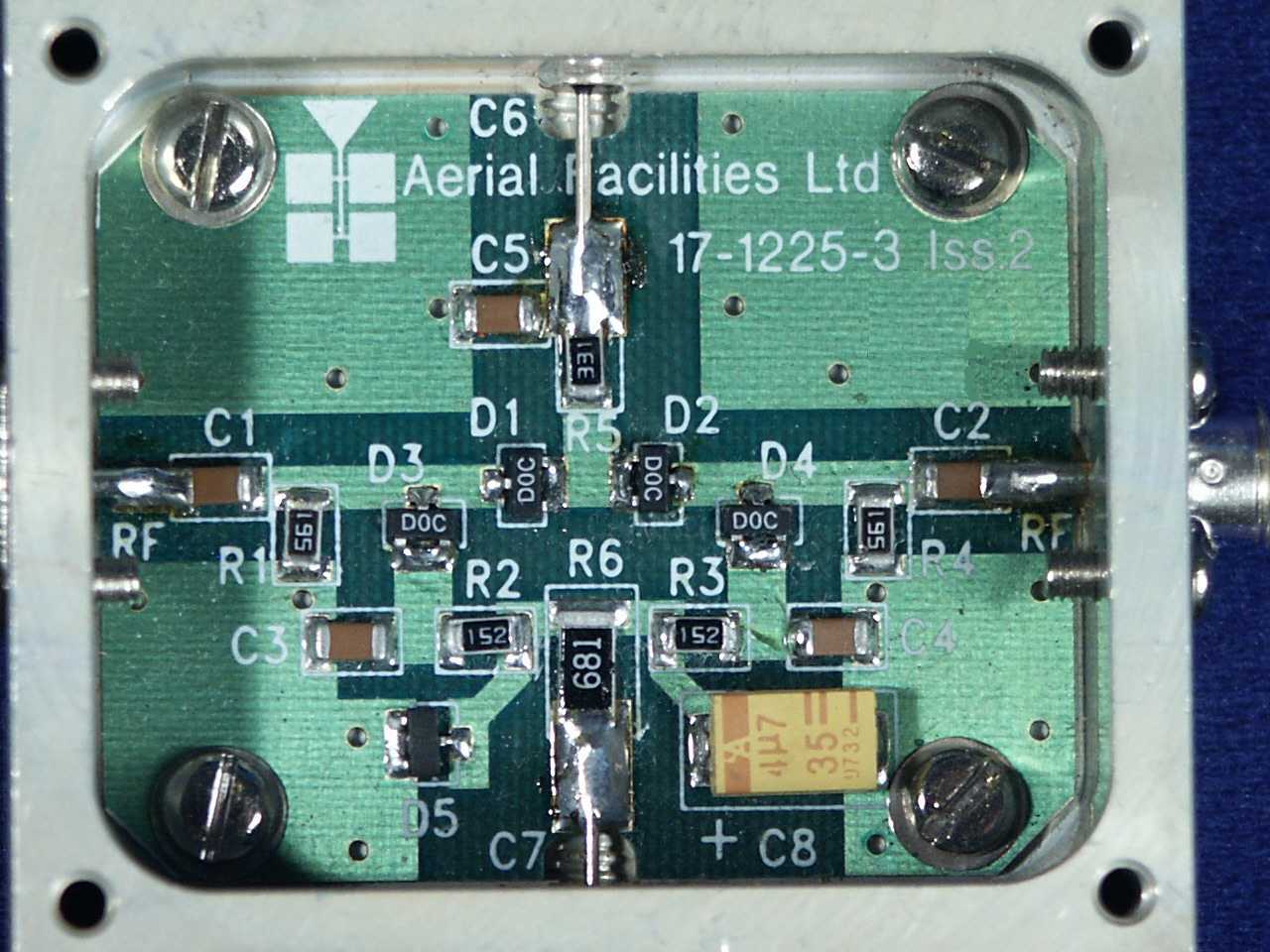

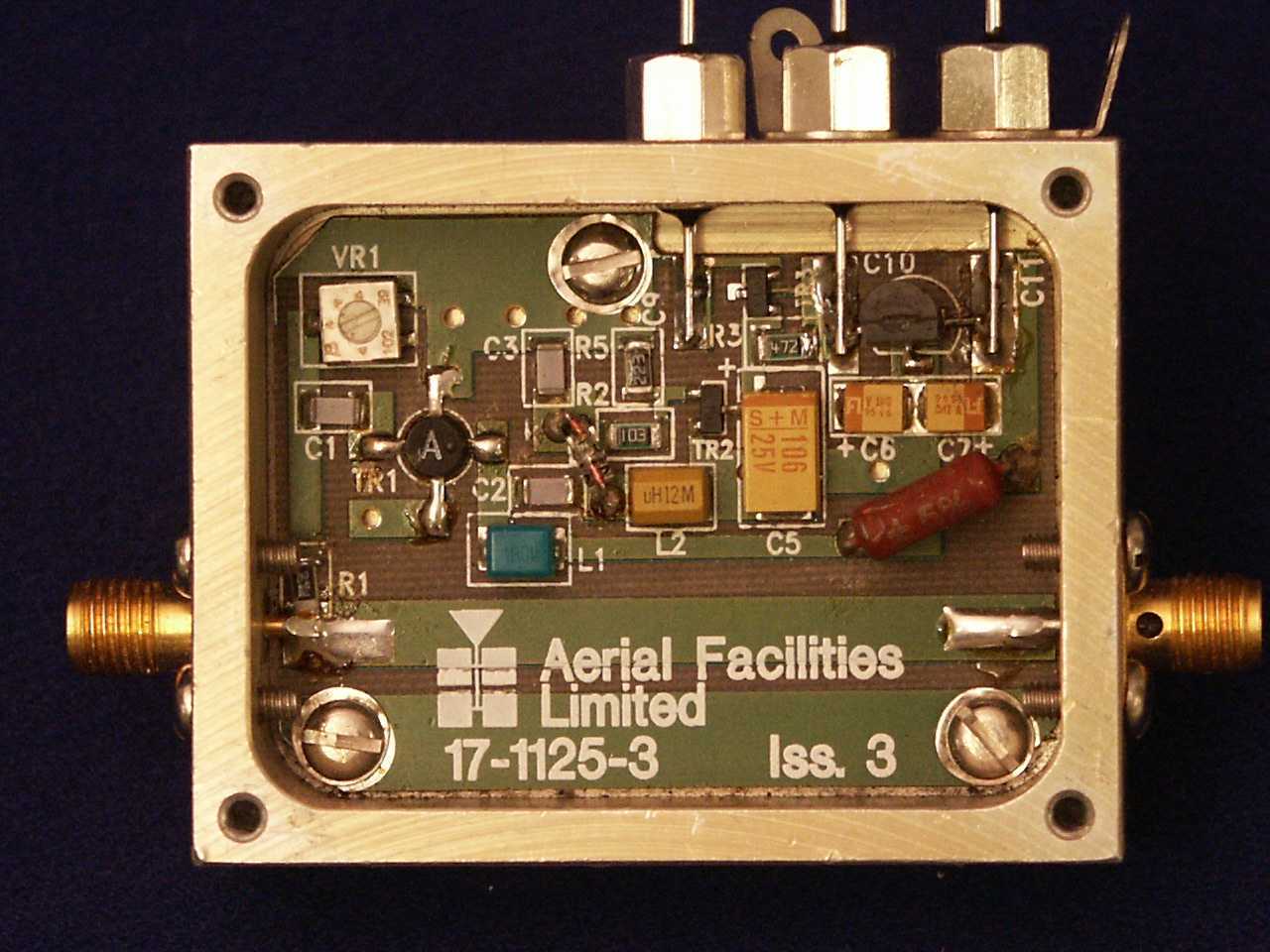

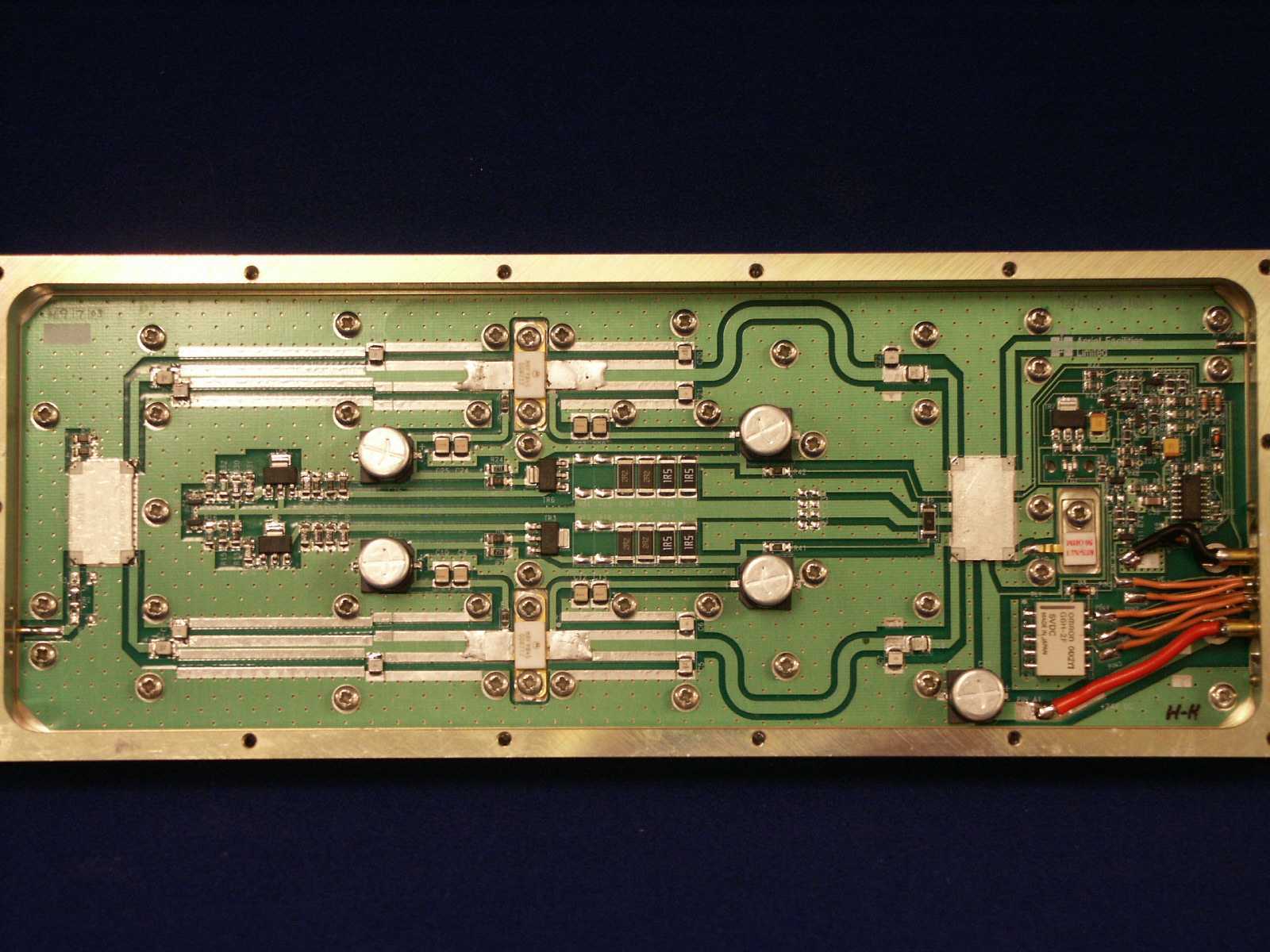

Technical description Bandpass Filters & Duplexer (02-007306 & 16-041401) 1.1 Description The bandpass filters are multi-section designs with a bandwidth dependent upon the passband frequencies, (both tuned to customer requirements). The response shape is basically Chebyshev with a passband design ripple of 0.1dB. The filters are of combline design, and are carefully aligned during manufacture in order to optimise the insertion loss, VSWR and intermodulation characteristics of the unit. The tuned elements are silver-plated to reduce surface ohmic losses and maintain a good VSWR figure and 50Ω load at the input and output ports. No adjustments should be attempted without full network sweep analysis facilities to monitor both insertion loss and VSWR simultaneously. 1.2 Technical Specification (02-007306) PARAMETER SPECIFICATION Response type: Chebyshev Frequency range: 350 – 500MHz (tuned to spec.) Bandwidth: >5.0 MHz (tuned to spec.) Number of sections: 5 Insertion loss: 1.2 dB VSWR: better than 1.2:1 Connectors: SMA Power handling: 100W max operation: -10°C to +55°C Temperature range storage: -40°C to +70°C Weight: 3 kg Size: 266 x 143 x 39.5mm 1.3 Technical Specification (16-041401) RX Pass Band: 380-385MHz TX Pass Band: 390-395MHz Bandwidth: 5 MHz Channel Separation: 5 MHz Insertion Loss: < 1.8 dB Rejection (between channels) >70 dB Rejection at crossover: >50 dB (+2.5MHz low band -2.5MHz high band) Return Loss: > 20 dB (at all ports) Power Handling (CW): 20W SMA (Tx/Rx ports) Connectors: N type (Antenna ports) Weight: <6kg 2 ¼Watt 0- -30dB Switched Attenuator (10-000701) 2.1 General Application In many practical applications for Cell Enhancers etc., the gain in each path is found to be excessive. Therefore, provision is made within the unit for the setting of attenuation in each path, to reduce the gain. 2.2 Switched Attenuators The AFL switched attenuators are available in two different types; 0 – 30dB in 2 dB steps (as in this case), or 0 – 15dB in 1 dB steps. The attenuation is simply set using the four miniature toggle switches on the top of each unit. Each switch is clearly marked with the attenuation it provides, and the total attenuation in line is the sum of the values switched in. They are designed to maintain an accurate 50Ω impedance over their operating frequency at both input and output. 3 Low Noise Amplifiers (11-007302 & 11-007402) 3.1 Description The low noise amplifiers used are double stage solid-state low-noise amplifiers. Class A circuitry is used in the units to ensure excellent linearity over a very wide dynamic range. The two active devices are very moderately rated to provide a long trouble-free working life. There are no adjustments on these amplifies, and in the unlikely event of failure then the entire amplifier should be replaced. 3.2 Technical Specification, 11-007302 PARAMETER SPECIFICATION Frequency range: 380-500MHz Bandwidth: <140MHz Gain: 20-22dB 1dB Compression Point: +23.5dB (typical) 3rd order intercept: +36dB (typical) Input/Output return loss: >20dB Noise figure: <1.3dB Connectors: SMA female Supply: 200-230mA @ 24V DC operational: -10°C to +55°C Temperature range: storage: -30°C to +70°C Weight: <300gm Size: 90 x 55 x 30.2 (case only) 3.3 Technical Specification, 11-007402 PARAMETER SPECIFICATION Frequency range: 380-500MHz Bandwidth: <140MHz Gain: 30-32dB 1dB Compression Point: +22dBm (typical) 3rd order intercept: +34-35dBm (typical) Input/Output return loss: >20dB Noise figure: <1.3dB Connectors: SMA female Supply: 300-330mA @ 24V DC Weight: <300gm Size: 90 x 55 x 30.2 (case only) operation: -10°C to +55°C Temperature range: storage: -30°C to +70°C 4 1Watt Low Power Amplifier (11-007901) 4.1 Description This amplifier is designed as a 1.0 W driver from 380 MHz to 470 MHz for the 10W output amplifier. It is a 2 stage amplifier where each stage is in balanced configuration. It demonstrates very high linearity and good input/output VSWR. There is a Current Fault Alarm Function, which indicates failure of each one of the RF transistors by various alarm output options. The amplifier is housed in an aluminium case (Alocrom 1200 finish) with SMA connectors for the RF input/output and a 9way D-type connector for DC and alarm outputs. 4.2 Technical Specifications PARAMETER SPECIFICATION Frequency range: 380-470MHz Small signal gain: 37.5dB Gain flatness: ±0.5dB Gain vs. temperature: 1.5dB operational: -10°C to +55°C Temperature range: storage: -40°C to +70°C Input/output return loss: 18dB Maximum output power: 30.4dBm (@ 1dB comp. point) OIP3: 43dBm Supply voltage: 10-15V DC Current consumption: 780mA (typical) Noise Figure: <1.75dB 5 10W Power Amplifier (12-016302) 5.1 Description This amplifier is a Class A 10W power amplifier from 380MHz to 470MHz in a 1 stage balanced configuration. It demonstrates a very high linearity and a very good input/output return loss (RL). It has a built-in Current Fault Alarm Function. Its housing is an aluminium case (Alocrom 1200 finish) with SMA connectors for the RF input/output and a D-Type connector for the power supply and the Current Fault Alarm Function. 5.2 Technical Specification PARAMETER SPECIFICATION Frequency range: 380-470MHz Small signal gain: 23dB Gain flatness: ±1.7dB I/O Return loss: >18dB 1dB compression point: +40dBm OIP3: +52dBm Supply voltage: 24V DC Supply current: 2.6Amps (Typical) operational: -10°C to +55°C Temperature range storage: -30°C to +70°C Weight: <2kg (no heatsink) 6 Dual DC/DC Converter (13-001803) 6.1 Description This unit is employed where it is necessary to derive two fixed voltage power supply rails from some higher voltage. Typically it is used to derive 5, 8, 12 or 15V from a 24V input. The circuit is based upon a pair of LM257 series variable voltage regulators (LM2576, 12 & 15V & LM2575, 5V), which are each capable of supplying an absolute maximum of 1.5A output current. Note that at full output current, the dissipation of the device must remain within design limits, bearin…

Text truncated - open the document above for the full version.

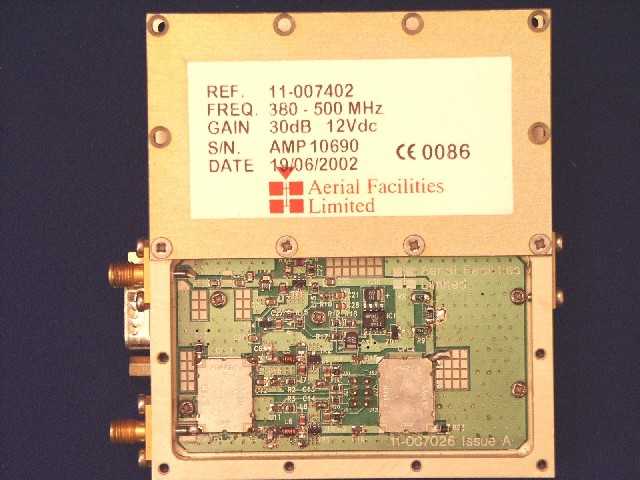

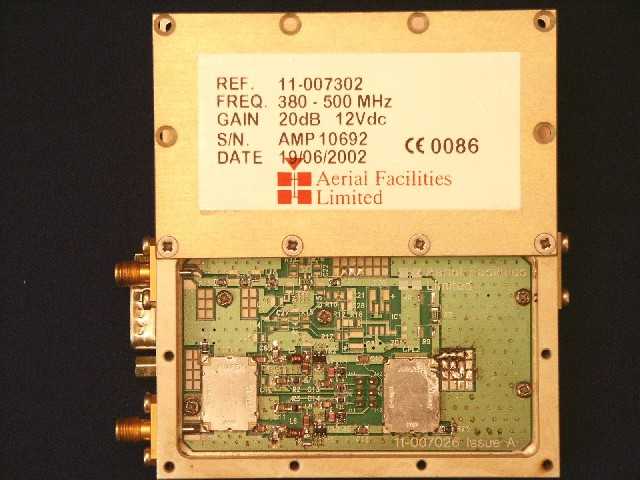

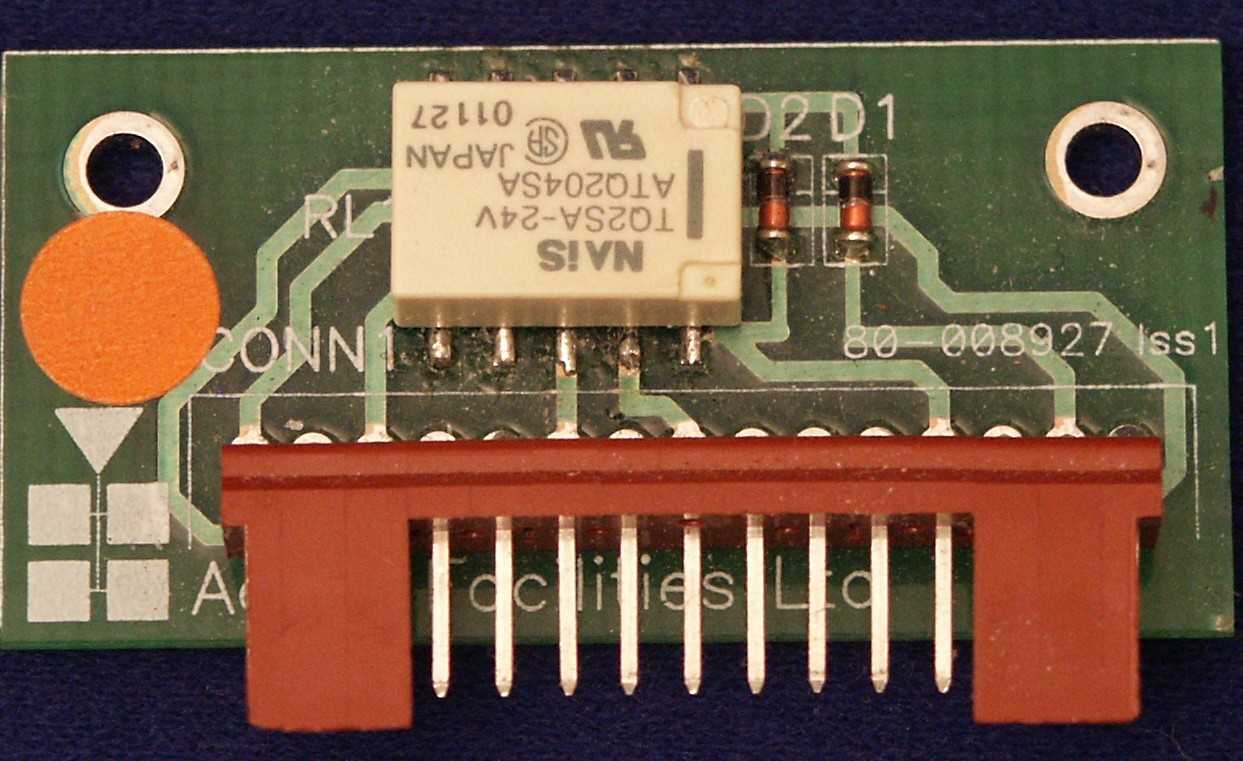

Parts Lists AFL Part Nō. Part Description Qty. 02-007306 SDF C/L5P 380MHzVAR. >5MHz TOP SMA 2 10-000701 1/4W0-30dB SWITCHED ATTENUATOR 2 11-007302 LNA. 380-500MHz 20dB (C/W RELAY) GA 2 11-007401 LNA. 380-500MHz 30dB GA 2 11-007901 AMPLIFIER TETRA 1W 37dB GAIN ASS 2 12-016302 PA 380-470MHz 10W CLASS A 2 13-001803 DUAL DC/DC CONVERTER 24V-12V 1A 2 16-041401 TETRA DUPLEXER SMA/N (ant.) CONN 2 17-000126 CELL ENHANCER LABEL 6 DIGIT 1 17-001101 CELL ENHANCER AGC DETECTOR/AMP ASS 2 17-001201 C/E AGC UNIT ATTENUATOR ASSY 2 17-001520 ENCLOSURE 620 x 420 x 250 (2 H/S) ALU 1 17-001522 BASE PLATE 560 x 345mm 17-001520&9020 1 17-004730 ATTENUATOR MOUNTING 1 55-019049 02-7302 FILTER MOUNTING BRACKET 2 80-008902 24V RELAY PCB ASSEMBLY 1 80-031820 20W PA HEATSINK (NEEDS 17-000526) 2 90-200004 DC I/P LEADS, FREE SOCKET 1 90-400006 ALARM LEADS 1 91-030002 N ADAPTOR PANEL FEMALE:FEMALE 2 91-500013 PWR 2POLE PNL PLUG SEALED IP68 1 91-500015 PWR CON CAP SEALED with INT. THREAD 2 91-500016 PWR 6POLE PNL PLUG SEALED IP68 1 91-600001 'D'TYPE 9 WAY PLUG S/B TERM 2 91-600014 'D' 9 WAY SOCKET S/B (NON FILTERED) 6 96-700034 LED RED 5mm IP67 INTEGRAL RES. 24V 1 96-700035 LED GREEN 5mm IP67 INTEGRAL RES 24V 1 96-920011 PROXIMITY SWITCH 1 96-920012 PROXIMITY SWITCH MAGNET 1 97-300028 DC BOX 24V ATO TYPE 2 ASSEMBLY 1 97-400010 BLACK PLASTIC HANDLE 37311 2 97-900003 RUBBER FOOT 1 1:2' DIA. 4 99-200017 CAUTION HEAVY LABEL 75 x 55mm 1

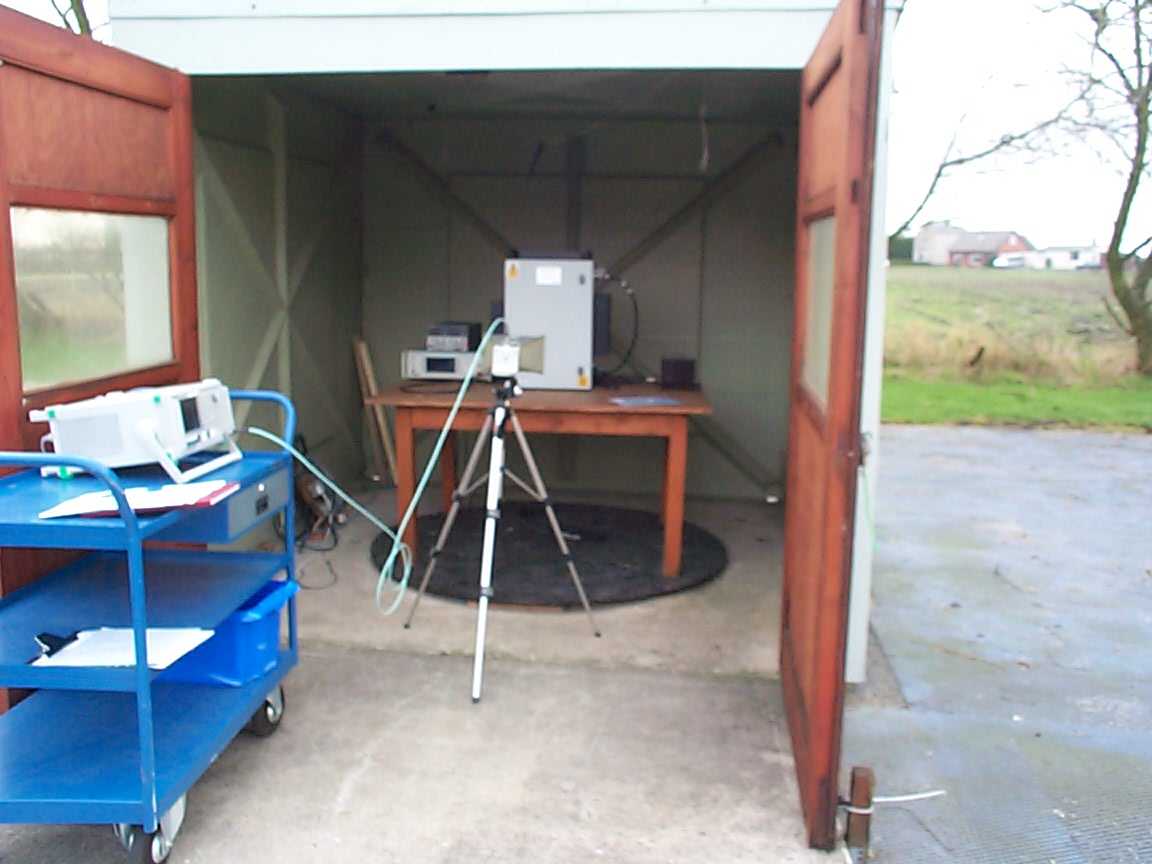

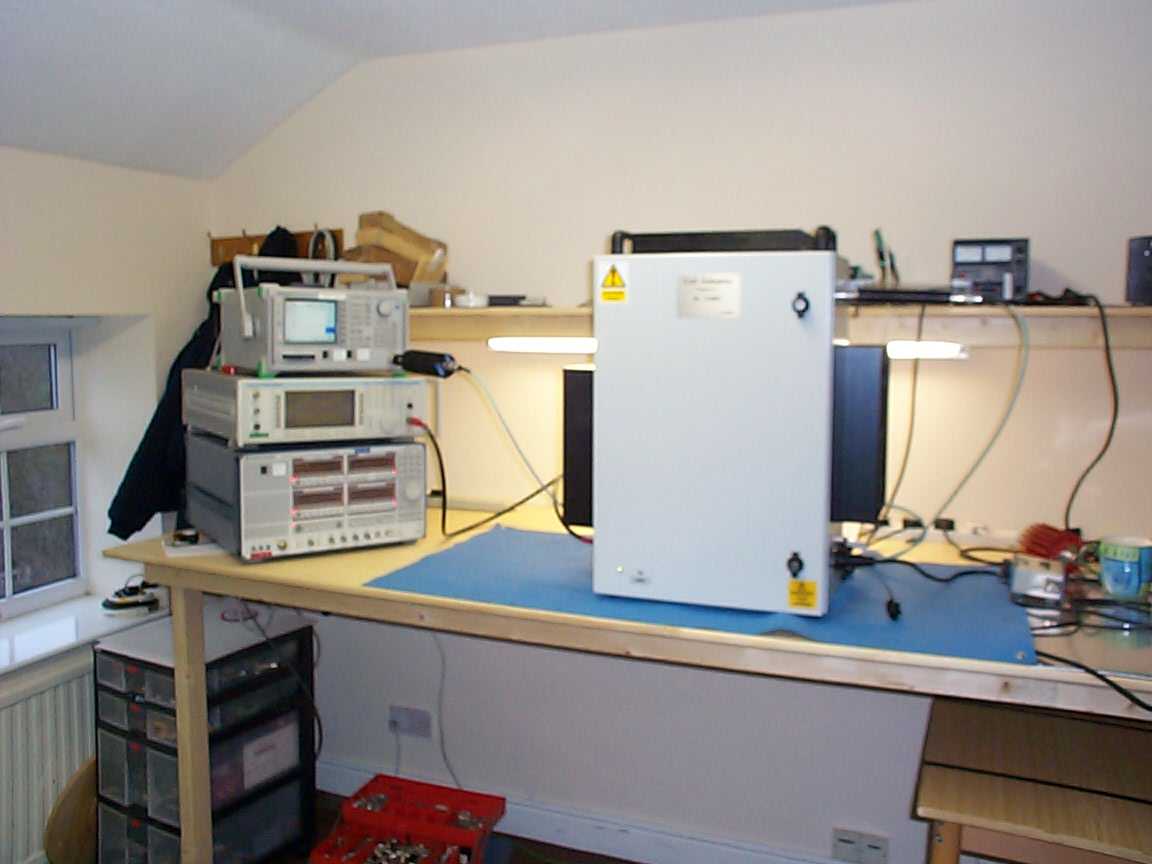

TRL C OMPLIANCE S ERVICES L TD EMC D IVISION L ONG G REEN F ORTHAMPTON G LOUCESTER GL19 4QH U NITED K INGDOM T ELEPHONE +44 (0)1684 833818 F AX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1099/5314 COPY NO: 2 ISSUE NO: 1 FCC ID: NEO55-1248Series REPORT ON THE CERTIFICATION TESTING OF A Aerial Facilities Limited Cell Enhancer WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER TEST DATE: 5 th – 24 th February 2004 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 3 rd March 2003 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Services Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02 RU1099/5314 Page 2 of 70 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-65 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RF335 iss02 RU1099/5314 Page 3 of 70 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO55-1248Series PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMIUM GAIN +92.3 dBm (up link) MAXIMUM INPUT -55.4 dBm (down link) MAXIMUM OUTPUT +30.0 dBm ANTENNA TYPE: Not applicable CHANNEL SPACING: Not Applicable NUMBER OF CHANNELS: Channel No. Uplink 380 – 395 MHz Downlink 390 – 395 MHz FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +24Vdc TEST DATE(s): 5 th – 24 th February 2004 ORDER No(s): 23174 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Latimer Park, Latimer Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RF335 iss02 RU1099/5314 Page 4 of 70 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Cell Enhancer EQUIPMENT TYPE: 60-055903 PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 23174 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Latimer Park, Latimer Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494777000 FAX: +44 (0)1494777002 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 5 th – 24 th February TEST REPORT No: RU1099/5314 RF335 iss02 RU1099/5314 Page 5 of 70 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2. Product Use: Private Land Mobile Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 21 o C 5. Supply Voltages: Vnom +24 Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [ ] Wideband [X] 8. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RF335 iss02 RU1099/5314 Page 6 of 70 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 21 o C Radio Laboratory Relative humidity = 53% Supply voltage = +24 Vdc Channel number = See test results Frequency MHz Signal Generator input level dBm Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Gain after 20dB input level increase dBm 380.1 -61.9 29.85 0.36 92.11 92.11 382.5 -62.6 29.85 -0.08 92.39 92.39 384.9 -61.4 29.85 -0.052 91.198 91.198 Notes: 1. The level of the signal generator takes into consideration the loss from the cable. 2. The signal generator output was increased by 20dBs and the level of the output signal remeasured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8308-200 N/A 103 X ATTENUATOR BIRD 8308-100 N/A 112 X CABLE ROSENBERGER MICRO COAX N/A 279 X SIGNAL GENERATOR MARCON 2042 119388/080 179 X Spectrum Analyser TRL479 Attenuator TRL103 TRL112 Cable TRL279 EUT Signal Generator TRL179 RF335 iss02 RU1099/5314 Page 7 of 70 29.85dB AMPIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 21 o C Radio Laboratory Relative humidity = 53% Supply voltage = +24 Vdc The Intermodulation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was the maximum input of –61.4dBm. The cable and attenuator loss between the EUT and the spectrum analyser was 29.85dB. Sweep data is shown on the next page: A B C D CMTA TRL 05 380.1 MHz Sig Gen TRL 176 382.5 MHz Sig Gen 384.9 MHz 10dB 10dB 10dB 6dB EUT Combiner TRL170 Analyser TRL479 24Vdc RF335 iss02 RU1…
