NEO55-1515SERIES55-151-501 Cell Enhancer

800MHz Tetra Repeater User Handbook Handbook Nō.-55-151501HBK Issue No:-A Date:-22/04/2005 Page:- 1 of 31 800MHz Tetra BDA User Handbook For AFL Inc. AFL Works Order Nō.: Q112081 AFL product part Nō.: 55-151501 800MHz Tetra Repeater User Handbook Handbook Nō.-55-151501HBK Issue No:-A Date:-22/04/2005 Page:- 2 of 31 Table of Contents AMENDMENT LIST RECORD SHEET ...................................................................................................4 INTRODUCTION.........................................................................................................................................5 Scope ........................................................................................................................................................................... 5 Purpose ....................................................................................................................................................................... 5 Glossary of Terms...................................................................................................................................................... 6 Key to AFL RF Module Drawing Symbols ............................................................................................................. 7 1. SAFETY CONSIDERATIONS .........................................................................................................8 1.1 Earthing of Equipment ................................................................................................................................ 8 1.2 Electric Shock Hazard.................................................................................................................................. 8 1.3 RF Radiation Hazard ................................................................................................................................... 9 1.4 Chemical Hazard ........................................................................................................................................ 10 1.5 Emergency Contact Numbers.................................................................................................................... 10 2. SYSTEM OVERVIEW ....................................................................................................................11 3. TETRA BI-DIRECTIONAL AMPLIFIER ...................................................................................12 3.P System Photographs ................................................................................................................................... 12 3.1 Description .................................................................................................................................................. 13 3.2 Technical Specification............................................................................................................................... 13 3.3 Mechanical Specification............................................................................................................................ 14 3.4 System Drawings......................................................................................................................................... 15 3.5 Parts Lists .................................................................................................................................................... 16 4. SUB-UNIT MODULES....................................................................................................................17 4.1 Bandpass Filters (02-007206)..................................................................................................................... 17 4.1.1 Description ............................................................................................................................................... 17 4.1.2 Technical Specification............................................................................................................................. 17 4.2 ¼Watt 0- -30dB Switched Attenuator (10-000701)..................................................................................18 4.2.1 General Application ................................................................................................................................. 18 4.2.2 Switched Attenuators ................................................................................................................................ 18 4.3 Low Noise Amplifier (11-006702).............................................................................................................. 19 4.3.1 Description ............................................................................................................................................... 19 4.3.2 Technical Specification............................................................................................................................. 19 4.3.3 LNA ‘D’ Connector Pin-out details .......................................................................................................... 19 4.4 20W Power Amplifier (12-018002)............................................................................................................ 20 4.4.1 Description ............................................................................................................................................... 20 4.4.2 Technical Specification............................................................................................................................. 20 4.4.3 PA 7-Way Connector Pin-outs.................................................................................................................. 20 4.5 5W Power Amplifier (12-018601).............................................................................................................. 21 4.5.1 Description ..............................................................................................…

Text truncated - open the document above for the full version.

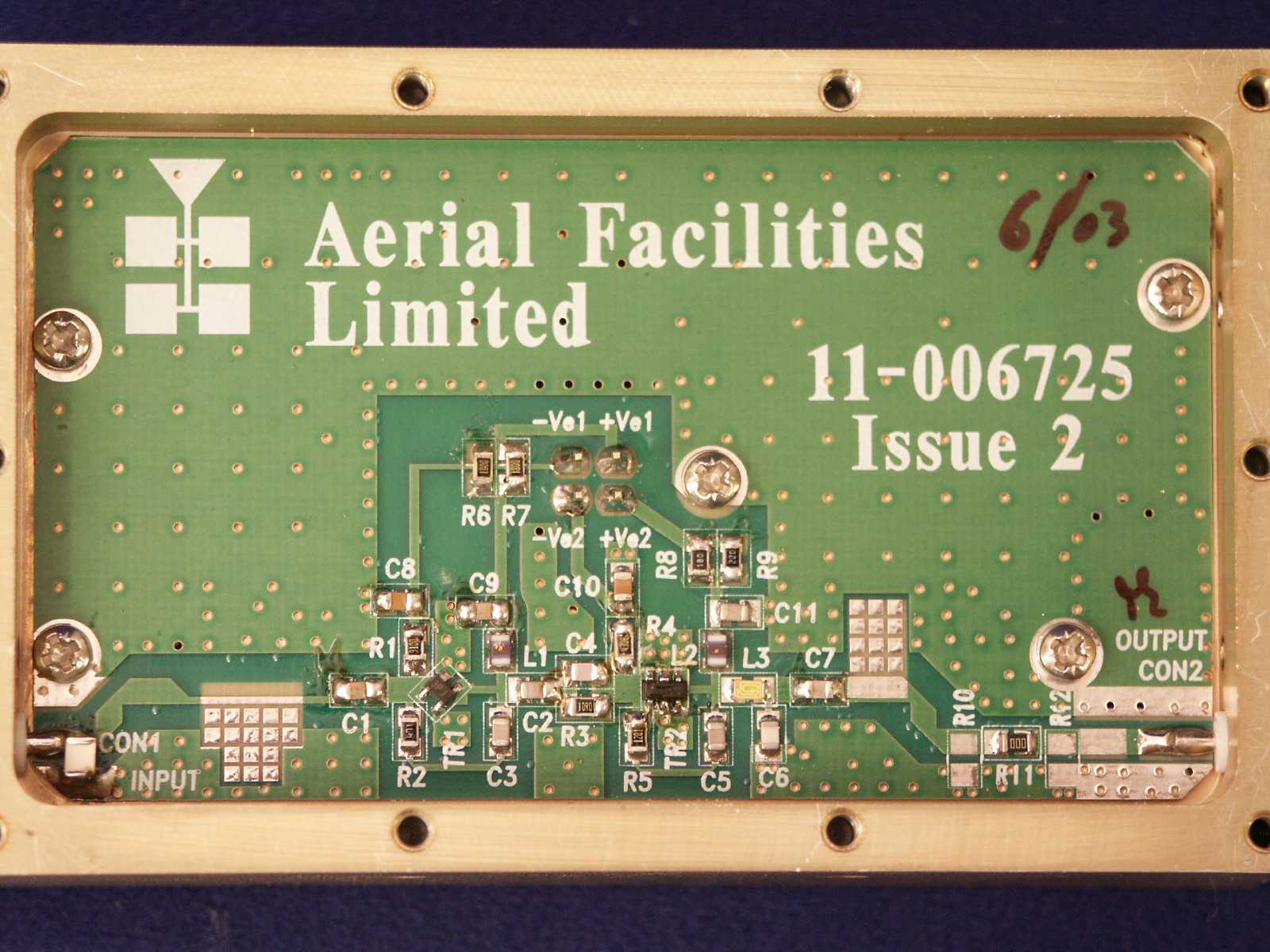

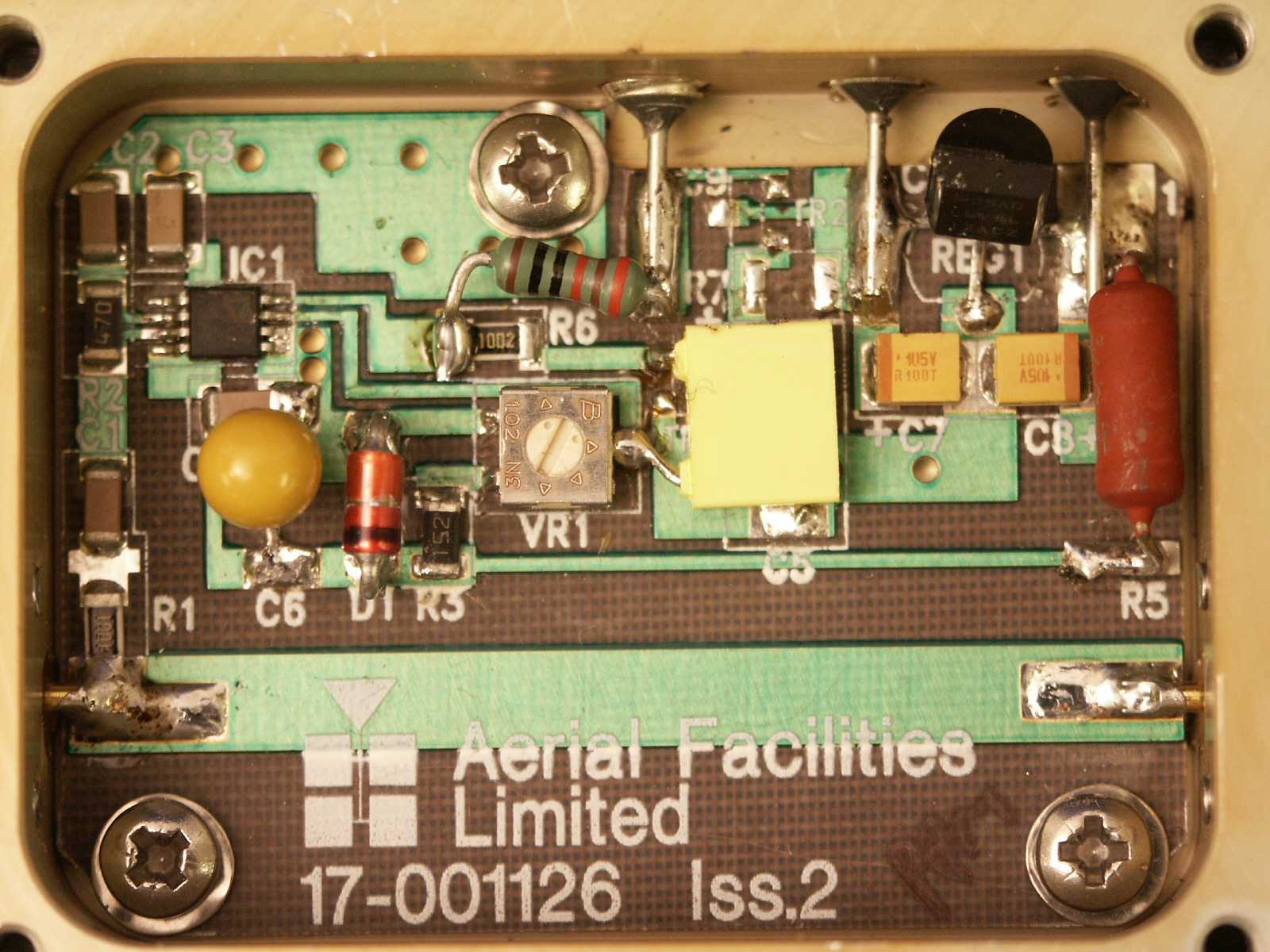

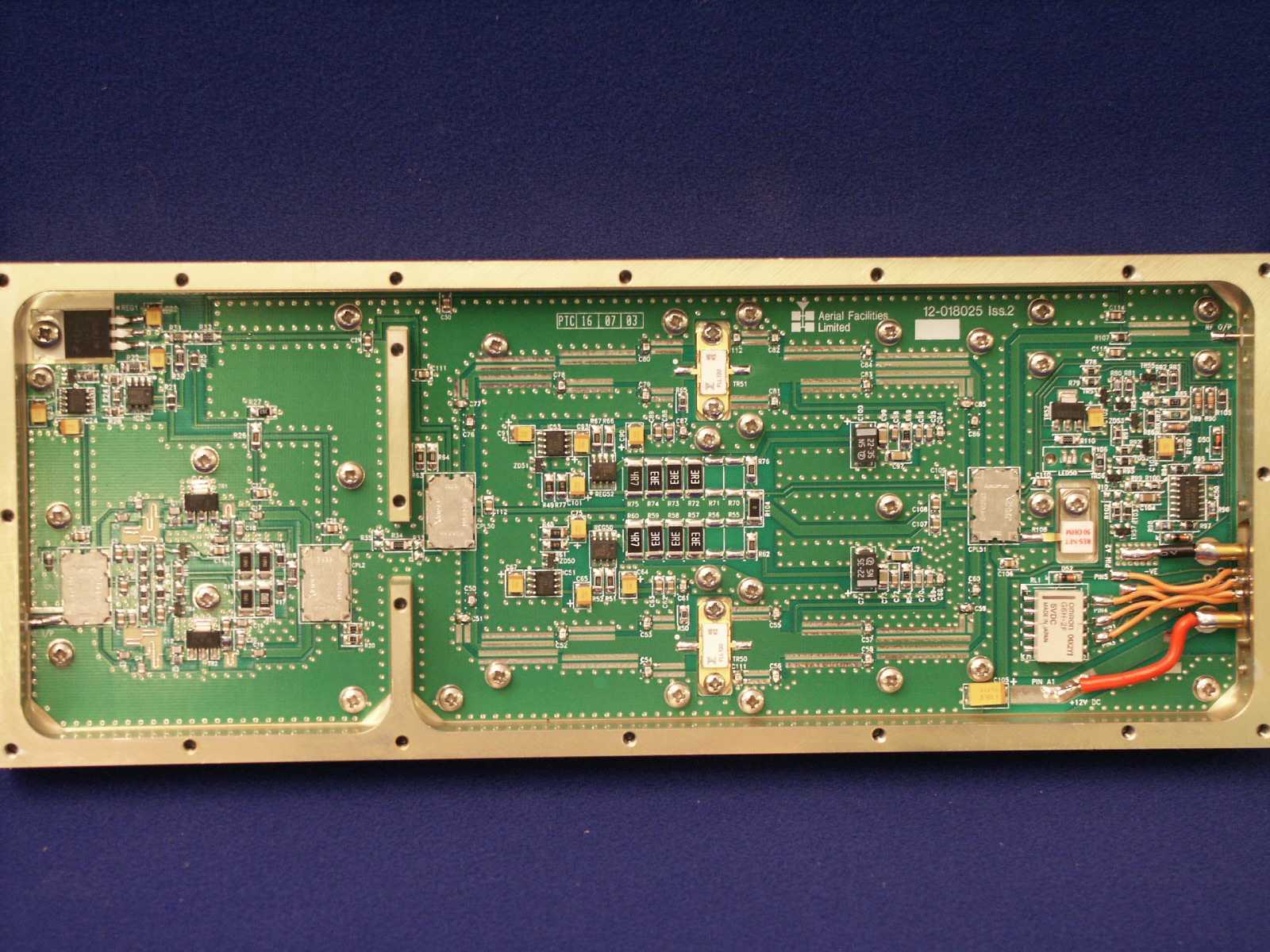

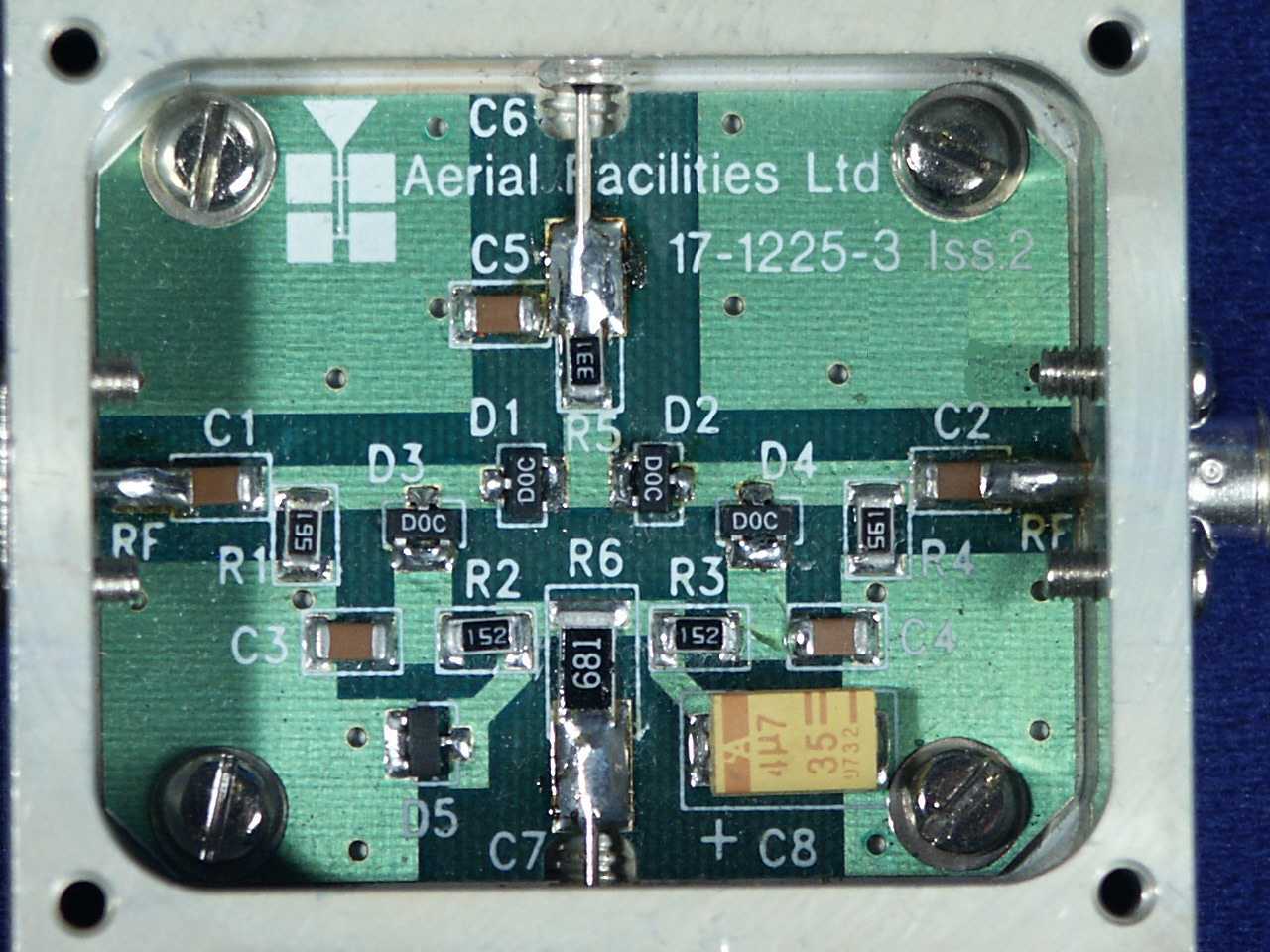

800MHz Tetra Repeater User Handbook Handbook Nō.-55-151501HBK Issue No:-A Date:-22/04/2005 Page:- 15 of 31 3.4 System Drawings 30dB 30dB 30dB 30dB dB dB BASE MOBILE 30dB dB 17-001201 17-001109 AGCDET AGCDET dB 30dB 12-018002 12-018601 11-006702 11-006702 11-006702 11-006702 17-001109 17-001201 10-000701 10-000701 02-007206 02-007206 02-007206 02-007206

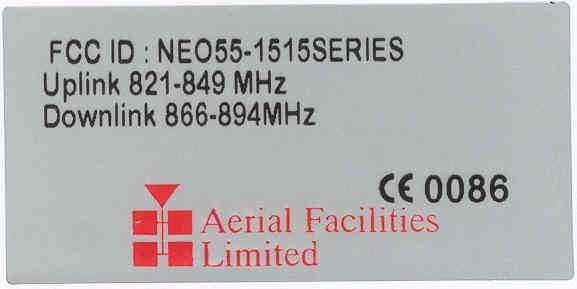

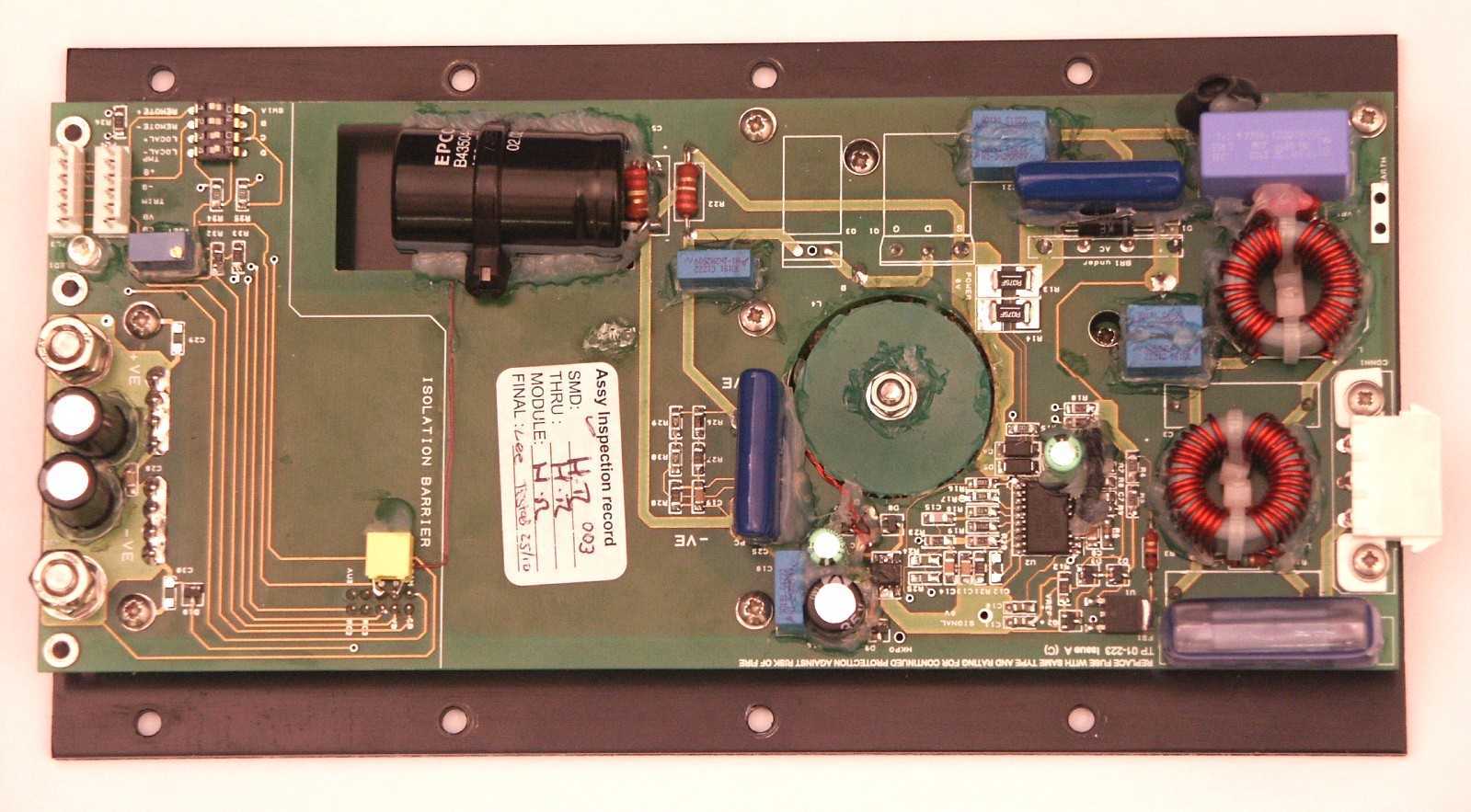

voltage Hig h DANGER He a v y CAUT ION CE- / - N Pro d u c t re f : BPA 800MHz Aerial FacilitiesLim ited En g la n d BY DAT E DESCRIPT ION No ISSUE 1 2 34 5678 9 A BCDE F 1 234 5678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCTION OR USE OF THIS DESIGN BY OTHERS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E TOLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCT ION ISSUE 30/ 9/ 03 DBS PSU ALARM FCC IDENT . LABEL DS PB

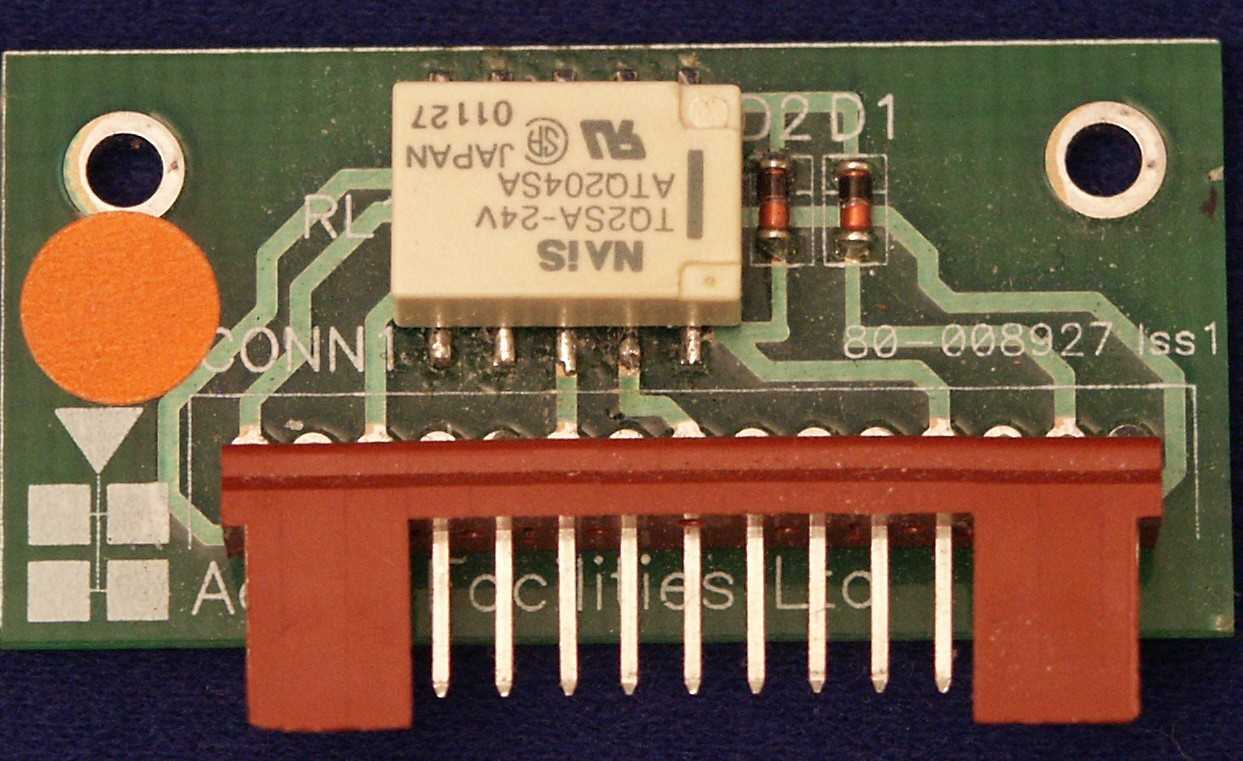

800MHz Tetra Repeater User Handbook Handbook Nō.-55-151501HBK Issue No:-A Date:-22/04/2005 Page:- 13 of 31 3.1 Description The 800MHz Tetra band selective (no channelisation) tunnel amplifier is directly connected to an air interface antenna directed towards the base station and a leaky feeder antenna to cover the mobiles in the tunnel. The downlink power is 20Watts, provided by a single power amplifier, and the uplink power device is a single 5W amplifier, which is sufficient power for ample communications with the base station. Automatic gain control is featured in both paths to prevent overloading of the input stages should a mobile be operated close to the antennas. An alarm system is in-built into each amplifier to warn of functionality disorders and this is output from the system as a summary, volt-free relay contact pair suitable for integration with any existing loop arrangement. 3.2 Technical Specification PARAMETER SPECIFICATION 866-894MHz (downlink) Frequency range: 821-849MHz (uplink) Bandwidth: 28MHz Gain: >85dB Gain Adjustment: 0 - 30dB (in 2dB steps) Uplink Power: >5.0Watts Downlink Power: >20.0Watts +40dBm (downlink) Third order intercept point: +54dBm (uplink) +41.5dBm (downlink) 1dB compression point: +35.5dBm (uplink) Downlink: +40dBm AGC: Uplink: +34dBm Noise Figure: <6dB VSWR: better than 1.5:1 RF Connectors: N type, female operational: -10°C to +60°C Temperature range: storage: -40°C to +70°C Alarms Fitted: (volt-free contacts/TTL) 1 Amplifiers

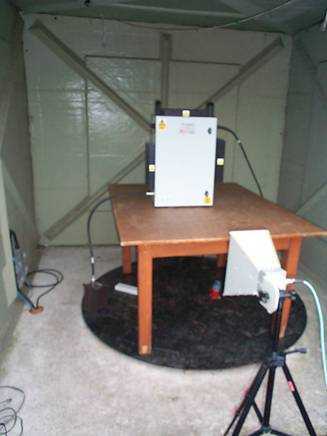

TRL C OMPLIANCE S ERVICES L TD EMC D IVISION L ONG G REEN F ORTHAMPTON G LOUCESTER GL19 4QH U NITED K INGDOM T ELEPHONE +44 (0)1684 833818 F AX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1161/6076 COPY NO: 2 ISSUE NO: 1 FCC ID: NEO 55-1515Series REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED 55-151-501 CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 1 st February 2005 – 2 nd February 2005 TESTED BY: D WINSTANLEY APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 11/05/2005 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Services Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1161/6076 Page 2 of 56 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-65 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RU1161/6076 Page 3 of 56 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO 55-1515Series PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 55-151-501 Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMIUM GAIN 82.63dB Uplink 83.07dB Downlink MAXIMUM INPUT -55dBm Uplink -54dBm Downlink MAXIMUM OUTPUT +25.94dBm Uplink +27.79dBm Downlink ANTENNA TYPE: Not applicable CHANNEL SPACING: Not applicable, Wideband NUMBER OF CHANNELS: Not applicable., Wideband FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +12 Vdc or 110Vac TEST DATE(s): 1 st February 2005 – 2 nd February 2005 ORDER No(s): 29156 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 2QD United Kingdom TESTED BY: D WINSTANLEY APPROVED BY: P GREEN PRODUCT MANAGER EMC RU1161/6076 Page 4 of 56 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 55-151-501 Cell Enhancer EQUIPMENT TYPE: 558-151-501 PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 29156 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 2QD United Kingdom TEL: +44 (0)1494 777 000 FAX: +44 (0)1494 778 456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 1 st February 2005 – 2 nd February 2005 TEST REPORT No: RU1161/6076 RU1161/6076 Page 5 of 56 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2. Product Use: Private Land Mobile Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 25 o C 5. Supply Voltages: Vnom +12Vdc or 110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [ ] Wideband [X] 8. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RU1161/6076 Page 6 of 56 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 25 o C Radio Laboratory Relative humidity = 39% Supply voltage = +12Vdc & 110Vac Channel Frequency = See test results Frequency MHz Operating Voltage Signal Generator input level dBm Cable & Attenuator Loss dB Level at Spectrum Analyser dBm Gain dB Gain after 10dB input level increase dBm 819.0 +12Vdc -55.0 35.67 -9.52 81.15 71.19 834.0 +12Vdc -56.0 35.69 -9.28 82.41 72.41 844.0 +12Vdc -57.0 35.71 -10.43 82.28 72.23 819.0 +110Vac -55.0 35.67 -9.34 81.33 71.47 834.0 +110Vac -56.0 35.69 -9.06 82.63 72.69 844.0 +110Vac -57.0 35.71 -10.32 82.39 72.53 Notes: 1. The signal generator input was increased by 10dB and the level of the output signal remeasured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8304-300-N N/A 220 X ATTENUATOR BIRD 8304-100-N N/A 222 X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2042 119388/080 179 X Spectrum Analyser TRL479 EUT Signal Generator TRL179 Cable & Attenuator RU1161/6076 Page 7 of 56 AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 28 o C Radio Laboratory Relative humidity = 39% Supply voltage = 110Vac The Intermodualation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was the maximum input of –55dBm. The cable and attenuator loss between the EUT and the spectrum analyser was 35dB. Sweep data is shown on the next page: TYPE OF EQUIPMENT MAKER/ SUPPLIER MODE…

Text truncated - open the document above for the full version.

TRL COMPLIANCE SERVICES LTD EMC DIVISION L ONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM T ELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1161/6076 COPY NO: 2 ISSUE NO: 2 FCC ID: NEO 55-1515Series REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED 55-151-501 CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 22 Subpart H PRIVATE LAND MOBILE REPEATER. TEST DATE: 1 st February 2005 – 2 nd February 2005 TESTED BY: D WINSTANLEY APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 13 July 2005 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Services Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1161/6076 Page 2 of 56 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-65 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RU1161/6076 Page 3 of 56 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO 55-1515Series PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, PART 22 Subpart H TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 55-151-501 Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMIUM GAIN 82.63dB Uplink 83.07dB Downlink MAXIMUM INPUT -55dBm Uplink -54dBm Downlink MAXIMUM OUTPUT +25.94dBm Uplink +27.79dBm Downlink ANTENNA TYPE: Not applicable CHANNEL SPACING: Not applicable, Wideband NUMBER OF CHANNELS: Not applicable., Wideband FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +12 Vdc or 110Vac TEST DATE(s): 1 st February 2005 – 2 nd February 2005 ORDER No(s): 29156 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 2QD United Kingdom TESTED BY: D WINSTANLEY APPROVED BY: P GREEN PRODUCT MANAGER EMC RU1161/6076 Page 4 of 56 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 55-151-501 Cell Enhancer EQUIPMENT TYPE: 558-151-501 PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION(s): FCC RULES CFR 47, PART 22 Subpart H TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 29156 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 2QD United Kingdom TEL: +44 (0)1494 777 000 FAX: +44 (0)1494 778 456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 1 st February 2005 – 2 nd February 2005 TEST REPORT No: RU1161/6076 RU1161/6076 Page 5 of 56 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2. Product Use: Private Land Mobile Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 25 o C 5. Supply Voltages: Vnom +12Vdc or 110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [ ] Wideband [X] 8. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RU1161/6076 Page 6 of 56 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 25 o C Radio Laboratory Relative humidity = 39% Supply voltage = +12Vdc & 110Vac Channel Frequency = See test results Frequency MHz Operating Voltage Signal Generator input level dBm Cable & Attenuator Loss dB Level at Spectrum Analyser dBm Gain dB Gain after 10dB input level increase dBm 819.0 +12Vdc -55.0 35.67 -9.52 81.15 71.19 834.0 +12Vdc -56.0 35.69 -9.28 82.41 72.41 844.0 +12Vdc -57.0 35.71 -10.43 82.28 72.23 819.0 +110Vac -55.0 35.67 -9.34 81.33 71.47 834.0 +110Vac -56.0 35.69 -9.06 82.63 72.69 844.0 +110Vac -57.0 35.71 -10.32 82.39 72.53 Notes: 1. The signal generator input was increased by 10dB and the level of the output signal remeasured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8304-300-N N/A 220 X ATTENUATOR BIRD 8304-100-N N/A 222 X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2042 119388/080 179 X Spectrum Analyser TRL479 EUT Signal Generator TRL179 Cable & Attenuator RU1161/6076 Page 7 of 56 AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 28 o C Radio Laboratory Relative humidity = 39% Supply voltage = 110Vac The Intermodualation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was the maximum input of –55dBm. The cable and attenuator loss between the EUT and the spectrum analyser was 35dB. Sweep data is shown on the next page: TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SER…

Text truncated - open the document above for the full version.

RU1161/6076 Page 5 of 56 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 2.1046 22.913(a) Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 2.1049 22.917(b) Yes Complies Spurious Emissions at Antenna Terminals 22.917(d) Yes Complies Field Strength of Spurious Emissions 22.917(d) Yes Complies Frequency Stability 2.1055 22.355 N/A(note 1) N/A Transient behaviour N/A N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2. Product Use: Private Land Mobile Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 25 o C 5. Supply Voltages: Vnom +12Vdc or 110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [ ] Wideband [X] 8. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed.
