NEO55-1516SERIES55-151-601 Cell Enhancer

Roseville Tunnel PCS Band Selective Repeater User Handbook Handbook Nō.-55-151601HBK Issue No:-A Date:-22/04/2005 Page:- 1 of 29 Roseville Tunnel Band Selective PCS Repeater User Handbook For AFL Inc. AFL Works Order Nō.: Q112081 AFL product part Nō.: 55-151601 Roseville Tunnel PCS Band Selective Repeater User Handbook Handbook Nō.-55-151601HBK Issue No:-A Date:-22/04/2005 Page:- 2 of 29 Table of Contents AMENDMENT LIST RECORD SHEET ...................................................................................................3 INTRODUCTION.........................................................................................................................................4 Scope ........................................................................................................................................................................... 4 Purpose ....................................................................................................................................................................... 4 Glossary of Terms...................................................................................................................................................... 5 Key to AFL RF Module Drawing Symbols ............................................................................................................. 6 1. SAFETY CONSIDERATIONS .........................................................................................................7 1.1 Earthing of Equipment ................................................................................................................................ 7 1.2 Electric Shock Hazard.................................................................................................................................. 7 1.3 RF Radiation Hazard ................................................................................................................................... 8 1.4 Chemical Hazard .......................................................................................................................................... 9 1.5 Emergency Contact Numbers...................................................................................................................... 9 2. SYSTEM OVERVIEW ....................................................................................................................10 3. PCS BAND-SELECTIVE BDA.......................................................................................................11 3.P System Photographs ................................................................................................................................... 11 3.1 Description .................................................................................................................................................. 12 3.2 Technical Specification............................................................................................................................... 12 3.3 Mechanical Specification............................................................................................................................ 13 3.4 System Drawings......................................................................................................................................... 14 3.5 Parts Lists .................................................................................................................................................... 15 4. SUB-UNIT MODULES....................................................................................................................16 4.1 Bandpass Filters (02-011505 & 02-011506) .............................................................................................. 16 4.1.1 Description ............................................................................................................................................... 16 4.1.2 Technical Specification............................................................................................................................. 16 5. INSTALLATION .............................................................................................................................23 5.1 Initial Installation Record .......................................................................................................................... 23 6. MAINTENANCE .............................................................................................................................24 6.1 General Procedures .................................................................................................................................... 24 6.1.1 Fault Finding ............................................................................................................................................ 24 6.1.2 Downlink................................................................................................................................................... 25 6.1.3 Uplink ....................................................................................................................................................... 25 6.1.4 Fault repair............................................................................................................................................... 25 6.1.5 Checking service ....................................................................................................................................... 26 6.1.6 Service Support......................................................................................................................................... 26 6.2 Tools & Test Equipment ............................................................................................................................ 26 6.3 Care of Modules...................................................................................................................…

Text truncated - open the document above for the full version.

Roseville Tunnel PCS Band Selective Repeater User Handbook Handbook Nō.-55-151601HBK Issue No:-A Date:-22/04/2005 Page:- 14 of 29 3.4 System Drawings 30dB 15dB 30dB 40dB dB dB BASE MOBILE 30dB dB 17-001201 11-001109 AGCDET AGCDET dB 30dB 12-017301 11-006302 11-008201 11-008201 11-008201 11-008201 17-001109 17-001201 10-001204 10-001204 02-011505 02-011505 02-011506 02-011506 02-011505 02-011506 02-011505 02-011506 16dB 11-007202 40dB 05-002601 05-002601 12-017301

6 Aerial Facilities Limited R F System Engineering.Aerial House, Radio Site Engineering.Asheridge Road, Tel:+44(0)1494 777000Chesham, Buckinghamshire, Fax:+44(0)1494 777002England, HP5 2QD 6 th July, 2005 TRL Compliance Services Ltd Long Green Forthampton Gloucester GL19 4QH UK RE: TC322222 Correspondance No. 21408 FCC ID:NEO55-1516Series. The reference to 100W on page 10 is part of a generic description for this type of equipment stating Aerial Facilities Limited manufacture ‘Various models are available to cover frequency bands from 50MHz to 3000MHz with power levels up to 100Watts’. This is really a sales statement I perhaps we need to remove it from documents relating to FCC approval. The actual description and specifications for this product 55-151601 are stated in section 3.1 and 3.2 This equipment has a Downlink path 1930-1990MHz and an Uplink path 1850-1910MHz. The passbands are dictated by the bandselective filters used at the mobile and base ports. The amplifier modules used in the equipment are wideband units 1800-2000MHz , this filtering preventing any unwanted frequencies being amplified. In the downlink we use a 20W Class A amplifier, the power rating of the amplifier is chosen to ensure the linearity is sufficient for the equipment to comply to FCC regulations . As this equipment is designed for multi-carrier operation, we use a 20W amplifier to achieve the 3 rd Order Intercept we require, in this case 56dBm. Using the automatic level control (ALC) the output per carrier is limited to 1W (for 3 Carriers), in this equipment the ALC is set to an output power of 39.5dBm (9W), this is the Peak envelope power of 3, 30dBm (1W) carriers in phase, this is the worst case for intermodulation generation. The ALC setting in conjunction with the amplifiers specified third order intercept point allows us to ensure no intermodulation product can exceed the FCC requirement of -13dBm. Below is a summary of the downlink parameters, remembering that the combined PEP of all carriers cannot exceed 39.5dBm. Amp OIP3 (dBm)56 Amp P1dB (dBm)43 Duplexer Loss (dB)0.7 Carrier Level (dBm)30 Unit OIP3 (dBm)55.3 Unit P1dB (dBm)42.3 Pim max (dBm)-13Desired maximum intermod level Number of CarriersPEP (dBm)IM Att(dBc)IM Level (dBm)Pc max 236.050.6-20.632.5 339.543.6-13.630.2 Note: PEP = Peak Envelope Power IM ATT= Level of the Intermodulation Products below wanted carrier IM LEVEL= Level of the Intermodulation producs Pc MAX= Maximum Power level for specified number of carriers to met FCC Requirements. For 8 Carriers the power will be limited to 21.4 dBm (39.5 PEP) with an intermodulation product level of -27.8dBm Amp OIP3 (dBm)56 Amp P1dB (dBm)43 Duplexer Loss (dB)0.7 Carrier Level (dBm)21.4 Unit OIP3 (dBm)55.3 Unit P1dB (dBm)42.3 Pim max (dBm)-13Desired maximum intermod level Number of CarriersPEP (dBm)IM Att(dBc)IM Level (dBm)Pc max 227.467.8-46.432.5 330.960.8-39.430.2 433.456.6-35.228.8 535.454.4-3328.1 637.052.4-3127.4 738.350.6-29.226.8 839.549.2-27.826.3 Similarly in the uplink we use a 1W amplifier with the ALC set at 29.5.5dBm, a maximum output per carrier of 20dBm (3 carriers). Again the uplink calculations are included below. Amp OIP3 (dBm)44 Amp P1dB (dBm)30.4 Duplexer Loss (dB)0.7 Carrier Level (dBm)20 Unit OIP3 (dBm)43.3 Unit P1dB (dBm)29.7 Pim max (dBm)-13Desired maximum intermod level #CarriersPEP (dBm)IM Att(dBc)IM Level(dBm)Pc max 226.046.6-26.624.5 329.539.6-19.622.2 For 8 Carriers the power will be limited to 11.4dBm (29.5 PEP) with an intermodulation product level of -33.8dBm Amp OIP3 (dBm)44 Amp P1dB (dBm)30.4 Duplexer Loss (dB)0.7 Carrier Level (dBm)11.4 Unit OIP3 (dBm)43.3 Unit P1dB (dBm)29.7 Pim max (dBm)-13Desired maximum intermod level #CarriersPEP (dBm)IM Att(dBc)IM Level (dBm)Pc max 217.463.8-52.424.5 320.956.8-45.422.2 423.452.6-41.220.8 525.450.4-3920.1 627.048.4-3719.4 728.346.6-35.218.8 829.545.2-33.818.3 I hope this clarifies this outstanding issue. If you have any further questions or comments do not hesitate to contact me. Yours faithfully For and on behalf Aerial Facilities Limited Peter L Bradfield Senior Systems Engineer Tel: +44 1494 777020 Fax +44 1494 777002 [email protected] Asheridge Road, Chesham, Buckinghamshire, HP5 2QD England Registered No. 4042808 (England) www.aerialfacilities.com

TCB GRANT OF EQUIPMENT AUTHORIZATION TCB Certification Issued Under the Authority of the Federal Communications Commission By: TRL Compliance Services Ltd Long Green Forthampton Gloucester, GL19 4QH Date of Grant: 06/15/2005 Application Dated: 06/15/2005 Aerial Facilities Limited Aerial House, Latimer Park Chesham, Bucks, HP United Kingdom Attention: Hal Crompton , Quality Manager NOT TRANSFERABLE EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. FCC IDENTIFIER: NEO55-1516SERIES Name of Grantee: Aerial Facilities Limited Equipment Class:PCS Licensed Transmitter Notes:55-151-601 Cell Enhancer Grant Notes FCC Rule Parts Frequency Range (MHZ) Output Watts Frequency Tolerance Emission Designator 24E1850.0 - 1910.0 0.1 Amp F3E 24E1930.0 - 1990.0 1.0 Amp F3E Booster Power output shown is per channel at the antenna port. The antenna(s) used for this transmitter must be fixed-mounted on indoor/outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b) (3). Page 1 of 1FCC - OET TCB Form 731 Grant of Equipment Authorization 16/06/2005https://gullfoss2.fcc.gov/prod/oet/cf/tcb/Tcb731GrantForm.cfm?RequestTimeOut=300

voltage Hig h DANGER He a v y CAUT ION CE- / - N Pro d u c t re f : BPA 800MHz Aerial FacilitiesLim ited En g la n d BY DAT E DESCRIPT ION No ISSUE 1 2 34 5678 9 A BCDE F 1 234 5678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCTION OR USE OF THIS DESIGN BY OTHERS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E TOLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCT ION ISSUE 30/ 9/ 03 DBS PSU ALARM FCC IDENT . LABEL DS PB

Roseville Tunnel PCS Band Selective Repeater User Handbook Handbook Nō.-55-151601HBK Issue No:-A Date:-22/04/2005 Page:- 12 of 29 3.1 Description The band selective (no channelisation) tunnel amplifier is directly connected to an air interface antenna directed towards the base station and a leaky feeder antenna to cover the mobiles in the tunnel. The downlink power is 20Watts, provided by a pair of parallel configured 10W amplifiers, and the uplink power device is a single 1W amplifier, which is sufficient power for ample communications with the base station. Automatic gain control is featured in both paths to prevent overloading of the input stages should a mobile be operated close to the antennas. A built-in current fault alarm system monitors each active device in the system and outputs a summary volt-free, relay contact pair suitable for integrating into any existing alarm loop system. 3.2 Technical Specification PARAMETER SPECIFICATION 1930-1990MHz (Downlink) Frequency range: 1850-1910MHz (Uplink) Bandwidth: 60MHz Passband ripple: ±1.5dB Gain: >85dB Gain Adjustment: 0 - 30dB (in 2dB steps, both paths) Uplink Power: >1.0Watts Downlink Power: >20.0Watts Uplink: +40dBm IP3: Downlink: +52.5dBm +41.5dBm (downlink) 1dB compression point: +29dBm (uplink) Noise Figure: <6dB (@max gain) +40dBm (downlink) AGC: +28dBm (uplink) VSWR: better than 1.5:1 RF Connectors: N type, female operational: -10°C to +60°C Temperature range: storage: -40°C to +70°C Alarms Fitted: (volt-free relay contacts/TTL) 1 Amplifiers (U/L & D/L)

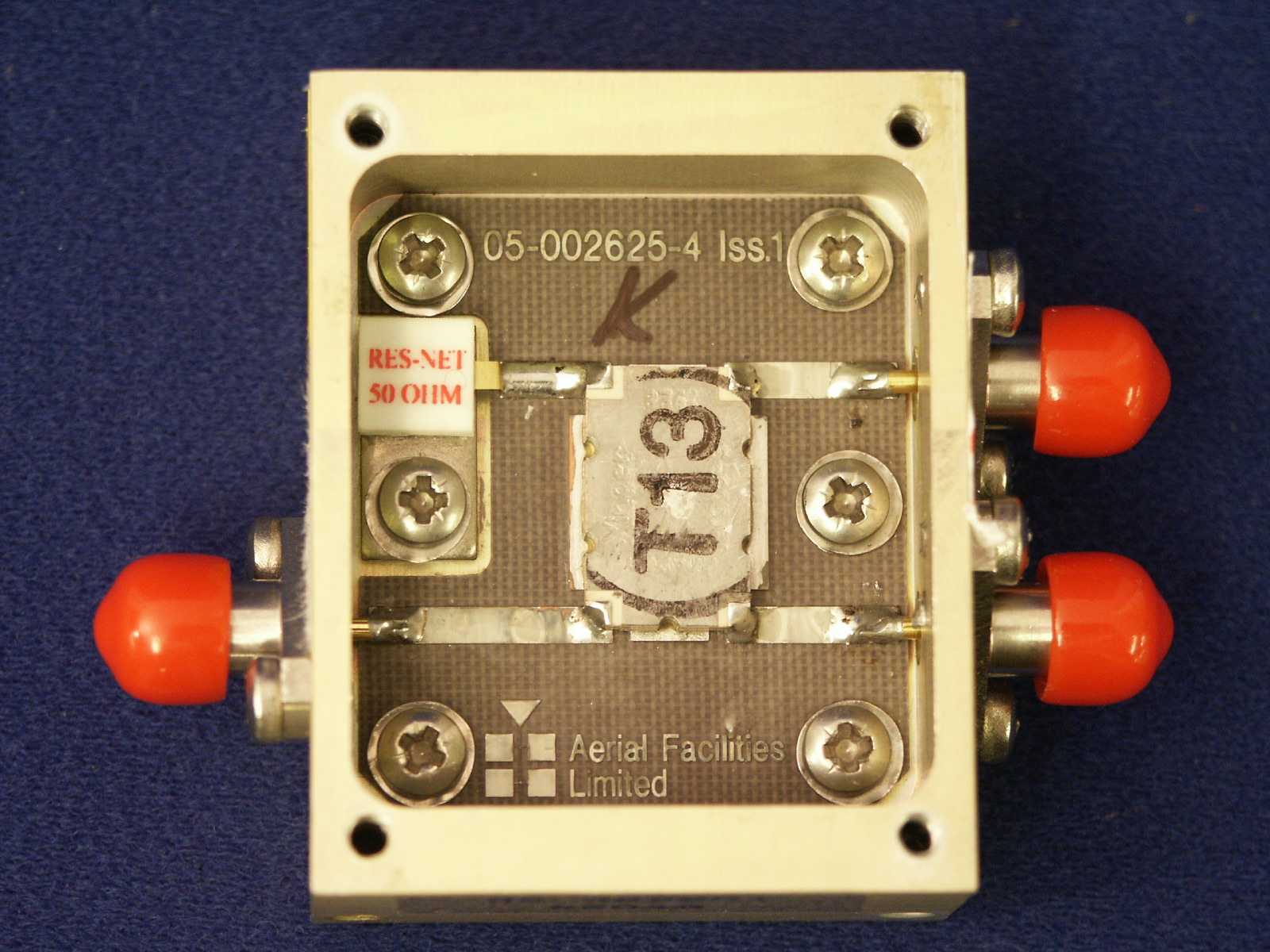

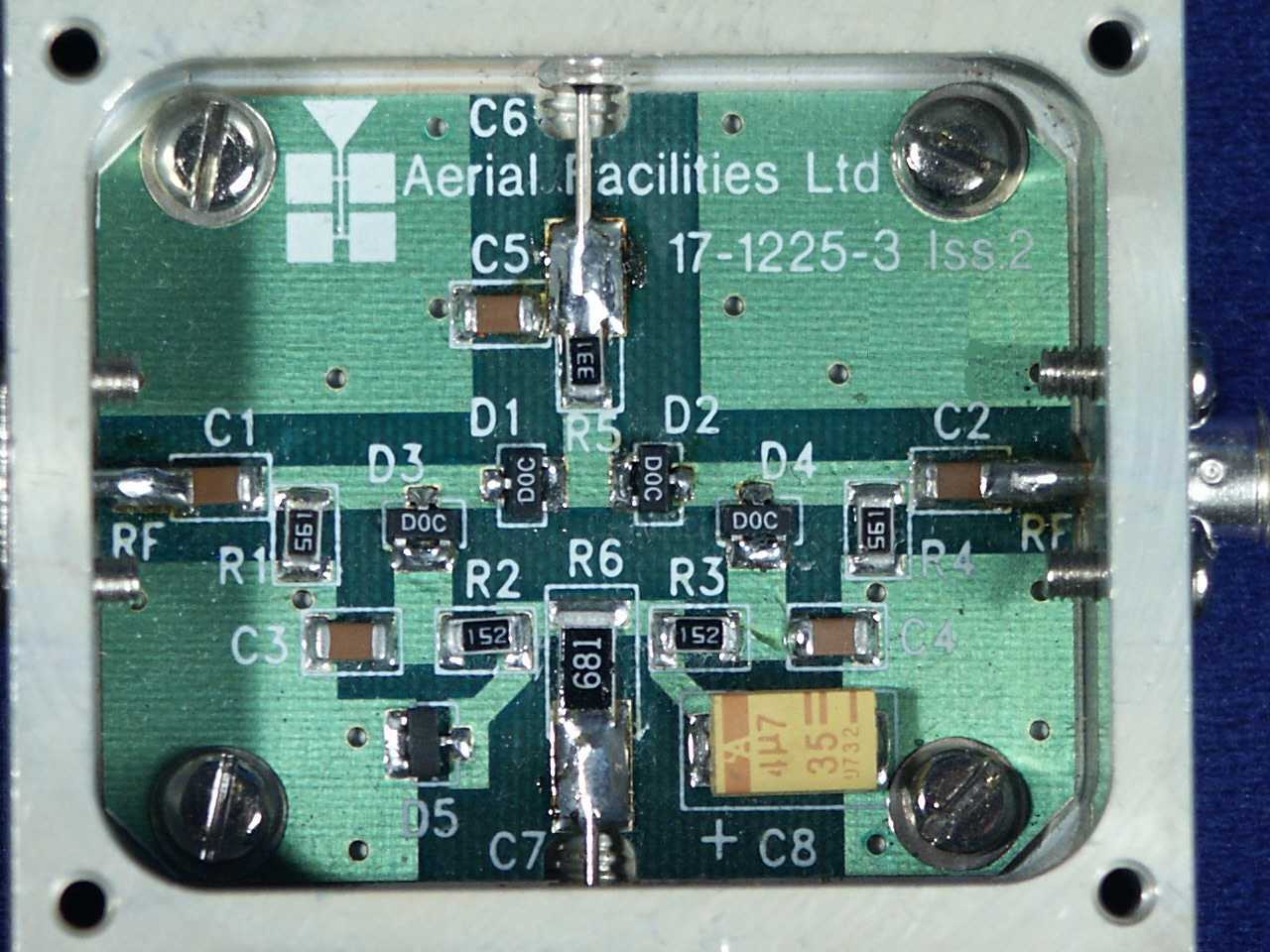

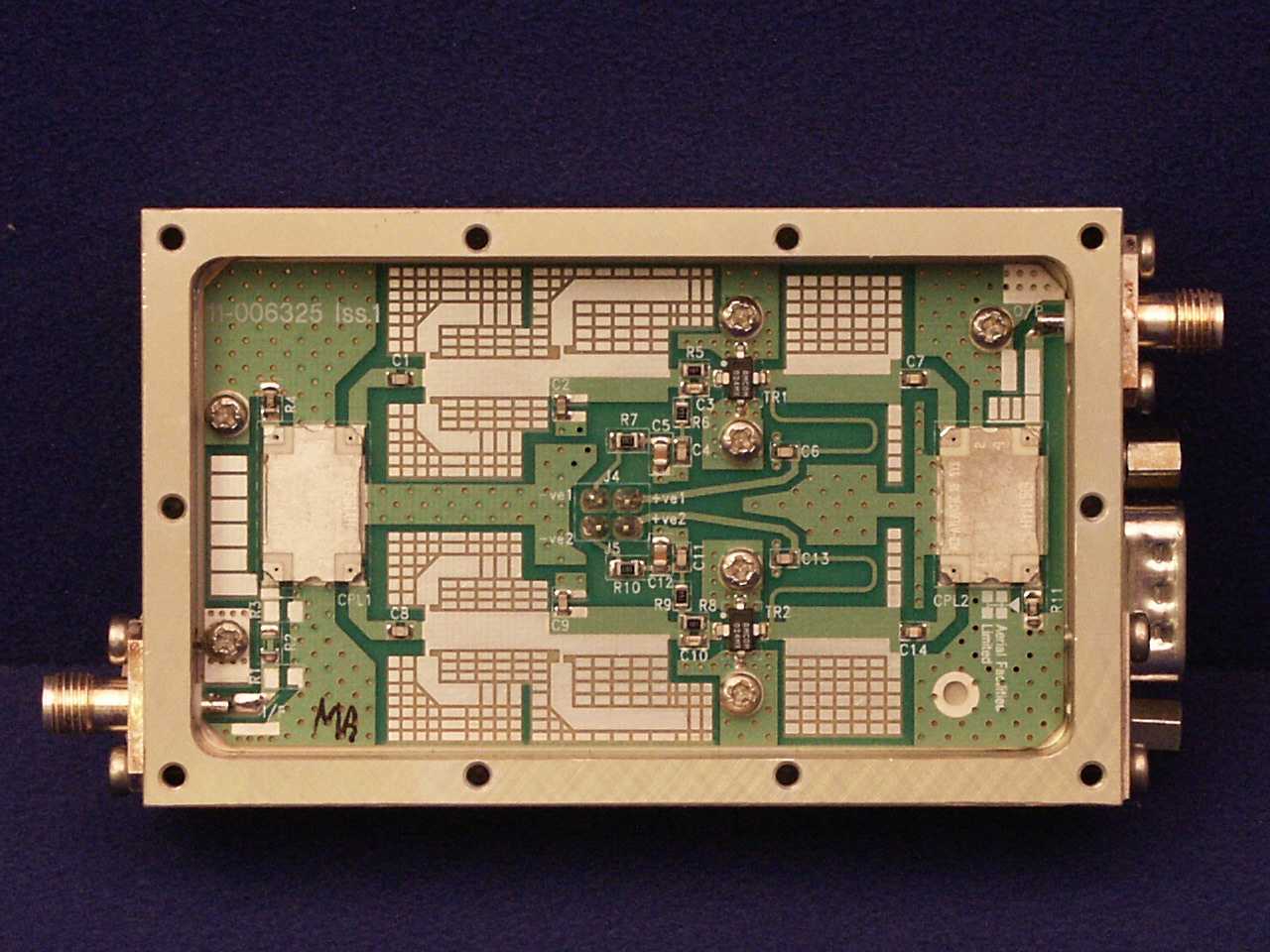

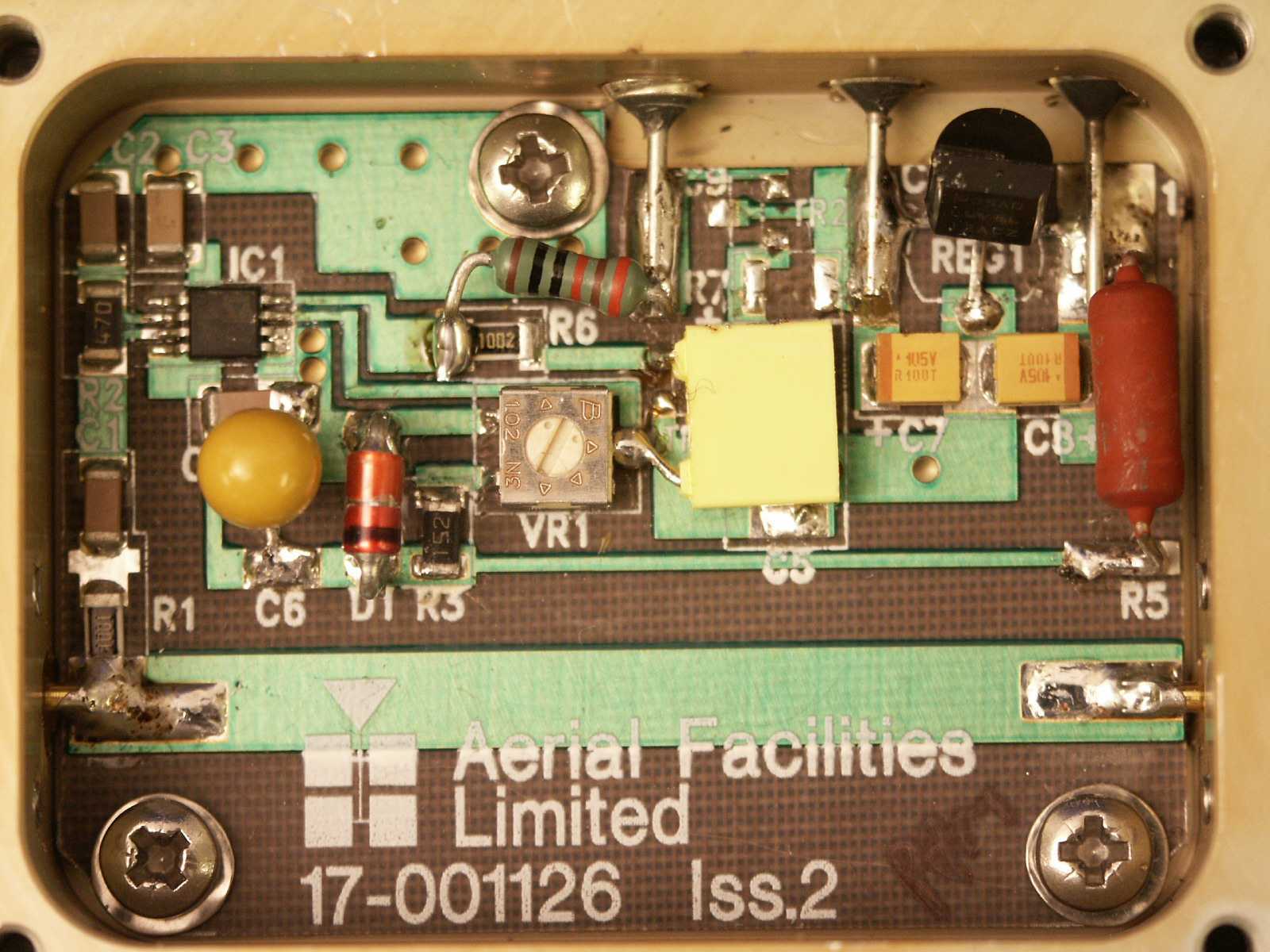

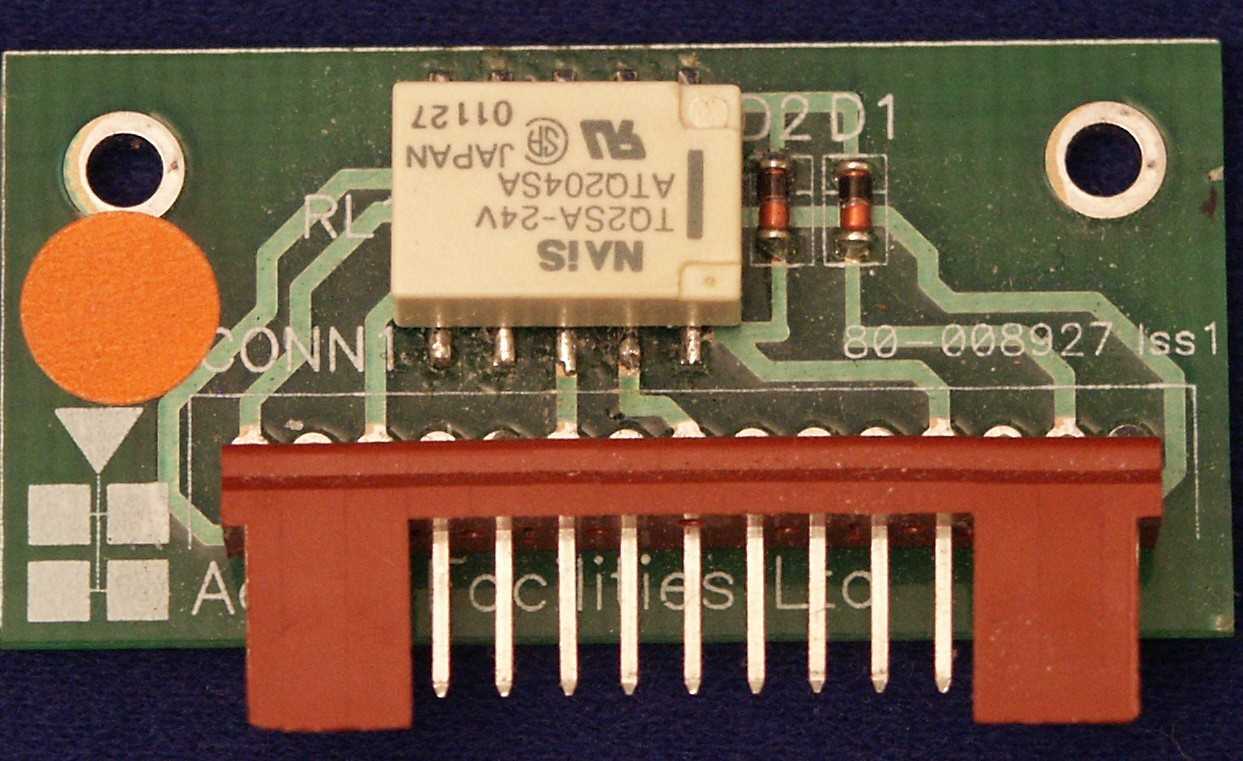

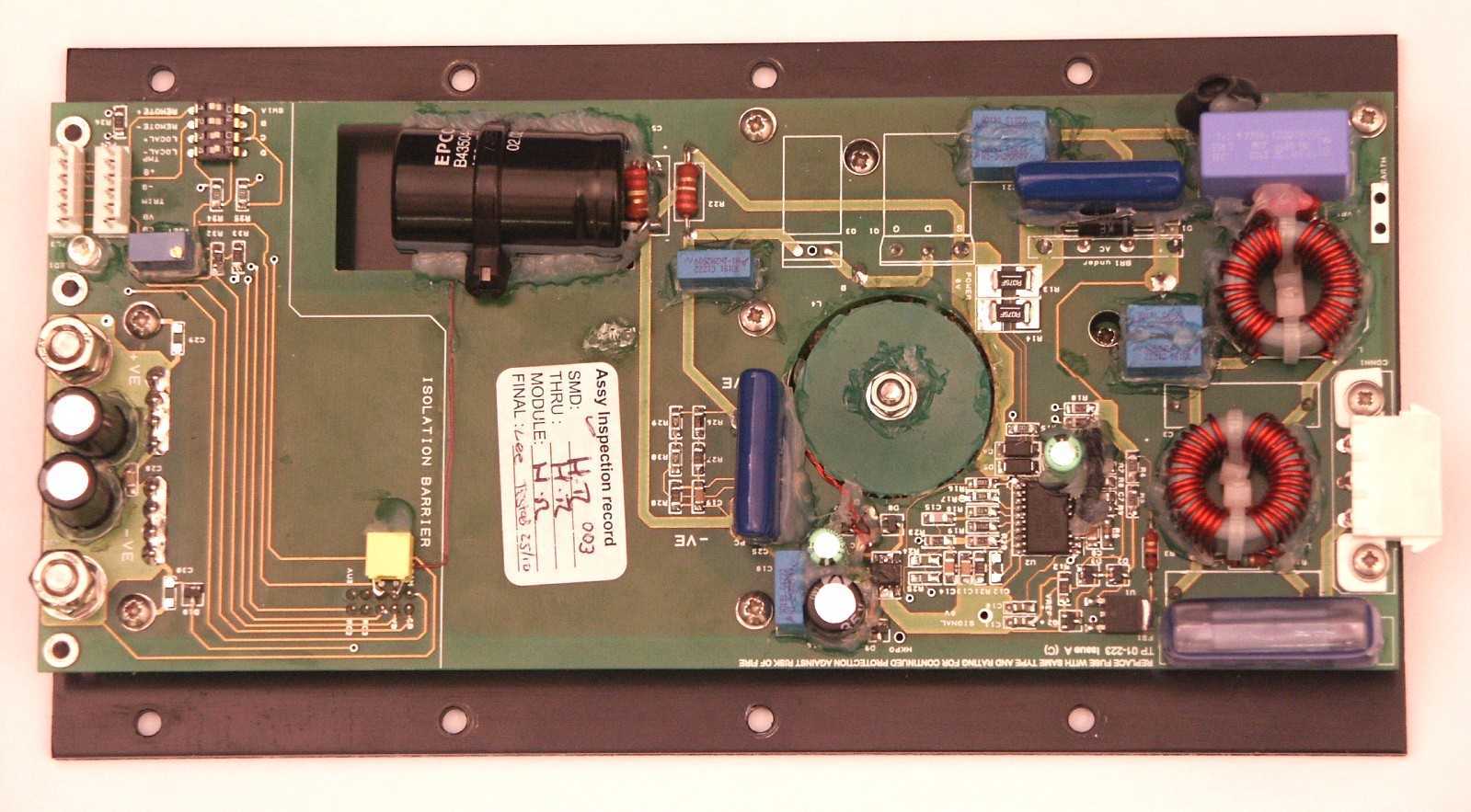

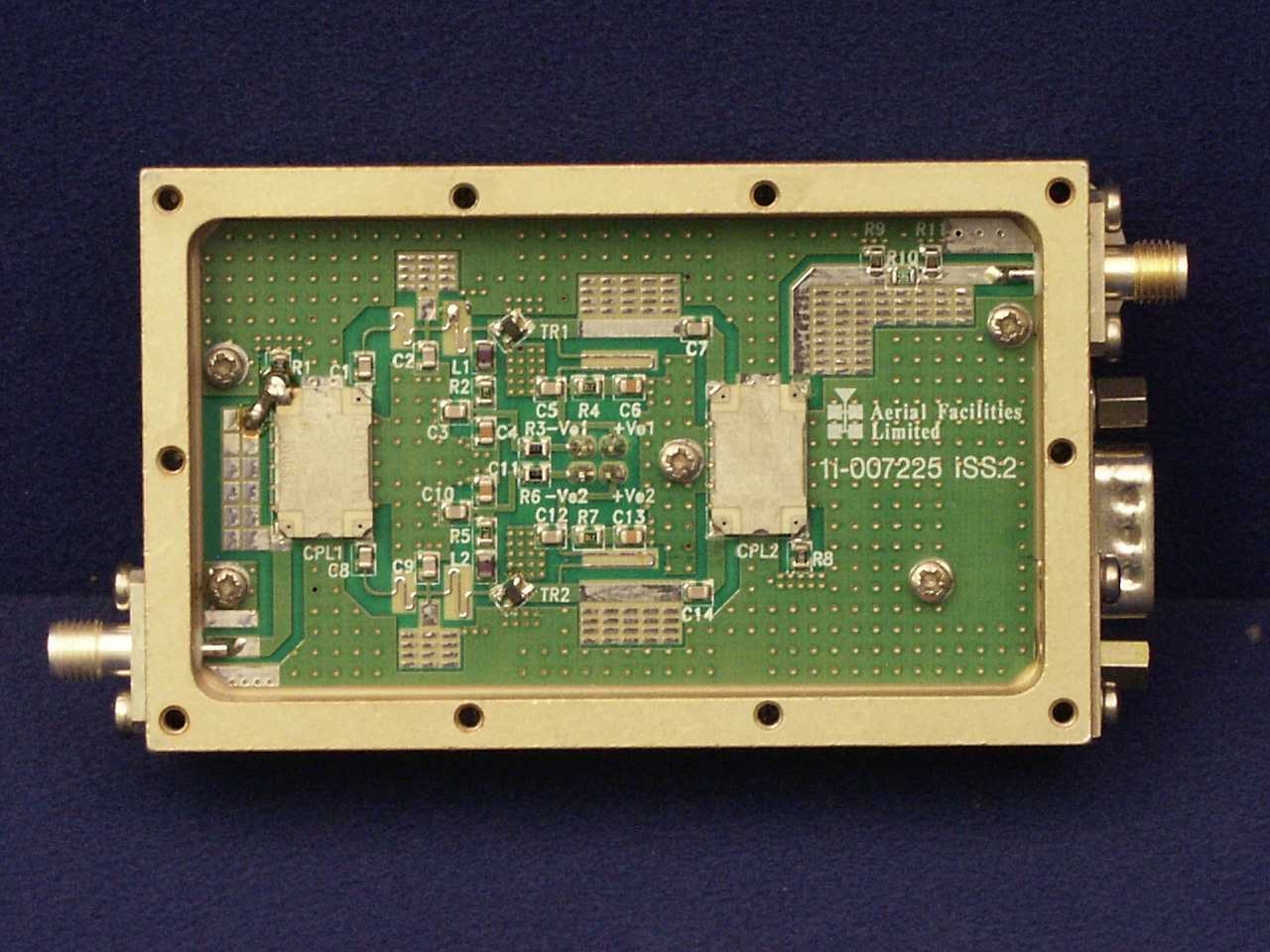

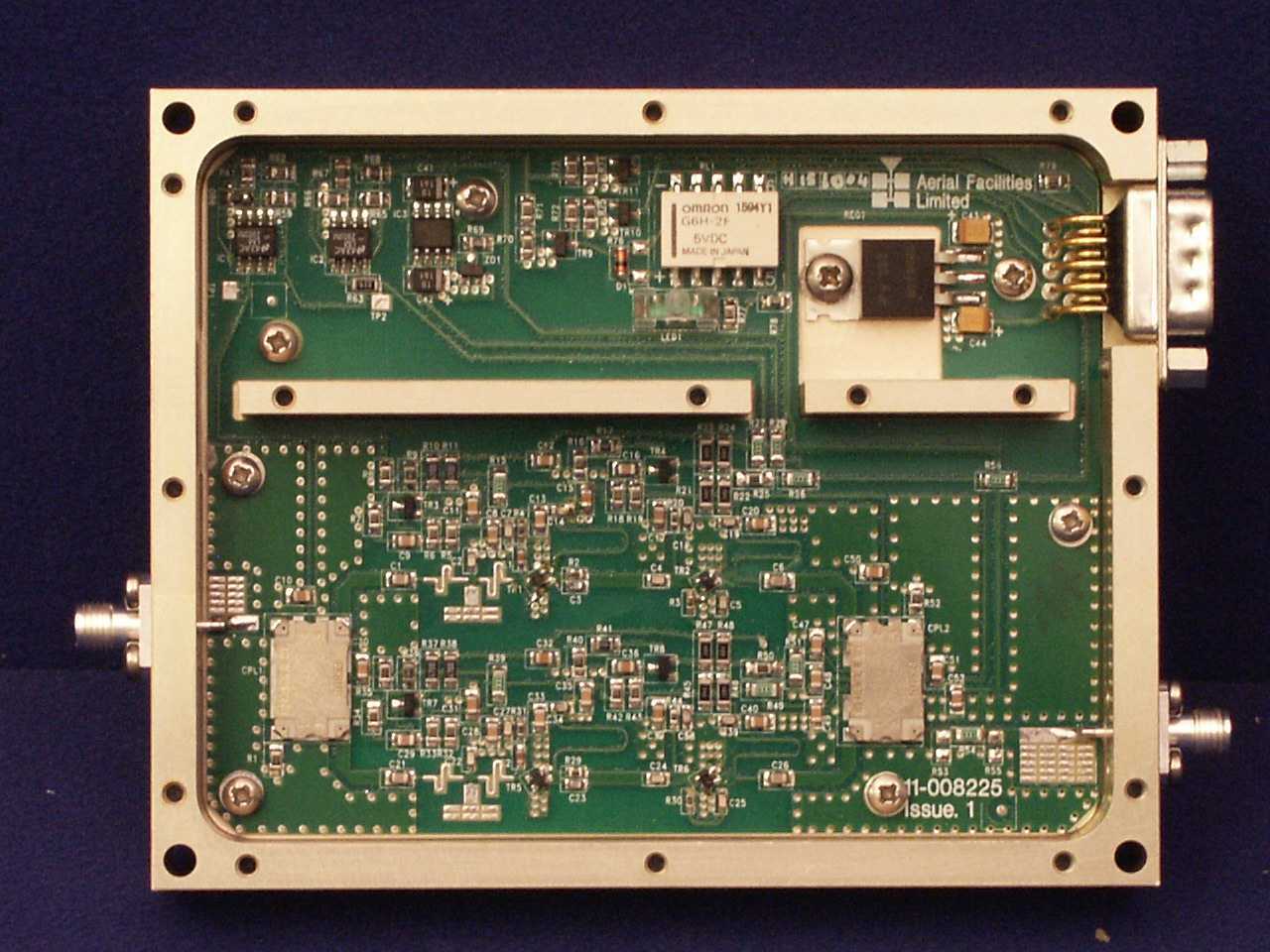

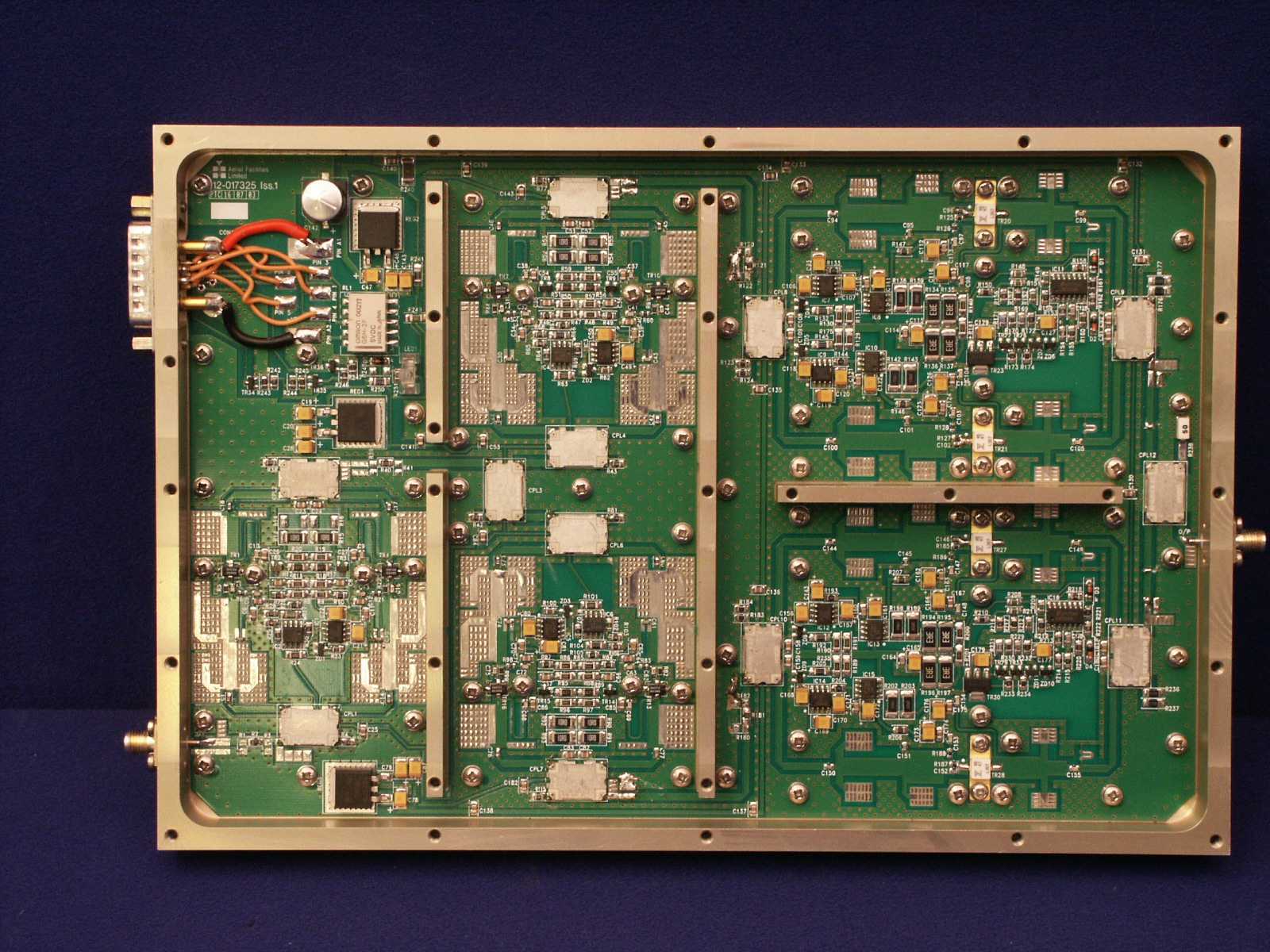

Roseville Tunnel PCS Band Selective Repeater User Handbook Handbook Nō.-55-151601HBK Issue No:-A Date:-22/04/2005 Page:- 15 of 29 3.5 Parts Lists AFL Part Nō. Part Description Qty. 02-011505 PCS Rx Filter (SMA) 4 02-011506 PCS Tx Filter (SMA) 4 05-002601 PCN SPLITTER/COMBINER, 20W 2 10-001204 ATTEN.REMOTE D TYPE 30dB 12V 2 10-001720 REMOTE ATTEN. SWITCH PLATE(END) 2 10-001725 REMOTE ATTEN. SWITCH PCB 2 11-006302 PCN 1W AMP. 15dB GAIN (WITH RELAY) 1 11-007202 LOW NOISE AMPLIFIER PCN WITH RELAY 1 11-008201 LOW NOISE AMPLIFIER PCN 30dB GAIN 4 12-017301 POWER AMPLIFIER PCN 10W 2 17-000126 CELL ENHANCER LABEL 6 DIGIT 1 17-000526 CE 10/20W HEATSINK THERMAL GASKET 3 17-001109 CE AGC UNIT LOG DET/AMP ASSY (12v) 2 17-001201 C/E AGC UNIT ATTENUATOR ASSY 2 17-001522 BASE PLATE 560x345mm 17-001520&9020 1 17-009020 ENCLOSURE 620x420x250 (3 H/S) ALU 1 80-008901 12V RELAY PCB ASSEMBLY 1 80-032320 10W PA HEATSINK (NEEDS 17-000526) 2 80-310420 BCC 400W POWER SUPPLY HEATSINK 1 90-100003 MAINS LEAD '6 AMP' 1 90-200004 DC I/P LEADS, FREE SOCKET 1 90-400006 ALARM LEADS 1 91-030002 N ADAPTOR PANEL FEMALE:FEMALE 2 91-130001 SMA ADAPT 'T' ALL FEMALE 3 GHz 2 91-500011 PWR 3POLE PNL PLUG SEALED IP68 1 91-500013 PWR 2POLE PNL PLUG SEALED IP68 1 91-500015 PWR CON CAP SEALED with INT. THREAD 3 91-500016 PWR 6POLE PNL PLUG SEALED IP68 1 91-510032 20A SOCKET CONTACT PIN 4 91-600007 'D' 9 WAY BLACK SHELL 8 91-600014 'D' 9 WAY SOCKET S/B (NON FILTERED) 8 91-660001 2W5 MIXED D TYPE SOCKET (7 WAY) 2 96-110047 20A ATO FUSE 1 96-500003 AC FILTER 110V 5A 1 96-700034 LED RED 5mm IP67 INTEGRAL RES. 24V 1 96-700035 LED GREEN 5mm IP67 INTEGRAL RES 24V 1 96-900018 AC TRIP SWITCH (5 AMP M.C.B.) 1 96-920002 DPDT MINI TOGGLE SWITCH 8 97-300010 C/E SUPPLY INPUT COVER 1 97-300011/2 DC BOX 12V ATO TYPE 1 ASSEMBLY 1 97-400010 BLACK PLASTIC HANDLE 50mm HIGH 2 97-900003 RUBBER FOOT 1 1:2' DIA. 4

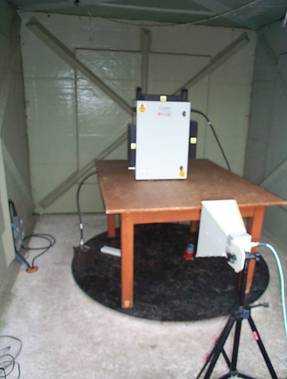

TRL COMPLIANCE SERVICES LTD EMC DIVISION L ONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM T ELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1161/6154 COPY NO: 2 ISSUE NO: 1 FCC ID: NEO 55-1516Series REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED 55-151-601 CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 24 Subpart E BROADBAND PERSONAL COMMUNICATION SERVICE REPEATER. TEST DATE: 22 nd February 2005 – 7 th March 2005 TESTED BY: D WINSTANLEY APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 11/05/2005 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Services Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1161/6154 Page 2 of 64 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-59 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RU1161/6154 Page 3 of 64 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO 55-1516Series PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 24 Subpart E TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 55-151-601 Cell Enhancer EQUIPMENT TYPE: Broadband Personal Communication Service Repeater MAXIMUM GAIN 83.39dB Uplink 93.51dB Downlink MAXIMUM INPUT -61dBm Uplink -52dBm Downlink MAXIMUM OUTPUT +33.39dBm Uplink +41.51dBm Downlink ANTENNA TYPE: Not applicable CHANNEL SPACING: Not applicable, Wideband NUMBER OF CHANNELS: Not applicable., Wideband FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +12 Vdc or 110Vac TEST DATE(s): 22 nd February 2005 – 7 th March 2005 ORDER No(s): 29156 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 2QD United Kingdom TESTED BY: D WINSTANLEY APPROVED BY: P GREEN PRODUCT MANAGER EMC RU1161/6154 Page 4 of 64 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 55-151-601 Cell Enhancer EQUIPMENT TYPE: 55-151-601 PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION(s): FCC RULES CFR 47, Part 24 Subpart E TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 29156 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 2QD United Kingdom TEL: +44 (0)1494 777 000 FAX: +44 (0)1494 778 456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 22 nd February 2005 – 7 th March 2005 TEST REPORT No: RU1161/6154 RU1161/6154 Page 5 of 64 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 24.232 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 24.238 Yes Complies Spurious Emissions at Antenna Terminals 24.238 Yes Complies Field Strength of Spurious Emissions 24.238 Yes Complies Frequency Stability 24.235 N/A(note 1) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2. Product Use: Broadband Personal Communication Service Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 25 o C 5. Supply Voltages: Vnom +12Vdc or 110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [ ] Wideband [X] 8. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RU1161/6154 Page 6 of 64 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 19 o C Radio Laboratory Relative humidity = 40% Supply voltage = +12Vdc & 110Vac Channel Frequency = See test results Frequency MHz Operating Voltage Signal Generator input level dBm Cable & Attenuator Loss dB Level at Spectrum Analyser dBm Gain dB Gain after 10dB input level increase dBm 1850.0 +12Vdc -60.0 49.11 -26.74 82.23 72.38 1880.0 +12Vdc -61.0 49.11 -26.88 83.23 73.22 1910.0 +12Vdc -59.0 49.11 -28.17 79.94 69.94 1850.0 +110Vac -60.0 49.11 -26.53 82.58 72.91 1880.0 +110Vac -61.0 49.11 -26.72 83.39 72.61 1910.0 +110Vac -59.0 49.11 -28.00 80.11 70.01 Notes: 1. The signal generator input was increased by 10dB and the level of the output signal remeasured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8304-300-N N/A 220 X ATTENUATOR BIRD 8304-100-N N/A 222 X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2042 119388/080 179 X Spectrum Analyser TRL479 EUT Signal Generator TRL179 Cable & Attenuator RU1161/6154 Page 7 of 64 AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 28 o C Radio Laboratory Relative humidity = 39% Supply voltage = 110Vac The Intermodualation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was the maximum input of –59dBm. The cable and attenuator loss between the EUT and the spectrum analyser was 47.6dB. Sweep data is shown on the next page: TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANR…

Text truncated - open the document above for the full version.
