NEO55-1547VHFVHF Repeater System Host Unit

Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 1 of 75 Weehawken Tunnel Radio VHF Repeater System User/Maintenance Handbook For G.E Transport Systems AFL Works Order Nō.: Q112727 AFL product part Nō.’s: 55-154701 (VHF Simplex BDA) 55-154801 (VHF Duplex BDA) 80-230801 (VHF Crystal Splitter) 80-230901 (VHF D/L Combiner) 80-231001 (VHF U/L Crystal Splitter) 80-231101 (VHF U/L Combiner) 80-231301 (VHF/UHF Power Supply) Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 2 of 75 Table of Contents INTRODUCTION ............................................................................................................................................ 6 Scope .............................................................................................................................................................................. 6 Purpose ........................................................................................................................................................................... 6 EC DECLARATION OF CONFORMITY .................................................................................................................... 7 Glossary of Terms .......................................................................................................................................................... 8 Key to AFL RF Module Drawing Symbols.................................................................................................................... 9 1. SAFETY CONSIDERATIONS ............................................................................................................ 10 1.1 Earthing of Equipment ...................................................................................................................................... 10 1.2 Electric Shock Hazard ....................................................................................................................................... 10 1.3 RF Radiation Hazard ......................................................................................................................................... 11 1.4 Chemical Hazard ............................................................................................................................................... 12 1.5 Emergency Contact Numbers............................................................................................................................ 12 2. OVERVIEW/ SYSTEM DESCRIPTION ............................................................................................ 13 2.1 General System Description .............................................................................................................................. 13 3. VHF REPEATER SYSTEM.................................................................................................................... 14 3.1 VHF System Diagram, Drg. Nō. 80-231481 ..................................................................................................... 14 3.2 VHF Rack Layout and Downlink Interconnections Diagram, Drg. Nō. 80-231451 ......................................... 15 3.3 VHF Rack Layout and Uplink Interconnections Diagram, Drg. Nō. 80-231452 .............................................. 16 3.4 Power Distribution Sketch ................................................................................................................................ 17 3.5 Weehawken VHF System Frequencies Look-up Table..................................................................................... 18 4. BAND SELECTIVE VHF CELL ENHANCERS................................................................................ 19 4.1 VHF Simplex BDA (55-154701) ...................................................................................................................... 19 4.1.1 VHF Simplex BDA Description................................................................................................................ 19 4.1.2 VHF Simplex BDA Electrical Specification ............................................................................................. 19 4.1.3 VHF Simplex BDA Mechanical Specification.......................................................................................... 20 4.1.4 VHF Simplex BDA System Diagram Drg. Nō. 55-154781 ...................................................................... 21 4.1.5 VHF Simplex BDA Shelf Outline Diagram Drg. Nō. 55-154791 ............................................................. 22 4.1.6 VHF Simplex BDA Shelf Assembly (55-154701) Parts List .................................................................... 23 4.2 VHF Duplex BDA (55-154801)........................................................................................................................ 24 4.2.1 VHF Duplex BDA Description ................................................................................................................. 24 4.2.2 VHF Duplex BDA Electrical Specification............................................................................................... 24 4.2.3 VHF Duplex BDA Mechanical Specification ........................................................................................... 25 4.2.4 VHF Duplex BDA System Diagram 55-154801 ....................................................................................... 26 4.2.5 VHF Duplex Shelf Outline Drawing, Drg. Nō. 55-154891....................................................................... 27 4.2.6 VHF Duplex BDA Shelf Assembly (55-154801) Parts List...................................................................... 28 5. VHF SPLITTERS/COMBINERS................................................................................................................ 29 5.1 VHF Downlink Crystal Splitter (80-230…

Text truncated - open the document above for the full version.

RXTX NEO55-1547VHF RXTX NEO50-1181UHF RX NEO50-1185900 TX/RX NEO50-1184800 NEO55-1549BDA TUNNEL A TUNNEL B

Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 14 of 75 3. VHF REPEATER SYSTEM 3.1 VHF System Diagram, Drg. Nō. 80-231481 Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 15 of 75 3.2 VHF Rack Layout and Downlink Interconnections Diagram, Drg. Nō. 80-231451 Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 16 of 75 3.3 VHF Rack Layout and Uplink Interconnections Diagram, Drg. Nō. 80-231452 Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 21 of 75 4.1.4 VHF Simplex BDA System Diagram Drg. Nō. 55-154781 Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 26 of 75 4.2.4 VHF Duplex BDA System Diagram 55-154801 Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 30 of 75 5.1.3 VHF Downlink Crystal Filter System Diagram, Drg. Nō 80-230881 Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 34 of 75 5.2.3 VHF Downlink Combiner System Diagram, Drg. Nō. 80-230981 Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 38 of 75 5.3.3 VHF Uplink Crystal Splitter System Diagram, Drg. Nō. 80-231081 Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 42 of 75 5.4.3 VHF Uplink Combiner System Diagram, Drg. Nō. 80-231181 Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 63 of 75 7.11.7 Drg. Nō. 17-002190, DIP Switch Module Controller Outline Drawing BY DAT E DESCRIPTIO N No ISSUE THIRD ANG L E PRO JECTIO N 12 3 4 5 6 7 89 A BCDEF 1 23456789 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PRO PRIETARY DESIG N O F AERIAL FACIL ITIES L TD.REPRO DUCTIO N O R USE O F THIS DESIG N BY O THERS ISPERMISSIBL E O NL Y IF EXPRESSL Y AUTHO RISED IN WRITINGBY AERIAL FACIL ITIES L TD. NO DECIMAL PL ACE ± 1 mmO NE DECIM AL PL ACE ± 0 .3 m mTWO DECIMAL PL ACES ± 0 .1 mm AL L DIM ENSIO NS ARE IN m m UNL ESS O THERWISE STATED CHKD DRAWN APPDDAT E T O L ERANCES SCAL E England CUSTO MER DRAWING .No TITLE 3A CHANNELISED CELL ENHANCER,CHANNELCONTROL MODULE,OUTLINE 17-002190 NTS DJL 11/11/94 CHANNEL 4 PROGRAM PROGRAM CHANNEL 2 CHANNEL 1 PROGRAM CHANNEL 3 PROGRAM OFF PO W ER AL AR M 78 ON PO W ER AL AR M OFF ON PO W ER ON OFF AL AR M PO W ER OFF ON AL AR M ON. 654312 Li mi ted MODULE CHANNEL CONTROL Aerial Facilities FINISH : ALOCROM 1200MATERIAL : FRONT PANEL-ALUMINIUM ALLOY BM JD DJL 11/11/94 PRODUCTION ISSUE(CR0629) 12 2A PRODUCTION ISSUE (CR0962) CR0779 10/4/96 DJL SEW 25/1/99 ON. 87563421 161 8 ON. 7654321 ON. 87563421 161 8 ON. 7654321 ON. 87563421 161 8 ON. 7654321 ON. 87563421 161 SWITCH 1 SWITCH 16 3A 1/10/02 DJL ECN2646 Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 65 of 75 7.12.2 Drg. Nō. 17-003080, Generic Channel Module Block Diagram

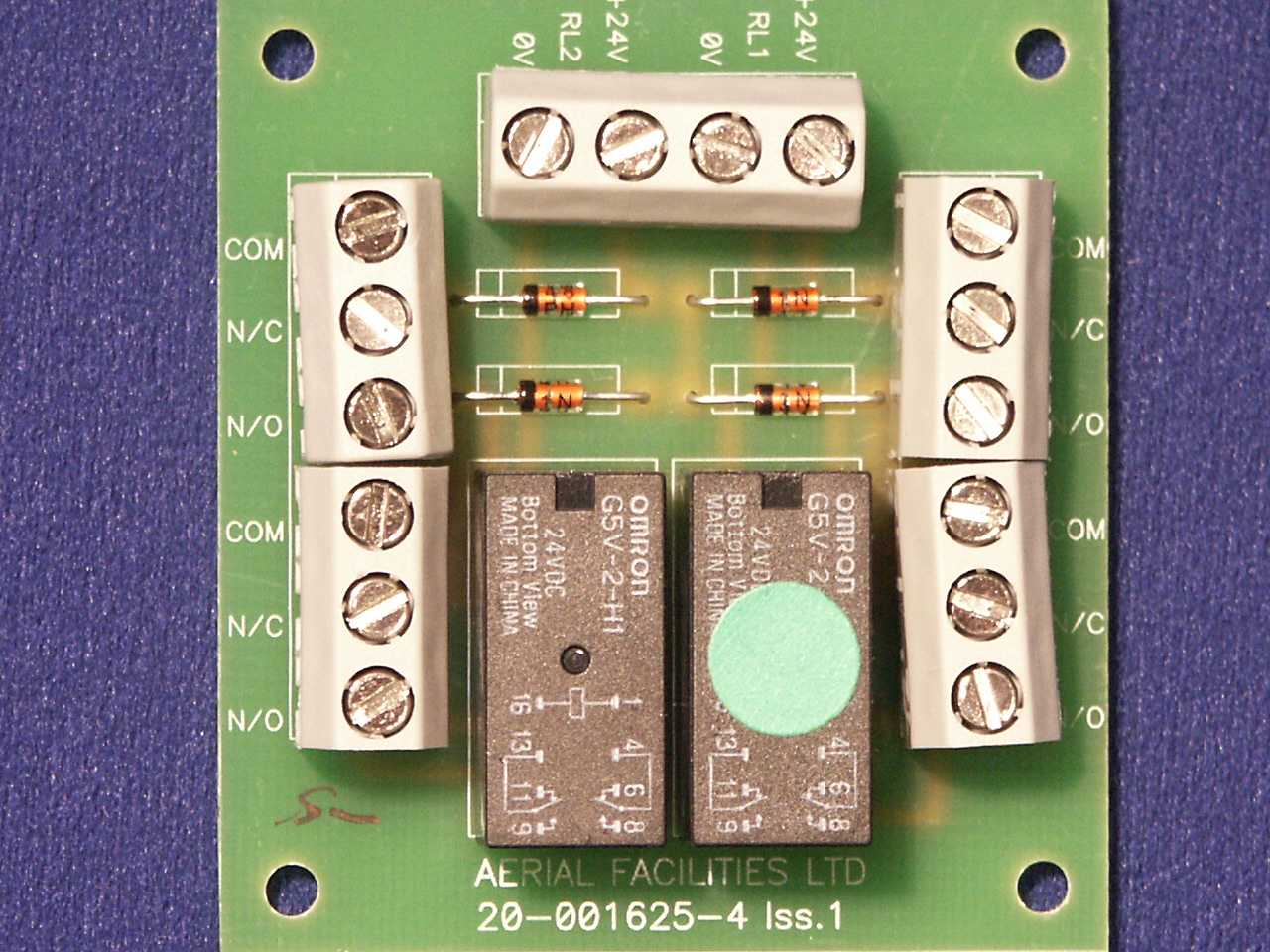

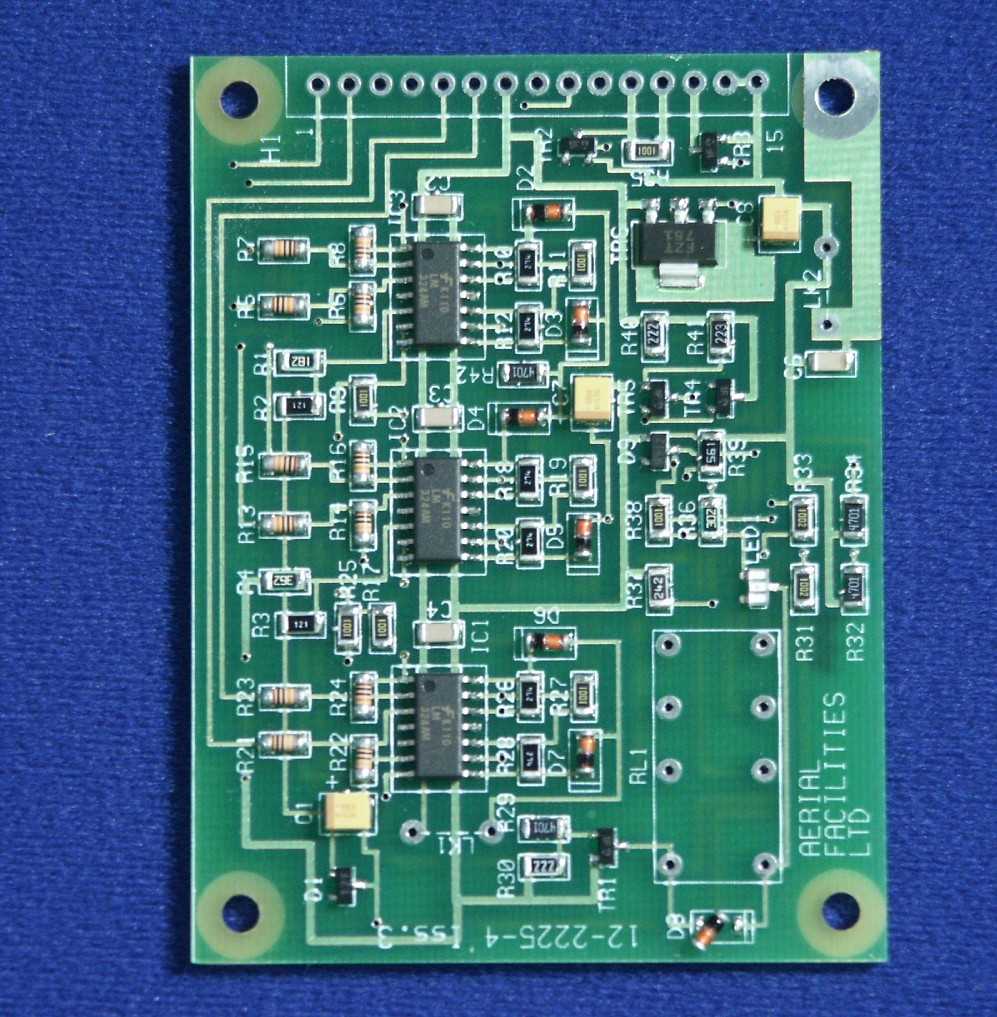

Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 13 of 75 2. OVERVIEW/ SYSTEM DESCRIPTION 2.1 General System Description The Weehawken tunnel radio system is designed to amplify various bands of radio frequencies, in either channelised or band selective modes. This handbook is dedicated to the VHF radio repeating system. All the hardware (except the River Portal remote BDA) is built into standard 19” rack mounted cabinets which have an environmental IP rating of 54. The systems in this document will be described separately, as individual shelves (VHF) and the various passive combiners, splitters and cross-band coupler shelves will be described in other documents. Every active module in the entire system has a dedicated alarm and these are series wired within the shelves to a relay which gives a volt-free output pair for each shelf which is wired to a ‘krone-block’ termination in the rack cabinet. Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 18 of 75 3.5 Weehawken VHF System Frequencies Look-up Table Agency Channel Number Uplink Tx Downlink Rx Jersey City Medical Center - EMS VHF CHN 1 153.7850 153.7850 North Hudson Regional Fire and Rescue VHF CHN 2 154.3250 154.3250 NJ Statewide Police (SPEN) VHF CHN 3 154.6800 154.6800 Jersey City Medical Center - EMS VHF CHN 4 155.2350 155.2350 Jersey City Medical Center - EMS VHF CHN 5 155.2800 155.2800 North Hudson Regional Fire and Rescue VHF CHN 6 158.8650 154.1450 Weehawken Township VHF CHN 7 159.0900 159.0900 Weehawken Township VHF CHN 8 159.2100 159.2100 New Jersey Transit Police Dept. VHF CHN 9 161.5200 160.8300 Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 19 of 75 4. BAND SELECTIVE VHF CELL ENHANCERS 4.1 VHF Simplex BDA (55-154701) 4.1.1 VHF Simplex BDA Description The simplex shelves are part of the VHF amplification and have crystal filters instead of bandpass filters to set bandwidths. There are two downlink bands and three uplink bands, the downlink paths having isolators fitted to each of the 5Watt output stages to prevent two outputs from interfering with each other. All amplifiers have built-in alarms which are configured as a summary, volt-free relay contact pair terminating at pins 1 & 2 on the ‘D’ type alarm connector. Note that the control circuitry is omitted from the system diagram for reasons of clarity and simplification. 4.1.2 VHF Simplex BDA Electrical Specification PARAMETER SPECIFICATION 153.75-155.3MHz (Downlink1) 159.0-161.0MHz (Downlink2) 153.75-155.3MHz (Uplink1) 158.85-159.3MHz (Uplink2) Frequency range: 161.5-162.0MHz (Uplink) Gain: >90dB Gain Adjustment: 0 – 15dB (in 1dB step) Uplink Power: >5.0Watts Downlink Power: >5.0Watts Uplink +48dBm IP3: Downlink +48dBm Noise Figure: <6dB AGC level: -2dBm (uplink & downlink) 23dB (downlink) Channel module gain: 24dB (uplink) VSWR: better than 1.5:1 RF Connectors: N type, female operational: -10°C to +55°C Temperature range: storage: -40°C to +70°C 1 U/L amplifiers 2 D/L amplifiers Alarms Fitted: (volt-free contacts/TTL) 3 Channel module Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 20 of 75 4.1.3 VHF Simplex BDA Mechanical Specification PARAMETER SPECIFICATION Height:Standard Eurorack Width:19" (482.6mm) Rack Depth:600mm (800 optional) Height: 3U Width: 19" (482.6mm) Shelves: Depth: <400mm(excluding heatsinks, connectors, handles and feet) operational: -10°C to +55°C Temperature range: storage: -40°C to +70°C Weight: <15kg Humidity: 10 – 90% non-condensing RF Connectors: N type female Environmental Protection: IP54 Case: Alocrom 1200 Heatsinks: Matt black Handles: Silver anodised alloy Finish: Fascia Painted to RAL 7035 Supply Cable: Unit supplied with suitable supply input leads, connector and specified length of cable (where appropriate) Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 24 of 75 4.2 VHF Duplex BDA (55-154801) 4.2.1 VHF Duplex BDA Description The duplex shelves are part of the VHF amplification and like the simplex shelves, have crystal filters instead of bandpass filters to set bandwidths. There are two downlink bands and three uplink bands, the downlink paths having isolators fitted to each of the 5Watt output stages to prevent reflections from interfering with the other channel. The uplink channel module has a dedicated noise muting circuit fitted externally to the channel module which operates when the downlink path is active. All amplifiers have built-in alarms which are configured as a summary, volt-free relay contact pair terminating at pins 1 & 2 on the ‘D’ type alarm connector. 4.2.2 VHF Duplex BDA Electrical Specification PARAMETER SPECIFICATION 153.75-155.3MHz (Downlink1) 159.0-161.0MHz (Downlink2) 153.75-155.3MHz (Uplink1) 158.85-159.3MHz (Uplink2) Frequency range: 161.5-162.0MHz (Uplink) Gain: >90dB Gain Adjustment: 0 – 15dB (in 1dB step) Uplink Power: >5.0Watts Downlink Power: >5.0Watts Uplink +48dBm IP3: Downlink +48dBm Noise Figure: <6dB AGC level: -2dBm (uplink & downlink) 23dB (downlink) Channel module gain: 24dB (uplink) VSWR: better than 1.5:1 RF Connectors: N type, female operational: -10°C to +55°C Temperature range: storage: -40°C to +70°C 1 U/L amplifiers 2 D/L amplifiers Alarms Fitted: (volt-free contacts/TTL) 3 Channel modules Weehawken Tunnel VHF Repeater System User/Maintenance Handbook Handbook Nō.-Weehawken_VHF Issue No:-A Date:-05/08/05 Page:- 25 of 75 4.2.3 VHF Duplex BDA Mechanical Specification PARAMETER SPECIFICATION Height: Standard Eurorack Width: 19" (482.6mm) Rack Depth: 600mm (800 optional) Height: 3U Width: 19" (482.6mm) Shelves: Depth: <400mm(excluding heatsinks, connectors, handles and feet) operational: -10°C to +55°C Temperature range: s…

Text truncated - open the document above for the full version.

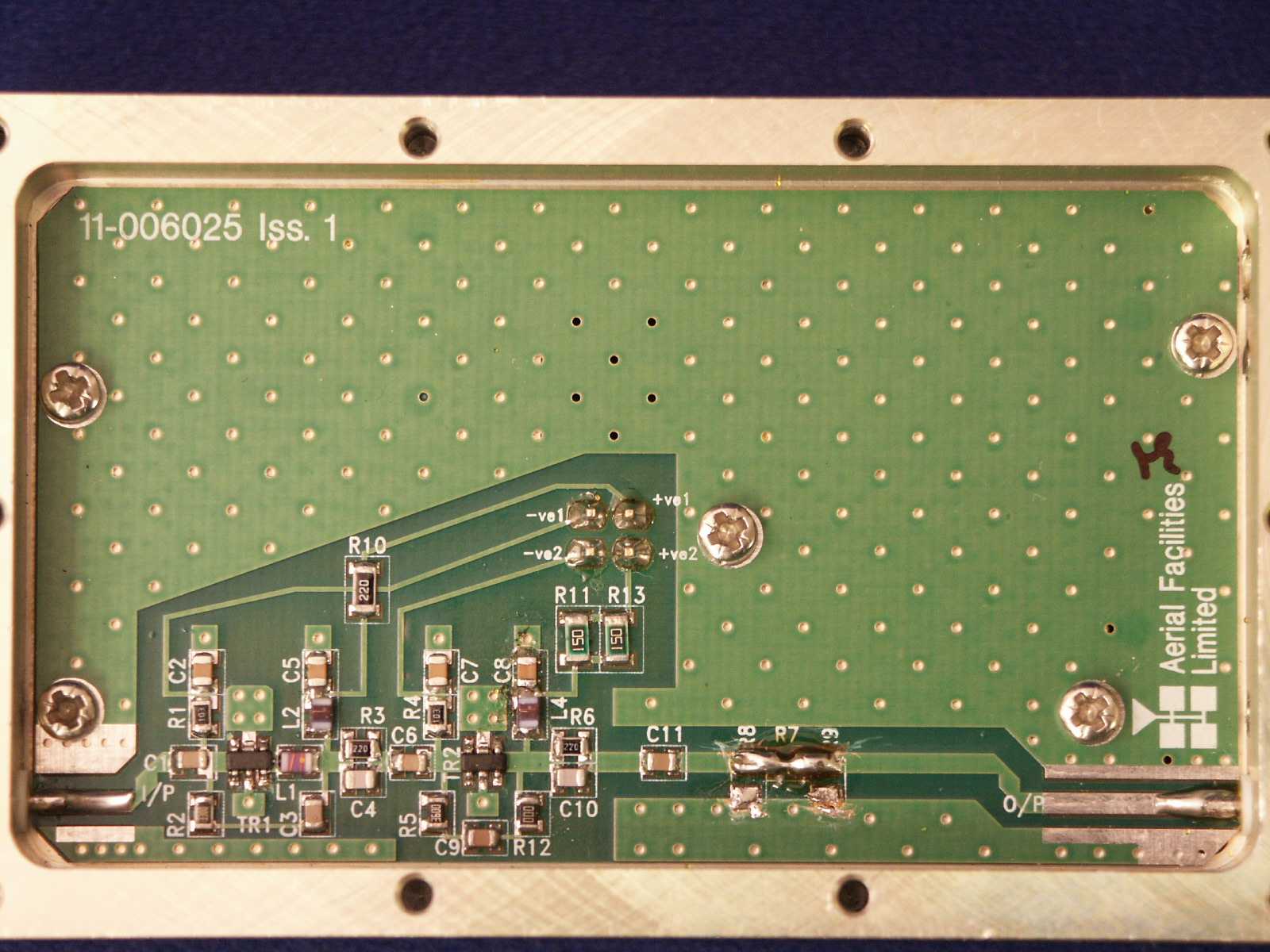

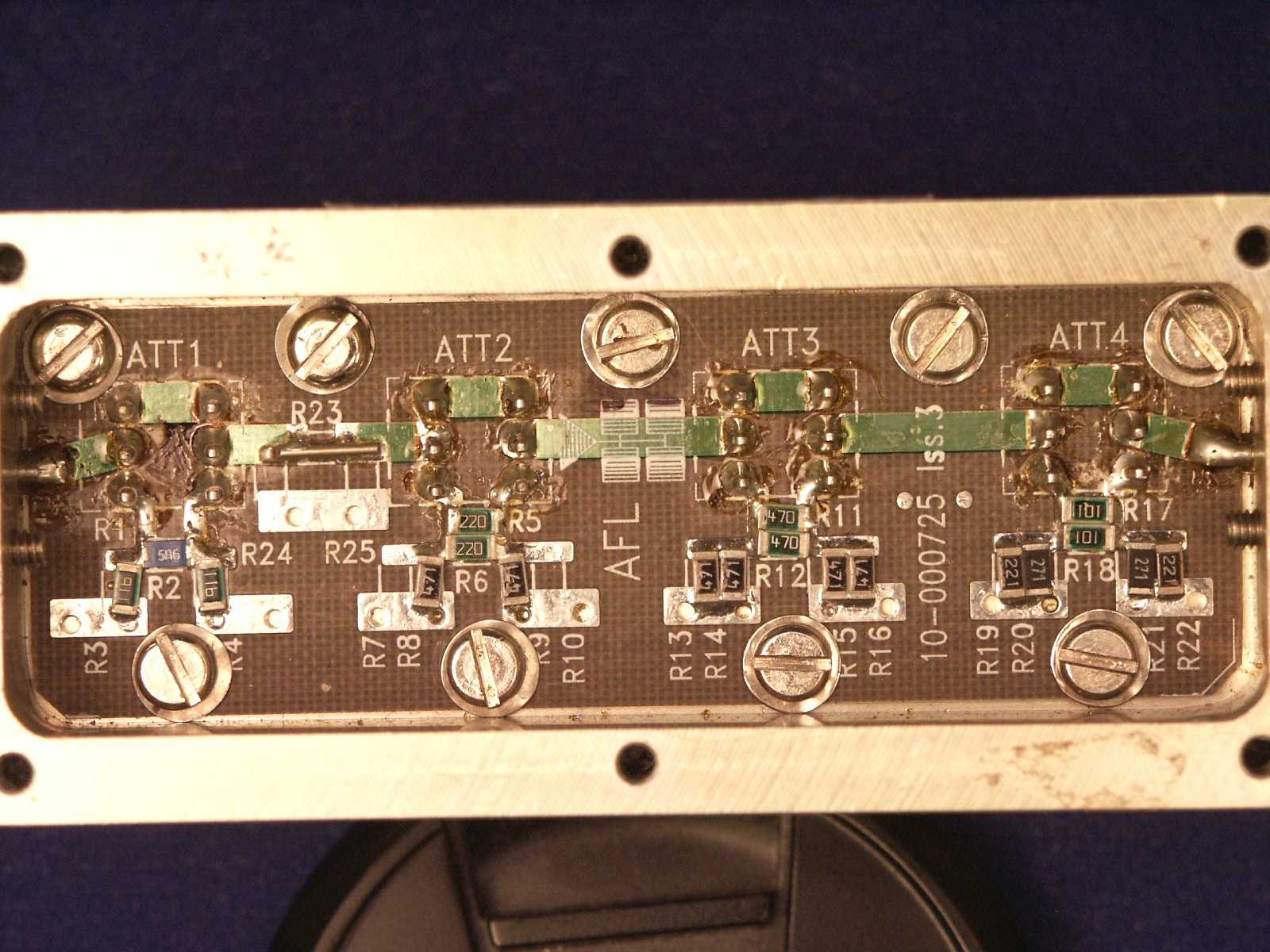

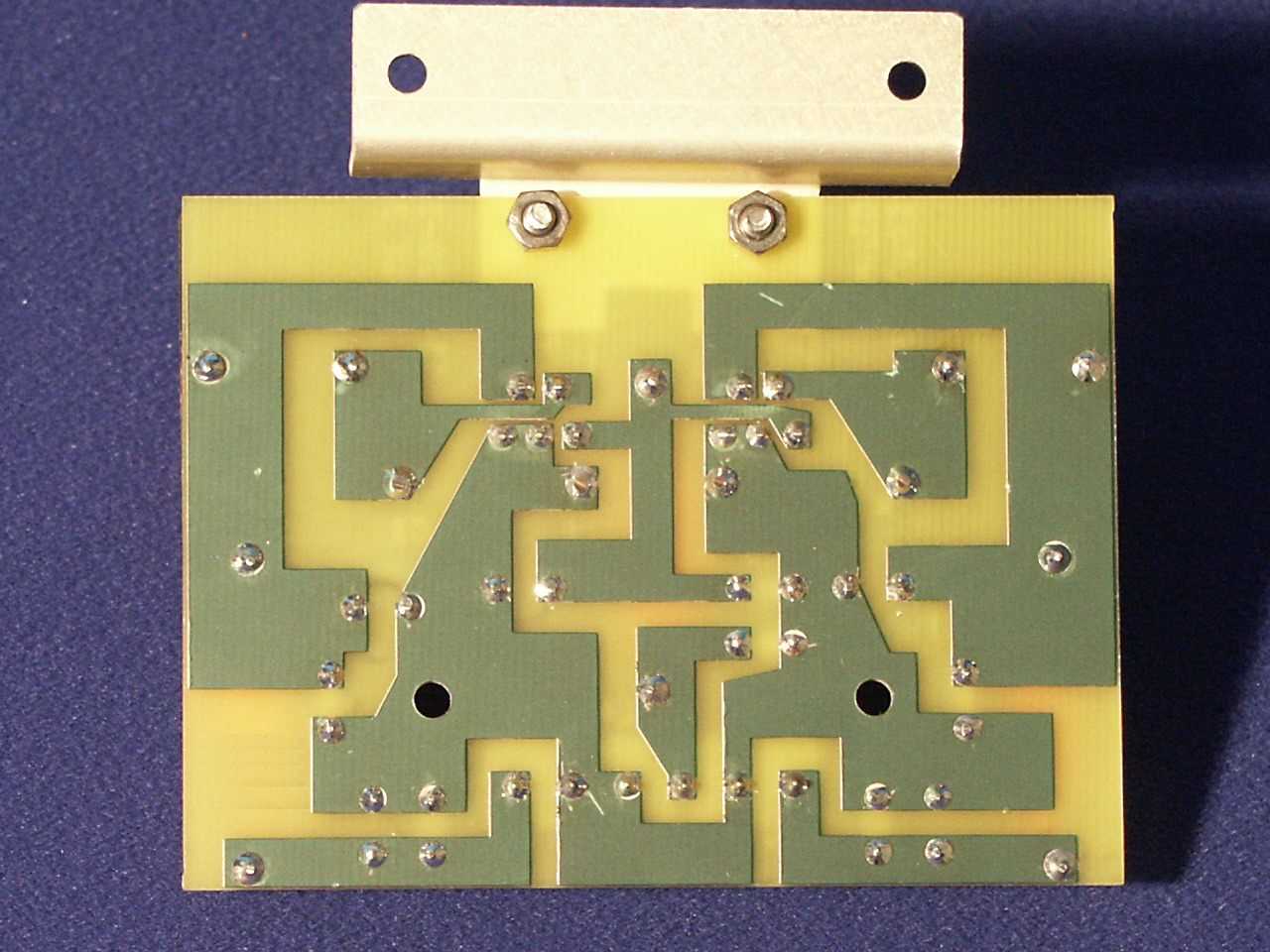

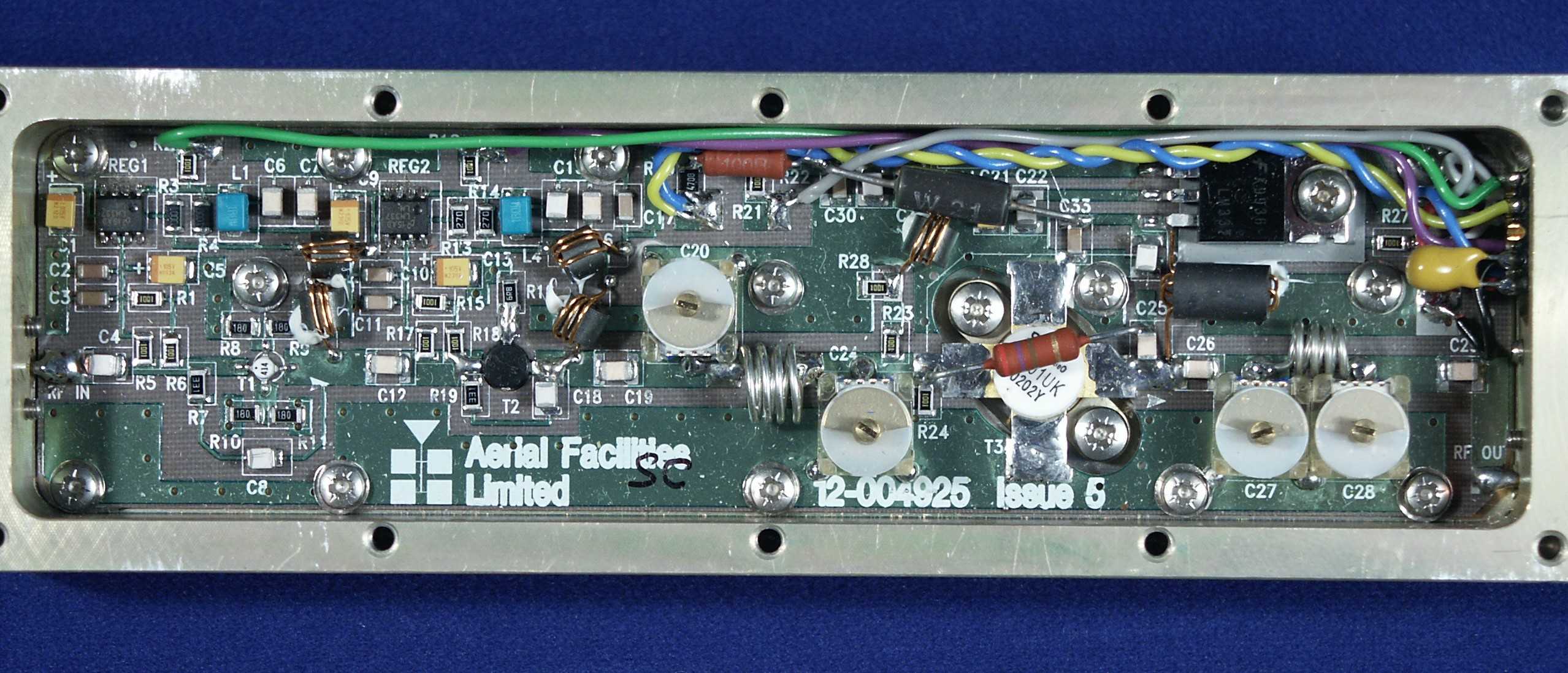

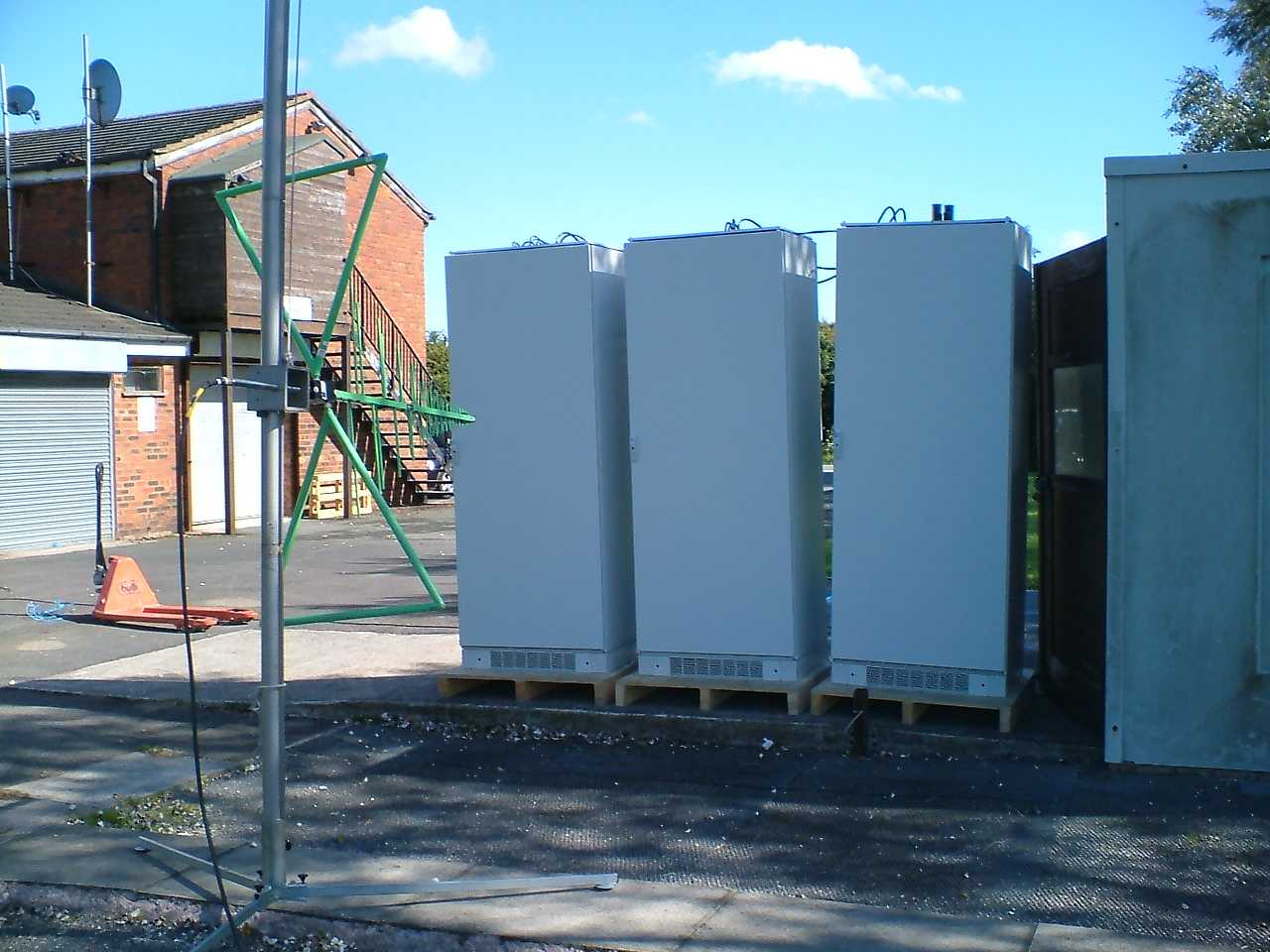

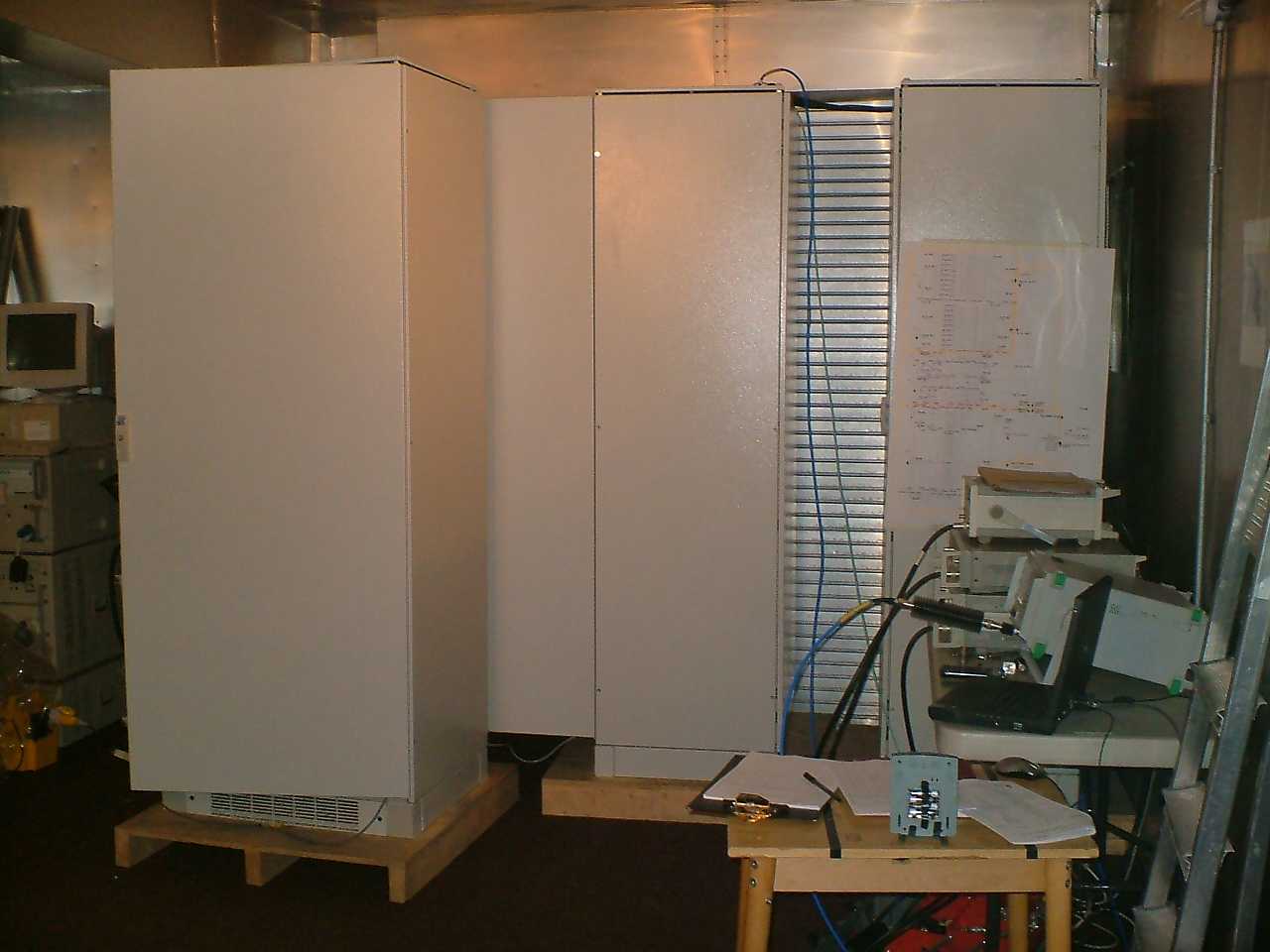

TRL C OMPLIANCE L TD EMC D IVISION L ONG G REEN F ORTHAMPTON G LOUCESTER GL19 4QH U NITED K INGDOM T ELEPHONE +44 (0)1684 833818 F AX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1193/6623 COPY NO: 1 ISSUE NO: 1 FCC ID: NEO55-1547VHF REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED OFF AIR BI-DIRECTION AMPLIFIER SYSTEM (VHF) WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 22 nd August 2005 – 25 th August 2005 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 11 th November 2005 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02 RU1193/6623 Page 2 of 54 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-48 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RF335 iss02 RU1193/6623 Page 3 of 54 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO55-1547VHF PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: OFF AIR BI-DIRECTION AMPLIFIER SYSTEM (VHF) EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMUM GAIN Uplink 109.94dB Downlink 96.24dB MAXIMUM INPUT Uplink -82 dBm Downlink -64 dBm MAXIMUM OUTPUT Uplink 27.94dBm Downlink 32.24dBm ANTENNA TYPE: Not applicable CHANNEL SPACING: 15kHz NUMBER OF CHANNELS: Uplink 11 Downlink 11 FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110Vac TEST DATE(s): 22 nd August 2005 – 25 th August 2005 ORDER No(s): 32001 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RF335 iss02 RU1193/6623 Page 4 of 54 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): OFF AIR BI-DIRECTION AMPLIFIER SYSTEM (VHF) EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 32001 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 22 nd August 2005 – 25 th August 2005 TEST REPORT No: RU1193/6623 RF335 iss02 RU1193/6623 Page 5 of 54 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2. Product Use: Private Land Mobile Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 21 o C 5. Supply Voltages: Vnom +110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [X] 15kHz Wideband [ ] 8. Test Location TRL Compliance Limited Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RF335 iss02 RU1193/6623 Page 6 of 54 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 26 o C Radio Laboratory Relative humidity = 54% Supply voltage = +110Vac Channel number = See test results Frequency MHz Signal Generator input level dBm Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Gain after 10dB input level increase dBm 153.785 MHz -80 27.36 -9.68 98.68 90.37 155.280 MHz -77 27.36 -2.84 102.52 92.85 158.865 MHz -75 27.36 -4.94 98.58 88.72 159.210 MHz -80 27.36 -1.78 106.58 97.06 161.520 MHz -82 27.36 -0.42 109.94 100.48 Notes: 1. The signal generator input was increased by 20dBs and the level of the output signal remeasured. 2. Antenna Port input split into 2 channelised amplifiers. TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8304-300-N N/A 220 X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2042 119388/080 176 X Spectrum Analyser TRL479 EUT Signal Generator TRL176 Cable & Attenuator RF335 iss02 RU1193/6623 Page 7 of 54 26.89dB AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 26 o C Radio Laboratory Relative humidity = 53% Supply voltage = +110Vac The Intermodulation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was 10dB above the maximum input of –75dBm.The cable and attenuator loss between the EUT and the spectrum analyser was 26.89dB. The Uplink input…
