NEO55-1549BDAUHF Remote Repeater System 55-154901

Weehawken Tunnel Remote Repeater User/Maintenance Handbook Handbook Nō.-Weehawken_River_P Issue No:-A Date:-05/08/05 Page:- 1 of 36 Weehawken Tunnel Radio Remote Repeater System User/Maintenance Handbook For G.E Transport Systems AFL Works Order Nō.: Q112727 AFL product part Nō.’s: 55-154901 (800MHz BS BDA) 80-231302 (800MHz Power Supply) 80-231303 (Alarm System) Weehawken Tunnel Remote Repeater User/Maintenance Handbook Handbook Nō.-Weehawken_River_P Issue No:-A Date:-05/08/05 Page:- 2 of 36 Table of Contents INTRODUCTION ............................................................................................................................................ 5 Scope................................................................................................................................................................................ 5 Purpose............................................................................................................................................................................ 5 EC DECLARATION OF CONFORMITY.................................................................................................................. 6 Glossary of Terms .......................................................................................................................................................... 7 Key to AFL RF Module Drawing Symbols .................................................................................................................. 8 1. SAFETY CONSIDERATIONS ............................................................................................................ 9 1.1 Earthing of Equipment ..................................................................................................................................... 9 1.2 Electric Shock Hazard ...................................................................................................................................... 9 1.3 RF Radiation Hazard...................................................................................................................................... 10 1.4 Chemical Hazard............................................................................................................................................. 11 1.5 Emergency Contact Numbers ........................................................................................................................ 11 2. OVERVIEW/ SYSTEM DESCRIPTION.......................................................................................... 12 2.1 General System Description ........................................................................................................................... 12 3. MULTI-BAND SELECTIVE CELL ENHANCER (RIVER PORTAL)......................................... 13 3.3 Band Selective BDA (55-154901) ................................................................................................................... 13 3.3.1 Band Selective BDA Description................................................................................................................... 13 3.3.2 Band Selective BDA Electrical Specification ................................................................................................ 13 3.3.3 Band Selective BDA Mechanical Specification ............................................................................................. 14 3.3.4 Band Selective BDA System Diagram 55-154981......................................................................................... 15 3.3.5 Band Selective BDA Outline Drawing, Drg. Nō. 50-118181 ........................................................................ 16 3.3.6 Weehawken System Frequencies Look-up Table........................................................................................... 17 3.3.7 Band Selective BDA (55-154901) Parts List ................................................................................................. 18 4. ALARMS .............................................................................................................................................. 19 4.1 Alarm/Monitor System ................................................................................................................................... 19 4.1.1 Alarm/Monitor Description........................................................................................................................... 19 4.1.2 Alarm/Monitor Technical Specification ........................................................................................................ 19 5. SUB-UNIT MODULES ....................................................................................................................... 20 5.1 Bandpass Filter (02-004502)........................................................................................................................... 20 5.1.1 Description .................................................................................................................................................... 20 5.1.2 Technical Specification ................................................................................................................................. 20 5.2 Bandpass Filter (02-007206)........................................................................................................................... 21 5.2.1 Description .................................................................................................................................................... 21 5.2.2 Technical Specification ................................................................................................................................. 21 5.3 Crossband Coupler (07-005705) .................................................................................................................... 22 5.3.1 Description ....................................................................…

Text truncated - open the document above for the full version.

RXTX NEO55-1547VHF RXTX NEO50-1181UHF RX NEO50-1185900 TX/RX NEO50-1184800 NEO55-1549BDA TUNNEL A TUNNEL B

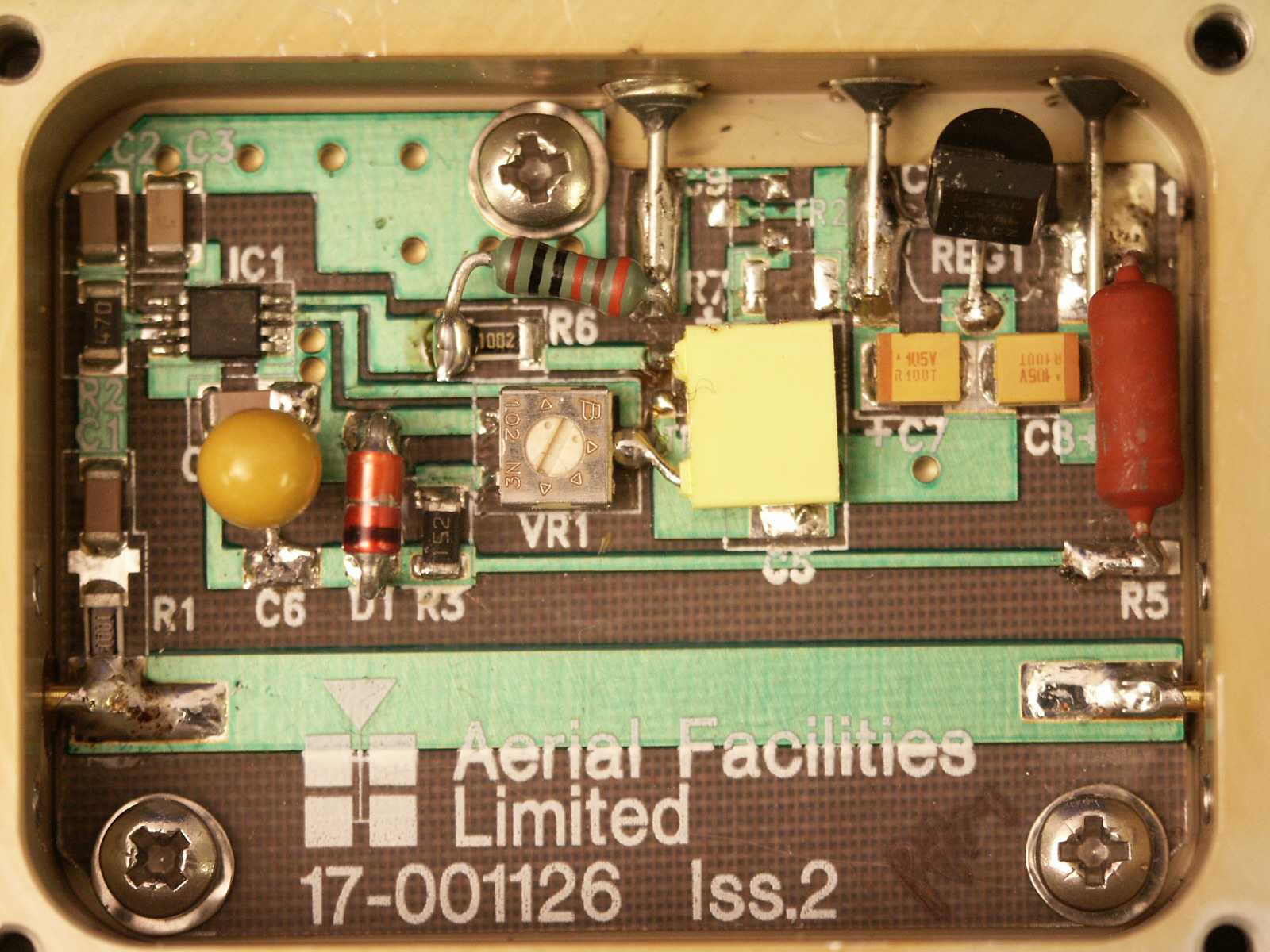

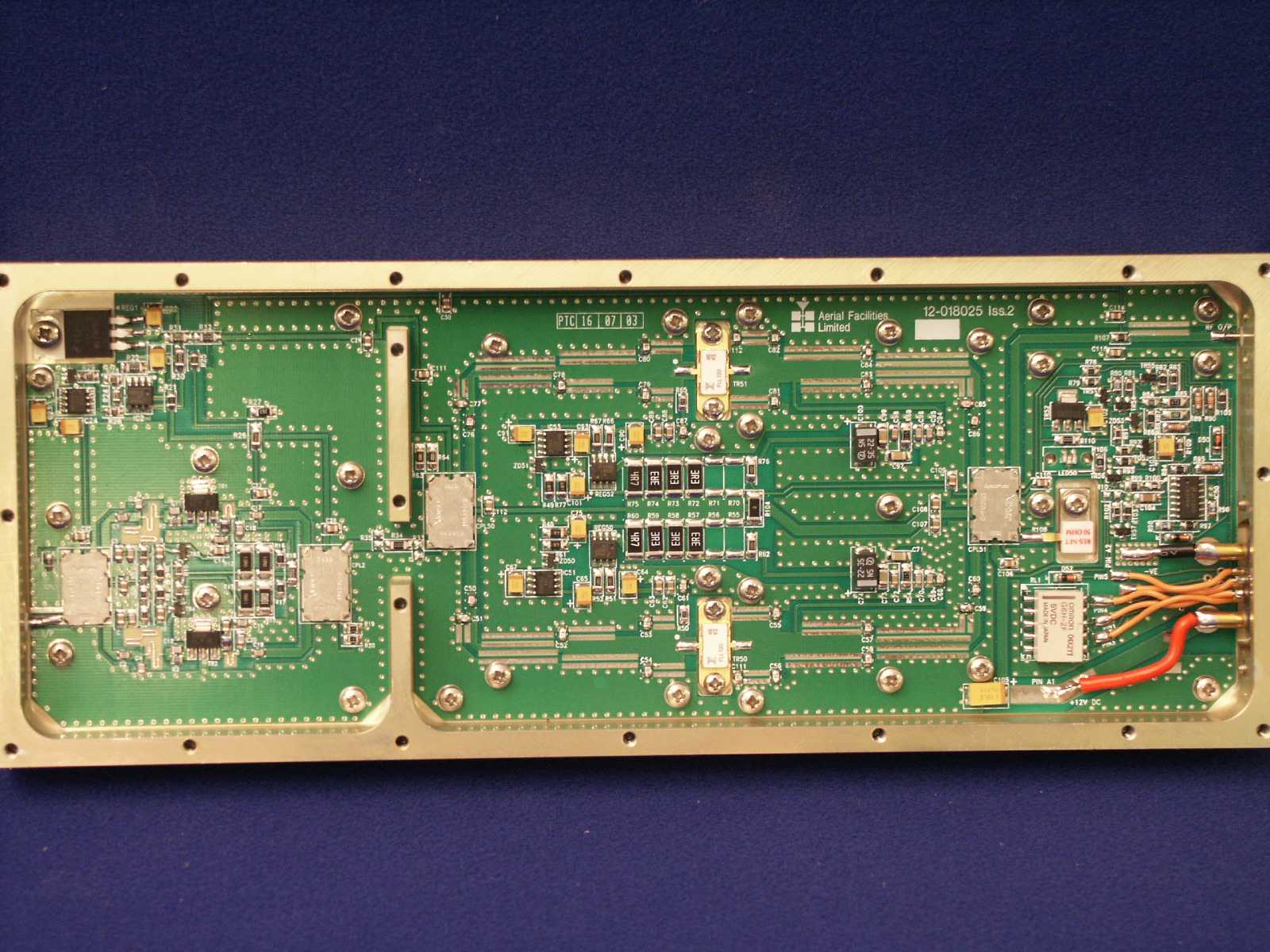

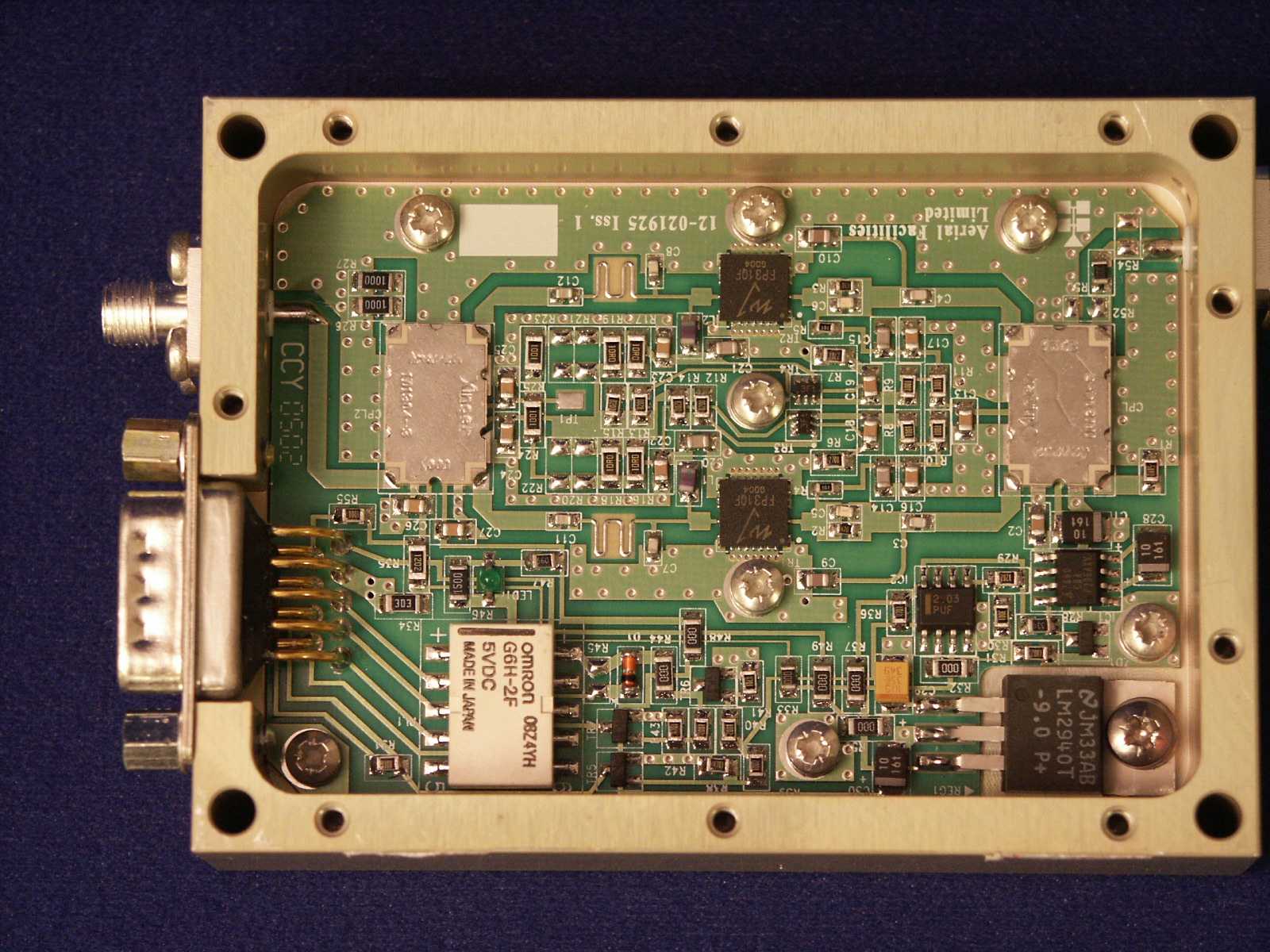

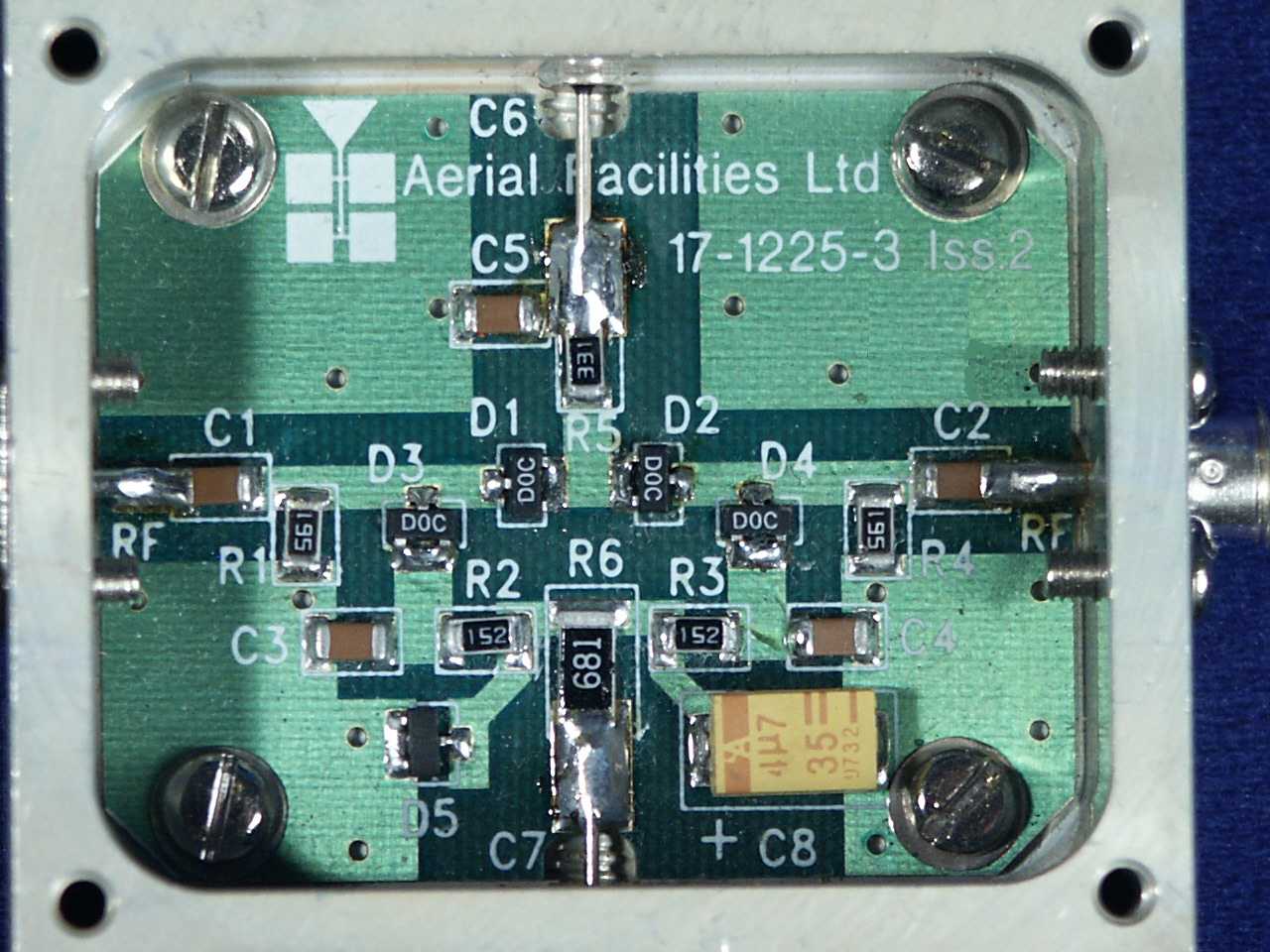

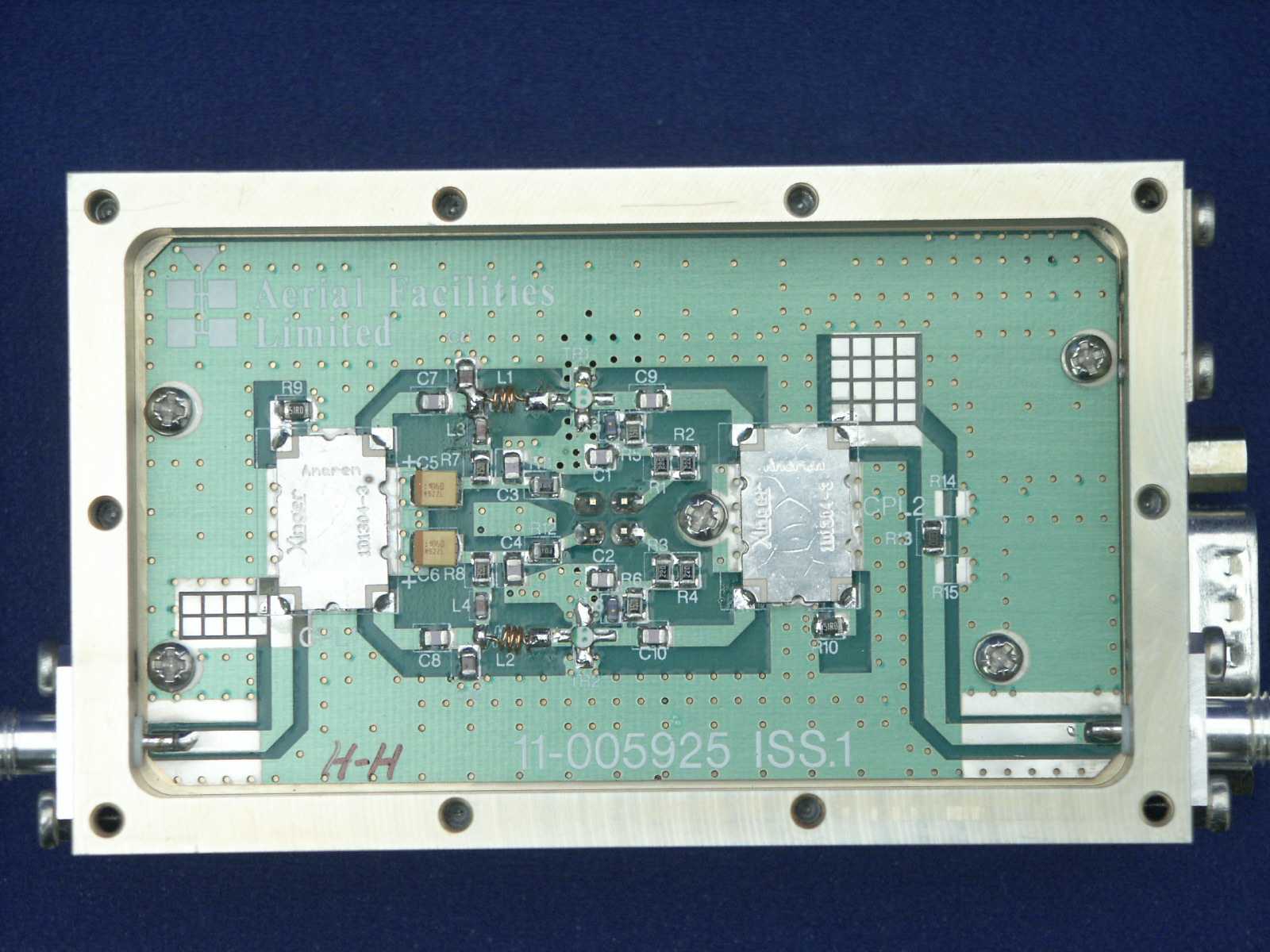

Weehawken Tunnel Remote Repeater User/Maintenance Handbook Handbook Nō.-Weehawken_River_P Issue No:-A Date:-05/08/05 Page:- 12 of 36 2. OVERVIEW/ SYSTEM DESCRIPTION 2.1 General System Description The Weehawken tunnel radio system is designed to amplify various bands of radio frequencies, in either channelised or band selective modes. This unit amplifies all the RF bands to the ‘River Portal’ area in a band-selective mode with AGC in the uplink direction. All the hardware is built into a standard environmentally protected cabinet which has an IP rating of 65. The system described in this document is ‘stand-alone’ and needs no other equipment apart from a +12V DC power supply. Every active module in the entire system has a dedicated alarm and these are series wired within the unit to a relay which gives a volt-free output pair which is wired to a ‘krone-block’ termination and ultimately to a pair of wires in an external port connector (alarm connector, pins 1 & 2). Weehawken Tunnel Remote Repeater User/Maintenance Handbook Handbook Nō.-Weehawken_River_P Issue No:-A Date:-05/08/05 Page:- 13 of 36 3. MULTI-BAND SELECTIVE CELL ENHANCER (RIVER PORTAL) 3.3 Band Selective BDA (55-154901) 3.3.1 Band Selective BDA Description The band selective BDA which covers the ‘River Portal’ site carries two downlink paths and one uplink path, all with automatic gain control on the last amplification stage in each path. Cross band couplers are fitted to the input and output to facilitate a low frequency bypass of the 800MHz BDA allowing the lower frequency signals to pass unhindered. All amplifiers have built-in alarms which are configured as a summary, volt-free relay contact pair terminating at pins 1 & 2 on the ‘D’ type alarm connector. 3.3.2 Band Selective BDA Electrical Specification PARAMETER SPECIFICATION 929-930MHz (Downlink) 854-869MHz (Downlink) Frequency ranges: 806-824MHz (Uplink) Gain: >35dB Gain Adjustment: 0 - 30dB (in 2dB steps) Uplink power: >1.0Watts (806-824MHz path) Downlink power: >1.0Watts (929-930MHz path) Downlink power: >20.0Watts (854-869MHz path) Uplink +43dBm (806-824 & 929-930MHz paths) IP3: Downlink +56dBm (854-869MHz path) Noise Figure: <6dB (at maximum gain) AGC: Fitted to all paths DC Power supply: 12V DC (externally supplied) VSWR: better than 1.5:1 RF Connectors: N type, female operational: -10°C to +55°C Temperature range: storage: -40°C to +70°C 1 Downlink amplifiers Alarms Fitted: (volt-free contacts/TTL) 2 Uplink amplifiers Weehawken Tunnel Remote Repeater User/Maintenance Handbook Handbook Nō.-Weehawken_River_P Issue No:-A Date:-05/08/05 Page:- 14 of 36 3.3.3 Band Selective BDA Mechanical Specification PARAMETER SPECIFICATION Height: 620mm Width: 620mm Case size Depth: 250mm (excluding heatsinks, connectors, handles and feet) Fixings: 4 holes on 670(w) x 558(h)mm Operational: -10°C to +55°C Temperature range: Storage: -40°C to +70°C Weight: >30kg RF Connectors: N type female Environmental Protection: IP65 (with door closed and all ports terminated) Case: To RAL 7035 Heatsinks: Matt black (where fitted) Finish: Handles: Black technopolymer Supply Cable: Unit supplied with suitable supply input leads with connector and appropriate length of cable Weehawken Tunnel Remote Repeater User/Maintenance Handbook Handbook Nō.-Weehawken_River_P Issue No:-A Date:-05/08/05 Page:- 19 of 36 4. ALARMS 4.1 Alarm/Monitor System 4.1.1 Alarm/Monitor Description The alarm system acts as an alarm concentrator for all the alarms in the unit. Firstly, within each active component, the individually alarmed modules are ‘summed together’ and presented to the outside world as a volt-free, relay contact pair (pins 1 & 2 in the IP65 alarm connector. As all the alarms in the system are ‘held closed loops’, should the power supply fail, the main system alarm will be triggered. 4.1.2 Alarm/Monitor Technical Specification PARAMETER SPECIFICATION Operating voltage: 12V (floating earth) Alarm output relay contacts: Max. switch current: 1.0Amp Max. switch volts: 120Vdc/60VA Max. switch power: 24W/60VA Min. switch load: 10.0μA/10.0mV Relay isolation: 1.5kV Mechanical life: >2x10 7 operations Relay approval: BT type 56 Connector details: 25 Way ‘D’ Connector operational: :-10°C to +55°C Temperature range storage: :-40°C to +70°C Weehawken Tunnel Remote Repeater User/Maintenance Handbook Handbook Nō.-Weehawken_River_P Issue No:-A Date:-05/08/05 Page:- 20 of 36 5. SUB-UNIT MODULES 5.1 Bandpass Filter (02-004502) 5.1.1 Description The bandpass filters are multi-section designs with a bandwidth dependent upon the passband frequencies, (both tuned to customer requirements). The response shape is basically Chebyshev with a passband design ripple of 0.1dB. The filters are of slot coupled, folded combline design, and are carefully aligned during manufacture in order to optimise the insertion loss, VSWR and intermodulation characteristics of the unit. The tuned elements are silver-plated to reduce surface ohmic losses and maintain a good VSWR figure and 50Ω load at the input and output ports. Being passive devices, the bandpass filters should have an extremely long operational life and require no maintenance. Should a filter be suspect, it is usually most time efficient to replace the module rather than attempt repair or re-tuning. No adjustments should be attempted without full network sweep analysis facilities to monitor both insertion loss and VSWR simultaneously. 5.1.2 Technical Specification PARAMETER SPECIFICATION Response Type Chebyshev Frequency Range: 751-862MHz (tuned to spec.) Bandwidth: 12MHz (tuned to spec.) Number of Sections: 5 Insertion Loss: 1.2 dB VSWR: better than 1.2:1 Connectors: SMA female Power Handling: 100W max operation: -10°C to +60°C Temperature range: storage: -20°C to +70°C Weight: 3 kg (typical) Weehawken Tunnel Remote Repeater User/Maintenance Handbook Handbook Nō.-Weehawken_River_P Issue No:-A Date:-05/08/05 Page:- 21 of 36 5.2 Bandpass Filter (02-007206) 5.2.1 Description The bandpass…

Text truncated - open the document above for the full version.

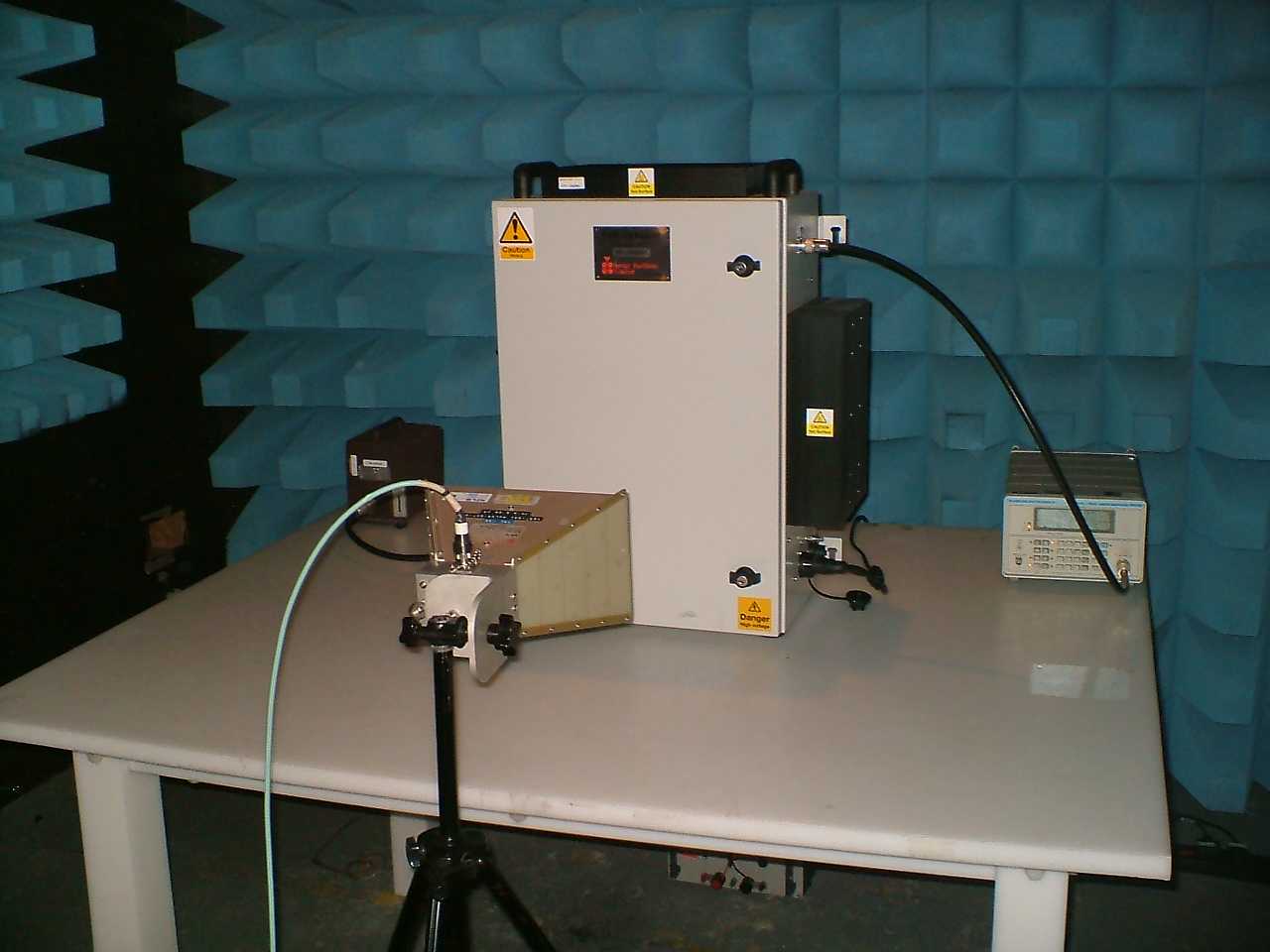

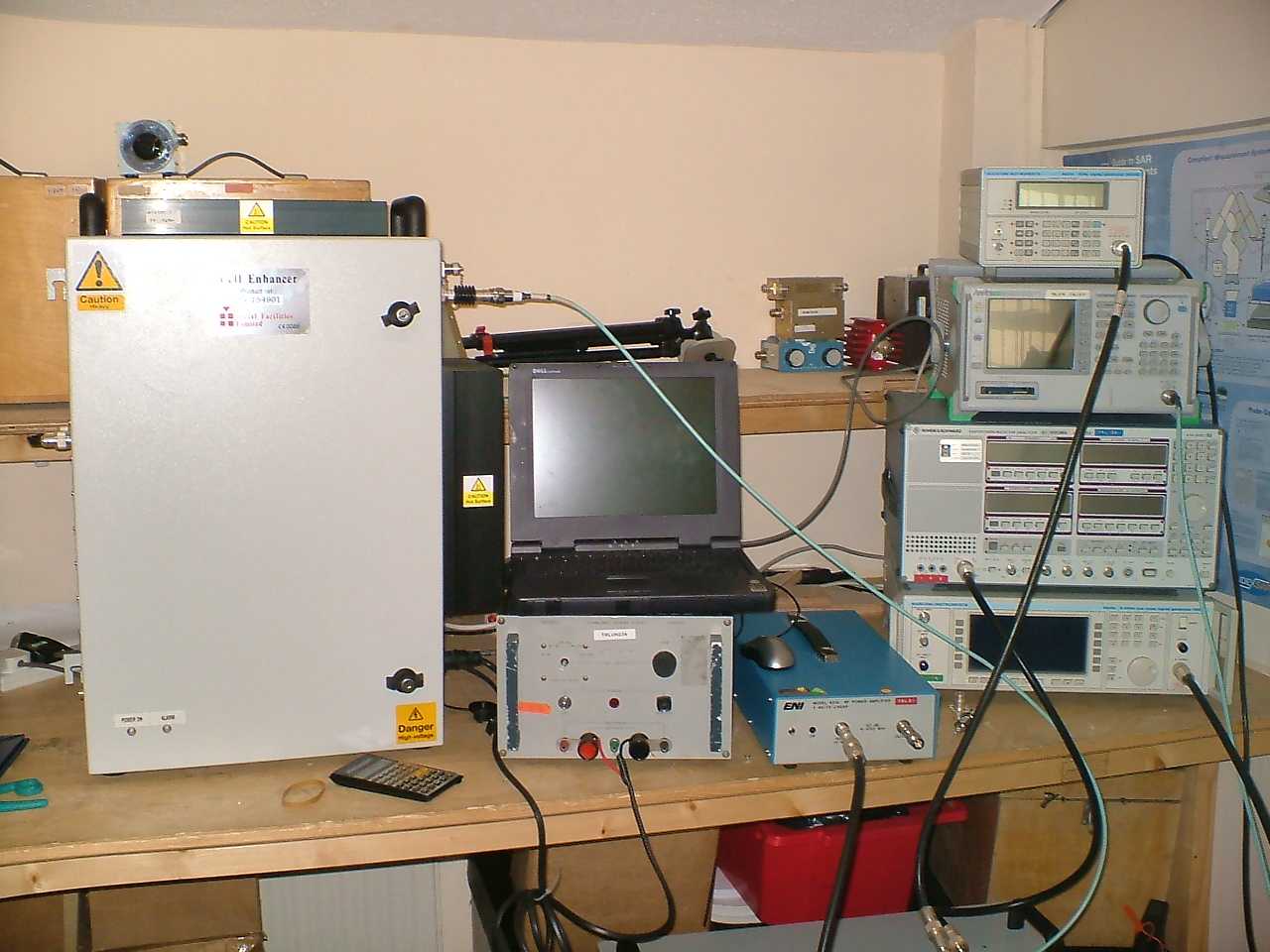

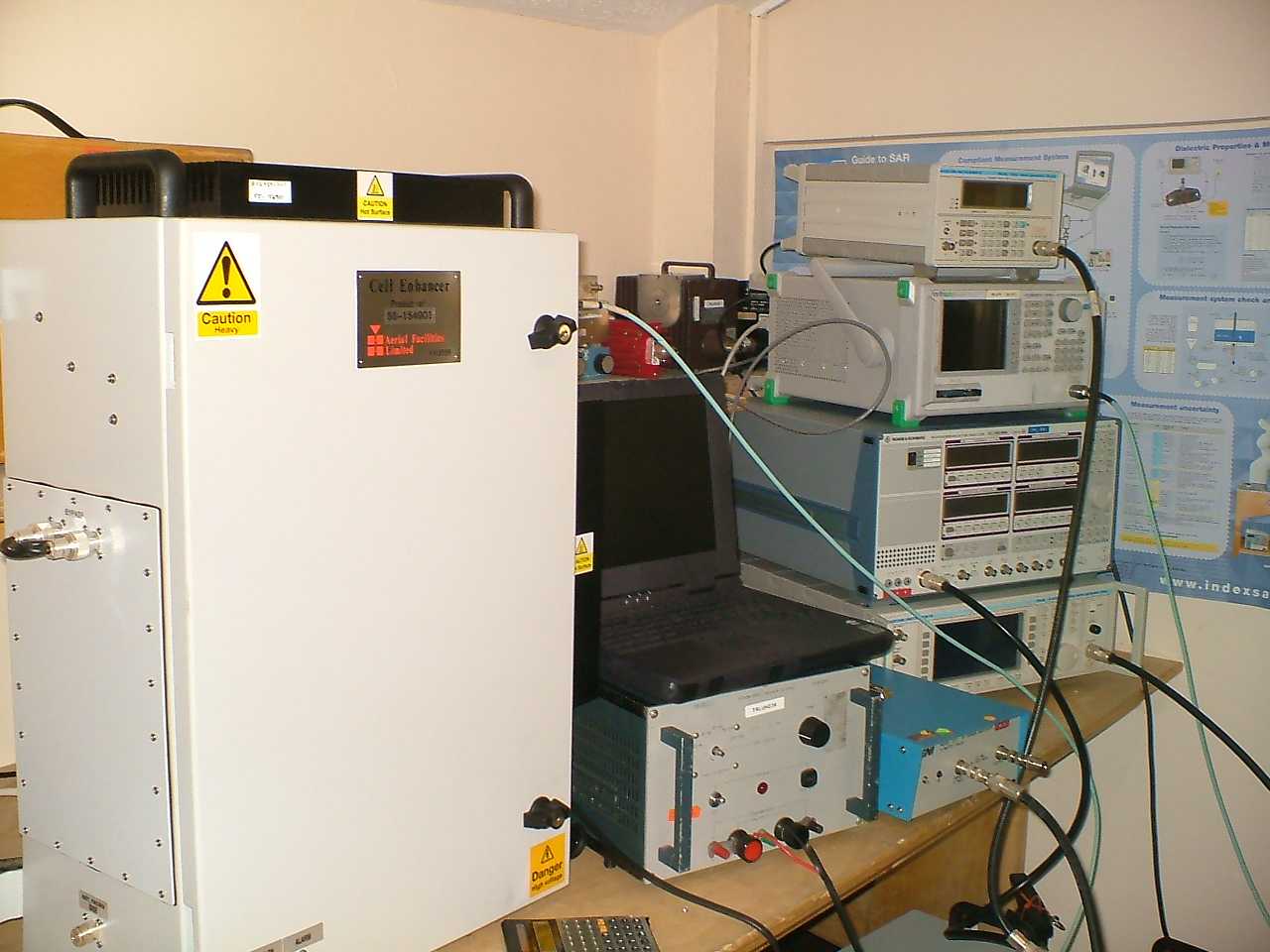

TRL C OMPLIANCE L TD EMC D IVISION L ONG G REEN F ORTHAMPTON G LOUCESTER GL19 4QH U NITED K INGDOM T ELEPHONE +44 (0)1684 833818 F AX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1193/6637 COPY NO: 1 ISSUE NO: 1 FCC ID: NEO55-1549BDA REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED BI-DIRECTION AMPLIFIER (800MHz/900MHz) WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 1 st September 2005 – 5 th September 2005 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 11 November 2005 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02 RU1193/6637 Page 2 of 73 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-66 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RF335 iss02 RU1193/6637 Page 3 of 73 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO55-1549BDA PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: BI-DIRECTION AMPLIFIER (800MHz/900MHz) EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMUM GAIN Uplink 28.95dB Downlink 30.60dB MAXIMUM INPUT Uplink -12dBm Downlink +2dBm MAXIMUM OUTPUT Uplink +16.95dBm Downlink +32.60dBm ANTENNA TYPE: Not applicable CHANNEL SPACING: Not Applicable, wideband NUMBER OF CHANNELS: Not Applicable, wideband FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110 Vac TEST DATE(s): 1 st September 2005 – 5 th September 2005 ORDER No(s): 32001 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RF335 iss02 RU1193/6637 Page 4 of 73 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): BI-DIRECTION AMPLIFIER (800MHz/900MHz) EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 32001 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 1 st September 2005 – 5 th September 2005 TEST REPORT No: RU1193/6637 RF335 iss02 RU1193/6637 Page 5 of 73 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2. Product Use: Private Land Mobile Repeater 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 20 o C 5. Supply Voltages: Vnom +110 Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [ ] Wideband [X] 8. Test Location TRL Compliance Limited Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RF335 iss02 RU1193/6637 Page 6 of 73 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 20 o C Radio Laboratory Relative humidity = 77% Supply voltage = +110 Vac Channel number = See test results Frequency MHz Signal Generator input level dBm Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Gain after 10dB input level increase dBm 806.0 MHz -12 27.10 -11.10 28.00 15.93 815.0 MHz -12 27.10 -10.15 28.95 18.01 824.0 MHz -12 27.10 -11.03 28.07 15.89 Notes: 1. The signal generator input was increased by 10dBs and the level of the output signal remeasured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8304-300-N N/A 220 X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2042 119388/080 176 X Spectrum Analyser TRL479 EUT Signal Generator TRL176 Cable & Attenuator RF335 iss02 RU1193/6637 Page 7 of 73 27.1dB AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 23 o C Radio Laboratory Relative humidity = 68% Supply voltage = +110 Vac The Intermodulation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was 10dB above the maximum input of -12dBm.The cable and attenuator loss between the EUT and the spectrum analyser was 27.1dB. This test was performed on the frequencies listed in the table below. Sweep data is shown on the next page for scan with the highest intermodulation prod…

Text truncated - open the document above for the full version.
