NEO55-1991SERIES55-199102 Cell Enhancer

UHF Bandselective Bi-Directional Amplifier 90dB 40/5W User/Maintenance Handbook For Pacific Wireless Communications L.L.C. AFL Works Order Q116107 AFL Product Part No. 55-199102 Aerial Facilities Limited Technical Literature UHF Bandselective BDA 90dB 40/5W Document Number 55-199102HBKM Issue No. 1 Date 05/10/2007 Page 1 of 28 UHF Bandselective BDA 90dB 40/5W Document Number 55-199102HBKM Issue No. 1 Page 2 of 28 Table of Contents 1. INTRODUCTION.......................................................................................................................... 3 1.1. Scope and Purpose of Document............................................................................................. 3 1.2. Limitation of Liability Notice...................................................................................................... 3 2. SAFETY CONSIDERATIONS...................................................................................................... 4 2.1. Earthing of Equipment .............................................................................................................. 4 2.2. Electric Shock Hazard............................................................................................................... 4 2.3. RF Radiation Hazard ................................................................................................................ 4 2.4. Lifting and other Health and Safety Recommendations............................................................ 4 2.5. Chemical Hazard...................................................................................................................... 5 2.6. Laser safety.............................................................................................................................. 5 2.7. Emergency Contact Numbers................................................................................................... 5 3. EQUIPMENT OVERVIEW............................................................................................................ 6 3.1. UHF Bandselective, BDA (55-199102) List of major sub modules........................................... 7 3.2. UHF Bandselective, BDA (55-199102) Specification................................................................ 7 3.3. UHF Bandselective, BDA (55-199102) System Schematic.......................................................... 8 3.4. Photographs.............................................................................................................................. 9 3.4.1. Front of case – door closed................................................................................................ 9 3.4.2. Front of case – door open................................................................................................ 10 3.4.3. Right Hand and Left Hand sides...................................................................................... 11 4. UHF BANDSELECTIVE, BDA (55-199102) SUB MODULES................................................... 12 4.1. Bandpass Filter (02-010701).................................................................................................. 12 4.2. 3dB Splitter/Combiner (05-002603)........................................................................................ 13 4.3. Remote Attenuator Switch Assembly (‘10-001725’)............................................................... 13 4.4. 5 Watt Tetra Amplifier (12-021601)......................................................................................... 14 4.5. Linearised Power Amplifier (12-026901)................................................................................. 15 4.6. Voltage Regulator Board 9.0V (13-001714)............................................................................ 16 4.7. DC/DC Converter, 24V in, 12V 8A out (13-003011)............................................................... 16 4.8. Bi-Directional Amplifier (17-017301)....................................................................................... 17 4.9. 12V (Single) Relay Board (80-008901)................................................................................... 18 4.10. 24V Switch-Mode PSU (96-300054).................................................................................... 18 5. INSTALLATION & COMMISIONING......................................................................................... 19 5.1. Antenna Installation & Gain Calculations................................................................................ 19 5.2. Initial Installation Record......................................................................................................... 19 6. FAULT FINDING / MAINTENANCE.......................................................................................... 20 6.1. Tools & Test Equipment.......................................................................................................... 20 6.2. Basic Fault Finding................................................................................................................. 20 6.3. Quick Fault Checklist.............................................................................................................. 21 6.4. Downlink................................................................................................................................. 21 6.5. Uplink...................................................................................................................................... 21 6.6. Fault repair.............................................................................................................................. 21 6.7. Service Support...................................................................................................................... 21 6.8. Care of Modules...................................................................................................................... 22 6.9. Module Re…

Text truncated - open the document above for the full version.

3.3. UHF Bandselective, BDA (55-199102) System Schematic Drawing Number: 55-199182 UHF Bandselective BDA 90dB 40/5W Document Number 55-199102HBKM Issue No. 1 Page 8 of 28

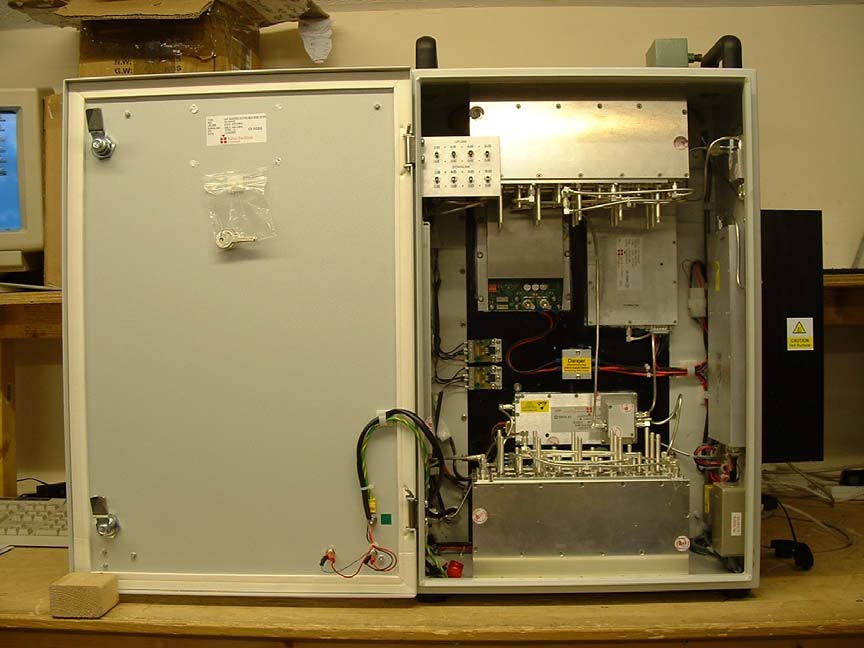

Front Overview Inside Overview Door Open Overview

voltage Hig h DANGER Heavy CA UT ION Ae ria l F a c il itie sLim ited England BY DAT E DESCRIPT ION No ISSUE 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUT HORISED IN WRIT INGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCTION ISSUE 30/9/03 DBS PSU ALARM FCC IDENT. LABEL

17-017301 Unit 12-026901 Unit 12-021601 Unit 05-002603 Unit

UHF Bandselective BDA 90dB 40/5W Document Number 55-199102HBKM Issue No. 1 Page 7 of 28 3.1. UHF Bandselective, BDA (55-199102) List of major sub modules Component Part Component Part Description Qty Per Assembly 02-010701 Bandpass FIlter 6 05-002603 3dB Splitter/Combiner 2 10-001725 Remote Attenuator Switch Assembly 2 12-021601 5 Watt Tetra Amplifier 1 12-026901 Linearised Power Amplifier 2 13-001714 Voltage Regulator 2 13-003011 DC/DC Converter 1 17-017301 Bi-Directional Amplifier 1 80-008901 12V (Single) Relay Board 1 96-300054 24V Switch-Mode PSU 1 3.2. UHF Bandselective, BDA (55-199102) Specification. Parameter Specification Uplink415 - 418MHz Passband Downlink406 - 409MHz Passband gain90dB Uplink5 Watt Power Amplifier Downlink40 Watt Passband Ripple<±1.5 dB I/P Return Loss> 14dB Uplink+35dB 1dB Compression Downlink+45dB Uplink +48dBm OIP3 Downlink+62dBm Noise Figure<4dB (max.gain) In Band Spurious Noise 30kHz Bandwidth < -13 dBm (at 90dB gain) Uplink ALC Setting1dB below 1dB Comp. Switched Attenuator (U/L & D/L)2 dB steps 2-30dB (± 1dB) Power Supply Current Rating400W , 17A @ 24VD.C. Alarm Output TypeLocal Alarms AC Supply Voltage110V AC RF ConnectorsN type female operation:-20°C to +60°C Temperature range: storage:-40°C to +70° Case Size (excludes h/sinks handles etc.) 620x420x250 mm UHF Bandselective BDA 90dB 40/5W Document Number 55-199102HBKM Issue No. 1 Page 12 of 28 4. UHF BANDSELECTIVE, BDA (55-199102) SUB MODULES 4.1. Bandpass Filter (02-010701) The bandpass filters are multi-section designs with a bandwidth dependent upon the passband frequencies, (both tuned to customer requirements). The response shape is basically Chebyshev with a passband design ripple of 0.1dB. The filters are of combline design, and are carefully aligned during manufacture in order to optimise the insertion loss, VSWR and intermodulation characteristics of the unit. The tuned elements are silver-plated to reduce surface ohmic losses and maintain a good VSWR figure and 50Ω load at the input and output ports. Being passive devices, the bandpass filters should have an extremely long operational life and require no maintenance. Should a filter be suspect, it is usually most time efficient to replace the module rather than attempt repair or re-tuning. 02-010701 Specification PARAMETER SPECIFICATION Response type: Chebyshev 415 - 418MHz (uplink) Frequency range: 406 - 409MHz (downlink) Bandwidth: 3 MHz Number of sections: 5 Insertion loss: 1.7 dB (typical) VSWR: better than 1.2:1 Connectors: SMA Power Handling: 100W max operation:-20°C to +60°C Temperature range storage: -40°C to +70°C Weight: 3 kg (typical) UHF Bandselective BDA 90dB 40/5W Document Number 55-199102HBKM Issue No. 1 Page 13 of 28 4.2. 3dB Splitter/Combiner (05-002603) The 3dB Splitter/Combiner (05-002603) is a device for accurately matching two RF signals to a single port or splitting an RF signal to two ports whilst maintaining an accurate 50 Ω load to all inputs/outputs and ensuring that the VSWR and insertion losses are kept to a minimum. 05-002603 Specification PARAMETER SPECIFICATION Frequency range:380 - 520 MHz Bandwidth:140 MHz As Combiner2 inputs 1 output Ports As Splitter1 input 2 outputs Insertion loss:3.5 dB (typical) Isolation:>18 dB Return Loss (VSWR) – Input:Better than 1.3:1 Return Loss (VSWR) – Output:Better than 1.3:1 Impedance:50 Ω Power Rating – Combiner:0.5 Watt Power Rating – Splitter:20 Watts Connectors:SMA female Size:54 x 44 x 21 mm Weight:200 gm (approximately) 4.3. Remote Attenuator Switch Assembly (‘10-001725’) The remote attenuator switch assembly is used to control the amount of signal attenuation in the sub- module, Bi-Directional Amplifier (17-017301). The switch assembly is mounted on the inside of the Bandselective BDA (55-199102) case and consists of four miniature toggle switches, one row for uplink and one row for downlink, built around the remote attenuator switch PCB (10-001725) The switch assembly allows attenuation settings from 0 – 30dB in 2 dB steps The attenuation is simply set using the four miniature toggle switches. Each switch is clearly marked with the attenuation it provides, and the total attenuation in line is the sum of the values switched in. The attenuators that the switches control are integral to sub-module Bi-Directional Amplifier (17-017301). 4.4. 5 Watt Tetra Amplifier (12-021601) The power amplifier fitted to this unit is a multi-stage, solid state power amplifier. Class A circuitry is employed throughout the device to ensure excellent linearity over a wide dynamic frequency range. All the semi-conductor devices are very conservatively rated to ensure low device junction temperatures and a long, trouble free working lifetime. The power amplifier should require no maintenance over its operating life. Under no circumstances should the cover be removed or the side adjustments disturbed unless it is certain that the amplifier has failed; since it is critically aligned during manufacture and any re-alignment will require extensive test equipment. The unit housing is an aluminium case (Iridite NCP finish) with SMA connectors for the RF input/output and a D-Type connector for the power supply and the Current Fault Alarm Function. 12-021601 Specification PARAMETER SPECIFICATION Frequency range:380-470MHz (as required) Bandwidth:10-40MHz (typical, tuned to spec.) Maximum RF output:>5Watts Gain:>30dB 1dB compression point:+37.5dBm 3 rd order intercept point:+50dBm VSWR:better than 1.5:1 Connectors:SMA female Supply:1.9Amps @ 12V DC Weight:1kg (excluding heatsink) operational: -10°C to +60°C Temperature range: storage: -20°C to +70°C 7-Way Connector Pin-out details Connector Pin Signal A1 (large pin) +10-24V DC A2 (large pin) GND 1 Alarm relay common 2 TTL alarm/0V good 3 Alarm relay contact (bad) 4 Alarm relay contact (good) 5 O/C good/0V bad (TTL) 7-Way Pin-Out Graphical Representation A1A2 12 345 UHF Bandselective BDA 90dB 40/5W Document Number 55-199102HBKM Issue No. 1 Page 14 of 28 4.5.…

Text truncated - open the document above for the full version.

REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED 55-199102 CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST REPORT NO: RU1380/8135 COPY NO: 2 ISSUE NO: 1 FCC ID: NEO55-1991SERIES REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED 55-199102 CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 20 th – 24 th September 2007 TESTED BY: D WINSTANLEY APPROVED BY: p.p. J CHARTERS RADIO SECTION LEADER DATE: 24 th October 2007 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Limited 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1380/8135 Page 3 of 50 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-40 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C MEASUREMENT UNCERTAINTY D Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. CERTIFICATE OF CONFORMITY & COMPLIANCE RU1380/8135 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO55-1991SERIES PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 55-199102 Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMUM GAIN: Uplink Downlink = 91.69dB = 97.34dB MAXIMUM INPUT: Uplink Downlink = -60.2dBm = -57.5dBm MAXIMUM OUTPUT CONDUCTED: Uplink Downlink = 31.65dBm = 39.67dBm ANTENNA TYPE: Uplink Downlink Directional Yagi Antenna Distributed Antenna System CHANNEL SPACING: Not Applicable, Wideband FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110Vac TEST DATE(s): 20 th – 24 th September 2007 ORDER No(s): 46501 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU TESTED BY: D WINSTANLEY APPROVED BY: p.p. J CHARTERS RADIO SECTION LEADER RU1380/8135 Page 5 of 50 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 55-199102 Cell Enhancer EQUIPMENT TYPE: Cell Ehancer PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 46501 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s): 20 th – 24 th September 2007 TEST REPORT No: RU1380/8135 RU1380/8135 Page 6 of 50 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. Uplink Class A [ ] Class B [X] 2. Product class: Downlink Class A [ ] Class B [X] 3. Product Use: Private Land Mobile Repeater 4. Emission Designator: F3E 5. Temperatures: Ambient (Tnom) 21 o C 6. Supply Voltages: Vnom +110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] 8. Channel spacing: Narrowband [ ] Wideband [X] 9. Test Location TRL Compliance Limited Up Holland [X] Long Green [ ] 10. Modifications made during test program No modifications were performed. System description: The 55-199102 Cell Enhancer FCCID NEO55-1991SERIES employs an uplink and a downlink path. The uplink path operates over the frequency band 415.0MHz – 418.0MHz. The downlink path operates over the frequency band 406.0MHz – 409.0MHz. RU1380/8135 Page 7 of 50 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 21 o C Radio Laboratory Relative humidity = 66% Supply voltage = +110Vac Channel number = See test results Frequency MHz Signal Generator input level dBm Input Cable Loss dB Output Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Conducted Output Power dBm Gain after 10dB input level increase dB 415.0MHz -60.0 0.04 36.37 -6.64 89.77 29.73 80.77 416.5MHz -60.2 0.04 36.37 -4.72 91.69 31.65 82.61 418.0MHz -60.0 0.04 36.37 -5.56 90.85 30.81 81.82 Notes: 1. The signal generator input was increased by 10dBs and the level of the output signal remeasured. TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8304-300-N N/A 220 X ATTENUATOR BIRD 8308-100 N/A 112 X SIGNAL GENERATOR RHODE & SCHWARZ SML 03 102268 UH297 X Spectrum Analyser TRL479 EUT Signal Generator TRLUH297 Cable & Attenuator RU1380/8135 Page 8 of 50 A B C D 6dB 6dB 6dB 36.37dB Analyser TRL479 +110Vac AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 20 o C Radio Laboratory Relative humidity = 65% Supply voltage = +110Vac The intermodulation and spurious products were measured with the amplifier operating at maximum gain. A three tone tes…

Text truncated - open the document above for the full version.

Conducted Test Setup Radiated Test Setup
