NEO60-0559SERIESUHF Signal Extender

PBL UHF1/1A 1 & 2 Air Interface Maintenance Handbook H/book Number:-60-055900HBKM Issue No:-2 Date:-20/10/2003 Page:- 1 of 85 Pasadena Metro Radio System Maintenance Handbook For Canam Technology Inc. AFL Works Order Nō.: Q107519 AFL product part Nō’s.: 60-055900PBL Location One UHF1/1A & UHF2 (This document) 60-056000Tunnels 1 & 2 60-056100PBL location TWO & 800MHz BDA PBL UHF1/1A 1 & 2 Air Interface Maintenance Handbook H/book Number:-60-055900HBKM Issue No:-2 Date:-20/10/2003 Page:- 2 of 85 Table of Contents AMENDMENT LIST RECORD SHEET................................................................................................. 5 INTRODUCTION....................................................................................................................................... 6 SCOPE..........................................................................................................................................................................6 PURPOSE.....................................................................................................................................................................6 GLOSSARY OF TERMS.................................................................................................................................................7 AFL DRAWING SYMBOL KEYS..................................................................................................................................8 1.SAFETY CONSIDERATIONS....................................................................................................... 9 1.1ELECTRIC SHOCK HAZARD...........................................................................................................................9 1.2RF RADIATION HAZARD...............................................................................................................................9 1.3CHEMICAL HAZARD....................................................................................................................................10 1.4LASER SAFETY.............................................................................................................................................11 1.5EMERGENCY CONTACT NUMBERS..............................................................................................................11 2.OVERVIEW/SYSTEM DESCRIPTION..................................................................................... 12 3.SPECIFICATIONS........................................................................................................................ 13 3.1PARTS LISTS................................................................................................................................................13 3.1.1UHF1/1A & UHF2 Location ONE 60-055900 Parts List........................................................................13 3.1.1.1F/O Air Interface 60-055901 Location ONE-UHF1 Parts List........................................................13 3.1.1.2F/O Air Interface 60-055902 Location ONE, UHF2 Parts List.......................................................15 3.1.1.3F/O Air Interface 60-055903 Location ONE, UHF1A Parts List....................................................17 3.2TECHNICAL SPECIFICATIONS......................................................................................................................18 3.2.1UHF ONE to Tunnels 1 & 2 Technical Specification..............................................................................18 3.2.2UHF1A Technical Specification..............................................................................................................19 3.2.3UHF ONE to Location TWO Technical Specification.............................................................................20 3.2.4UHF TWO to Tunnels 1 & 2 Technical Specification.............................................................................21 3.2.5UHF TWO to Location TWO Technical Specification............................................................................22 3.2.6800MHz Bi-directional Amplifier to Location TWO Technical Specification........................................23 3.3MECHANICAL SPECIFICATION (UHF1/1A & UHF2 WALL CASES).........................................................24 4.SYSTEM DRAWINGS.................................................................................................................. 25 4.1DRG. NŌ. 60-055990, LOCATION ONE, UHF1/1A CASE OUTLINE DRAWING........................................25 4.2DRG. NŌ. 60-055994 LOCATION ONE, UHF1A (UPGRADE) CASE OUTLINE DRAWING..........................26 4.3DRG. NŌ. 60-055991, LOCATION ONE, UHF 2 CASE OUTLINE DRAWING..............................................27 4.4COMPLETE SYSTEM DIAGRAM SKETCH.....................................................................................................28 4.5UHF1/1A & UHF2 SYSTEM DIAGRAM SKETCH.......................................................................................29 5.SUB-UNIT MODULES.................................................................................................................. 30 5.1UHF 1 AIR INTERFACE (60-055901)..........................................................................................................30 5.1.1Bandpass Duplexers (02-013401)............................................................................................................30 5.1.1.1Description.......................................................................................................................................30 5.1.1.2Technical Specification....................................................................................................................30 5.1.22 & 4 Way UHF Splitters (05-002603 & 05-003401).............................................................................31 5.1.2.1Description..................................................................................…

Text truncated - open the document above for the full version.

PBL UHF1/1A 1 & 2 Air Interface Maintenance Handbook H/book Number:-60-055900HBKM Issue No:-2 Date:-20/10/2003 Page:- 29 of 85 4.5UHF1/1A & UHF2 System Diagram Sketch dB dB dB dB dB dB dB dB dB E O E O E O 482MHz 470MHz 473MHz 485MHz 483MHz 486MHz 482.2375M Hz 470.2625M Hz 470.2125M Hz 473.2625M Hz 473.2125M Hz 485.2375M Hz 483.3125M Hz 483.2875M Hz 483.0625M Hz 483.5625M Hz 486.3125M Hz 486.2875M Hz 486.0625M Hz 486.5625M Hz UHF 1 UHF 2 02- 013401 02- 013401 02- 013401 11- 007402 11- 007302 11- 007402 11- 007302 12- 001801 11- 007302 11- 006101 11- 007302 02- 013401 02- 013401 02- 013401 32dB20dB 32dB 20dB 20dB 20dB 30dB 16dB 15dB 20dB 20dB 5dB 5dB 15dB 11- 007402 11- 007402 32dB 32dB 12- 004201 11- 007302 20dB30dB 20dB 20dB 20dB 20dB 25dB 6dB 6dB 6dB 6dB LOCATION ONE -15dBm 11- 007302 20dB -3dBm -62dBm -82dBm -72dBm -3dBm 11- 007402 32dB 11- 007402 32dB 11- 007402 32dB -15dBm -15dBm +20dBm -15dBm +18dBm -19dBm -27dBm 60-055901 60-055902 CD 1 2 J2 -23dBm -23dBm -23dBm -22dBm -22dBm -12dBm -35dBm -35dBm -35dBm -35dBm -20dBm -20dBm -20dBm -20dBm T1 T2 T3 T4 T9 dB dB dB dB 470MHz 473MHz 470.0875M Hz 470.1375M Hz 470.3625M Hz 473.0875M Hz 473.1375M Hz 473.3625M Hz UHF 1A 11- 007402 11- 00740211- 007402 12- 016301 11- 007402 02- 013401 02- 013401 30dB 32dB30dB 30dB30dB 20dB 20dB 20dB 15dB 15dB 15dB 11- 007402 30dB -62dBm -72dBm -19dBm +20dBm 60-055903 J7 -23dBm -23dBm -23dBm T9 BA J1 W X Y Z Q T12

PBL UHF1/1A 1 & 2 Air Interface Maintenance Handbook H/book Number:-60-055900HBKM Issue No:-2 Date:-20/10/2003 Page:- 26 of 85 4.2Drg. Nō. 60-055994 Location one, UHF1A (Upgrade) Case Outline Drawing PASADENA BLUE LINE. LOCATION 1.UHF1UPGRADE OUTLINE DRAWING 60-055992 1A 1:5 MNR 01/07/03 BY DAT E DESCRIPT IO N No 12 3 4 5 6 7 89 A BCDEF 1 23456789 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PRO PRIETARY DESIG N O F AERIAL FACIL ITIES L TD.REPRO DUCTIO N O R USE O F THIS DESIG N BY O THERS ISPERMISSIBL E O NL Y IF EXPRESSL Y AUTHO RISED IN WRITINGBY AERIAL FACIL ITIES L TD. NO DECIMAL PL ACE ± 1 mmO NE DECIM AL PL ACE ± 0 .3 m mTWO DECIMAL PL ACES ± 0 .1 mm AL L DIMENSIO NS ARE IN mm UNL ESS O THERWISE STATED CHKD DRAWN APPDDAT E T O L ERANCES SCAL E England CUST O M ER DRAWING .No TITLE ISSUE 3A 620 [2'-0.4"] E ngl and Li m i t edAerial FacilitiesUHF 1 A P r oduc t r ef : CE- / - N Heavy CAUTION vol t age High DANGER THIRD ANG L E PRO JECTIO N 700 [2'-3.6"]620 [2'-0.4"] 250 [9.9"] 709 [2'-3.9"] DOWNLINK INPUT/UPLINK OUTPUT (ANTENNA) (J7) INP UT FROM UHF 2 (Y) PRODUCTION ISSUE 01/07/03 MNR M6 EARTH STUD OUTPUT TO UHF 2 (Z) 115V AC INPUT PSU AL ARM 670 [2'-2.4"] 555 [1'-9.9"] MATERIAL: MILD STEELFINISH: PAINTED TO RAL 9017 SEMI-GLOSS TRAFFIC BLACKWALL FIXINGS: M8 (5/16")RF CONNECTORS: N TYPE FEMALEENVIRONMENTAL CLASS: IP65 ALARMS UPLINK OUTPUT UHF 1 (W) DOWNLINK INPUT UHF 1 (X) OUTP UT TO UHF 1 ANTENNA (X 1) PB GD

BY DAT E DESCRIPT ION No THI RD ANGLE PROJECTI ON 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE ISSUE 3A FCC IDENT. LABEL POSITION RACK MOUNTED UNIT 80-312190 1A 1:5 DBS 30/9/03 PRODUCTION ISSUE 30/ 9/ 02 DBS Li m i t ed Aerial Facilities POWERALARM FCC IDENT. LABEL v oltage Hig h DANGER Heav y CAUTION Ae ria l Fa c ilitie sLim ited England BY DAT E DESCRIPT ION No ISSUE 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.RE P RODUCT ION OR US E OF T HIS DE S IGN B Y OT HE RS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCTION ISSUE 30/9/03 DBS PSU ALARM FCC IDENT. LABEL

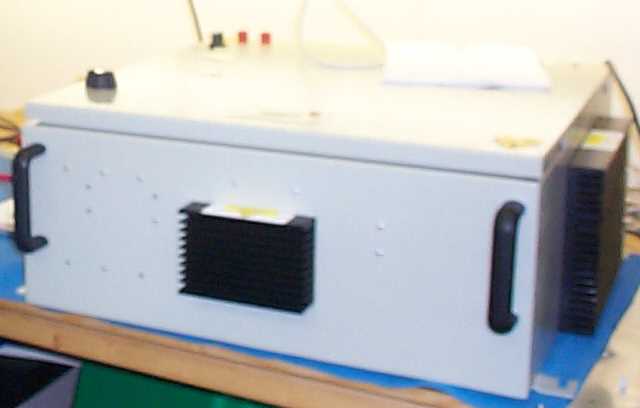

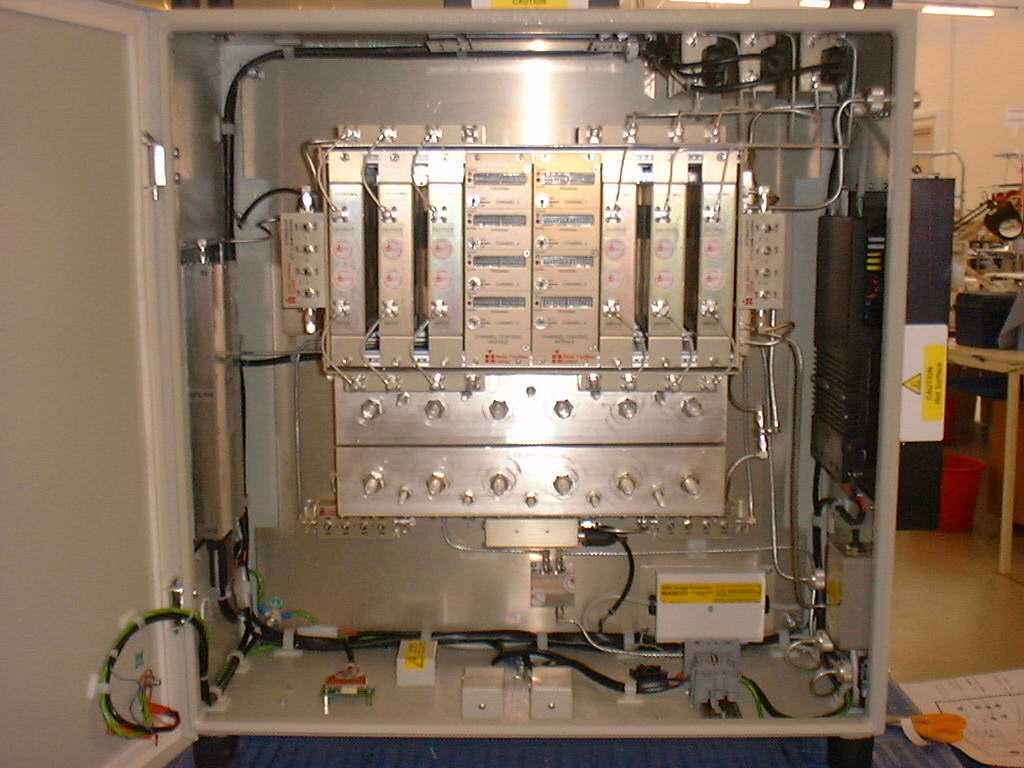

AFL NEO60-05590SERIES UHF FREQUENCY EXTENDERS OVERVIEW/SYSTEM DESCRIPTION The AFL Off air Amplifiers for the Pasadena Blue line project are 2 way on-band RF amplifiers. Their application is as an interface between the donor radio sites and the Fibre optic receivers and transmitters which will extend coverage to the locations via the fibre optic link. There are three units - two designated for the ‘UHF1 / UHF1A’ frequencies the another one for the ‘UHF2’ frequencies. The 60-05590Series (UHF1A) provides an extension to the existing CCE-470N3 (UHF1) and CCE-480N4 (UHF2) amplifiers. It is designed to be connected to the RF ports of these units as shown in the system diagram. Each unit is housed in an environmentally protected IP65 steel wall-mount case. Handles are provided for carrying the unit and the door is fitted with locks. The unit interfaces with ‘N’ type female connectors for RF connections and heavy duty connectors for routing of AC power supply input and alarm output wiring. To provide adequate selectivity in the Downlink and Uplink paths, combline design bandpass quadplexers and duplexers are used at the air interface ports. In addition each channel to be passed is selected by a 15kHz or 25KHz Channel module which provides a high level of rejection at adjacent channels. To provide the required gain to reach the required signal levels, low-noise amplifiers (LNA’s) are used in each path, these being followed by power amplifier modules in the uplink to provide the required intermodulation performance. Gain adjustment is available locally using switched attenuators. Note that “Downlink” refers to the RF path from the base station (donor site) to the UHF2 transmitter and that “Uplink” refers to the RF path from the UHF2 receiver to the remote base station.

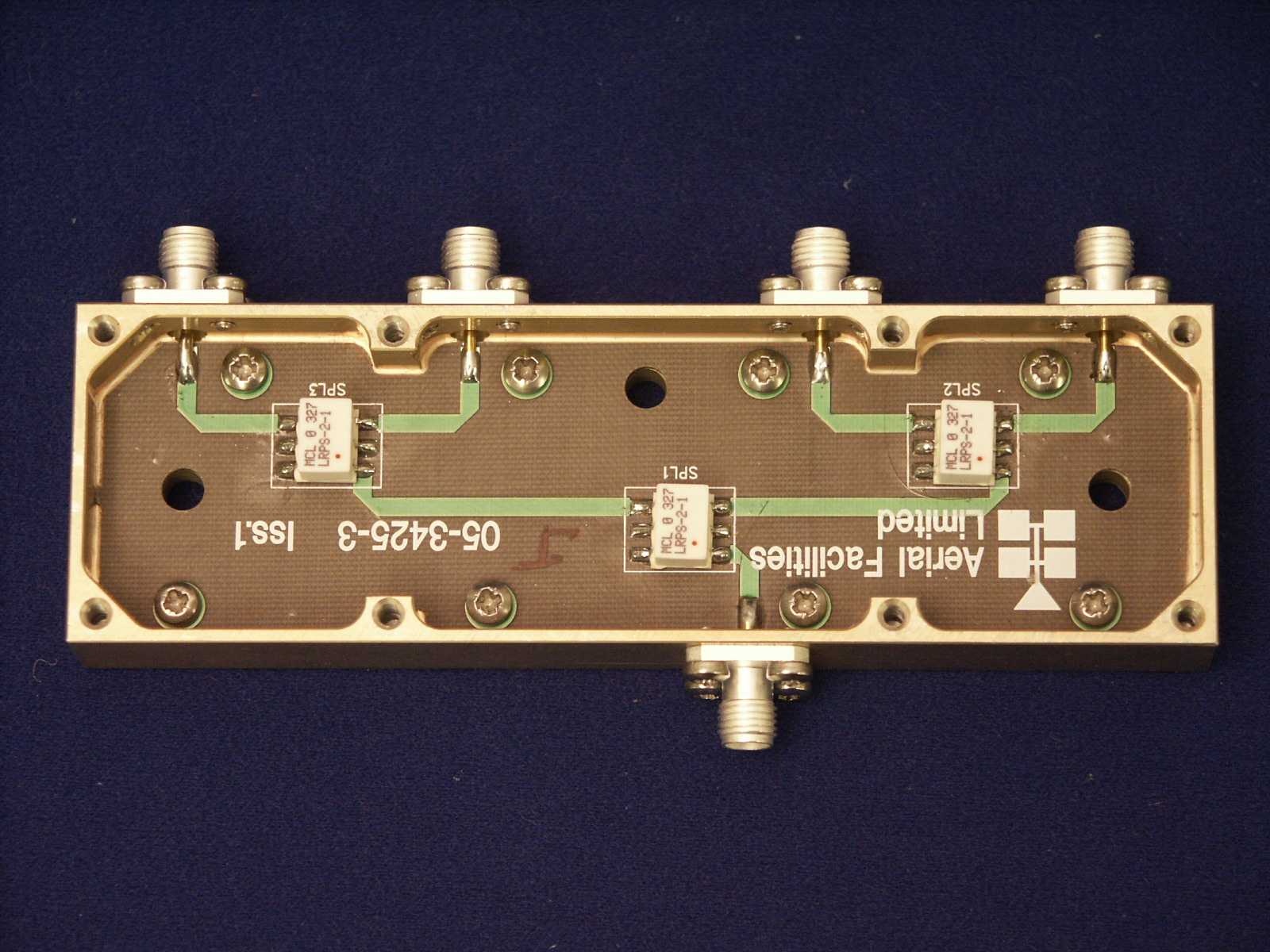

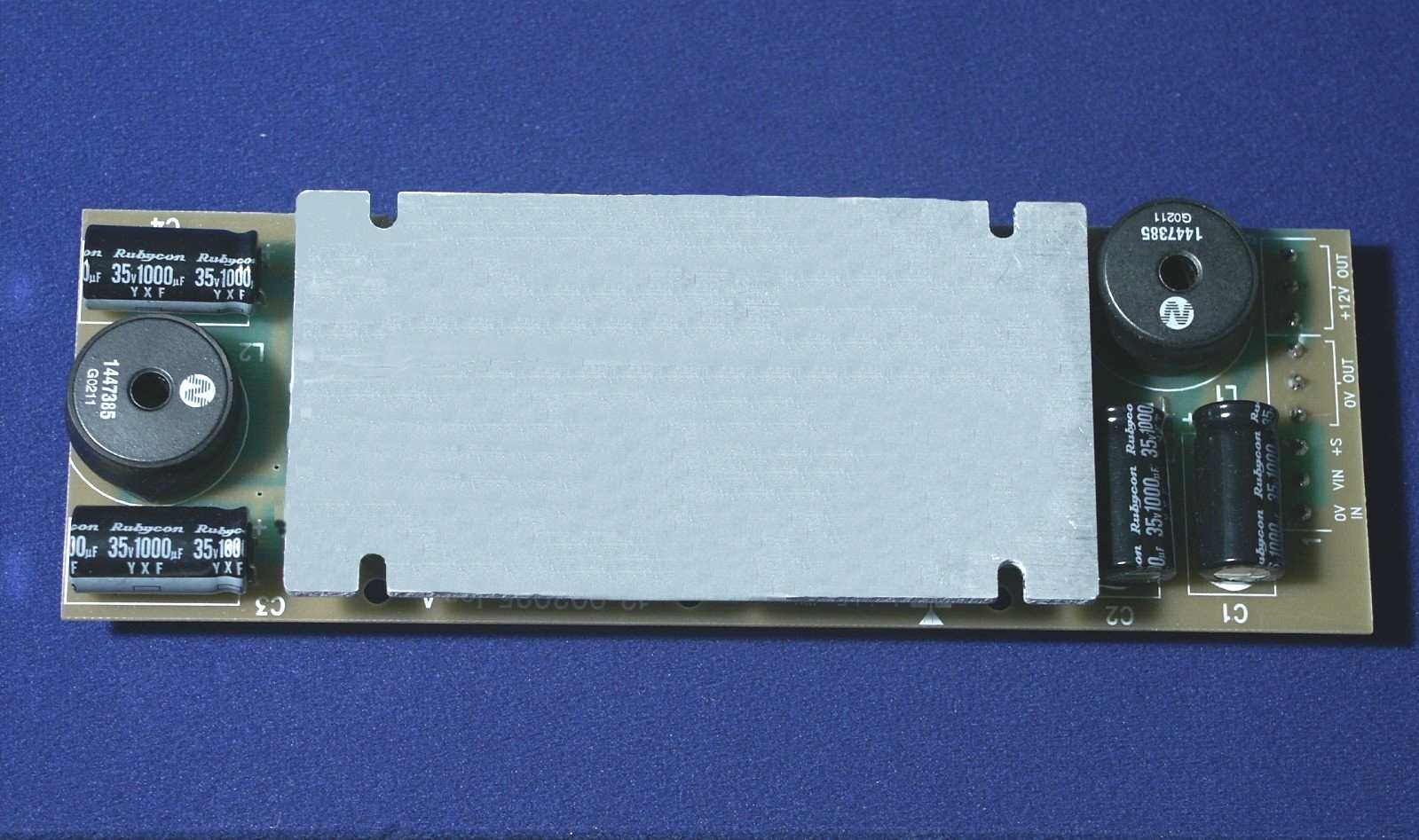

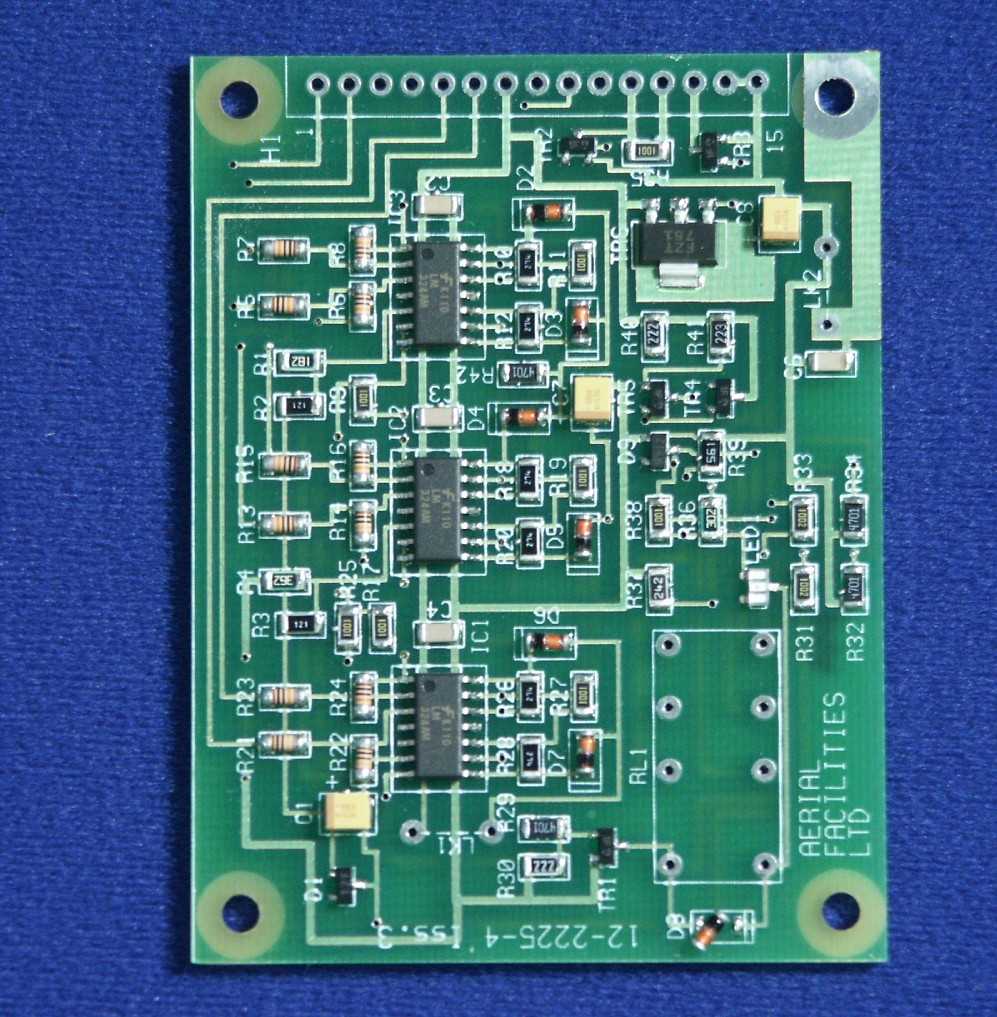

PBL UHF1/1A 1 & 2 Air Interface Maintenance Handbook H/book Number:-60-055900HBKM Issue No:-2 Date:-20/10/2003 Page:- 17 of 85 3.1.1.3 F/O Air Interface 60-055903 Location ONE, UHF1A Parts List AFL Part Nō.Part DescriptionQty. 02-0134016P CL FILTER (0.5 min BW)LARGE SMA ASSY2 05-002603UHF 3dB SPLITTER SMA3 05-0034014 WAY SPLITTER LOW POWER4 10-0007011/4W0-30dB SWITCHED ATTENUATOR4 11-007402LNA. 380-500MHz 30dB (C/W RELAY) GA5 12-0022013 STAGE AMPLIFIER ALARM BOARD1 12-0022203 STAGE ALARM PCB COVER1 12-016301PA 380-470MHz 20W CLASS A1 13-003011DC/DC CONVERTER 24-12V 8A PCB SUB-ASS1 17-000126CELL ENHANCER LABEL 6 DIGIT1 17-002020CASE 620 x 620 x 250 SCHROFF CUSTOM1 17-003012CHAN MOD 450MHz, 15kHz (8p) BW6 17-003022MODULE PATTERNED LEAVE32 17-003023SUBRACK SIDE PANEL4 17-003024SUBRACK REAR BRACKET32 17-003025BOTTOM MODULE GUIDE16 17-003028MODULE SQUARE LEAVE32 17-003029TOP MODULE GUIDE16 20-00160224V RELAY BOARD1 80-03182020W PA HEATSINK (NEEDS 17-000526)1 80-03232010W PA HEATSINK (NEEDS 17-000526)1 91-030002N ADAPTOR PANEL FEMALE:FEMALE3 91-500011PWR 3POLE PNL PLUG SEALED IP681 91-500015PWR CON CAP SEALED with INT. THREAD2 91-500016PWR 6POLE PNL PLUG SEALED IP681 91-600005'D' 9 WAY SOCKET S/B TERM6 91-600007'D' 9 WAY BLACK SHELL6 93-5400351K3 0.25W 1% RES MRS25 M:F1 93-930003SMA COAX TERMINATION [RADIAL]2 96-30001124 V 400 W FLATPACK PWR SUPPLY1 96-500005DC INPUT FILTERS1 96-700002LED.GREEN 5mm SEALED IP661 96-700005LED.RED 5mm SEALED IP661 96-920011PROXIMITY SWITCH1 96-920012PROXIMITY SWITCH MAGNET1 97-400010BLACK PLASTIC HANDLE 373112 97-900004RUBBER FOOT FOR CELL ENHANCERS4

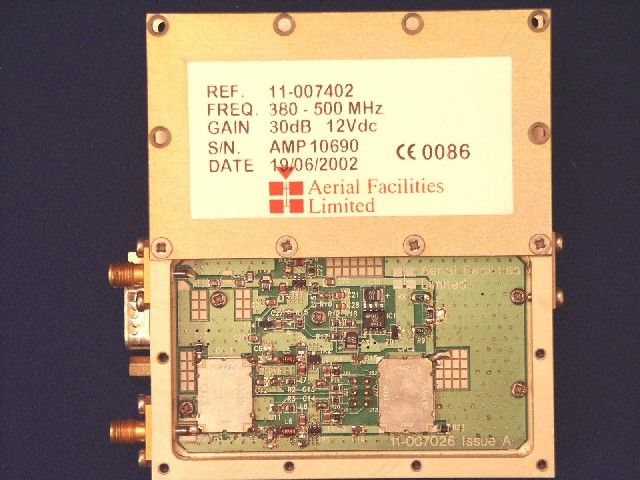

PBL UHF1/1A 1 & 2 Air Interface Maintenance Handbook H/book Number:-60-055900HBKM Issue No:-2 Date:-20/10/2003 Page:- 43 of 85 5.1.4.13 Drg. Nō. 11-007470, LNA RF Circuit Diagram LOW NOISE AMPLIFIER 380-500MHz(30dB) RF PCB CIRCUIT DIAGRAM 11-007470 1A - DBS 5/7/02 BY DAT E DESCRIPT IO N No ISSUE 12 3 4 5 6 7 89 A BCDE 1 23456789 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PRO PRIETARY DESIG N O F AERIAL FACIL ITIES L TD.REPRO DUCT IO N O R USE O F T HIS DESIG N BY O T HERS ISPERMISSIBL E O NL Y IF EXPRESSL Y AUTHO RISED IN WRITINGBY AERIAL FACIL ITIES L TD. NO DECIM AL PL ACE ± 1 m mO NE DECIMAL PL ACE ± 0 .3 mmTWO DECIMAL PL ACES ± 0 .1 mm AL L DIM ENSIO NS ARE IN m m UNL ESS O THERWISE STATED CHKD DRAWN F APPD DAT E TO L ERANCES SCAL E England CUST O M ER DRAWING .No TITLE 3A CLY 2 G SD TR 2 RF INPUT R151R 11303- 3CPL1 1nFC3 Ø1.6x6 turns L2 3. 3pF C7 L4 330nH R3 100R 10K R6 1nFC6 1nFC1 C4 3. 3pF Ø1.6x6 turns L1 330nH L3 100R R2 R5 10K J31 C51nF TR 1 CLY 2 560R R7 100nH L6 C10 1nFC91nF R4 560R 100nH L5 1nF C13 1nF C12 51R R8 11303- 3 CPL2 HEADER PIN HEADER PIN J32 HEADER PIN J12 HEADER PIN J11 PRODUCTION ISSUE 5/7/02 DBS HEADER PIN R11 22RR10 R9 240R240R W1 0R 0 1nF W2 510R R13 CLY2 W7 1nF 48 J22 HEADER PIN ZD 14V 7 5 10uF C14 + 7660IC1 2 RF OUTPUT + C15 10uF 1K 5R1210KR16 C18 R190R 0 1nF BCW61B C17 1nF R181K 5 TR 3 C22 C23 1nF 1nF C2 1nF C2010nF0R 0 R151K 2 10K R17 1K 2 R14 W3 1. 5pF W6 330nH L7 220pFC19 68nH W4 S D G 2. 2pFC21 W5 J21 ATTENUATOR GROUP(Select values on test) S G D 5R 6 ECN2722 DBS 24/9/02 2A CB IB PBL UHF1/1A 1 & 2 Air Interface Maintenance Handbook H/book Number:-60-055900HBKM Issue No:-2 Date:-20/10/2003 Page:- 44 of 85 5.1.4.14 Drg. Nō. 11-007471 LNA DC Wiring Diagram LOW NOISE AMPLIFIER. 380-500MHz(30dB) SCHEMATIC DIAGRAM 11-007471 1A - DBS 8/7/02 BY DAT E DESCRIPT IO N No ISSUE 12 3 4 5 6 7 89 A BCDEF 1 23456789 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PRO PRIETARY DESIG N O F AERIAL FACIL ITIES L TD.REPRO DUCT IO N O R USE O F T HIS DESIG N BY O T HERS ISPERMISSIBL E O NL Y IF EXPRESSL Y AUTHO RISED IN WRITINGBY AERIAL FACIL ITIES L TD. NO DECIM AL PL ACE ± 1 m mO NE DECIMAL PL ACE ± 0 .3 mmTWO DECIMAL PL ACES ± 0 .1 mm AL L DIM ENSIO NS ARE IN m m UNL ESS O THERWISE STATED CHKD DRAWN APPDDAT E TO L ERANCES SCAL E England CUST O M ER DRAWING .No TITLE 3A LM7808CT REG 3 G I O 8V -ve J11 - J12J21 - J22 DC INPUT DC O UT PUT RF PCB FOR CIRCUIT DIAGRAM SEE 11-007470 SEE 11-003971 FOR CIRCUIT DIAGRAM DC PCB +8V C B A RF IN PRODUCTION ISSUE 8/7/02 DBS OUTRF OC GOOD/0v BAD 9 CO N1 9 REL AY CO NT ACT G O O DREL AY CO M MO NREL AY CO NTACT BAD PIN OUTS 9 WAY 'D' TTL VO L TAG E SETTTL AL ARM/0 v G O O DGROUND10-24V DC I/P 7 CO N18 CO N15 CO N14 CO N1 68754 A3 CO N12 CO N1 32 CO N1 1 5V 75mA -ve J31 - J32 J31 1J32 2J22 2J21 1J12 2J11 1 5V 5V 75mA CB IB 5-Way Channelised UHF Cell Enhancer Maintenance Handbook H/book Number:-50-060601HBKM Issue No:- 1 Date:-04/07/2003 Page:- 26 of 54 5.1.5.6 Drg. Nō. 11-003971, LNA DC Circuit Diagram BY DAT E DESCRIPT IO N No ISSUE 12 3 4 5 6 7 89 A BCDEF 1 23456789 A BCD E F Chesham(01494)778301 Fax (01494)778910 Aerial Facilities Limited TWO DECIMAL PL ACES ± 0 .1 mmO NE DECIMAL PL ACE ± 0 .3 mmNO DECIM AL PL ACE ± 1 m m BY AERIAL FACIL ITIES L TD.PERMISSIBL E O NL Y IF EXPRESSL Y AUTHO RISED IN WRITINGREPRO DUCT IO N O R USE O F T HIS DESIG N BY O T HERS ISTHIS IS A PRO PRIETARY DESIG N O F AERIAL FACIL ITIES L TD. DRAWN CHKD UNL ESS O THERWISE STATED AL L DIM ENSIO NS ARE IN m m APPDDAT E T O L ERANCES SCAL E England CUST O M ER DRAWING .No TITLE A3 DC PCB FOR LNA's AND LPA's,CIRCUIT DIAGRAM 11-003971 DJL 24/09/01 PROTOTYPE ISSUE AA 2 4 /9 /0 1 DJL THIRD ANG L E PRO JECTIO N R334K 7 TR 7BCW71 R3210K BCW71 R314K 7 TR 8 R3410K R214K 7R2010K TR 1 R24 BCW71 TR 2 R23 4K 7 R22 10K TR 3 R254K 7 10K BCW71 R11 120R R123K 6 270KR10 R9 1K C2100n R6 100K R4 100K R8 270K 1K R7 2 + C8 REG1 IO A 1K R47 + C4 + C5 R43 R44 R45 + C10 100n C11 IC2 8 5 3 4 C1510u C17 + C16 100n R52 + C14 3 4 IC3 2 8 5 R49 1K REG2 IO A R51 R50 + C13 R46 1K R48 1K R39 R40 R38100R R42 VR1 R41 +- 1 23 - + 56 7 - 2 + 3 1 R53R54R55 RL1 1 R351K TR 4 TR 6 R161K R172K 2 22K R18 R19560R R152K 4 + C3 R143K R3 100K R2 120R 100K R5 R29 0R 1K 8 R1 4K 7 R36 56R R27 R134K 7 TR 5 FZT751 BCW71 1U BCW71 3V 3 D3 9 - + 10 8 12 +- 13 14 6 -+ 5 7 IC1:CIC1:B IC1:D 114 LM 324M LM 324M LM 324M IC1:A LM 324M ZD 1 1. 23V LL4148 D2 LE D 1 IC4:BIC4:A +C12 1u 10u + C9 10u 1u 1u >12V DC I/P 10u ZD 35. 1V 10u 470R R56 R57 D1 LL4148 CON 1 1 J2 2 9CON 1 CON 1 8 4CON 1 5CON 1 CON 1 3 RL1/1 ZD 2 C19100n 48 LM 337LM 10u 10u LL4148 1. * IF APPLICABLE, VALUES WILL BE DETERMINED AT A HIGHER LEVEL BOM I C L7660CI C L7660C LM 337LM 2 J2 1 1 J1 2 J5 2 J1 1 J5 1 J3 2 J4 2 J3 1 J4 CON 1 + C1 1u C7470p + C6 10u + C181u 2. CONNECTORS J1-5 TO BE FITTED AS NECESSARY PRODUCTION ISSUE(ECN2359) 26/11/01 TA S 1A V_OUT V_IN BCA * * * ****** * P3 * R58 7CON 1 R59 1K CB IB 2A ECN2518 1 7 /4 /0 2 DJL P5P4 RL1/2 P8P6 P7 P1 P2 R280R * * * ** * * * 3A ECN2686 2 5 /7 /0 2 DJL

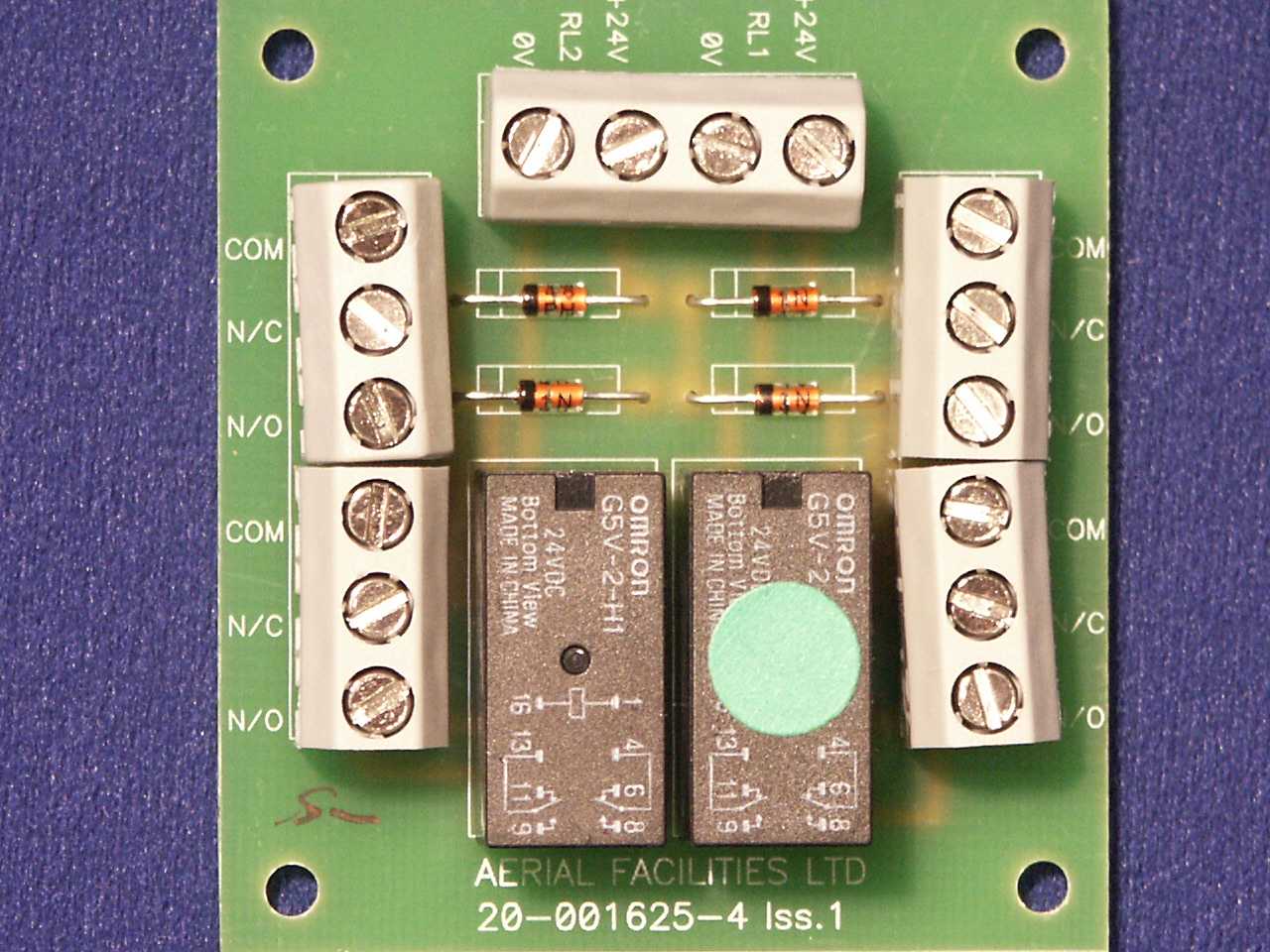

PBL UHF1/1A 1 & 2 Air Interface Maintenance Handbook H/book Number:-60-055900HBKM Issue No:-2 Date:-20/10/2003 Page:- 64 of 85 5.1.9.3 Drg. Nō. 20-001671, Dual 24V Relay Board Circuit Diagram

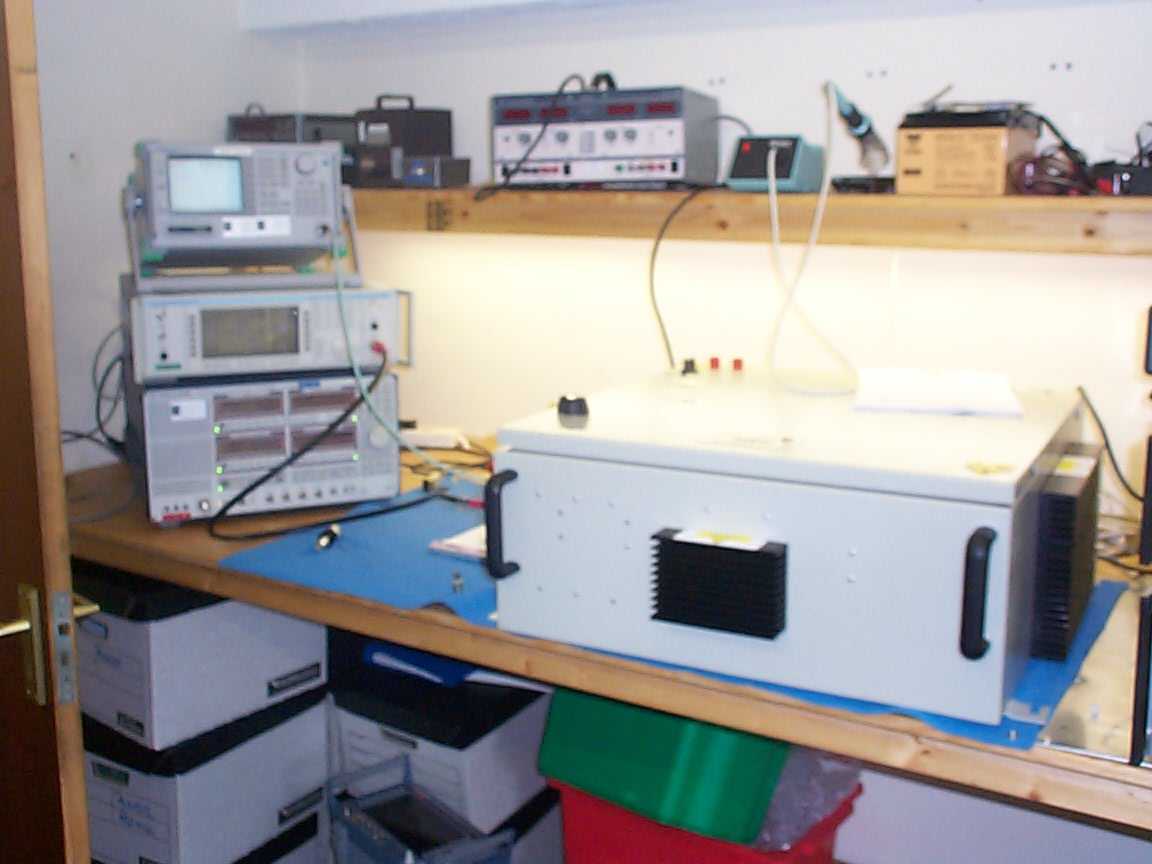

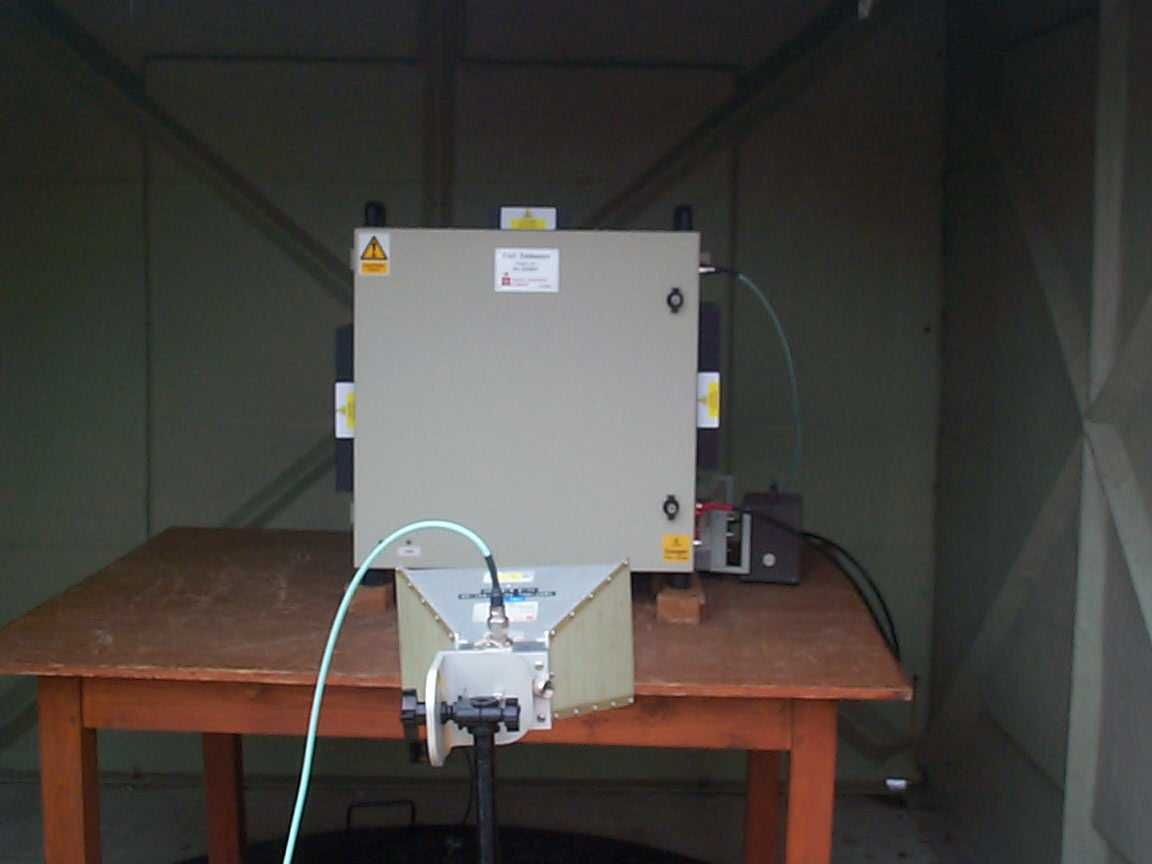

TRL C OMPLIANCE S ERVICES L TD EMC DIVISION LONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM TELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO:RU1074/4830 COPY NO: ISSUE NO:1 FCC ID:NEO60-0559series REPORT ON THE CERTIFICATION TESTING OF A Aerial Facilities Limited BI_DIRECTIONAL AMPLIFIER SYSTEM (60-055903) WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart L PRIVATE LAND MOBLIE REPEATER TEST DATE: 24 th –30 th September 2003 TESTED BY:J CHARTERS APPROVED BY:P GREEN PRODUCT MANAGER EMC DATE: Distribution: Copy Nos:1.Aerial Facilities Limited 2.TCB: TRL Compliance Services Limited 3.TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02RU1074/4830Page 2 of 75 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE3 APPLICANT’S SUMMARY4 EQUIPMENT TEST CONDITIONS5 TESTS REQUIRED5 TEST RESULTS6-68 ANNEX PHOTOGRAPHSA PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LISTB SYSTEM DIAGRAMC Notes: 1.Component failure during testYES NO [ ] [X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contain in this report are FCC Listed. RF335 iss02RU1074/4830Page 3 of 75 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY:NEO60-0559series PURPOSE OF TEST:CERTIFICATION TEST SPECIFICATION:FCC RULES CFR 47, Part 90 Subpart L TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:BI_DIRECTIONAL AMPLIFIER SYSTEM (60-055903) EQUIPMENT TYPE:Private Land Mobile Repeater MAXIMIUM GAIN58dB MAXIMUM INPUT-9dBm MAXIMUM OUTPUT+20dBm ANTENNA TYPE:Not applicable CHANNEL SPACING:15kHz NUMBER OF CHANNELS: Channel No. 1 2 3 Uplink 473.0875MHz 473.1375MHz 473.3625MHz Downlink 470.0875MHz 470.1375MHz 470.3625MHz FREQUENCY GENERATION:N/A MODULATION TYPE:F3E POWER SOURCE(s):115Vac TEST DATE(s): 24 th -30 th September 2003 ORDER No(s):21071 APPLICANT:Aerial Facilities Limited ADDRESS:Aerial House Latimer Park, Latimer Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY:J CHARTERS APPROVED BY:P GREEN PRODUCT MANAGER EMC RF335 iss02RU1074/4830Page 4 of 75 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):BI_DIRECTIONAL AMPLIFIER SYSTEM (60-055903) EQUIPMENT TYPE:60-055903 PURPOSE OF TEST:CERTIFICATION TEST SPECIFICATION(s):FCC RULES CFR 47, Part 90 Subpart L TEST RESULT:COMPLIANTYes No [X] [ ] APPLICANT’S CATEGORY:MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s):19801 APPLICANT’S CONTACT PERSON(s):Mr Peter Bradfield E-mail address:[email protected] APPLICANT:Aerial Facilities Limited ADDRESS:Aerial House Latimer Park, Latimer Chesham Buckinghamshire HP5 1TU United Kingdom TEL:+44 (0)1494777020 FAX:+44 (0)149477020 MANUFACTURER:Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN:United Kingdom TEST LABORATORY:TRL EMC UKAS ACCREDITATION No:0728 TEST DATE(s):24 th –30 th September 2003 TEST REPORT No:RU1074/4830 RF335 iss02RU1074/4830Page 5 of 75 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATIONRULE PARTAPPLICABILITYRESULT RF Power Output90.205YesComplies Audio Frequency ResponseTIA EIA-603.3.2.6N/AN/A Audio Low-Pass Filter ResponseTIA EIA-603.3.2.6N/AN/A Modulation LimitingTIA EIA-603.3.2.6N/AN/A Occupied Bandwidth90.210YesComplies Spurious Emissions at Antenna Terminals90.210YesComplies Field Strength of Spurious Emissions90.210YesComplies Frequency Stability90.213N/A(note 1)N/A Transient behaviour90.214N/A(note 2)N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. 2.Product Use:Private Land Mobile Repeater 3.Emission Designator:F3E 4.Temperatures:Ambient (Tnom)21 o C 5.Supply Voltages:Vnom115Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel[ ] Two channel[ ] 6.Equipment Category: Multi-channel[X] 7.Channel spacing:Narrowband[X]15kHz Wideband[ ] 8.Test Location:TRL Compliance Services Up Holland[X] Long Green[ ] 9.Modifications made during test programNo modifications were performed. RF335 iss02RU1074/4830Page 6 of 75 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature=21 o CRadio Laboratory Relative humidity=46% Supply voltage=115Vac Channel number=See test results Frequency MHz Signal Generator input level dBm Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Gain after 20dB input level increase dBm 473.0875MHz-29.126.6-9.2846.4246.42 473.1375MHz-29.126.6-9.046.746.7 473.3625MHz-29.126.6-8.9546.7546.75 Notes: 1. The level of the signal generator takes into consideration the loss from the cable. 2. The signal generator input was increased by 20dBs and the level of the output signal re-measured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL NoSERIAL NoTRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSUMS2665CMT26089479 X ATTENUATORBIRD8304-300-NN/A220 X CABLEROSENBERGERMICRO COAXN/A279 X SIGNAL GENERATOR MARCON2042119388/080179 X Spectrum Analyser TRL479 Attenuator TRL220 Cable TRL279 EUT Signal Generator TRL179 RF335 iss02RU1074/4830Page 7 of 75 26.6dB AMPIFIER INTERMAODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature=27 o CRadio Laboratory Relative humidity=34% Supply voltage=115Vac The Intermodualation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was the maximum input of –29.1dBm The cable and attenuator loss between the EUT and the spectrum analyser was 26.6dB. Sweep data is shown on the next page: A B C D CMTA TRL 05 473.1375 MHz Sig Gen TRL 176 473.3625 MHz Sig Gen TRL 254 473.0875 MHz 10dB 10dB 10dB 6dB EUT Combiner TRL170 Analyser TRL479 115Vac RF335 iss02RU1074/4830Page 8 of 75 Intermodulaion Inband DLT:-224kHz -56.59dB RLV: 0.00dBm RB 3kHz# VB …

Text truncated - open the document above for the full version.
