NEO60-1377SERIESUHF FO Remote Repeater type 60-1377SERIES

UHF Fibre-Fed Remote Site User Handbook Handbook Nō.-60-137601HBK Issue No:-1 Date:-18/03/2005 Page:- 1 of 38 UHF 10W Fibre Fed Remote Site User Handbook For EMS Wireless AFL Works Order Nō.: Q112299 AFL product part Nō.: 60-137701 (10W FO Remote) UHF Fibre-Fed Remote Site User Handbook Handbook Nō.-60-137601HBK Issue No:-1 Date:-18/03/2005 Page:- 2 of 38 Table of Contents AMENDMENT LIST RECORD SHEET ...................................................................................................4 INTRODUCTION.........................................................................................................................................5 Scope ........................................................................................................................................................................... 5 Purpose ....................................................................................................................................................................... 5 Glossary of Terms...................................................................................................................................................... 6 Key to AFL RF Module Drawing Symbols ............................................................................................................. 7 1. SAFETY CONSIDERATIONS .........................................................................................................8 1.1 Earthing of Equipment ................................................................................................................................ 8 1.2 Electric Shock Hazard.................................................................................................................................. 8 1.3 RF Radiation Hazard ................................................................................................................................... 9 1.4 Chemical Hazard ........................................................................................................................................ 10 1.5 Laser safety ................................................................................................................................................. 11 1.6 Emergency Contact Numbers.................................................................................................................... 11 2. SYSTEM OVERVIEW ....................................................................................................................12 3. REMOTE SITE BDA (60-137701) ..................................................................................................13 3.1 Remote Site 10Watt BDA Shelf (60-137702) ............................................................................................ 13 3.1.P Remote Site 10W BDA Shelf Photographs................................................................................................ 13 3.1.1 Remote Site 10W BDA Description .......................................................................................................... 14 3.1.2 Remote Site 10W BDA Electrical/Mechanical Specification .................................................................... 14 3.1.3 Remote Site 10W BDA Electrical/Mechanical Specification .................................................................... 15 3.1.4 Remote Site 10W BDA System Diagram, Drg. Nō. 60-137780 ................................................................ 16 3.1.5 Remote Site 10W BDA Shelf 60-137702 Parts List ..................................................................................17 4. SUB-UNIT MODULES....................................................................................................................18 4.1 Bandpass Filters (02-007302)..................................................................................................................... 18 4.1.1 Description ............................................................................................................................................... 18 4.1.2 Technical Specification............................................................................................................................. 18 4.1.3 Drg. Nō. 02-007302, Filter General Assembly Drawing ......................................................................... 19 4.2 Switched Attenuator (10-000901).............................................................................................................. 20 4.2.1 General Application ................................................................................................................................. 20 4.2.2 Switched Attenuators ................................................................................................................................ 20 4.2.3 Drg. Nō. 10-000901, 0-15dB Switched Attenuator General Assembly Drawing ..................................... 21 4.3 Low Noise Amplifiers (11-007302 & 11-007402)...................................................................................... 22 4.3.1 Description ............................................................................................................................................... 22 4.3.2 Technical Specification (11-007302)........................................................................................................ 22 4.3.3 Technical Specification (11-007402)........................................................................................................ 22 4.3.4 LNA ‘D’ Connector Pin-out details .......................................................................................................... 23 4.3.5 Drg. Nō. 11-007302, LNA Assembly With Alarm Relay ........................................................................... 24 4.3.6 Drg. Nō. 11-007402, LNA Assembly With Alarm Relay .........................................................................…

Text truncated - open the document above for the full version.

NEO20-0040SERIES NEO20-0041SERIES NEO20-0040SERIES NEO20-0041SERIES NEO60-1377SERIES Fibre optic cable Light received converted back to RF output 0dBm (Max) Signal booster. RF in 0dBm RF out 40dBm Leaky feed antenna Loss 80dBm Coaxial cable RF in converted to light Coaxial cable Signal Booster RF in -70dBm RF out 0dBm Signal amplified via booster with channel filter All RF signals seen at input are converted to light and ‘transmitted’ down the fibre optic cable The modulated light signal is received converted to RF and transmitted down the Coaxial cable Signal amplified via booster. It is then transmitted into the tunnel (building) using a leaky feed antenna. Notes: This system works the same from tunnel to base station. The fibre optic/RF converters are wide band. They will work from 100MHz to 950MHz. Any RF seen at the input will be transmitter down the fibre. Signal transmitted from a base station is received by antenna. Mounted on the outside of a building.

TXBTS NEO20-0040Series RXBTS NEO60-1377Series Buildin g NEO20-0041Series NEO20-0040Series NEO20-0041Series FIBRELINKFIBRELINK

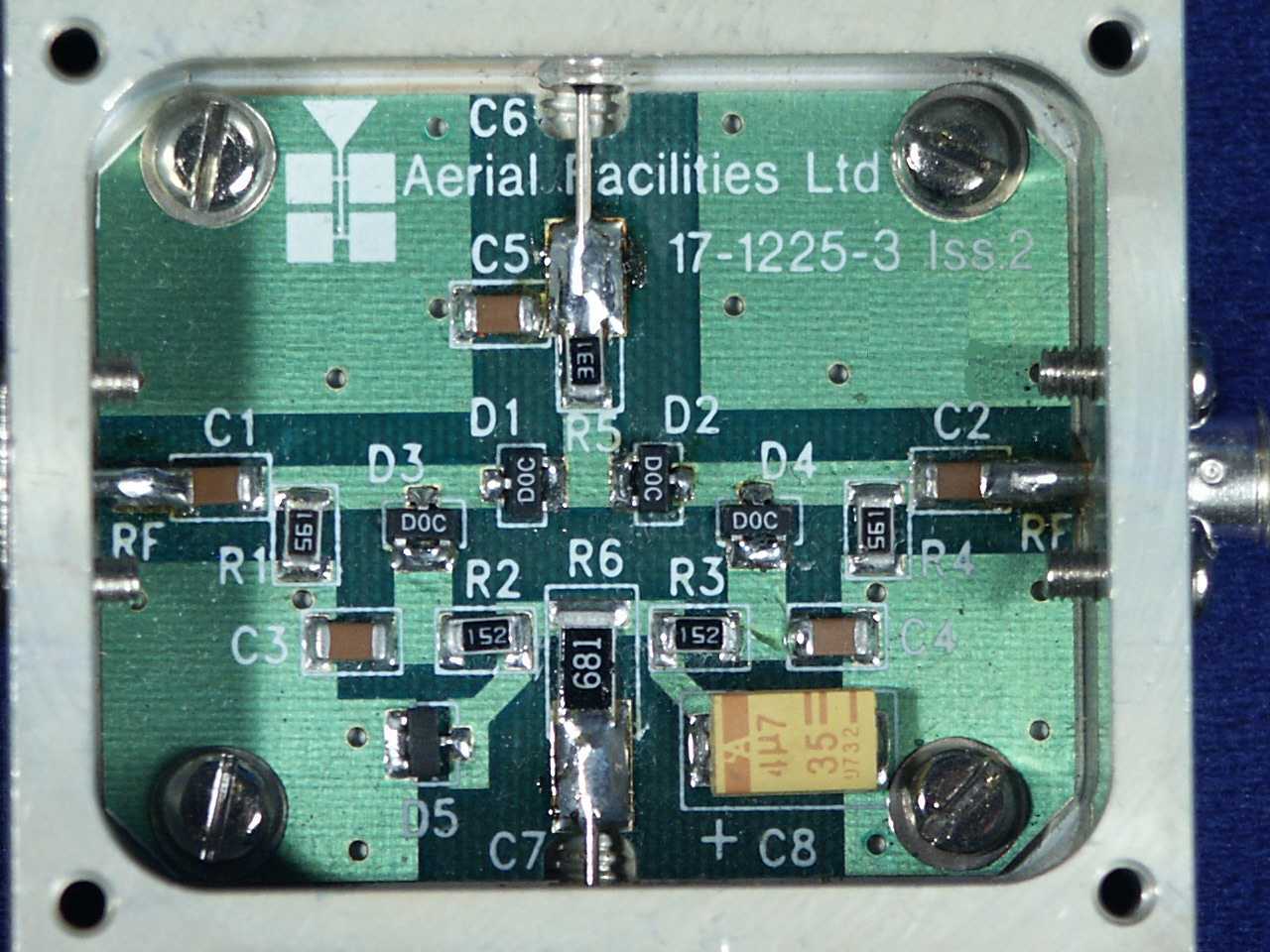

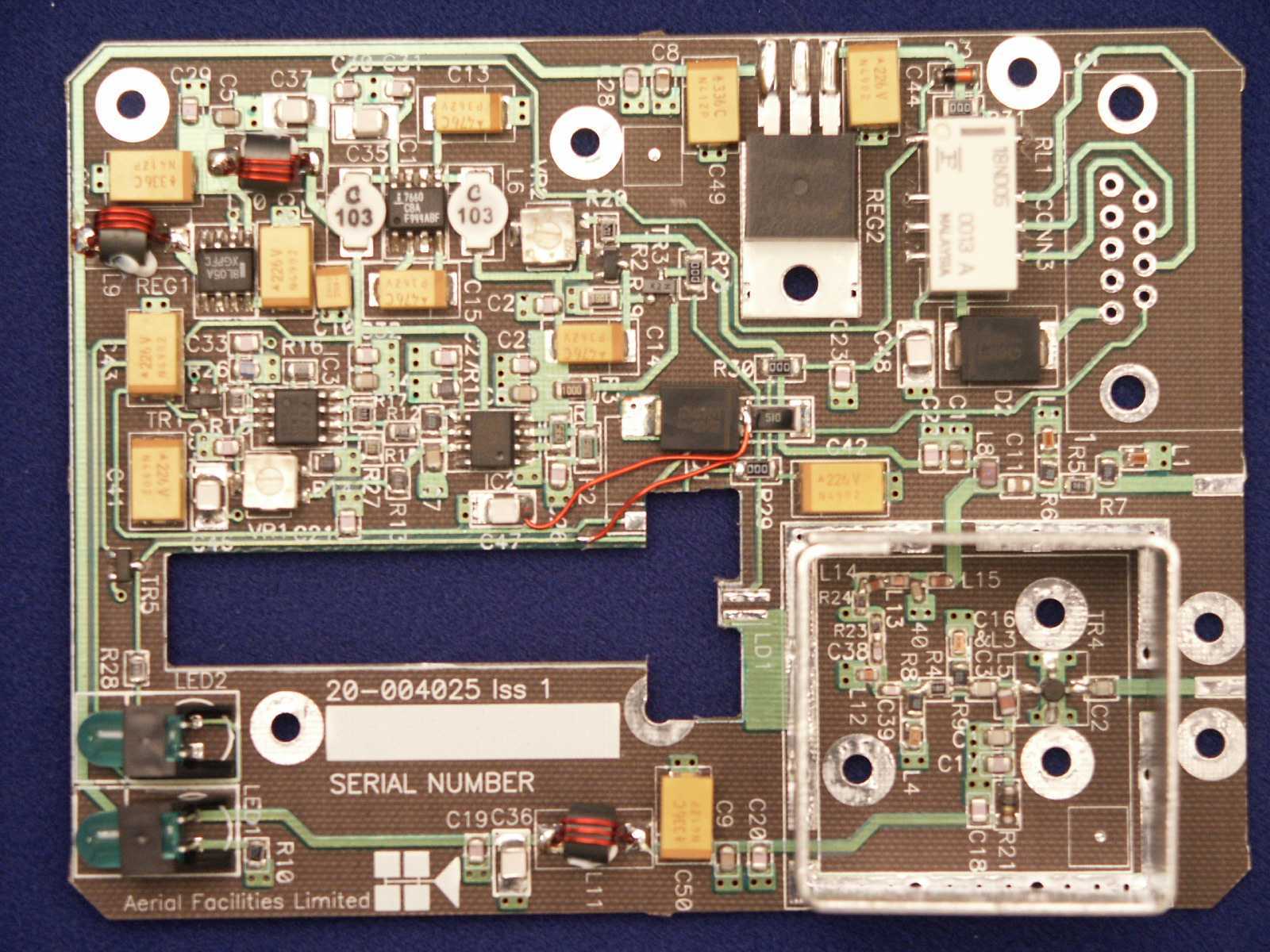

UHF Fibre-Fed Remote Site User Handbook Handbook Nō.-60-137601HBK Issue No:-1 Date:-18/03/2005 Page:- 13 of 38 3. REMOTE SITE BDA (60-137701) 3.1 Remote Site 10Watt BDA Shelf (60-137702) 3.1.P Remote Site 10W BDA Shelf Photographs

UHF Fibre-Fed Remote Site User Handbook Handbook Nō.-60-137601HBK Issue No:-1 Date:-18/03/2005 Page:- 14 of 38 3.1.1 Remote Site 10W BDA Description The remote site 10W Bi-Directional Amplifier receives downlink signals from the Fibre Optic shelf at port A and passes them through a bandpass filter tuned to the downlink passband (408-411MHz). From there the signal is amplified by a Low Noise Amplifier (+31dB) and a 0-15dB switched attenuator to a 10Watt power amplifier (22dB). A final bandpass filter completes the downlink path to the off-air antenna (port C). The uplink path starts at the off-air antenna (port C)and is passed first through a bandpass filter tuned to the uplink band (417-420MHz). A 20dB amplifier and switched attenuator amplify the signal by 20dB and the signal then passes through a final bandpass filter to the AGC attenuator. After the attenuator the signal is amplified to one Watt power to the AGC logarithmic detector giving this path a dynamic range of approximately 30dB. After the AGC detector the signal exits the shelf to the FO shelf at port B. 3.1.2 Remote Site 10W BDA Electrical/Mechanical Specification PARAMETER SPECIFICATION Downlink frequency range: 408–411MHz Uplink frequency range: 417-420MHz Port A: -10dBm (downlink input) Port B: 0dBm (uplink output) Approximate RF levels (BDA shelf): Port C: +38dBm (antenna output) Port A: 0dBm (downlink output) Approximate RF levels (FO shelf): Port B: 0dBm (uplink output) 6A max.@ 24V DC Power supply consumption: 1.0A max @ 12V DC Chassis height: 4U Chassis depth: 400mm (excluding handles & connectors IP protection: IP54 Impedance: 50Ω AGC level: 0dB Relative humidity range: 5-95% Alarms: 2 x LNA, 1W LPA, & 1 x 10W PA 1 & 2 (2 x LNA’s & LPA) Alarm connector outputs: 3 & 4 (1 x 10W PA) operation: -10%C to +60%C Temperature Range: storage: -20%C to +70%C

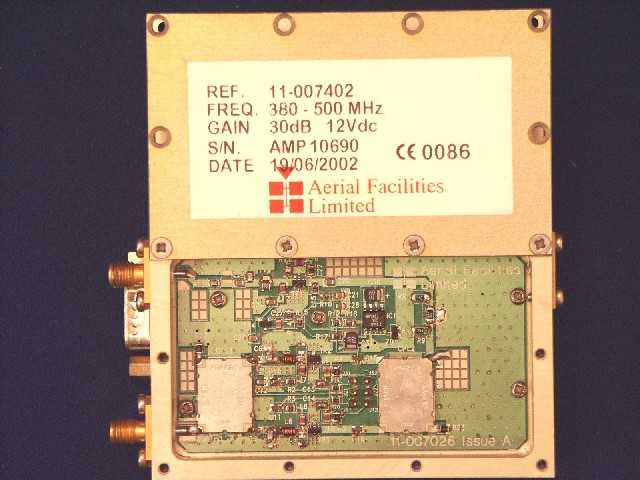

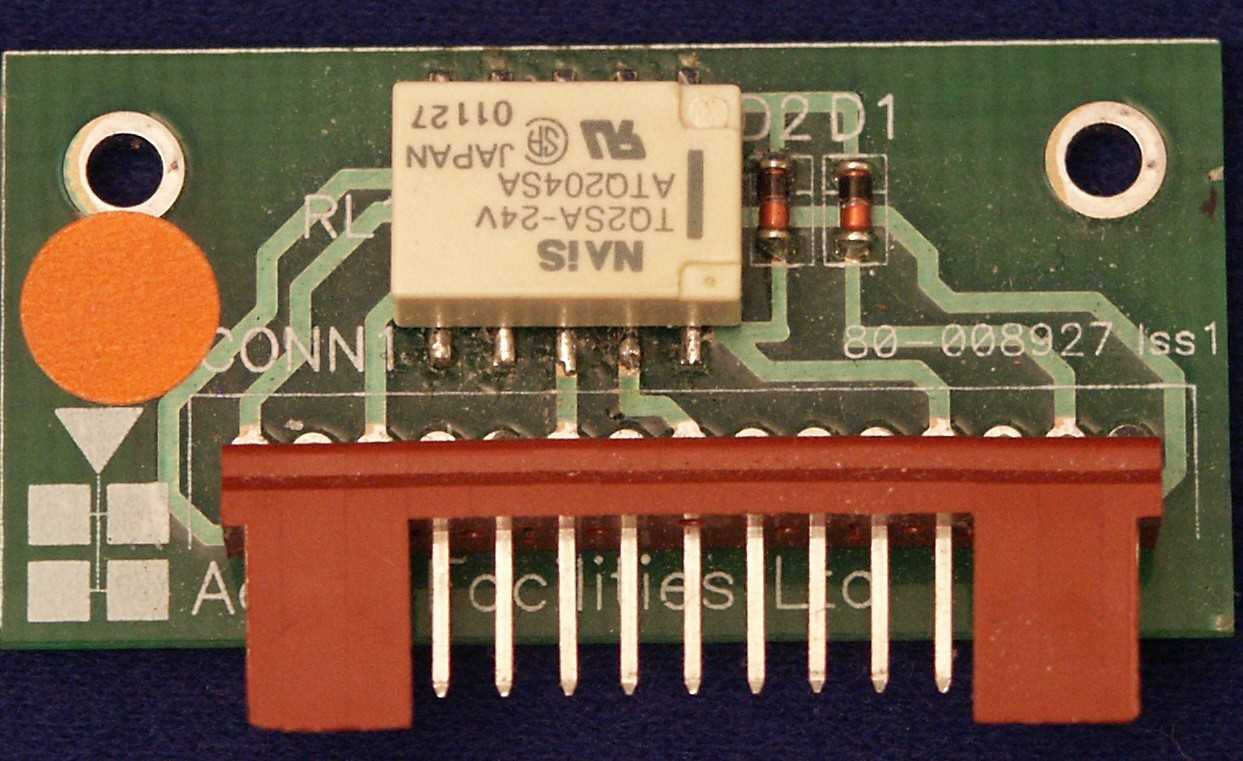

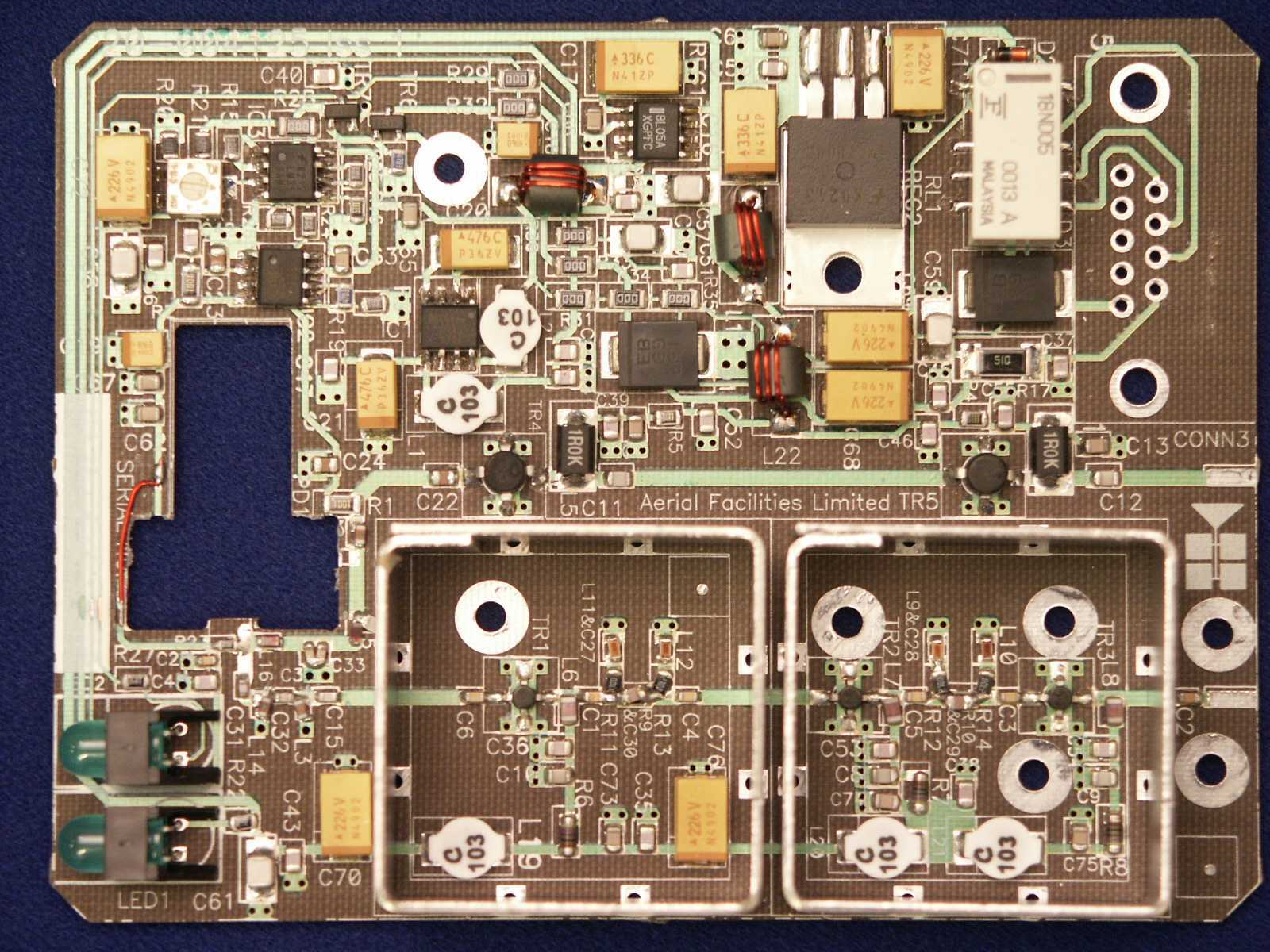

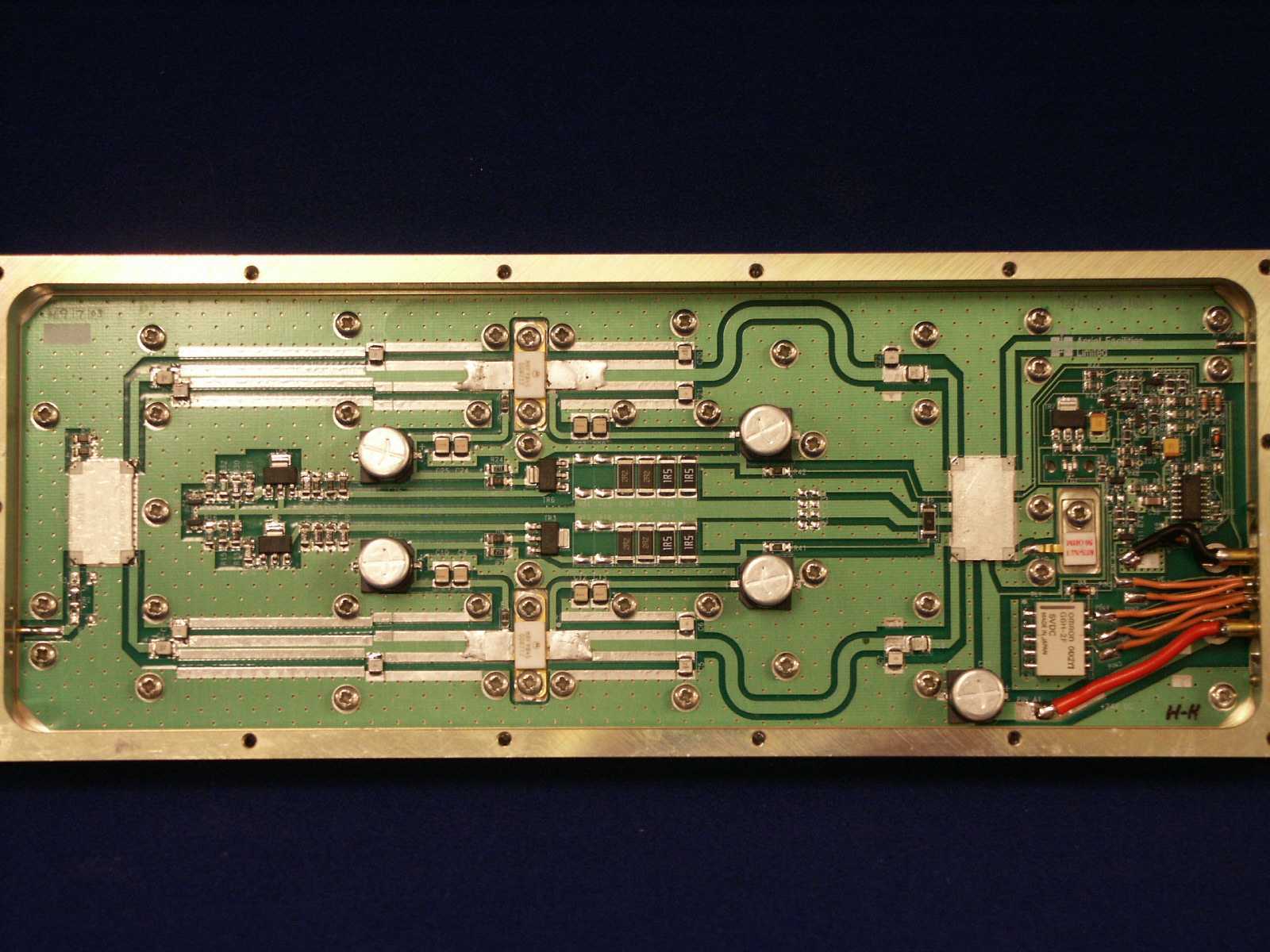

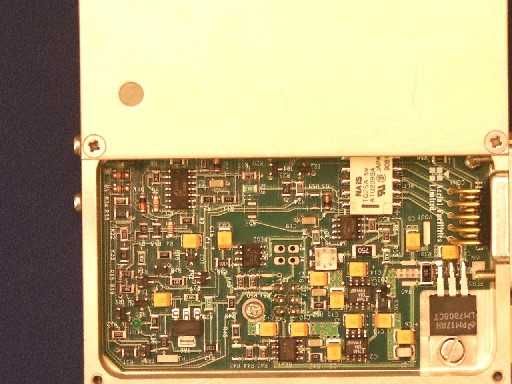

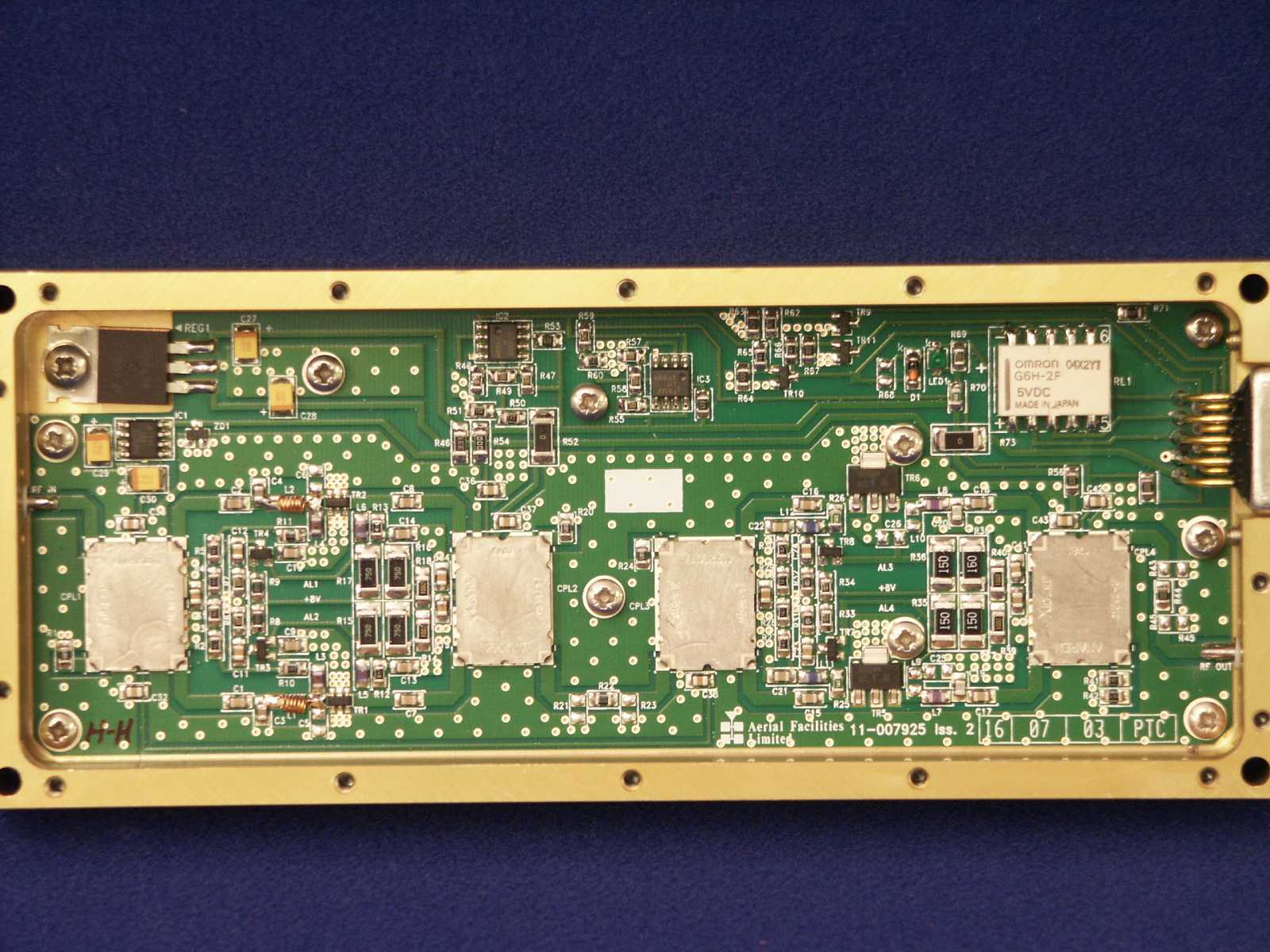

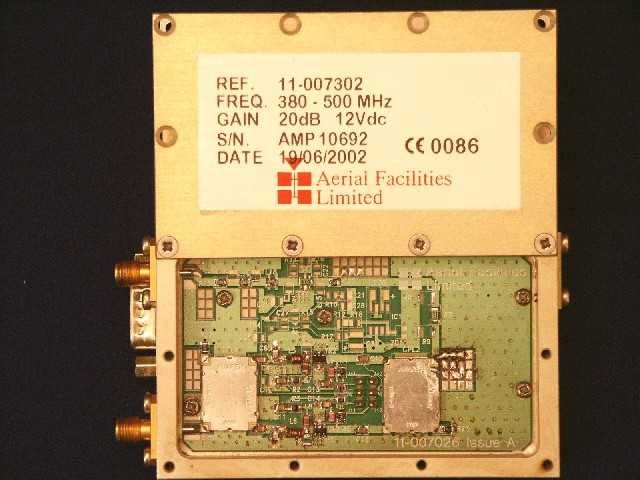

UHF Fibre-Fed Remote Site User Handbook Handbook Nō.-60-137601HBK Issue No:-1 Date:-18/03/2005 Page:- 17 of 38 3.1.5 Remote Site 10W BDA Shelf 60-137702 Parts List AFL Part Nō. Part Description Qty. 02-007302 SDF C/L5P VAR.BW TOP SMA 40mm POST 4 10-000901 SW. ATTENUATOR 0.25W 0-15dB 2 11-007302 LNA. 380-500MHz 20dB (C/W RELAY) GA 1 11-007402 LNA. 380-500MHz 30dB (C/W RELAY) GA 1 11-007901 AMPLIFIER TETRA 1W 37dB GAIN ASS 1 12-005921 4U 10W PWR AMP HEATSINK 1 12-016302K PA 380-470MHz 10W CLASS A KIT 1 17-001105 CE AGC UNIT LOG DET/AMP ASSY (24v) 2 17-001201 C/E AGC UNIT ATTENUATOR ASSY 2 19-001021K 4U CHASSIS KIT (400mm deep) 1 80-008902 24V RELAY PCB ASSEMBLY 1 91-030002 N ADAPTOR PANEL FEMALE:FEMALE 3 91-130001 SMA ADAPT 'T' ALL FEMALE 3 GHz 1 91-500025 3 PIN RIGHT ANGLE FREE PLUG NC-X 1 91-510004 3 PIN PNL.MOUNT SOCKET NC-X 1 91-520001 PWR MAINS INL FIXED/SOLD.TERMS 1 91-600014 'D' 9 WAY SOCKET S/B (NON FILTERED) 3 91-600015 'D' 9 WAY PLUG S/B (NON FILTERED) 1 96-200024 DC/DC CONVERTER 18-36Vin/12Vout 5A 60W 1 96-300060 JWS150-24/A PSU 1 96-600003 INSULATING BOOT D.C. 1 96-700034 LED RED 5mm IP67 1 96-700035 LED GREEN 5mm IP67 1 96-920022 3A CIRCUIT BREAKER (ETA) 1

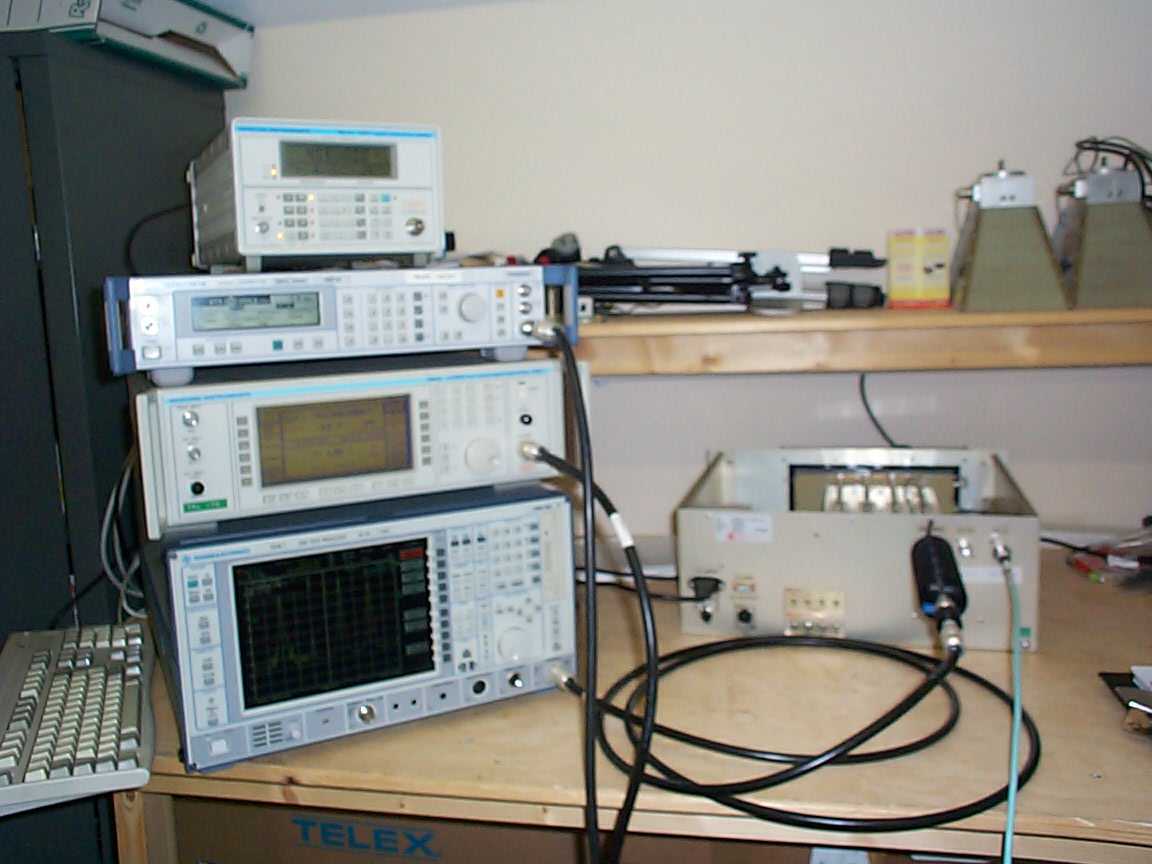

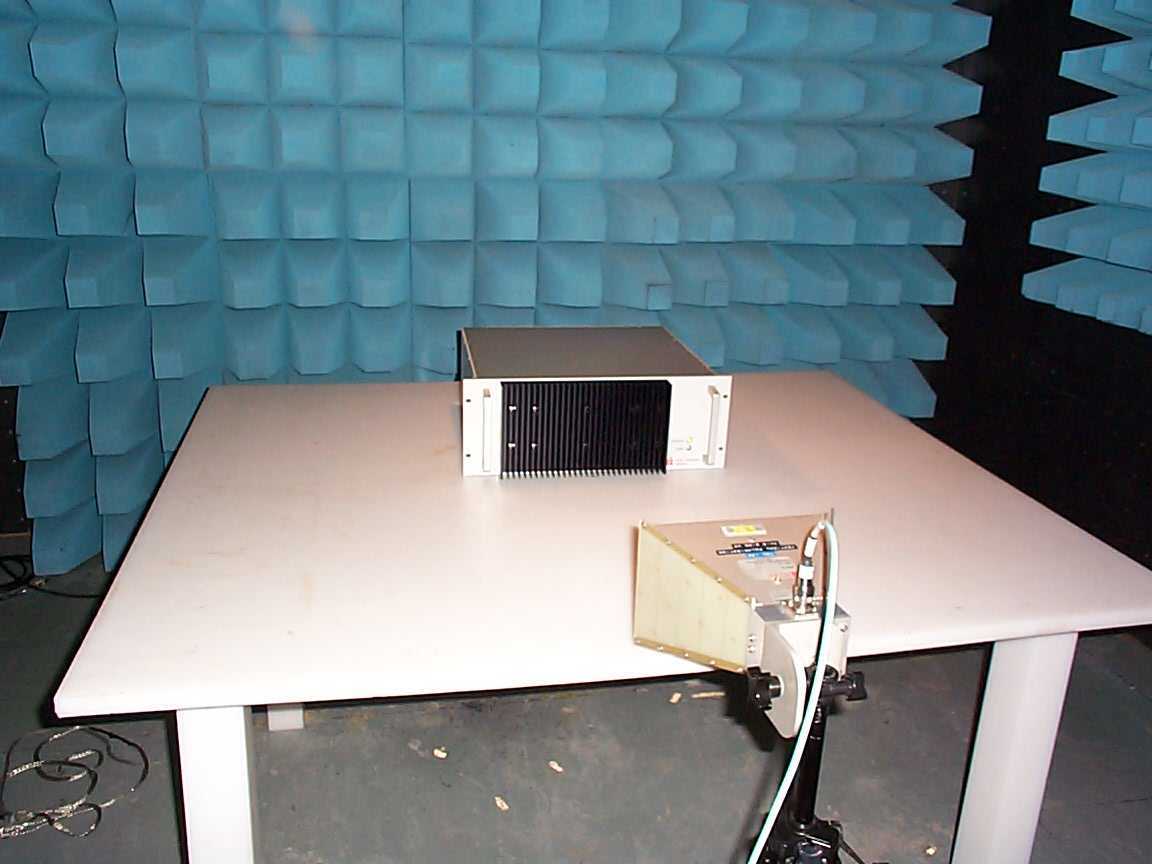

TRL COMPLIANCE SERVICES LTD EMC DIVISION L ONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM T ELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1164/6097 COPY NO: 2 ISSUE NO: 1 FCC ID: NE060-1377Series REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED 10W BDA 60-137702 WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart H PRIVATE LAND MOBILE REPEATER. TEST DATE: 21 st February 2005 – 3 rd March 2005 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 10 th January 2006 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Services Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1164/6097 Page 2 of 46 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-35 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Conducted Test setup PHOTOGRAPH No. 2: Radiated Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C MEASUREMENT UNCERTAINTY D SYSTEM DIAGRAM E Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RU1164/6097 Page 3 of 46 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NE060-1377Series PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart H TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 10W BDA 60-137702 EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMIUM GAIN Uplink 51.57 dB Downlink 46.60 dB MAXIMUM INPUT Uplink -51dBm Downlink -12.6 dBm MAXIMUM OUTPUT Uplink 0.57 dBm (into Fibre optic system) Downlink 34.00 dBm (radiating cable system) ANTENNA TYPE: Not applicable CHANNEL SPACING: Uplink, Determined by input signal channelisation Downlink, Determined by input signal channelisation NUMBER OF CHANNELS: Uplink, Determined by input signal channelisation Downlink, Determined by input signal channelisation FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110Vac TEST DATE(s): 21 st February 2005 – 3 rd March 2005 ORDER No(s): 29265 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RU1164/6097 Page 4 of 46 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 10W BDA 60-137702 EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart H TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 29265 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 21 st February 2005 – 3 rd March 2005 TEST REPORT No: RU1164/6097 RU1164/6097 Page 5 of 46 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry; therefore the test was not performed. 2 The EUT is not a keyed carrier system; therefore the test was not performed. Uplink Class A [ ] Class B [X] 2. Product Class: Downlink Class A [ ] Class B [X] 3. Product Use: Private Land mobile Repeater 4. Emission Designator: F3E 5. Temperatures: Ambient (Tnom) 21 o C 6. Supply Voltages: Vnom +110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] 8. Channel spacing: Narrowband [ ] Wideband [X] 9. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 10. Modifications made during test program AGC Fitted in Downlink Path System Description: The 60-137702 is Bi directional amplifier consisting of and uplink and a downlink. The uplink operates in the frequency band 417.0 – 420.0 MHz. The uplink input is determined by input signal channelisation and the output of the amplifier if fed into a fibre optic system FCC IDs NE020-0040Series and NE020-0041Series. The downlink operates in the frequency band 408.0 – 411.0 MHz. The downlink output of the amplifier is fed into a radiating cable system. The 60-137702 is incorporated into a system as shown in Annex E. RU1164/6097 Page 6 of 46 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 26 o C Relative humidity = 36% Supply voltage = +110Vac Channel number = See test results Frequency MHz Signal Generator Input Level dBm Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Output power dBm Gain after 10dB input level increase dBm 417.0 -51 46.51 -46.11 51.40 0.40 41.57 418.5 -52 46.51 -46.12 52.39 0.39 42.57 420.0 -51 46.51 -45.94 51.57 0.57 41.57 Notes: 1. The signal generator input was increased by 10dBs and the level of the output signal remeasured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 ATTENUATOR BIRD 8304-300-N N/A 220 X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2042 119388/080 179 X SPECTRUM ANALYSER RHO…

Text truncated - open the document above for the full version.
