NEO60-1665SERIESUHF Remote Repeater type 60-166501

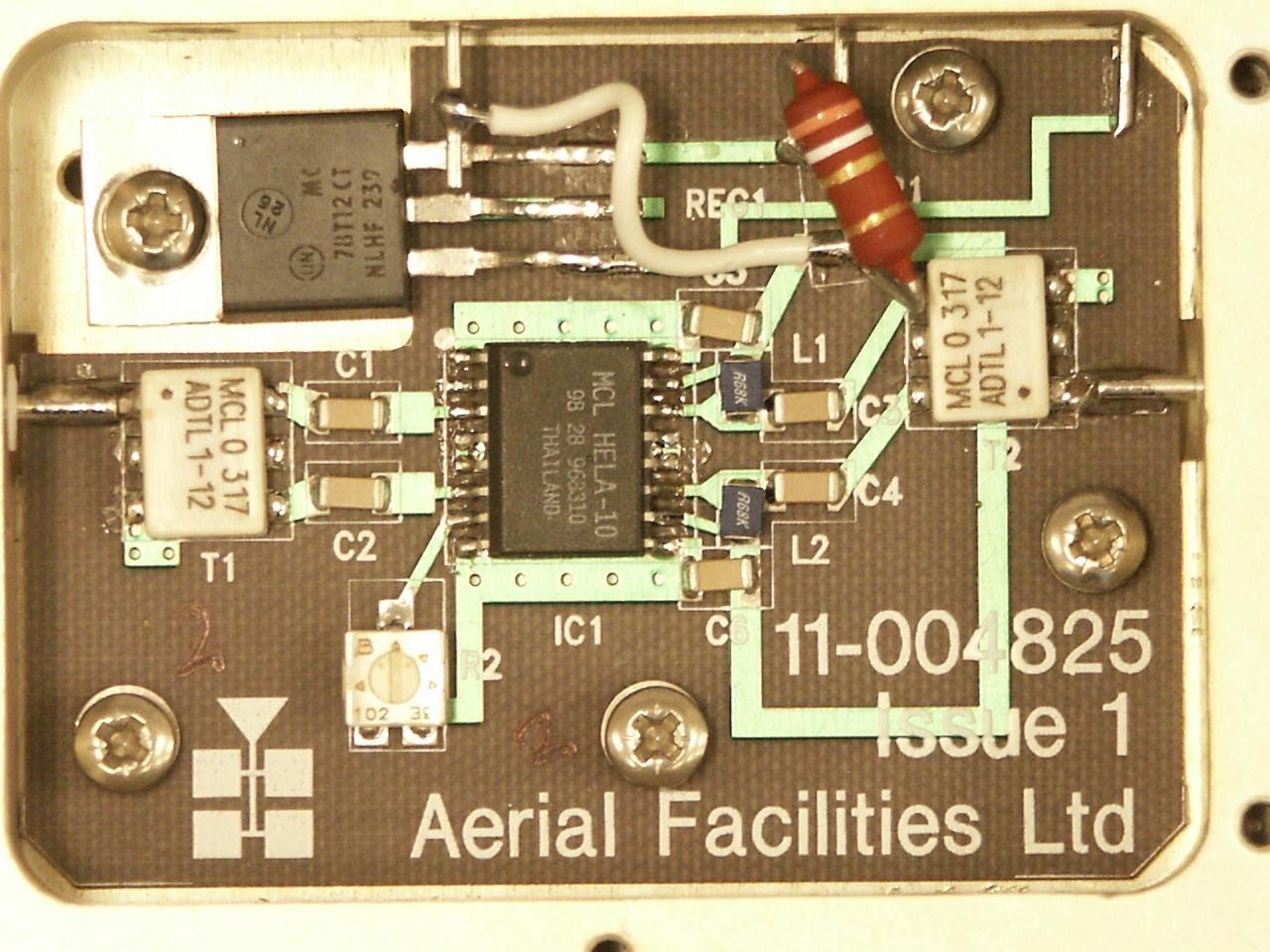

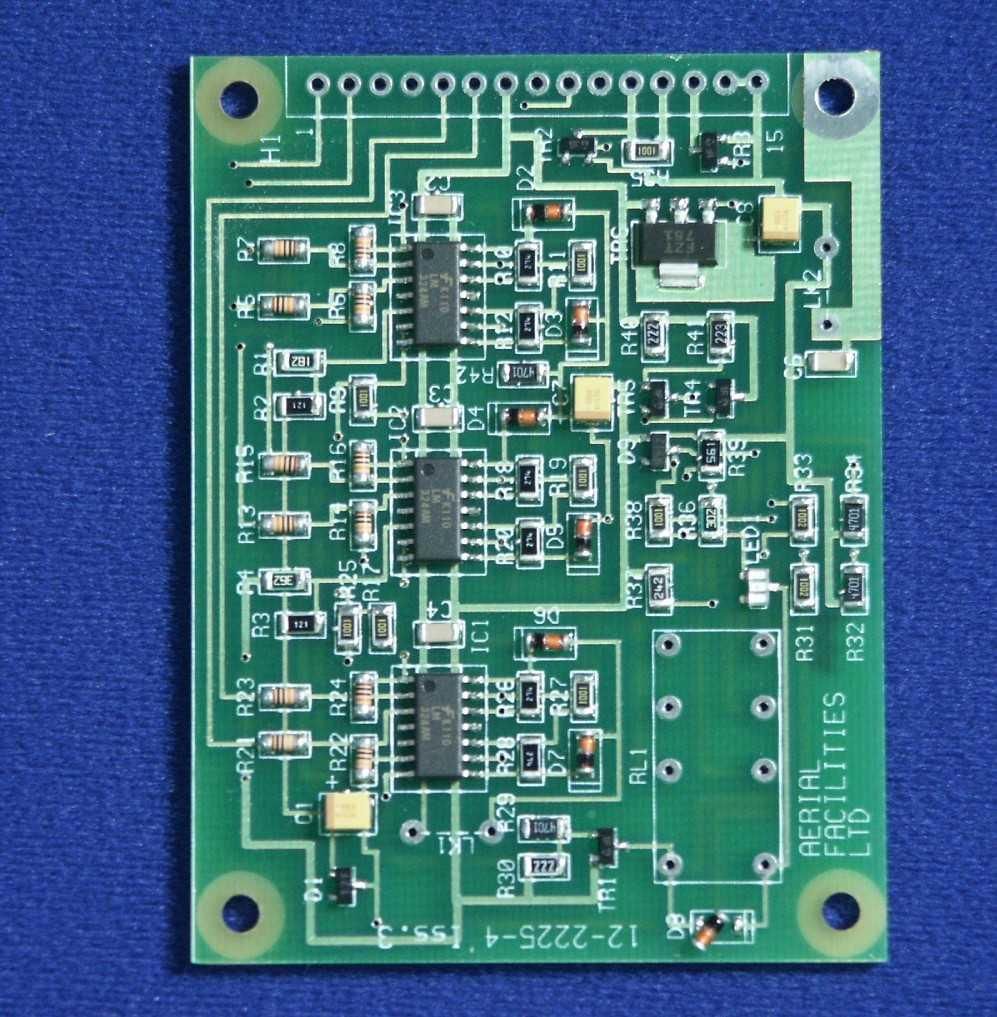

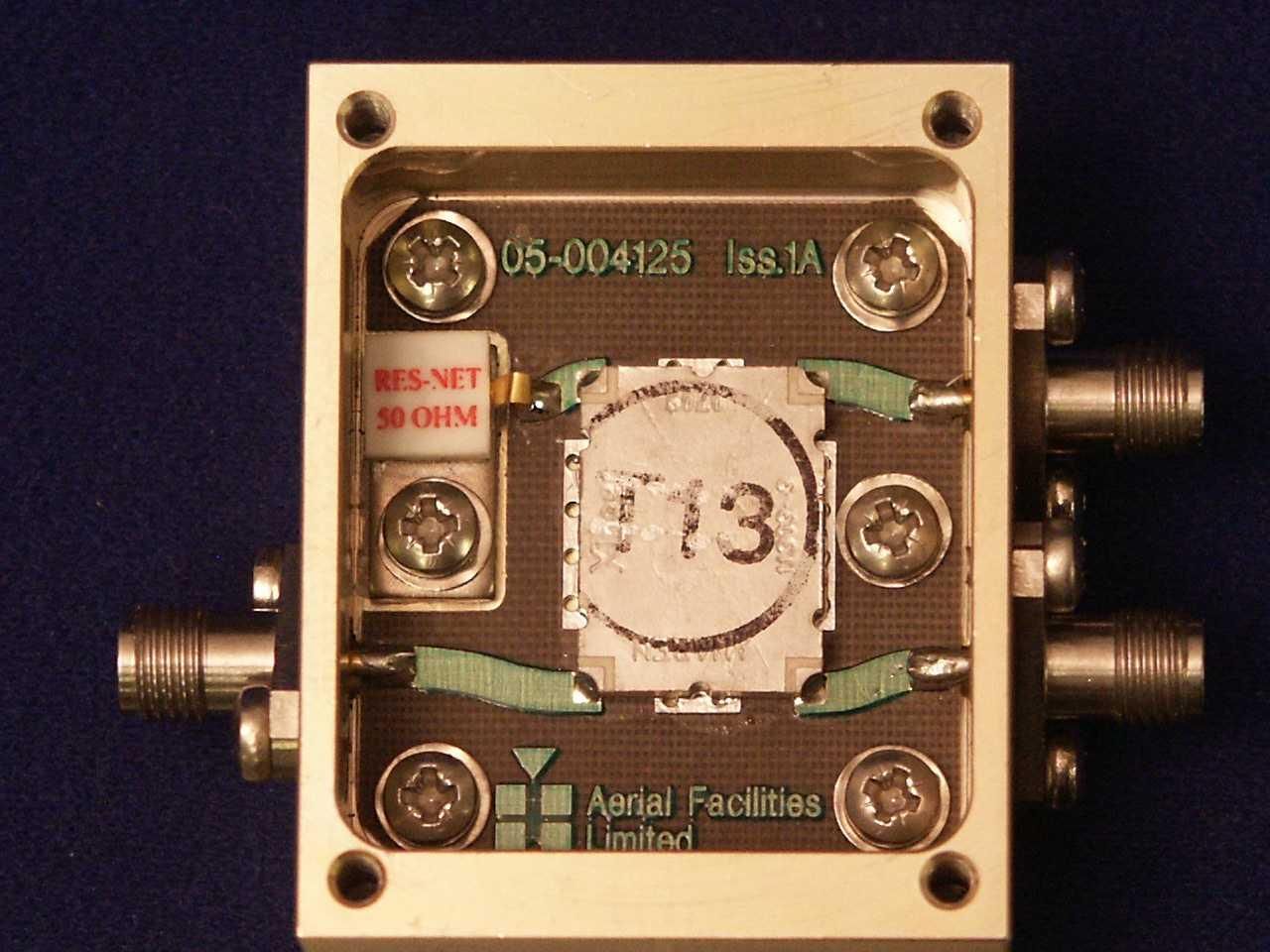

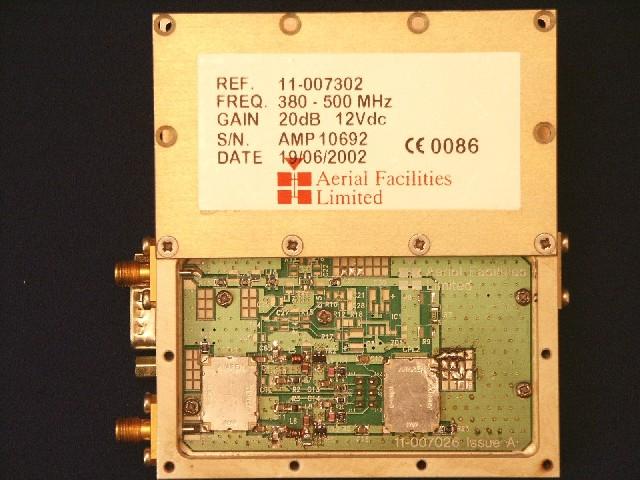

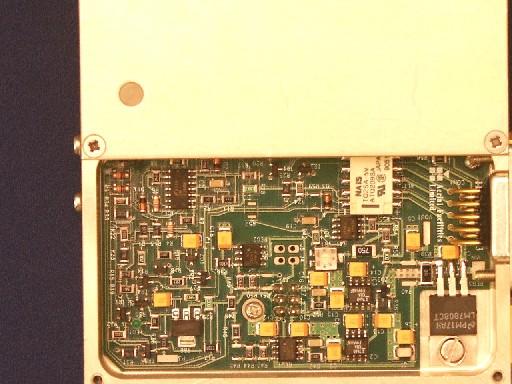

Baltimore Transit Radio Repeater System User/Maintenance Handbook (2) for Intelect Corp. AFL Works Order: Q113737 AFL product part No.: 60-166501 Aerial Facilities Limited Technical Literature Baltimore Radio Repeater System Maintenance Handbook Handbook Number 60-166501HBKMIssue No. A Date 15/02/2006Page 1 of 26 Maintenance Handbook Baltimore Radio Repeater System Handbook No. 60-166501HBKM Page 2 of 26 1. INTRODUCTION Scope and Purpose of this Document This handbook is for use solely with the equipment identified by the AFL Part Number shown on the front cover. It is not to be used with any other equipment unless specifically authorised by Aerial Facilities Limited. This is a controlled release document and, as such, becomes a part of Aerial Facilities’ Total Quality Management System. Alterations and modification may therefore only be performed by Aerial Facilities Ltd. AFL recommends that the installer of this equipment familiarise his/herself with the safety and installation procedures contained within this document before installation commences. The purpose of this handbook is to provide the user/maintainer with sufficient information to service and repair the equipment to the level agreed. Maintenance and adjustments to any deeper level must be performed by AFL, normally at the company’s repair facility in Chesham, England. This handbook has been prepared in accordance with BS 4884, and AFL’s Quality procedures, which maintain the company’s registration to BS EN ISO 9001:2000 and to the R&TTE Directive of the European Parliament. Copies of the relevant certificates and the company Quality Manual can be supplied on application to the Quality Manager. This document fulfils the relevant requirements of Article 6 of the R&TTE Directive. Limitation of Liability Notice This manual is written for the use of technically competent operators/service persons. No liability is accepted by AFL for use or misuse of this manual, the information contained therein, or the consequences of any actions resulting from the use of the said information, including, but not limited to, descriptive, procedural, typographical, arithmetical, or listing errors. Furthermore, AFL does not warrant the absolute accuracy of the information contained within this manual, or its completeness, fitness for purpose, or scope. AFL has a policy of continuous product development and enhancement, and as such, reserves the right to amend, alter, update and generally change the contents, appearance and pertinence of this document without notice. All AFL products carry a twelve month warranty from date of shipment. The warranty is expressly on a return to base repair or exchange basis and the warranty cover does not extend to on-site repair or complete unit exchange. Maintenance Handbook Baltimore Radio Repeater System Handbook No. 60-166501HBKM Page 3 of 26 Table of Contents 1.INTRODUCTION.......................................................................................................................... 2 Scope and Purpose of this Document................................................................................................. 2 Limitation of Liability Notice................................................................................................................. 2 2.SAFETY CONSIDERATIONS ...................................................................................................... 4 2.1Earthing of Equipment .............................................................................................................. 4 2.2Electric Shock Hazard............................................................................................................... 4 2.3RF Radiation Hazard ................................................................................................................ 4 2.4Chemical Hazard ...................................................................................................................... 5 2.5Laser safety .............................................................................................................................. 5 2.6Emergency Contact Numbers...................................................................................................5 3.EQUIPMENT OVERVIEW/SPECIFICATIONS............................................................................. 6 3.1Fibre Fed High Power Remote BDA (60-166501) .................................................................... 7 3.2Fibre Fed High Power Remote BDA Description................................................................... 7 3.3Fibre Fed High Power Remote BDA Technical Specifications .............................................. 7 3.4Fibre Fed High Power Remote BDA Mechanical Specifications ........................................... 7 3.5Fibre-Fed High Power Remote Site System Diagram, Drg. No. 60-166581.......................... 8 3.6Fibre-Fed High Power Remote Site Alarm Diagram, Drg. Nǀ 60-166551 ............................. 9 3.7Remote Site UHF BDA Alarm Wiring Diagram, Drg. No. 60-166551 .................................. 10 3.8Remote Site UHF BDA Outline Drawing, Drg. No. 60-166591 ............................................ 11 3.9Fibre Fed High Power Remote BDA Parts List (60-166501) ............................................... 13 4.INSTALLATION & COMMISIONING.......................................................................................... 15 4.1Initial Installation Record......................................................................................................... 15 4.2Antenna Installation & Gain Calculations................................................................................ 15 4.3Antenna Isolation .................................................................................................................... 16 4.4Rack Mounted Equipment...................................................................................................…

Text truncated - open the document above for the full version.

3.5 Fibre-Fed High Power Remote Site System Diagram, Drg. No. 60-166581 Maintenance Handbook Baltimore Radio Repeater System Handbook No. 60-166501HBKM Page 8 of 26

voltage Hig h DANGER Heavy CA UT ION Ae ria l F a c il itie sLim ited England BY DAT E DESCRIPT ION No ISSUE 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUT HORISED IN WRIT INGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCTION ISSUE 30/9/03 DBS PSU ALARM FCC IDENT. LABEL

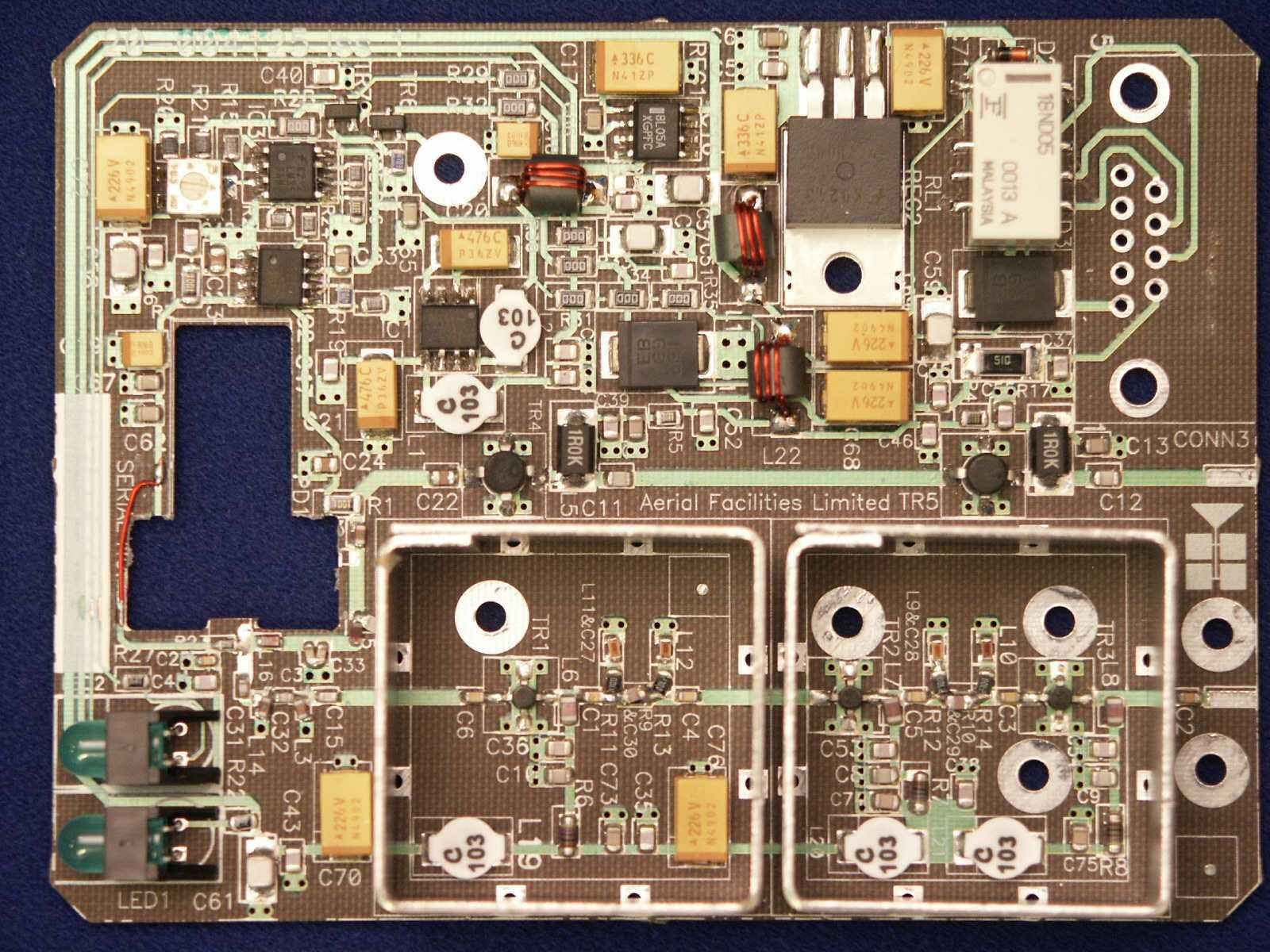

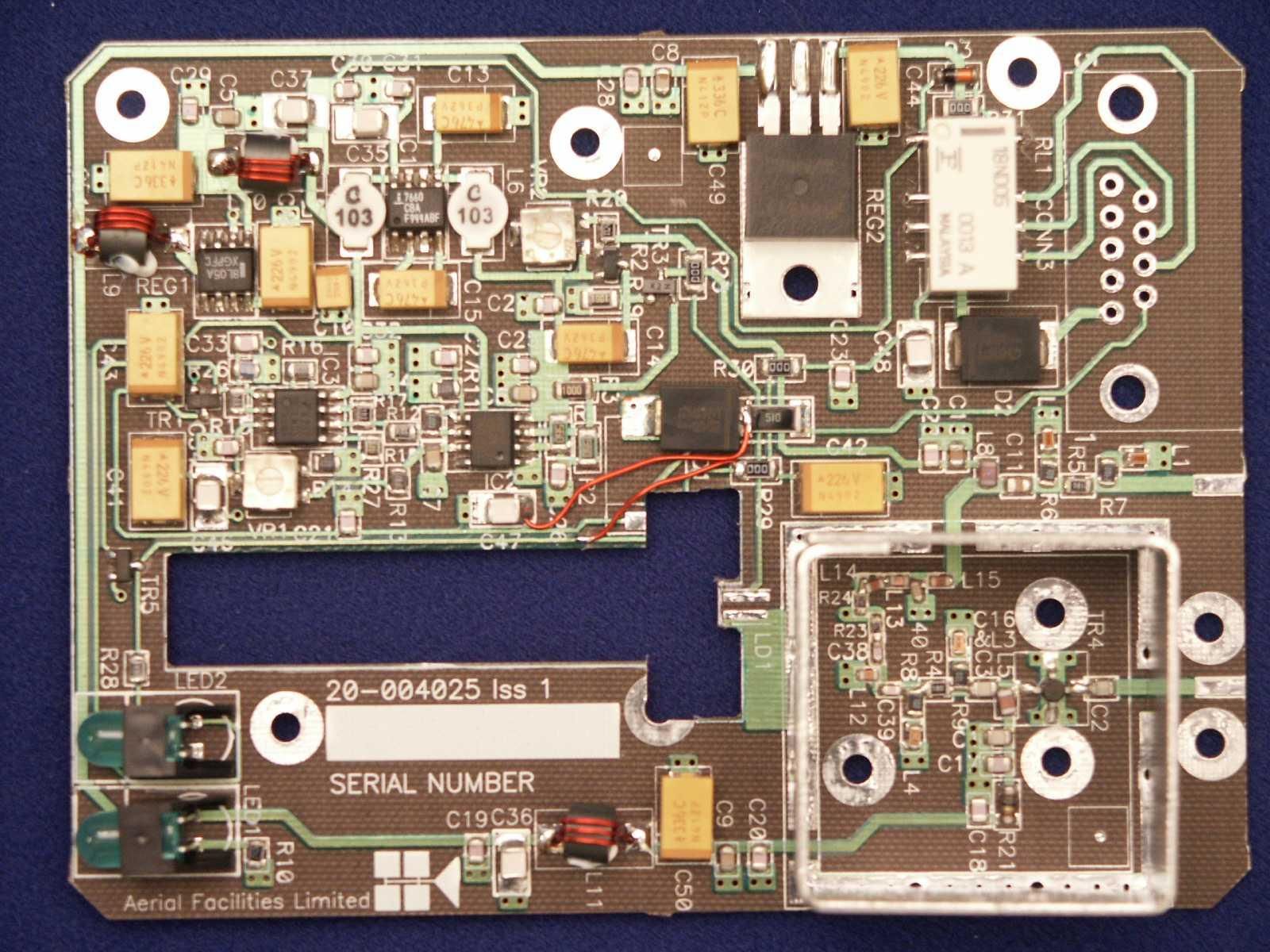

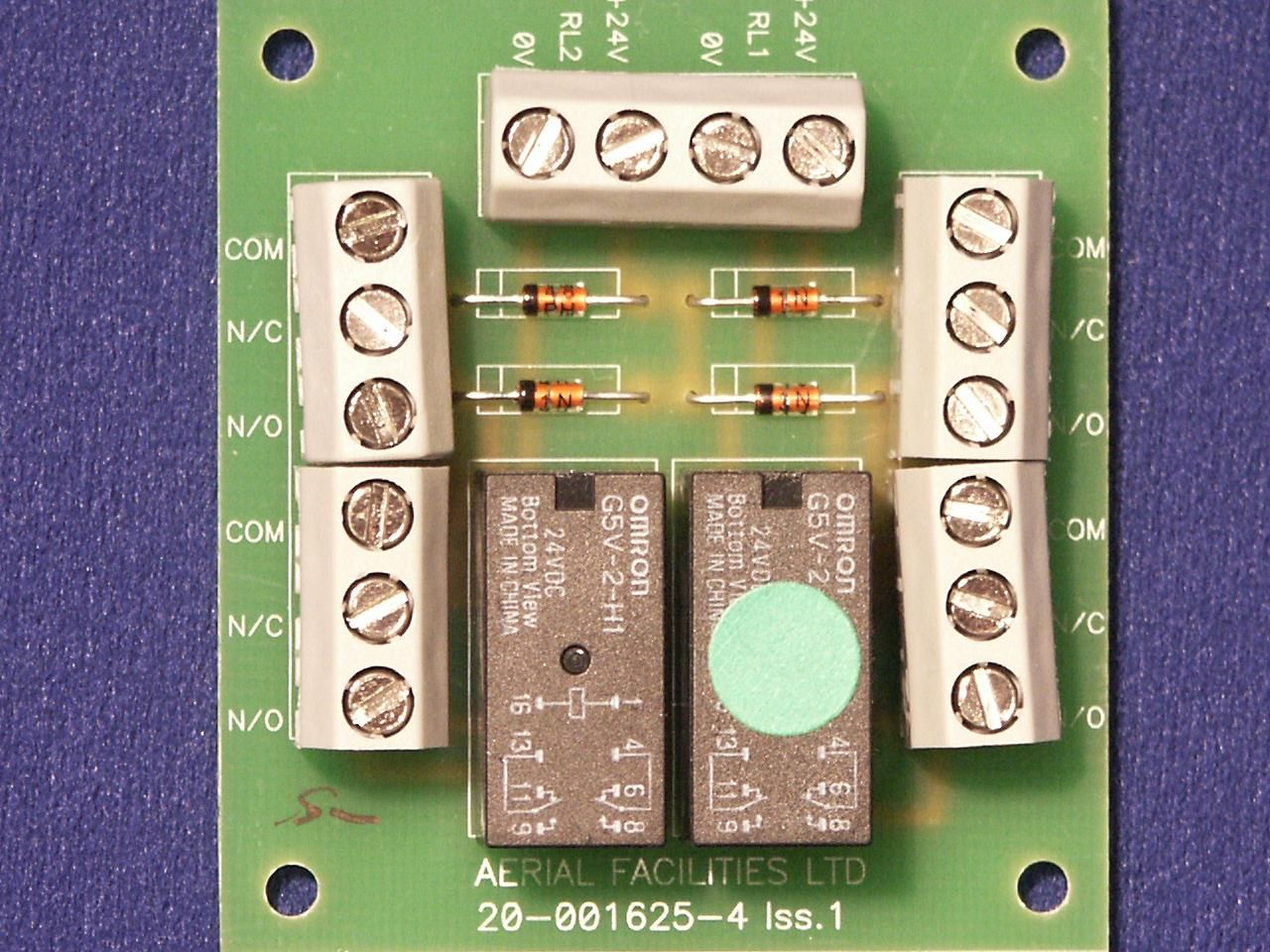

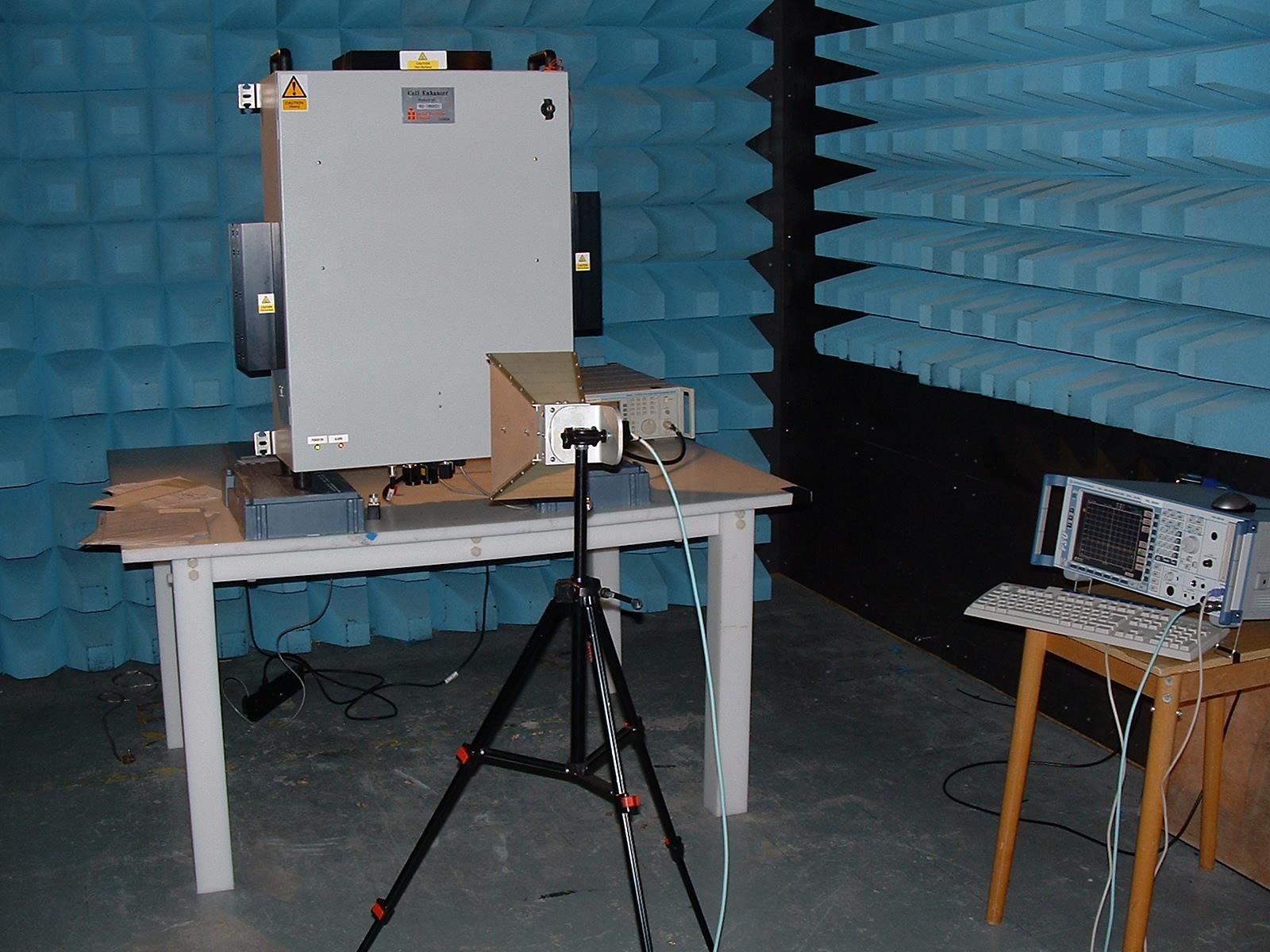

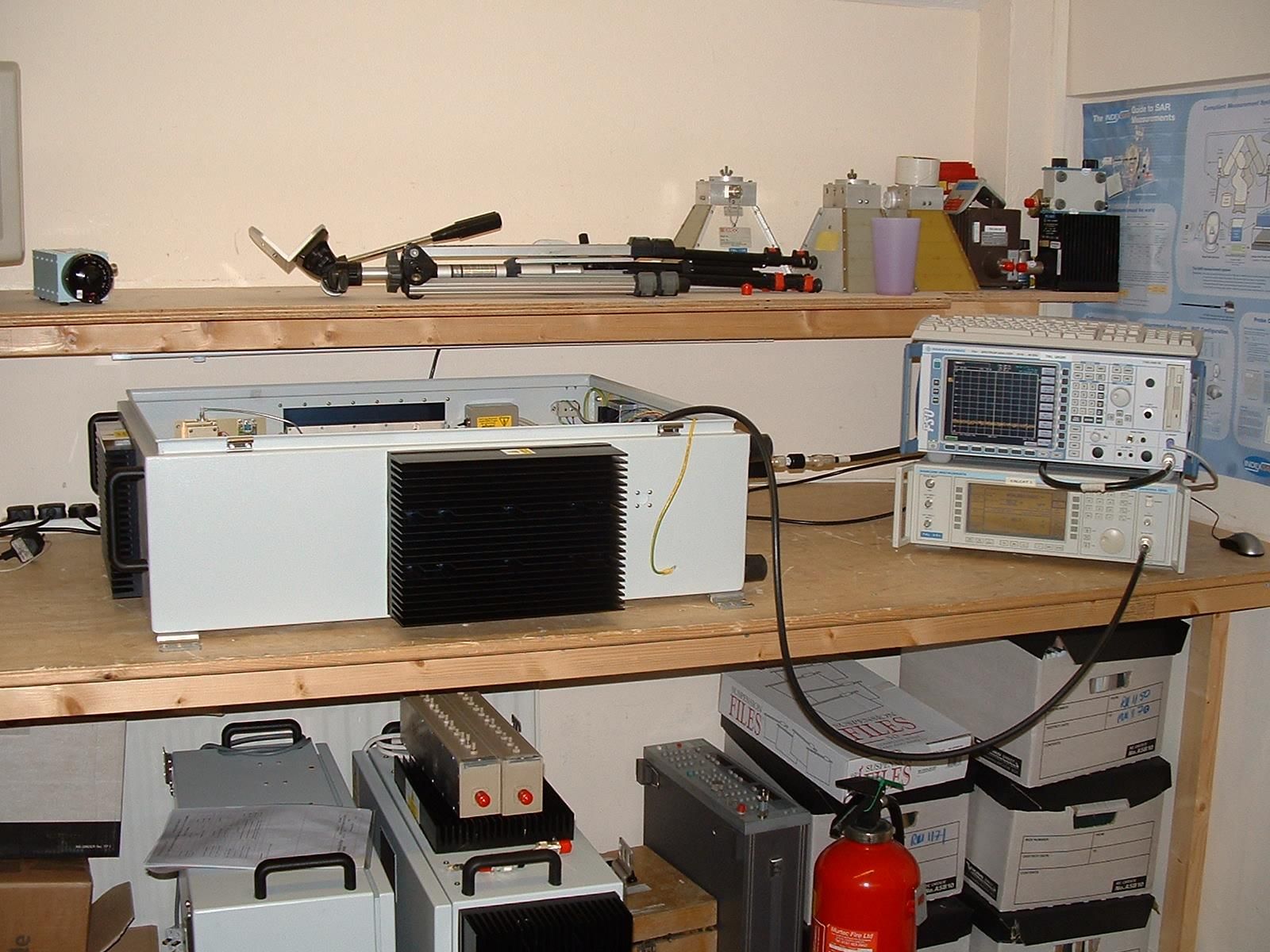

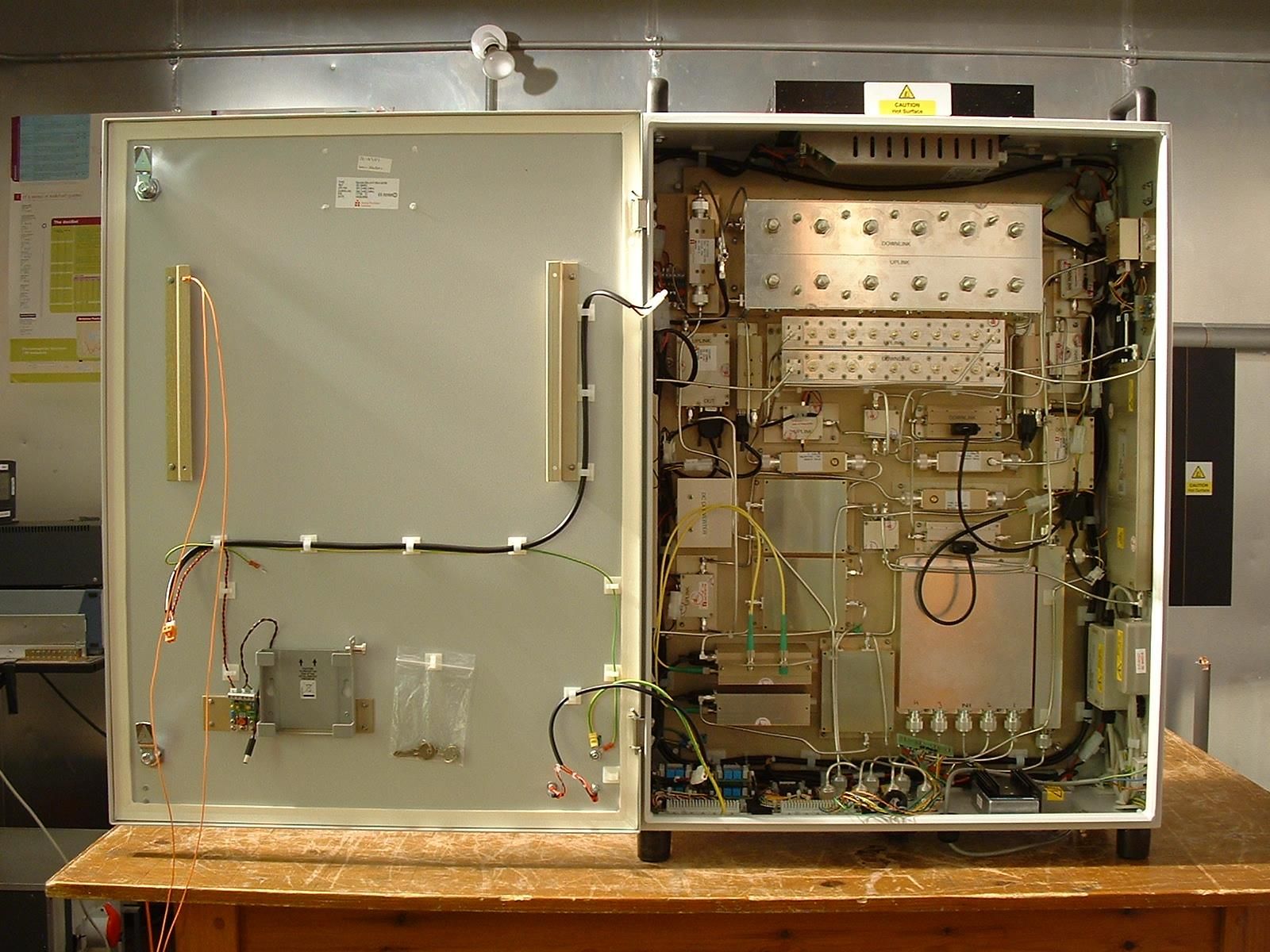

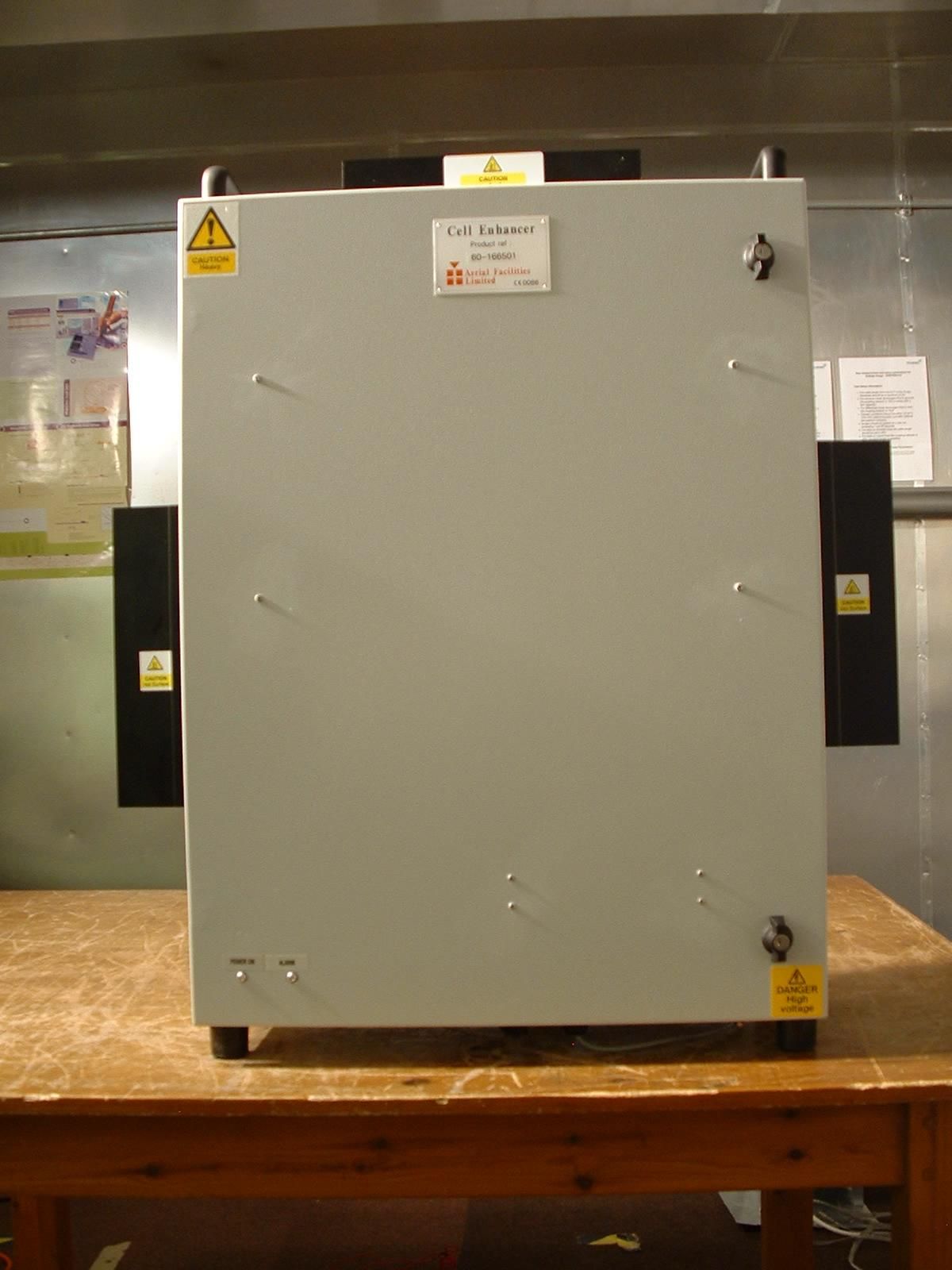

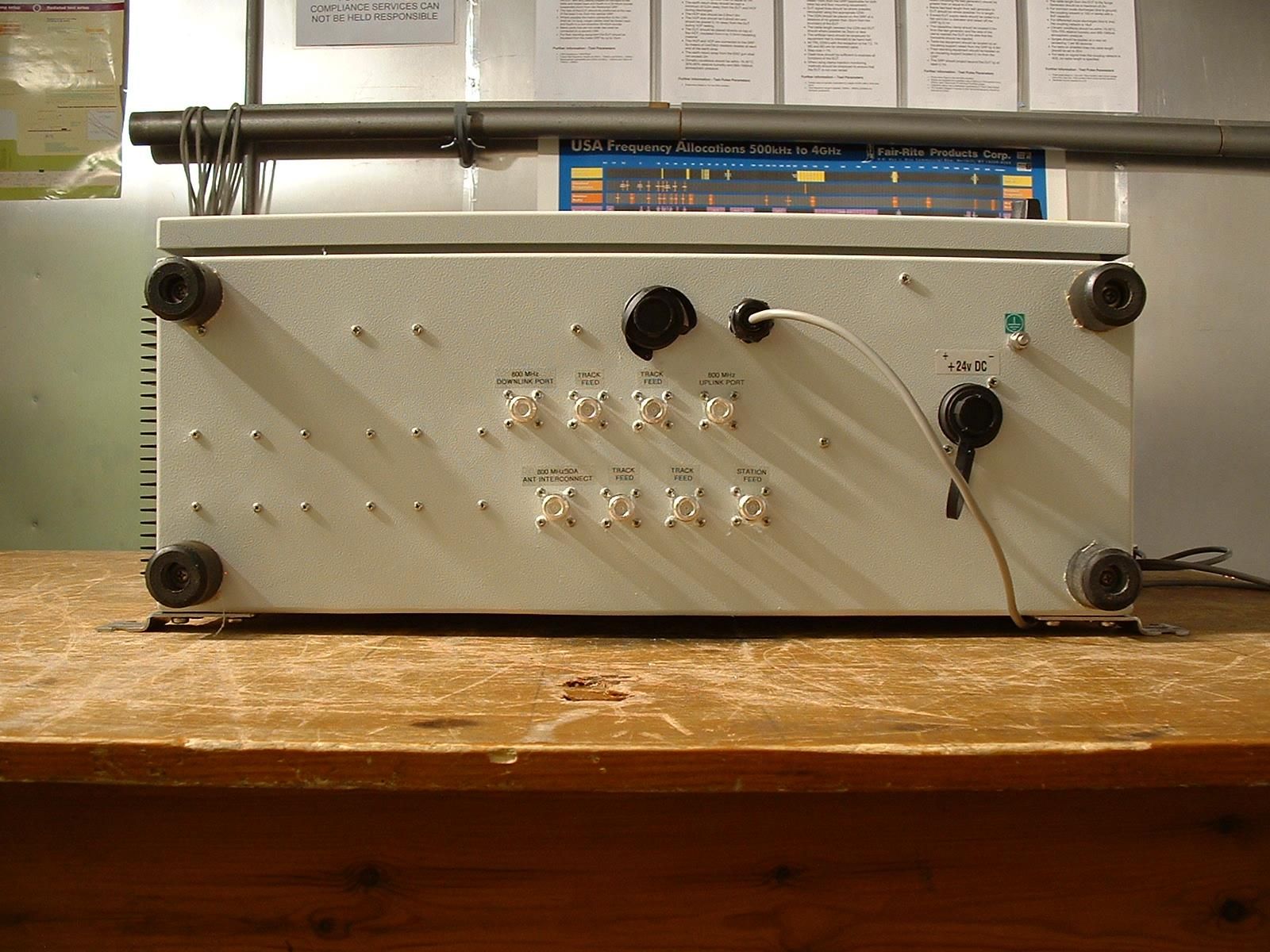

TRL COMPLIANCE LTD L ONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM T ELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com TEST REPORT NO: RU1244/7036 COPY NO: 2 ISSUE NO: 1 FCC ID: NE0-1665Series REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED 60-166501 CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 23 rd – 26 th May 2006 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 9 th October 2006 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Limited 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02 RU1244/7036 Page 2 of 51 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-40 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C MEASUREMENT UNCERTAINTY D SYSTEM DIAGRAM E Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RF335 iss02 RU1244/7036 Page 3 of 51 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NE0-1665Series PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 60-166501 Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMIUM GAIN: Uplink = 40.53 dB Downlink = 47.44 dB MAXIMUM INPUT: Uplink = -29.45 dBm Downlink = -14.48 dBm MAXIMUM OUTPUT: Uplink = 11.08 dBm Downlink = 32.96 dBm ANTENNA TYPE: Not applicable CHANNEL SPACING: Not Applicable FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110 Vac TEST DATE(s): 23 rd – 26 th May 2006 ORDER No(s): 36615 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RF335 iss02 RU1244/7036 Page 4 of 51 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 60-166501 Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 36615 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance UKAS ACCREDITATION No: 0728 TEST DATE(s) 23 rd – 26 th May 2006 TEST REPORT No: RU1244/7036 RF335 iss02 RU1244/7036 Page 5 of 51 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. Uplink Class A [ ] Class B [X] 2. Product class: Downlink Class A [ ] Class B [X] 3. Product Use: Private Land Mobile Repeater 4. Emission Designator: F3E 5. Temperatures: Ambient (Tnom) 21 o C 6. Supply Voltages: Vnom +110 Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] 8. Channel spacing: Narrowband [ ] Wideband [X] 9. Test Location: TRL Compliance Limited Up Holland [X] Long Green [ ] 10. Modifications made during test program: No modifications were performed. System description: The 60-166501 is a bidirectional amplifier. The Downlink is wideband and operates over the frequency range 494.3MHz to 495.3MHz. The RF from the 60-166501 is fed via a fibre optic link using FCCIDs NEO20-0040Series and NEO20-0041Series from the 60-166101 unit, FCCID NEO60-1661Series. The downlink output consists of 4 track feeds and a station feed. The track feeds are identical and split inside the 60-166501 using a passive splitter. The station feed is coupled off before the splitter and can be 3dB less than the track feed levels. Each of these outputs is fed into a FCCID NEO60-1667Series unit.The uplink is wideband and operates over the frequency range 497.3MHz to 498.3MHz. The uplink inputs to the 60-166501 are fed from a FCCID NEO60-1667Series unit there are 5 inputs 4 track feeds and 1 station feed the track feeds are combined using a passive combiner and the station feed is coupled onto the combined signal. The uplink output is fed via a fibre optic link using FCCIDs NEO20-0040Series and NEO20-0041Series to the 60-166101 unit, FCCID NEO60-1661Series, where the RF is channelised. RF335 iss02 RU1244/7036 Page 6 of 51 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 24 o C Radio Laboratory Relative humidity = 35% Supply voltage = +110 Vac Channel number = See test results Track Feed 2 Frequency MHz Signal Generator input level dBm Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Output Power dBm Gain after 10dB input level increase dBm 497.3 MHz -29.15 10.13 -0.44 38.84 9.69 28.85 497.8 MHz -29.85 10.13 -0.41 39.57 9.72 30.94 498.3 MHz -29.45 10.13 -0.40 39.18 9.7…

Text truncated - open the document above for the full version.
