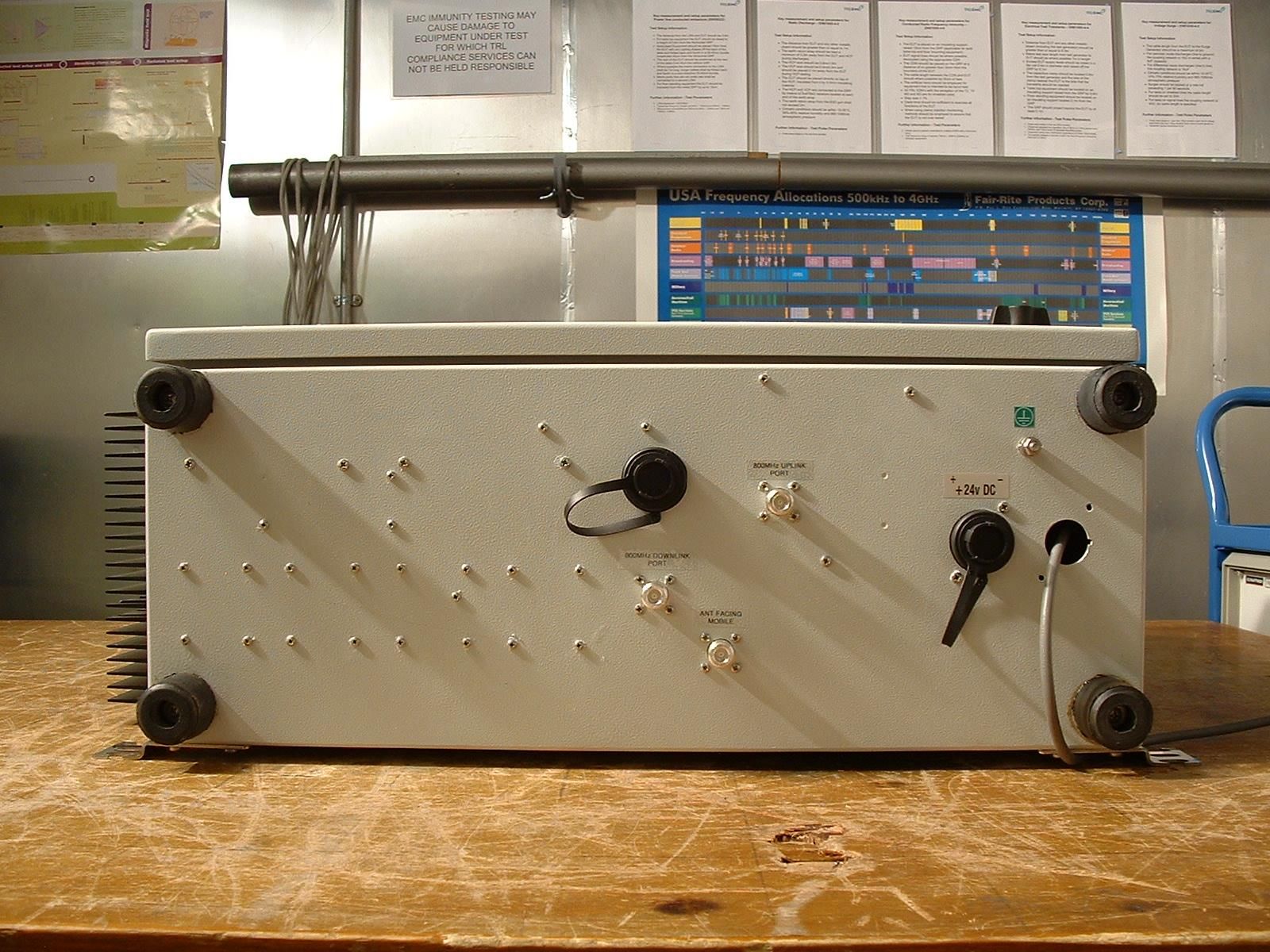

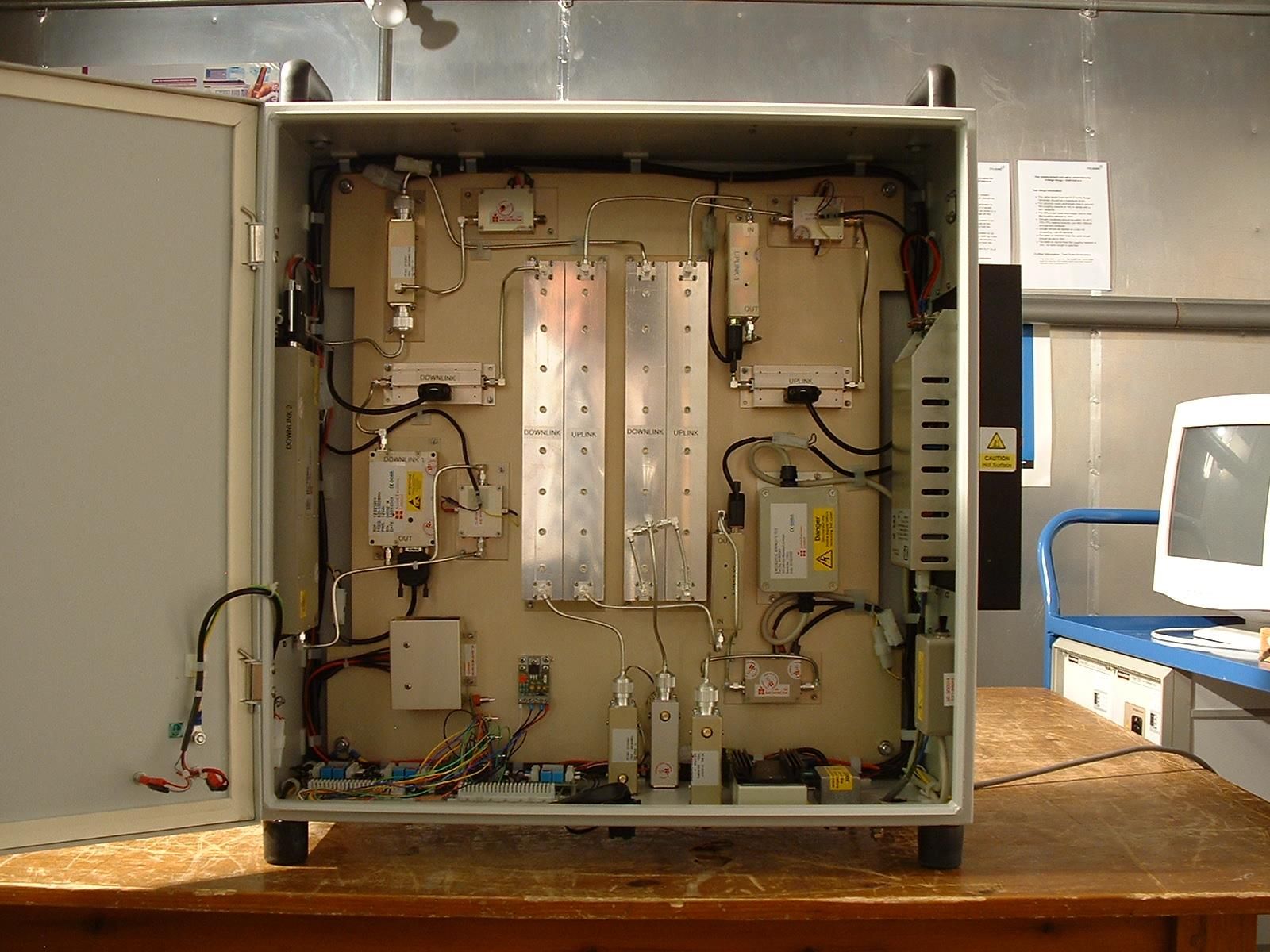

NEO60-1667SERIES800MHz Remote Repeater type 60-166701

Handbook Number 60-166701HBKM Issue No. A Date 15/02/2006 Page 1 of 24 Baltimore Transit Radio Repeater System User/Maintenance Handbook (3) for Intelect Corp. AFL Works Order: Q113737 AFL product part No.: 60-166701 Maintenance Handbook Baltimore Radio Repeater System Handbook No. 60-166701HBKM Page 2 of 24 1. INTRODUCTION Scope and Purpose of this Document This handbook is for use solely with the equipment identified by the AFL Part Number shown on the front cover. It is not to be used with any other equipment unless specifically authorised by Aerial Facilities Limited. This is a controlled release document and, as such, becomes a part of Aerial Facilities’ Total Quality Management System. Alterations and modification may therefore only be performed by Aerial Facilities Ltd. AFL recommends that the installer of this equipment familiarise his/herself with the safety and installation procedures contained within this document before installation commences. The purpose of this handbook is to provide the user/maintainer with sufficient information to service and repair the equipment to the level agreed. Maintenance and adjustments to any deeper level must be performed by AFL, normally at the company’s repair facility in Chesham, England. This handbook has been prepared in accordance with BS 4884, and AFL’s Quality procedures, which maintain the company’s registration to BS EN ISO 9001:2000 and to the R&TTE Directive of the European Parliament. Copies of the relevant certificates and the company Quality Manual can be supplied on application to the Quality Manager. This document fulfils the relevant requirements of Article 6 of the R&TTE Directive. Limitation of Liability Notice This manual is written for the use of technically competent operators/service persons. No liability is accepted by AFL for use or misuse of this manual, the information contained therein, or the consequences of any actions resulting from the use of the said information, including, but not limited to, descriptive, procedural, typographical, arithmetical, or listing errors. Furthermore, AFL does not warrant the absolute accuracy of the information contained within this manual, or its completeness, fitness for purpose, or scope. AFL has a policy of continuous product development and enhancement, and as such, reserves the right to amend, alter, update and generally change the contents, appearance and pertinence of this document without notice. All AFL products carry a twelve month warranty from date of shipment. The warranty is expressly on a return to base repair or exchange basis and the warranty cover does not extend to on-site repair or complete unit exchange. Maintenance Handbook Baltimore Radio Repeater System Handbook No. 60-166701HBKM Page 3 of 24 Table of Contents 1. INTRODUCTION.......................................................................................................................... 2 Scope and Purpose of this Document................................................................................................. 2 Limitation of Liability Notice................................................................................................................. 2 2. SAFETY CONSIDERATIONS ...................................................................................................... 4 2.1 Earthing of Equipment .............................................................................................................. 4 2.2 Electric Shock Hazard............................................................................................................... 4 2.3 RF Radiation Hazard ................................................................................................................ 4 2.4 Chemical Hazard ...................................................................................................................... 5 2.5 Laser safety .............................................................................................................................. 5 2.6 Emergency Contact Numbers................................................................................................... 5 3. EQUIPMENT OVERVIEW/SPECIFICATIONS............................................................................. 6 3.1 800MHz 20W/1W Bi-Directional Amplifier (60-166701)............................................................ 7 3.1.P 800MHz 20W/1W Bi-Directional Amplifier Photographs .................................................... 7 3.1.1 800MHz Remote Site BDA Description .............................................................................. 8 3.1.2 800MHz Remote Site BDA Technical Specifications ......................................................... 9 3.1.4 800MHz Remote Site BDA Alarm Wiring, Drg. Nō. 60-166751........................................ 10 3.1.5 800MHz Remote Site BDA O/P Connections for NFM, Drg. Nō. 60-166752 ................... 11 3.1.6 800MHz Remote Site BDA System Diagram, Drg. Nō. 60-166781.................................. 12 3.1.7 800MHz Remote Site BDA Outline Drawing, Drg. Nō. 60-166791................................... 13 3.1.8 800MHz 20/1W REMOTE SITE BDA (60-166701) Parts List .......................................... 14 4. INSTALLATION & COMMISIONING.......................................................................................... 15 4.1 Initial Installation Record......................................................................................................... 15 4.2 Optical Connections................................................................................................................ 15 4.3 Wall Mounted Equipment........................................................................................................ 16 4.4 RF Connections ...................................................................................................................... 16 4.5 RF Commissioning......................................…

Text truncated - open the document above for the full version.

Maintenance Handbook Baltimore Radio Repeater System Handbook No. 60-166701HBKM Page 13 of 25 3.1.6 800MHz Remote Site BDA System Diagram, Drg. Nō. 60-166781

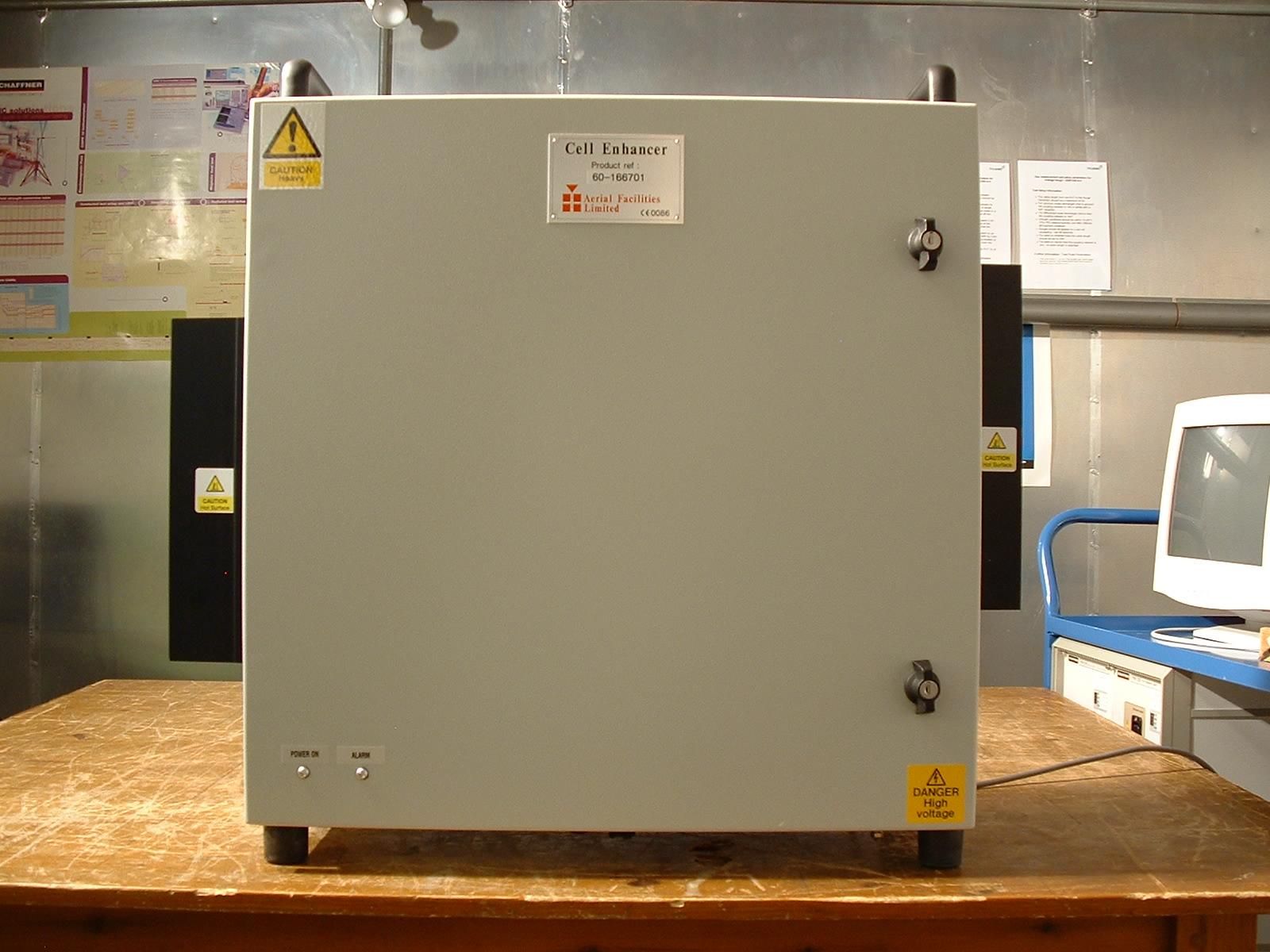

voltage Hig h DANGER Heavy CA UT ION Ae ria l F a c il itie sLim ited England BY DAT E DESCRIPT ION No ISSUE 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUT HORISED IN WRIT INGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCTION ISSUE 30/9/03 DBS PSU ALARM FCC IDENT. LABEL

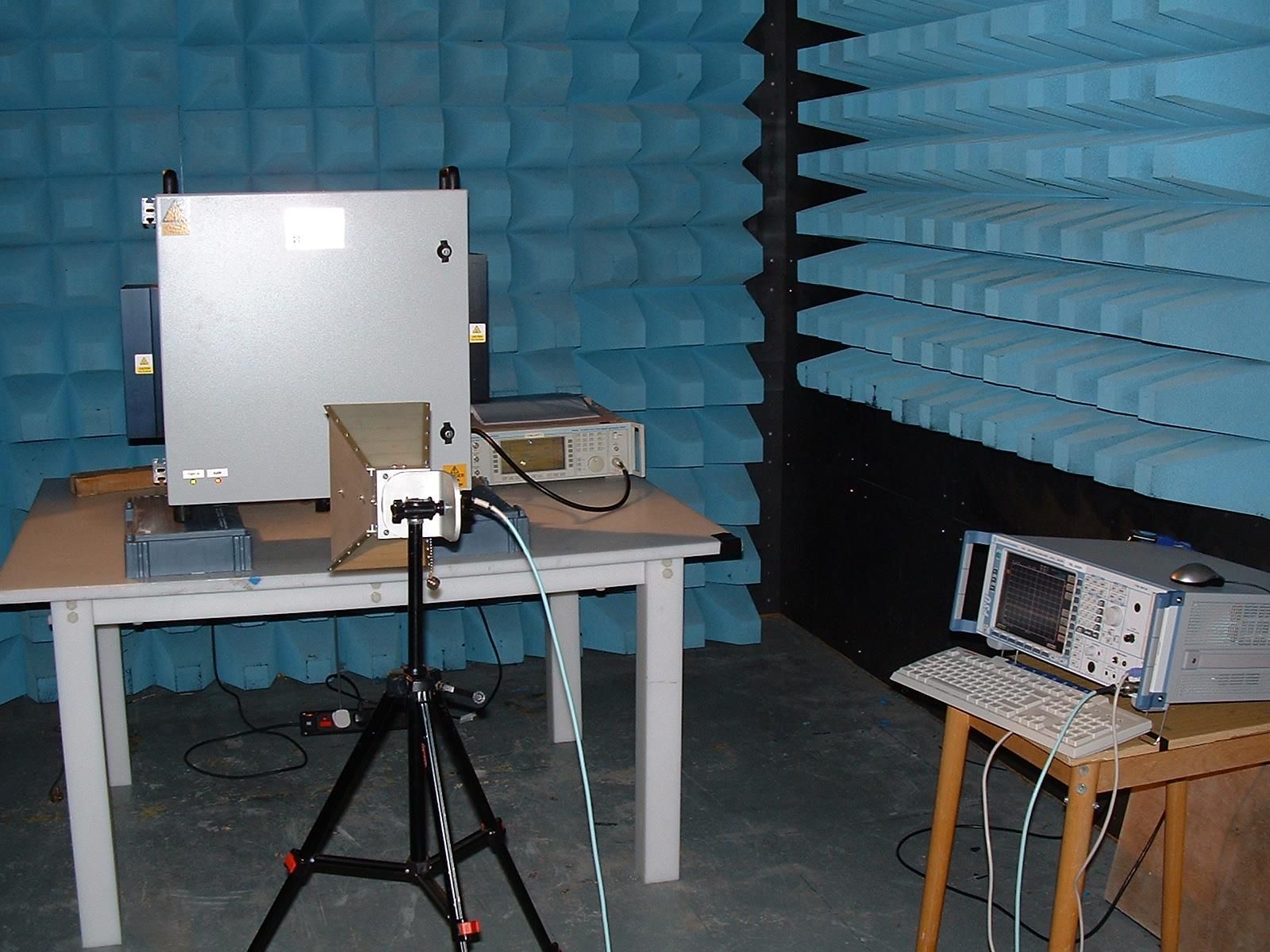

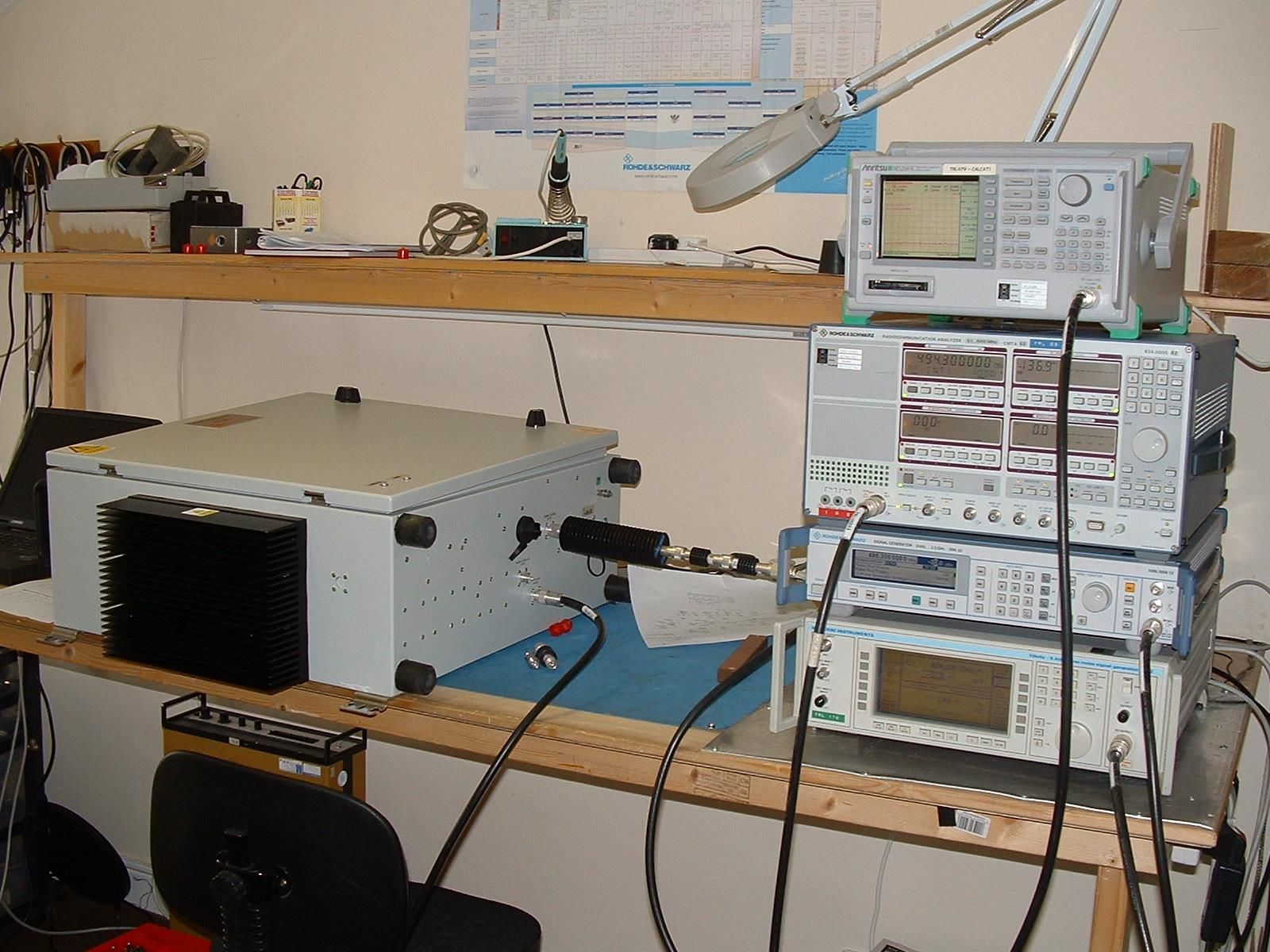

TRL COMPLIANCE LTD M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0) 1695 556666 FAX +44 (0) 1695 557077 E- MAIL [email protected] www.trlcompliance.com TEST REPORT NO: RU1244/7047 COPY NO: 1 ISSUE NO: 1 FCC ID: NE0-1667Series REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED 60-166701 WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBLIE REPEATER. TEST DATE: 25 th May – 30 th May 2006 TESTED BY: PP D WINSTANLEY APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 9 th October 2006 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Limited 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02 RU1244/7047 Page 2 of 66 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-55 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C MEASUREMENT UNCERTAINTY D SYSTEM DIAGRAM E Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RF335 iss02 RU1244/7047 Page 3 of 66 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NE0-1667Series PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 60-166701 EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMIUM GAIN Uplink = 41.70 dB Downlink = 45.2 dB MAXIMUM INPUT Uplink = - 40.70 dBm Downlink = - 0.1 dBm MAXIMUM OUTPUT Uplink = - 0.65 dBm Downlink = 35.1 dBm ANTENNA TYPE: Not applicable CHANNEL SPACING: Wideband FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): 110Vac TEST DATE(s): 25 th May – 30 th May 2006 ORDER No(s): 36615 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 2QD United Kingdom TESTED BY: PP D WINSTANLEY APPROVED BY: P GREEN PRODUCT MANAGER EMC RF335 iss02 RU1244/7047 Page 4 of 66 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 60-166701 EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 36615 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 2QD United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s) : 25 th May – 30 th May 2006 TEST REPORT No: RU1244/7047 RF335 iss02 RU1244/7047 Page 5 of 66 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. Uplink Class A [ ] Class B [X] 2. Product class: Downlink Class A [ ] Class B [X] 3. Product Use: Private Land Mobile Repeater 4. Emission Designator: F3E 5. Temperatures: Ambient (Tnom) 21 o C 6. Supply Voltages: Vnom 110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] 8. Channel spacing: Narrowband [ ] Wideband [X] 9. Test Location: TRL Compliance Limited Up Holland [X] Long Green [ ] 10. Modifications made during test program : No modifications were performed. System description: The 60-166701 is a bi-directional amplifier. The downlink is wideband and operates over the frequency range 851MHz to 869MHz .The 60-166701 input is fed by FCCID NEO60-1665Series and the output of the 60-166701 is split into 5 antenna feeds, 4 track feeds and 1 staion feed. The uplink is wideband and operates over the frequency range 806MHz to 824MHz. The uplink input signals to the 60-166701 are from the 4 track feeds and 1 station feed and are combined inside the 60-166701. The output from the 60-166701 is fed into FCCID NEO60-1665Series. The uplink is chanelised by FCCID NEO60-1661Series. See Annex E for system diagram. RF335 iss02 RU1244/7047 Page 6 of 66 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 21 o C Radio Laboratory Relative humidity = 42% Supply voltage = 110Vac Channel number = See test results Spectrum I/p cable Analyser TRL479 Frequency MHz Signal Generator input level dBm Input cable loss dB Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Output Power dBm Gain after 10dB input level increase dBm 806 -40.7 0.4 46.5 -47.15 40.45 -0.65 30.6 815 -42.2 0.4 46.5 -47.40 41.70 -0.9 31.9 824 -41.6 0.4 46.5 -48.08 40.42 -1.58 31.02 Notes: 1. The signal generator input was increased by 10dBs and the level of the output signal remeasured TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8304-300-N N/A 220/112/ 222 X CABLE N/A N/A N/A TRL274 X I/P CABLE & ATTENUATOR N/A N/A N/A TRL246 TRL273 X SIGNAL GENERATOR MARCONI 2042 119388/080 176 X EUT Signal Generator TRL176 Cable & At…
