NEO60-2128SERIESQ116270 Cell Enhancer

Fibre Optic Master and Remote Site User Handbook Document Number: 60-212701HBK - Issue No. 1 Page 2 of 50 Fibre Optic Master and Remote Site User Handbook For R.F. Design & Integration, Inc. AFL Works Order Q116270 AFL Product Part No. 60-212701 - 500 MHz F/O Master Site 60-212801 - 500 MHz F/O Remote Site Fibre Optic Master and Remote Site User Handbook Document Number: 60-212701HBK - Issue No. 1 Page 3 of 50 Table of Contents 1.INTRODUCTION............................................................................................................ 5 1.1.Scope and Purpose of Document ............................................................................. 5 1.2.Limitation of Liability Notice....................................................................................... 5 2.SAFETY CONSIDERATIONS......................................................................................... 6 2.1.Earthing of Equipment .............................................................................................. 6 2.2.Electric Shock Hazard............................................................................................... 6 2.3.RF Radiation Hazard ................................................................................................ 6 2.4.Lifting and other Health and Safety Recommendations............................................ 6 2.5.Chemical Hazard...................................................................................................... 7 2.6.Laser safety .............................................................................................................. 7 2.7.Emergency Contact Numbers ................................................................................... 7 3. MASTER SITE 60-212701 ............................................................................................. 8 3.1.60-212701 Parts List (Major Components) ............................................................... 8 3.2.60-212701 Diagrams ................................................................................................ 9 3.3.60-212701 System Diagram................................................................................... 10 3.4.60-212701 Major Sub Components........................................................................ 11 3.4.1. UHF 3dB Splitter/Combiner (05-002603)............................................................. 11 3.4.2. Switched Attenuator 0-30dB 0.25W (10-000701)................................................. 11 3.4.3. Switched Attenuator 0-30dB 1W (10-000801)...................................................... 12 3.4.4. Fibre Optic Transmitter (2.7GHz) (20-005401).................................................... 12 3.4.5. Fibre Optic Receiver (2.7GHz) (20-005501) ........................................................ 13 3.4.6. 12V Relay Assembly (80-008901)....................................................................... 14 3.4.7. PSU 50W (12V 5A) (96-300048).......................................................................... 15 4.REMOTE SITE 60-212801 ........................................................................................... 16 4.1.100W Linearised Amplifier (80-245101).................................................................. 16 4.1.1. 80-245101 Specification....................................................................................... 16 4.1.2. 80-245101 Parts List (Major Components) .......................................................... 16 4.1.3. 80-245101 Photographs...................................................................................... 17 4.1.4. 80-245101 Outline Drawing ................................................................................. 18 4.1.5. 80-245101 System Diagram................................................................................ 19 4.1.6. 80-245101 Major Sub Components..................................................................... 20 4.1.6.1.25W Linearised Amplifier Module (12-026902) ......................................................... 20 4.1.6.2.UHF 3dB Splitter/Combiner (05-002603)................................................................... 21 4.1.6.3.24V Relay PCB Assembly (80-008902)..................................................................... 21 4.2.Remote Uplink/Downlink Shelf (60-212802)........................................................... 22 4.2.1. 60-212802 Parts List (Major Components) .......................................................... 22 4.2.2. 60-212802 Photographs...................................................................................... 23 4.2.3. Remote Site 60-212801 System Diagram............................................................ 25 4.2.4. 60-212802 Major Sub Components..................................................................... 26 4.2.4.1.Bandpass Filter (02-010901) ..................................................................................... 26 4.2.4.2.Bandpass Filter (02-011204) ..................................................................................... 26 4.2.4.3.Switched Attenuator 0-30dB 0.25W (10-000701) ...................................................... 27 4.2.4.4.Switched Attenuator 0-30dB 1W (10-000801) ........................................................... 27 4.2.4.5.Low Noise Amplifier (11-007402) .............................................................................. 28 4.2.4.6.Low Power Amplifier (1W) (11-007901)..................................................................... 29 4.2.4.7.Low Power Amplifier (1W) (12-021801)..................................................................... 30 4.2.4.8.Low Power Amplifier (2W) (12-021802)..................................................................... 31 4.2.4.9.DC-DC Convter 24V -12V (13-003011) .................................................................... 32 4.2.4.10.Mains Filter (8 Amp) (13…

Text truncated - open the document above for the full version.

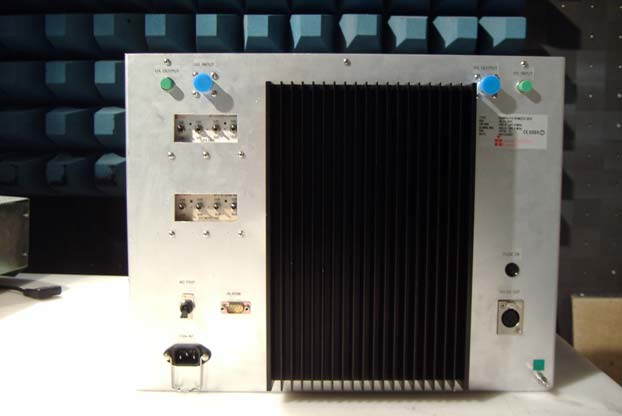

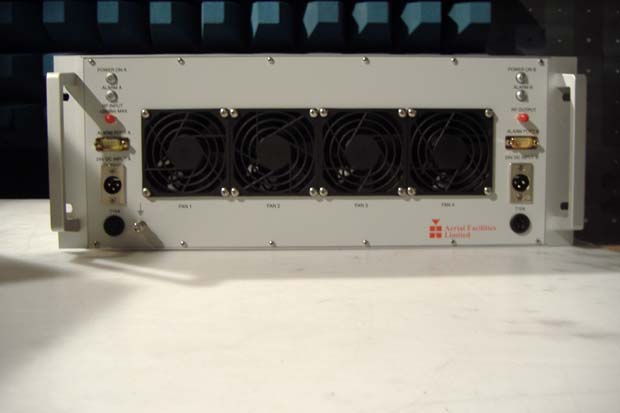

Filter Tray Rear Overview Filter Tray Front Overview Amplifier Tray Rear Overview Amplifier Tray Front Overview Fibre Optic Tray Rear Overview Fibre Optic Tray Front Overview

BY DAT E DESCRIPT ION No THI RD ANGLE PROJECTI ON 1 2 34 5678 9 A BCDE F 1 234 5678 9 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.RE P RODUCT ION OR US E OF T HIS DE S IGN B Y OT HE RS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmT WO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE ISSUE 3A FCC IDENT. LABEL POSITION RACK MOUNTED UNIT 80-312190 1A 1:5 DBS 30/9/03 PRODUCTION ISSUE 30/ 9/ 02 DBS Li m i t ed Aerial Facilities POWERALARM FCC IDENT. LABEL

20 - 001602 20 - 001601 17 – 001201 AGC ATTEN 17 - 001109 17 - 001101 13 - 003011 11 - 007901 11 – 7402RF 11 – 7402DC 10 - 000701

Fibre Optic Master and Remote Site User Handbook Document Number: 60-212701HBK - Issue No. 1 Page 8 of 50 3. MASTER SITE 60-212701 The Master Site Shelf is a 3U Rack mount shelf and provides two separate RF paths, uplink and downlink with provision to vary the gain of either path using a switched variable attenuator, one in each path. The active Fibre Optic modules in the unit are powered from an internal 12V PSU which runs from a mains feed of 110V AC The downlink signal is received from the antenna and enters the master site via the port labelled “TX”, the signal passes through a switched variable attenuator (10-000801) providing up to 30dB of attenuation 2dB steps. After leaving the attenuator the signal is split into two equal paths by a 3dB splitter/combiner (05-002603) and each path is passed into a Fibre Optic Transmitter (20-005401) where the signal is modulated onto a laser as an optical signal for transmission to the remote site via fibre optic cable. The fibre optic signal leaves the master site via the ports labelled “F/O DL” (Fibre Optic Downlink). Only one “F/O DL” port is used, the second one being available for future expansion. Uplink signals are received at the master site as optical signals sent from the remote site, the fibre optic cable carrying the optical signals enter the master site via the ports labelled “F/O UL” (Only one “F/O UL” port is used, the second one being available for future expansion). Upon entering the master site the optical signal is passed to a fibre optic receiver (20-005501) where the signal is demodulated into an RF signal. After leaving the fibre optic receivers the two RF signal paths are combined by a 3dB splitter/combiner (05-002603) to produce a single path which then passes through a switched variable attenuator (10-000701) providing up to 30dB of attenuation 2dB steps. After leaving the attenuator the RF signal leaves the master site via the port labelled “RX” 3.1. 60-212701 Parts List (Major Components) Component Part Component Part Description Qty Per Assembly 05-002603 UHF 3dB Splitter/Combiner 2 10-000701 Switched Attenuator 0-30dB 0.25W 1 10-000801 Switched Attenuator 0-30dB 1W 1 20-005401 Fibre Optic Transmitter (2.7GHz) 1 20-005501 Fibre Optic Receiver (2.7GHz) 1 80-008901 12V Relay Assembly 1 96-300048 PSU 50W (12V 5A) 1 96-920022 Circuit Breaker (3A) 1 The individual fibre optic TX and RX units are fitted with a pair of status indicators on their front panels. One is a green LED, which indicates that the unit is connected to a 12 Volt DC power supply. This indicator is common to both transmit and receive units. The second LED on the TX module indicates that the laser is operating (transmitting). On the RX unit the second LED indicates that a laser-light signal is being received. When all the fibre connections are completed and power to each site is connected each fibre unit must show two illuminated indicators. Fibre Optic Master and Remote Site User Handbook Document Number: 60-212701HBK - Issue No. 1 Page 9 of 50 3.2. 60-212701 Diagrams Master Site 60-212701 Front Panel (Not to scale) A Green LED “Power On” B Red LED “Alarm” C Green LED Fibre Optic Receiver 1 “Power On” D Green LED Fibre Optic Receiver 1 “Laser On”, LED not illuminated = Alarm E Fibre Optic Receiver 1 Gain Adjust F Green LED Fibre Optic Receiver 2 “Power On” G Green LED Fibre Optic Receiver 2 “Laser On”, LED not illuminated = Alarm H Fibre Optic Receiver 2 Gain Adjust I Green LED Fibre Optic Transmitter 1 “Power On” J Green LED Fibre Optic Transmitter 1 “Laser On”, LED not illuminated = Alarm K Green LED Fibre Optic Transmitter 2 “Power On” L Green LED Fibre Optic Transmitter 2 “Laser On”, LED not illuminated = Alarm Master Site 60-212701 Rear Panel (Not to scale) A RX Port – Uplink RF out to antenna G Earth connection B Fibre Optic input 2 (uplink from remote site) H Uplink Switched Attenuator C Fibre Optic input 1 (uplink from remote site) I Downlink Switched Attenuator D TX Port – Downlink RF in from antenna J Alarm Output E Fibre Optic output 2 (downlink to remote site) K AC Trip Switch F Fibre Optic output 1 (downlink to remote site) L AC input (110V) Fibre Optic Master and Remote Site User Handbook Document Number: 60-212701HBK - Issue No. 1 Page 11 of 50 3.4. 60-212701 Major Sub Components 3.4.1. UHF 3dB Splitter/Combiner (05-002603) The 3dB Splitter/Combiner (05-002603) is a device for accurately matching two RF signals to a single port or splitting an RF signal to two ports whilst maintaining an accurate 50 load to all inputs/outputs and ensuring that the VSWR and insertion losses are kept to a minimum. 05-002603 Specification PARAMETER SPECIFICATION Frequency range 380 - 520 MHz Bandwidth 140 MHz As Combiner 2 inputs 1 output Ports As Splitter 1 input 2 outputs Insertion loss 3.5 dB (typical) Isolation >18 dB Return Loss (VSWR) – Input Better than 1.3:1 Return Loss (VSWR) – Output Better than 1.3:1 Impedance 50 ς Power Rating – Combiner 0.5 Watt Power Rating – Splitter 20 Watts Connectors SMA female Size 54 x 44 x 21 mm Weight 200 gm (approximately) 3.4.2. Switched Attenuator 0-30dB 0.25W (10-000701) 10-000701 provides attenuation from 0 - 30dB in 2 dB steps, the attenuation is simply set using the four miniature toggle switches on the top of each unit. Each switch is clearly marked with the attenuation it provides, and the total attenuation in line is the sum of the values switched in. They are designed to maintain an accurate 50Ω impedance over their operating frequency at both input and output. 10-000701 Specification PARAMETER SPECIFICATION Attenuation Values 0-30dB Attenuation Steps 2, 4, 8 and 16dB Power Handling 0.25 Watt Attenuation Accuracy ± 1.0 dB Frequency Rang DC to 1GHz Impedance 50Ω Connectors SMA VSWR 1.3:1 Weigh 0.2kg operation -20°C to +60°C Temperature range storage -40°C to +70°C Fibre Optic Master and Remote Site User Handbook Document Number: 60-212701HBK - Issue No. 1 Page 12 of 50 3.4.3. Switched Attenuator 0-30dB 1W (10-00…

Text truncated - open the document above for the full version.

REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED Q116270 CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST REPORT NO: RU1410/8338 COPY NO: 2 ISSUE NO: 1 FCC ID: NEO60-2128SERIES REPORT ON THE CERTIFICATION TESTING OF A AERIAL FACILITIES LIMITED Q116270 CELL ENHANCER WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 21 st December 2007 – 3 rd January 2008 TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO SECTION LEADER DATE: 19 th February 2008 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Limited 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1410/8338 Page 3 of 54 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 4 APPLICANT’S SUMMARY 5 EQUIPMENT TEST CONDITIONS 6 TESTS REQUIRED 6 TEST RESULTS 7-40 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Fibre Optic Tray Connector Overview PHOTOGRAPH No. 3: Amplifier Tray Connector Overview PHOTOGRAPH No. 4: Filter Tray Connector Overview APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C MEASUREMENT UNCERTAINTY D SYSTEM DIAGRAM E Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. CERTIFICATE OF CONFORMITY & COMPLIANCE RU1410/8338 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEO60-2128SERIES PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: Q116270 Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMUM GAIN: Uplink Downlink = 57.62 dB = 55.68 dB MAXIMUM INPUT: Uplink Downlink = -63.0 dBm = -15.0 dBm MAXIMUM OUTPUT CONDUCTED: Uplink Downlink = -5.59 dBm = 40.47 dBm NUMBER OF CHANNELS: Uplink Downlink Wideband Wideband CHANNEL SPACING: Not Applicable, Wideband FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110 Vac TEST DATE(s): 21 st December 2007 – 3 rd January 2008 ORDER No(s): 47882 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO SECTION LEADER RU1410/8338 Page 5 of 54 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Q116270 Cell Enhancer EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 Subpart I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 47882 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s): 21 st December 2007 – 2 nd January 2008 TEST REPORT No: RU1410/8338 RU1410/8338 Page 6 of 54 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. Uplink Class A [X] Class B [ ] 2. Product class: Downlink Class A [X] Class B [ ] 3. Product Use: Private Land Mobile Repeater 4. Emission Designator: F3E 5. Temperatures: Ambient (Tnom) 16 o C 6. Supply Voltages: Vnom +110 Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] 8. Channel spacing: Narrowband [ ] Wideband [X] 9. Test Location TRL Compliance Limited Up Holland [X] Long Green [ ] 10. Modifications made during test program No modifications were performed. System description: The Q116270 Cell Enhancer FCCID NEO60-2128SERIES consists of an uplink and downlink. The uplink operates at a gain of approximately 55dB over the frequency range 505.40MHz – 507.96 MHz. The downlink operates at a gain of approximately 55dB over the frequency range 501.35MHz – 503.15 MHz. RU1410/8338 Page 7 of 54 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 15 o C Radio Laboratory Relative humidity = 55% Supply voltage = +110 Vac Channel number = See test results Frequency MHz Signal Generator input level dBm Input Cable Loss dB Output Cable loss dB Level at Spectrum Analyser dBm Gain dB Conducted Output Power dBm Gain after 10dB input level increase dB 505.40 MHz -62 0.21 0.21 -5.93 56.49 -5.72 46.58 506.75 MHz -63 0.21 0.21 -5.80 57.62 -5.59 47.57 507.96 MHz -58 0.21 0.21 -5.86 52.56 -5.65 42.54 Notes: 1. The signal generator input was increased by 10dBs and the level of the output signal remeasured. TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X SIGNAL GENERATOR R&S SML 03 102268 UH297 X Spectrum Analyser TRL479 Signal Generator TRLUH297 Cable 60-212801 60-212701 Fibre optic link 110Vac RU1410/8338 Page 8 of 54 A B C 6dB 6dB 6dB XXXdB Analyser TRL479 D AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 17 o C Radio Laboratory Relative humidity = 66% Supply voltag…
