NEO60-2287SERIES60-228701 Bi-Directional Amplifier System

Axell Wireless Limited Technical Literature WMATA CRCS Redundant Antenna System General Overview Document Number 60-228701HBK Issue No. 3 Date 28/05/2010 Page 1 of 114 WMATA CRCS Redundant Antenna System General Overview Handbook For GPD Telecom Inc. AWL Works Order Q119862 AWL Product Part Nos.: 60-228801 - WMATA Jackson Graham Building CRAS System 60-228701 - WMATA Carmen Turner Facility CRAS System 60-228901 - WMATA Gallery Place Station CRAS System Axell Wireless UK Aerial House Asheridge Road Chesham, Buckinghamshire HP5 2QD, United Kingdom Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com Axell Wireless Sweden Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 Axell Wireless Limited Technical Literature WMATA CRCS Redundant Antenna System General Overview Document Number 60-228701HBK Issue No. 3 Date 28/05/2010 Page 2 of 114 Table of Contents 1. Introduction .................................................................................................................................... 5 1.1. Scope and Purpose of Document................................................................................................... 5 1.2. Limitation of Liability Notice ............................................................................................................ 5 2. Safety Considerations .................................................................................................................... 6 2.1. Earthing of Equipment .................................................................................................................... 6 2.2. Electric Shock Hazard .................................................................................................................... 6 2.3. RF Radiation Hazard ...................................................................................................................... 6 2.4. Lifting and other Health and Safety Recommendations .................................................................. 6 2.5. Chemical Hazard ........................................................................................................................... 7 2.6. Laser Safety ................................................................................................................................... 7 2.7. Emergency Contact Numbers ........................................................................................................ 7 3. 60-228801 - WMATA Jackson Graham Building CRAS System ..................................................... 8 3.1. 60-228801 List of Major Sub-Components ..................................................................................... 8 3.2. 60-228801 System Diagram ........................................................................................................... 9 3.3. Dual Fiber Optic Unit 60-228703 .................................................................................................. 10 3.3.1. Dual Fiber Optic Unit 60-228703 List of Major Sub-Components ............................................. 11 3.3.2. Dual Fiber Optic Unit 60-228703 Specification ......................................................................... 11 3.3.3. Dual Fiber Optic Unit 60-228703 System Diagram ................................................................... 12 3.3.3.1. Dual Fiber Optic Unit 60-228703 Alarm Outputs ................................................................... 13 3.3.4. Dual Fiber Optic Unit 60-228703 Front View ............................................................................ 14 3.3.5. Dual Fiber Optic Unit 60-228703 Rear View ............................................................................. 15 3.3.6. Dual Fiber Optic Unit 60-228703 DC Inlet ................................................................................ 16 3.3.6.1. Free Socket for 60-228703 DC Inlet ..................................................................................... 16 3.4. Dual Redundant PSU 60-091705 ................................................................................................. 17 3.4.1. Dual Redundant PSU 60-091705 List of Major Sub-Components ............................................ 17 3.4.2. Dual Redundant PSU 60-091705 Specification ........................................................................ 17 3.4.3. Dual Redundant PSU 60-091705 System Diagram .................................................................. 18 3.4.4. Dual Redundant PSU 60-091705 Front View ........................................................................... 19 3.4.5. Dual Redundant PSU 60-091705 Rear View ............................................................................ 19 4. 60-228701 - WMATA Carmen Turner Facility CRAS System ....................................................... 20 4.1. 60-228701 List of Major Sub-Components ................................................................................... 21 4.2. 60-228701 System Diagram ......................................................................................................... 22 4.3. 60-228701 Rack Elevations ......................................................................................................... 23 4.3.1 Rack Front View ....................................................................................................................... 23 4.3.2. Rack Rear View ....................................................................................................................... 24 4.3.3. Ports on the Rack Lid ............................................................................................................... 25 4.3.4. 60-228701 Alarm Wiring Schematic ......................................................................................... 26 4.4. Quadplexer (Base) 60-228706 .............................................................…

Text truncated - open the document above for the full version.

Axell Wireless Limited Technical Literature WMATA CRCS Redundant Antenna System General Overview Document Number 60-228701HBK Issue No. 3 Date 28/05/2010 Page 22 of 114 Controller H56 Alarm/Battery Alarm Controller H56 Alarm/Battery PC Control System Monitoring Point 4.2. 60-228701 System Diagram

Overview

BY DAT E DESCRIPT ION No THI RD ANGLE PROJECTI ON 1 2 34 5678 9 A BCDE F 1 234 5678 9 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.RE P RODUCT ION OR US E OF T HIS DE S IGN B Y OT HE RS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmT WO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE ISSUE 3A FCC IDENT. LABEL POSITION RACK MOUNTED UNIT 80-312190 1A 1:5 DBS 30/9/03 PRODUCTION ISSUE 30/ 9/ 02 DBS Li m i t ed Aerial Facilities POWERALARM FCC IDENT. LABEL

Axell Wireless Limited Technical Literature WMATA CRCS Redundant Antenna System General Overview Document Number 60-228701HBK Issue No. 3 Date 28/05/2010 Page 1 of 114 WMATA CRCS Redundant Antenna System General Overview Handbook For GPD Telecom Inc. AWL Works Order Q119862 AWL Product Part Nos.: 60-228801 - WMATA Jackson Graham Building CRAS System 60-228701 - WMATA Carmen Turner Facility CRAS System 60-228901 - WMATA Gallery Place Station CRAS System Axell Wireless UK Aerial House Asheridge Road Chesham, Buckinghamshire HP5 2QD, United Kingdom Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com Axell Wireless Sweden Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 Axell Wireless Limited Technical Literature WMATA CRCS Redundant Antenna System General Overview Document Number 60-228701HBK Issue No. 3 Date 28/05/2010 Page 2 of 114 Table of Contents 1. Introduction .................................................................................................................................... 5 1.1. Scope and Purpose of Document................................................................................................... 5 1.2. Limitation of Liability Notice ............................................................................................................ 5 2. Safety Considerations .................................................................................................................... 6 2.1. Earthing of Equipment .................................................................................................................... 6 2.2. Electric Shock Hazard .................................................................................................................... 6 2.3. RF Radiation Hazard ...................................................................................................................... 6 2.4. Lifting and other Health and Safety Recommendations .................................................................. 6 2.5. Chemical Hazard ........................................................................................................................... 7 2.6. Laser Safety ................................................................................................................................... 7 2.7. Emergency Contact Numbers ........................................................................................................ 7 3. 60-228801 - WMATA Jackson Graham Building CRAS System ..................................................... 8 3.1. 60-228801 List of Major Sub-Components ..................................................................................... 8 3.2. 60-228801 System Diagram ........................................................................................................... 9 3.3. Dual Fiber Optic Unit 60-228703 .................................................................................................. 10 3.3.1. Dual Fiber Optic Unit 60-228703 List of Major Sub-Components ............................................. 11 3.3.2. Dual Fiber Optic Unit 60-228703 Specification ......................................................................... 11 3.3.3. Dual Fiber Optic Unit 60-228703 System Diagram ................................................................... 12 3.3.3.1. Dual Fiber Optic Unit 60-228703 Alarm Outputs ................................................................... 13 3.3.4. Dual Fiber Optic Unit 60-228703 Front View ............................................................................ 14 3.3.5. Dual Fiber Optic Unit 60-228703 Rear View ............................................................................. 15 3.3.6. Dual Fiber Optic Unit 60-228703 DC Inlet ................................................................................ 16 3.3.6.1. Free Socket for 60-228703 DC Inlet ..................................................................................... 16 3.4. Dual Redundant PSU 60-091705 ................................................................................................. 17 3.4.1. Dual Redundant PSU 60-091705 List of Major Sub-Components ............................................ 17 3.4.2. Dual Redundant PSU 60-091705 Specification ........................................................................ 17 3.4.3. Dual Redundant PSU 60-091705 System Diagram .................................................................. 18 3.4.4. Dual Redundant PSU 60-091705 Front View ........................................................................... 19 3.4.5. Dual Redundant PSU 60-091705 Rear View ............................................................................ 19 4. 60-228701 - WMATA Carmen Turner Facility CRAS System ....................................................... 20 4.1. 60-228701 List of Major Sub-Components ................................................................................... 21 4.2. 60-228701 System Diagram ......................................................................................................... 22 4.3. 60-228701 Rack Elevations ......................................................................................................... 23 4.3.1 Rack Front View ....................................................................................................................... 23 4.3.2. Rack Rear View ....................................................................................................................... 24 4.3.3. Ports on the Rack Lid ............................................................................................................... 25 4.3.4. 60-228701 Alarm Wiring Schematic ......................................................................................... 26 4.4. Quadplexer (Base) 60-228706 .............................................................…

Text truncated - open the document above for the full version.

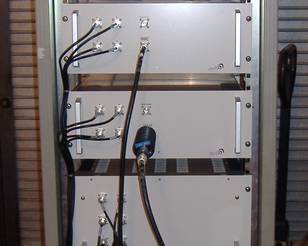

REPORT ON THE CERTIFICATION TESTING OF A AXELL WIRELESS CHANNEL SELECTIVE REPEATER 60-228701 WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST REPORT NO:9F2843WUS1 COPY NO:1 ISSUE NO:1 FCC ID:NEO60-2287SERIES REPORT ON THE CERTIFICATION TESTING OF A AXELL WIRELESS CHANNEL SELECTIVE REPEATER 60-228701 WITH RESPECT TO THE FCC RULES CFR 47, PART 90 Subpart I PRIVATE LAND MOBILE REPEATER. TEST DATE: 19 th – 20 th November 2009 APPROVED BY:J CHARTERS RADIO PRODUCT MANAGER DATE:17 th June 2010 Distribution: Copy Nos:1.Axell Wireless 2.TCB: TRaC EMC & Safety 3.TRaC Telecoms & Radio THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE 9F2843WUS1Page 3 of 90 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE4 APPLICANT’S SUMMARY5 EQUIPMENT TEST CONDITIONS6 TESTS REQUIRED6 TEST RESULTS7 - 80 ANNEX PHOTOGRAPHSA PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Overview APPLICANT’S SUBMISSION OF DOCUMENTATION LISTB EQUIPMENT CALIBRATIONC MEASUREMENT UNCERTAINTYD Notes: 1.Component failure during test YES NO [ ] [X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contain in this report are FCC Listed. CERTIFICATE OF CONFORMITY & COMPLIANCE 9F2843WUS1 FCC IDENTITY:NEO60-2287SERIES PURPOSE OF TEST:Certification TEST SPECIFICATION:FCC RULES CFR 47, Part 90 Subpart I TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:60-228701 EQUIPMENT TYPE:Private Land Mobile Repeater MAXIMUM GAIN: 493MHz Band Uplink 499MHz Band Uplink 490MHz Band Downlink 496MHz Band Downlink 91.95 dB 93.44 dB 90.44 dB 90.59 dB MAXIMUM INPUT: 493MHz Band Uplink 499MHz Band Uplink 490MHz Band Downlink 496MHz Band Downlink -72.9 dBm -73.6 dBm -65.7 dBm -65.1 dBm MAXIMUM OUTPUT CONDUCTED: 493MHz Band Uplink 499MHz Band Uplink 490MHz Band Downlink 496MHz Band Downlink 19.05 dBm 19.84 dBm 24.74 dBm 25.49 dBm MAXIMUM NUMBER OF CHANNELS:8 CHANNEL BANDWIDTH:30 kHz POWER SOURCE(s):+110Vac TEST DATE(s):19 th – 20 th November 2009 APPLICANT:Axell Wireless ADDRESS:Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU APPROVED BY:J CHARTERS RADIO PRODUCT MANAGER 9F2843WUS1Page 5 of 90 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):60-228701 EQUIPMENT TYPE:Private Land Mobile Repeater PURPOSE OF TEST:Certification TEST SPECIFICATION(s):FCC RULES CFR 47, Part 90 Subpart I TEST RESULT:COMPLIANTYes No [X] [ ] APPLICANT’S CATEGORY:MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S CONTACT PERSON(s):Mr G Dawson E-mail address:[email protected] APPLICANT:Axell Wireless ADDRESS:Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL:+44 (0)1494 777000 FAX:+44 (0)1494 778456 MANUFACTURER:Axell Wireless EUT(s) COUNTRY OF ORIGIN:United Kingdom TEST LABORATORY:TRaC Telecoms & Radio, Up Holland UKAS ACCREDITATION No:0971 TEST DATE(s):19 th – 20 th November 2009 TEST REPORT No:9F2843WUS1 9F2843WUS1Page 6 of 90 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1.TEST/EXAMINATIONRULE PARTAPPLICABILITYRESULT RF Power Output90.205YesComplies Audio Frequency ResponseTIA EIA-603.3.2.6N/AN/A Audio Low-Pass Filter ResponseTIA EIA-603.3.2.6N/AN/A Modulation LimitingTIA EIA-603.3.2.6N/AN/A Occupied Bandwidth90.210YesComplies Spurious Emissions at Antenna Terminals90.210YesComplies Field Strength of Spurious Emissions90.210YesComplies Frequency Stability90.213N/A(note 1)N/A Transient behaviour90.214N/A(note 2)N/A Notes: 1 The EUT does not contain modulation circuitry; therefore the test was not performed. 2 The EUT is not a keyed carrier system; therefore the test was not performed. Uplink Class A [X] Class B [ ]2.Product class: Downlink Class A [X] Class B [ ] 3.Product Use:Private Land Mobile Repeater 4.Emission Designator:F3E 5.Temperatures:Ambient (Tnom)20 o C 6.Supply Voltages:Vnom+110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel[ ] Two channel[ ] 7.Equipment Category: Multi-channel[X] 8.Channel Bandwidth:Narrowband[X]30 kHz Wideband[ ] 9.Test LocationTRaC Telecoms & Radio Up Holland[X] Hull[ ] 10.Modifications made during test program No modifications were performed. System description: The 60.228701 is bi directional repeater covering two bands in the uplink direction and two bands in the downlink direction. The uplink bands each have 8 channels. The channels in the lowest band are between 492.5125MHz and 493.9625MHz and in the higher band 499.3375MHz and 499.6125MHz. The downlink bands each have 8 channels. The channels in the lowest band are between 489.5125MHz and 490.9625MHz and in the higher band 496.3375MHz and 496.6125MHz. 9F2843WUS1Page 7 of 90 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature=20 o CRadio Laboratory Relative humidity=58% Supply voltage=+110Vac Channel number=See test results 493 MHz Band Frequency MHz Signal Generator input level dBm Input Cable Loss dB Output Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Conducted Output Power dBm Gain after 10dB input level increase dB 492.5125-71.60.430.3-11.3091.0019.0080.44 493.7875-71.50.430.3-10.6091.6019.7080.80 493.9625-72.50.430.3-11.2591.9519.0581.15 Notes:1.The signal generator input was increased by 10dBs and the level of the output signal remeasured. 499 MHz Band Frequency MHz Signal Generator input level dBm Input Cable Loss dB Output Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Conducted Output Power dBm Gain after 10dB input level increase dB 499.3375-73.00.430.3-10.6893.0219.6282.35 499.4875-73.20.430.3-10.4893.4419.8483.22 499.6125-72.70.430.3-10.2093.2020.1082.65 Notes:1.The signal generator input was increased by 10dBs and the level of the output signal remeasured. TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL NoSERIAL NoREF No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER RHODE & SCHWARZ FSU46200034UH281X SIGNAL GENERATOR MARCONI2042119388/080176X ATTENUATORBIRD8308-200N/A103X ATTENUATORBIRD830-100…
