Axell Wireless Limited Technical Literature Dual Band Fiber Fed BDA 60-232301 Document Number 60-232301HBK Issue No. 2 Date 22/12/2009 Page 1 of 35 Dual Band Fibre Fed BDA User Handbook For General Dynamics Information Technology Inc. AWL Works Order Q119830 AWL Product Part No. 60-232301 Axell Wireless UK Aerial House Asheridge Road Chesham, Buckinghamshire HP5 2QD, United Kingdom Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com Axell Wireless Sweden Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 Axell Wireless Limited Technical Literature Dual Band Fiber Fed BDA 60-232301 Document Number 60-232301HBK Issue No. 2 Date 22/12/2009 Page 2 of 35 Table of Contents 1. Introduction ................................................................................................................................ 3 1.1. Scope and Purpose of Document ........................................................................................ 3 1.2. Limitation of Liability Notice.................................................................................................. 3 2. Safety Considerations................................................................................................................ 4 2.1. Earthing of Equipment ......................................................................................................... 4 2.2. Electric Shock Hazard .......................................................................................................... 4 2.3. RF Radiation Hazard ........................................................................................................... 4 2.4. Lifting and other Health and Safety Recommendations ........................................................ 4 2.5. Chemical Hazard ................................................................................................................. 5 2.6. Laser Safety ........................................................................................................................ 5 2.7. Emergency Contact Numbers .............................................................................................. 5 3. Dual Band Fibre Fed BDA 60-232301 ....................................................................................... 6 3.1. 60-232301 Specification .................................................................................................... 11 3.2. 60-232301 List of Major Sub-Components ......................................................................... 12 3.3. 60-232301 System Diagram .............................................................................................. 13 3.4. 60-232301 Front View ........................................................................................................ 14 3.5. 60-232301 Side Views ....................................................................................................... 15 3.6. 60-232301 Interior Views ................................................................................................... 16 3.6.1. Interior View Showing Optical Connectors ..................................................................... 16 3.6.2. Interior View Showing UHF Downlink Path ..................................................................... 17 3.6.3. Interior View Showing 800MHz Downlink Path ............................................................... 18 3.6.4. Interior View Showing UHF Uplink Path ......................................................................... 19 3.6.5. Interior View Showing 800MHz Uplink Path ................................................................... 20 3.6.6. Interior View Showing DC and Alarm Modules ............................................................... 21 4. Installation – General Notes..................................................................................................... 23 4.1. General Remarks ............................................................................................................... 23 4.2. Electrical Connections ....................................................................................................... 23 4.3. RF Connections ................................................................................................................. 23 4.4. Optical Connections ........................................................................................................... 23 4.5. Commissioning .................................................................................................................. 24 5. Maintenance – General Notes ................................................................................................. 25 5.1. Fault Finding ...................................................................................................................... 25 5.1.1. Quick Fault Checklist ..................................................................................................... 25 5.1.2 Fault Isolation ................................................................................................................ 25 5.1.3 Downlink ........................................................................................................................ 26 5.1.4 Uplink ............................................................................................................................. 26 5.1.5 Checking service ............................................................................................................ 26 5.1.6 Fault repair ..................................................................................................................... 26 5.1.7 Service Support ............................................................................................................. 26 5.2 Tools & Test Equipment .................................................................…

Text truncated - open the document above for the full version.

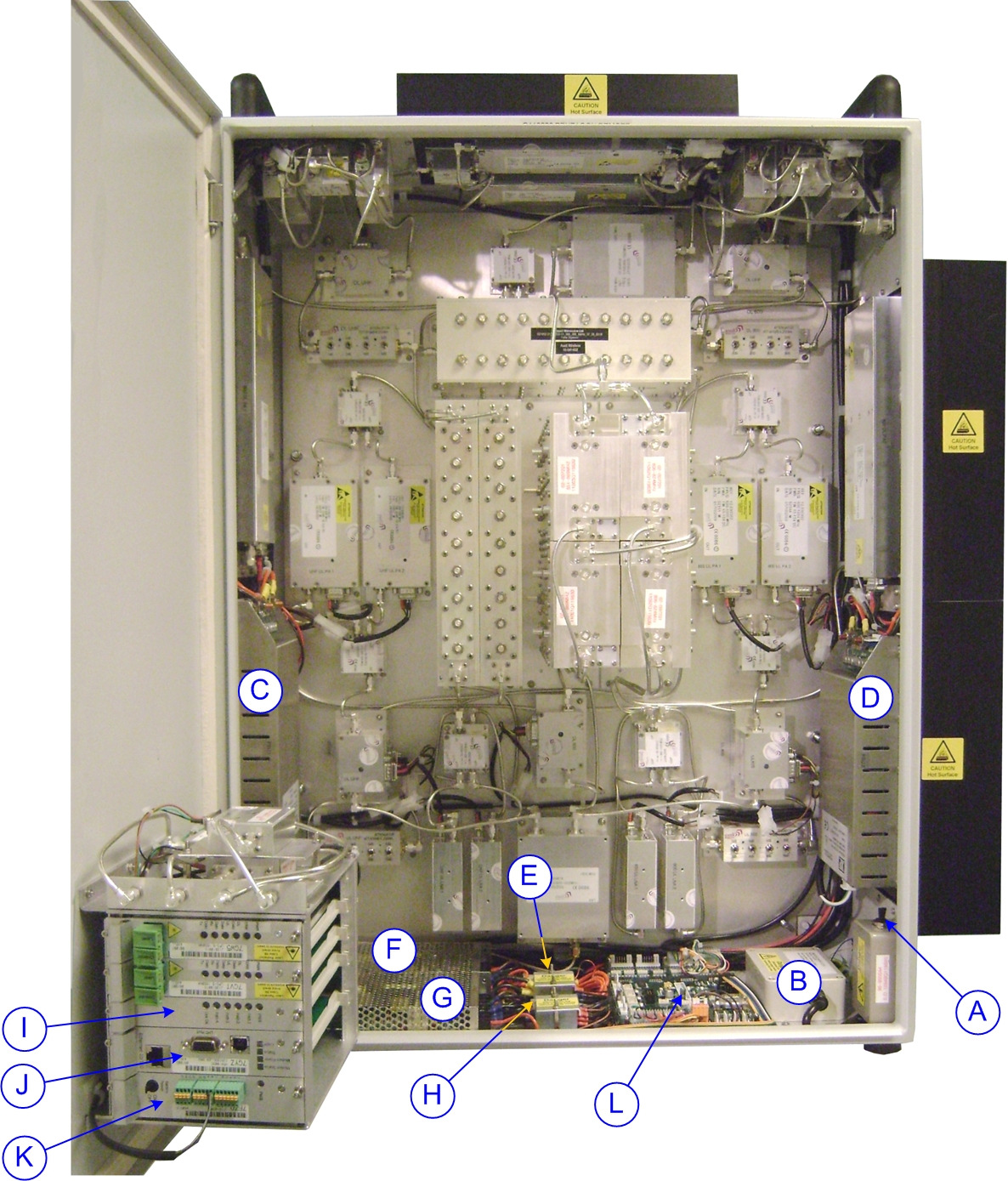

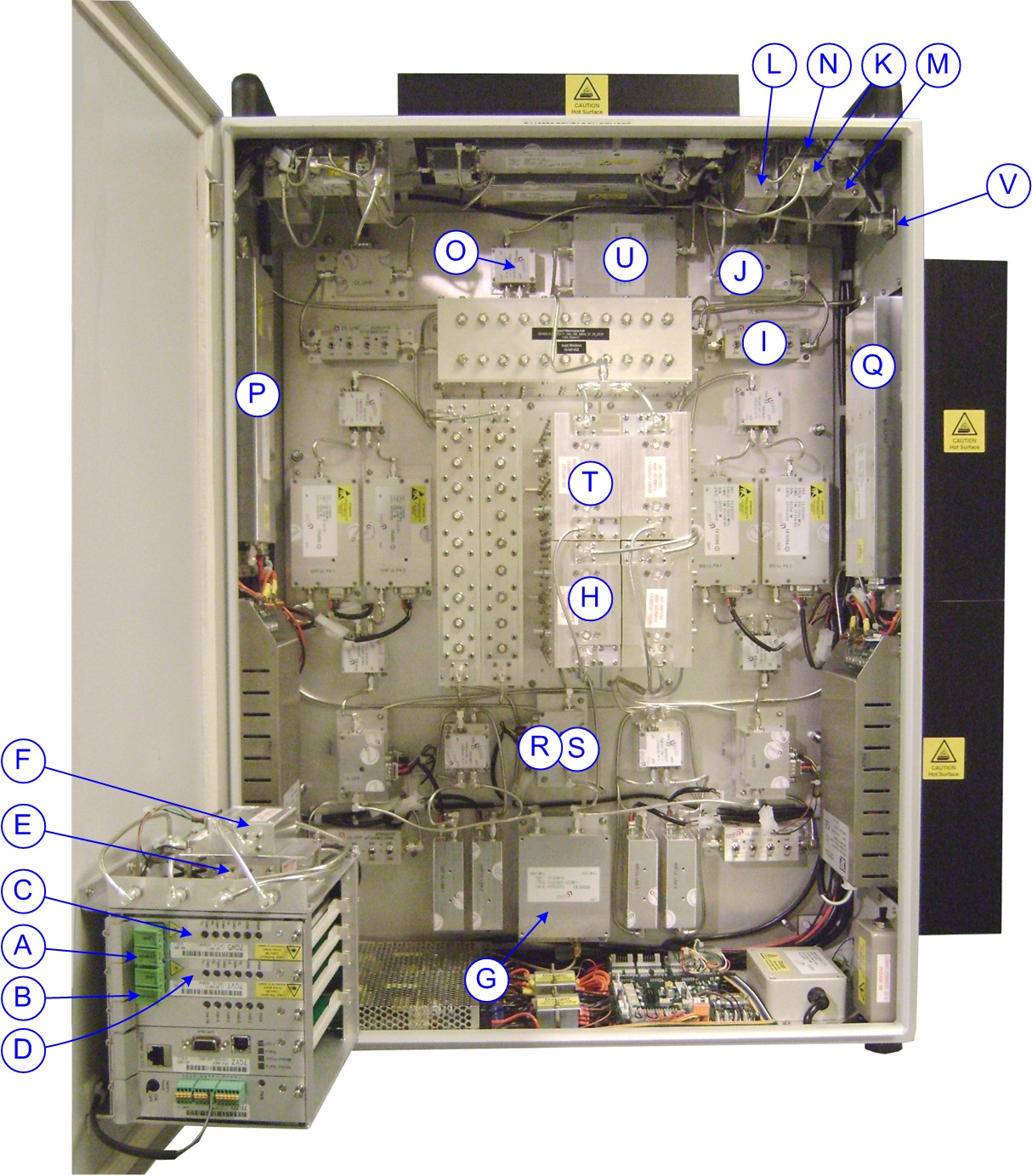

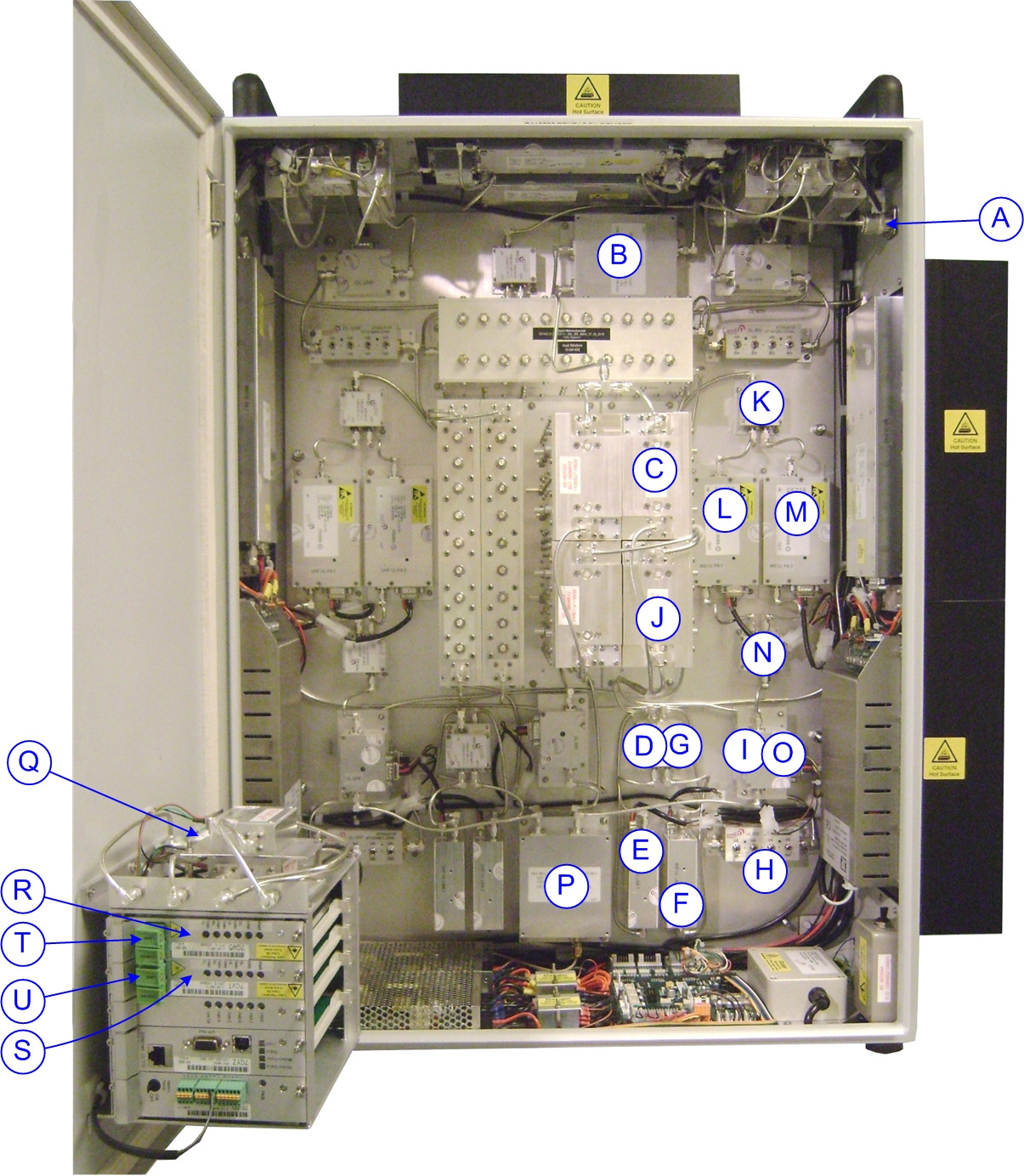

Axell Wireless Limited Technical Literature Dual Band Fiber Fed BDA 60-232301 Document Number 60-232301HBK Issue No. 2 Date 22/12/2009 Page 16 of 35 3.6. 60-232301 Interior Views 3.6.1. Interior View Showing Optical Connectors A F/O TX/RX Module J1361001 (primary optical link) B SC/APC optical port – primary D/L fibre connection from master site C SC/APC optical port – Primary U/L fibre connection to master site D F/O TX/RX Module J1361001 (secondary optical link) E SC/APC optical port – secondary D/L fibre connection from master site F SC/APC optical port – secondary U/L fibre connection to master site G Communications Board Module 17-020602 H Control Module H561003 I RJ45 Ethernet socket enabling alarm/configuration by PC/laptop J 9 pin “D” panel socket “LMT Port”, A local serial port enabling alarm/configuration by PC/laptop K External Alarm and Battery Module J1161030 L Summary alarm output (terminals 7 & 8) to “ALARM” connector annotated “D” in section 3.5. Axell Wireless Limited Technical Literature Dual Band Fiber Fed BDA 60-232301 Document Number 60-232301HBK Issue No. 2 Date 22/12/2009 Page 17 of 35 3.6.2. Interior View Showing UHF Downlink Path A SC/APC optical port – primary D/L fibre connection from master site B SC/APC optical port – secondary D/L fibre connection from master site C F/O Transceiver Module J1361001 (primary optical link) D F/O Transceiver Module J1361001 (secondary optical link) E RF Relay Assembly 20-001507 F AGC Attenuator Module 17-016401 G Crossband Coupler 07-004814 H Bandpass Filter 02-010501 I Variable Switched Attenuator 0-15dB 10-000901 J AGC Detector Module 17-019802 K 3dB Splitter/Combiner 05-002603 (splitting) Q 5W Power Amplifier 12-021601 (2) L Low Noise Amplifier 30dB 11-007402 (1) R 3dB Splitter/Combiner 05-002603 (combining) M Low Noise Amplifier 30dB 11-007402 (2) S AGC Detector Module (+10 to +50dBm) 17-019801 N 3dB Splitter/Combiner 05-002603 (combining) T Bandpass Duplexer Module 16-041402 (D/L path) O 3dB Splitter/Combiner 05-002603 (splitting) U Crossband Coupler 07-004814 P 5W Power Amplifier 12-021601 (1) V N type port connection to DAS (D/L O/P) Axell Wireless Limited Technical Literature Dual Band Fiber Fed BDA 60-232301 Document Number 60-232301HBK Issue No. 2 Date 22/12/2009 Page 18 of 35 3.6.3. Interior View Showing 800MHz Downlink Path A SC/APC optical port – primary D/L fibre connection from master site B SC/APC optical port – secondary D/L fibre connection from master site C F/O Transceiver Module J1361001 (primary optical link) D F/O Transceiver Module J1361001 (secondary optical link) E RF Relay Assembly 20-001507 F AGC Detector Module 17-019802 G Crossband Coupler 07-004814 H Bandpass Filter 02-007201 I Variable Switched Attenuator 0-15dB 10-000901 J AGC Attenuator Module 17-016401 (mounted below ”I” in previous section) K 3dB Splitter/Combiner 05-002602 (splitting) Q 20W Power Amplifier 12-023301 (2) L Low Noise Amplifier 29dB 11-006702 (1) R 3dB Splitter/Combiner 05-002602 (combining) M Low Noise Amplifier 29dB 11-006702 (2) S AGC Detector Module 17-019801 (below “Q”) N 3dB Splitter/Combiner 05-002602 (combining) T Bandpass Filter 02-007201 O 3dB Splitter/Combiner 05-002602 (splitting) U Crossband Coupler 07-004814 P 20W Power Amplifier 12-023301 (1) V N type port connection to DAS (D/L O/P) Axell Wireless Limited Technical Literature Dual Band Fiber Fed BDA 60-232301 Document Number 60-232301HBK Issue No. 2 Date 22/12/2009 Page 19 of 35 3.6.4. Interior View Showing UHF Uplink Path A N type port connection to DAS (D/L O/P) B Crossband Coupler 07-004814 C Bandpass Duplexer Module 16-041402 (U/L path) D 3dB Splitter/Combiner 05-002603 (splitting) (below “G”) E Low Noise Amplifier 30dB 11-007402 (1) F Low Noise Amplifier 30dB 11-007402 (2) G 3dB Splitter/Combiner 05-002603 (combining) H Variable Switched Attenuator 0-30dB 10-000701 I AGC Attenuator Module 17-016401 (below “O”) J Bandpass Filter 02-010501 K 3dB Splitter/Combiner 05-002603 (splitting) L 1W Low Power Amplifier 33dB 12-030301 (1) M 1W Low Power Amplifier 33dB 12-030301 (2) N 3dB Splitter/Combiner 05-002603 (combining) O AGC Detector Module 17-019802 P Crossband Coupler 07-004814 Q 3dB Splitter/Combiner 05-002901 R F/O TX/RX Module J1361001 (primary optical link) S F/O TX/RX Module J1361001 (secondary optical link) T SC/APC optical port – primary fibre connection to master site U SC/APC optical port – secondary fibre connection to master site Axell Wireless Limited Technical Literature Dual Band Fiber Fed BDA 60-232301 Document Number 60-232301HBK Issue No. 2 Date 22/12/2009 Page 20 of 35 3.6.5. Interior View Showing 800MHz Uplink Path A N type port connection to DAS (D/L O/P) B Crossband Coupler 07-004814 C Bandpass Filter 02-007201 D 3dB Splitter/Combiner 05-002602 (splitting) (below “G”) E Low Noise Amplifier 29dB 11-006702 (1) F Low Noise Amplifier 29dB 11-006702 (2) G 3dB Splitter/Combiner 05-002602 (combining) H Variable Switched Attenuator 0-30dB 10-000701 I AGC Attenuator Module 17-016401 (below “O”) J Bandpass Filter 02-007201 K 3dB Splitter/Combiner 05-002602 (splitting) M 1W Low Power Amplifier 30dB 12-030302 (2) L 1W Low Power Amplifier 30dB 12-030302 (1) N 3dB Splitter/Combiner 05-002602 (combining) O AGC Detector Module 17-019802 P Crossband Coupler 07-004814 Q 3dB Splitter/Combiner 05-002901 R F/O TX/RX Module J1361001 (primary optical link) S F/O TX/RX Module J1361001 (secondary optical link) T SC/APC optical port – primary fibre connection to master site U SC/APC optical port – secondary fibre connection to master site Axell Wireless Limited Technical Literature Dual Band Fiber Fed BDA 60-232301 Document Number 60-232301HBK Issue No. 2 Date 22/12/2009 Page 21 of 35 3.6.6. Interior View Showing DC and Alarm Modules A AC Trip Switch 96-900037 B Mains Filter Assembly 13-003301 C 600W PSU Module 96-300067 D 600W PSU Module 96-300067 E Dual Diode Assembly 94-100004 (combining O/Ps from “C” and “D” F DC/DC Converter 90-850327 G DC/DC Converter 90-85032…

Text truncated - open the document above for the full version.

voltage Hig h DANGER Heavy CA UT ION Aerial FacilitiesLim ited England BY DAT E DESCRIPT ION No ISSUE 1 2 34 5 6 7 8 9 A BCDE F 12345678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILITIES LTD. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCTION ISSUE 30/9/03 DBS PSU ALARM FCC IDENT . LABEL

H561003C J1161030 J1321001B

05 - 002602 07 - 004814 10 - 000701 10 - 000901 11 - 006702 12 - 023301 17 – 019801 20 - 001601 80 - 008901 AGC ATTENUATOR ALBAT COMLUX CONT OMU GIB OPTO POWER CONVERTOR

REPORT ON THE CERTIFICATION TESTING OF A AXELL WIRELESS VISIO REPEATER 60- 232301 WITH RESPECT TO THE FCC RULES CFR 47, PART 90 PRIVATE LAND MOBILE REPEATER. TEST REPORT NO: 9F2749WUS1 COPY NO: 1 ISSUE NO: 1 FCC ID: NEO60-2323SERIES REPORT ON THE CERTIFICATION TESTING OF A AXELL WIRELESS VISIO REPEATER 60- 232301 WITH RESPECT TO THE FCC RULES CFR 47, PART 90 PRIVATE LAND MOBILE REPEATER. TEST DATE: 23 rd - 28 th October 2009 TESTED BY: S HODGKINSON APPROVED BY: J CHARTERS PRODUCT MANAGER DATE: 18 th December 2009 Distribution: Copy Nos: 1. Axell Wireless 2. TRaC Telecoms and Radio THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE 9F2749WUS1 Page 3 of 64 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 4 APPLICANT’S SUMMARY 5 EQUIPMENT TEST CONDITIONS 6 TESTS REQUIRED 6 TEST RESULTS 7 – 54 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Equipment overview door open APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C MEASUREMENT UNCERTAINTY D Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. CERTIFICATE OF CONFORMITY & COMPLIANCE 9F2749WUS1 FCC IDENTITY: NEO60-2323SERIES PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: Visio Repeater 60- 232301 EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMUM GAIN: Uplink Downlink = 15.23dB = 25.07 dB MAXIMUM INPUT: Uplink Downlink = -46.6dBm = +12.62dBm MAXIMUM OUTPUT CONDUCTED: Uplink Downlink = -31.93dBm = +37.26dBm CHANNEL BANDWIDTH: N/A Wideband amplifier FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110Vac TEST DATE(s): 23 rd – 28 th October 2009 ORDER No(s): 61175 APPLICANT: Axell Wireless ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU TESTED BY: S HODGKINSON APPROVED BY: J CHARTERS PRODUCT MANAGER 9F2749WUS1 Page 5 of 64 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Visio Repeater 60- 232301 EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 61175 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Axell Wireless ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Axell Wireless EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRaC Telecoms and Radio TEST DATE(s): 23 rd – 28 th October 2009 TEST REPORT No: 9F2749WUS1 9F2749WUS1 Page 6 of 64 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. Uplink Class A [X] Class B [ ] 2. Product class: Downlink Class A [X] Class B [ ] 3. Product Use: Private Land Mobile Repeater 4. Emission Designator: F3E 5. Temperatures: Ambient (Tnom) 21 o C 6. Supply Voltages: Vnom +110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] 8. Channel spacing: Wideband Uplink Narrowband Downlink 9. Test Location TRaC Telecoms and Radio Up Holland [X] 10. Modifications made during test program No modifications were performed. System description: Visio Repeater 60- 232301 consists of an uplink and downlink wideband amplifier. The uplink is a wide band amplifier and operates over the frequency band 806.0MHz – 824.0MHz. The downlink is a wide band amplifier and operates over the frequency band 851.0MHz – 869.0MHz 9F2749WUS1 Page 7 of 64 COMPLIANCE TESTS SYSTEM GAIN/OUTPUT POWER – CONDUCTED – PART 2.1046 – UPLINK Ambient temperature = 21 o C Radio Laboratory Relative humidity = 50% Supply voltage = +110Vac Channel number = See test results Frequency MHz Signal Generator input level dBm Input Cable Loss dB Output Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Conducted Output Power dBm Gain after 10dB input level increase dB 806.0 -49.6 0.88 0.32 -35.73 14.75 -35.41 4.75 815.0 -46.6 0.88 0.32 -32.25 15.23 -31.93 5.24 824.0 -49.3 0.84 0.30 -35.32 14.82 -35.02 4.80 Notes: 1. The signal generator input was increased by 10dBs and the level of the output signal remeasured. TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS2665C MT26089 479 X ATTENUATOR BIRD 8308-200-N N/A 103 ATTENUATOR BIRD 8304-100-N N/A 222 CABLE TRL N/A N/A UH272 X CABLE TRL N/A N/A UH378 X SIGNAL GENERATOR MARCONI 2042 119388/080 176 X Spectrum Analyser TRLUH281 EUT Signal Generator TRL176 Cable & Attenuator Fibre optic unit 9F2749WUS1 Page 8 of 64 A B C D Analyser TRLUH479 +110Vac AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053– UPLINK Ambient temperature = 20 o C Radio Laboratory Relative humidity = 516% Supply voltage = +110Vac The intermodulation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was at the +1dB compression point on the three carriers, the signal…

Text truncated - open the document above for the full version.

Test setup
