NEO60-27490160-274901 Fibre Feed Amplifier

Axell Wireless Limited Technical Literature Fiber Optic, Uplink, Band Selective, VHF Booster Amplifier Document Number 60-274901HBK Issue No. 2 Date 13/06/2011 Page 1 of 16 Fiber Optic, Uplink, Band Selective, VHF Booster Amplifier User Handbook For GETS Global Signalling L.L.C. AWL Works Order Q122997 AWL Product Part No. 60-274901 Axell Wireless Limited Head Office: Aerial House, Asheridge Road, Chesham, Buckinghamshire, HP5 2QD, United Kingdom Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com Axell Wireless Limited Technical Literature Fiber Optic, Uplink, Band Selective, VHF Booster Amplifier Document Number 60-274901HBK Issue No. 2 Date 13/06/2011 Page 2 of 16 Table of Contents 1. Introduction ................................................................................................................................ 3 1.1. Scope and Purpose of Document ........................................................................................ 3 1.2. Limitation of Liability Notice.................................................................................................. 3 2. Safety Considerations................................................................................................................ 4 2.1. Earthing of Equipment ......................................................................................................... 4 2.2. Electric Shock Hazard .......................................................................................................... 4 2.3. RF Radiation Hazard ........................................................................................................... 4 2.4. Lifting and other Health and Safety Recommendations ........................................................ 4 2.5. Chemical Hazard ................................................................................................................. 5 2.6. Laser Safety ........................................................................................................................ 5 2.7. Emergency Contact Numbers .............................................................................................. 5 3. Equipment Overview ................................................................................................................. 6 3.1. List of Major Sub-Components ............................................................................................. 7 3.2. Specification ........................................................................................................................ 8 3.3. Circuit Schematic ................................................................................................................. 9 3.4. Case Front View ................................................................................................................ 10 3.5. Case Rear View ................................................................................................................. 11 3.6. Local Alarm Output Schematic ........................................................................................... 12 Appendix A ........................................................................................................................................ 13 A.1. Glossary of Terms used in this document .......................................................................... 13 A.2. Key to Drawing Symbols used in this document ................................................................. 14 A.4. Waste Electrical and Electronic Equipment (WEEE) Notice ............................................... 15 A.5. Document Amendment Record .......................................................................................... 16 Axell Wireless Limited Technical Literature Fiber Optic, Uplink, Band Selective, VHF Booster Amplifier Document Number 60-274901HBK Issue No. 2 Date 13/06/2011 Page 3 of 16 1. Introduction 1.1. Scope and Purpose of Document This handbook is for use solely with the equipment identified by the Axell Wireless Limited (AWL) Part Number shown on the front page. It is not to be used with any other equipment unless specifically authorised by AWL. This is a controlled release document and, as such, becomes a part of the Axell Wireless Total Quality Management System. Alterations and modification may therefore only be performed by Axell Wireless. AWL recommends that the installer of this equipment familiarise themselves with the safety and installation procedures contained within this document before installation commences. The purpose of this handbook is to provide the user/maintainer with sufficient information to service and repair the equipment to the level agreed. Maintenance and adjustments to any deeper level must be performed by AWL, normally at the company’s repair facility in Chesham, England. This handbook has been prepared in accordance with BS 4884, and AWL’s Quality procedures, which maintain the company’s registration to BS EN ISO 9001:2000 and to the R&TTE Directive of the European Parliament. Copies of the relevant certificates and the company Quality Manual can be supplied on application. This document fulfils the relevant requirements of Article 6 of the R&TTE Directive. 1.2. Limitation of Liability Notice This manual is written for the use of technically competent operators/service persons. No liability is accepted by AWL for use or misuse of this manual, the information contained therein, or the consequences of any actions resulting from the use of the said information, including, but not limited to, descriptive, procedural, typographical, arithmetical, or listing errors. Furthermore, AWL does not warrant the absolute accuracy of the information contained within this manual, or its completeness, fitness for purpose, or scope. AWL has a policy of continuous product development and enhancement, and as such, reserves the right to amend, alter, update and g…

Text truncated - open the document above for the full version.

AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 AFL AND AVITEC HAVE MERGED TO FORM AXELL WIRELESS 7 th June,2011 TRaC Global 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK To Whom It May Concern: We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to these matters. Yours faithfully For and on behalf Axell Wireless Peter L Bradfield Senior Systems Engineer

Axell Wireless Limited Technical Literature Fiber Optic, Uplink, Band Selective, VHF Booster Amplifier Document Number 60-274901HBK Issue No. 2 Date 13/06/2011 Page 9 of 16 3.3. Circuit Schematic

AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 AFL AND AVITEC HAVE MERGED TO FORM AXELL WIRELESS Request for Confidentiality 7 th June,2011 TRaC Global 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK RE: Certification Application FCC ID: NEO60-274901 To Whom It May Concern: Please be advised that the following information is to be held confidential on behalf of Aerial Facilities Limited • Circuit Diagrams • Schematic Diagrams • Parts List/Tune Up Information The application contains technical information which Axell Wireless Limited deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully For and on behalf Axell Wireless Peter L Bradfield Senior Systems Engineer

AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 AFL AND AVITEC HAVE MERGED TO FORM AXELL WIRELESS 7 th June,2011 TRaC Global 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK REF: NEO60-274901, Part 90.219 Use of signal boosters. This product meets the requirements of 90.219. It is only intended for use in conjunction with a Class A certified booster using a yagi antennas as the uplink interface. If you have any further questions or comments do not hesitate to contact me. Yours faithfully For and on behalf Axell Wireless Limited Peter L Bradfield Senior Systems Engineer Tel: +44 1494 777020 Fax +44 1494 777002 [email protected]

AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 AFL AND AVITEC HAVE MERGED TO FORM AXELL WIRELESS 7 th June,2011 TRaC Global 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK REF: NEO60-274901, Declared and reported power. The Power amplifier used in the unit in the uplink direction is described as a 20W. These amplifiers are used not to produce these levels of power but to ensure good linearity in the multi-carrier environment. It is the third order intercept point we are looking for to ensure the attenuation of unwanted intermodulation products is maximum. In fact the level of total composite carrier output at the antenna port is limited to 37dBm (5W) this is achieved by automated level control (ALC). The amplifier system is designed to work in conjunction with a class A part 90 certified booster. If you have any further questions or comments do not hesitate to contact me. Yours faithfully For and on behalf Axell Wireless Limited Peter L Bradfield Senior Systems Engineer Tel: +44 1494 777020 Fax +44 1494 777002 [email protected]

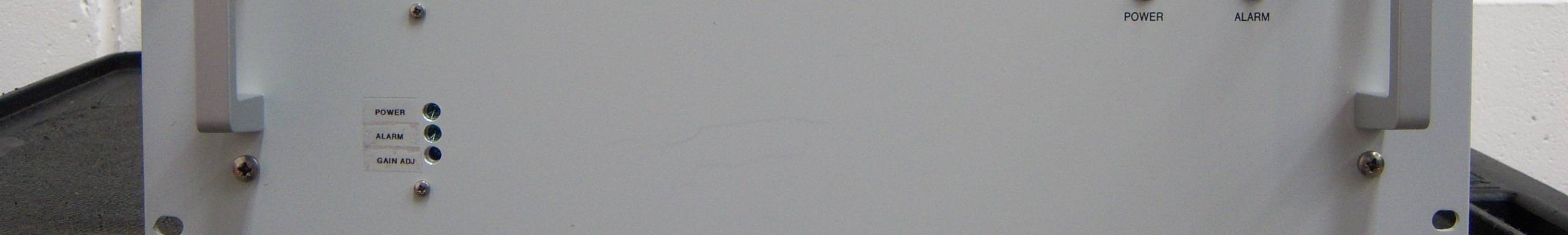

Front View

BY DAT E DESCRIPT ION No THIRD ANGLE PROJECTION 1 2 3 4 5 6 7 8 9 A BCDE F 1 2 3 4 5 6 7 8 9 A BCD E F Fax : 01494 777002 Tel : 01494 777000 Aerial Facilities Limited T HIS IS A PROPRIET ARY DESIGN OF AERIAL FACILIT IES L T D. REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUT HORISED IN W RIT INGBY AERIAL FACILIT IES LT D. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmT W O DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OT HERW ISE ST AT ED CHKD DRAWN APPDDAT E T OLERANCES SCALE England CUST OMER DRAW ING.No T IT LE ISSUE 3A FCC IDENT. LABEL POSITION RACK MOUNTED UNIT 80-312190 1A 1:5 DBS 30/9/03 PRODUCTION ISSUE 30/9/02 DBS Li mi t ed A eri al Faci l i t i es P O WE RA LA R M FCC IDENT. LABEL

Axell Wireless Limited Technical Literature Fiber Optic, Uplink, Band Selective, VHF Booster Amplifier Document Number 60-274901HBK Issue No. 2 Date 13/06/2011 Page 6 of 16 3. Equipment Overview Fiber Optic, Uplink, Band Selective, VHF Booster Amplifier Part Number 60-274901 is built into an 8U, 19” rack mount shelf. The amplifier is used to filter and amplify the signal levels of one VHF band, 155.5MHz to 161.0MHz; in the Uplink direction only. The Uplink Optical signal is received from Fiber Optic Transmitter Part Number 60-275101 via Fiber Optic cable at the FC/APC port labelled “F/O” (annotated “A” in 3.4.); the optical Uplink signal then enters Fiber Optic RX Module 20-005501 which demodulates the Optical signal to RF. The RF signal then passes through a Bandpass Filter 01-001749 tuned to pass the Uplink band and to reject out-of-band noise; after leaving the Bandpass filter the Uplink signal passes through the Variable Switched Attenuator 10-000701 which can introduce up to 30dB of signal attenuation if required. The attenuator is controlled by a set of four toggle switches (annotated “E” in section 3.5.) on the front panel of the Amplifier shelf; each switch is clearly marked with the attenuation it provides, and the total attenuation in-line is the sum of the values switched in. After leaving the switched attenuator the Uplink signal passes first through the AGC Attenuator Module 17-016401 (which is controlled by AGC Detector Module 17-019801 fitted further on in the RF path) and then through a Low Noise Amplifier 11-008901 which provides 28dB of gain. The Low Noise Amplifier is followed by a 20W Power Amplifier 12-028501 which provides 36dB of gain and then the Uplink signal passes through the AGC Detector Module 17-019801 which regulates the gain level by adjusting AGC Attenuator Module 17-016401. The AGC Detector Module monitors the RF level being delivered by the power amplifier, and when a certain threshold is reached it begins to increase the value of the AGC Attenuator Module to limit the RF output to the (factory set) threshold. Therefore overloading of the power amplifier is avoided. After passing through the AGC Detector Module the Uplink path passes through a second Bandpass Filter 01-001749 to further reject out-of-band noise and then through VSWR Monitor 21-003207. Upon leaving the VSWR Monitor the Uplink signal exits the Amplifier shelf for the Uplink Antenna System via the N type port labelled “RF Base” (annotated “F” in section 3.5.). The Amplifier is powered from mains AC at 110V which drives an internal 400W PSU module providing 24V DC for the power amplifier; a DC/DC converter provides 12V DC for the remaining active modules. The Amplifier has an alarm system; both of the amplifier modules, the PSU, DC/DC converter, the F/O RX and the VSWR Monitor modules carry their own voltage-free, dry contact alarm relay outputs which are summed at the 15 way “D” alarm output connector on the rear of the case (annotated “L” in section 3.5.).

TEST REPORT FOR AXELL WIRELESS ON EXPOSITION METRO LINE VHF U/L FO BOOSTER AMPLIFIER DOCUMENT NO. TTR-005045-WUS-1 TEST REPORT NO: TTR-005045WUS1 COPY NO: 1 ISSUE NO: 1 FCC ID: NEO60-274901 REPORT ON THE CERTIFICATION TESTING OF A AXELL WIRELESS EXPOSITION METRO LINE VHF U/L FO BOOSTER AMPLIFIER WITH RESPECT TO THE FCC RULES CFR 47, PART 90 PRIVATE LAND MOBILE REPEATER. TEST DATE: 16 th - 18 th May 2011 APPROVED BY: J CHARTERS PRODUCT MANAGER DATE: 6 th June 2011 Distribution: Copy Nos: 1. Axell Wireless 2. TRaC Global THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE TTR-005045WUS1 Page 3 of 39 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 4 APPLICANT’S SUMMARY 5 EQUIPMENT TEST CONDITIONS 6 TESTS REQUIRED 6 TEST RESULTS 7 – 28 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1&2: Test setup PHOTOGRAPH No. 3: Equipment overview APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B EQUIPMENT CALIBRATION C MEASUREMENT UNCERTAINTY D Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. CERTIFICATE OF CONFORMITY & COMPLIANCE TTR-005045WUS1 FCC IDENTITY: NEO60-274901 PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 90 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: VHF U/L FO Booster Amplifier EQUIPMENT TYPE: Private Land Mobile Repeater MAXIMUM GAIN: Uplink(VHF) = 59.67 dB MAXIMUM INPUT: Uplink (VHF) = - 25.37dBm MAXIMUM OUTPUT CONDUCTED: Uplink (VHF) = +33.38dBm CHANNEL BANDWIDTH: N/A Wideband amplifier FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): +110Vac TEST DATE(s): 16 th - 18 th May 2011 ORDER No(s): 72741 APPLICANT: Axell Wireless ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU APPROVED BY: J CHARTERS PRODUCT MANAGER TTR-005045WUS1 Page 5 of 39 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): VHF U/L FO Booster Amplifier EQUIPMENT TYPE: Private Land Mobile Repeater PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 90 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 72741 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Axell Wireless ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Axell Wireless EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRaC Global TEST DATE(s): 16 th - 18 th May 2011 TEST REPORT No: TTR-005045WUS1 TTR-005045WUS1 Page 6 of 39 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Power Output 90.205 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 Yes Complies Frequency Stability 90.213 N/A(note 1) N/A Transient behaviour 90.214 N/A(note 2) N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. Uplink Class A [X] Class B [ ] 2. Product class: Class A [ ] Class B [ ] 3. Product Use: Private Land Mobile Repeater 4. Emission Designator: F3E 5. Temperatures: Ambient (Tnom) 24 o C 6. Supply Voltages: Vnom +110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] 8. Channel spacing: Narrowband Uplink 9. Test Location TRaC Global Skelmersdale [X] 10. Modifications made during test program No modifications were performed. System description: The VHF U/L FO Booster Amplifier system consists of a VHF uplink wideband amplifier. The uplink is a wideband amplifier and operates over the frequency band. 155.5MHz-161.1MHz TTR-005045WUS1 Page 7 of 39 COMPLIANCE TESTS AMPLIFIER GAIN – CONDUCTED – PART 2.1046 –VHF UPLINK Ambient temperature = 24 o C Radio Laboratory Relative humidity = 50% Supply voltage = +110Vac Channel number = See test results Frequency MHz Signal Generator input level dBm Input Cable Loss dB Output Cable & Attenuator loss dB Level at Spectrum Analyser dBm Gain dB Conducted Output Power dBm Gain after 10dB input level increase dB 155.50 -26.10 0.07 35.88 -3.03 59.02 32.85 49.01 158.25 -25.30 0.07 35.86 -2.48 58.75 33.38 48.75 161.00 -26.30 0.07 35.81 -2.51 59.67 33.30 49.68 Notes: 1.The signal generator input was increased by 10dBs and the level of the output signal remeasured. TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER RHODE & SCHWARZ FSU46 200034 UH281 X ATTENUATOR BIRD 8308-200-N N/A 103 X ATTENUATOR BIRD 8304-100-N N/A 222 X CABLE TRL N/A N/A UH271 X CABLE TRL N/A N/A UH272 X CABLE TRL N/A N/A UH273 X SIGNAL GENERATOR MARCONI 2042 119562/021 254 X Spectrum Analyser TRLUH281 EUT Signal Generator TRL254 Cable & Attenuator TTR-005045WUS1 Page 8 of 39 A B C D Analyser TRLUH281 +110Vac AMPLIFIER INTERMODULATION SPURIOUS EMISSIONS – CONDUCTED – PART 2.1053–VHF UPLINK Ambient temperature = 22 o C Radio Laboratory Relative humidity = 42% Supply voltage = +110Vac The intermodulation and spurious products were measured with the amplifier operating at maximum gain. A three tone test was conducted using the equipment as above. The input power level was adjusted so the level at point D was 10dB above the maximum input of -26dBm.The cable and attenuator loss between the EUT and the spectrum analyser was 35.8dB. RF Input Frequency (MHz) Highest Intermodulation Product Level (dBm) Limit (dBm) 155.500 157.333 161.000 [email protected] -13 Sweep data is shown on the next page: Test equip…

Text truncated - open the document above for the full version.

Test Setup
