NEOBSR3308PSBSR 3308-PS-NFPA

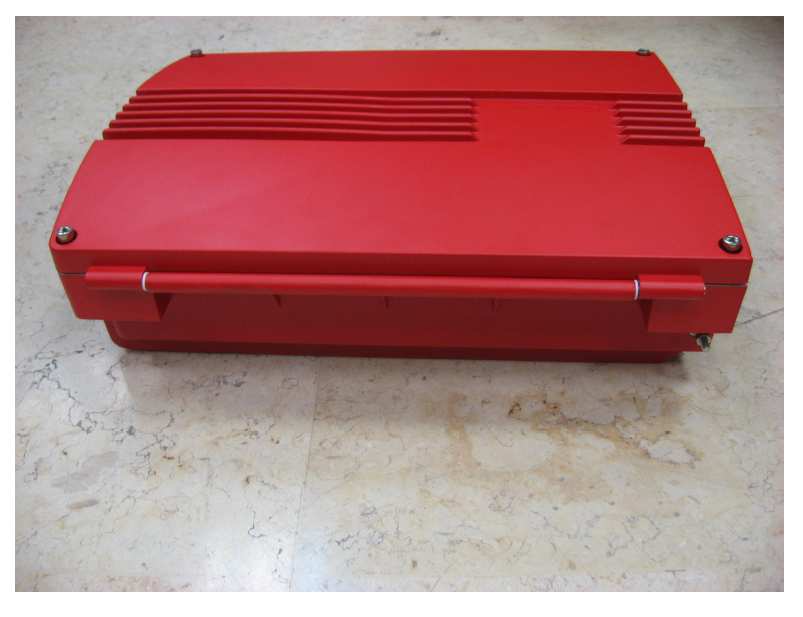

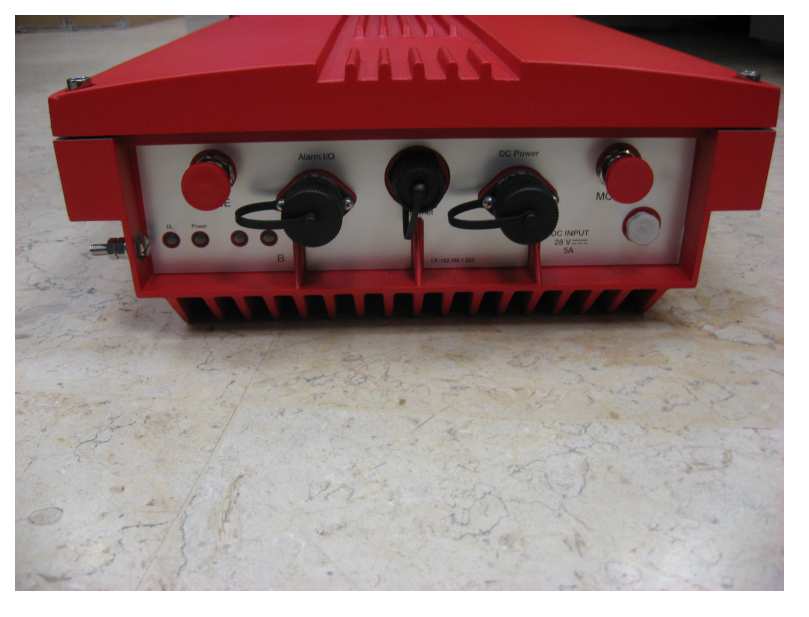

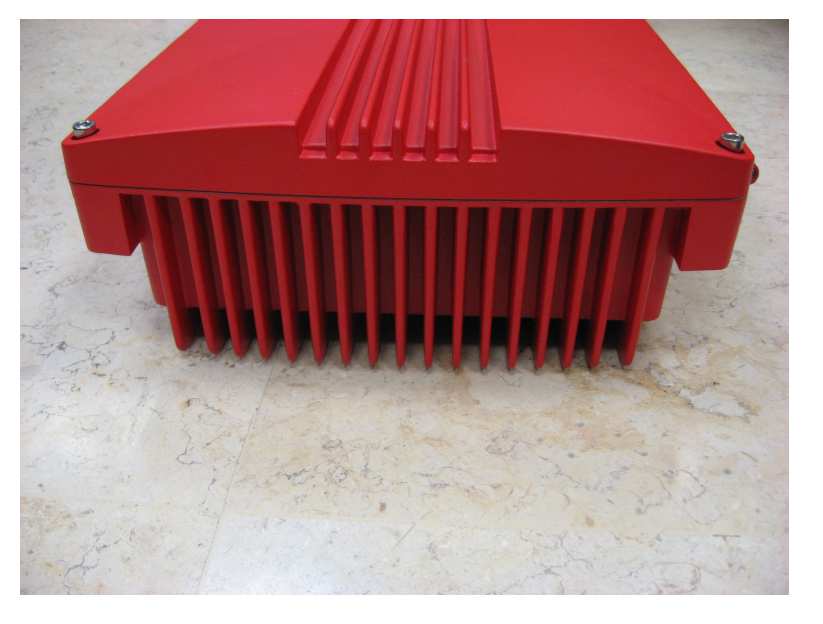

Axell BSR 3308 / PS NFPA Product Description and User’s Manual Digital Band Selective Repeater Product Description and User’s Manual for Axell BSR 3308-PS / BSR 3308-PS NFPA Doc PN 4000004131 Rev. 2.7 THIS DOCUMENT IS VALID FOR THE FOLLOWING REPEATER MODELS: BSR 3308- PS; BSR 3308-PS NFPA; BSR 3308-PS- NFPA-DC BSR 3308-PS BSR 3308-PS NFPA Axell BSR 3308-PS NFPA Product Description and User’s Manual II Doc PN 4000004131 Rev. 2.7 © Axell Wireless Ltd Copyright © 2014 Axell Wireless Ltd All rights reserved. No part of this document may be copied, distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language without the prior written permission of Axell Wireless Ltd. The manufacturer has made every effort to ensure that the instructions contained in this document are adequate and free of errors and omissions. The manufacturer will, if necessary, explain issues which may not be covered by this document. The manufacturer's liability for any errors in the document is limited to the correction of errors and the aforementioned advisory services. This document has been prepared to be used by professional and properly trained personnel, and the customer assumes full responsibility when using them. The manufacturer welcomes customer comments as part of the process of continual development and improvement of the documentation in the best way possible from the user's viewpoint. Please submit your comments to the nearest Axell Wireless sales representative. Contact Information Headquarters Axell Wireless Aerial House Asheridge Road Chesham, Buckinghamshire HP5 2QD United Kingdom Tel: +44 1494 777000 Fax: +44 1494 777002 Commercial inquiries [email protected] Web site www.axellwireless.com Support issues [email protected] Technical Support Line, English speaking +44 1494 777 747 Contact information for Axell Wireless offices in other countries can be found on our web site, www.axellwireless.com Axell BSR 3308-PS NFPA Product Description and User’s Manual © Axell Wireless Ltd Doc PN 4000004131 Rev. 2.7 III About This Manual This Product Manual provides the following information: • Description of the Repeater • Procedures for setup, configuration and checking the proper operation of the Repeater • Maintenance and troubleshooting procedures Notice Confidential - Authorized Customer Use This document may be used in its complete form only and is solely for the use of Axell Wireless employees and authorized Axell Wireless channels or customers. The material herein is proprietary to Axell Wireless. Any unauthorized reproduction, use or disclosure of any part thereof is strictly prohibited. All trademarks and registered trademarks are the property of their respective owners. Disclaimer of Liability Contents herein are current as of the date of publication. Axell Wireless reserves the right to change the contents without prior notice. The information furnished by Axell Wireless in this document is believed to be accurate and reliable. However, Axell Wireless assumes no responsibility for its use. In no event shall Axell Wireless be liable for any damage resulting from loss of data, loss of use, or loss of profits and Axell Wireless further disclaims any and all liability for indirect, incidental, special, consequential or other similes damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Guarantees • All antennas must be installed with lightning protection. Damage to power modules, as a result of lightning are not covered by the warranty. • Antennas must be connected before switching on AC or DC power. Switching power on prior to the connection of antenna cables is regarded as faulty installation procedure and therefore not covered by the Axell Wireless warranty. • The repeater box should be closed using the two screws. The screws must be fully tightened. Failure to do so may affect the IP65 compliancy and therefore any warranty. Unauthorized Changes to Equipment Changes or Modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment Exclusive Remedies The remedies provided herein are the Buyer’s sole and exclusive remedies. Axell Wireless shall not be viable for any direct, incidental, or consequential damages, whether based on contract, tort, or any legal theory. Axell BSR 3308-PS NFPA Product Description and User’s Manual IV Doc PN 4000004131 Rev. 2.7 © Axell Wireless Ltd Compliance with FCC Note the following: This repeater can be operated as both a Part 20 and/or Part 90 Class B repeater. FCC Part 90 Warning Statement WARNING: This is NOT a CONSUMER device. It is designed for installation by FCC LICENCEES and QUALIFIED INSTALLERS. You must have an FCC LICENCE or express consent of an FCC Licensee to operate this device. This is a Class B signal booster. You MUST register Class B signal boosters (as defined in 47 CFR 90.219) online at www.fcc.gov/signal-boosters/registration. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Note the following The installation procedure must result in the signal booster complying with FCC requirements 90.219(d). In order to meet FCC requirements 90.219(d), it may be necessary for the installer to reduce the UL and/or DL output power for certain installations. FCC Part 20 Warning Statement WARNING: This is NOT a CONSUMER device. It is designed for installation by FCC LICENCEES and QUALIFIED INSTALLERS. You must have an FCC LICENCE or express consent of an FCC Licensee to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. FCC Part 15 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not caus…

Text truncated - open the document above for the full version.

SAW switcher Power Supply DC/DC V -> 28V; 6.5V; 9V Cortex CPU -> Monitoring, Control & Connection Ref=11.059MHz LAN & RS485 LED / Display Interface DD Mobile Base 806-824MHz DL UL BSR 3308 Block Diagram 851-869MHz Ref=14.4MHz PLL LO Center Fr. 700MHz IF DL 151-170.5MHz IF UL 106-125.5.5MHz

A 4 Drawing Number Title First Angle Projection Drawn Date Checked Approved Scale THIS IS A PROPRIETARY DESIGN OF AXELL WIRELESS LTD REPRODUCTION OR USE OF THIS DESIGN BY OTHERS IS PERMISSABLE ONLY IF EXPRESSLY AUTHORISED IN WRITING BY AXELL WIRELESS LTD. REVISIONNo DATE BY GENERAL TOLERANCES ISO 2768-1 MEDIUM 19/05/2013 PerWPerW A 2:1 ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED Tel : +46 (0)8 475 4700 Fax : +44 (0)8 475 4799 UNLESS STATED OTHERWISE Sheet 1 / 1 Rev. NOTE. 1. MATERIAL: SHEET SILVER COLOR METALIZED POLYESTER WITH ONE SIDE WITH 3M 467MP BACK ADHESIVE + ADHESIVE 200MP ON ONE SIDE. 2. PRINTING 2.1 BACKGROUND "a": SILVER 2.2 SYMBOLS AND FONTS "b" : BLACK 2.3 FONTS: HELVETICA MEDIUM 3. USE RIBBON ACCORDING TO LABEL MANUFACTURER RECOMENDATION. 4. FOR SERIAL NUMBER SEE LABEL INFORMATION. 5. BAR CODE TYPE ACCORDING TO CODE-128 6. THE LABELS MUST BE SUPPLIED ON ROLL. 7. PART MUST COMPLY RoHS REQUIREMENTS. FCC Industrial Booster Warning Label G.B. 9713000484 3 8 . 1 0 76.20

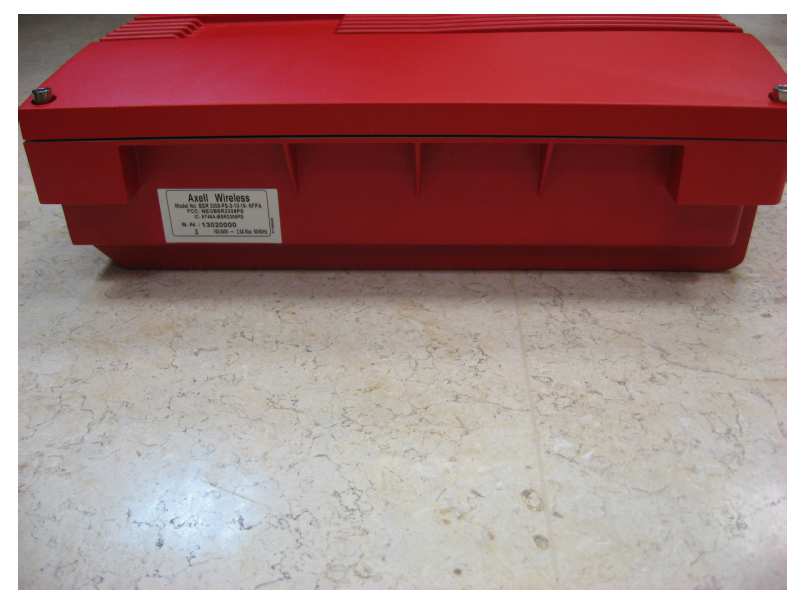

A 4 Drawing Number Title First Angle Projection Drawn Date Checked Approved Scale THIS IS A PROPRIETARY DESIGN OF AXELL WIRELESS LTD REPRODUCTION OR USE OF THIS DESIGN BY OTHERS IS PERMISSABLE ONLY IF EXPRESSLY AUTHORISED IN WRITING BY AXELL WIRELESS LTD. REVISIONNo DATE BY GENERAL TOLERANCES ISO 2768-1 MEDIUM 2013-01-31 PerWPerW 2013-01-31 2013-01-31 9713000438 C 2:1 PerW ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED Tel : +46 (0)8 475 4700 Fax : +44 (0)8 475 4799 UNLESS STATED OTHERWISE Sheet 1 / 1 Rev. NOTE. 1. MATERIAL: SHEET SILVER COLOR METALIZED POLYESTER WITH ONE SIDE WITH 3M 467MP BACK ADHESIVE + ADHESIVE 200MP ON ONE SIDE. 2. PRINTING 2.1 BACKGROUND "a": SILVER 2.2 SYMBOLS AND FONTS "b" : BLACK 2.3 FONTS: HELVETICA MEDIUM 3. USE RIBBON ACCORDING TO LABEL MANUFACTURER RECOMENDATION. 4. FOR SERIAL NUMBER SEE LABEL INFORMATION. 5. BAR CODE TYPE ACCORDING TO CODE-128 6. THE LABELS MUST BE SUPPLIED ON ROLL. 7. PART MUST COMPLY ToHS REQUIREMENTS. 8. LABEL INFORMATION: YY-Year (2 Digits) MM- Month (2 Digits) ZZZZZZ- Serial No. 76.20 3 8 . 1 0 AXELL 3308 S/N LABLE

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 AA BB CC DD EE FF A 2 Drawing No Title First Angle Projection DrawnDate Checked Approved THIS IS A PROPRIETARY DESIGN OF AXELL WIRELESS LTD REPRODUCTION OR USE OF THIS DESIGN BY OTHER IS PERMISSABLE ONLY IF EXPRESSLY AUTHORISED IN WRITING BY AXELL WIRELESS LTD SCALE ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED UNLESS STATED OTHERWISE ISO 2768-1 MEDIUM GENERAL TOLERANCES D-SBR 3308 NFPA RE00003200 PerW 2014-03-24 PerW 2014-03-24 E 2014-03-24 PerW Tel : +46 (0)8 475 4700 Fax : +46 (0)8 475 4799 Sheet 1 / 3 Rev. Parts List DESCRIPTIONPART NUMBERQTYITEM Conn Circ 693-3+Cover Assy 1J2 RJ45 1P LTW1W2 Conn Circ 693-3+Cover Assy_1 1W1 24 N-50-2-14 SUHNER(Default) 2W10 BUSHING 4MP4 4000005950-A1ME1 Breather 1ME2 Screw Hex 1-4X1 123 Nut #1-4224 Washer #1-4325 Washer Spr #1-4 126 Wahser Ext Tooth #8127 Nut #8228 Washer #8-L 229 Washer Spr #8-L130 97130000922MP6 SEALING WASHER 1H1 CAP1MP3 door148 PH 4-40x1_24H2 #4X5-16 CSK100 20H3 vajer1 77 9713000248186 9713000269187 Cover_niklas288 door label 191 9713000243192 Screw #6X3-8 Assy198 heat surface1199 CT00001800 1101 40000826501103 400UC950001107 Cable tie base 14109 SWITCH-ASSY1111 Assembly3821122 300LOW6300(Default )_1 1123 FI000008001128 FI000009001129 M3 PLAIN WASHER STAINLESS ST 92-80620123131 SCREW M3x30 PAN POZI STAINLESS ST 92-8020524132 SCREW M3x10 PAN TORX A2-70 ST/ST 92-9501784133 SCREW M3x8 PAN TORX A2-70 ST/ST 92-95017717134 Door lABEL 186 PH#4X1-4 2140 Washer Spr #4-M2141 1142 97130004412143 97130002581144 STEP1 STEP2 STEP3 STEP4 STEP5 STEP6 ME1 MP14 H1 MP4 4X MOUNT WITH GLUE EPOXY A5 A6 A4 20X 4X 4X 2X 4X 2X 4X H7 H4 2X H4 H5 A2 A1 H4 H6 H4 H7 4X 4X H4 H7 4X A7 A3 H7 H4 8X 8X EAdded Label2014-03-24PerW D 2014-02-28PerW REVISION HISTORY ZONEREVDESCRIPTIDATEAPPROVED 2X MP10 MP11 13x J3 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 AA BB CC DD EE FF A 2 Drawing No Title First Angle Projection DrawnDate Checked Approved THIS IS A PROPRIETARY DESIGN OF AXELL WIRELESS LTD REPRODUCTION OR USE OF THIS DESIGN BY OTHER IS PERMISSABLE ONLY IF EXPRESSLY AUTHORISED IN WRITING BY AXELL WIRELESS LTD SCALE ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED UNLESS STATED OTHERWISE ISO 2768-1 MEDIUM GENERAL TOLERANCES D-SBR 3308 NFPA RE00003200 PerW 2014-03-24 PerW 2014-03-24 E 2014-03-24 PerW Tel : +46 (0)8 475 4700 Fax : +46 (0)8 475 4799 Sheet 2 / 3 Rev. Parts List DESCRIPTIONPART NUMBERQTYITEM Conn Circ 693-3+Cover Assy 1J2 RJ45 1P LTW1W2 Conn Circ 693-3+Cover Assy_1 1W1 24 N-50-2-14 SUHNER(Default) 2W10 BUSHING 4MP4 4000005950-A1ME1 Breather1ME2 Screw Hex 1-4X1 123 Nut #1-4 224 Washer #1-4325 Washer Spr #1-4126 Wahser Ext Tooth #8 127 Nut #8228 Washer #8-L229 Washer Spr #8-L 130 97130000922MP6 SEALING WASHER1H1 CAP 1MP3 door148 PH 4-40x1_24H2 #4X5-16 CSK100 20H3 vajer177 Door lABEL186 9713000248186 9713000269187 Cover_niklas288 door label191 9713000243192 Screw #6X3-8 Assy198 heat surface1 199 CT000018001101 40000826501103 400UC95000 1107 Cable tie base 14109 SWITCH-ASSY1111 Assembly3821122 300LOW6300(Default )_1 1123 FI000008001128 FI000009001129 M3 PLAIN WASHER STAINLESS ST 92-80620123131 SCREW M3x30 PAN POZI STAINLESS ST 92-8020524132 SCREW M3x10 PAN TORX A2-70 ST/ST 92-9501784133 SCREW M3x8 PAN TORX A2-70 ST/ST 92-95017717134 PH#4X1-42140 Washer Spr #4-M 2141 1142 97130004412143 97130002581144 ME1 H2 4X J2 J1 MP1 2X J4 MP3 ME2 MP2 MP4 MOUNT WITH GLUE EPOXY 4X MP5 MP6 W10 W11 MP8 MP7 MP12 MP12 46 1 2 Single Band DCS H8H11 W2 2x MP17 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 AA BB CC DD EE FF A 2 Drawing No Title First Angle Projection DrawnDate Checked Approved THIS IS A PROPRIETARY DESIGN OF AXELL WIRELESS LTD REPRODUCTION OR USE OF THIS DESIGN BY OTHER IS PERMISSABLE ONLY IF EXPRESSLY AUTHORISED IN WRITING BY AXELL WIRELESS LTD SCALE ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED UNLESS STATED OTHERWISE ISO 2768-1 MEDIUM GENERAL TOLERANCES D-SBR 3308 NFPA RE00003200 PerW 2014-03-24 PerW 2014-03-24 E 2014-03-24 PerW Tel : +46 (0)8 475 4700 Fax : +46 (0)8 475 4799 Sheet 3 / 3 Rev. 10 1 0 6 5 1 5 Center to label MP15 MP7 H9H10H3 MP6 Single Band DCS H7 H4 H8 W5 MP7 MP2 MP16

Operational Description 800 band: "Axell Wireless" BSR 3308 PS NFPA is 800 MHz RF Signal Booster, medium power repeater. It's actually bi-directional (Downlink/Uplink) amplifier. Key features: • Band selective mini booster for SMR, ESMR and public safety networks • NFPA 72-2010, chapter 24 and IFC 510.1 compliant • IF-SAW filtering – high out-of-band rejection • Indoor coverage up to 100,000 square feet • Features Axell Wireless’ SmartALC™ technology • Switchable bandwidth option – User-selectable and tuneable across the 800 MHz band – Accommodates all re-banding phases without changing hardware • Web Based management It has 2 RF interfaces to 2 antennas: Donor (Base), Service (Mobile). Downlink chain functionally symmetrical to Uplink chain. At the beginning of the chain we have cavity band duplexer that provides primary filtering and isolation between bands. After it we have LNA block consists of LNA amplifier, RF filter for additional isolation. Down Convert block consists of additional RF amplifiers, Digital step attenuator, and image rejection filter. Synt/Mix section consists of integrated PLL, VCO and mixer and its work environment components. RF centre frequency is converted to 106-170.5MHz IF frequency band. Frequency Spectrum Diagram IF block consists of IF amplifiers, attenuator, and SAW filters (18MHz, 10MHz and 3MHz) before entering A2D. Filters are user configurable and software defined. IF signal is filtered and amplified in IF block. IF signal is converted back to RF in Synt/Mix section. Up Convert block consists of LO leakage filter, RF amplifiers, RF filter for additional isolation. PA block consists of Pre amplifier, Power amplifier, and output power detector. Signal is transmitted to antenna through duplexer's. Clock section consists of clock buffer and distributor that provides reference clocks and timing to all system. CPU holds embedded software that responsible for system functionality: SALC – Gain and Power Control, sub band selection, etc. Interface area consists of LAN and RS485 interfaces that enable communication with the system. SmartALC™ When incorporating an RF repeater within a CDMA and WCDMA network, a standard procedure is to set the repeater’s desired uplink and downlink levels. However, if an inappropriate gain and/or level is chosen, this may result in a non-linear signal compression, which in-turn may not only disturb the normal performance of the mobile devices but also might partially disable the ability of the base station to control the output power of the mobile devices connected to it. To keep this from happening, the normal Automatic Level Control (ALC) mechanism, which is implemented in most RF repeaters, is used. The standard ALC circuit “sees” that the repeaters’ output power is kept at a predefined level (a level in which all components function linearly). The standard ALC, however, does not provide a suitable answer to the “Cell Breathing” phenomena. Confronting the challenge of producing a “network friendly”, cell transparent, CDMA and WCDMA repeater, Axell Wireless has developed its proprietary Smart Automatic Level Control (SALC). The idea behind this technology within the development of RF repeaters is to incorporate a digital RF Gain Controller that, when combined with advanced control algorithms can perform gradual learning of traffic load characteristics and adjust the repeater gain accordingly (according to the actual levels as sampled during the network actual activation and following their changing paths). In practice, this automatic operation substitutes the need of special settings during installation and/or initial setup that usually require a knowledgeable technician and some laboratory equipment. It practically removes the need for initial settings at maximal traffic load conditions as well as repeated site visits for the purpose of gain adjustment and allows for a virtual “plug and play” deployment.

RADIO FREQUENCY RADIATION EXPOSURE OET Bulletin No. 65, Supplement C 01-01 47 CFR §§1.1307 and 2.1091 and RSS-102 Radio frequency radiation exposure evaluation. Mobile devices that operate under CFR47 Part 90 and RSS-131 are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more for FCC requirements and 2.5 Watts or more for Industry Canada Requirements. Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density R = distance to the centre of radiation of the antenna ERP = EUT Maximum power Prediction Frequency (MHz) Maximum ERP (mW) Maximum EIRP (mW) Power density limit (S) (mW/cm 2 ) Distance (R) cm required to be less than (S) mW/cm 2 806.0 5000 3055 0.537 21.3 869.0 5000 3055 0.579 20.2 Result The EUT meets the limit requirements at the distances specified based on the maximum allowed ERP for a booster as per 90.219. ππ4 arranged-re 4 2 S EIRP R R EIRP S== LIMITS OET 65C - FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 f = frequency in MHz *Plane-wave equivalent power density 4.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2 * 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10-4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2

A RADIO TEST REPORT FOR AXELL WIRELESS ON BSR-3308 DOCUMENT NO. TRA-014965-47-00-D Total number of pages: 100 TRaC Wireless Test Report : TRA-014965-47-00-D Applicant : Axell Wireless Apparatus : BSR-3308 Specification(s) : CFR47 Part 90, Part 20 & RSS-131 Purpose of Test : Certification FCCID : NEOBSR3308PS Certification Number : 8749A-BSR3308PS Authorised by : : Radio Product Manager Issue Date : 8 th April 2014 Authorised Copy Number : PDF TRaC Global Test Report: TRA-014965-47-00-D 3 Contents Section 1: Introduction 4 4.3 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Equipment Test Conditions 7 1.7 Standard References 8 1.8 Notes Relating To Assesment 9 1.9 Deviations from Test Standards 9 Section 2: Measurement Uncertainty 10 2.1 Measurement Uncertainty Values 10 Section 3: Modifications 12 3.1 Modifications Performed During Assessment 12 Appendix A: Uplink Formal Emission Test Results 13 A1 RF Gain and Output Power 14 A2 Amplifier Intermodulation Spurious Emissions 16 A3 Amplifier Modulated Channel Test 21 A4 Spurious Emissions at Antenna Terminals Less than 1MHz 26 A5 Spurious Emissions at Antenna Terminals Greater than 1MHz 31 A6 Noise at Antenna Terminals 41 A7 Radiated Electric Field Emissions 46 A8 Passband Gain & Bandwidth 51 Appendix B: Downlink Formal Emission Test Results 52 B1 RF Gain and Output Power 53 B2 Amplifier Intermodulation Spurious Emissions 55 B3 Amplifier Modulated Channel Test 59 B4 Spurious Emissions at Antenna Terminals Less than 1MHz 64 B5 Spurious Emissions at Antenna Terminals Greater than 1MHz 69 B6 Noise at Antenna Terminals 79 B7 Radiated Electric Field Emissions 84 B8 Passband Gain & Bandwidth 89 Appendix C: Additional Test and Sample Details 90 Appendix D: Additional Information 96 Appendix F: Photographs and Figures 97 TRaC Global Test Report: TRA-014965-47-00-D 4 Section 1: Introduction 4.3 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TraC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: D. Winstanley Report author: D. Winstanley This report must not be reproduced except in full without prior written permission from TRaC Global. TRaC Global Test Report: TRA-014965-47-00-D 5 1.2 Tests Requested By This testing in this report was requested by : Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU 1.3 Manufacturer Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU 1.4 Apparatus Assessed The following apparatus was assessed between 15 th – 18 th July 2013: BSR-3308 The Axell BSR 3308 NFPA is a band-selective mini-repeater that supports the 800MHz band. The repeater is specifically designed for the operation of ESMR 800 MHz and is band selectable in the 800 MHz range [3 MHz, 10 MHz or 18 MHz bandwidth]. The BSR utilises a distributed antenna system (DAS). Typically DAS systems are used for in building / tunnel distribution of signals. TRaC Global Test Report: TRA-014965-47-00-D 6 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type FCC Part RSS-131 Rule Part Appendix in Report Result RF Gain and Power Output 90.219(d)(3) 4.3 A1 & B1 Pass Intermodulation Spurious Emissions 90.219(d)(6) N/A A2 & B2 Pass Occupied Bandwidth & Modulation 90.219(4)(e)(iii) 90.210(h) N/A A3 & B3 Pass Spurious Emissions at Antenna Terminals Less than 1MHz 90.219(d)(3) 90.210(h) N/A A4 & B4 Pass Spurious Emissions at Antenna Terminals Greater than 1MHz 90.219(d)(3) N/A A5 & B5 Pass Noise At Antenna Terminals 90.219(d)(6) 90.219(e)(2) N/A A6 & B6 Pass Field Strength of Spurious Emissions 90.219(d)(3) 4.3.2 A7 & B7 Pass Passband Gain & 20dB bandwidth N/A 4.2 A8 & B8 Pass Frequency Stability 90.213 4.4 N/A(note 1) N/A Transient behaviour 90.214 4.4 N/A(note 2) N/A Audio Frequency Response (a) TIA EIA-603.3.2.6 4.5 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A N/A Signal Booster Labelling Requirements 20.21(f)(1)(ii) 5.2 N/A N/A Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT is not a keyed carrier system, therefore the test was not performed. Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions A Uplink Results Appendix B Downlink Results Appendix TRaC Global Test Report: TRA-014965-47-00-D 7 1.6 Equipment Test Conditions Product class: Uplink Class A [ ] Class B [X] Downlink Class A [ ] Class B [X] Product Use: Private Land Mobile Repeater Supply Voltages: Vnom +230Vac/110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Equipment Category: Single channel [ ] Two channel [ ] Multi-channel [X] Channel spacing: Wideband Uplink Wideband Downlink Test Location TRaC Global Skelmersdale [X] Hull [ ] Other [ ] Please Specify TRaC Global Test Report: TRA-014965-47-00-D 8 1.7 Standard References 47 CFR 2 Code of Federal Regulations, Title 47, Part 2, “Frequency allocations and Radio Telemetry Matters; General Rules and Regulations” 47 CFR 90 Code of Federal Regulations, Title 47, Part 90,”Land Mobile Radio Service”…

Text truncated - open the document above for the full version.
