NEOCE-470BDAUHF Remote Repeater, type 60-056100 units 1-2

PBE Europe Ltd. trading as Axell Wireless

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Jan 03, 2006
Application Purpose: Original Equipment
Date of Application: Jan 03, 2006
Equipment Note: UHF Remote Repeater, type 60-056100 units 1-2
Frequency Range: 485.00000000 - 486.60000000
Company: PBE Europe Ltd. trading as Axell Wireless
Country: United Kingdom

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

P B L Tunnel Units 1 & 2 Maintenance Handbook H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:- 1 of 63 Pasadena Blue Line Metro Radio System Maintenance Handbook For Canam Technology Inc. AFL Works Order Nō.: Q107519 Including AFL product part Nō’s.: 60-056100 UHF Units 1 & 2 (This document) P B L Tunnel Units 1 & 2 Maintenance Handbook H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:- 2 of 63 Table of Contents AMENDMENT LIST RECORD SHEET .................................................................................................. 5 INTRODUCTION ....................................................................................................................................... 6 Scope...........................................................................................................................................................................6 Purpose.......................................................................................................................................................................6 Glossary of Terms .....................................................................................................................................................7 AFL Drawing Symbol Keys......................................................................................................................................8 1. SAFETY CONSIDERATIONS ....................................................................................................... 9 1.1 Electric Shock Hazard .................................................................................................................................9 1.2 RF Radiation Hazard...................................................................................................................................9 1.3 Chemical Hazard........................................................................................................................................10 1.4 Emergency Contact Numbers ...................................................................................................................10 2. OVERVIEW/SYSTEM DESCRIPTION...................................................................................... 11 3. SPECIFICATIONS ........................................................................................................................ 12 3.1 Parts Lists ...................................................................................................................................................12 3.1.1 Equipment 60-056100 Parts List .............................................................................................................................. 12 3.1.2 Unit 1 Fibre Fed Tunnel Amplifier 60-056101 Parts List ......................................................................................... 12 3.1.3 Unit 2 Fibre Fed Tunnel Amplifier 60-056102 Parts List ......................................................................................... 13 3.2 Technical Specifications.............................................................................................................................15 3.2.1 UHF ONE to Tunnels 1 & 2 Technical Specification ............................................................................................... 15 3.2.2 UHF TWO to Tunnels 1 & 2 Technical Specification .............................................................................................. 16 3.3 Mechanical Specifications..........................................................................................................................17 3.3.1 Unit 1 60-056101 Mechanical Specification ............................................................................................................. 17 3.3.2 Unit 2 60-056102 Mechanical Specification ............................................................................................................. 17 4. SYSTEM DRAWINGS................................................................................................................... 18 4.1 Drg. Nō. 60-056190, Location 2 Unit 1 Case Outline Drawing ..............................................................18 4.2 Drg. Nō. 60-056192, Location 2 Unit 2 Case Outline Drawing ..............................................................19 4.3 Complete Pasadena Metro System Diagram ...........................................................................................20 5. SUB-UNIT MODULES .................................................................................................................. 21 5.1 Location 2, Unit 1 (60-056101) ..................................................................................................................21 5.1.1 Bandpass Filters (02-007302).................................................................................................................................... 21 5.1.1.1 Description .......................................................................................................................................21 5.1.1.2 Technical Specification (02-007302) ...............................................................................................21 5.1.2 AFL Fibre Optic Receiver & Transmitter (20-004001, Tx & 20-004101, Rx)..........................................................22 5.1.2.1 Description .......................................................................................................................................22 5.1.2.2 Fibre Optic Units Technical Specification .......................................................................................22 5.1.2.3 ‘D’ Connector Pinouts......................................................................................................................23 5.1.3 JWS75-15/A PSU (96-300045) ......................................................................................…

Text truncated - open the document above for the full version.

Attestation Statements

Block Diagram

LOCATION ONE CD 12 J2 T9 J7 T9 B A J1 W X YZ Q LOCATION TWO 3 5 6 TUNNELS 3 4 J6 NEO60-0561SERIES NEO60-0559SERIES NEO-CE470BDA NEO-CE470BDA UHF1A UNIT1/UNIT2 UNIT1/UNIT2 800MHz RADIATINGCABLERADIATINGCABLE NEOCCE-470N3 UHF1 NEOCCE-480N4 UHF2 470MHzANT480MHzANT 800MHzANT RADIATINGCABLE J3J4 J5 J5 60-055903 60-05590160-055902 60-05610160-05610260-05610160-056102 60-056104

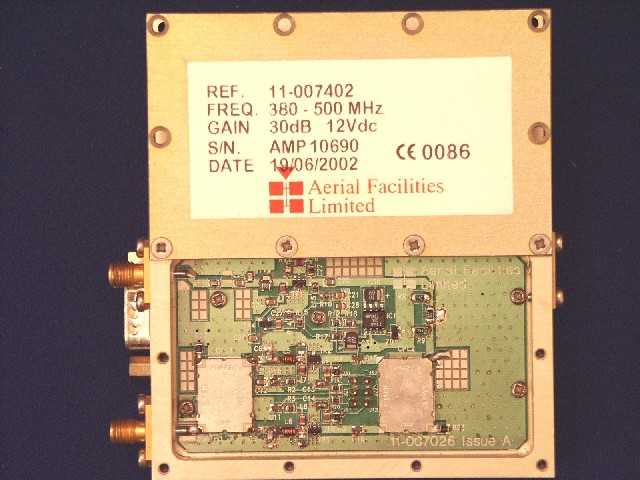

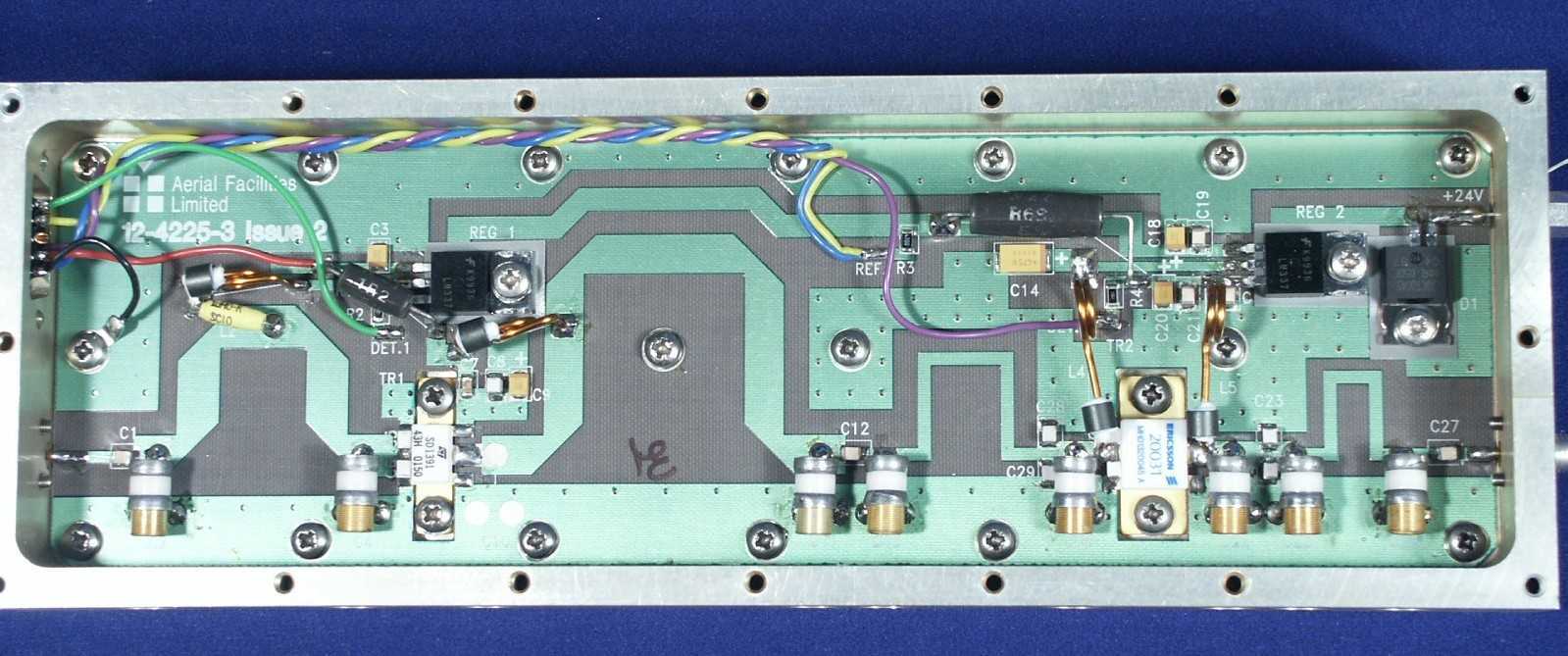

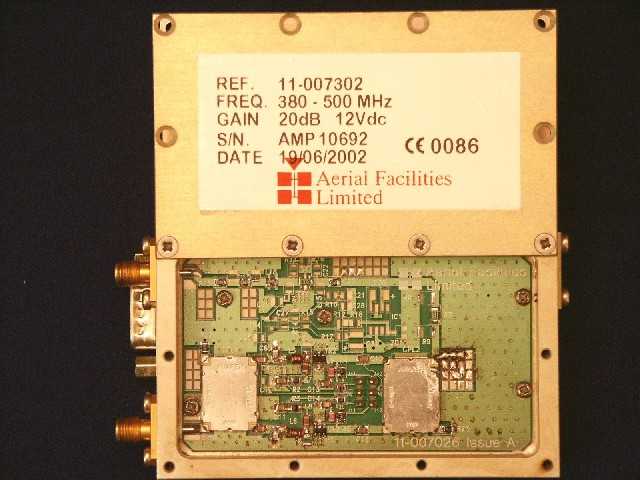

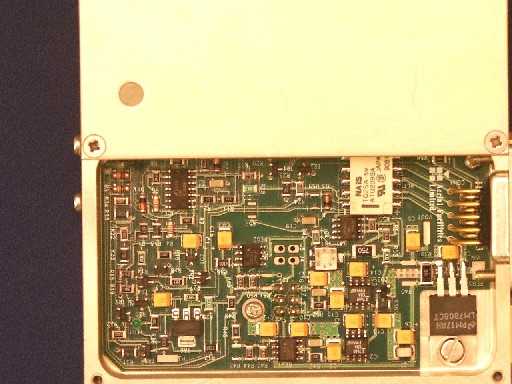

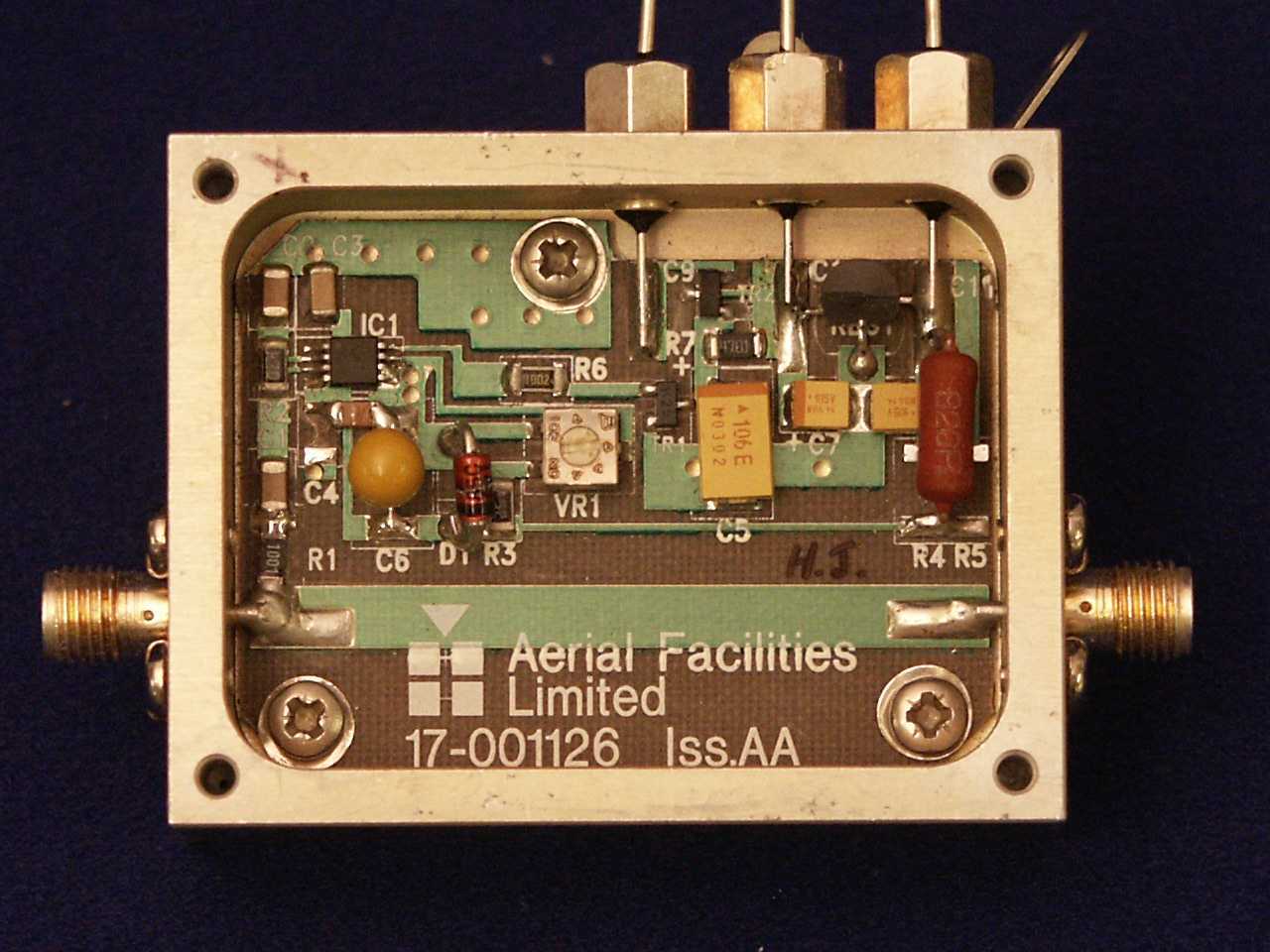

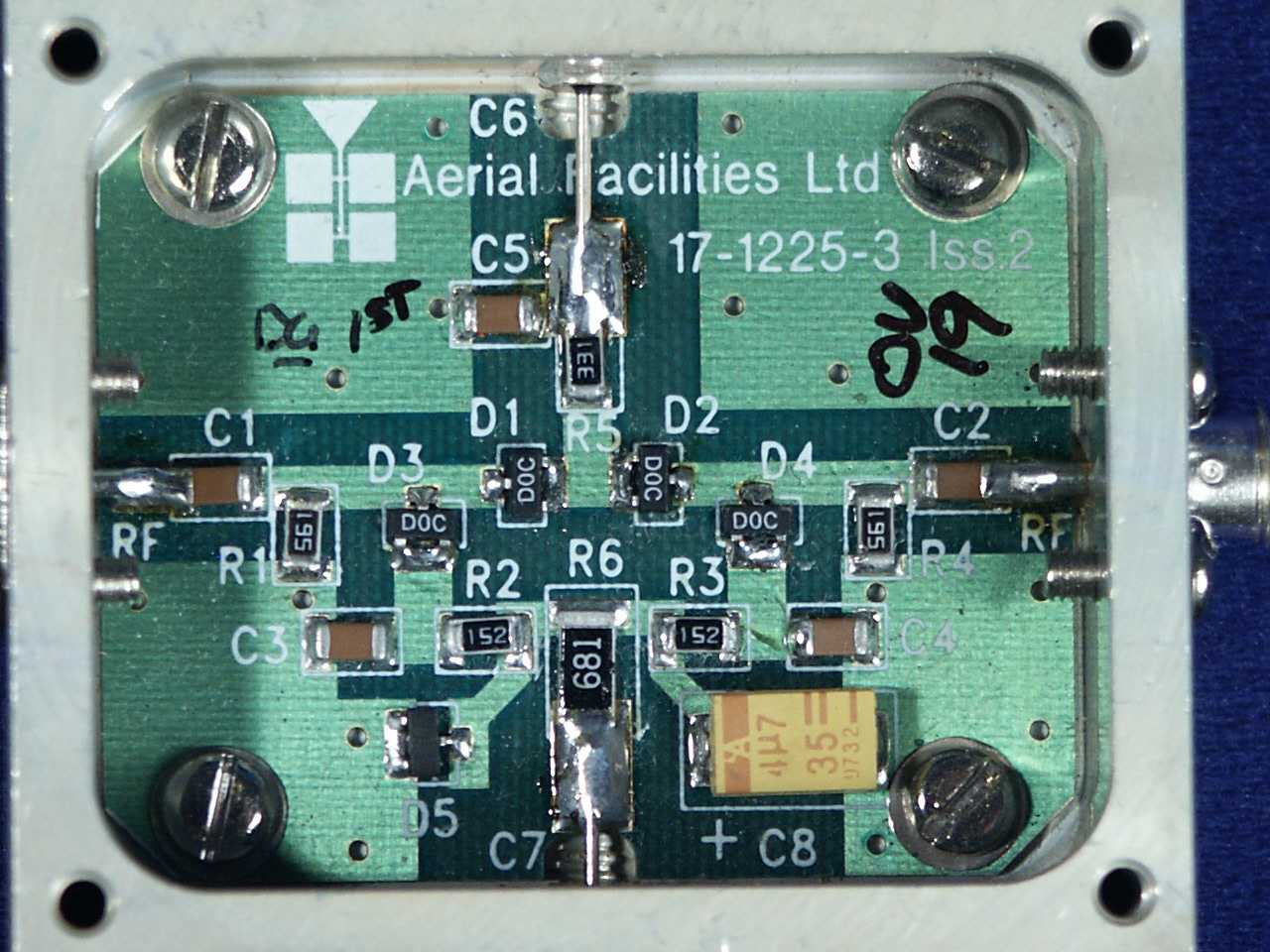

Block Diagram

P B L Tunnels Locn. 2 Units 1 & 2 Maintenance Handbook H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-11/10/2005 Page:- 21 of 64 dB dB 857-860MHz 812-815MHz 857.9375MHz 859.7625MHz 812.9375MHz 814.7625MHz 800MHz dB dB 857-860MHz 812-815MHz 12- 000201 12- 00020111- 00670211- 005902 11- 005902 11- 006702 30dB30dB 30dB30dB 20dB 20dB 14dB 14dB 14dB 14dB dB dB E O 470MHz 483MHz 473MHz 485-486MHz UNIT 1 UNIT 2 470MHz E O AGC AGC DET 473MHz dB dB 483MHz AGC AGC DET 485-486MHz H L VHF LCX 02- 007302 02- 007302 02- 007302 02- 007302 02- 013401 02- 013401 02- 013401 02- 013401 12- 00420511- 007302 11- 007402 11- 006102 11- 007302 20dB 30dB 16dB 20dB24dB 12- 00420111- 007302 11- 00730111- 006102 11- 007302 20dB 30dB 16dB20dB20dB H L LCX 800MHz LOCATION TWO -15dBm -15dBm 18dBm 20dBm 28dBm 26dBm 18dBm 21dBm -60dBm 19dBm -60dBm -60dBm -15dBm -15dBm 25dBm -65dBm -17dBm -65dBm -62dBm -63dBm -65dBm 18dBm 60-056101 60-056102 60-056103 K L M N O P R S T J5 T8 T7 J6 -25dBm -26dBm 483-486MHz 470-475MHz 02- 007302 02- 007302 T10 T11 3 dB dB dB dB dB dB dB dB dB E O E O E O 482MHz 470MHz 473MHz 485MHz 483MHz 486MHz 482.2375MHz 470.2625MHz 470.2125MHz 473.2625MHz 473.2125MHz 485.2375MHz 483.3125MHz 483.2875MHz 483.0625MHz 483.5625MHz 486.3125MHz 486.2875MHz 486.0625MHz 486.5625MHz UHF 1 UHF 2 02- 013401 02- 013401 02- 013401 11- 007401 11- 007302 11- 007401 11- 007302 12- 001801 11- 007301 11- 00610111- 007301 02- 013401 02- 013401 02- 013401 32dB20dB 32dB 20dB 20dB 20dB 30dB 16dB 15dB 20dB 20dB 5dB 5dB 15dB 11- 007401 11- 007401 32dB 32dB 12- 004201 11- 007301 20dB30dB 20dB 20dB 20dB 20dB 25dB 6dB 6dB 6dB 6dB LOCATION ONE -15dBm 11- 007302 20dB -11dBm -3dBm -62dBm -72dBm -82dBm -72dBm -3dBm 11- 007401 32dB 11- 007401 32dB 11- 007401 32dB -15dBm -15dBm -19dBm +20dBm -15dBm +18dBm -19dBm -27dBm 60-055901 60-055902 B CD A 1 2 J1 J2 -23dBm -23dBm -23dBm -22dBm -22dBm -12dBm -35dBm -35dBm -35dBm -35dBm -20dBm -20dBm -20dBm -20dBm T1 T2 T3 T4 T9 5 6 dB dB E O 470MHz 483MHz 473MHz 485-486MHz UNIT 1 UNIT 2 470MHz E O AGC AGC DET 473MHz dB dB 483MHz AGC AGC DET 485-486MHz H L 483-486MHz 470-475MHz VHF LCX LCX 02- 007302 02- 007302 02- 007302 02- 007302 02- 013401 02- 013401 02- 013401 02- 013401 12- 00180111- 007302 11- 00730211- 006102 11- 007302 20dB 30dB 16dB 20dB20dB 12- 00420111- 007302 11- 00730211- 006102 11- 007302 20dB 30dB 16dB20dB20dB 02- 007302 TUNNEL ONE & TWO -15dBm 20dBm 20dBm 27dBm 30dBm 28dBm 18dBm 18dBm -15dBm -50dBm -50dBm -50dBm -50dBm -57dBm -15dBm -57dBm -15dBm -17dBm 60-056001 60-056002 E FG HI J 3 4 J4 J3 U T6 T5 02- 007302 02- 010401 02- 010401 02- 010401 02- 010401 4.3 Complete Pasadena Metro System Diagram

Cover Letter(s)

6 Aerial Facilities Limited R F System Engineering.Aerial House, Radio Site Engineering.Asheridge Road, Tel:+44(0)1494 777000Chesham, Buckinghamshire, Fax:+44(0)1494 777002England, HP5 2QD 19 th December, 2005 TRL Compliance Services Ltd Long Green Forthampton Gloucester GL19 4QH UK REF: NEOCE-470BDA, Declared and reported power. The Power amplifiers used in the two units in the downlink direction are described as 5W and 20W. These amplifiers are used not to produce these levels of power but to ensure good linearity in the multi- carrier environment. It is the third order intercept point we are looking for to ensure the attenuation of unwanted intermodulation products is maximum. In fact the level of each carrier at the output is limited to 20dBm, this is achieved by individual ALC per carrier in the master-site. In addition ALC in the remote units ensures that the remotes as ‘standalone’ units also remain within the FCC regulations. However the power achieved at the output when tested as a standalone is considerably higher than that when used in the overall system. If you have any further questions or comments do not hesitate to contact me. Yours faithfully For and on behalf Aerial Facilities Limited Peter L Bradfield Senior Systems Engineer Tel: +44 1494 777020 Fax +44 1494 777002 [email protected] Asheridge Road, Chesham, Buckinghamshire, HP5 2QD England Registered No. 4042808 (England) www.aerialfacilities.com

ID Label/Location Info

voltage Hig h DANGE R Heavy CAUT ION Ae ria l Fa c ilitie sLim ited England BY DAT E DESCRIPT ION No ISSUE 1 2 34 5678 9 A BCDE F 1 234 5678 9 A BCD E F Fax : 01494 777002 Fax : 01494 777000 Aerial Facilities Limited THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD.REPRODUCT ION OR USE OF T HIS DESIGN BY OT HERS ISPERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITINGBY AERIAL FACILIT IES LT D. NO DECIMAL PLACE ± 1mmONE DECIMAL PLACE ± 0.3mmTWO DECIMAL PLACES ± 0.1mm ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED CHKD DRAWN APPDDAT E TOLERANCES SCALE England CUST OMER DRAWING.No TITLE 3A FCC IDENT. LABEL POSITIONIP65 STEEL ENCLOSURE 80-312191 1A 1:8 DBS 30/9/03 PRODUCTION ISSUE 30/ 9/ 03 DBS PSU ALARM FCC IDENT. LABEL

Operational Description

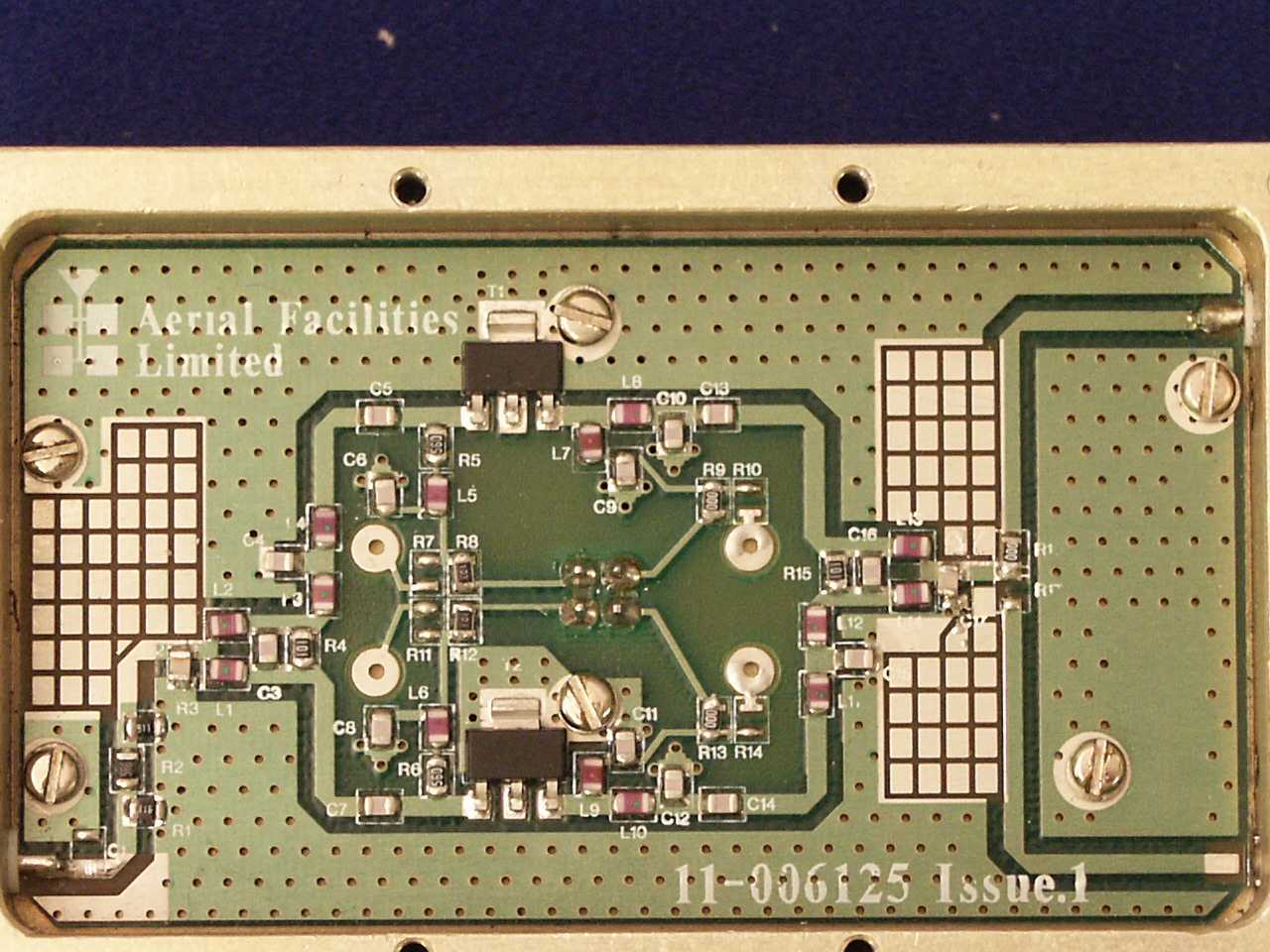

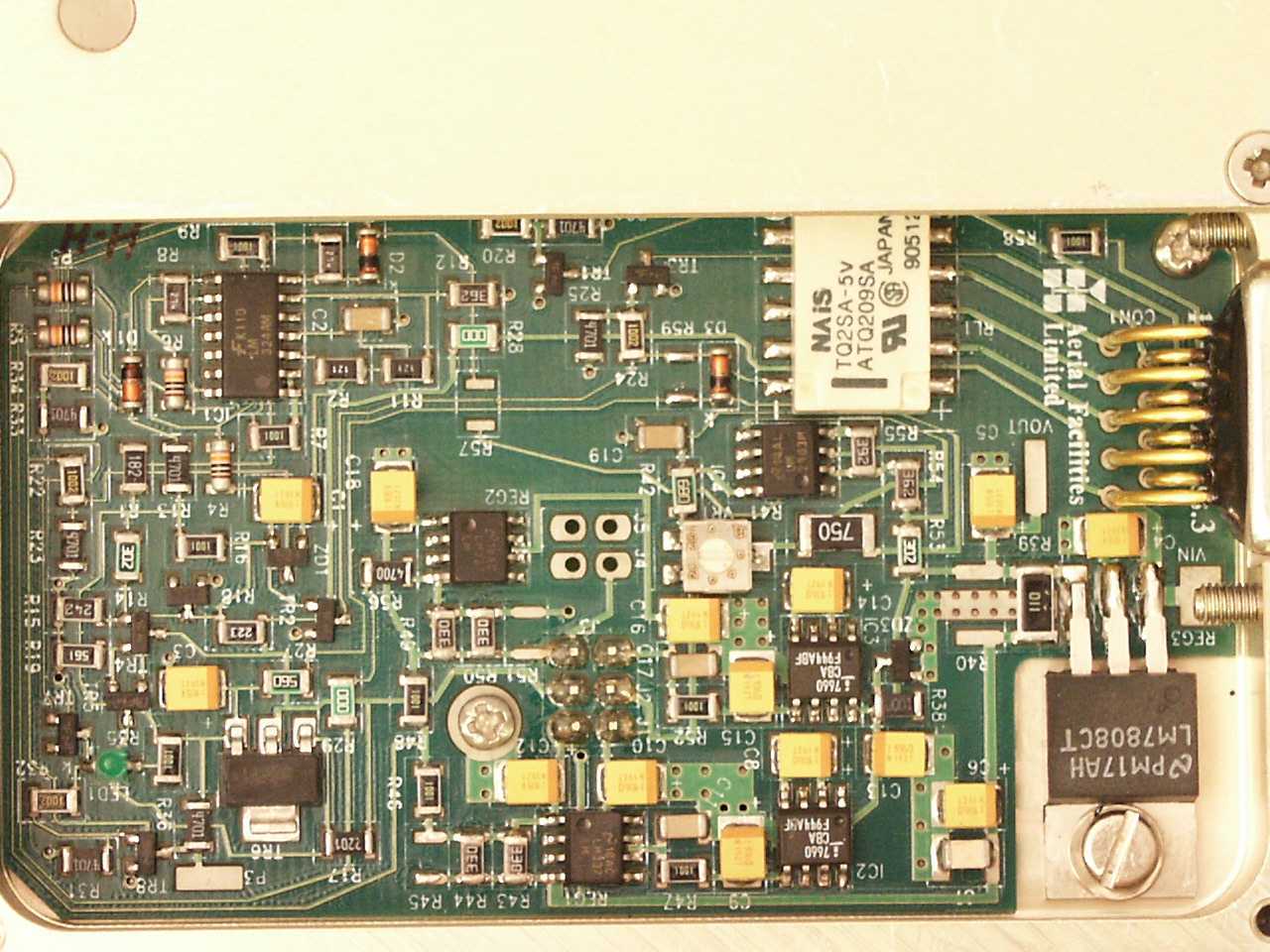

2. OVERVIEW/SYSTEM DESCRIPTION The AFL Fibre feed Amplifier for the Pasadena Blue line project is a 2 way on- band RF amplifier. The primary application is as an interface between the fibre optical link from UNIT ONE and the tunnel antenna/leaky feeder system. There are two units, one designated ‘UNIT 1’, which is a fibre Tx or Rx with an associated bandpass filter for each RF path, and ‘UNIT 2’ (a Bi-Directional amplifier) for the frequencies in the 483-486MHz range. Each unit is housed in an environmentally protected IP65 steel wall-mount case. Handles are provided for carrying the unit and the door is fitted with locks. The unit interfaces with ‘N’ type female connectors for RF connections and heavy duty connectors for routing of AC power supply input and alarm output wiring. Cable glands are provided for routing of the Fibre optic cable in to the units. To provide adequate selectivity in the Downlink and Uplink paths, combline design duplexers are used at the input and output ports. To provide the required gain to reach the required signal levels, low-noise amplifiers (LNA’s) are used in each path, these being followed by power amplifier modules in the uplink to provide the required intermodulation performance. Gain adjustment is available locally using switched attenuators. Note that “Downlink” refers to the RF path from FO receiver to the leaky feeder port and that “Uplink” refers to the RF path from the leaky feeder port to either the FO transmitter or off-air antenna. The AFL 800MHz Off Air Amplifier for the Pasadena Blue line project is a 2 way on-band RF amplifier. It’s application is as an air interface between the donor radio site and the tunnel leaky feeder system. The unit is housed in an environmentally protected IP65 steel wall-mount case. Handles are provided for carrying the unit and the door is fitted with locks. The unit interfaces with ‘N’ type female connectors for RF connections and heavy duty connectors for routing of AC power supply input and alarm output wiring.

Test Report

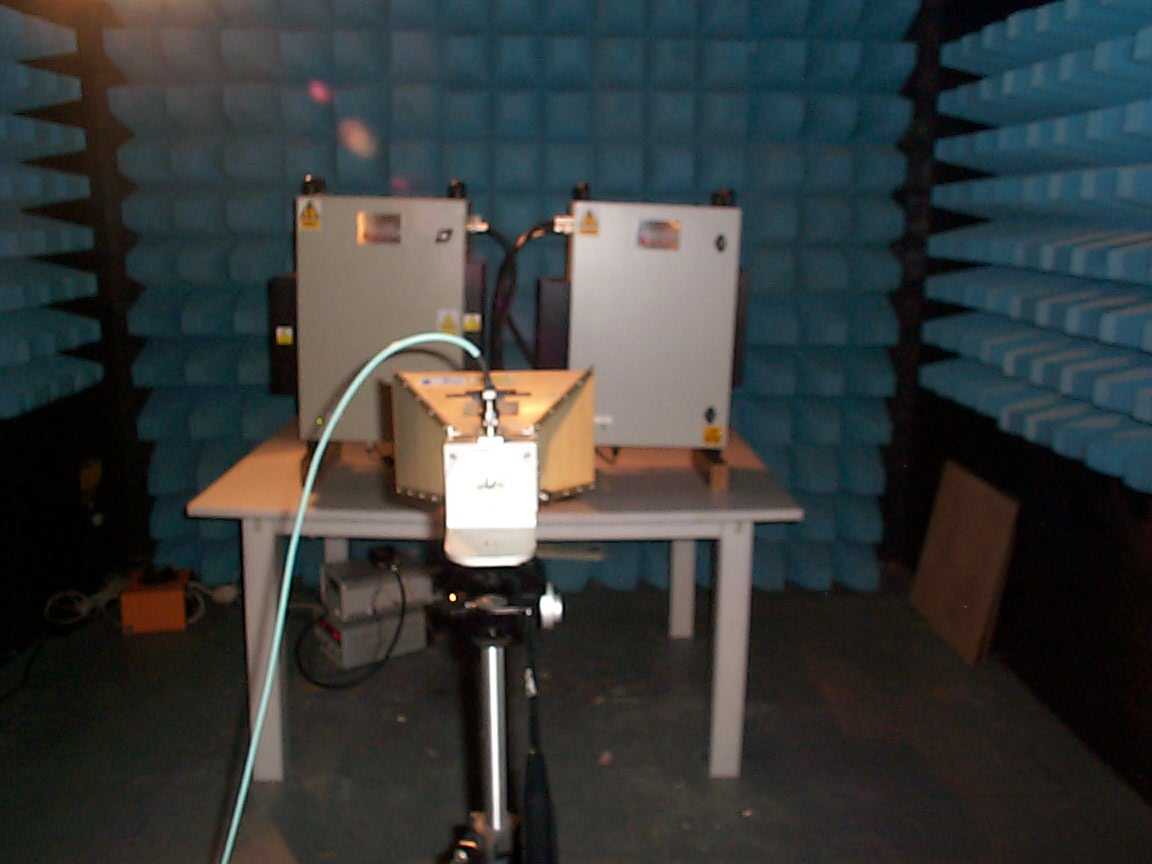

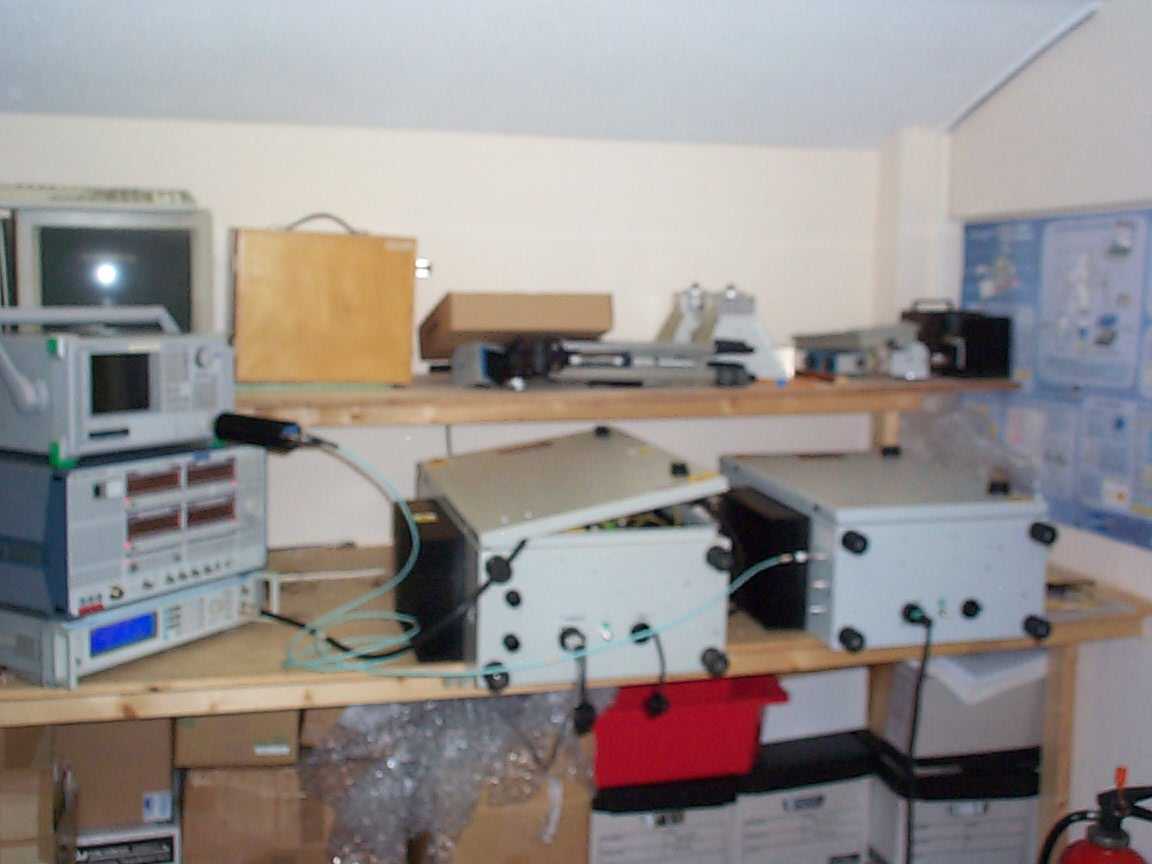

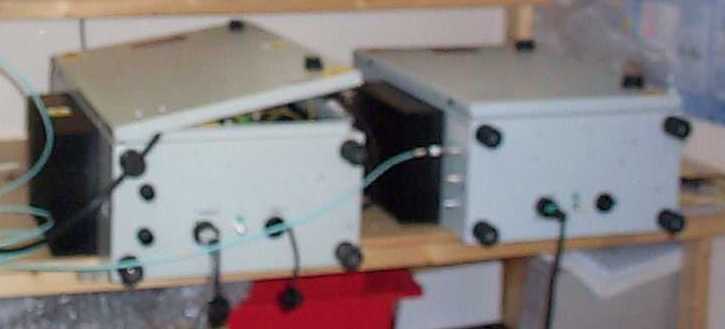

TRL C OMPLIANCE S ERVICES L TD EMC D IVISION L ONG G REEN F ORTHAMPTON G LOUCESTER GL19 4QH U NITED K INGDOM T ELEPHONE +44 (0)1684 833818 F AX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1189/6473 COPY NO: 1 ISSUE NO: 1 FCC ID: NEOCE-470BDA REPORT ON THE CERTIFICATION TESTING OF AERIAL FACILITIES LIMITED 60-056101 and 60-056102 WITH RESPECT TO THE FCC RULES CFR 47, PART 90 SUBPART I TEST DATE: 12 th – 16 th July 2005 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 1 st December 2005 Distribution: Copy Nos: 1. Aerial Facilities Limited 2. TCB: TRL Compliance Services Limited. 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1189/6473 Page 2 of 67 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-60 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Test setup TEST EQUIPMENT CALIBRATION DETAILS B SYSTEM DIAGRAM C Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RU1189/6473 Page 3 of 67 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: NEOCE-470BDA PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, PART 90 SUBPART I TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: 60-056101 and 60-056102 EQUIPMENT TYPE: Booster MAXIMUM GAIN Downlink: 470MHz: 38.4dBm 483MHz :44.3dBm Up Link: 473MHz: 59.01dBm 486MHz : 49.3dBm MAXIMUM INPUT Downlink: 470MHz: -6dBm 483MHz:-7dBm Uplink: 473MHz: -74dBm 486MHz:-64dBm MAXIMUM OUTPUT Downlink: 470MHz: 32.4dBm 483MHz:37.3dBm Uplink: 473MHz: -14.99dBm 486MHz:-14.7dBm CHANNEL SPACING: 25kHz NUMBER OF CHANNELS: Downlink 470MHz band Down Link 483MHz Band 470.2625MHz 483.3125MHz 470.2125MHz 483.2875MHz 483.0625MHz 483.5625MHz 482.2375MHz Uplink 473MHz Band Uplink 486MHz Band 473.2625MHz 486.3125MHz 473.2125MHz 486.2875MHz 486.0625MHz 486.5625MHz 485.2375MHz FREQUENCY GENERATION: N/A MODULATION TYPE: F3E POWER SOURCE(s): 110Vac TEST DATE(s): 12 th – 16 th July 2005 ORDER No(s): 31474 APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RU1189/6473 Page 4 of 67 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): 60-056101 and 60-056102(Downlink only) EQUIPMENT TYPE: Booster PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, PART 90 SUBPART I TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 31474 APPLICANT’S CONTACT PERSON(s): Mr Peter Bradfield E-mail address: [email protected] APPLICANT: Aerial Facilities Limited ADDRESS: Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU United Kingdom TEL: +44 (0)1494 777000 FAX: +44 (0)1494 778456 MANUFACTURER: Aerial Facilities Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 12 th – 16 th July 2005 TEST REPORT No: RU1189/6473 RU1189/6473 Page 5 of 67 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY RESULT RF Gain 90.205 2.1046 Yes Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 2.1049 Yes Complies Spurious Emissions at Antenna Terminals 90.210 Yes Complies Field Strength of Spurious Emissions 90.210 2.1053 Yes Complies Frequency Stability 90.213 N/A N/A (Note 1) Transient behaviour 90.214 N/A N/A (Note 1) Notes: 1 The EUT does not contain modulation circuitry, therefore the test was not performed. 2 The EUT does not contain any switching circuitry, therefore the test was not performed. 2. Product Use: Cell enhancer 3. Emission Designator: F3E 4. Temperatures: Ambient (Tnom) 26 o C 5. Supply Voltages: Vnom 110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [X] Wideband [ ] 8. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. 10. System description The 60-056101 and 60-56102 are intended to be used as part of a larger system. They are broadband boosters with the channel filtering occurring at the above ground air interface. See Annex C for a system diagram. RU1189/6473 Page 6 of 67 COMPLIANCE TESTS TRANSMITTER TEST – GAIN – CONDUCTED – PART 2.1046 – DOWNLINK Ambient temperature = 18 o C Radio Laboratory Relative humidity = 41% Supply voltage = 110Vac Channel number = See test results Frequency MHz Signal Generator Input Level dBm Cable & attenuator Loss dB Level at Spectrum Analyser dBm Gain dB Gain after 10dB increase input signal level dBm Measured Output power dBm 469.5 -6.0 46.6 -15.76 36.84 29.5 30.84 469.95 -6.0 46.6 -15.71 36.89 28.5 30.89 470.4 -6.0 46.6 -14.2 38.4 29.0 32.4 482.2 -7.0 46.6 -9.46 44.14 37.4 37.14 482.9 -7.0 46.6 -9.27 44.33 37.8 37.33 483.6 -7.0 46.6 -10.8 42.8 36.95 35.8 The test was setup as above. The signal generator was to simulate an input signal to the system from a transmitter and the analyzer used to obtain the output level from the system. TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED SPECTRUM ANALYSER ANRITSU MS266C MT26089 479 X ATTENUATOR BIRD 8302 N/A 105 X ATTENUATOR BIRD 8304-300-N N/A 220 X CABLE ROSENBERGER MICRO COAX N/A 280 X SIGNAL GENERATOR MARCONI 2023 112224/040 UH105 X Spectrum Analyser TRL479 Signal Generator TRLUH105 TRL 280 Cable & attenuators TRL105 TRL220 60.-056101 110Vac 60-056102 110Vac RU1189/6473 Page 7 of 67 TRANSMITTER TEST - INTERM…

Text truncated - open the document above for the full version.
