AXELL D-MBR 3007-3008-PS NFPA REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL SMR 700/800 Digital Multi-Channel IP65 (NEMA 4) Band Selective Repeater PRODUCT DESCRIPTION AND USER’S MANUAL for AXELL D-MBR 3007-3008-PS NFPA REPEATER UMCD00013 Rev 2.2 D-MBR 3007-3008 PS NFPA AXELL D-MBR 3007-3008-PS NFPA REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL II UMCD00013 Rev 2.2 © Axell Wireless Ltd Copyright © 2014 Axell Wireless Ltd All rights reserved. No part of this document may be copied, distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language without the prior written permission of Axell Wireless Ltd. The manufacturer has made every effort to ensure that the instructions contained in this document are adequate and free of errors and omissions. The manufacturer will, if necessary, explain issues which may not be covered by this document. The manufacturer's liability for any errors in the document is limited to the correction of errors and the aforementioned advisory services. This document has been prepared to be used by professional and properly trained personnel, and the customer assumes full responsibility when using them. The manufacturer welcomes customer comments as part of the process of continual development and improvement of the documentation in the best way possible from the user's viewpoint. Please submit your comments to the nearest Axell Wireless sales representative. Contact Information Headquarters Axell Wireless Aerial House Asheridge Road, Chesham Buckinghamshire HP5 2QD United Kingdom Tel: +44 1494 777000 Fax: +44 1494 777002 Commercial inquiries [email protected] Web site www.axellwireless.com Support issues [email protected] Technical Support Line, English speaking +44 1494 777 747 Contact information for Axell Wireless offices in other countries can be found on our web site, www.axellwireless.com AXELL D-MBR 3007-3008-PS NFPA REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL © Axell Wireless Ltd UMCD00013 Rev 2.2 III About This Manual This Product Manual provides the following information: • Description of the Repeater • Procedures for setup, configuration and checking the proper operation of the Repeater • Maintenance and troubleshooting procedures For whom it is Intended This Product Manual is intended for experienced technicians and engineers. It is assumed that the customers installing, operating, and maintaining Axell Wireless Mini- Repeaters are familiar with the basic functionality of Repeaters. Notice Confidential - Authorized Customer Use This document may be used in its complete form only and is solely for the use of Axell Wireless employees and authorized Axell Wireless channels or customers. The material herein is proprietary to Axell Wireless. Any unauthorized reproduction, use or disclosure of any part thereof is strictly prohibited. All trademarks and registered trademarks are the property of their respective owners. Disclaimer of Liability Contents herein are current as of the date of publication. Axell Wireless reserves the right to change the contents without prior notice. The information furnished by Axell Wireless in this document is believed to be accurate and reliable. However, Axell Wireless assumes no responsibility for its use. In no event shall Axell Wireless be liable for any damage resulting from loss of data, loss of use, or loss of profits and Axell Wireless further disclaims any and all liability for indirect, incidental, special, consequential or other similes damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Guarantees • All antennas must be installed with lightning protection. Damage to power modules, as a result of lightning are not covered by the warranty. • Antennas must be connected before switching on AC or DC power. Switching power on prior to the connection of antenna cables is regarded as faulty installation procedure and therefore not covered by the Axell Wireless warranty. • The repeater box should be closed using the two screws. The screws must be fully tightened. Failure to do so may affect the IP65 compliancy and therefore any warranty. Exclusive Remedies The remedies provided herein are the Buyer’s sole and exclusive remedies. Axell Wireless shall not be viable for any direct, incidental, or consequential damages, whether based on contract, tort, or any legal theory. AXELL D-MBR 3007-3008-PS NFPA REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL IV UMCD00013 Rev 2.2 © Axell Wireless Ltd Compliance with FCC Note the following: This repeater can be operated as Part 90 Class B repeater. FCC Part 90 Warning Statement WARNING: This is NOT a CONSUMER device. It is designed for installation by FCC LICENCEES and QUALIFIED INSTALLERS. You must have an FCC LICENCE or express consent of an FCC Licensee to operate this device. This is a Class B signal booster. You MUST register Class B signal boosters (as defined in 47 CFR 90.219) online at www.fcc.gov/signal-boosters/registration. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Note the following The installation procedure must result in the signal booster complying with FCC requirements 90.219(d). In order to meet FCC requirements 90.219(d), it may be necessary for the installer to reduce the UL and/or DL output power for certain installations. FCC Part 15 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the…

Text truncated - open the document above for the full version.

AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 Authority to Act as Signatory 10 th June, 2014 Attn: Director of Certification On our behalf, I appoint Raviv Cohen, R&D Engineer, Axell Wireless, 6 Bareket Street, Kiryat Matalon P.O. Box 10241 ,Petah-Tikva49002, Tel Aviv, Israel. In the preparation of applications for FCC equipment certification for Axell wireless, Grantee Code NEO. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified, still resides with Peter Bradfield, Axell Wireless Aerial House, Asheridge Road, Chesham Bucks, HP5 2QD, UK. Dated this 10th Day of June 2014 By: Peter l. Bradfield Signature Printed Thank you for your attention to this matter. Yours faithfully For and on behalf Axell Wireless Peter L Bradfield Senior Systems Engineer Tel +44 (0)1494 777000 Fax +44 (0)1494 777002 www.axellwireless.com

Attestation exhibit – We, Axell Wireless, state under our sole responsibility that all warning labels and Class B disclosure of the booster (FCC ID: NEODMBR30073008PS) are shown in all documentations such as user manual and data sheet. These documents are supplied with the booster, and can also be found online at our website www.axellwireless.com. We declare that the Warning label will be visible on the outside packaging of device as well as on the device itself. ______________________ Mr. Raviv Cohen [email protected]

1 September 7, 2014 Federal Communication Commission Office of Engineering and Technology USA RE: FCC ID:NEODMBR30073008PS Form 731 CN: EA714755 Subject: CRN46302 Dear Mr. Rodriguez, Please find attached our response according to your questions. 1. Per Sections 90.20(c)(3), 90.521, 90.531 first paragraph, etc., routine licensing and governing technical standards for Public Safety Narrowband operations are not presently specified for 758-769 and 788-798 MHz [i.e., FirstNet spectrum; FCC-13-137, DA-12-1462, etc.]. Therefore these bands should not be listed on a Form 731 for Part 90 Public Safety Narrowband equipment absent specific justification in the filing [see KDB pub. 634817; Section 2.962(c)(5) along with Jan. 2014 FCC-TCB conference notes; Section 2.962(f)(1)]. Where listing of narrowband operations in 758-769 and 788-798 MHz qualifies, the following grant note will be used: "This filing includes compliance information and test data for incumbent public safety narrowband operations in Public Safety Broadband (FirstNet) spectrum." Consistent with KDB pub. 634817, in this case also at minimum test data must be provided for channels within the Public Safety Narrowband spectrum (769-775 MHz). Response: This is a 90.219 class B device and has a pass band that exceeds 75 kHz. The application is filled out for contiguous bands as allowed in KDB pub. 634817 and the test data represents frequencies according to II(f)(2) of KDB pub. 634817. We applied for BB booster approval and got the questions for NB booster. Please clarify. FL (MHz) − FH (MHz) Rule(s) 758 − 768 90‐R, Public Safety (PS) Broadband (FirstNet) 768 − 769 PS Guardband 769 − 775 PS Narrowband 788 − 798 90‐R, Public Safety (PS) Broadband (FirstNet) 798 − 799 PS Guardband 799 − 805 PS Narrowband 2. FCC RF Exposure Limits – User manual and RF Exposure exhibit are not in agreement for minimum separation distance. Please correct. Response: The user manual was adjusted for 35 cm safe distance, please refer to file User_manual_25633_rev1 uploaded on Sept. 8, 2014. 3. Please review and clarify the User Manual equations for determining Max Donor and Server antenna gain. The arithmetic found in example equations does not appear to be correct i.e. “37 - (33-6-3) = 0 dBd “. Please also clarify the intent of these equations. Are the equations written as such to limit the ERP to 37dbm or some other value? Response: . The equations were corrected, please refer to file User_manual_25633_rev1. The intent of these equation is to provide the operator with the proper tools to make sure that the booster's deployment will be according to the FCC rules. FCC states that the maximum allowed ERP is 37 dBm, since the repeater is tested as a device, the operator needs to be informed that all peripheral devices (i.e. cables, antennas etc.) should be properly selected in order to meet FCC ERP limits. 2 4. Output Power section should be amended to indicate measurements are max conducted output power not radiated power if in fact measurements were done at the antenna port as suggested by test setup figure. This includes summary table which has column for “Maximum ERP” .. Response: The test report was corrected, please see AXERAD_FCC.25633_rev3 uploaded on Sept. 8, 2014. 5 Test report does not show data demonstrating compliance with 90.219(e)(2) noise figure limit of 9dB. Please amend Test Report to include. Response: The test report was amended, please refer to section 7.8 of AXERAD_FCC.25633_rev3. 6 As indicated in KDB Pub KDB 935210 D02, at present time eqpt. filings in 806-809/851-854 (NPSPAC) remain prohibited unless compliance is shown for Mask H (DA-13-1803 docket no. 13-209). Please amend test report to show compliance with this rule part. Response: The test report was amended, please refer to section 7.7 of AXERAD_FCC.25633_rev3. The test report updated to show compliance for C4FM and analog FM types of modulation. PS! Would you be so kind to send your comments to Applicant Mr. Raviv Cohen, e-mail address: [email protected], authorized person for this filing and not to Mr. Peter Bradfield recorded in the FCC database? Sincerely yours, Raviv Cohen, R&D Engineer Axell Wireless Israel Ltd. M. Nikishin, EMC and Radio group manager Hermon Laboratories Ltd.

1 September 24, 2014 Federal Communication Commission Office of Engineering and Technology USA RE: FCC ID:NEODMBR30073008PS Form 731 CN: EA714755 Subject: CRN46384 Dear Mr. Rodriguez, Please find attached our response according to your questions. 1. LTE test data, unless overlooked, was not found in test report. Please amend test report accordingly. Response: The test report was adjusted, the LTE test data added, please refer to pages 42‐45, 80‐83, 126‐132, 243 ‐251 in the test report AXERAD_FCC.25633_rev4 uploaded on Sept.24, 2014. Sincerely yours, Raviv Cohen, R&D Engineer Axell Wireless Israel Ltd. M. Nikishin, EMC and Radio group manager Hermon Laboratories Ltd.

1 October 1, 2014 Federal Communication Commission Office of Engineering and Technology USA RE: FCC ID:NEODMBR30073008PS Form 731 CN: EA714755 Subject: CRN46419 Dear Mr. Rodriguez, Please find attached our response according to your question. 1. Filing does not include any information or frequency listing for Part 20 Signal Booster (CMRS) equipment classification. Therefore references to Part 20 in the user manual and the statement "This repeater can be operated as both a Part 20 and/or Part 90 Class B repeater" are not appropriate and should be removed from user manual. Response: The user manual was adjusted, please refer to page IV in the file “User_manual_25633_rev2” uploaded on Oct.1, 2014. Sincerely yours, Raviv Cohen, R&D Engineer Axell Wireless Israel Ltd. M. Nikishin, EMC and Radio group manager Hermon Laboratories Ltd.

1 October 1, 2014 Federal Communication Commission Office of Engineering and Technology USA RE: FCC ID:NEODMBR30073008PS Form 731 CN: EA714755 Subject: CRN46425 Dear Mr. Rodriguez, Please find attached our response according to your question. 1. The following technical specification has been added to the e-filing to account for LTE. 758-768 1.009 AMP G7D 788-798 2.023 AMP G7D Response: In test report AXERAD_FCC.25633_rev4, Tables 7.1.8 and 7.1.9, page 42: 1.009 W (30.04 dBm) appears in Table 7.1.8 at 760.5 MHz 2.023 W (33.06 dBm) appears in Table 7.1.9 at 765.5 MHz So, the both are in 758‐768 MHz range, not in 788‐798 MHz. In 788‐798 MHz the maximum power is 27.67 dBm (Table 7.1.8), 0.585 W. So, we suppose that it shall be more exactly 758-768 2.023W AMP G7D 788-798 0.585W AMP G7D Sincerely yours, 0 Raviv Cohen, R&D Engineer Axell Wireless Israel Ltd. M. Nikishin, EMC and Radio group manager Hermon Laboratories Ltd.

Axell Wireless Israel Ltd. Tel: +972 3918 0180; Fax: +972 3918 0190, www.axellwireless.com June 10, 2014 Federal Communication Commission Office of Engineering and Technology USA Subject: Application for certification of the D-MBR 3007-3008-PS-NFPA Band Selective Repeater, FCC ID:NEODMBR30073008PS Dear Gentlemen, Please find attached our application for certification of the Band Selective Repeater that supports the 700 MHz and 800 MHz bands, FCC ID:NEODMBR30073008PS, model name D-MBR 3007-3008-PS- NFPA, prepared in accordance with FCC Rules, parts 2 and 90. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC (Registration Numbers 90623, 90624). The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, tel: 011 972 4626 8440, fax:011 972 4628 8277, e-mail: [email protected]. We hope this application satisfies your requirements. Please send an invoice to Hermon Labs. Sincerely yours Raviv Cohen R&D Engineer Axell Wireless Israel Ltd.

Axell Wireless Israel Ltd. 6 Bareket Street, Kiryat Matalon P.O. Box 10241, Petach Tikva 49002, Israel FCC ID:NEODMBR30073008PS Date: 2014.06.10 F E D E R A L C O M M U N I C A T I O N S C O M M I S S I O N Authorization and Evaluation Division C o n f i d e n t i a l i t y R e q u e s t Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: Schematics Parts list Tune up procedure Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Raviv Cohen R&D Engineer Tel: +972 3918 0180 Fax: +972 3918 0190 e-mail: [email protected]

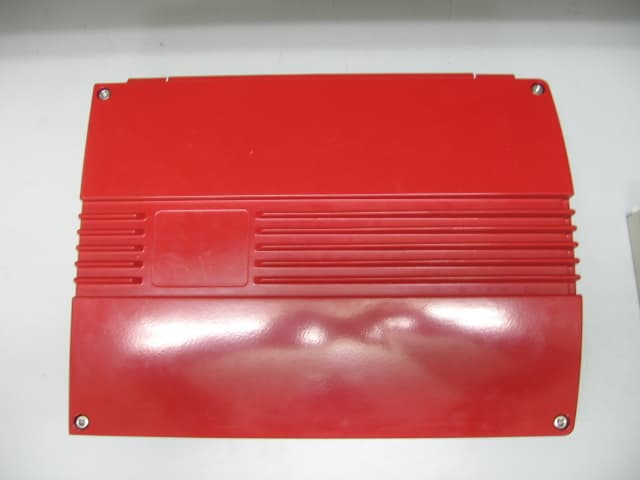

Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 1 of 7 EXTERNAL PHOTOGRAPHS This document contains 6 photographs Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 2 of 7 Photograph No.1 Repeater front view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 3 of 7 Photograph No.2 Repeater rear side view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 4 of 7 Photograph No.3 Repeater side view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 5 of 7 Photograph No.4 Repeater other side view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 6 of 7 Photograph No.5 Antenna connectors Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 7 of 7 Photograph No.6 Repeater short side view

Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 1 of 2 LABEL The labels are affixed on the EUT as shown below. The label material is sheet silver color metalized polyester with a permanent adhesive. Label with FCC ID Warning label Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 2 of 2 Labels location Label with FCC ID:NEODMBR30073008PS is located here. The Warning label is located here

Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 1 of 27 INTERNAL PHOTOGRAPHS This document contains 26 photographs Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 2 of 27 Photograph No.1 Repeater internal view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 3 of 27 Photograph No.2 Internal close view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 4 of 27 Photograph No.3 Main PCB (CCD module) front view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 5 of 27 Photograph No.4 Main PCB (CCD module), close view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 6 of 27 Photograph No.5 Main PCB (CCD module) second side view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 7 of 27 Photograph No.6 RF boards Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 8 of 27 Photograph No.7 RF boards second side Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 9 of 27 Photograph No.8 RF PCB (ADEM module) front view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 10 of 27 Photograph No.9 ADEM module second side Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 11 of 27 Photograph No.10 RF PCB (ADEM module) second side Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 12 of 27 Photograph No.11 ADEM module second side close view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 13 of 27 Photograph No.12 RF PCB (ADEM module) with shields removed Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 14 of 27 Photograph No.13 RF PCB (ADEM module) close view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 15 of 27 Photograph No.14 Shielding compartments of the RF PCB (ADEM module) Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 16 of 27 Photograph No.15 RF PCB front view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 17 of 27 Photograph No.16 RF PCB front side, close view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 18 of 27 Photograph No.17 Second side of the RF PCB Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 19 of 27 Photograph No.18 PA module front view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 20 of 27 Photograph No.19 PA module front side, close view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 21 of 27 Photograph No.20 PA module second side Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 22 of 27 Photograph No.21 PA module second side, close view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 23 of 27 Photograph No.22 DC/DC convertor front view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 24 of 27 Photograph No.23 DC/DC convertor second side view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 25 of 27 Photograph No.24 Duplexer general view Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 26 of 27 Photograph No.25 Duplexer (first side view) Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 27 of 27 Photograph No.26 Duplexer (second side view)

Axell Wireless Ltd. FCC ID:NEODMBR30073008PS Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The booster may be installed indoors or outdoors as stated in the User’s manual page 9, the calculation was done to confirm a safe distance. Limit for power density for general population/uncontrolled exposure is f/1500 mW/cm 2 for 300 – 1500 MHz frequency range: P = 758/1500 = 0.5 mW/cm 2 The power density P (mW/cm 2 ) = P T / 4 r 2 , where P T is the transmitted power, which is equal to the peak transmitter output power plus maximum antenna gain. Indoor antenna installation The maximum equivalent isotropically radiated power EIRP is P T = 32.92 dBm + 0.2 dBi = 33.12 dBm = 2051 mW, where 32.92 dBm is the EUT maximum output power in DL mode in 758-775 MHz with analog FM modulation; 0.2 dBi – antenna assembly gain. The EUT maximum output power in UL mode is 29.64 dBm (in 788-805 MHz with iDEN QAM modulation), that is less than in DL mode. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {2051 / (0.5 x12.56)} = 18 cm. Outdoor antenna installation The maximum equivalent isotropically radiated power EIRP is P T = 32.92 dBm + 6 dBi = 38.92 dBm = 7798 mW, where 32.92 dBm is the EUT maximum output power in DL mode in 758-775 MHz with analog FM modulation; 6 dBi – antenna assembly gain. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {7798 / (0.5 x12.56)} = 35 cm. A warning about a safe distance is contained in the user manual.
