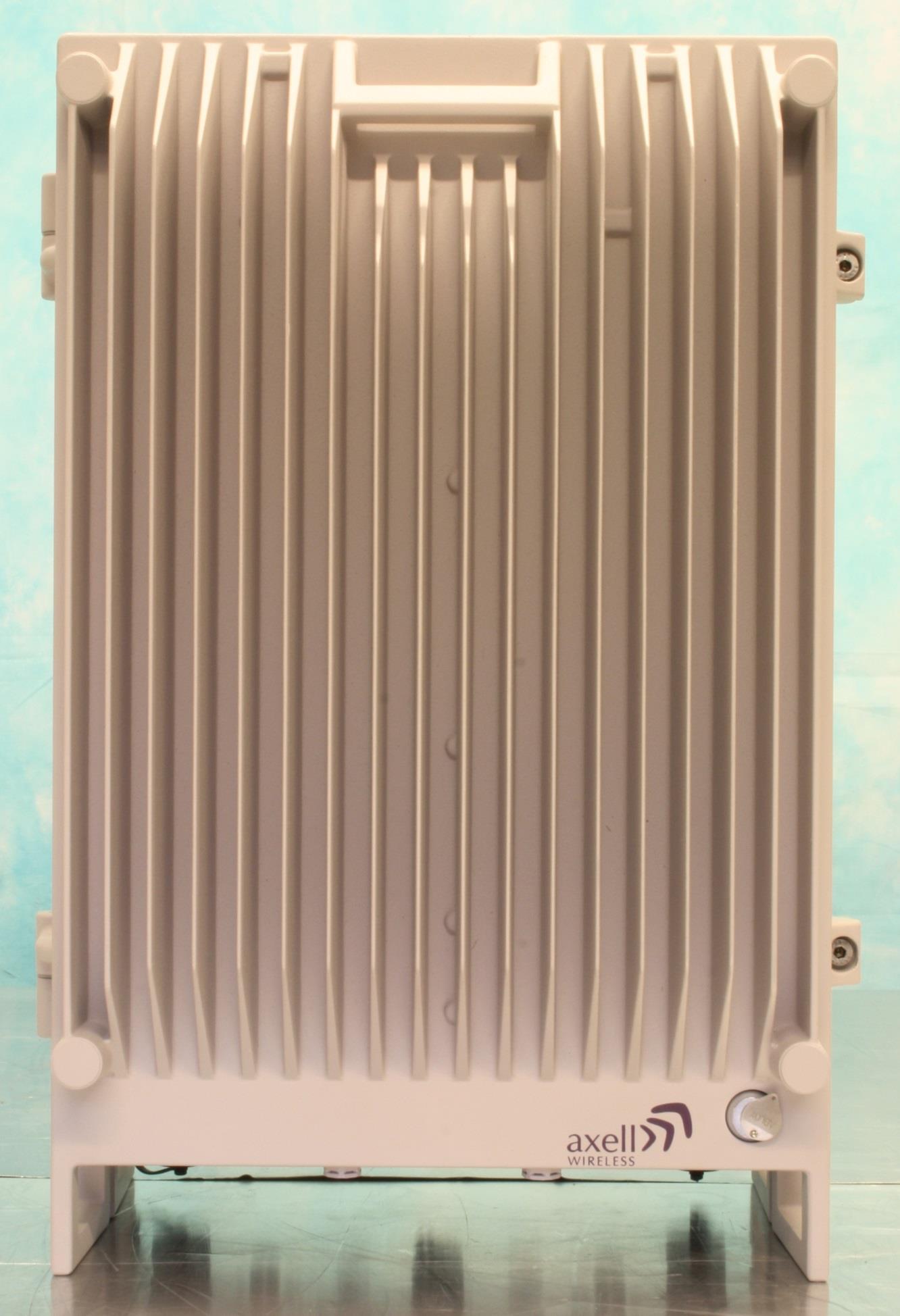

NEODSBR3709SD-SBR 3709S 900 MHz Booster

Axell D-SBR 3709S Repeater PRODUCT DESCRIPTION AND USER’S MANUAL Digital IP-65 Channel/Band Selective High Power Repeater Product Description and User’s Manual for Axell D- SBR 3709S Repeater Doc PN 00038UMCD Rev. 1.6 Axell D-SBR 3709S Repeater PRODUCT DESCRIPTION AND USER’S MANUAL II Doc PN 00038UMCD Rev. 1.6 © Axell Wireless Ltd Copyright © 2015 Axell Wireless Ltd All rights reserved. No part of this document may be copied, distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language without the prior written permission of Axell Wireless Ltd. The manufacturer has made every effort to ensure that the instructions contained in this document are adequate and free of errors and omissions. The manufacturer will, if necessary, explain issues which may not be covered by this document. The manufacturer's liability for any errors in the document is limited to the correction of errors and the aforementioned advisory services. This document has been prepared to be used by professional and properly trained personnel, and the customer assumes full responsibility when using them. The manufacturer welcomes customer comments as part of the process of continual development and improvement of the documentation in the best way possible from the user's viewpoint. Please submit your comments to the nearest Axell Wireless sales representative. Contact Information Headquarters Axell Wireless Aerial House, Asheridge Road Chesham , Buckinghamshire HP5 2QD United Kingdom Tel: +44 1494 777000 Fax: +44 1494 777002 Commercial inquiries [email protected] Web site www.axellwireless.com Support issues [email protected] Technical Support Line, English speaking +44 1494 777 747 Contact information for Axell Wireless offices in other countries can be found on our web site, www.axellwireless.com Axell D-SBR 3709S Repeater PRODUCT DESCRIPTION AND USER’S MANUAL © Axell Wireless Ltd Doc PN 00038UMCD Rev. 1.6 III About This Manual This Product Manual provides the following information: • Description of the Repeater • Procedures for setup, configuration and checking the proper operation of the Repeater • Maintenance and troubleshooting procedures For whom it is Intended This Product Manual is intended for experienced technicians and engineers. It is assumed that the customers installing, operating, and maintaining Axell Wireless Repeaters are familiar with the basic functionality of Repeaters. Notice Confidential - Authorized Customer Use This document may be used in its complete form only and is solely for the use of Axell Wireless employees and authorized Axell Wireless channels or customers. The material herein is proprietary to Axell Wireless. Any unauthorized reproduction, use or disclosure of any part thereof is strictly prohibited. All trademarks and registered trademarks are the property of their respective owners. Disclaimer of Liability Contents herein are current as of the date of publication. Axell Wireless reserves the right to change the contents without prior notice. The information furnished by Axell Wireless in this document is believed to be accurate and reliable. However, Axell Wireless assumes no responsibility for its use. In no event shall Axell Wireless be liable for any damage resulting from loss of data, loss of use, or loss of profits and Axell Wireless further disclaims any and all liability for indirect, incidental, special, consequential or other similes damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Exclusive Remedies The remedies provided herein are the Buyer’s sole and exclusive remedies. Axell Wireless shall not be viable for any direct, incidental, or consequential damages, whether based on contract, tort, or any legal theory. Guarantees • All antennas must be installed with lightning protection. Damage to power modules, as a result of lightning are not covered by the warranty. • Antennas must be connected before switching on AC or DC power. Switching power on prior to the connection of antenna cables is regarded as faulty installation procedure and therefore not covered by the Axell Wireless warranty. • The repeater box should be closed using the two screws. The screws must be fully tightened. Failure to do so may affect the IP65 compliancy and therefore any warranty. Axell D-SBR 3709S Repeater PRODUCT DESCRIPTION AND USER’S MANUAL IV Doc PN 00038UMCD Rev. 1.6 © Axell Wireless Ltd Compliance with FCC WARNING: This is NOT a CONSUMER device. This device designed for installation by FCC LICENCEES and QUALIFIED INSTALLERS. You must have an FCC LICENCE or express consent of an FCC Licensee to operate this device. This is a Class B signal booster. You MUST register Class B signal boosters (as defined in 47 CFR 90.219) online at www.fcc.gov/signal-boosters/registration. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. The installation procedure must result in the signal booster complying with FCC requirements 90.219(d). In order to meet FCC requirements 90.219(d), it may be necessary for the installer to reduce the UL and/or DL output power for certain installations. FCC Part 15 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. If not installed and used in accordance with the instructions, this equipment generates, uses and can radiate radio frequency energy. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to RF reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or mor…

Text truncated - open the document above for the full version.

D-SBR 3709S Page 1 of 6 D-SBR 3709S Page 2 of 6 D-SBR 3709S Page 3 of 6 D-SBR 3709S Page 4 of 6 D-SBR 3709S Page 5 of 6 D-SBR 3709S Page 6 of 6

D-SBR 3709S Page 1 of 2 D-SBR 3709S Page 2 of 2

A 4 Drawing Number Title First Angle Projection Drawn Date Checked Approved Scale THIS IS A PROPRIETARY DESIGN OF AXELL WIRELESS LTD REPRODUCTION OR USE OF THIS DESIGN BY OTHERS IS PERMISSABLE ONLY IF EXPRESSLY AUTHORISED IN WRITING BY AXELL WIRELESS LTD. REVISIONNo DATE BY GENERAL TOLERANCES ISO 2768-1 MEDIUM 19/05/2013 PerWPerW A 2:1 ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED Tel : +46 (0)8 475 4700 Fax : +44 (0)8 475 4799 UNLESS STATED OTHERWISE Sheet 1 / 1 Rev. NOTE. 1. MATERIAL: SHEET SILVER COLOR METALIZED POLYESTER WITH ONE SIDE WITH 3M 467MP BACK ADHESIVE + ADHESIVE 200MP ON ONE SIDE. 2. PRINTING 2.1 BACKGROUND "a": SILVER 2.2 SYMBOLS AND FONTS "b" : BLACK 2.3 FONTS: HELVETICA MEDIUM 3. USE RIBBON ACCORDING TO LABEL MANUFACTURER RECOMENDATION. 4. FOR SERIAL NUMBER SEE LABEL INFORMATION. 5. BAR CODE TYPE ACCORDING TO CODE-128 6. THE LABELS MUST BE SUPPLIED ON ROLL. 7. PART MUST COMPLY RoHS REQUIREMENTS. FCC Industrial Booster Warning Label G.B. 9713000484 3 8 . 1 0 76.20

400VC65000 Power Monitor Assembly

Part Number 400VC69000 PA adaptor Page 1 of 1

Part Number 400VC72000 CCD Page 1 of 1

1510992867 RF Power Amplifier 16W

Part Number 1510993106 RF Power Amplifier 5W Page 1 of 1

Part Number DM00012 ADEM Page 1 of 1

D-SBR 3709S Page 1 of 4 D-SBR 3709S Page 2 of 4 D-SBR 3709S Page 3 of 4 D-SBR 3709S Page 4 of 4

Part Number PSU0000100 DC-DC Page 1 of 1

Part Number RA00091 SMR900 Power Amplifier Page 1 of 1

RADIO FREQUENCY RADIATION EXPOSURE FCC KDB 447498 D03 Radio frequency radiation exposure evaluation. Devices that operate under CFR47 Part 20 are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more for FCC requirements and 2.5 Watts or more for Industry Canada Requirements. Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density R = distance to the centre of radiation of the antenna EIRP = EUT Maximum power LIMITS FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 f = frequency in MHz *Plane-wave equivalent power density ππ4 arranged-re 4 2 S EIRP R R EIRP S== Uplink FCC Prediction Frequency (MHz) Maximum Allowed Output Power 5W ERP Peak Output Power EIRP (dBm) Peak Output Power EIRP (mW) Power Density limit (S) (mW/cm 2 ) Distance (R) cm required to be less than (S) 896.1 37.0 39.15 8222.4265 0.597 33.3 898.5 37.0 39.15 8222.4265 0.599 33.3 900.9 37.0 39.15 8222.4265 0.601 33.3 Note: The above output powers are selected until the maximum output power was reached as per Part 90.219(e)(1) 5 Watts ERP, as the antenna gain is unknown. The Maximum allowed output ERP value of 37.00dBm is converted to an EIRP value (39.15dBm) by the addition of 2.15dBm. Downlink FCC Prediction Frequency (MHz) Maximum Allowed Output Power 5W ERP Peak Output Power EIRP (dBm) Peak Output Power EIRP (mW) Power Density limit (S) (mW/cm 2 ) Distance (R) cm required to be less than (S) 935.1 37.0 39.15 8222.426499 0.623 32.5 937.5 37.0 39.15 8222.426499 0.625 32.5 939.9 37.0 39.15 8222.426499 0.627 32.5 Note: The above output powers are selected until the maximum output power was reached as per Part 90.219(e)(1) 5 Watts ERP, as the antenna gain is unknown. The Maximum allowed output ERP value of 37.00dBm is converted to an EIRP value (39.15dBm) by the addition of 2.15dBm.

A RADIO TEST REPORT FOR AXELL WIRELESS LIMITED ON D-SBR 3709S DOCUMENT NO. TRA-014856-47-01-A TRaC Wireless Test Report : TRA-014856-47-01-A Applicant : Axell Wireless Limited Apparatus : D-SBR 3709S Specification(s) : CFR47 Part 90 Purpose of Test : Certification FCCID : NEODSBR3709S Authorised by : : Radio Product Manager Issue Date :9 th April 2015 Authorised Copy Number : PDF Total number of pages: 81 TRaC Global Test Report: TRA-014856-47-01-A Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Equipment Test Conditions 7 1.7 Standard References 8 1.8 Notes Relating To Assesment 9 1.9 Deviations from Test Standards 9 Section 2: Measurement Uncertainty 10 2.1 Measurement Uncertainty Values 10 Section 3: Modifications 12 3.1 Modifications Performed During Assessment 12 Appendix A: Uplink Formal Emission Test Results 13 A1 RF Gain and Output Power 14 A2 Amplifier Intermodulation Emissions 15 A3 Amplifier Modulated Channel Test 18 A4 Spurious Emissions at Antenna Terminals Less than 1MHz 25 A5 Spurious Emissions at Antenna Terminals Greater than 1MHz 28 A6 Radiated Electric Field Emissions 32 A7 Passband Gain & Bandwidth 37 A8 Noise (conducted) 39 Appendix B: Downlink Formal Emission Test Results 42 B1 RF Gain and Output Power 43 B2 Amplifier Intermodulation Emissions 44 B3 Amplifier Modulated Channel Test 47 B4 Spurious Emissions at Antenna Terminals Less than 1MHz 54 B5 Spurious Emissions at Antenna Terminals Greater than 1MHz 57 B6 Radiated Electric Field Emissions 61 B7 Passband Gain & Bandwidth 66 B8 Noise (Conducted) 68 Appendix C: Additional Test and Sample Details 71 Appendix D: Additional Information 77 Appendix E: Photographs and Figures 78 3 TRaC Global Test Report: TRA-014856-47-01-A Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: S Hodgkinson Report author: S Hodgkinson This report must not be reproduced except in full without prior written permission from TRaC Global. 4 TRaC Global Test Report: TRA-014856-47-01-A 1.2 Tests Requested By This testing in this report was requested by : Axell Wirelesss Limited Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU 1.3 Manufacturer Axell Wireless Limited Aerial House Asheridge Road Chesham Buckinghamshire HP5 1TU 1.4 Apparatus Assessed The following apparatus was assessed between and 3 rd March and 10 th March 2015 D-SBR 3709S SMR 900MHz Digital Channel Selective and Band selective repeater. The D-SBR 3709S digital single band repeater is specifically designed for outdoor and inbuilding for SMR 900MHz applications. Technical specifications Uplink Downlink CFR 47 Rule Part 90S 896.00-901.00MHz 935.00MHz – 940.00MHz 5 TRaC Global Test Report: TRA-014856-47-01-A 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type CFR 47 Part 90 Subpart S Appendix in Report RF Power Output 90.219(e)(1) A1 & B1 Intermodulation Spurious Emissions 90.219(d)(i) A2 & B2 Occupied Bandwidth & Modulation 90.219(e)(4) A3 & B3 Spurious Emissions at Antenna Terminals Less than 1 MHz 90.219(e)(1) A4 & B4 Spurious Emissions at Antenna Terminals Greater than 1MHz 90.219(e)(1) A5 & B5 Field Strength of Spurious Emissions 90.219(e)(1) A6 & B6 Passband Gain & 20dB bandwidth 90.219(d)(7) A7 & B7 Frequency Stability 90.213 N/A(note 1) Transient behaviour N/A N/A(note 2) Audio Frequency Response (a) N/A N/A Modulation Limiting N/A N/A Signal Booster Labelling Requirements 90.219(e)(5) N/A Notes: 1 The EUT does not contain modulation circuitry; therefore the test was not performed. 2 The EUT is not a keyed carrier system; therefore the test was not performed. Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions A Uplink Results Appendix B Downlink Results Appendix 6 TRaC Global Test Report: TRA-014856-47-01-A 1.6 Equipment Test Conditions Product class: Uplink Class A [ ] Class B [X] Downlink Class A [ ] Class B [X] Product Use: Specialized Mobile Radio Emission Designator(s): F1E F3E G1E GXW G7W G7D W7W Supply Voltages: Vnom +230Vac/110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Equipment Category: Single channel [ ] Two channel [ ] Multi-channel [X] Channel spacing: Wideband Uplink Wideband Downlink Test Location TRaC Global Skelmersdale [X] Hull [ ] Other [ ] Please Specify 7 TRaC Global Test Report: TRA-014856-47-01-A 1.7 Standard References 47 CFR 2 Code of Federal Regulations, Title 47, Part 2, “Frequency allocations and Radio Telemetry Matters; General Rules and Regulations” 47 CFR 90 Code of Federal Regulations, Title 47, Part 90,”Land Mobile Radio Service” ANSI/TIA-603-C. Land Mobile FM or PM Communications Equipment KDB 935210 D01 Booster Definitions v02 KDB 935210 D02 Certification Requirements v02 KDB 935210 D03 Signal Booster Measurements v02 8 TRaC Global Test Report: TRA-014856-47-01-A 1.8 Notes Relating To Assesment With regard to this a…
