NEODMINI2107L2017Repeater

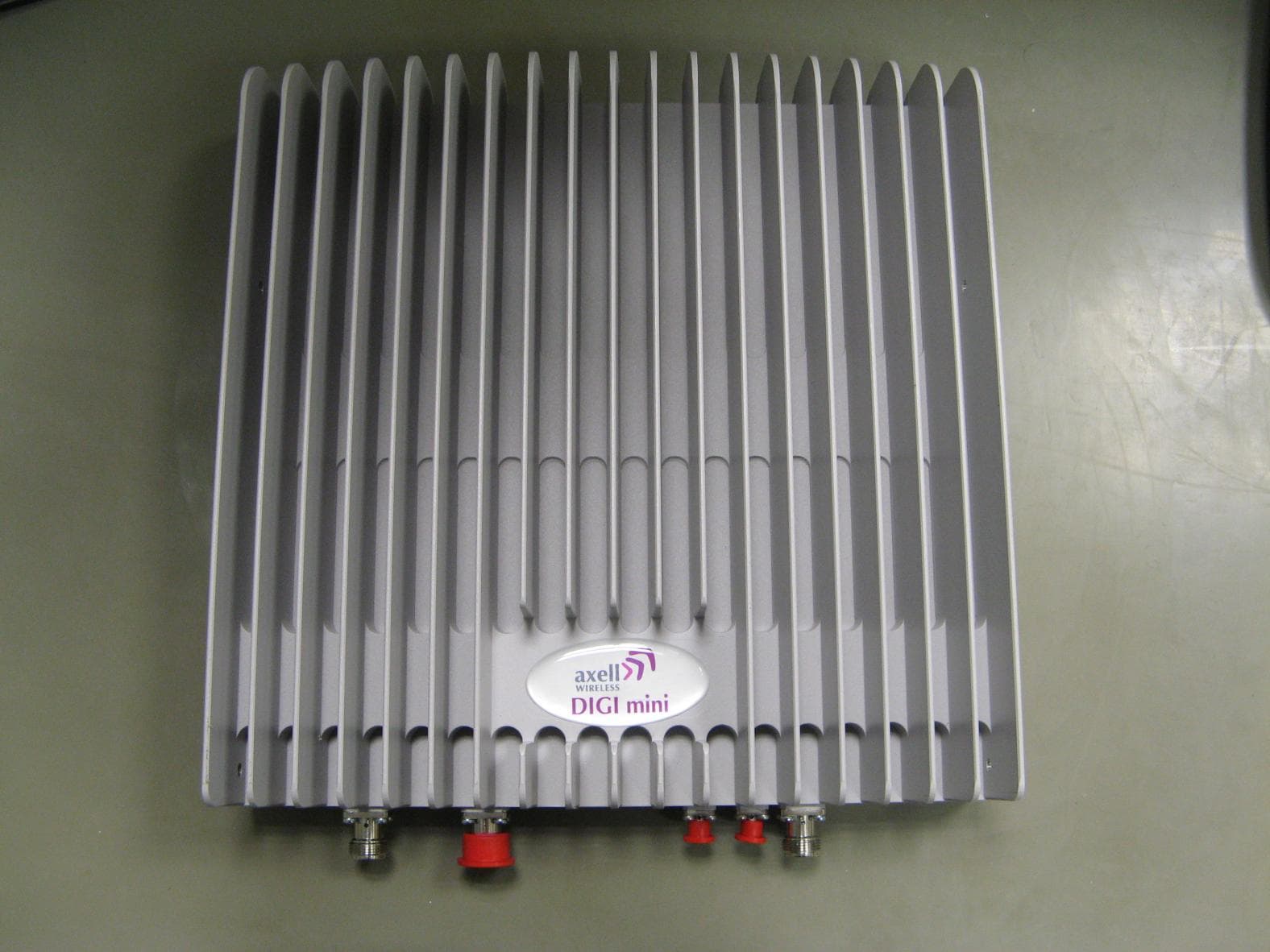

AXELL DIGIMINI-AMERICAS REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL DIGImini Americas High Selectivity Digital Multi-Band Mini-Repeater Product Description and User’s Manual Doc PN 4000003431 Rev. 3.8 THIS DOCUMENT IS VALID FOR THE FOLLOWING REPEATER MODELS: Product Part Number IC ID FCC ID DigiMini 850/1900 D-MINI-2108-2019 8749A-DM819 NEO-DMINI21082019 DigiMini 700U/1700 D-MINI-2107U-2017 8749A-DM7U17 NEODMINI2107U2017 DigiMini 700L/1700 D-MINI-2107L-2017 8749A-DM7L17 NEODMINI2107L2017 DIGI mini 4 bands Accessory upgrade kit D-MINI 4B-AK Single Band/Dual Band Tri Band/Quad Band AXELL DIGIMINI- AMERICAS REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL II Doc PN 4000003431 Rev. 3.8 © Axell Wireless Ltd Copyright © 2012 Axell Wireless Ltd All rights reserved. No part of this document may be copied, distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language without the prior written permission of Axell Wireless Ltd. The manufacturer has made every effort to ensure that the instructions contained in this document are adequate and free of errors and omissions. The manufacturer will, if necessary, explain issues which may not be covered by this document. The manufacturer's liability for any errors in the document is limited to the correction of errors and the aforementioned advisory services. This document has been prepared to be used by professional and properly trained personnel, and the customer assumes full responsibility when using them. The manufacturer welcomes customer comments as part of the process of continual development and improvement of the documentation in the best way possible from the user's viewpoint. Please submit your comments to the nearest Axell Wireless sales representative. Contact Information Headquarters Axell Wireless Aerial House Asheridge Road Chesham Buckinghamshire HP5 2QD United Kingdom Tel: +44 1494 777000 Fax: +44 1494 777002 Commercial inquiries [email protected] Web site www.axellwireless.com Support issues [email protected] Technical Support Line, English speaking +44 1494 777 747 Contact information for Axell Wireless offices in other countries can be found on our web site, www.axellwireless.com AXELL DIGIMINI- AMERICAS REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL © Axell Wireless Ltd Doc PN 4000003431 Rev. 3.8 III About This Manual This Product Manual provides the following information: • Description of the DIGImini Repeater • Procedures for setup, configuration and checking the proper operation of the Mini-Repeater • Maintenance and troubleshooting procedures For whom it is Intended This Product Manual is intended for experienced technicians and engineers. It is assumed that the customers installing, operating, and maintaining Axell Wireless Mini-Repeaters are familiar with the basic functionality of Repeaters. Notice Confidential - Authorized Customer Use This document may be used in its complete form only and is solely for the use of Axell Wireless employees and authorized Axell Wireless channels or customers. The material herein is proprietary to Axell Wireless. Any unauthorized reproduction, use or disclosure of any part thereof is strictly prohibited. All trademarks and registered trademarks are the property of their respective owners. Disclaimer of Liability Contents herein are current as of the date of publication. Axell Wireless reserves the right to change the contents without prior notice. The information furnished by Axell Wireless in this document is believed to be accurate and reliable. However, Axell Wireless assumes no responsibility for its use. In no event shall Axell Wireless be liable for any damage resulting from loss of data, loss of use, or loss of profits and Axell Wireless further disclaims any and all liability for indirect, incidental, special, consequential or other similes damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Guarantees • All antennas must be installed with lightning protection. Damage to power modules, as a result of lightning are not covered by the warranty. • Antennas must be connected before switching on AC or DC power. Switching power on prior to the connection of antenna cables is regarded as faulty installation procedure and therefore not covered by the Axell Wireless warranty. Exclusive Remedies • The remedies provided herein are the Buyer’s sole and exclusive remedies. Axell Wireless shall not be viable for any direct, incidental, or consequential damages, whether based on contract, tort, or any legal theory. AXELL DIGIMINI- AMERICAS REPEATER PRODUCT DESCRIPTION AND USER’S MANUAL IV Doc PN 4000003431 Rev. 3.8 © Axell Wireless Ltd Compliance with FCC FCC Part 15 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. If not installed and used in accordance with the instructions, this equipment generates, uses and can radiate radio frequency energy. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to RF reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the Donor antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Unauthorized Changes to Equipment Changes or Modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment FCC RF Exposure Limits This unit complies with FCC RF exposure limits for an uncontroll…

Text truncated - open the document above for the full version.

Test Lab Inquiry on 10/01/2012 : We are testing a series of repeaters which operate in multiple bands and support a variety of technologies, including (CDMA/WCDMA, GSM & LTE) Can you please confirm if it is acceptable to use a CW signal in place of a modulated signal, when performing radiated spurious emissions, conducted spurious and intermodulation tests. The alternative would be to load the units with the range of applicable signals e.g. QPSK, GMSK, 64QAM for each of the technologies above. However this would significantly extend the test time, and we believe that the CW signal would provide worst case results for these tests. Testing would still be performed on each band, with the CW signal/s set to the maximum input for the EUT. I have attached an example data sheet for the products in question. FCC response on 10/11/2012 For reference, FCC guidance has included the following (from 2009 Licensed Devices General Technical Requirements powerpoint/notes): Intermodulation INTERMOD TEST – Transmitters and amplifiers designed to handle multiple channels must be tested with multiple carriers for each emission type to show intermodulation products. For multi channel devices show a single channel comparison of input and output signal and also perform the three tone intermodulation test. This is a conducted measurement. In most cases the equipment is modulated during the test. In some cases, such as FM, the signal is unmodulated. For units where a power reduction is required at the band edges, the test only needs to be done at the first channels at each edge of the band with maximum power. Intermodulation (continued) – Intermodulation products are spurious emissions which must meet the emissions mask in each Radio Service rule part – Test Procedure - Should be tested at highest rated output level • Three Signal Test – requires only one test – two near to each other at one edge of passband – other signal alone at other edge of passband • Two Signal Test - requires the test be done twice – Once with two signals at upper edge of passband – Once with two signals at lower edge of passband Three signals of equal magnitude at their highest rated output level should be tested for each type of modulation. The two channels near each other should be separated by at least one operating channel width. The two tone test is also accepted but must be performed twice, one time at each end of the operating band. As we understand it, general industry procedures include: i) Measured using a 1 MHz Measurement Bandwidth, for UTRA signals with the first interfering signal at 3.5 MHz offset from the center of the first UTRA channel in the passband and the second carrier adjusted in frequency such that the intermodulation product falls at the frequency of the first UTRA channel in the passband. ii) Measured using a 1 MHz Measurement Bandwidth, for CDMA signals with the first interfering signal at 1.25 MHz offset from the center of the first CDMA channel in the passband and the second carrier adjusted in frequency such that the intermodulation product falls at the frequency of the first CDMA channel in the passband. iii) Measured using a 1 MHz Measurement Bandwidth, for E-UTRA signals with the first interfering signal at 1.0 MHz offset from the edge of the first and last E-UTRA channel in the passband and the second carrier adjusted in frequency such that the intermodulation product falls at the frequency of the first and last E-UTRA channel in the passband. iv) Measured using a 3 kHz Measurement Bandwidth, for GSM signals with two continuous wave (CW) input signals spaced 600 kHz apart and centered in the pass band of the booster. Attachment Details: 3GPP

A 4 Drawing Number Title First Angle Projection Drawn Date Checked Approved Scale THIS IS A PROPRIETARY DESIGN OF AXELL WIRELESS LTD REPRODUCTION OR USE OF THIS DESIGN BY OTHERS IS PERMISSABLE ONLY IF EXPRESSLY AUTHORISED IN WRITING BY AXELL WIRELESS LTD. GENERAL TOLERANCES ISO 2768-1 MEDIUM 2012-09-27 PerWPerW 2012-05-25 2012-05-25 9713000367 C 2:1 PerW ALL DIMENSIONS ARE IN mm UNLESS OTHERWISE STATED Tel : +46 (0)8 475 4700 Fax : +44 (0)8 475 4799 UNLESS STATED OTHERWISE Sheet 1 / 1 Rev. NOTE. 1. MATERIAL: SHEET SILVER COLOR METALIZED POLYESTER WITH ONE SIDE WITH 3M 467MP BACK ADHESIVE + ADHESIVE 200MP ON ONE SIDE. 2. PRINTING 2.1 BACKGROUND "a": SILVER 2.2 SYMBOLS AND FONTS "b" : BLACK 2.3 FONTS: HELVETICA MEDIUM 3. USE RIBBON ACCORDING TO LABEL MANUFACTURER RECOMENDATION. 4. FOR SERIAL NUMBER SEE LABEL INFORMATION. 5. BAR CODE TYPE ACCORDING TO CODE-128 6. THE LABELS MUST BE SUPPLIED ON ROLL. 7. PART MUST COMPLY RoHS REQUIREMENTS. 8. LABEL INFORMATION: YY-Year (2 Digits) MM- Month (2 Digits) ZZZZZZ- Serial No. 76.20 3 8 . 1 0 AXELL MINI DIGI S/N LABLE B Added FCC 25/5 PW C Change text 2012-09-27 PerW BAdded FCC2012-05-25PerW REVISION HISTORY ZONEREVDESCRIPTIDATEAPPROVED

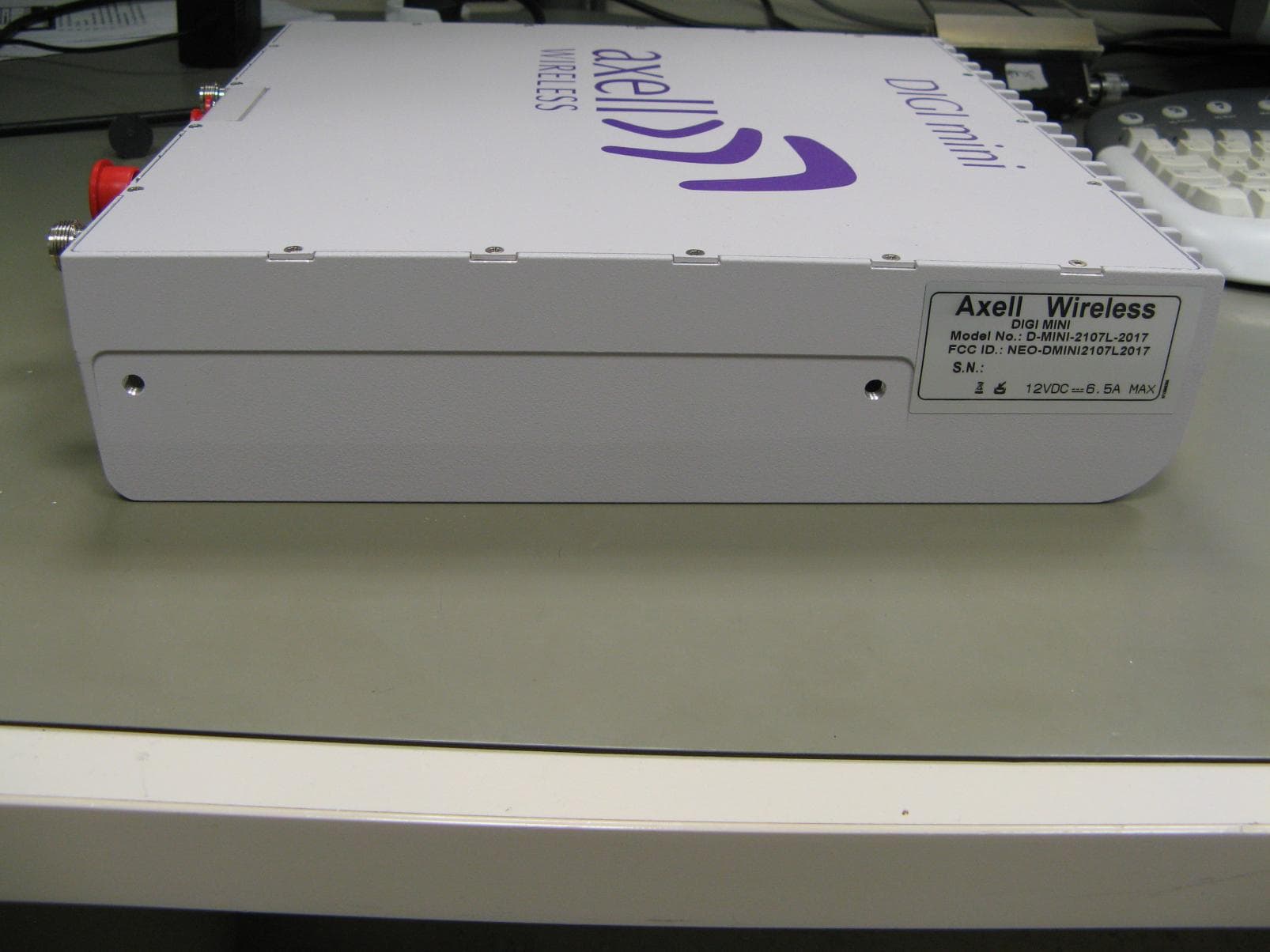

Label location

AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 RF Exposure and Transmitter Power Considerations for the DIGImini 2107L-2017 FCC ID: NEODMINI2107L2017 The FCC requires that the calculated MPE be equal to or less than a given limit dependent on frequency at a distance of 20 cm from a device to the body of a user. The MPE calculation as given in FCC OET Bulletin 65, page 19 is used to calculate the safe operating distance for the user. The DIGImini is a cellular repeater which operates using two antennas, an outdoor antenna for cellular base station communication and an indoor antenna for communication with user devices. This MPE calculation is intended to address the RF exposure compliance of the indoor antenna (downlink) only, the outdoor antenna (uplink) RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s). Antenna gains specified by the manufacturer: Outdoor antenna gain (uplink): 9 dBi (max) with 2 dB cable loss (minimum) Indoor antenna gain (downlink): 2.2 dBi (max) with 2 dB cable loss (minimum) The transmitter operation of the DIGImini covers the Cellular 700 MHz (Band 12) and AWS 1700 MHz (Band 4) operating bands using W-CDMA and LTE cellular operating technologies in Band 4 and LTE (only) in Band 12. The following FCC Rule Parts are applicable: Part 1.1307 (b) Actions that may have a significant environmental effect, for which Environmental Assessments (EAs) must be prepared. Part 1.1310 – Radiofrequency radiation exposure limits Part 2.1091 – Radiofrequency radiation exposure evaluation: mobile devices (<1.5GHz, Max Tx = 1.5W ERP. >1.5GHz, Max Tx= <3W ERP) Part 27.50 (c)(10) – 699 - 716 MHz Uplink Portable stations (hand-held devices) are limited to 3 watts ERP. (As the device provides a mobile service between the base station and the portable, the output power should be subject to the same limits as a portable unit when transmitting on an uplink channel). Part 27.50 (c)(3) – 729 - 746 MHz Downlink Fixed and base stations transmitting a signal with an emission bandwidth greater than 1 MHz must not exceed an ERP of 1000 watts/MHz. AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 Part 27.50 (d)(4) – 1710 - 1755 MHz Uplink Fixed, mobile and portable (hand-held) stations operating in the 1710 - 1750 MHz band are limited to 1W EIRP. Part 27.50 (d)(2)(B) – 2110 - 2155 MHz Downlink Fixed or base stations operating in the 2110 - 2155 MHz band are limited to 1640 W EIRP. CALCULATIONS The highest measured conducted output power per operating band, combined with the highest applicable antenna gain (irrespective of operating technology) was chosen as representative of the worst case operating condition. LTE in Band 12 (700 MHz) and WCDMA in Band 4 (1700 MHz) operation were found to have the highest power levels and therefore these values were used in the following calculations. Maximum Transmitter Power for DIGImini 2107L-2017 The maximum transmitter power for uplink and downlink transmissions on each frequency band is calculated below. The highest measured conducted output power, combined with the highest applicable antenna gain was chosen as being representative of the worst case operating condition. In all cases the ERP/EIRP met the appropriate Part 27 limits detailed above. 1. Uplink ERP – LTE Band 12, 700 MHz As stated above, the maximum specified antenna gain = 9 dBi with 2 dB cable loss Max. Conducted Transmitter Power for the DIGImini: P = 21.3 dBm measured at the antenna socket in LTE operating mode. EIRP eff = 21.3 + 9 - 2 = 28.3 dBm ERP eff = EIRP eff – 2.1 dB (half wave dipole gain) ERP eff = 28.3 – 2.1 = 26.2 dBm ie: ERP eff = 0.42 W (meets 3 W ERP limit) EIRP – LTE Band 4, 1700 MHz Max. Conducted Transmitter Power for the DIGImini: P = 20.5 dBm measured at the antenna socket in WCDMA operating mode. EIRP eff = 20.5 + 9 - 2 = 27.5 dBm ie: EIRP eff = 0.56 W (meets 1 W EIRP limit) AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 1494 777002 [email protected] www.axellwireless.com AXELL WIRELESS SWEDEN Box 7139 174 07 Sundbyberg Sweden Tel: + 46 (0) 8 475 4700 Fax: + 46 (0) 8 475 4799 2. Downlink ERP – LTE Band 12, 700 MHz Maximum specified antenna gain = 2.2 dBi with 2 dB cable loss Max. Conducted Transmitter Power for the DIGImini: P = 20.9 dBm measured at the antenna socket in LTE operating mode. EIRP eff = 20.9 + 2.2 - 2 = 21.1 dBm ERP eff = EIRP eff – 2.1 dB (half wave dipole gain) ERP eff = 21.1 – 2.1 = 19 dBm ie: ERP eff = 0.08 W (meets 1000 W ERP limit) EIRP – LTE Band 4, 1700 MHz Max. Conducted Transmitter Power for the DIGImini: P = 20.3 dBm measured at the antenna socket in LTE operating mode. EIRP eff = 20.3 + 2.2 - 2 = 20.5 dBm ie: EIRP eff = 0.11 W (meets 1640 W EIRP limit) MPE Calculation for the DIGImini 2107L-2017 Indoor Antenna The MPE calculation as given in FCC OET Bulletin 65, page 19 is used to calculate the safe operating distance for the user. This calculation addresses the RF exposure compliance of the indoor antenna only using the following maximum downlink transmitter powers calculated above: 700 MHz (LTE Band 12) EIRP: 21.1 dBm 1700 MHz (LTE Band 4) EIRP: 20.5 dBm S = EIRP/4 π R 2 Where S = Power density EIRP = Effective Isotropic Radiated Power (EIRP = P x G) P = Conducted Transmitter Power G = Antenna Gain (relative to an isotropic radiator) R = distance to the centre of radiation of the antenna (safe operating distance) AXELL WIRELESS UK Asheridge Road Chesham, Bucks HP5 2QD, UK Tel: + 44 (0) 1494 777000 Fax: + 44 (0) 149…
