NEODMINI2107U2017

PBE Europe Ltd. trading as Axell Wireless

Repeater

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Jan 07, 2013
Application Purpose: Original Equipment
Date of Application: Jan 06, 2013
Equipment Note: Repeater
Frequency Range: 2120.00000000 - 2145.00000000
Company: PBE Europe Ltd. trading as Axell Wireless
Country: United Kingdom

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

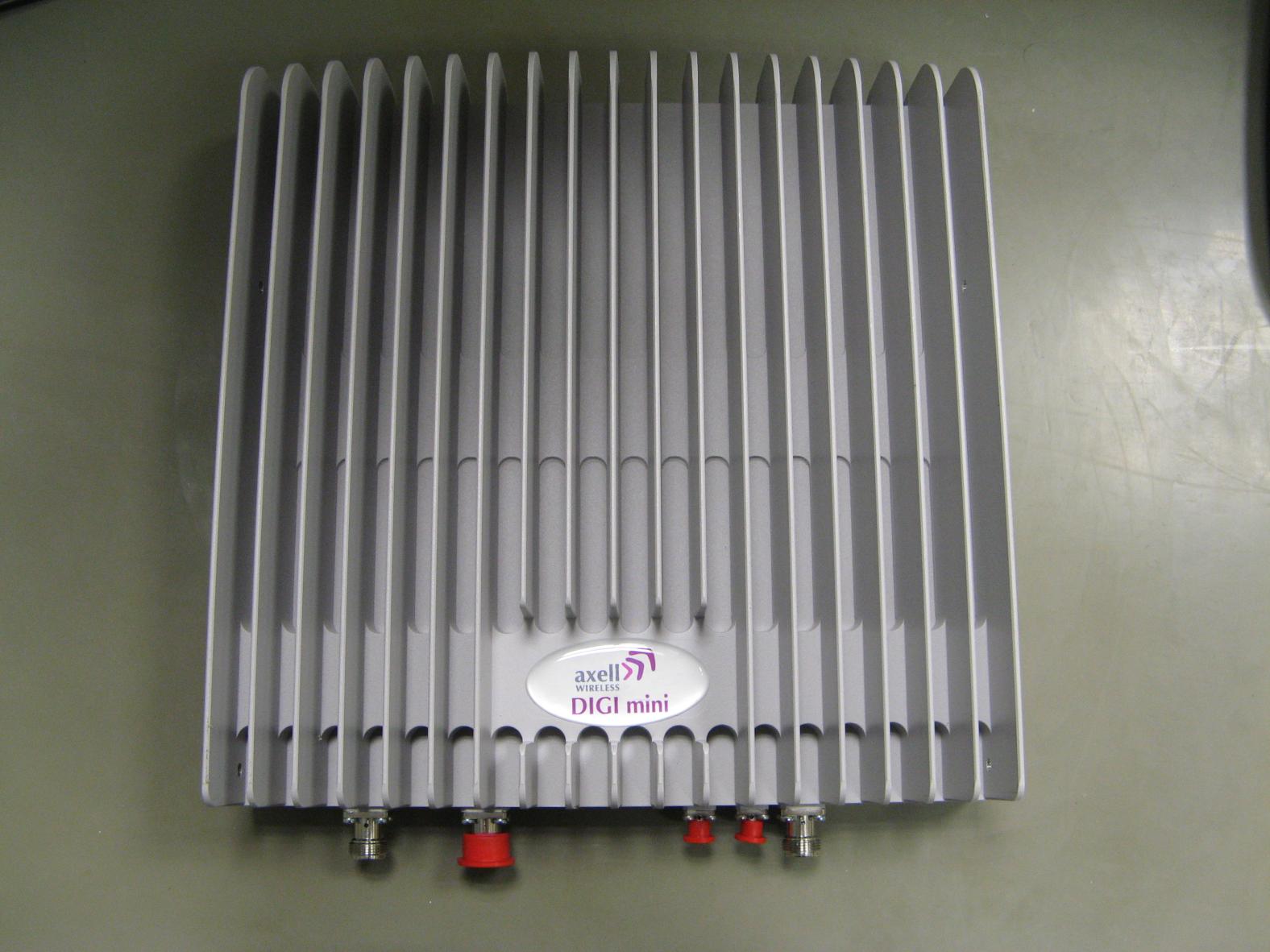

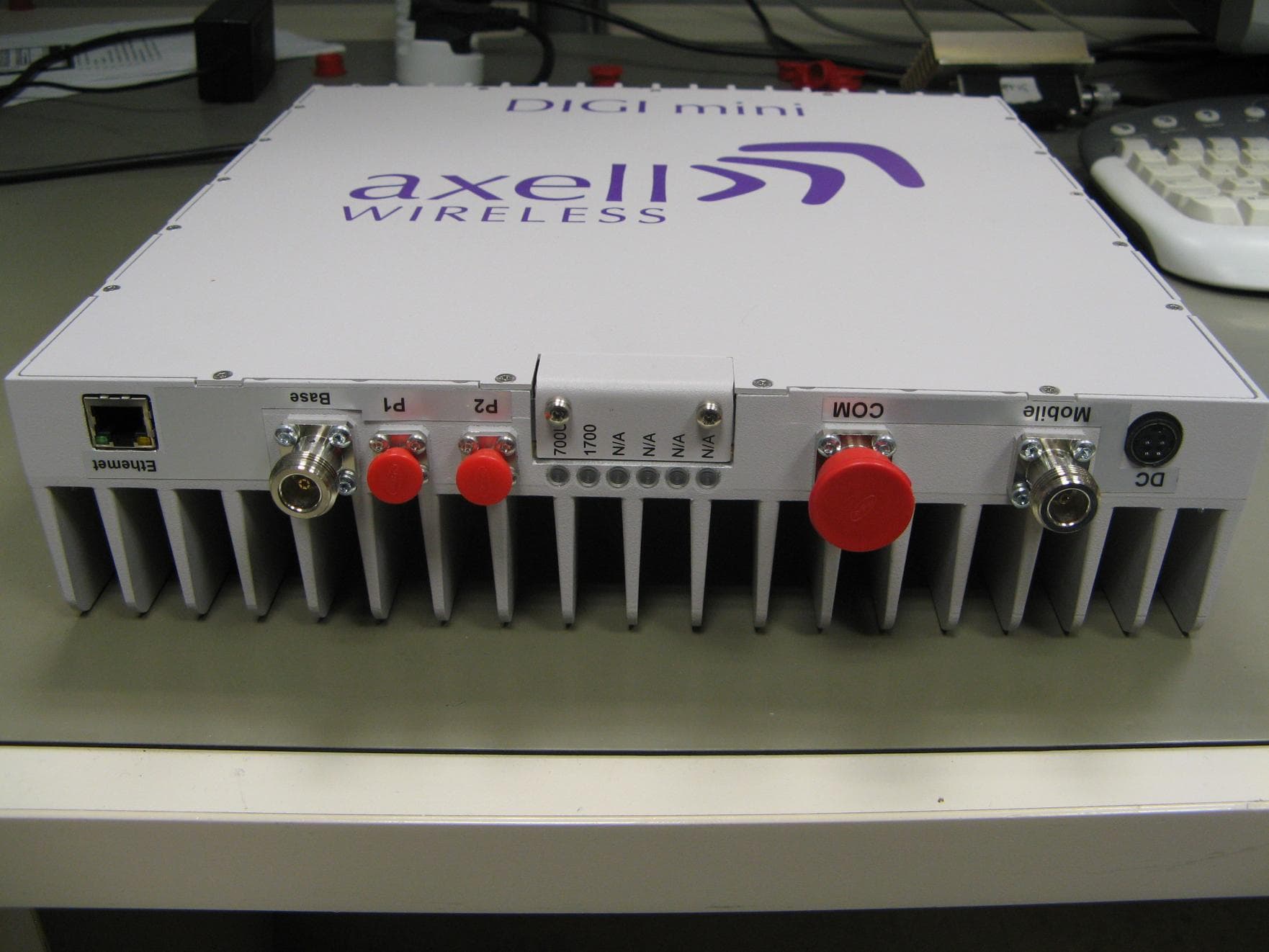

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Contact Information

Applicant

Michael Adam Godsey(VP of Design Engineering)

[email protected]2769881029Fax: 2769885892

Technical Contact

Axell WirelessBrian Barton

[email protected]441494777014

Aerial House · Chesham · United Kingdom

Non-Technical Contact

Axell WirelessMatthew Thompson

[email protected]9723618038

Test Firm

UL VS LIMITEDSteven White

[email protected]01256312168

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
22	27	2.12 GHz - 2.15 GHz	107.00 mW	17M6G7W	0.1 ppm

Confidentiality

Long Term

Grant Notes

Downlink (indoor) grant conditions. Power Output is maximum single channel conducted. Approval is for maximum gain 2.2 dBi antennas as detailed in this filing. The antenna used for this transmitter is to be fixed-mounted on indoor permanent structures providing a separation distance of at least 20 cm from all persons during normal operation. The maximum radiated output power must satisfy the MPE Categorical Exclusion Requirements of �2.1091. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3). Uplink (outdoor) grant conditions. Power Output is maximum single channel conducted. Approval is for maximum gain 9.0 dBi antennas with 2dB minimum cable loss as detailed in this filing. The antenna used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3).
