NEX-9398637DRC Toy Transmitter

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No.: 14023082 001 Seite 5 von 5 Page 5 of 5 User manual Remark: 9305, 9315, 9637 models are using 9398D transmitter.

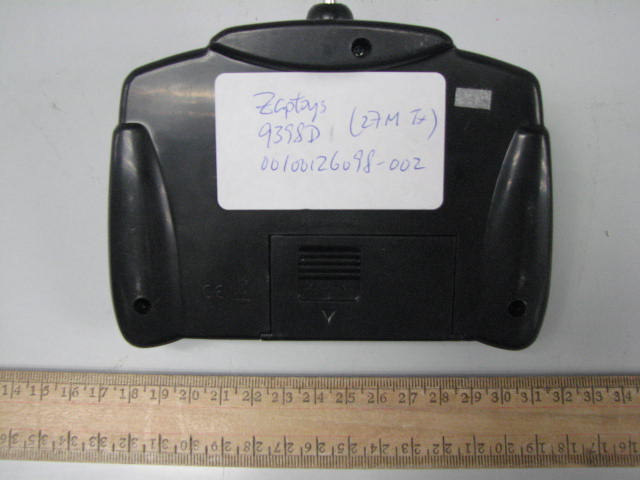

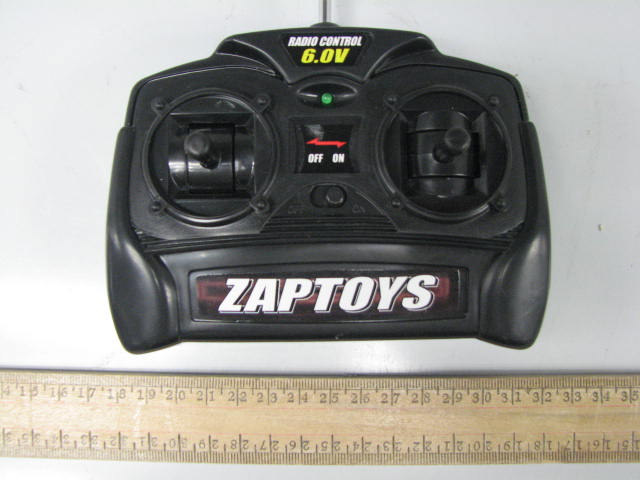

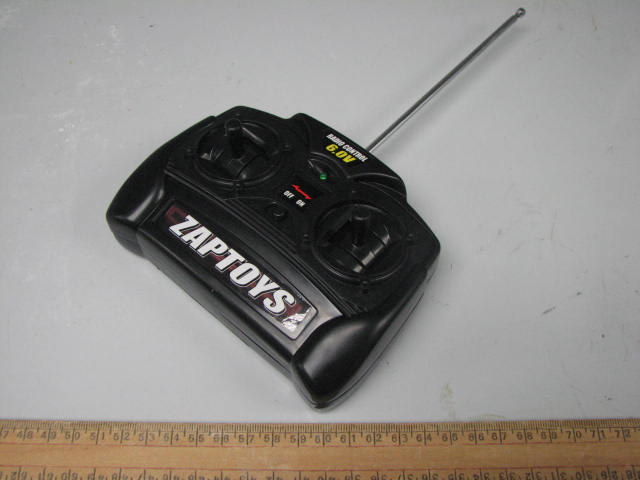

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14023082 001 Seite 1 von 3 Page 1 of 3 Transmitter (External view) Transmitter (External view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14023082 001 Seite 2 von 3 Page 2 of 3 Transmitter (External view) Transmitter (External view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14023082 001 Seite 3 von 3 Page 3 of 3 Transmitter (External view)

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No.: 14023082 001 Seite 4 von 5 Page 4 of 5 FCC label and location 9398D 9637D

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14023082 001 Seite 1 von 3 Page 1 of 3 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14023082 001 Seite 2 von 3 Page 2 of 3 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14023082 001 Seite 3 von 3 Page 3 of 3 Transmitter (Internal view)

www.tuv.com Test Report No.: 14023082 001 Date: 17.02.2010 Page 2 of 12 Test Summary Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement Result: Pass www.tuv.com Test Report No.: 14023082 001 Date: 17.02.2010 Page 3 of 12 Contents List of Test and Measurement Instruments.........................................................4 General Product Information ................................................................................5 Product Function and Intended Use.............................................................................................5 Ratings and System Details...........................................................................................................5 Independent Operation Modes......................................................................................................6 Submitted Documents ...................................................................................................................6 Related Submittal(s) Grants ..........................................................................................................6 Test Set-up and Operation Mode..........................................................................7 Principle of Configuration Selection ............................................................................................7 Test Operation and Test Software ................................................................................................7 Special Accessories and Auxiliary Equipment ............................................................................7 Countermeasures to achieve EMC Compliance ..........................................................................7 Test Methodology ..................................................................................................8 Radiated Emission..........................................................................................................................8 Field Strength Calculation .............................................................................................................8 Test Results ...........................................................................................................9 Radiated Emission of Carrier Frequency Subclause 15.227(a) ..............................................9 Spurious Radiated Emissions Subclause 15.227(b) ..............................................................10 Bandwidth Measurement .............................................................................................................12 Appendix 1 Test Protocol Appendix 2 Test Setup Appendix 3 EUT External Photo Appendix 4 EUT Internal Photo Appendix 5 FCCID Label, Block Diagram, Schematics and User manual www.tuv.com Test Report No.: 14023082 001 Date: 17.02.2010 Page 4 of 12 List of Test and Measurement Instruments Hong Kong Productivity Council (Registration number: 90656) Kind of Equipment Manufacturer Type S/N Cal Due Date Semi-anechoic Chamber Frankonia Nil Nil 27 Feb 10 Test Receiver Rohde & Schwarz ESU26 100050 08 Sep 10 Biconical Antenna Rohde & Schwarz HK116 841489/016 22 May 10 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/020 21 May 10 Horn Antenna EMCO 3115 9002-3351 27 Feb 10 Coaxial Cable 50ohm Rosenberger RTK081-05S-05S- 10m LA2-001-10M / 002 15 May 10 Active Loop Antenna EMCO 6502 9107-2651 06-Feb-11 www.tuv.com Test Report No.: 14023082 001 Date: 17.02.2010 Page 5 of 12 General Product Information Product Function and Intended Use The equipment under test (EUT) is a transmitter for a RC toy car operating at 27.145 MHz. The EUT has two control rods for commanding the forward, backward, left and right movement of the associated receiver. The manufacturer declares that the transmitter model 9398D is identical to model 9637D. They are all identical in schematics, PCB layouts, components used except the housing. So, no additional test is required. FCCID: NEX-9398637D Model Product description 9637D Radio Control Toy Transmitter 9398D Radio Control Toy Transmitter Ratings and System Details Transmitter Frequency range : 27.145MHz Number of channels : 1 Type of antenna : External telescopic antenna Power supply : Battery operated 9V Ports : none Protection Class : III www.tuv.com Test Report No.: 14023082 001 Date: 17.02.2010 Page 6 of 12 Independent Operation Modes The basic operation modes are: - transmitting control signal for the RC toy car. For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - User manual - Label artwork Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14023082 001 Date: 17.02.2010 Page 7 of 12 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasures to achieve EMC Compliance - none www.tuv.com Test Report No.: 14023082 001 Date: 17.02.2010 Page 8 of 12 Test Methodology Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2003. The equipment under test (EUT) was placed at the middle of the 80 cm height turntable, and the turntable is 3 meters far from the measuring antenna. During the testing, the EUT was operated standalone and arranged for maximum emissions. The EUT was tested in three orthogonal planes. The investigation is performed with the EUT rotated 360 , the antenna height scanne…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14023082 001 Date: 17.02.2010 Page 9 of 12 Test Results Radiated Emission of Carrier Frequency Subclause 15.227(a) RESULT: Pass Test Specification : FCC Part 15 Subclause 15.227(a) Test Method : ANSI 63.4-2003 Measurement Location : Semi Anechoic Chamber Measurement Distance : 3m Detector Function : Peak and Average Measurement BW : 120 kHz Supply Voltage : DC 9V Polarization: Vertical Detector function Frequency (MHz) Measured Field strength at 3m (dB
V/m) Delta to Limit (dB) Peak 27.147 71.4 -28.6 Average 27.147 65.3 -14.7 Polarization: Horizontal Detector function Frequency (MHz) Measured Field strength at 3m (dB
V/m) Delta to Limit (dB) Peak 27.147 58.1 -41.9 Average 27.147 52.2 -27.8 Limit Subclause 15.227(a) Peak Emission Average Emission Frequency within the band (
V/m) dB
V/m (
V/m) dB
V/m 26.96-27.28 MHz 100,000 100.0 10,000 80.0 According to section 15.35(b), when average radiated emission measurements are specified in this part, including average emission measurements below 1000 MHz, there also is a limit on the peak level of the radio frequency emissions. Unless otherwise specified, the limit on peak radio frequency emissions is 20 dB above the maximum permitted average emission limit applicable to the equipment under test. www.tuv.com Test Report No.: 14023082 001 Date: 17.02.2010 Page 10 of 12 Spurious Radiated Emissions Subclause 15.227(b) RESULT: Pass Test Specification : FCC Part 15 Subclause 15.209 Test Method : ANSI 63.4-2003 Measurement Location : Semi Anechoic Chamber Measurement Distance : 3m Detector Function : Quasi Peak Measurement BW : 120 kHz Supply Voltage : DC 9V Measuring Frequency Range : 30-1000MHz Polarization: Vertical Polarization: Horizontal Remark: (1) ‘ * ‘ indicates the frequency of the emissions fall into the restricted band as defined in Section 15.205(a). They comply with the radiated emission limits specified in Section 15.209. (2) There is no spurious emission found between lowest oscillating frequency to 30 MHz. Frequency (MHz) Field strength at 3m (dBuV/m) Limit at 3m (dBuV/m) Delta to Limit (dB) 54.295 19.7 40.0 -20.3
81.443 16.7 40.0 -23.3
*108.590 17.5 43.5 -26.0
*135.738 11.3 43.5 -32.2
*162.886 20.7 43.5 -22.8
190.035 24.3 43.5 -19.2
217.180 22.8 46.0 -23.2
*244.328 23.2 46.0 -22.8
*271.478 27.0 46.0 -19.0
Frequency (MHz) Field strength at 3m (dBuV/m) Limit at 3m (dBuV/m) Delta to Limit (dB) 54.295 13.8 40.0 -26.2
81.443 10.0 40.0 -30.0
*108.590 11.7 43.5 -31.8
*135.738 9.2 43.5 -34.3
*162.886 15.8 43.5 -27.7
190.034 16.9 43.5 -26.6
217.180 13.8 46.0 -32.2
*244.328 16.2 46.0 -29.8
*271.476 18.5 46.0 -27.5
www.tuv.com Test Report No.: 14023082 001 Date: 17.02.2010 Page 11 of 12 Limit Subclause 15.209 Radiated emissions, which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limits specified in Section 15.209. Limit for Radiated Emission under Section 15.209: Frequency (MHz) Field strength (
V/m) Field strength (dB
V/m) Measurement distance (m) 30-88 100 20*log(100) = 40.0 3 88-216 150 20*log(150) = 43.5 3 216-960 200 20*log(200) = 46.0 3 960-2500 500 20*log(500) = 54.0 3 The emission limits shown in the above table are based on measurements employing a CISPR quasi-peak detector and above 1000 MHz are based on the measurements employing an average detector. www.tuv.com Test Report No.: 14023082 001 Date: 17.02.2010 Page 12 of 12 Bandwidth Measurement Port of Testing : Antenna port Detector Function : Peak Supply Voltage : DC 9V The field strength of any emissions appearing at the lower edge 26.96 MHz and upper edge 27.28 MHz are 46.63 dB and 43.08 dB below the carrier respectively. For test results refer to Appendix 1. www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No.: 14023082 001 Seite 1 von 1 Page 1 of 1 A 27.14944 MHz 1 PK 27.14944 MHz MAXH 27.14944 MHz * 27.14944 MHz * 27.14944 MHz RBW 3 kHz 27.14944 MHzVBW 3 kHz 27.14944 MHz SWT 75 ms 27.14944 MHz 27.14944 MHz 27.14944 MHz 27.14944 MHz 27.14944 MHz 27.14944 MHz 27.14944 MHz 27.14944 MHz 27.14944 MHz 27.14944 MHz Ref -10 dBm 27.14944 MHz Att 20 dB 27.14944 MHz Start 26.96 MHz 27.14944 MHz Stop 27.28 MHz 27.14944 MHz 32 kHz/ 27.14944 MHz -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 27.14944 MHz 1 Marker 1 [T1 ] -24.98 dBm 27.149440000 MHz 2 Delta 2 [T1 ] -46.63 dB -188.800000000 kHz 3 Delta 3 [T1 ] -43.08 dB 129.920000000 kHz MARKER 1 27.14944 MHz Date: 8.FEB.2010 15:26:32 Bandwidth measurement

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No.: 14023082 001 Seite 1 von 1 Page 1 of 1 Set-up for Radiation Emission (Transmitter) Set-up for Radiation Emission (Transmitter)
