NEX-9651-27TXRC Toy Transmitter

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No.: 14026478 001 Seite 6 von 6 Page 6 of 6 User manual

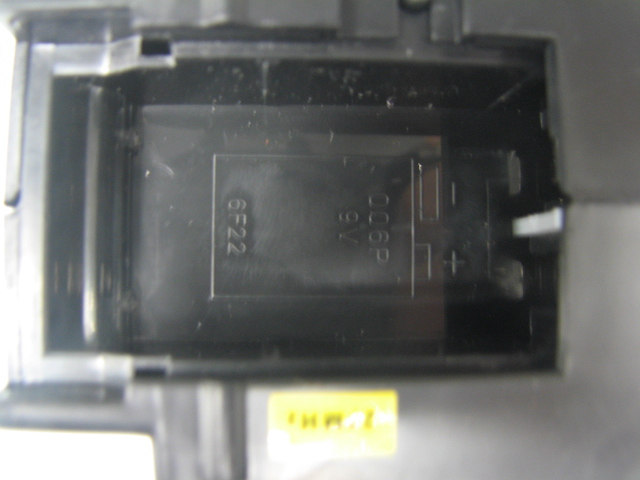

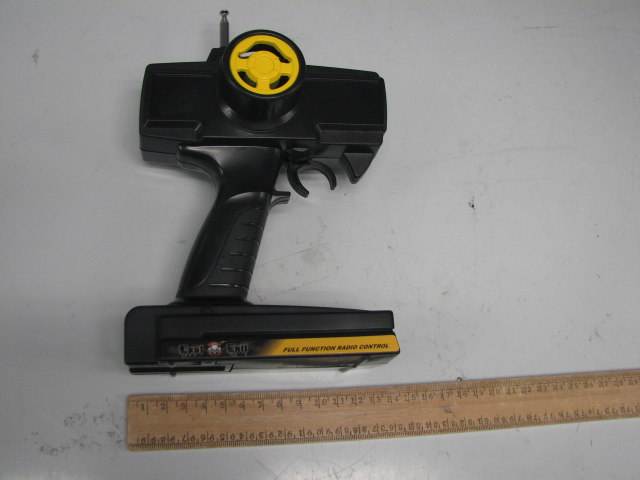

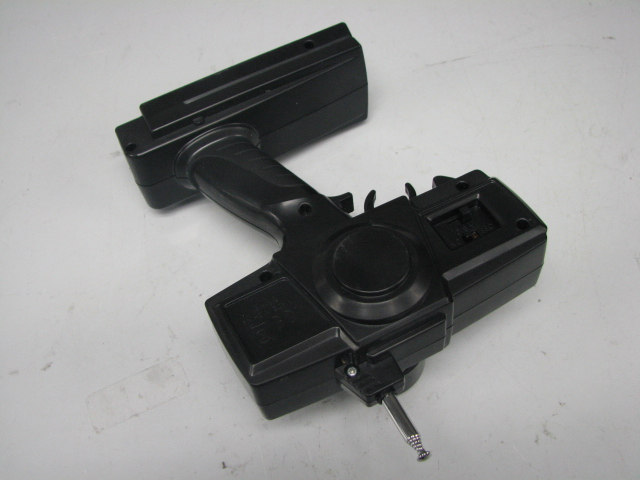

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14026478 001 Seite 1 von 2 Page 1 of 2 Transmitter (External view) Transmitter (External view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14026478 001 Seite 2 von 2 Page 2 of 2 Transmitter (External view) Transmitter (External view)

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No.: 14026478 001 Seite 5 von 6 Page 5 of 6 FCC label and location

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14026478 001 Seite 1 von 2 Page 1 of 2 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14026478 001 Seite 2 von 2 Page 2 of 2 Transmitter (Internal view)

www.tuv.com Test Report No.: 14026478 001 Date: 26.04.2011 Page 2 of 12 Test Summary Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement Result: Pass www.tuv.com Test Report No.: 14026478 001 Date: 26.04.2011 Page 3 of 12 Contents List of Test and Measurement Instruments.........................................................4 General Product Information ................................................................................5 Product Function and Intended Use.............................................................................................5 Ratings and System Details...........................................................................................................5 Independent Operation Modes......................................................................................................6 Submitted Documents ...................................................................................................................6 Related Submittal(s) Grants ..........................................................................................................6 Test Set-up and Operation Mode..........................................................................7 Principle of Configuration Selection ............................................................................................7 Test Operation and Test Software ................................................................................................7 Special Accessories and Auxiliary Equipment ............................................................................7 Countermeasures to achieve EMC Compliance ..........................................................................7 Test Methodology ..................................................................................................8 Radiated Emission..........................................................................................................................8 Field Strength Calculation .............................................................................................................8 Test Results ...........................................................................................................9 Radiated Emission of Carrier Frequency Subclause 15.227(a) ..............................................9 Spurious Radiated Emissions Subclause 15.227(b) ..............................................................10 Bandwidth Measurement .............................................................................................................12 Appendix 1 Test Protocol Appendix 2 Test Setup Appendix 3 EUT External Photo Appendix 4 EUT Internal Photo Appendix 5 FCCID Label, Block Diagram, Schematics, BOM and User manual www.tuv.com Test Report No.: 14026478 001 Date: 26.04.2011 Page 4 of 12 List of Test and Measurement Instruments Hong Kong Productivity Council (Registration number: 90656) Equipment used Manufacturer Model No. S/N Due Date Semi-anechoic Chamber Frankonia Nil Nil 27-Apr-11 Test Receiver R & S ESU8 100141 25-May-11 Bi-conical Antenna R & S HK116 100242 13-Apr-12 Log Periodic Antenna R & S HL223 841516/020 13-Apr-12 Coaxial cable 50ohm Rosenberger RTK081- 05S-05S- 10m LA2-001-10M / 002 08-Dec-11 Microwave amplifer 0.5- 26.5GHz, 25dB gain HP 83017A 3950M00241 03-Oct-11 High Pass Filter (cutoff freq. =1000MHz) Trilithic 23042 9829213 30-Oct-11 Horn Antenna EMCO 3115 9002-3351 16-Apr-12 FSP 30 Spectrum Analyser R & S FSP 30 100286 17-Sep-12 Active Loop Antenna EMCO 6502 9107-2651 06-Feb-11 www.tuv.com Test Report No.: 14026478 001 Date: 26.04.2011 Page 5 of 12 General Product Information Product Function and Intended Use The equipment under test (EUT) is a transmitter for a RC toy car operating at 27.145 MHz. The EUT has two control rods for commanding the forward, backward, left, right movement and Turbo speed button of the associated receiver. Ratings and System Details Transmitter Frequency range : 27.145MHz Number of channels : 1 Type of antenna : External telescopic antenna Power supply : Battery operated 9V Ports : none Protection Class : III www.tuv.com Test Report No.: 14026478 001 Date: 26.04.2011 Page 6 of 12 Independent Operation Modes The basic operation modes are: - transmitting control signal for the RC toy car. For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - User manual - Label artwork - Bill(s) of material Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14026478 001 Date: 26.04.2011 Page 7 of 12 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasures to achieve EMC Compliance - none www.tuv.com Test Report No.: 14026478 001 Date: 26.04.2011 Page 8 of 12 Test Methodology Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2003. The equipment under test (EUT) was placed at the middle of the 80 cm height turntable, and the turntable is 3 meters far from the measuring antenna. During the testing, the EUT was operated standalone and arranged for maximum emissions. The EUT was tested in three orthogonal planes. The investigation is performed with the EUT rotated 360 , the antenna height scanned between 1m and 4m, and the antenna rotated to repeat the measurements for both the horizontal and vertical anten…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No.: 14026478 001 Seite 1 von 1 Page 1 of 1 Att 30 dB 27.14752 MHz 1 PK 27.14752 MHz MAXH 27.14752 MHz A 27.14752 MHz * 27.14752 MHz * 27.14752 MHz * 27.14752 MHz RBW 3 kHz 27.14752 MHzVBW 3 kHz 27.14752 MHz SWT 75 ms 27.14752 MHz 27.14752 MHz 27.14752 MHz 27.14752 MHz 27.14752 MHz 27.14752 MHz 27.14752 MHz 27.14752 MHz 27.14752 MHz 27.14752 MHz Ref 10 dBm 27.14752 MHz Start 26.96 MHz 27.14752 MHz Stop 27.28 MHz 27.14752 MHz 32 kHz/ 27.14752 MHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 27.14752 MHz 1 Marker 1 [T1 ] -5.48 dBm 27.147520000 MHz 2 Delta 2 [T1 ] -51.47 dB -186.880000000 kHz 3 Delta 3 [T1 ] -42.07 dB 132.480000000 kHz MARKER 1 27.14752 MHz Date: 21.APR.2011 12:39:31 Bandwidth measurement

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No.: 14026478 001 Seite 1 von 1 Page 1 of 1 Set-up for Radiation Emission (Transmitter) Set-up for Radiation Emission (Transmitter)
